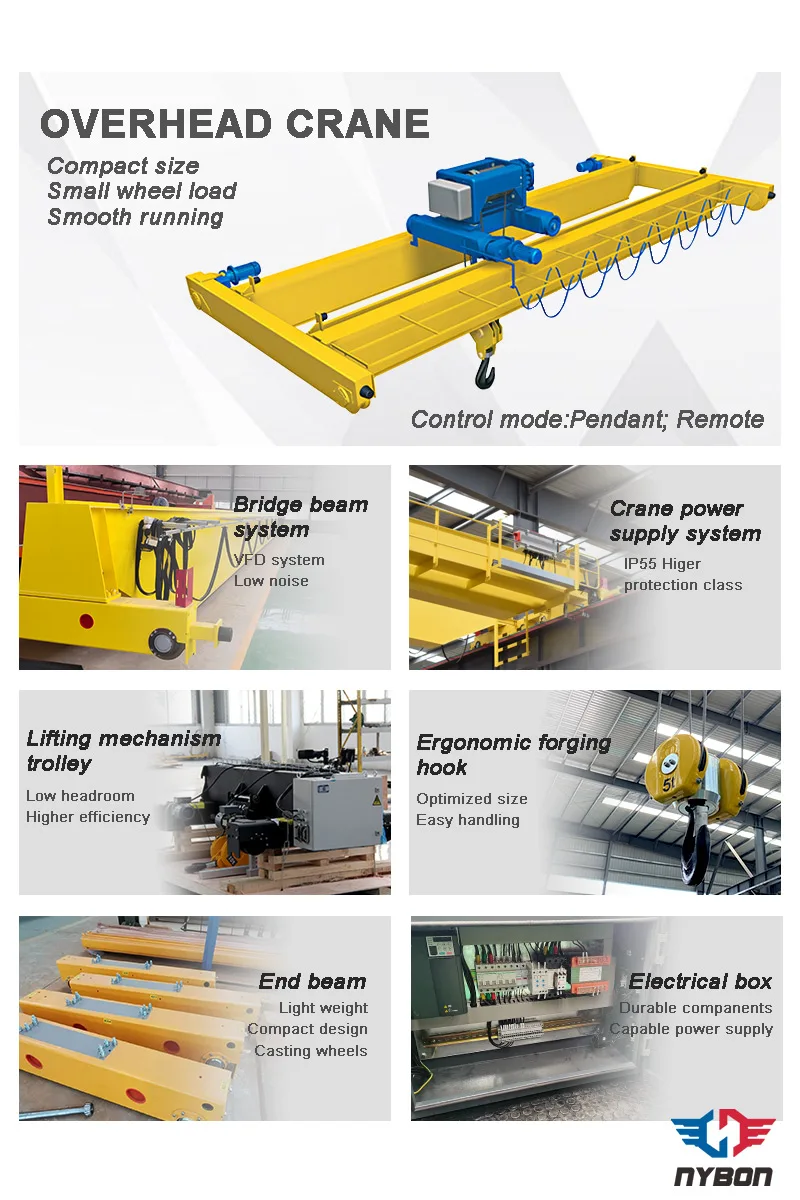

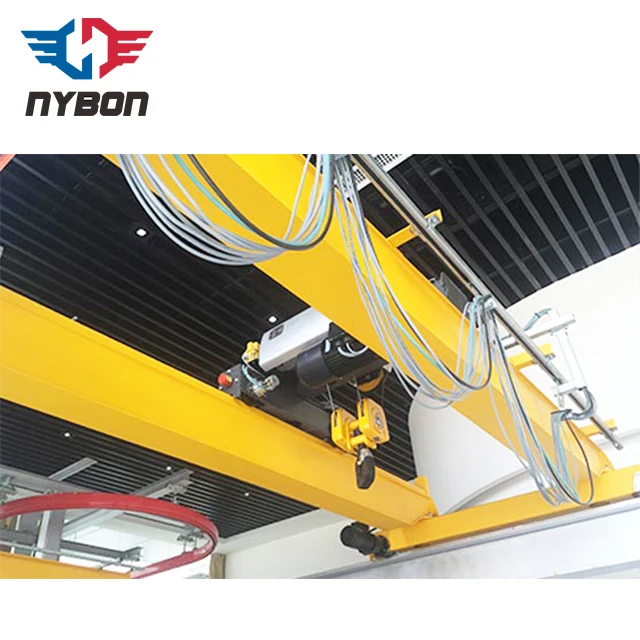

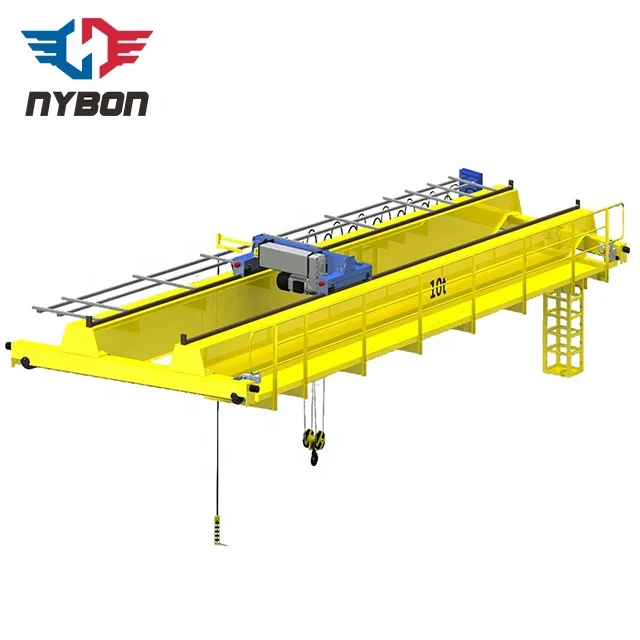

Customized Electric Industrial Double Girder Roof Radio Control Overhead Crane 5~50 Ton

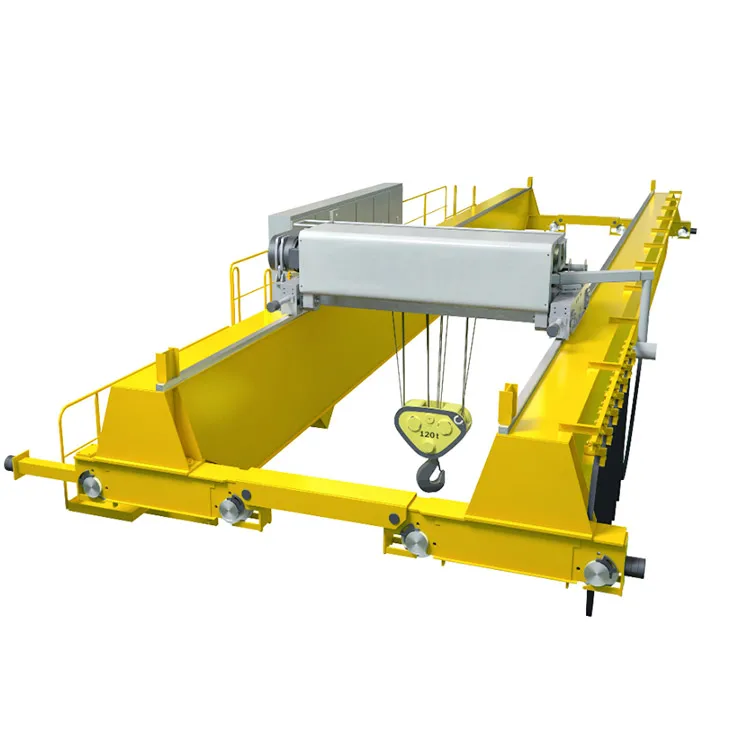

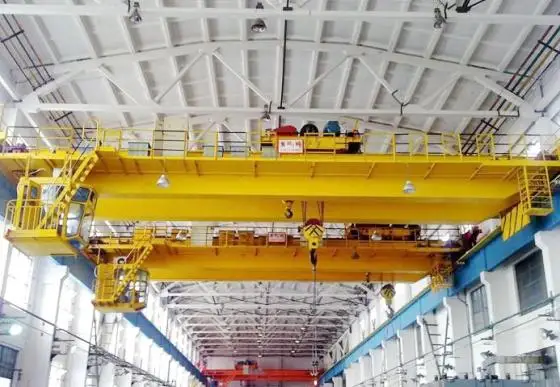

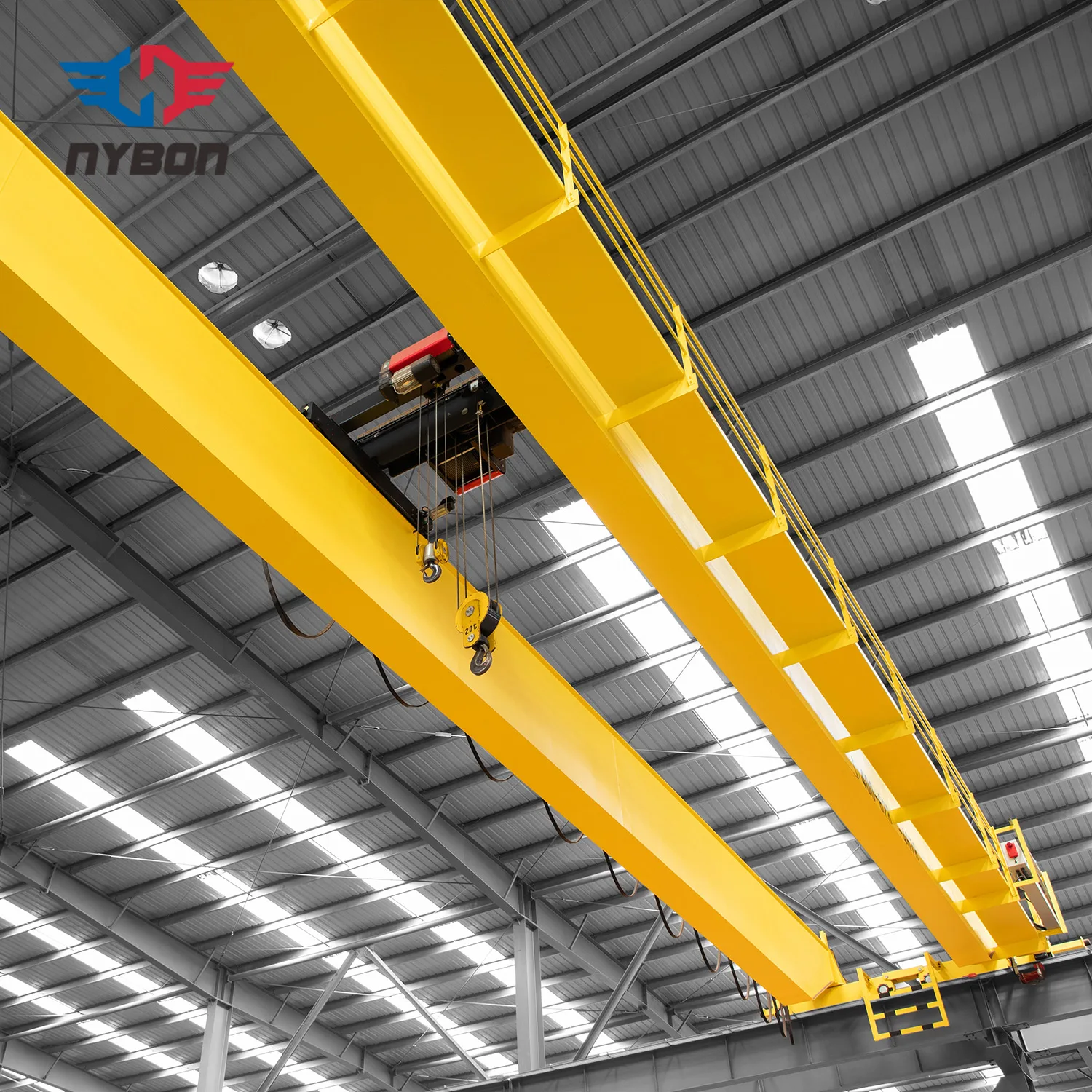

Double Girder Overhead Crane is composed of box type bridge frame, lifting trolley, crane traveling mechanism, and electrical system. It is an excellent choice where high speeds and heavy service are required. As the widely used hoisting machinery currently especially is suitable for working at warehouses and freight yard and other department it is prohibited to use the equipment in the combustible, explosive or corrosives environment.
It is rely on the bridge frame along the workshop orbital direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. High lifting capacity of this crane is designed with two hooks that means two independent sets of hoisting mechanism.
The main hook is used to lift heavy objects while the auxiliary used to lift light objects,the auxiliary can also be used for collaborative main hook tilting or tipping the material.














Product Paramenters


Mechanism
Item
Unit
Result
Item
Lifting capacity
ton
5,10,16,20,25/5,32/10,50/10
Lifting height
m
6-30
Span
m
7.5-25.5
Working environment temperture
°C
-25~40
Speed
Main Hook
m/min
3(0.3/3)-8(0.8/8)
Auxiliary Hook

7(0.7/7)-8(0.8/8)
Trolley
Ground

20 30
Room

30 40 45
Working system

A3-A5
Power source

Three-Phase A C 50HZ 380V
We can design and manufacture all kinds of non-standard product according to your requirement




QD Double Girder Overhead Crane
Capacity: 5-450/100t
Span: Max.31m
Speed:Single speed,Double speed,VFD speed control
Lifting Tool: Electric trolley
Usage:Powerplants,Workshop,Warehouse,Cargo storage areas,Docks

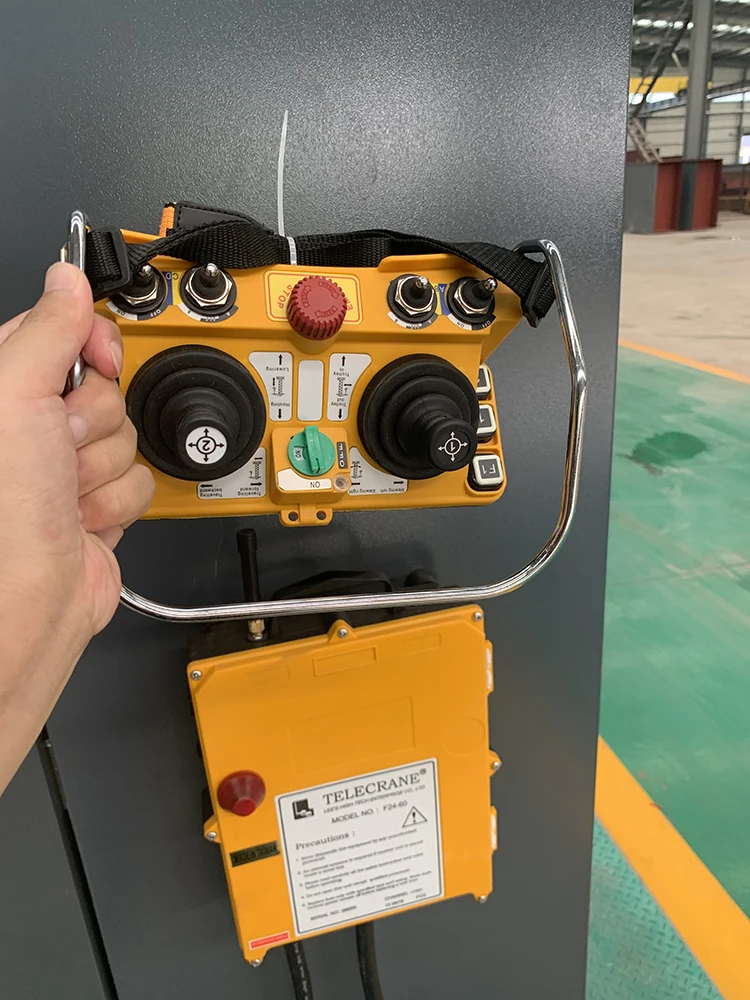

Control:Pendant Remote control,Cabin control
Working Class:A5/A6

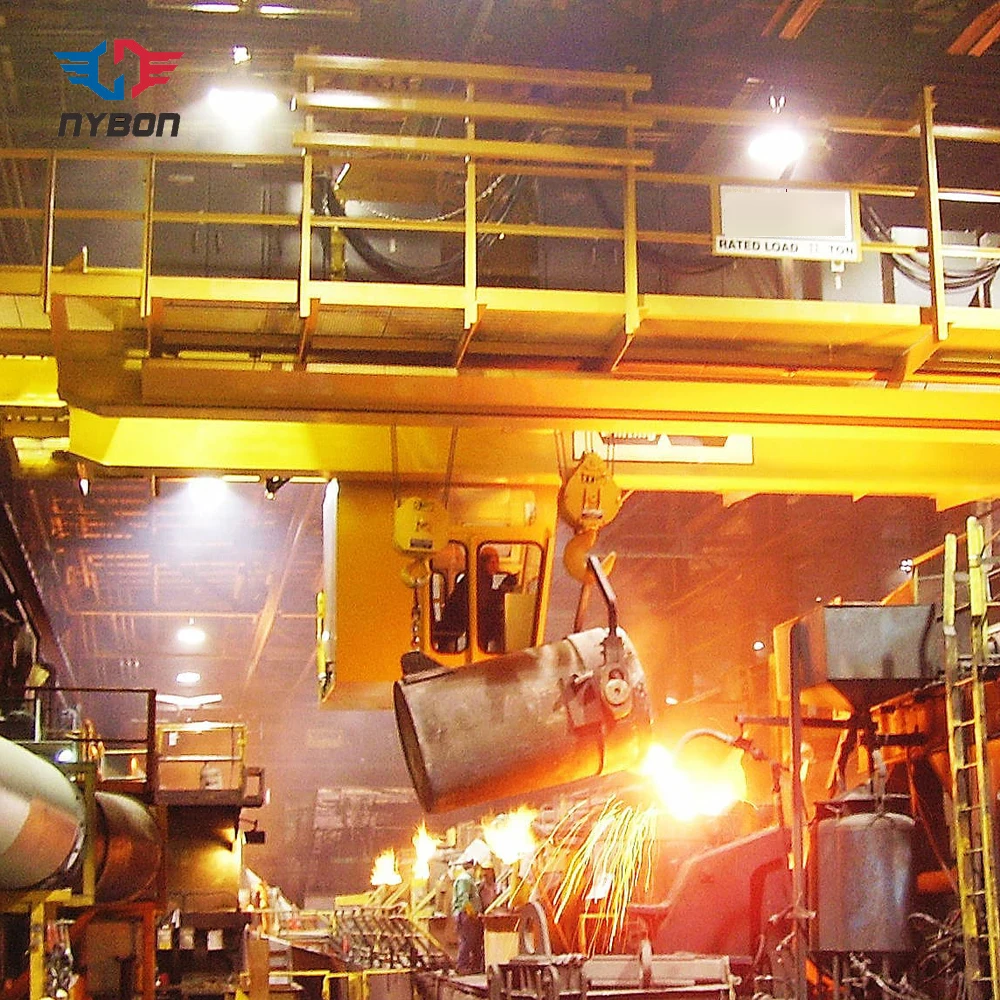

QDY/YZ Double Girder Overhead Crane
Capacity: 5-320/80t
Span: Max.31.5m
Speed:Single speed,Double speed,VFD speed control
Lifting Tool: Hook,Gantry hook,Rotatable spreader
Usage: Lifting and Transferring Liquid Ladles
Control: Pendant control,Remote control,Cabin control
Working Class:A7-A8

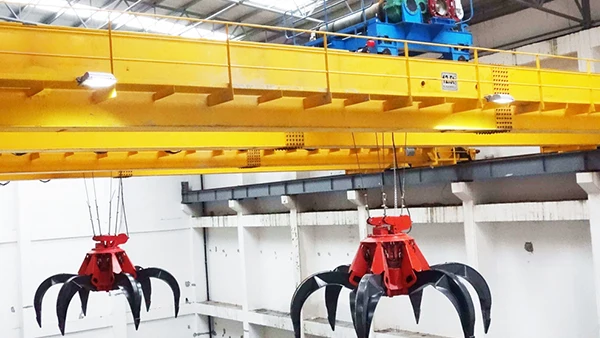

QZ Double Girder Overhead Crane
Capacity:5-20t
Span:Max.31.5m
Speed: Single speed,Double speed
Lifting Tool:Grab bucket
Usage: Power plants,Freight yards,Workshops,Docks
Control:Pendant control,Remote control,Cabin control
Working Class: A6-A7

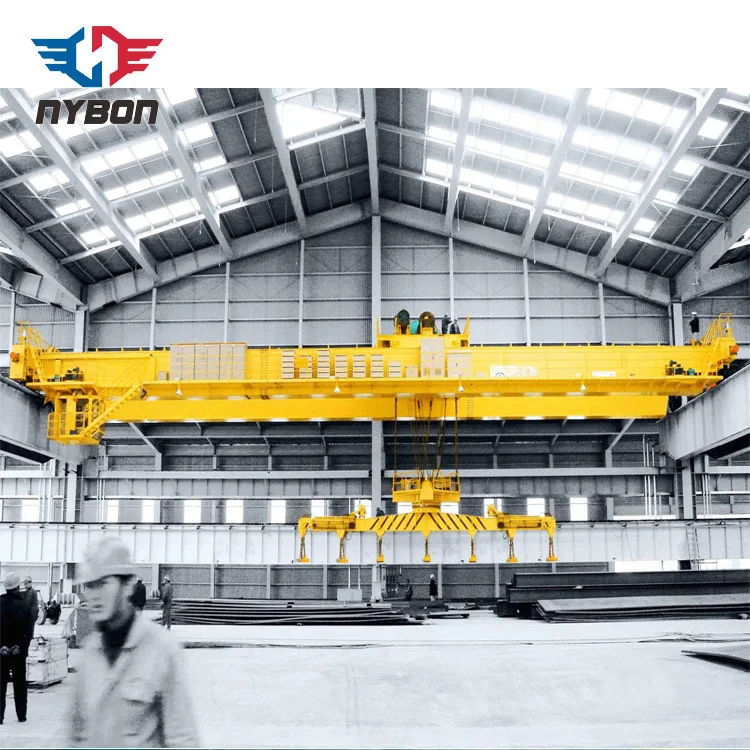

QC Double Girder Overhead Crane
Capacity:5-50/10t
Span:Max.31.5m
Speed: Single speed,Double speed
Lifting Tool:Disk
Usage: Steel plants,Shipyards,Ports,Yards
Control:Pendant control,Remote control,Cabin control
Working Class: A6-A7




Certifications




We have laser cutting machine, CNC plasma cutting system, box beam forming production line, automatic submerged arc welding system, CNC boring and miling machine, etc. For winches & electric hoists, we have test platform to test each products before delivery to make sure the quality and performance; Under our strictly mangement regulation, our products certificated by EAC, CE, ISO, CCS, BV, RMRS and many other certifcates;


Exhibition

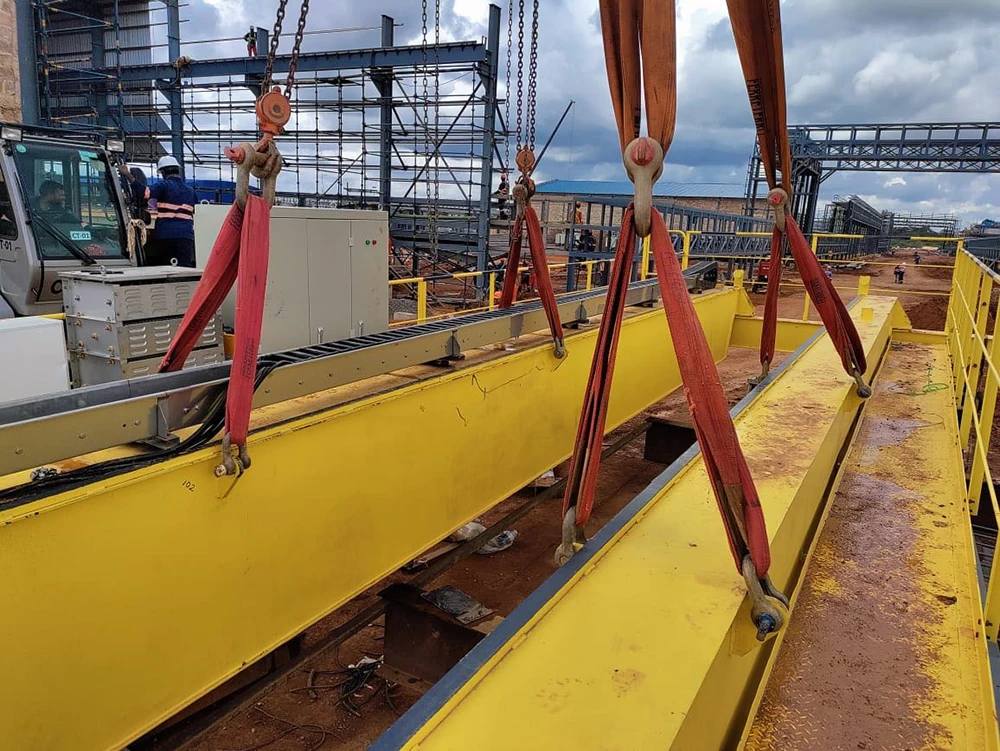

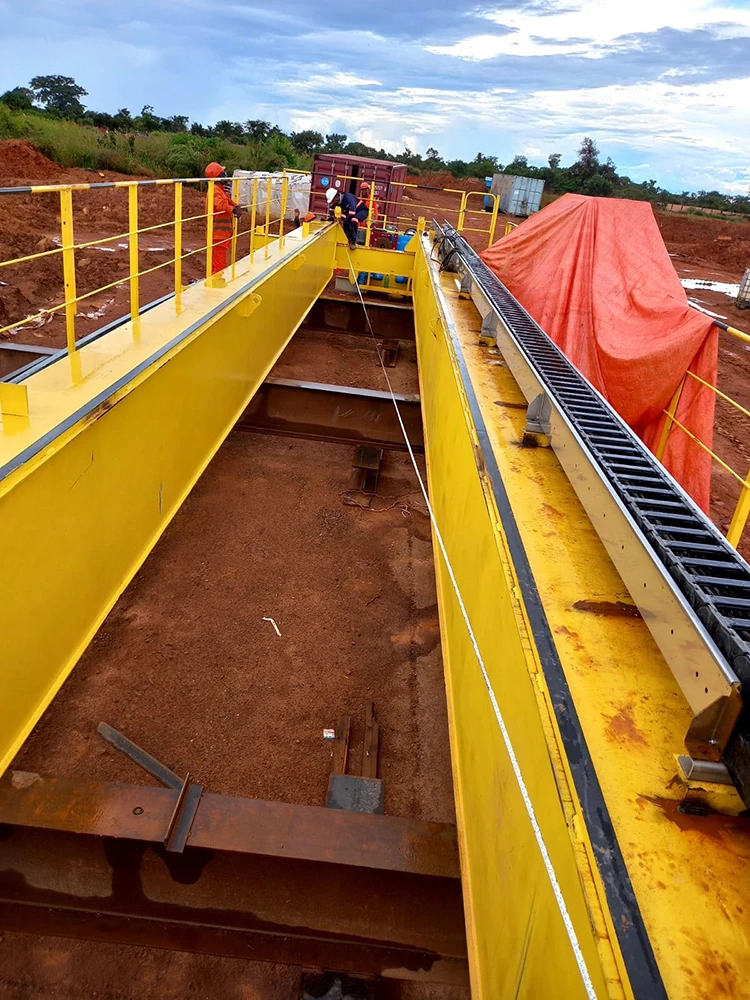

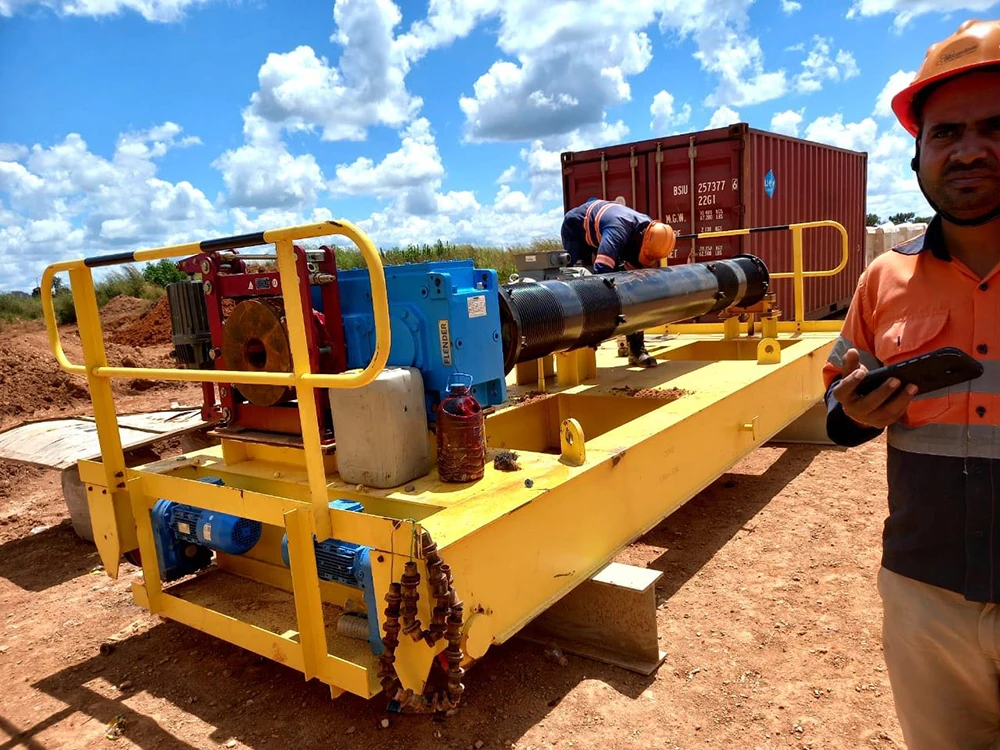

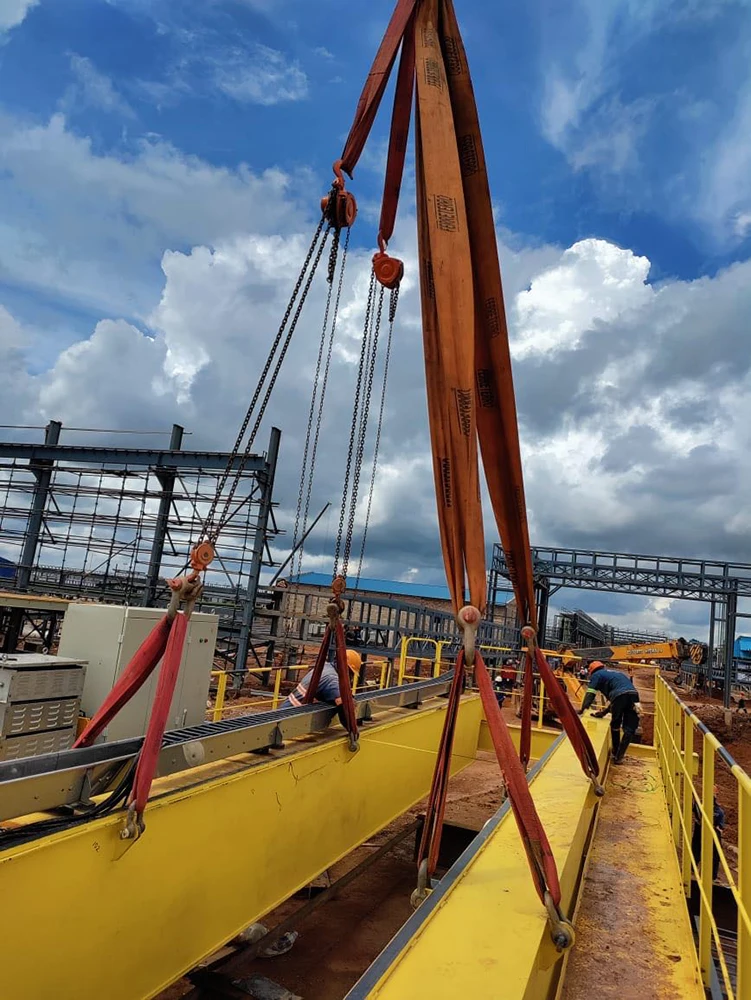

Successful Project

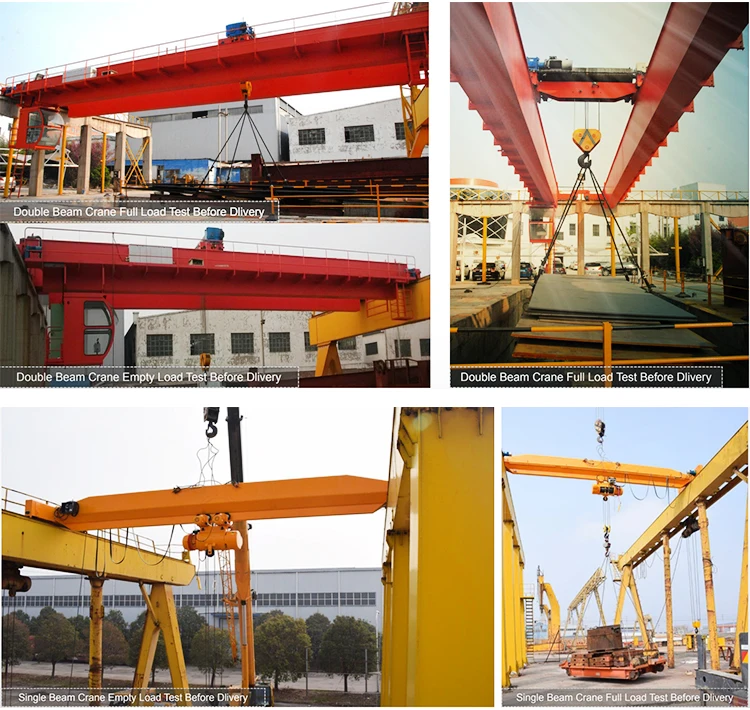

Testing




Customer Praise

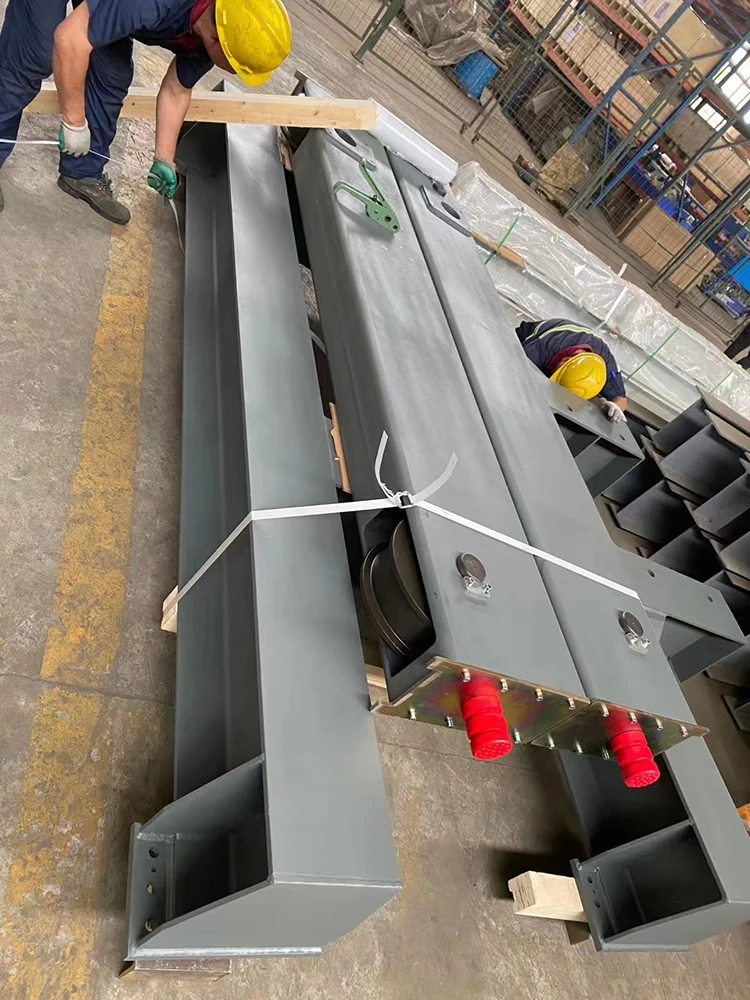

Delivery








Company Profile




Nybon Machinery is a leader in providing bridge cranes,gantry crane,port crane,ship cranes,electric winches,hydraulic winches,diesel winches,electric hoist and relative components for shipyard,automotive,material handling, specialty machinery, and workshop solutions. Our diverse portfolio also includes a wide range of lifting products for industrial, commercial and specialty applications.Our company also welcome O E M and ODM orders.
NYBON, JUST FOR YOUR TRUST!




Q.Can i have a price?
After getting your parameters,we will offer you a accurate price.
Q.Can I customize products?
Yes,we can offer OEM and ODM services
Q.What’s your delivery period?
Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q.Do you have engineer oversea installation service?
Yes; We have;
Q.What kinds of products do you have?
All kinds of industrial electric/hydraulic/diesel winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;Screw Hoist; etc.
Q.If we need urgently, can you delivery soon?
After we confirming the parameters and sign the order, we will give priority to the emergency order to meet your needs;
Q.Do you offer after-sales service?
We have after-sales team to support you.
Q.How long will it take to ship to my country?
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide these details so that I can quote the most cost-effective option.

Dear friends, in order to offer you the suitable cranes, please provide the following parameters:
Could you supply your workshop's layout?
What goods will you lift?
What is the crane net working time per day?
Whatis the lifting height?
What is the span?(center distance between two running rails)
What is the loading capacity?
