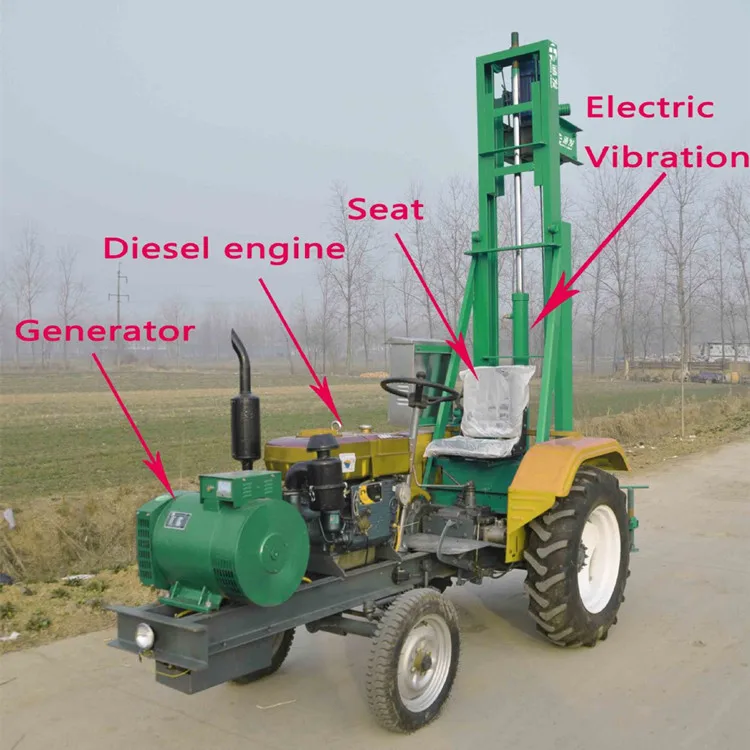

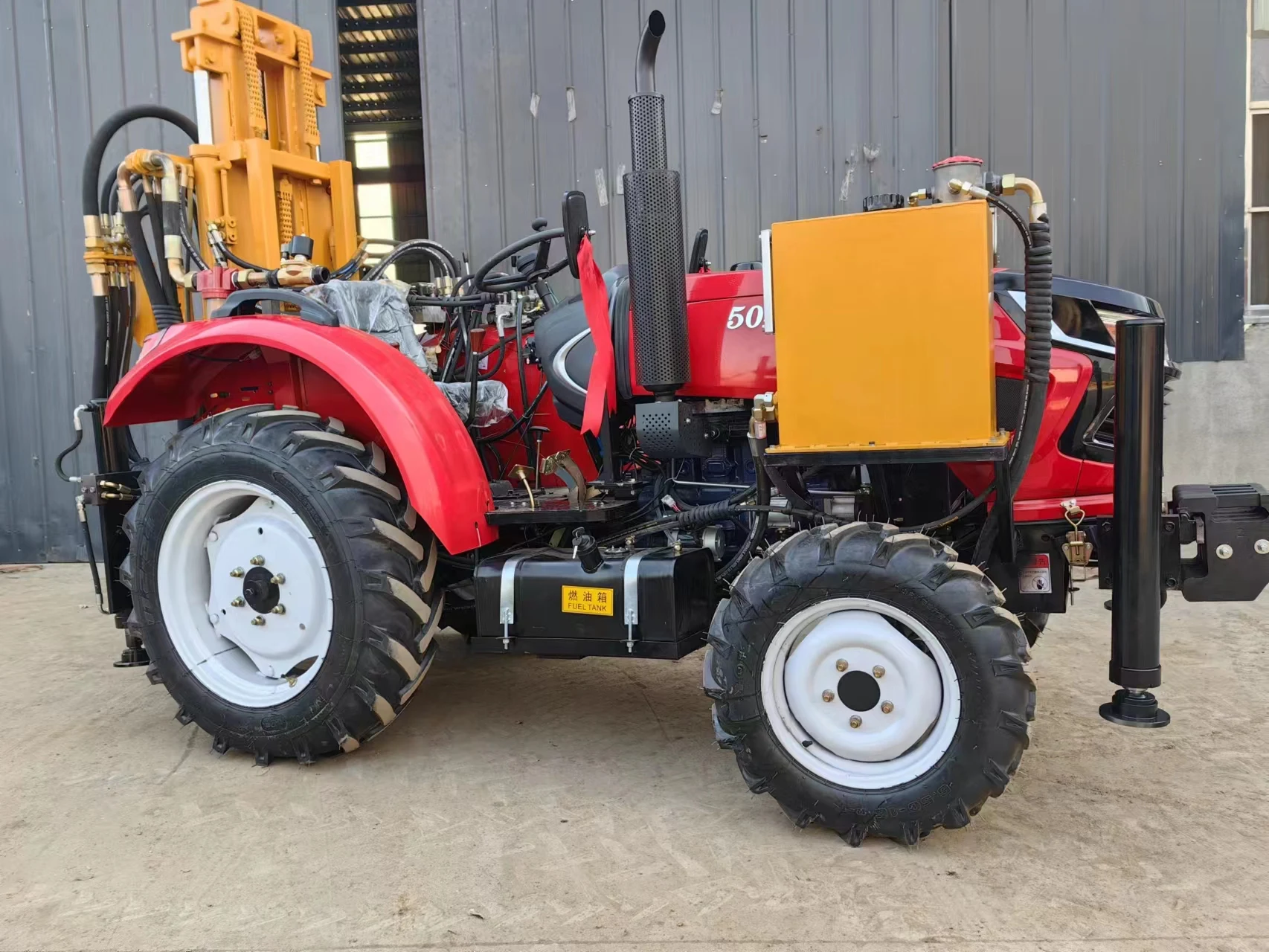

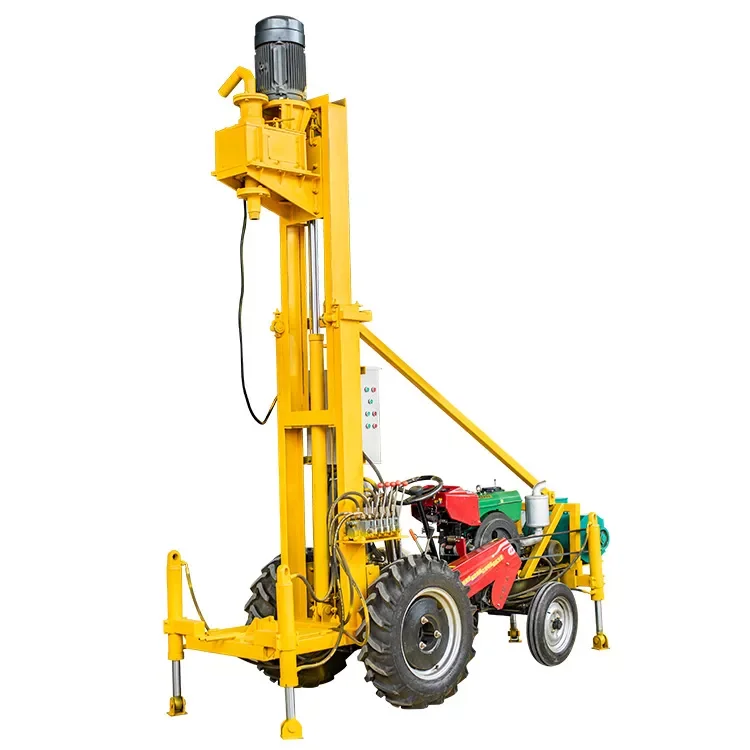

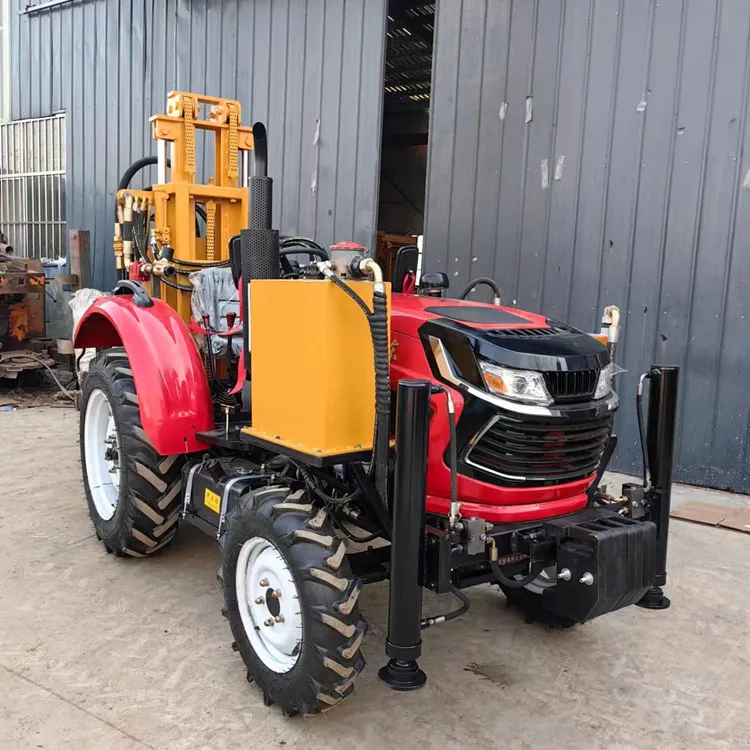

Tractor mounted water well drilling machine 220M diesel water well drilling rig
- Category: >>>
- Supplier: Shandong Hongrun Heavy Machinery Co. Ltd.
Share on (1601039211778):
Product Overview
Description
Product Description

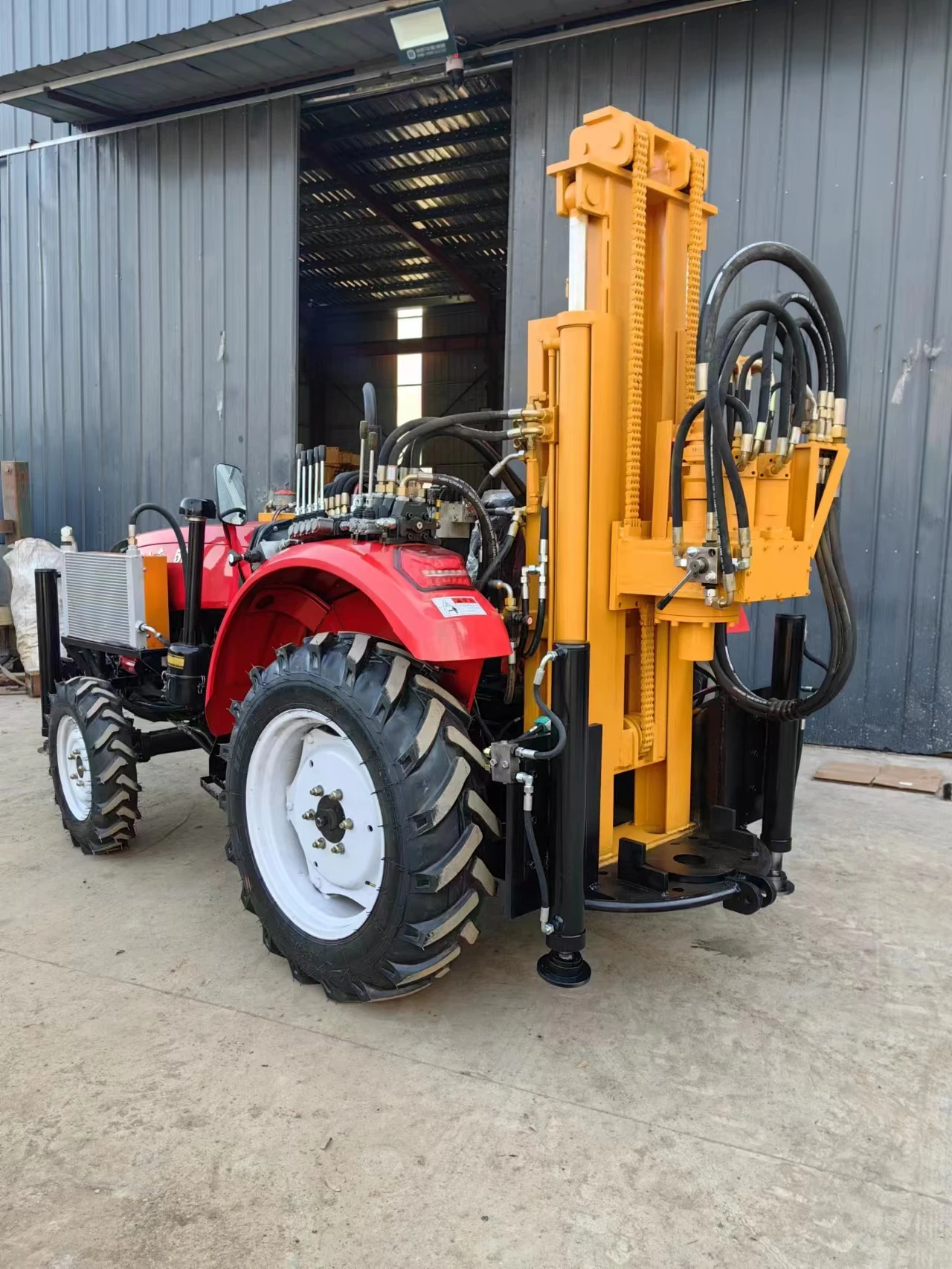

Introduction of drilling rig

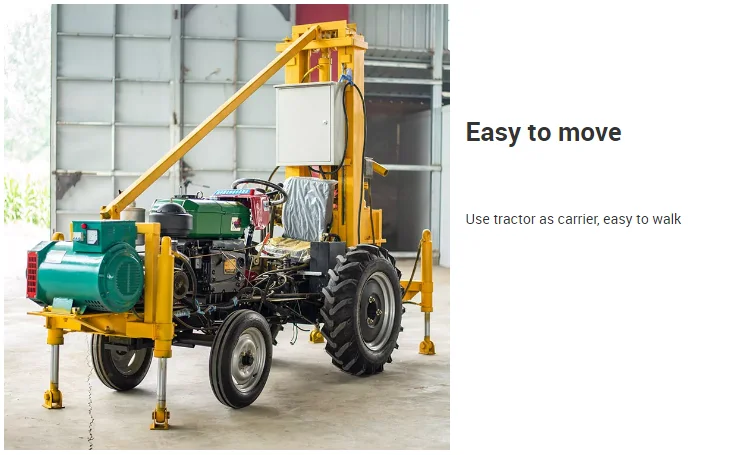

The drilling rig is a light, high-efficiency and multi-functional pneumatic drilling equipment powered by a new type of high-horsepower tractor. The efficiency of pneumatic drilling into rock layers is dozens of times that of ordinary rotary drilling rigs, and the applicability to the formation is stronger. It is mainly suitable for drilling small-diameter water wells, geothermal air-conditioning holes and wells for other purposes, especially for water intake projects in mountainous areas and rock formations. In particular, it solves the construction problem of rotary drilling rigs for
small drilling rigs in hard rock layers, and can work efficiently under various geological structures.
small drilling rigs in hard rock layers, and can work efficiently under various geological structures.
Specification
Drill model | HR-500 |
Drill diameter | 130-254mm |
Drilling depth | 100-220m |
Motor power | 50HP |
Voltage | 220V |
Weight | 2500kg |
Maximum lifting weight | 12000kg |
Lifting height | 3600*1600*2200mm |
Tractor chassis | The distance of the front wheel: 900mm Rear wheel distance: 1080mm Wheel axle distance between front and rear wheels: 1400mm |
Drill pipe diameter | 76mm |
Drill rod replacement method | Automatic change |
Drill rod replacement method | Automatic rod unloading, manual rod change |
Features of drilling rig

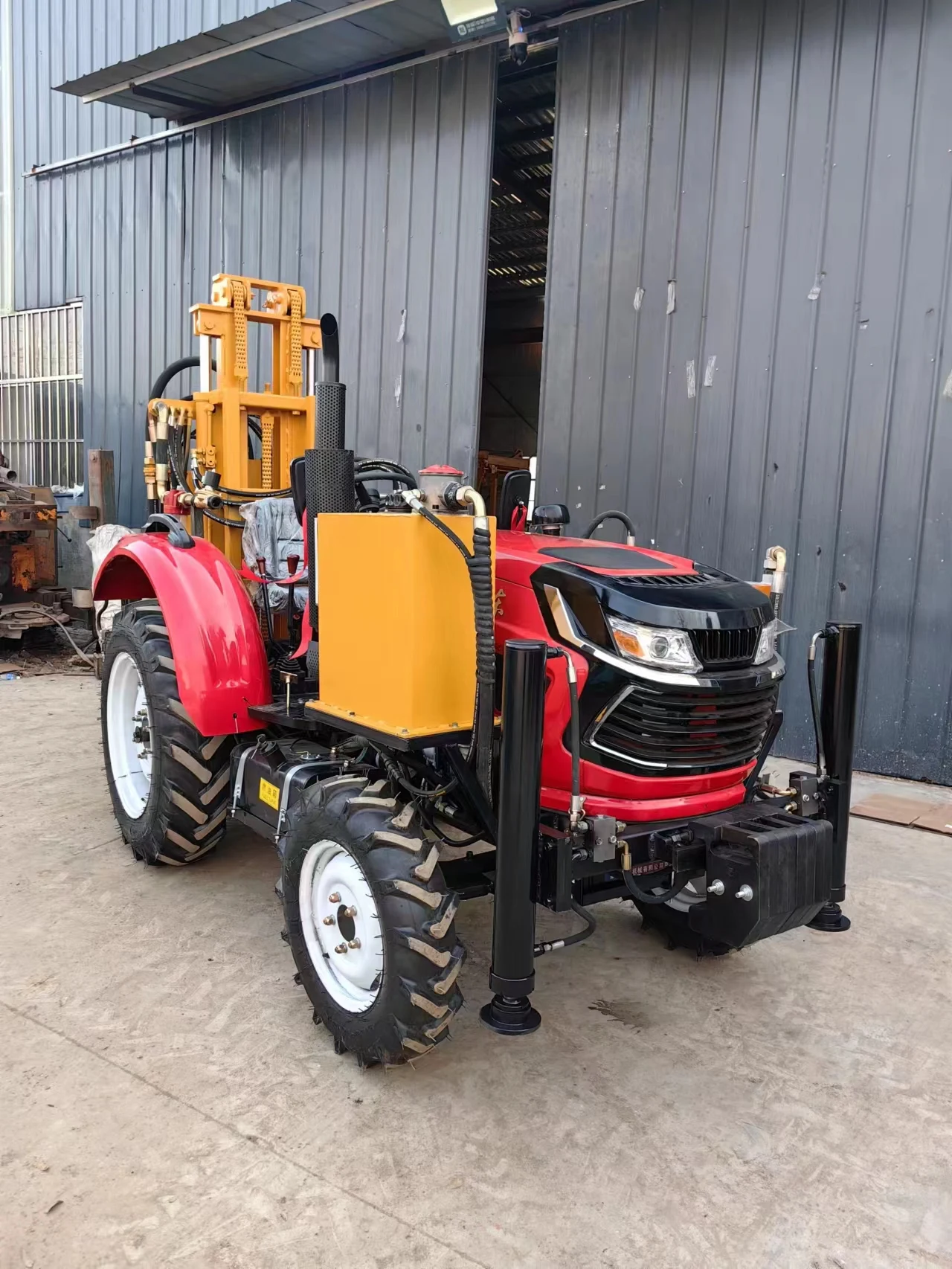

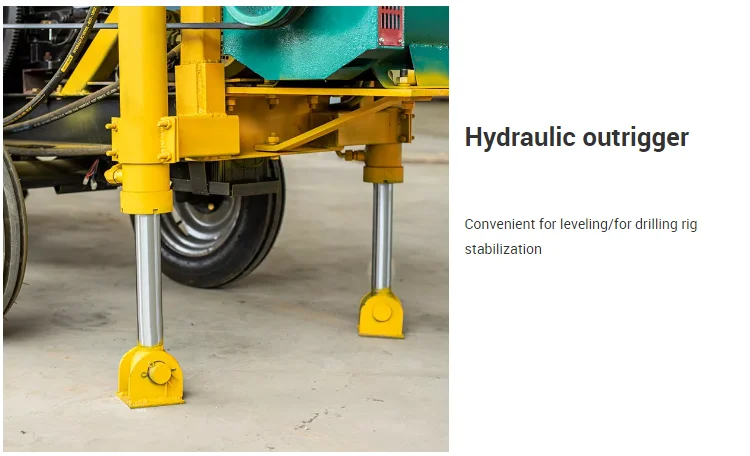

1. Hydraulic outriggers are used at the front and rear of the drilling rig, with reliable support, and the level adjustment of
the drilling rig is more convenient and quick.
2. The tower structure is a composite tower, which is welded by national standard HW steel, with higher strength, more reliable support, and in the transportation state, the tower height is only 2.15 meters, which completely solves the problem of entry and entry in rural construction. .
3. The alternator and hydraulic oil pump are driven by the tractor's own high-power diesel engine.

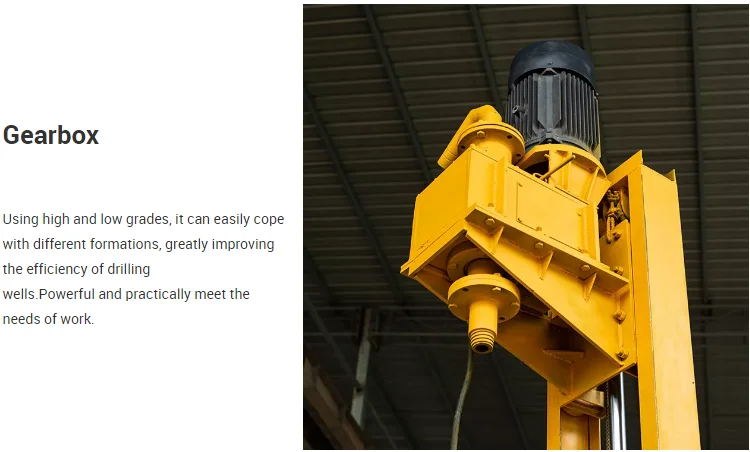

4. The power head adopts 380V AC motor to connect the cycloidal pinwheel reducer to drive the main shaft, with large torque and stable rotation speed.
5. The power head lifting and propulsion adopts high-strength plate chain, which completely eliminates the potential problem of wire rope connection.
6. The lifting and propulsion of the power head are realized by double oil cylinders, the action is stable, and the propulsion
and lifting force are large.
7. The drilling rig can be advanced and lifted with optional speed, which is more adaptable and greatly improves work efficiency.

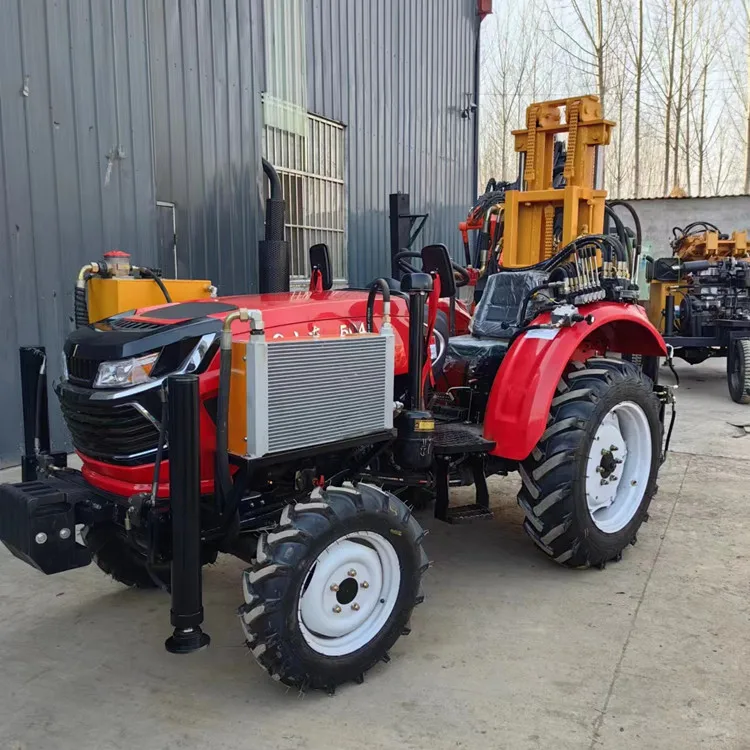

8. The hydraulic oil is cooled by forced air cooling through the plate-fin oil cooler, which maximizes the service life of the
hydraulic oil and improves the working reliability of the entire hydraulic system.
the drilling rig is more convenient and quick.
2. The tower structure is a composite tower, which is welded by national standard HW steel, with higher strength, more reliable support, and in the transportation state, the tower height is only 2.15 meters, which completely solves the problem of entry and entry in rural construction. .
3. The alternator and hydraulic oil pump are driven by the tractor's own high-power diesel engine.
4. The power head adopts 380V AC motor to connect the cycloidal pinwheel reducer to drive the main shaft, with large torque and stable rotation speed.
5. The power head lifting and propulsion adopts high-strength plate chain, which completely eliminates the potential problem of wire rope connection.
6. The lifting and propulsion of the power head are realized by double oil cylinders, the action is stable, and the propulsion
and lifting force are large.
7. The drilling rig can be advanced and lifted with optional speed, which is more adaptable and greatly improves work efficiency.
8. The hydraulic oil is cooled by forced air cooling through the plate-fin oil cooler, which maximizes the service life of the
hydraulic oil and improves the working reliability of the entire hydraulic system.
