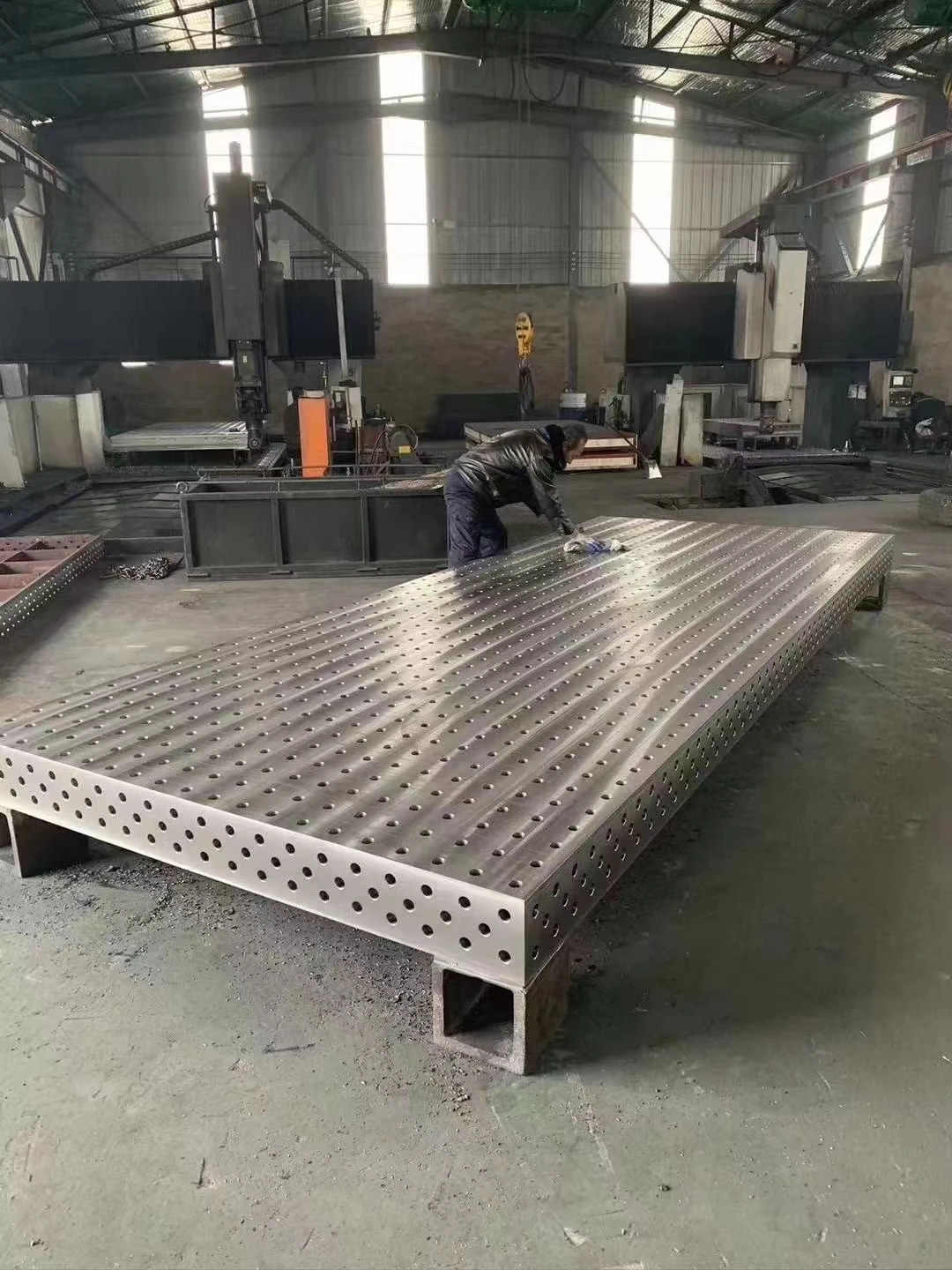

High quality Nitriding 3D steel flexible welding table
- Category: >>>
- Supplier: Botou Xintian Environmental Protection Equipment Co. Ltd.
Share on (1601039248359):
Product Overview
Description
Product Overview
China Top Quality Hoston 2D welding table plate 3d metal welding table with jigs & welding fixtures
It is processed by CNC machining center. It is divided into two series according to the hole system: Φ28 and Φ16. It is divided into two-dimensional flexible combination tooling and three-dimensional flexible combination tooling according to the structure.The tooling platform is divided into steel piece platform and cast iron platform and board platform according to materials. The grid is engraved with corresponding grid lines. According to customer requirements, the millimeter scale can be drawn on the two right sides of the platform.
3D welding table —— D16 series
Be made of cast iron and steel
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.24mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs.
Be made of cast iron and steel
5 precision machined working surfaces
Hole diameter: 16mm
Grid lines: 50mm*50mm
Hole pitch: 50mm
Material thickness: approx.24mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs.
3D welding table —— D28 series
Be made of cast iron and steel
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
Product Features
3D welding table —— D28 series
Be made of cast iron and steel
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
Be made of cast iron and steel
5 precision machined working surfaces
Hole diameter: 28mm
Grid lines: 100mm*100mm
Hole pitch: 100mm
Material thickness: approx.23mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs

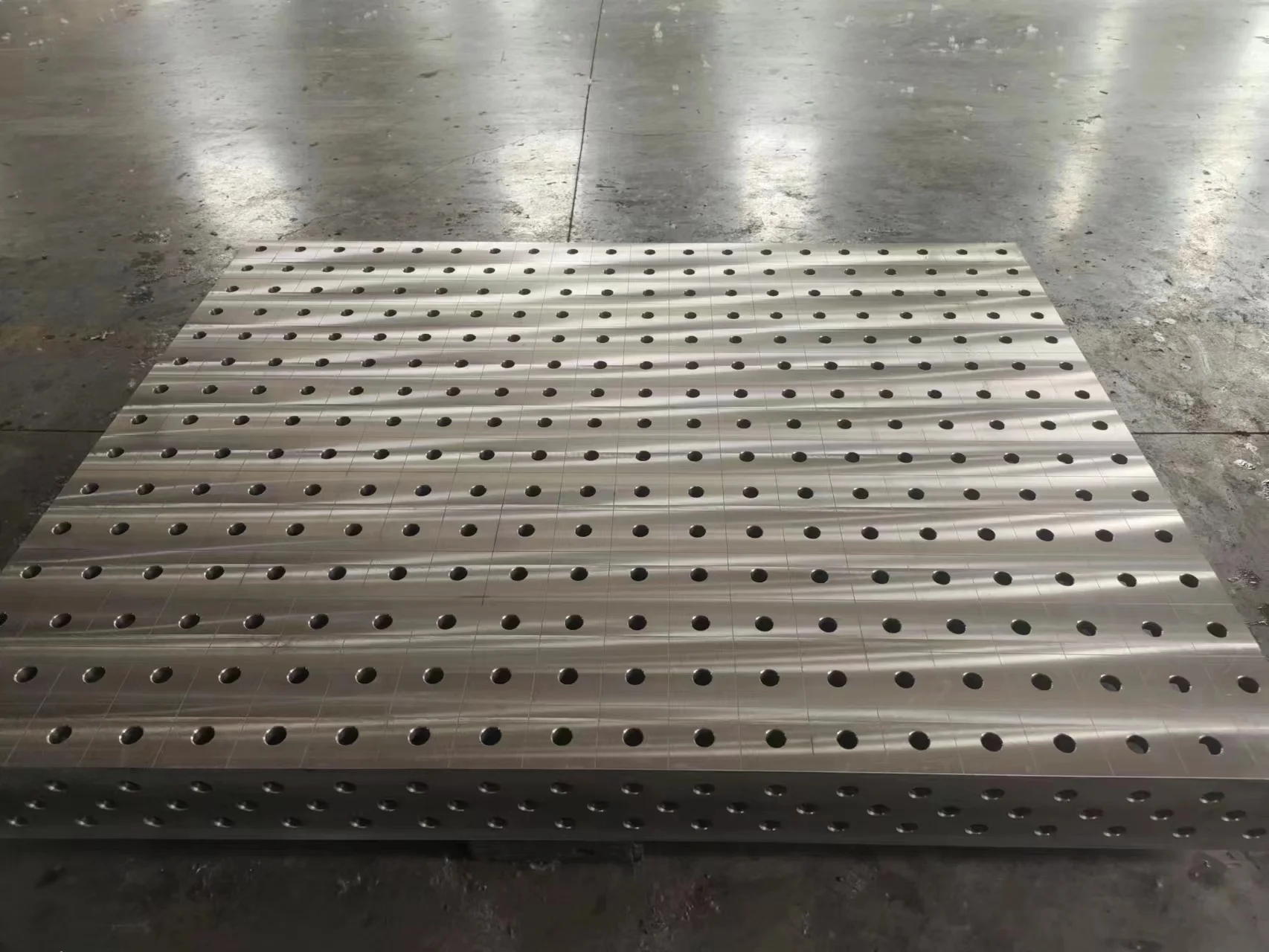

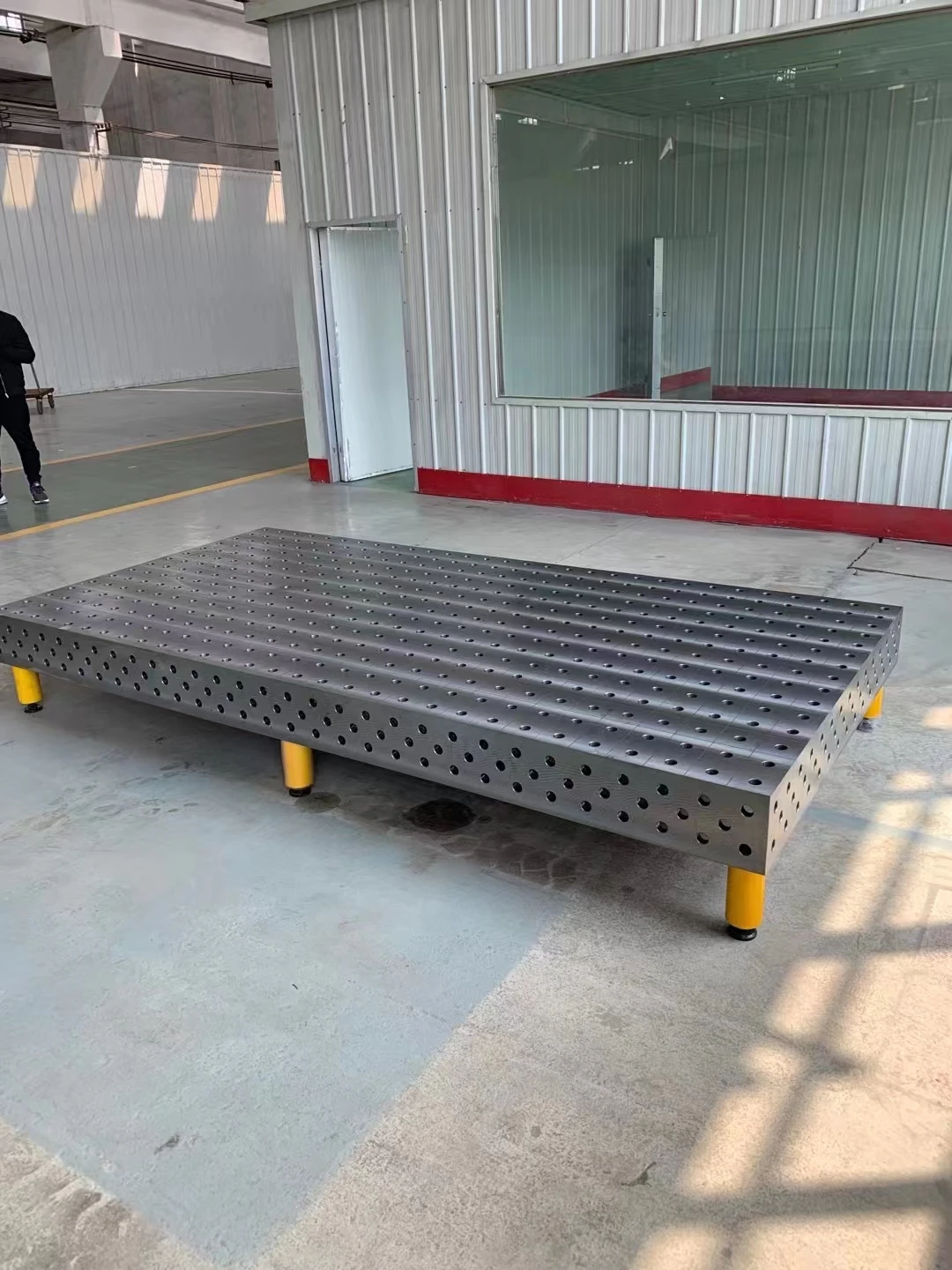

3D Welding Table
3D Welding Table
3D Welding Table
Product Specifications
NO, | Welding Table Specification | Dimension | Hole Diameter | Material |
1 | 4000mm*2000mm | 3D/2D | D28/D16 | Cast Iron /Q345 steel |
2 | 3000mm*2000mm | 3D/2D | D28/D16 | Cast Iron /Q345 steel |
3 | 3000mm*1500mm | 3D/2D | D28/D16 | Cast Iron /Q345 steel |
4 | 2400mm*1200mm | 3D/2D | D28/D16 | Cast Iron /Q345 steel |
5 | 2000mm*1000mm | 3D/2D | D28/D16 | Cast Iron /Q345 steel |
6 | 1500mm*1000mm | 3D/2D | D28/D16 | Cast Iron /Q345 steel |
7 | 1200mm*1000mm | 3D/2D | D28/D16 | Cast Iron /Q345 steel |
8 | 1000mm*1000mm | 3D/2D | D28/D16 | Cast Iron /Q345 steel |
Hole: D28
Universal 3D casting welding table:
1. Flatness up to: 010/1000
2. The verticality between the side surface and the upper surface reaches: 010/200
3. The roughness of the working surface reaches: 16um4 scale line specification: 100x100+005mm
5. Hole spacing: 100003mm
6. Material: casting (HT250), the overall annealing heat treatment to eliminate internal stress
Place it for three to six months for natural aging treatment.
Supporting legs of the workbench: the load-bearing capacity of the standard type is 2T.
Support angle iron
1. For casting HT300.
2. The flatness is 015/1000mm, and the verticality reaches 015/1000mm.
3. The position accuracy of each hole system does not exceed +0.05mm, and the size accuracy of the holes is P28D10.
4. The surface roughness of the working surface reaches Ra32
Three: Positioning angle ruler and positioning square ruler: 1. The material is 45# steel quenched and tempered, blackened 2. The flatness is 015/1000mm, and the verticality reaches 015/1000mm.
The position accuracy of each hole system on the supporting angle iron does not exceed +0.05mm, and the dimensional accuracy is P28D10
Four: quick locking pin:
1. Five steel balls must be used for positioning to ensure positioning accuracy
2. The material is 45# steel, quenched and tempered, and the dimensional accuracy of the lock pin is 28h7. Steel ball quenching treatment 3 locking force 21500KG
Five: Compression parts:
1. It is a round pipe connection with flexible operation and no shaking after clamping. The clamping force is 100Kg~500Kg. The pressure head adopts a split structure, which is convenient for maintenance and replacement. The working part is heat treated. 3. The surface has no burrs, corrosion spots and scratches, cast There are no slag inclusions and pores on the surface of the parts, and no peeling off the paint surface Six: Technical requirements for related configuration accessories:
1. Overall heat treatment of clamping and positioning parts, non-working surface painting treatment
2. Each module can realize XYZ and angle direction adjustment, and the flatness of each positioning surface is <020/1000mm, and the verticality is <0.15/1000mm, parallelism <020/1000mm
3. The surface roughness of the working plane of each module is 32pmu
Universal 3D casting welding table:
1. Flatness up to: 010/1000
2. The verticality between the side surface and the upper surface reaches: 010/200
3. The roughness of the working surface reaches: 16um4 scale line specification: 100x100+005mm
5. Hole spacing: 100003mm
6. Material: casting (HT250), the overall annealing heat treatment to eliminate internal stress
Place it for three to six months for natural aging treatment.
Supporting legs of the workbench: the load-bearing capacity of the standard type is 2T.
Support angle iron
1. For casting HT300.
2. The flatness is 015/1000mm, and the verticality reaches 015/1000mm.
3. The position accuracy of each hole system does not exceed +0.05mm, and the size accuracy of the holes is P28D10.
4. The surface roughness of the working surface reaches Ra32
Three: Positioning angle ruler and positioning square ruler: 1. The material is 45# steel quenched and tempered, blackened 2. The flatness is 015/1000mm, and the verticality reaches 015/1000mm.
The position accuracy of each hole system on the supporting angle iron does not exceed +0.05mm, and the dimensional accuracy is P28D10
Four: quick locking pin:
1. Five steel balls must be used for positioning to ensure positioning accuracy
2. The material is 45# steel, quenched and tempered, and the dimensional accuracy of the lock pin is 28h7. Steel ball quenching treatment 3 locking force 21500KG
Five: Compression parts:
1. It is a round pipe connection with flexible operation and no shaking after clamping. The clamping force is 100Kg~500Kg. The pressure head adopts a split structure, which is convenient for maintenance and replacement. The working part is heat treated. 3. The surface has no burrs, corrosion spots and scratches, cast There are no slag inclusions and pores on the surface of the parts, and no peeling off the paint surface Six: Technical requirements for related configuration accessories:
1. Overall heat treatment of clamping and positioning parts, non-working surface painting treatment
2. Each module can realize XYZ and angle direction adjustment, and the flatness of each positioning surface is <020/1000mm, and the verticality is <0.15/1000mm, parallelism <020/1000mm
3. The surface roughness of the working plane of each module is 32pmu
Customers Visit Factory

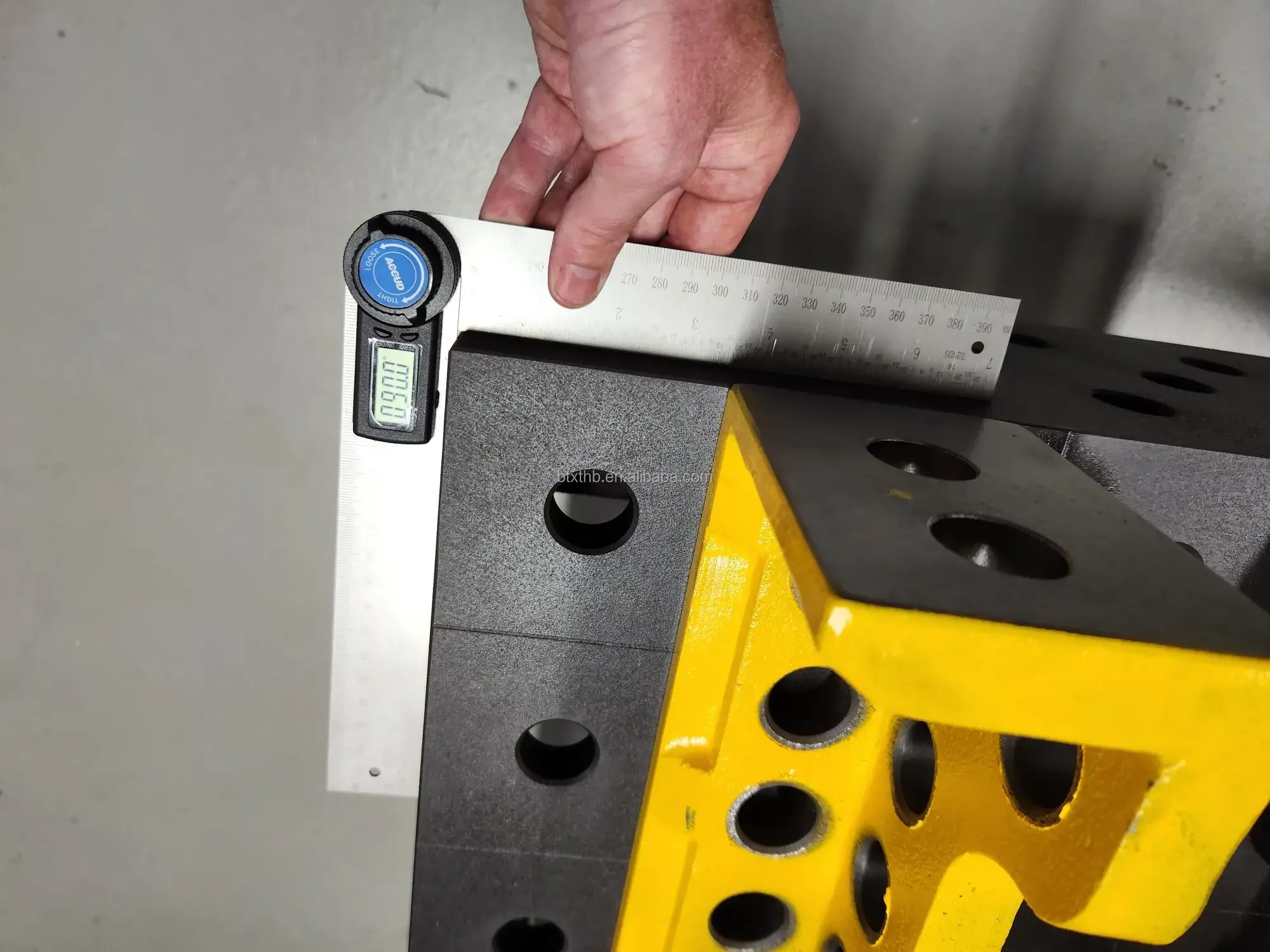

Customer inspection 3D/2D welding table
Customer inspection 3D/2D welding table
Customer inspection 3D/2D welding table
Related Accessories

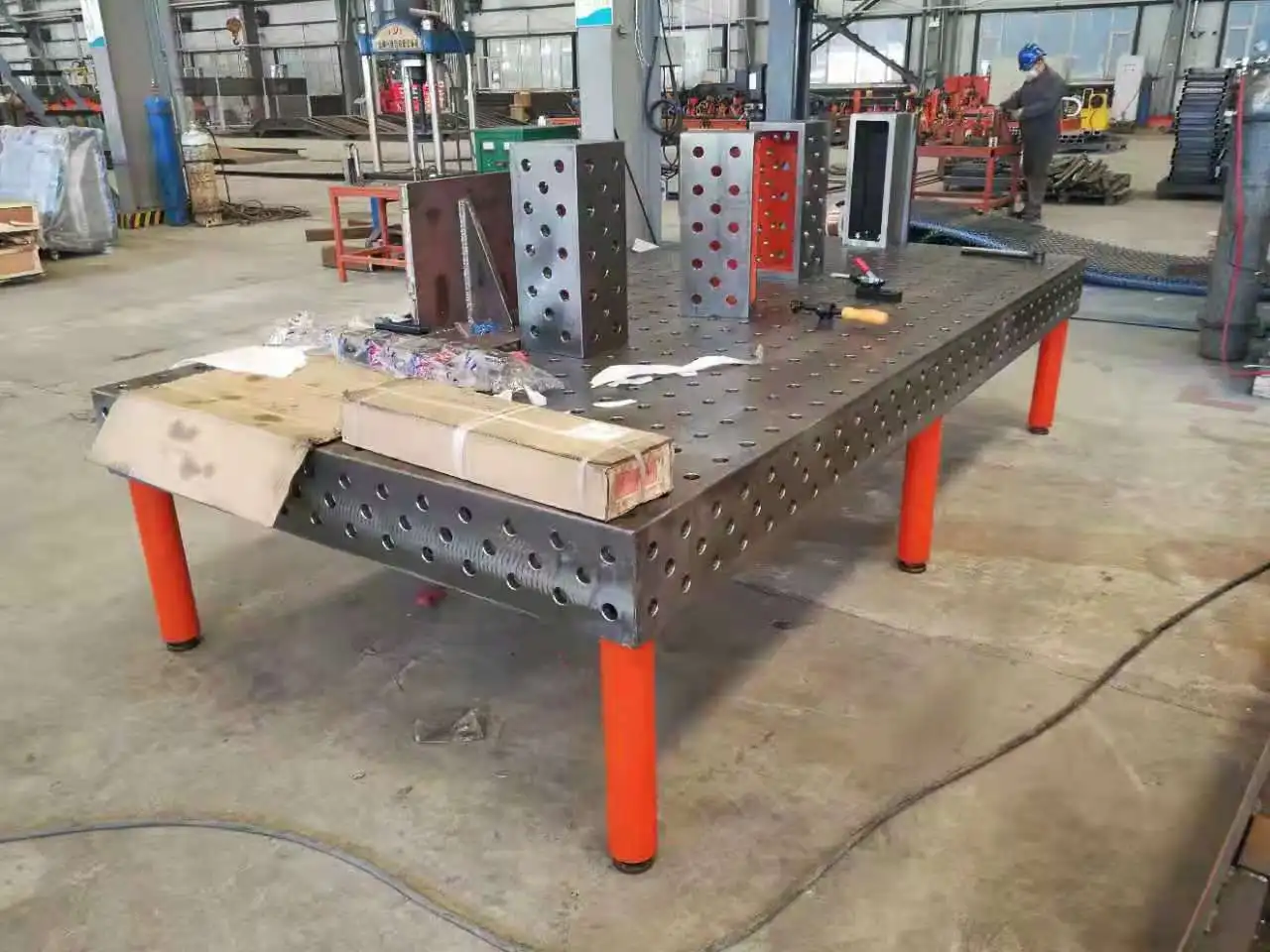

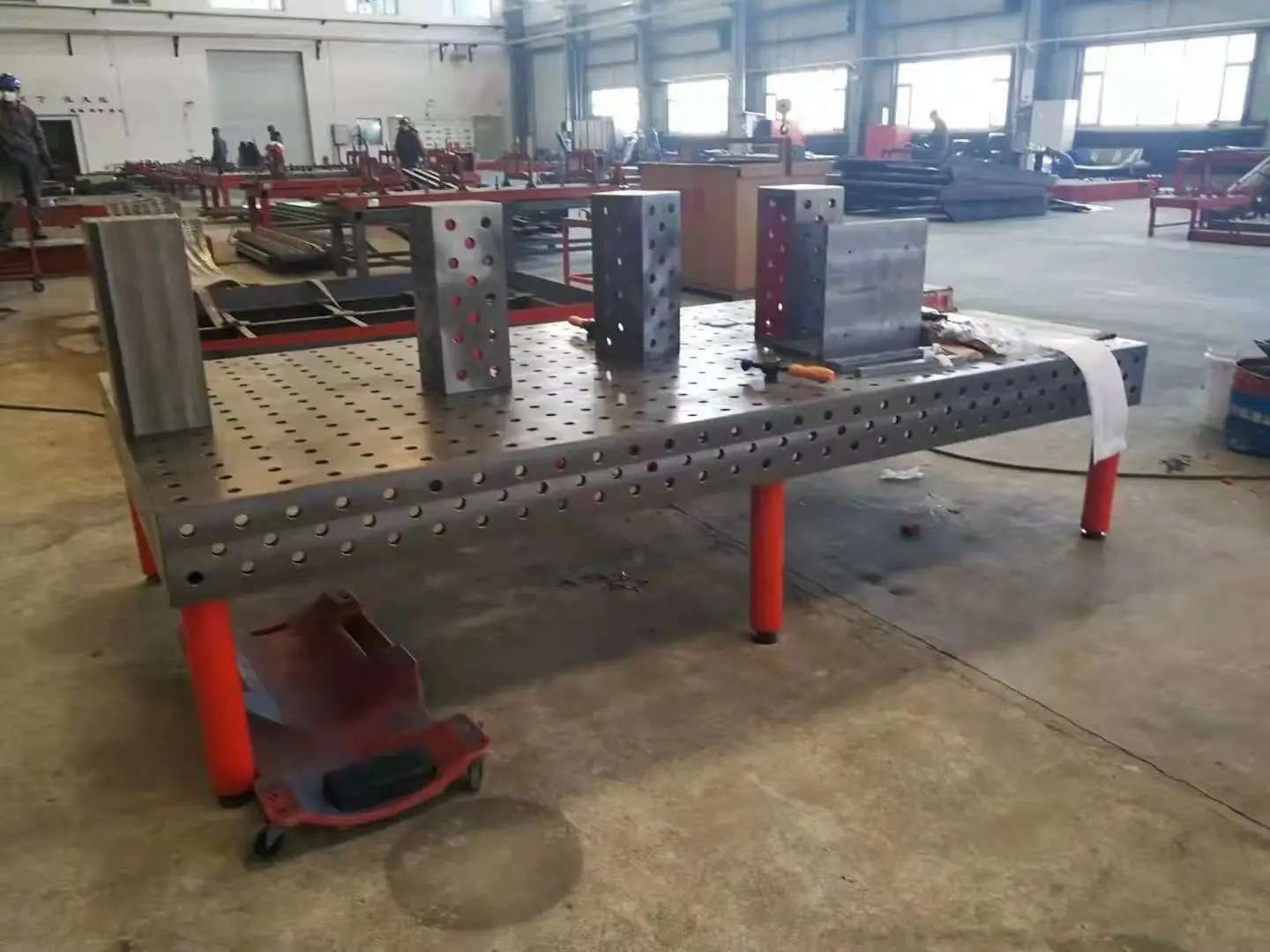

Successful Project
Project in Israel
Project in Chile
Project in Germany

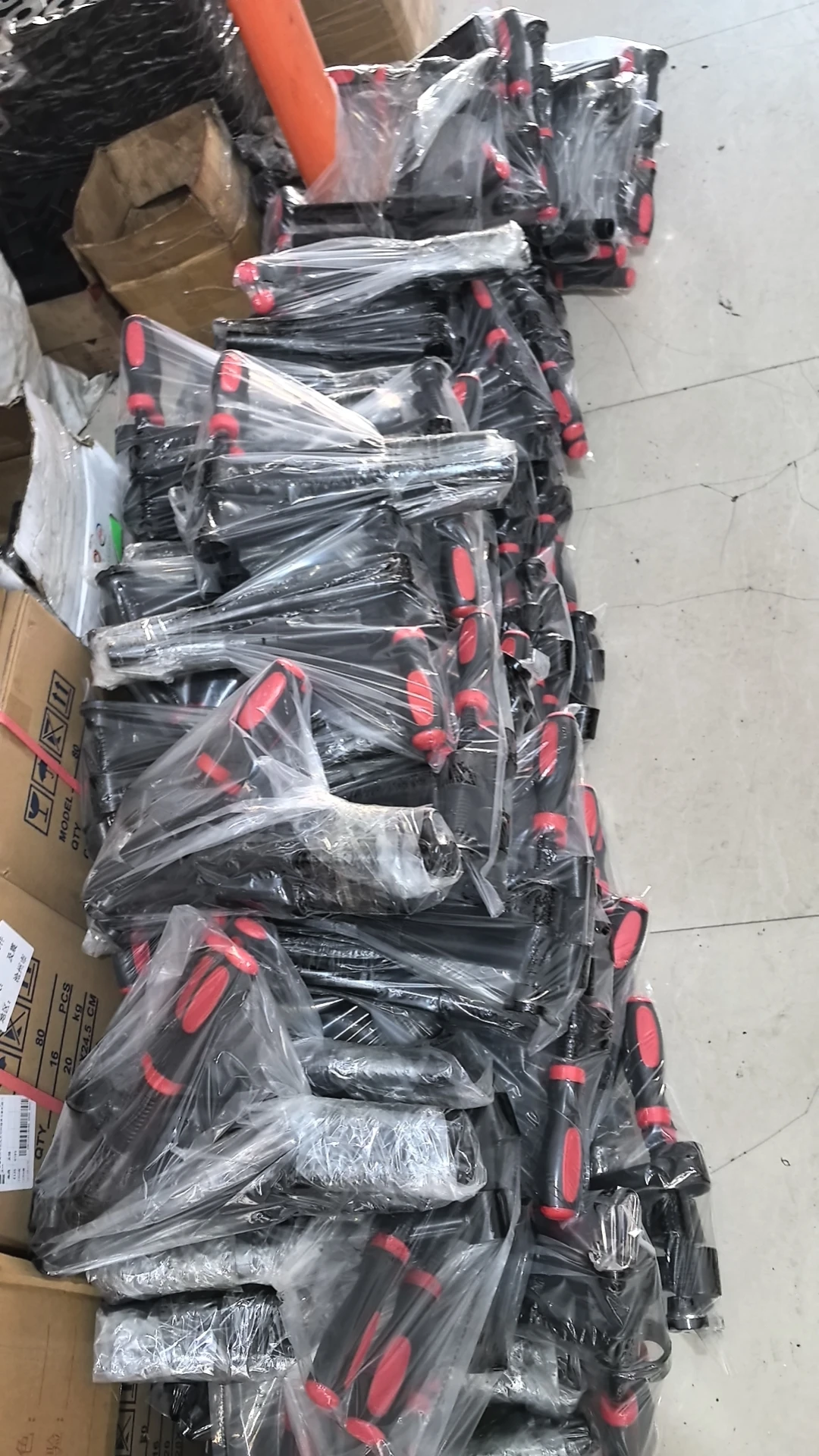

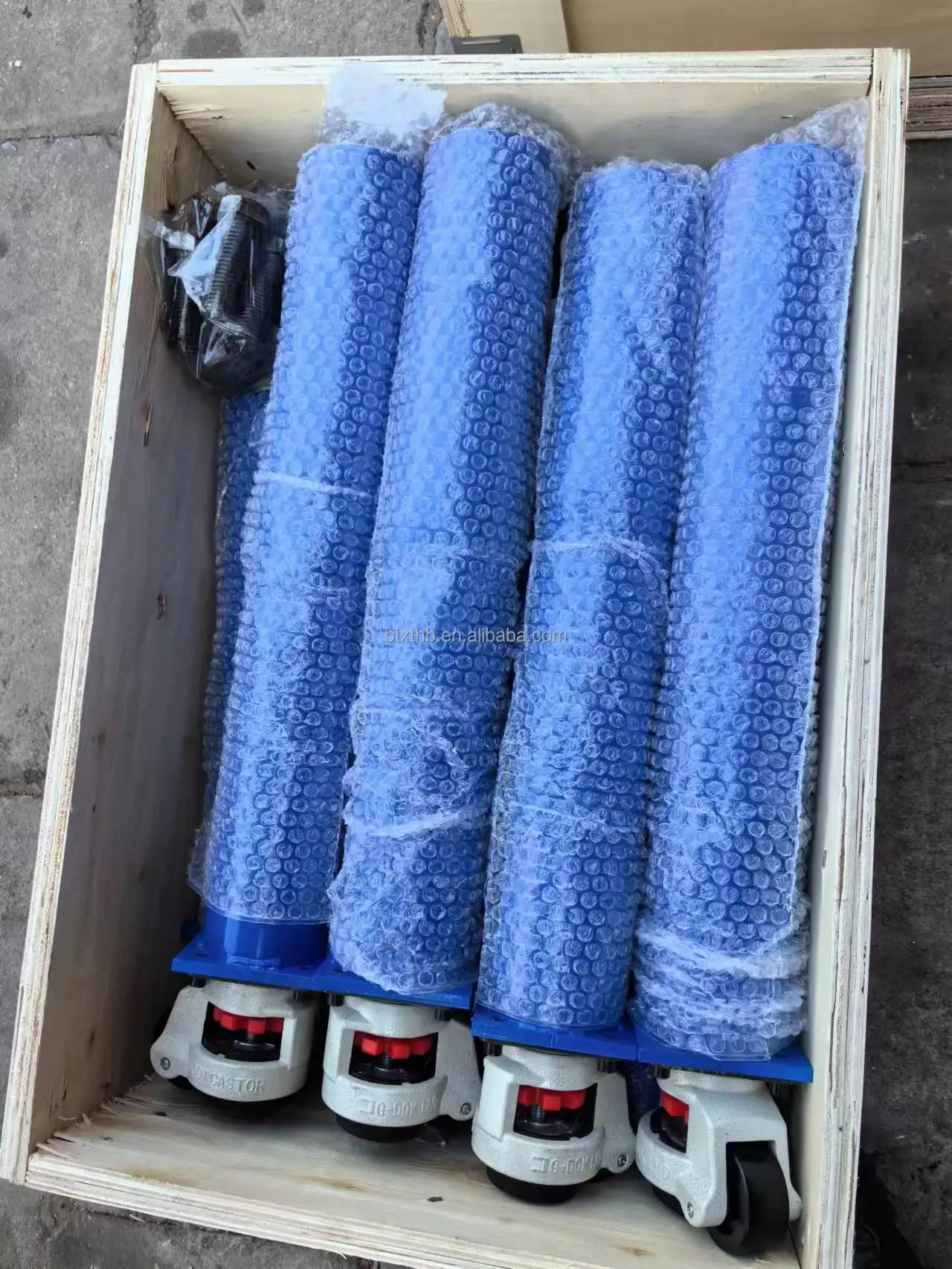

Packing&Shipping
FAQ
Q1. Are you manufacturer or trade company ?
We are professional manufacturer in China , and have in this line almost 10 years .
Q2. Would it be possible for us to visit your factory ?
Sure, welcome you at any time !
Q3 . Will your company supply samples ?
Yes ,we do .
Q4. How can we get the quotation ?
Please let us know the specifications , such as the material ,micron ,apply in which industry etc .
Q5.what’s the lead time ?
Usually is 5-15 days after we received your payment .
Q6 . what is the packaging ?
Inner packing –poly bags .Outer packing –Export cartons .
Q7. Can I get your products with our logo and design ?
Yes ,you can . Most of our products can be customized according to your requirements .
Q8. Which payment terms are you accept ?
T/T , L/C .Western Union , Money gram are available for us . we accept 30% T/T in advance , the balance should be paid before
shipping .
We are professional manufacturer in China , and have in this line almost 10 years .
Q2. Would it be possible for us to visit your factory ?
Sure, welcome you at any time !
Q3 . Will your company supply samples ?
Yes ,we do .
Q4. How can we get the quotation ?
Please let us know the specifications , such as the material ,micron ,apply in which industry etc .
Q5.what’s the lead time ?
Usually is 5-15 days after we received your payment .
Q6 . what is the packaging ?
Inner packing –poly bags .Outer packing –Export cartons .
Q7. Can I get your products with our logo and design ?
Yes ,you can . Most of our products can be customized according to your requirements .
Q8. Which payment terms are you accept ?
T/T , L/C .Western Union , Money gram are available for us . we accept 30% T/T in advance , the balance should be paid before
shipping .
