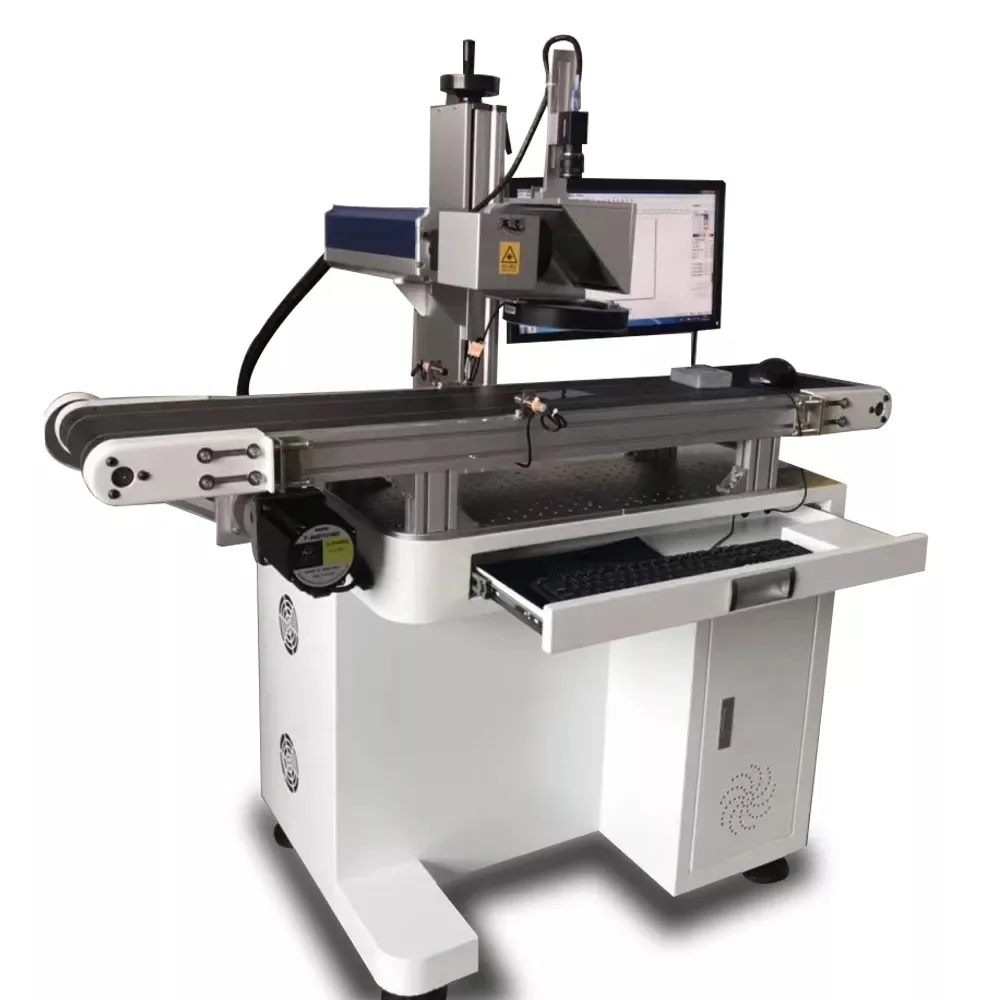

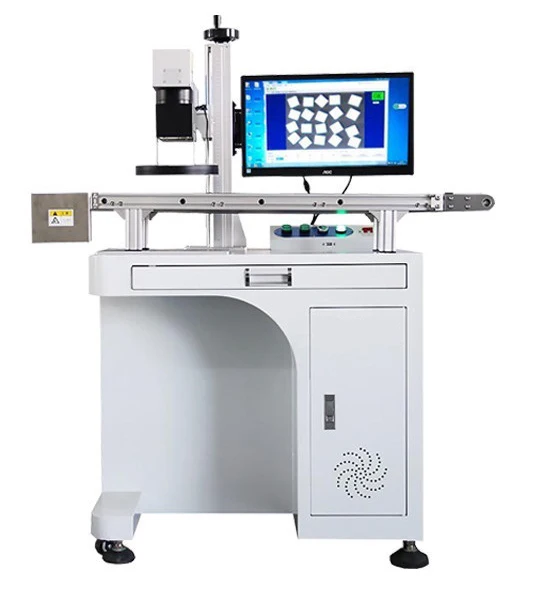

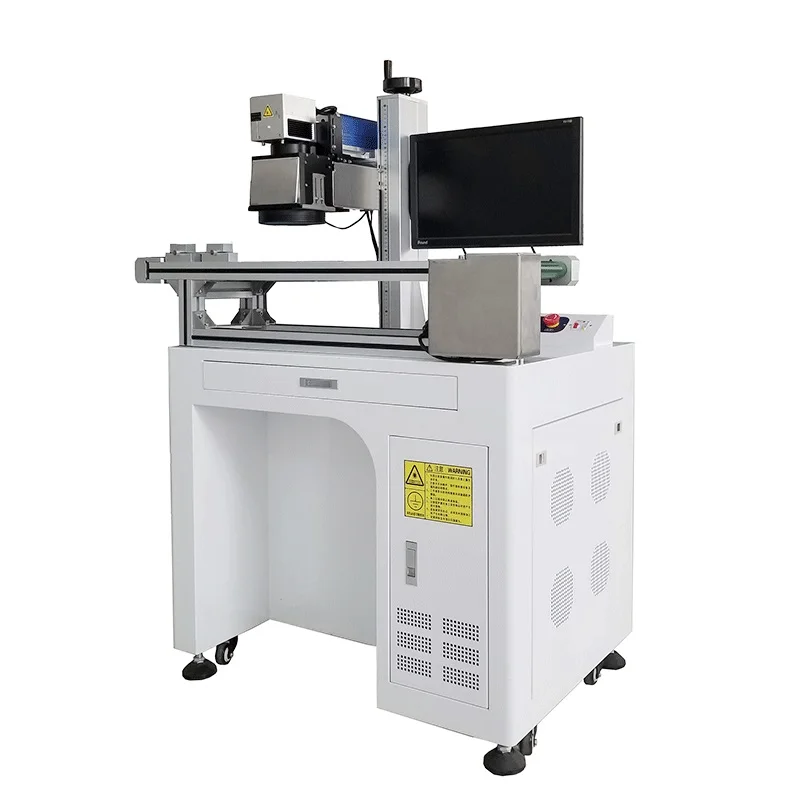

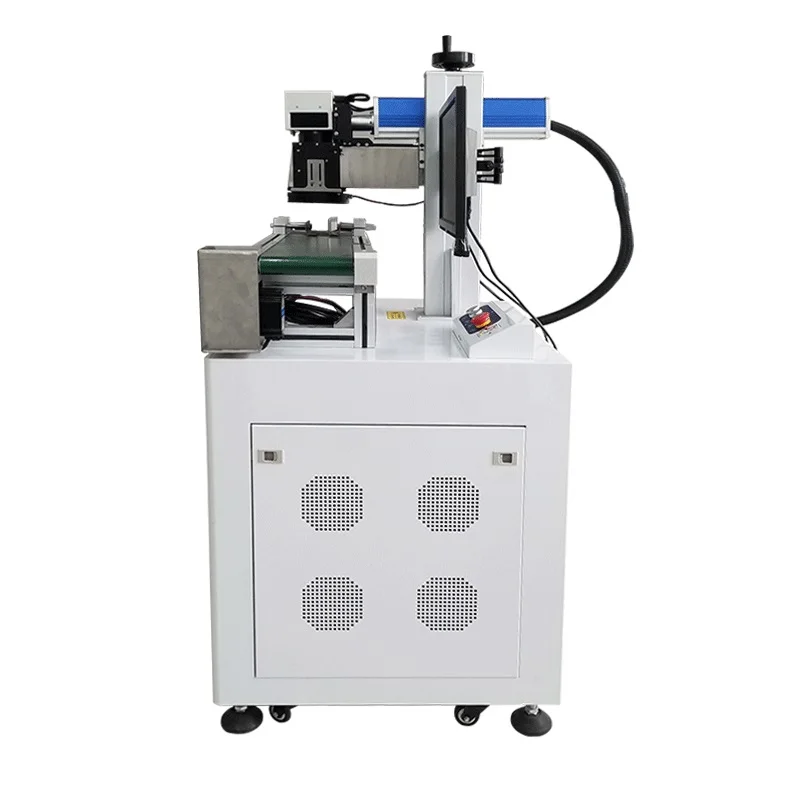

2024 CCD Visual Positioning Automatic Focus Vision System flying Co2 Galvo Laser Marking Machine for woodave
- Category: >>>
- Supplier: Shenzhen Zhongtu Automation Technology Co. Ltd.
Share on (1601039448890):
Product Overview
Description
Company Introduction:
1.Shenzhen Zhongtu Automation Technology Co., Ltd. introduces advanced design concepts and technologies and is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service.
2.The company is engaged in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, non-standard automation equipment/automatic loading and unloading manipulator design and manufacturing, and equipment accessories, instruments/meters, electronics Sales of accessories.
3.products successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing field.
2.The company is engaged in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, non-standard automation equipment/automatic loading and unloading manipulator design and manufacturing, and equipment accessories, instruments/meters, electronics Sales of accessories.
3.products successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing field.
Technical parameters：
Model | NL-M20 | NL-M30 | NL-M50 | |
Power | 20W | 30W | 50W | |
Wavelength | 1064nm | 1064nm | 1064nm | |
Repetition Frequency Range | 30-60 KHz | 30-60 KHz | 50-100 KHz | |
Output Power Stability | ＜3% | ＜3% | ＜3% | |
Power Consumption | 10~100 | 10~100 | 10~100 | |
Control mode | PC+Special marking software | PC+Special marking software | PC+Specialmarking software | |
Standard marking range | 110*110mm | 110*110mm | 110*110mm | |
Maximum marking range | 400*400mm | 400*400mm | 400*400mm | |
Minimum marking range | 50*50mm | 50*50mm | 50*50mm | |
Working mode | static state/flight | static state/flight | static state/flight | |
Marking speed | 4000mm/s | 4000mm/s | 4000mm/s | |
Minimum character | 0.15mm | 0.15mm | 0.15mm | |
Minimum line width | 0.012mm | 0.012mm | 0.012mm | |
Spot diameter | 10mm | 10mm | 10mm | |
Industrial control computer | Specialized IPC | Specialized IPC | Specialized IPC | |
Cooling mode | Air | Air | Air | |
Working temperature | 0~40℃ | 0~40℃ | 0~40℃ | |
Working humidity | 10~95% | 10~95% | 10~95% | |
Power demand | single phase AC220v/50Hz | single phase AC220v/50Hz | single phase AC220v/50Hz | |
Device power consumption | 450W | 520W | 620W | |
Equipment size | 800*800*1350mm | 800*800*1350mm | 长*宽*高 800*800*1350mm | |
Whole machine weight | 85KG | 85KG | 85KG | |
Z axis height adjustable range | 300mm | 300mm | 300mm | |
Environmental requirements | No vibration, no interference source, keep ventilation | No vibration, no interference source, keep ventilation | No vibration, no interference source, keep ventilation | |
Consumables | None | None | None |

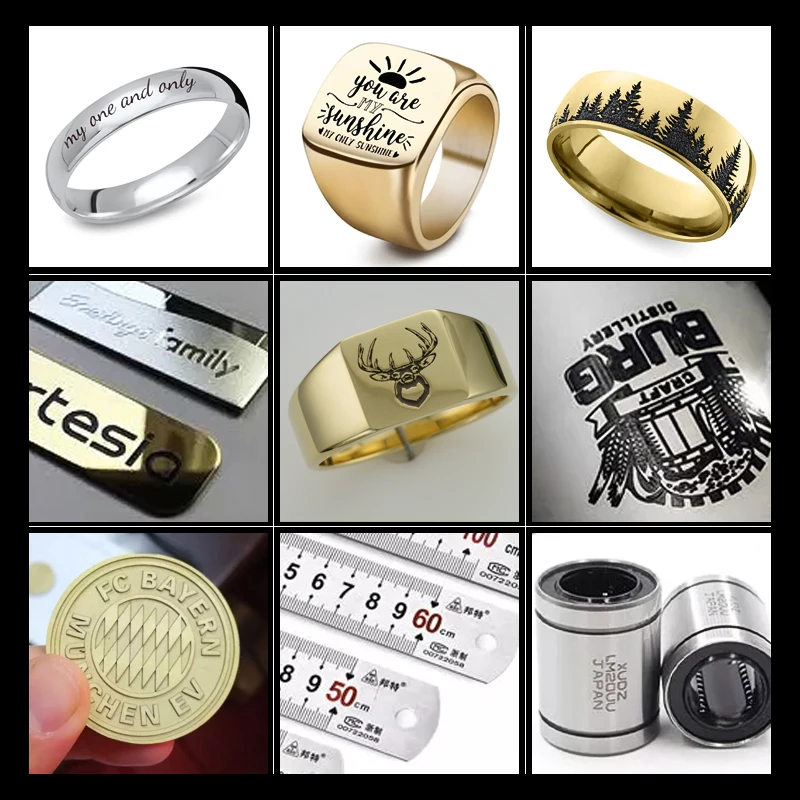

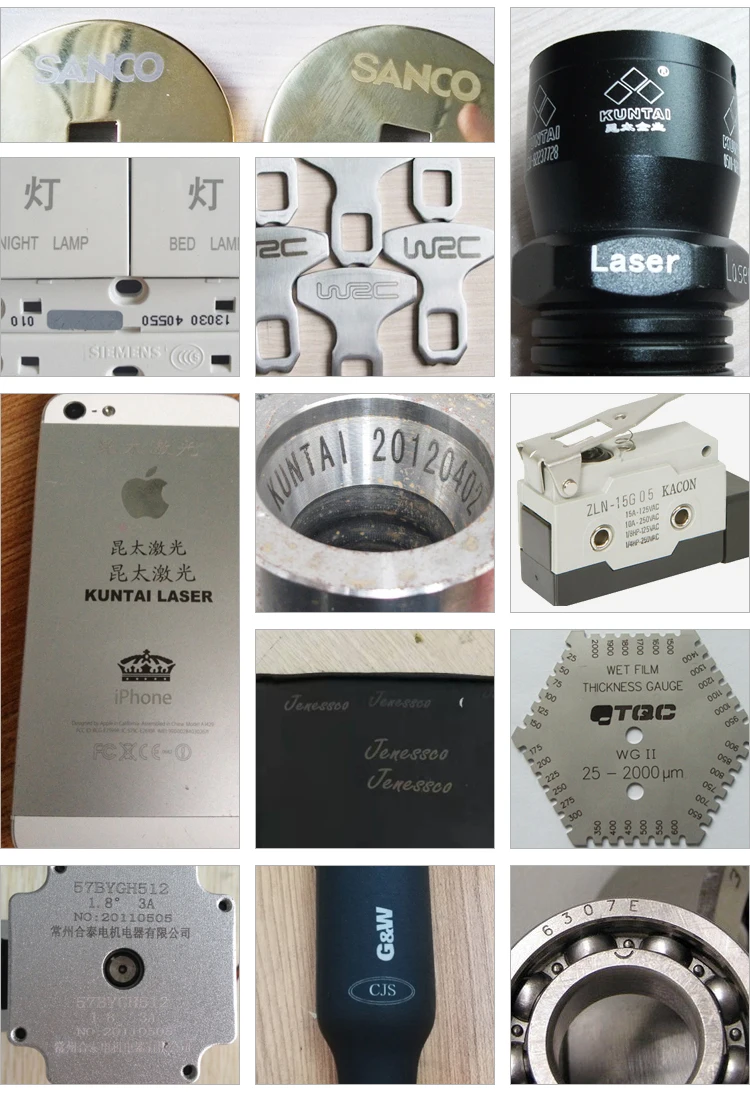

Application scenarios：
FAQ:
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2015 ,now in Shenzhen CN. Committed to providing the majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
