High Quality Carbon/Stainless Steel/Iron Welded Square Tube Pipe Production Line
- Category: >>>
- Supplier: Henan Wadjay Machinery Co. Ltd.
Share on (1601039451236):
Product Overview
Description
Description
Pipe roll forming machine (Model WJ-EH)
* Automatically forming and cutting at any length with pre-set quantity.
* Signal feedback from encoder showinglength of product.* The control panel enables to count a total length of finished coil.
* Rollers are alloy steel fabricated by CNC precision machine and hard chromium plated.
* Cutting die is SKD11 steel fabricated by CNC machine, thermal treatment get 55-60HRC.
* Hydraulic system is equipped with a cooling system.

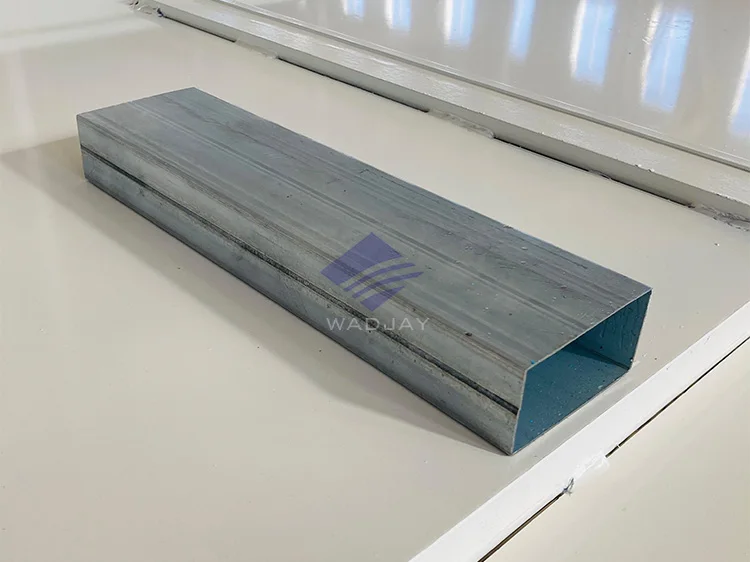

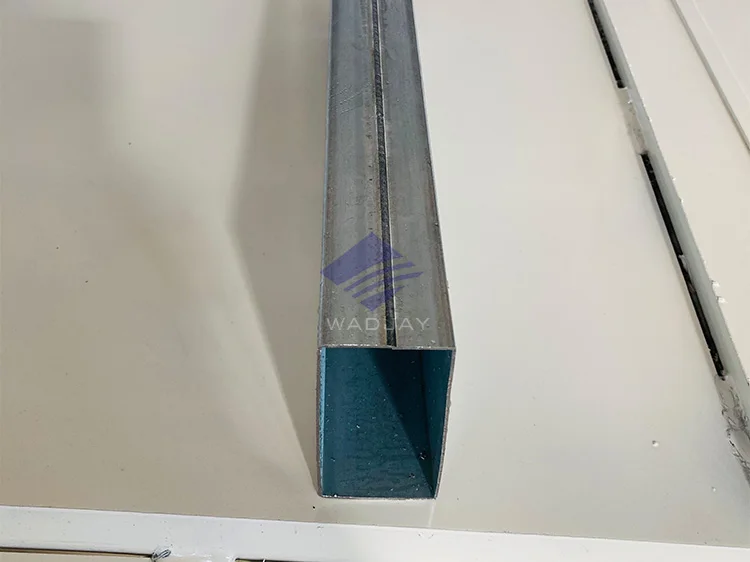

Pipe roll forming machine profile
Pipe roll forming machine details
Uncoiler & Pre-feed Coil
Omplete with un-coiler, strip pre-feed coil unit. Our tube mill equipment has high efficiency and wide applicability, and can be used in various tube forming lines.

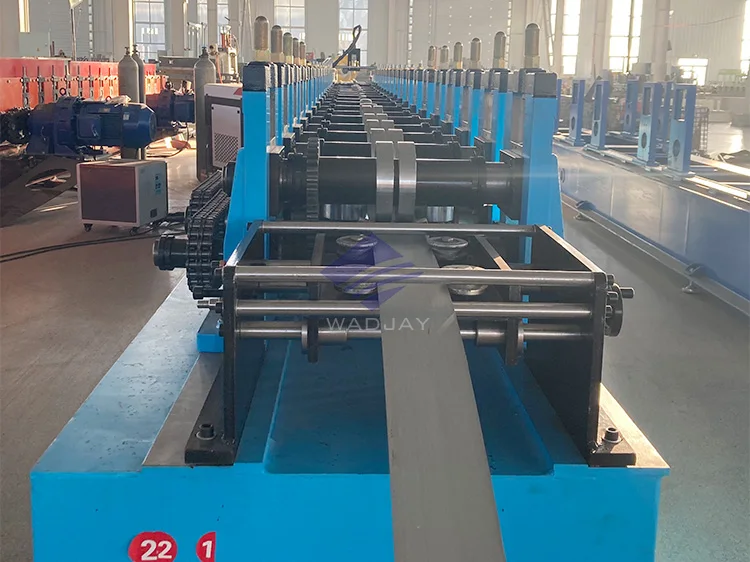

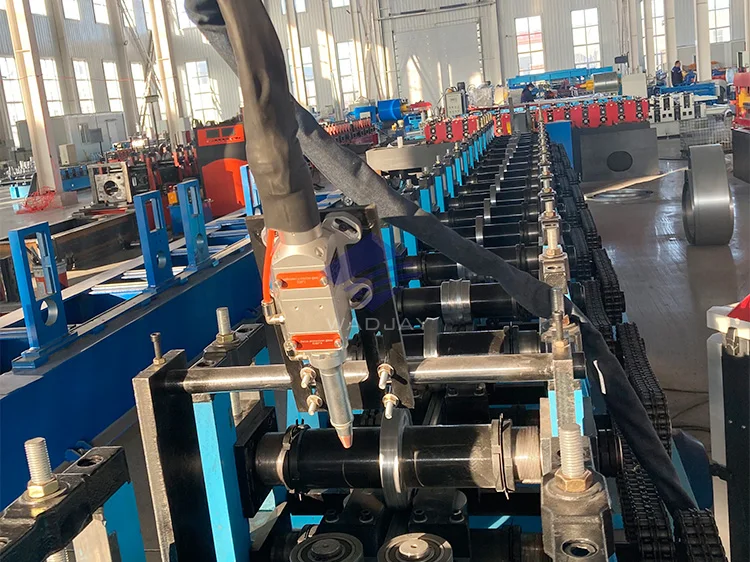

Forming & Welding & Sizing Section
As the most important part of the tube mill line, Forming & welding & sizing machine makes steel strip into steel pipe. The size and shape can be customized according to the customer’s needs

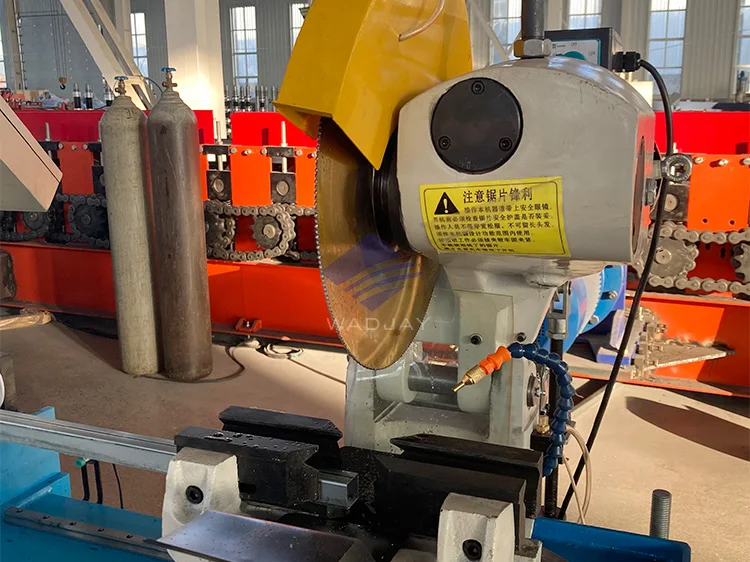

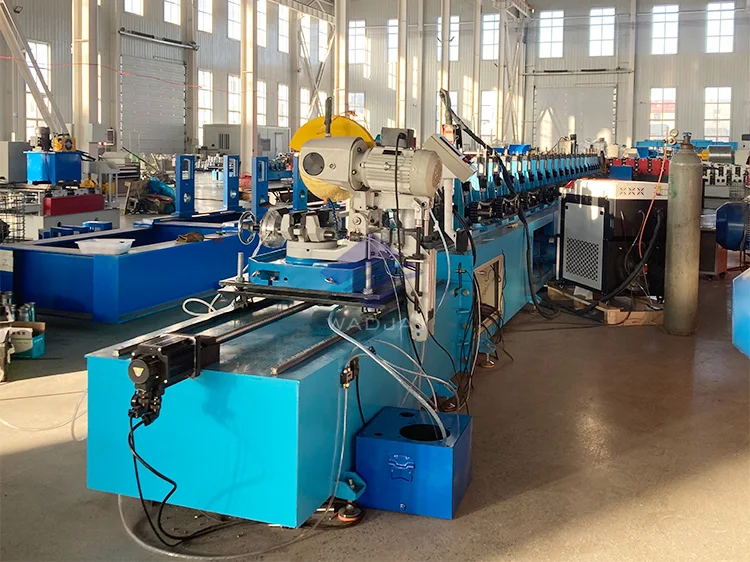

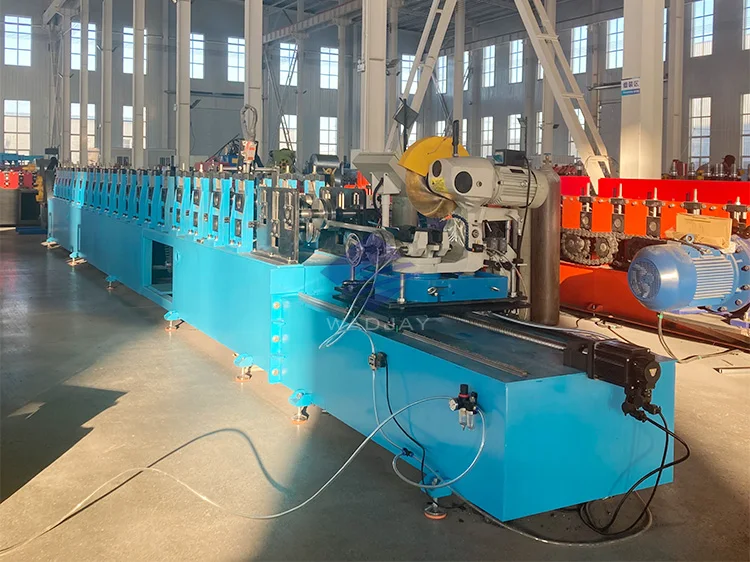

Flying Saw Cut Off Equipment
Steel pipe flying saw is a cutting machine commonly used in steel pipe production. The saw blade of the flying saw is mounted on a carriage that moves back and forth at high speed, allowing it to precisely cut the steel pipe as it passes through the machine.
The machine is controlled by a computer system that ensures the cuts are made at the correct length and angle.
The machine is controlled by a computer system that ensures the cuts are made at the correct length and angle.
Contact System
Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the pipe forming machine, and the cutting length tolerance is within ± 2mm
Specification
Items | WJ-EH Model |
Quantity of forming rollers stations | about 16 |
Diameter of forming rollers shafts | 75mm |
Roll Forming Speed | 15-20m/min |
Forming rollers material | GR15 with quench treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: about11kw |
Hydraulic unit motor power: about 5.5kw | |
Electric voltage | According to customer’s requirement |
Company Profiles
WADJAY welcome customers from all over the world to visit our factory.
Packing & Delivery
FAQ
Q1: How long is the warranty?
A1: We guarantee a 18-month after-sale service. Any problem when using, call or mail us, we will advise on technically sound methods. If needed, we will provide free accessories.
Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.
Q7: How about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.
Q7: How about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
