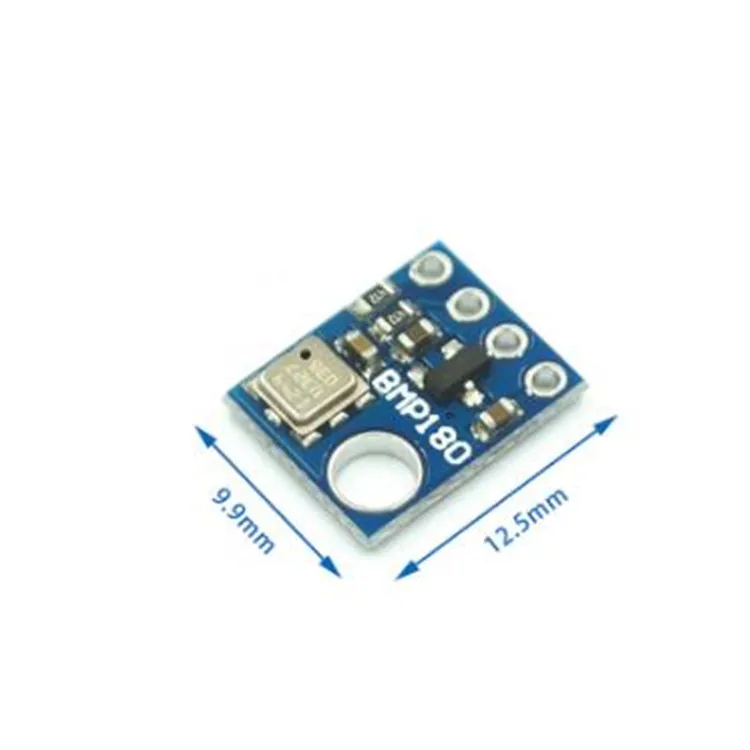

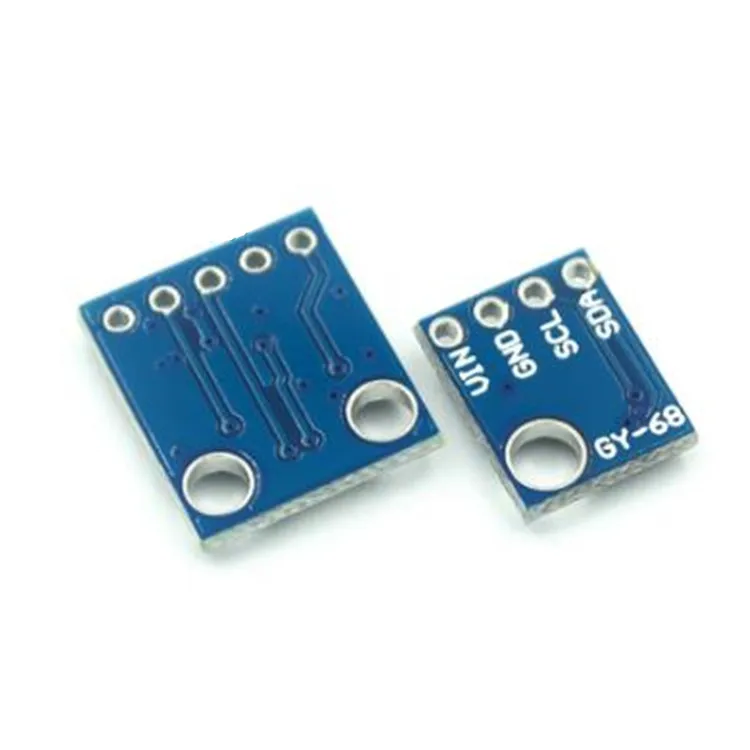

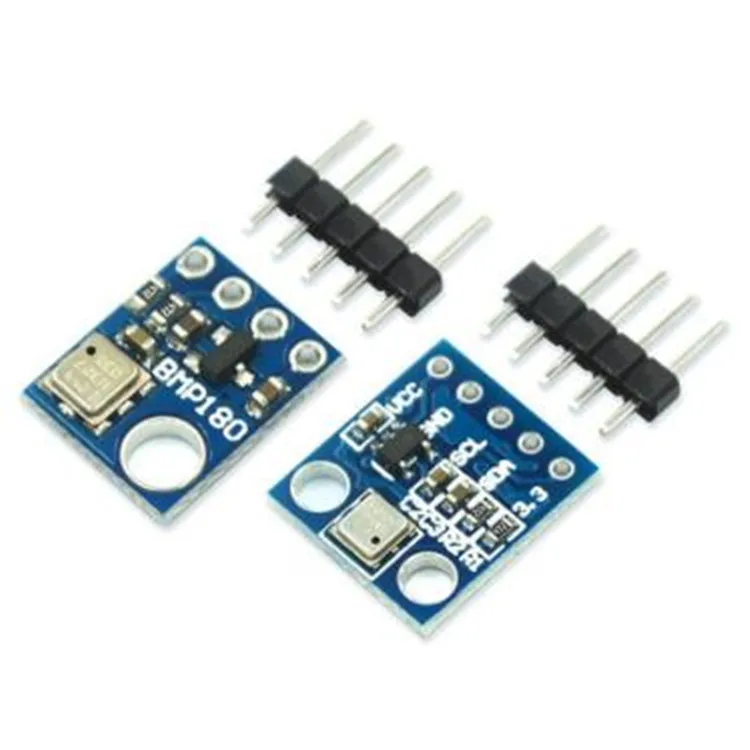

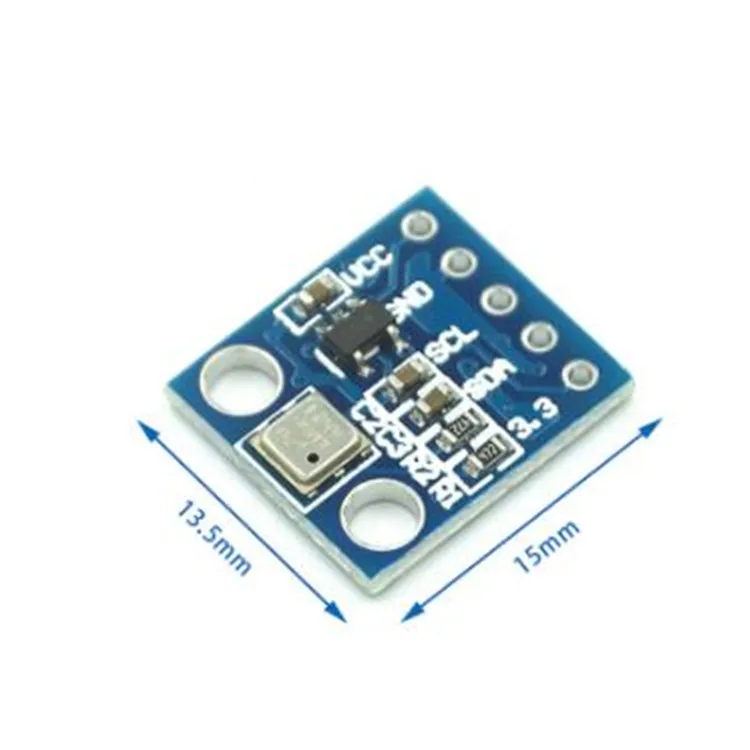

Temperature and pressure sensor module GY 68 BMP180

BMP180  temperature and pressure sensor module GY-68 BMP180

BMP180 is a pressure sensor with high precision, small size and ultra-low energy consumption, which can be used in mobile devices

Its performance, accuracy can reach 0.03hPa, and power consumption is extremely low, only 3μA

The BMP180 uses a powerful 8-PIN ceramic leadless chip bearer (LCC) ultra-thin package and can be directly connected to a variety of microprocessors via an I2C bus

Main Features:

Pressure range: 300~1100hPa (elevation: 9000 m ~-500 m)

Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)

LCC8 Package: Lead-free Ceramic Carrier package (LCC)

Size: 3.6 mmx3.8 x0.93 mm

Low power consumption: 5μA, in standard mode

High precision: Resolution of 0.06hPa (0.5 m) in low power mode

Resolution: 0.03hPa (0.25 m) in high linear mode

Including temperature output

The I2C interface

Temperature compensation

Lead-free, RoHS compliant

MSL 1 reaction time: 7.5ms

Standby current: 0.1μA

No external clock circuit is required

Typical applications:

GPS navigation (dead reckoning, upper and lower bridge detection, etc.)

Indoor and outdoor navigation

Leisure, sports and medical health monitoring

The weather forecast

Vertical speed indicator (rising/sinking speed)

Note:New parts and in original factory package!

Sincerely looking forward to our cooperation!
Any feedback from you would be highly appreicately!

Selling Units:

Single item

Lead Time :

Quantity(Piece)	1 - 2000	>2000
Est. Time(days)	2	To be negotiated
