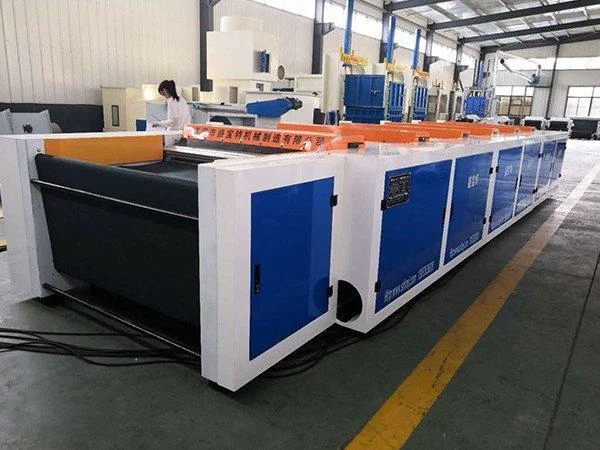

open textile waste machine thread waste , knitted cut fabric clips , weaving cut fabric 100% cotton or blend polyester / cotton
- Category: >>>
- Supplier: Shandong Xingsai Machinery Equipment Co. Ltd.
Share on (1601039769145):
Product Overview
Description
Product Description
Textile Fabric Yarn Cloth Cotton Jean Waste Recycling Machine For Textile Waste Tearing
Rag tearing mahine, fiber opening machine, carding machine,cotton hard waste , textile waste, fabric, garnet ,rag, old cloth,
waste towel, jeans, jute, yarn, polyster, almost textile waste can be recycle into new fiber, get recycled fiber to make new yarn, save much cost for you and Environmental friendly
waste towel, jeans, jute, yarn, polyster, almost textile waste can be recycle into new fiber, get recycled fiber to make new yarn, save much cost for you and Environmental friendly
Machine Application
It can loose the fabric waste, hard waste, prepare for further process by GM textile waste recycling machine series.
This machine helps to keep the fiber length of the finished product and reduce the damage.
specification
the main part of the equipment parameters | ||||

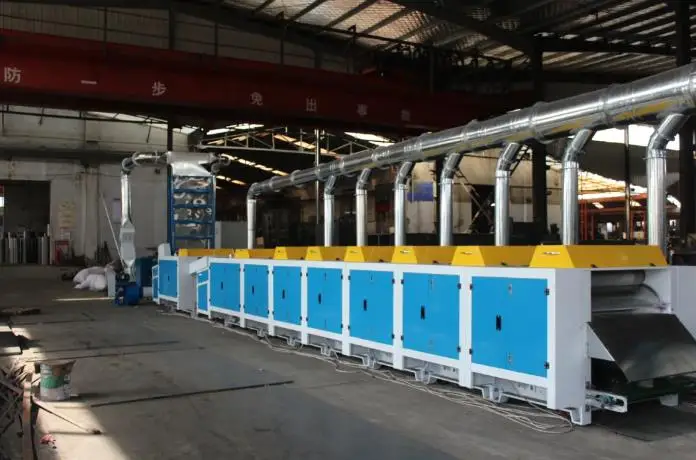

1 | Model | higher output capacity recycling line | ||
600N+6*250N | ||||
2 | Installation dimensions | 15110mm*2010mm*3050mm | ||
3 | Weight | 7550KG | ||
4 | Total power | 65KW | ||
5 | Working width | R1040mm/ Unadjustable | ||
6 | Main roller | Opener | ||
φ600mm/Teeth wire | ||||
Cleaning machine | ||||
φ250mm/Teeth wire | ||||
7 | Capacity | 200-280KG/H for spinning product | ||
Depending on the raw material and product requirements(length of fiber), also the correct operate | ||||
8 | Protection | RMain motor overload protection Open phase protection | ||
RPhotoelectric sensor induction protection | ||||
9 | Dust removal system | By fans to out of workshop | ||
10 | Way of control | Constant power & All Inverter control &PLC | ||
11 | Bearing | KOYO/Or according to the customer's requirements | ||
12 | Electrical components | The key contactors by SIEMENS or according to the customer's requirements | ||
13 | Inverter | MAIFU 16months guarantee and in guarantee send by DHL free | ||
PLC | MITSUBISHI | |||
14 | Print Color | According to the customer's requirements | ||
15 | The control cabinet and panel | Digital display instrument, and equipped with knob regulator, professional electric schematic diagram | ||
Applicable raw materials

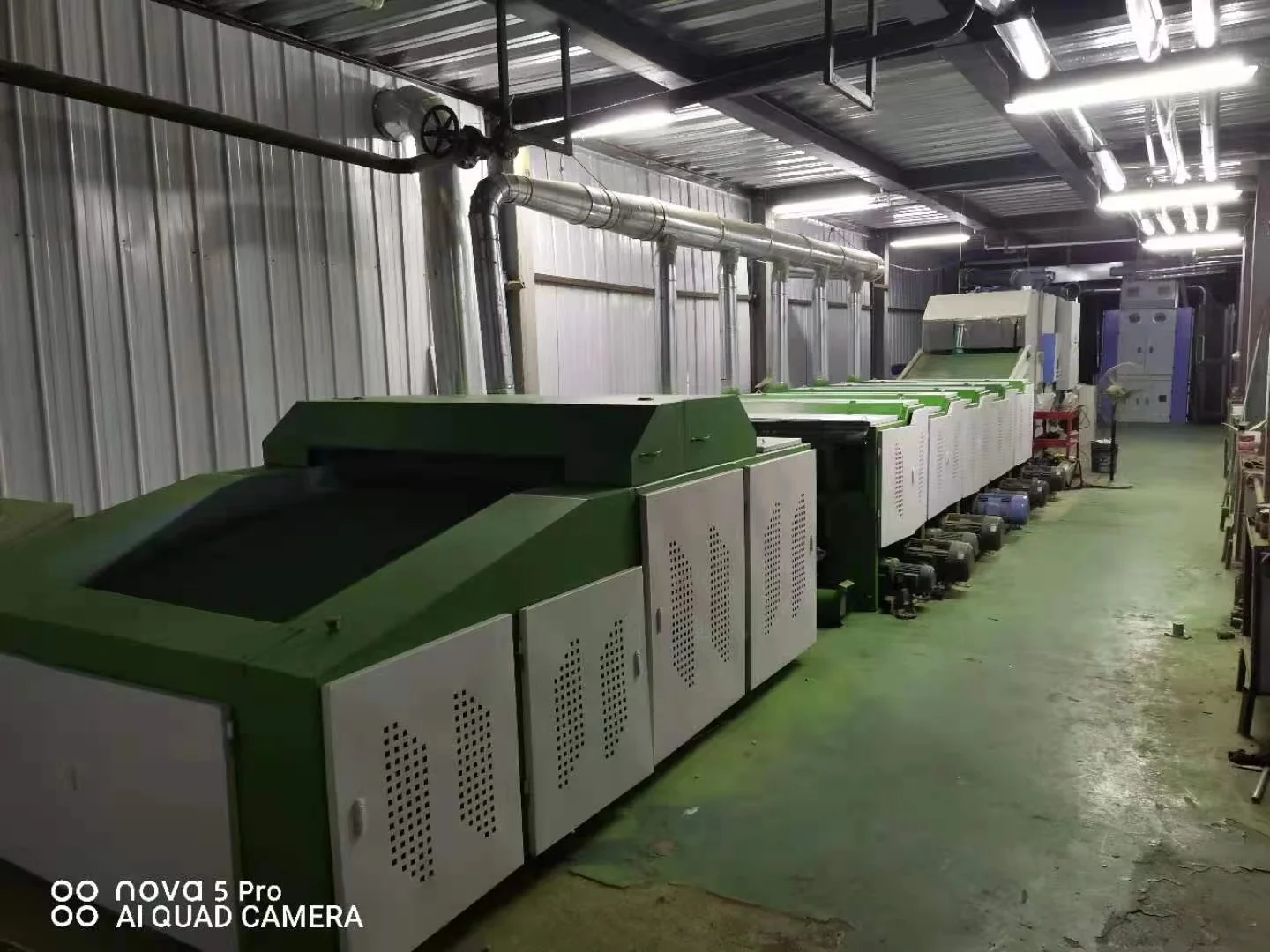

machine running video
2. .Characteristics
porcupine roller with diameter 600-1000mm, each cylinder with difference angle and specifications taper-pins, the feeding rall adopted elastic rubberized roller with diameter 150-250mm. The working width from 1000-2000 mm and the maximum capacity up to 280kg per hour. With pneumatic brake system and lubricating system, direct driving system with the gear motor without chains driving system and fixed carbon dioxide fire extingulishing installation, this line reduce the damaging of the fiber, in order to keep the fiber length. The procupin roller will be changed according to raw material and customer requirement.
porcupine roller with diameter 600-1000mm, each cylinder with difference angle and specifications taper-pins, the feeding rall adopted elastic rubberized roller with diameter 150-250mm. The working width from 1000-2000 mm and the maximum capacity up to 280kg per hour. With pneumatic brake system and lubricating system, direct driving system with the gear motor without chains driving system and fixed carbon dioxide fire extingulishing installation, this line reduce the damaging of the fiber, in order to keep the fiber length. The procupin roller will be changed according to raw material and customer requirement.

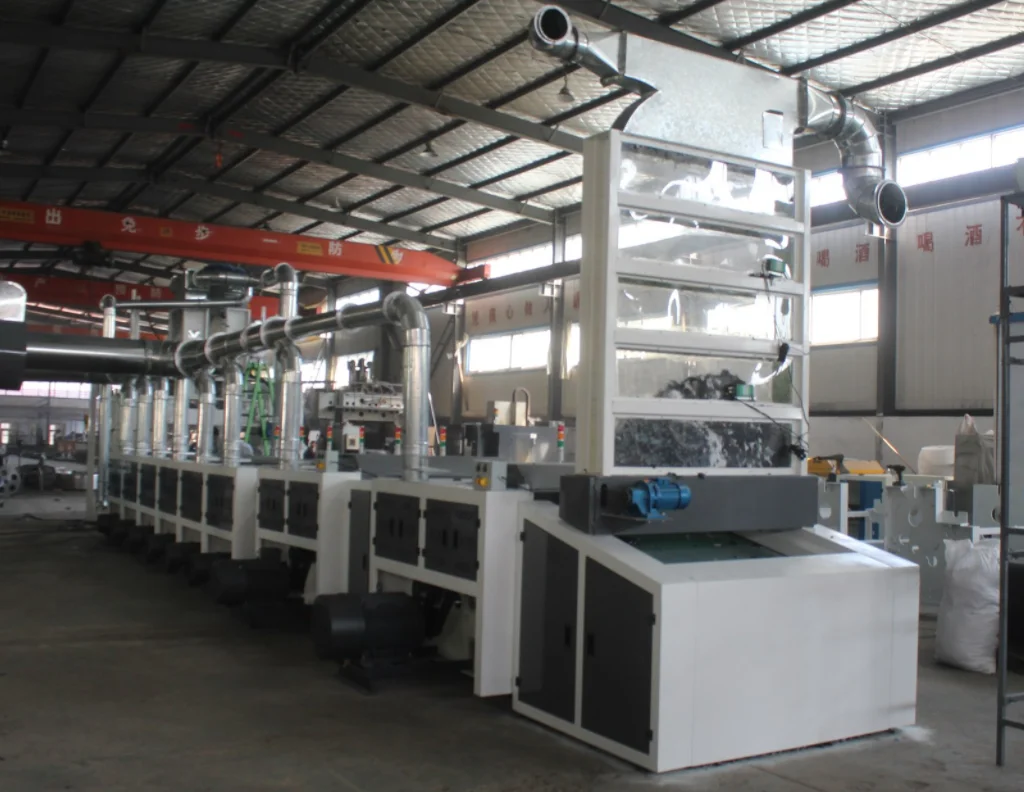

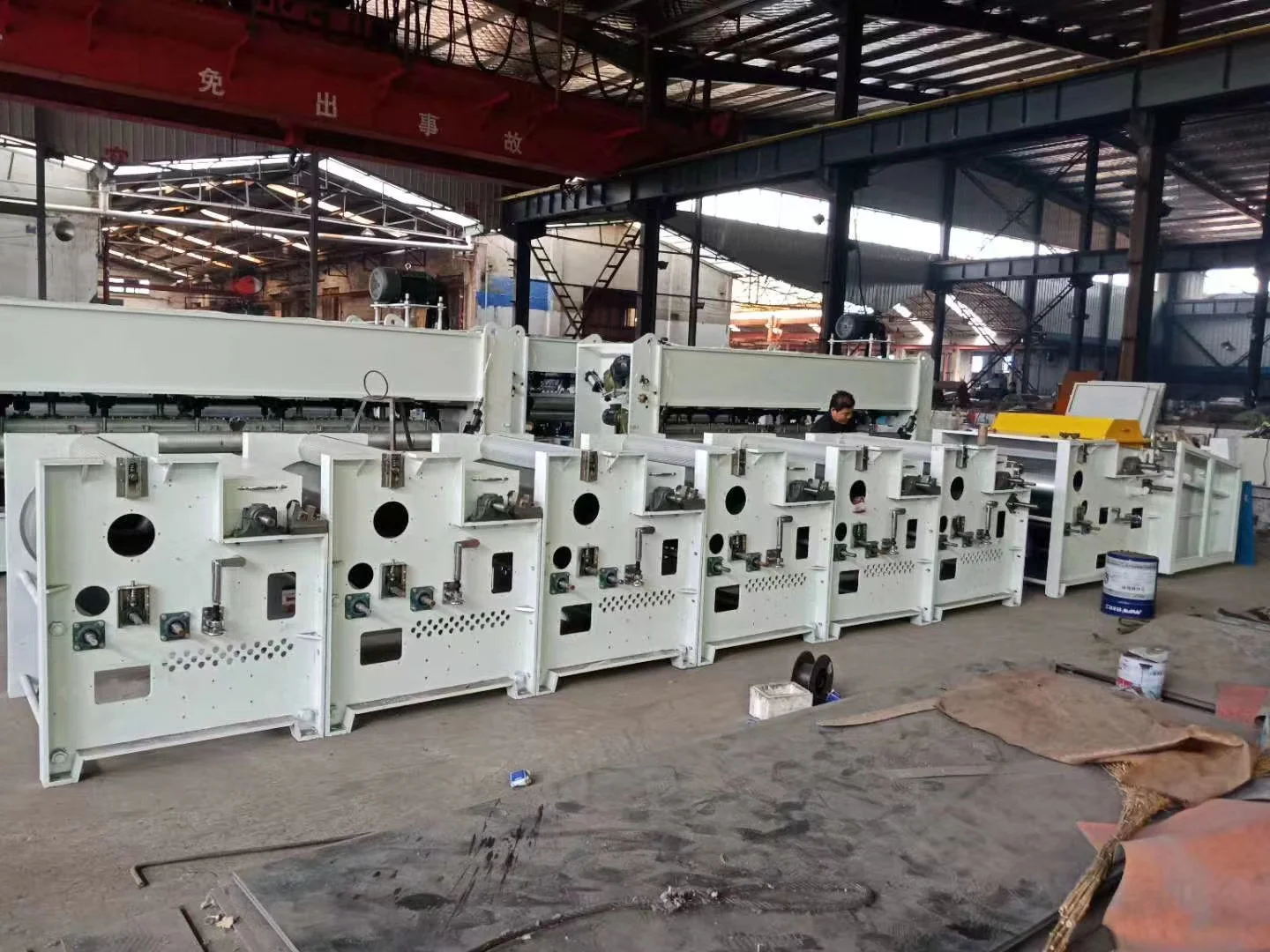

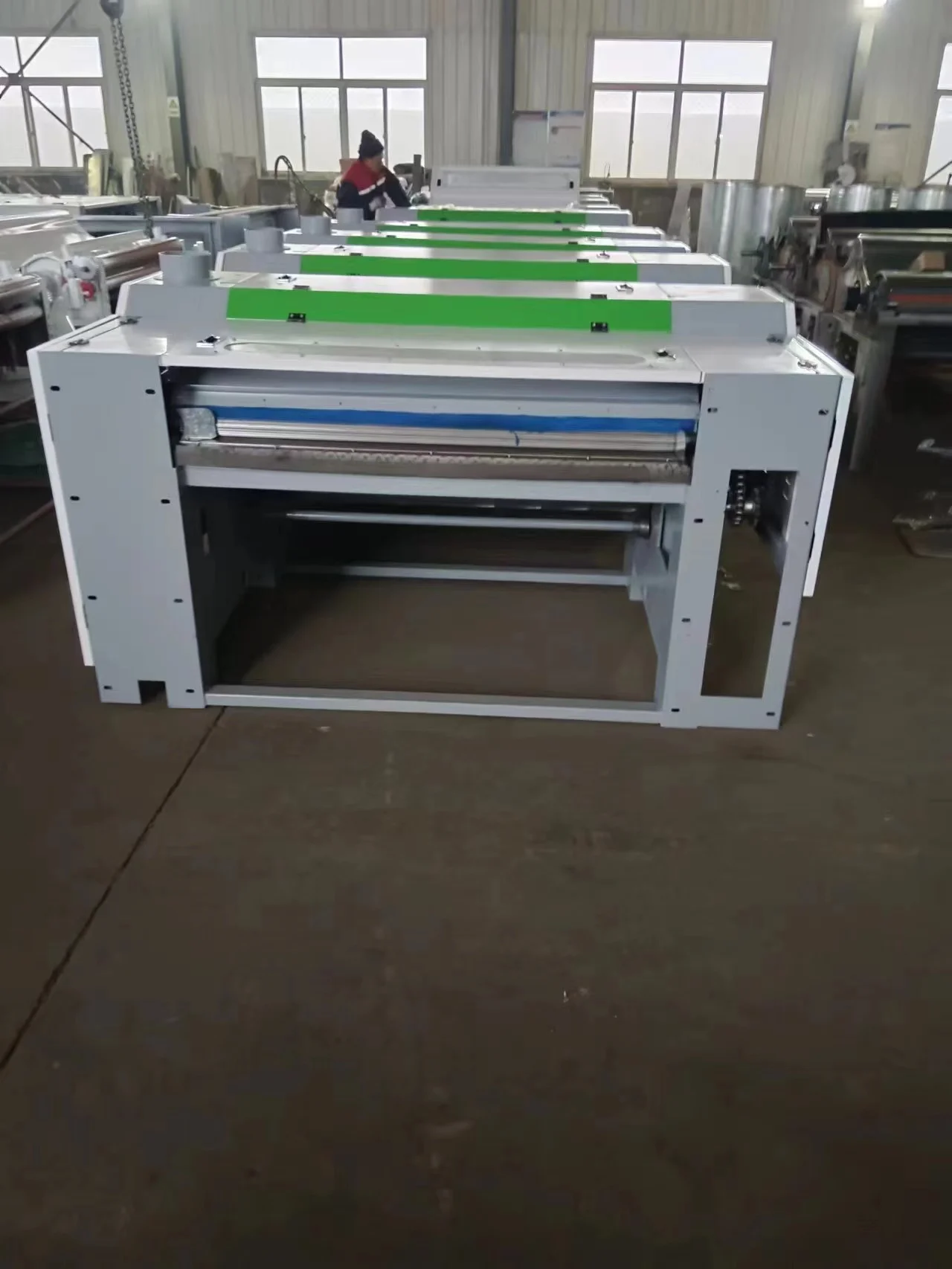

machine details

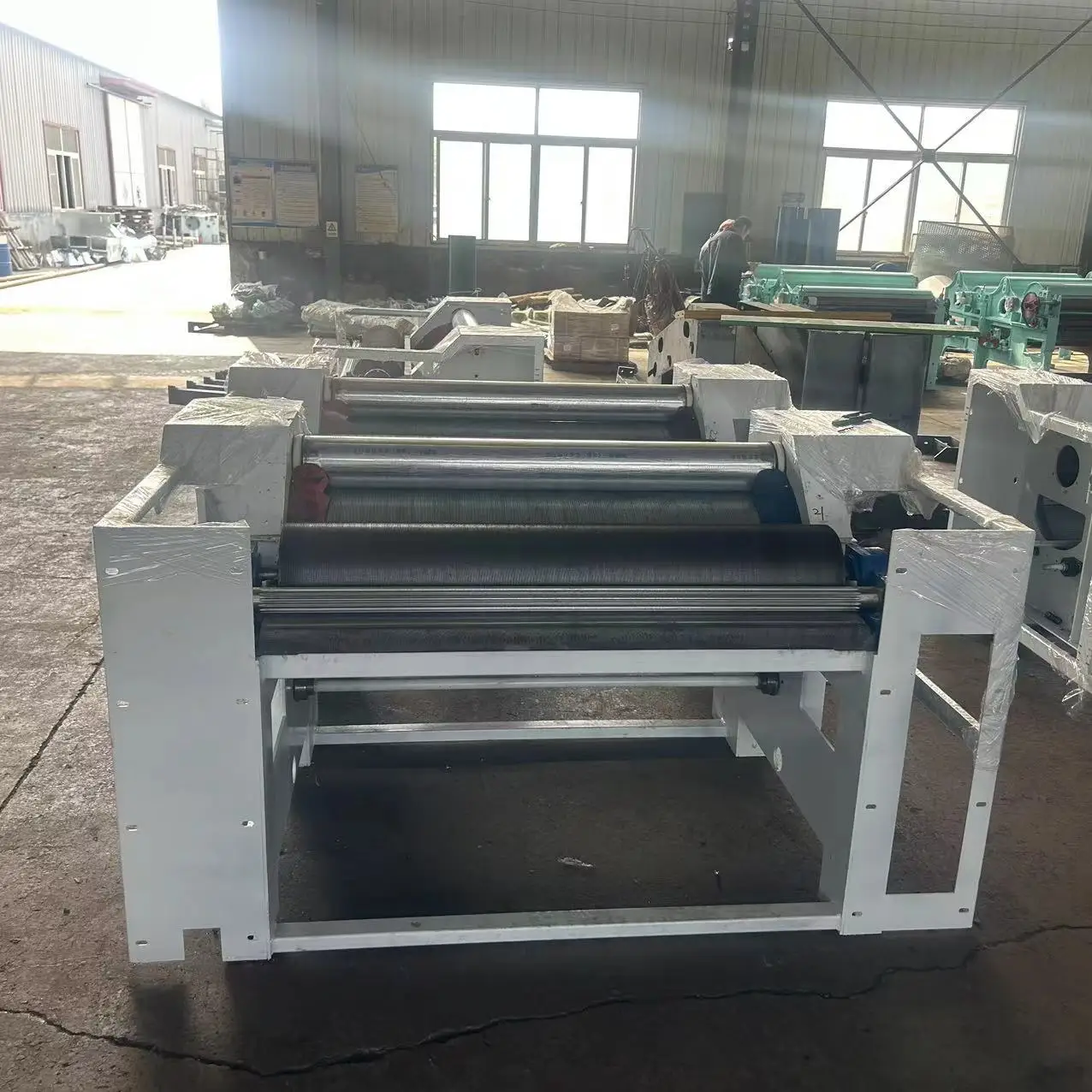

nail plate roller

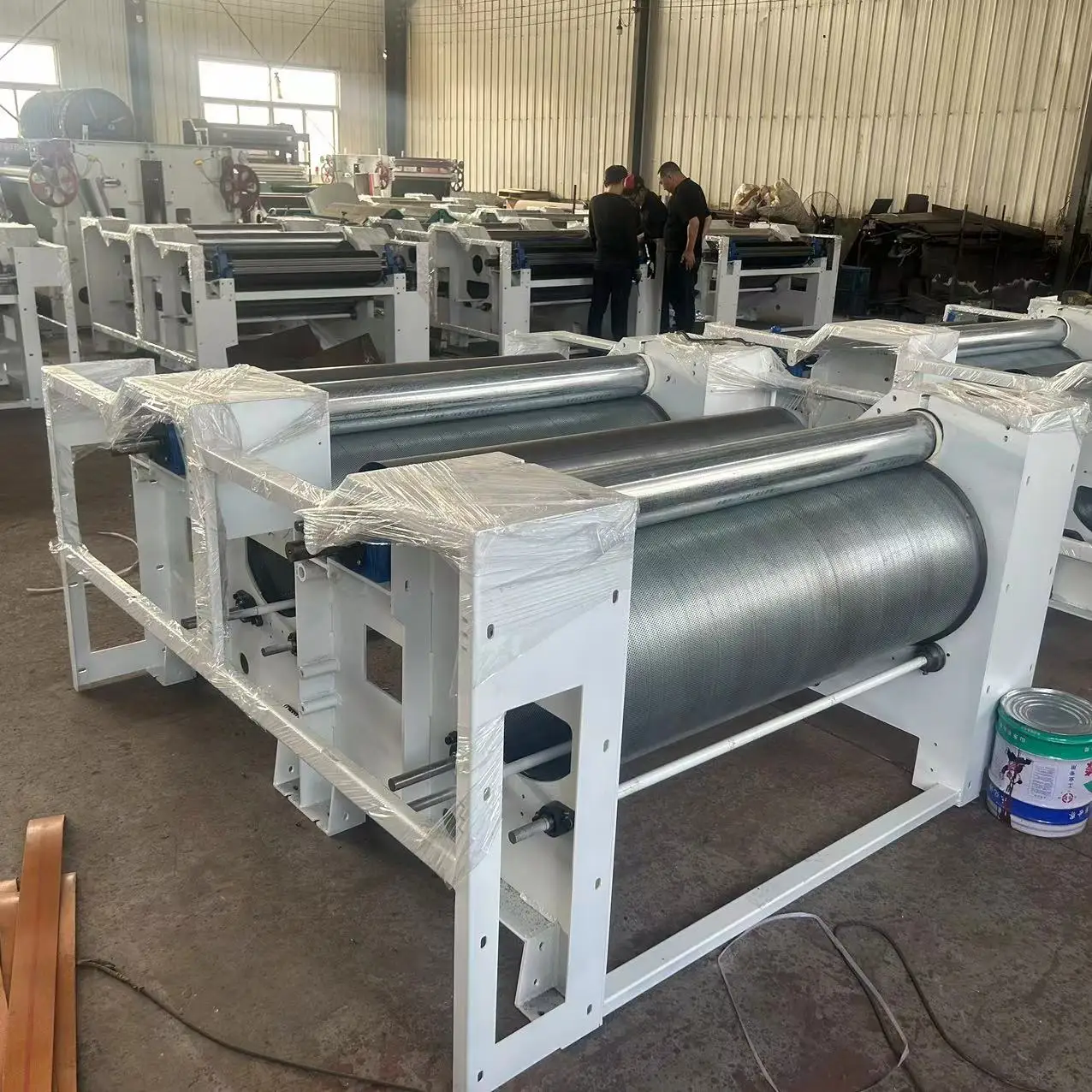

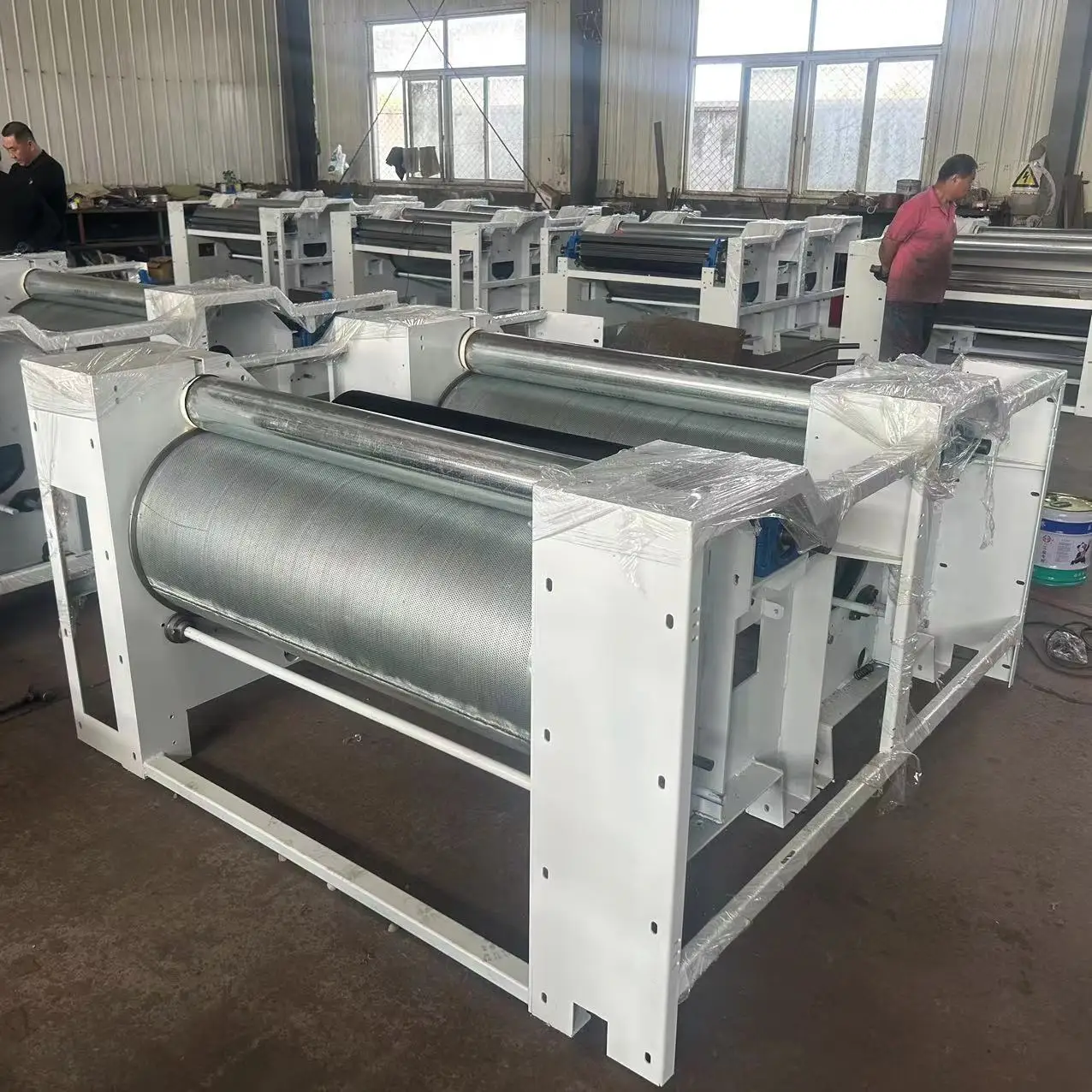

diameter 800 wire roller
Product Features:
1-Output fiber with high quality,good fiber length.
2-Adapt to various raw materials.
3-The motor and the reducer are equipped with inverters,different procedures can be set according to the raw material.
4-Humanized human-machine interface,Production status visualization.
5-Adding metal removal system (magnet chamber and magnet roller) and material humidification system to improve fiber quality and
protect the machine
1-Output fiber with high quality,good fiber length.
2-Adapt to various raw materials.
3-The motor and the reducer are equipped with inverters,different procedures can be set according to the raw material.
4-Humanized human-machine interface,Production status visualization.
5-Adding metal removal system (magnet chamber and magnet roller) and material humidification system to improve fiber quality and
protect the machine

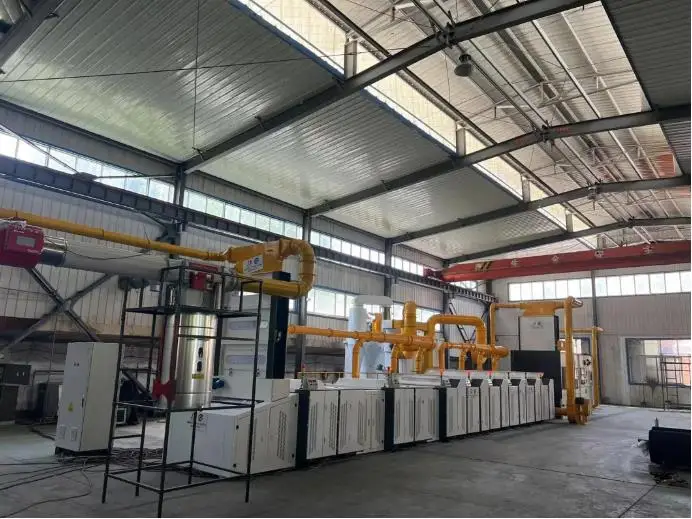

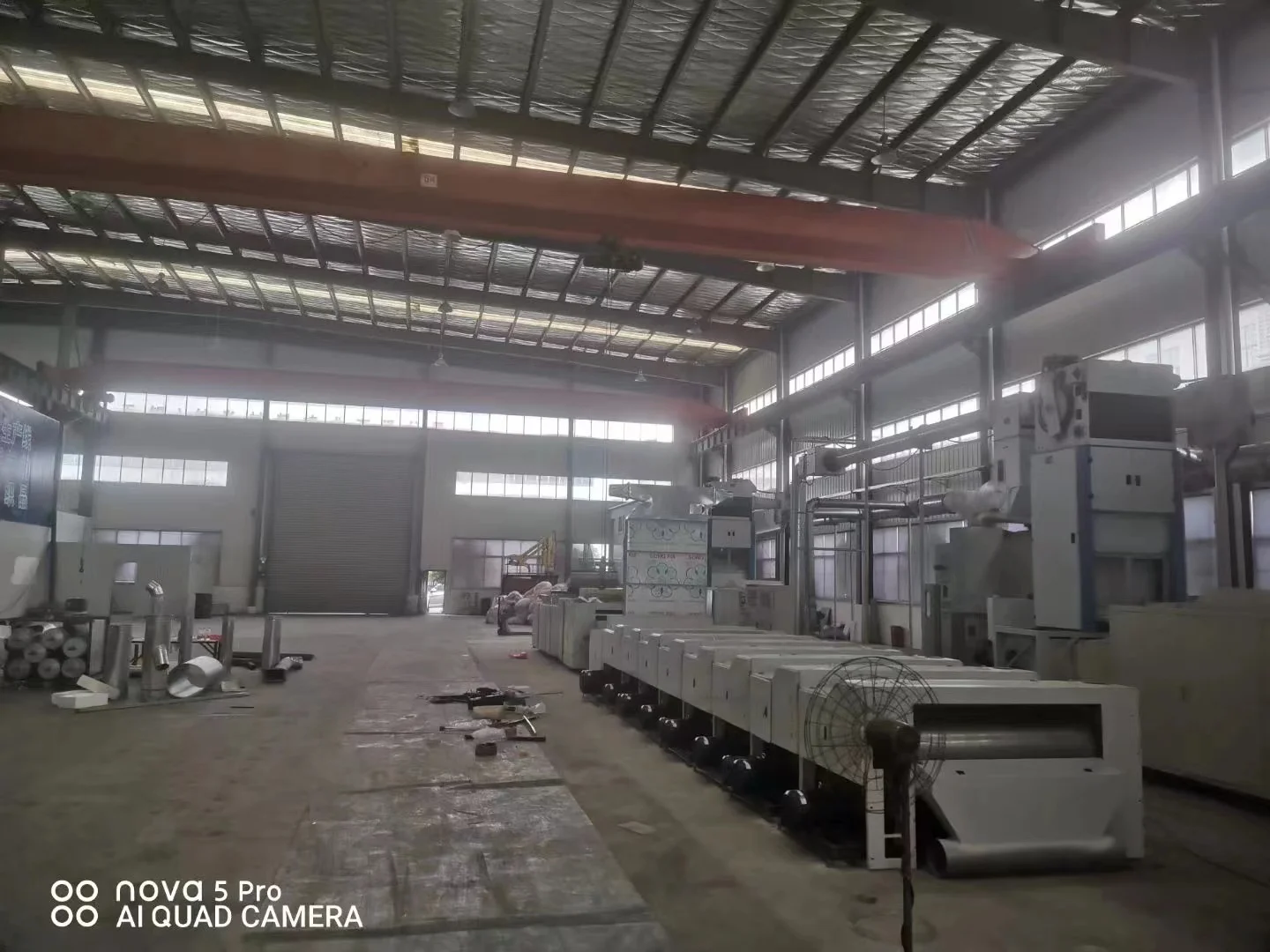

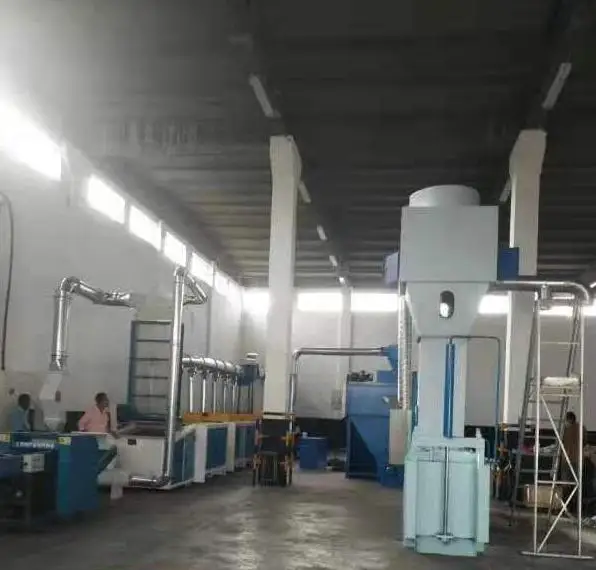

factory workshop truth
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
FAQ
Q:Why choose our machine?
A:We are polishing machine equipment MANUFACTURER, So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers?
A: We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.Please tell me your requirements first, then we can designed the suitable machine to you.
Q:How about delivery time?
A: 10-15days
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email.
Q: Do you have installation and training service in our local?
A: Currently, we have service partners in Portugal, Tukey and India. Portugal and Turkey partners provide service for the European area. In other areas, if needed, we will arrange an engineer from China.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support and service, and consumables at the lowest price.
A:We are polishing machine equipment MANUFACTURER, So we can offer better price and after-sale service and shorter delivery date.We have successfully exported to Europe, USA, South Africa, Southeast Asia and so on foreign countries. We all get good feedback.
Q: Can the machine be customized according to the special requirements of customers?
A: We have strong design & technical capacity, we can design and manufacture as per the customer's requirement.Please tell me your requirements first, then we can designed the suitable machine to you.
Q:How about delivery time?
A: 10-15days
Q: Do you have after sales support?
A: Yes, we have rich experience in handling after-sales issues via video or email.
Q: Do you have installation and training service in our local?
A: Currently, we have service partners in Portugal, Tukey and India. Portugal and Turkey partners provide service for the European area. In other areas, if needed, we will arrange an engineer from China.
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE,At first we will show you after shipped we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance. If need, We can do other clearance documents, such as Certificate of Origin.
Q: How about warranty?
A: We provide a FREE ONE YEAR WARRANTY for machine parts. (Non-human factors) Lifetime technical support and service, and consumables at the lowest price.
You just need it, I'm just the professional！！
Just looking forward to service every customer,like you!
