automatic steel structural shot blasting machine manufacturers abrasive blasting equipment
- Category: >>>
- Supplier: Qingdao Qinggong Machinery Co. Ltd.
Share on (1601039798593):
Product Overview
Description
XXXXXXXX
Products Description

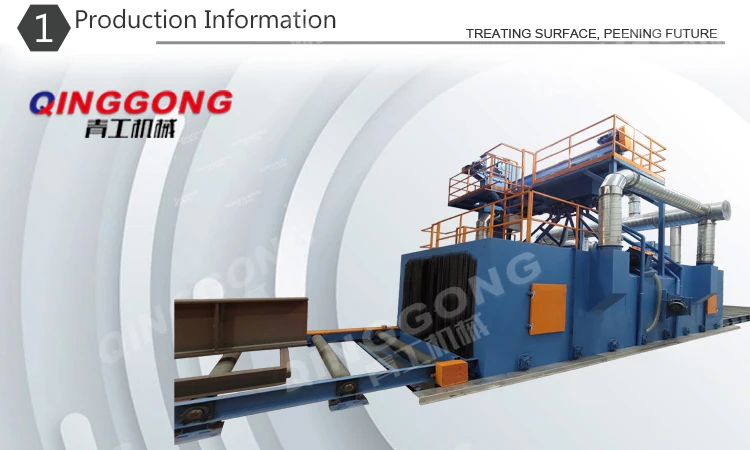

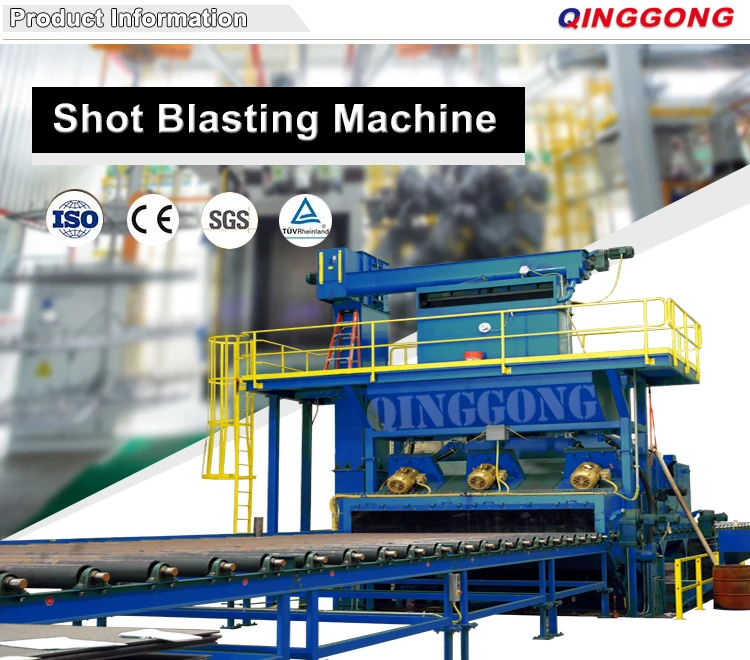

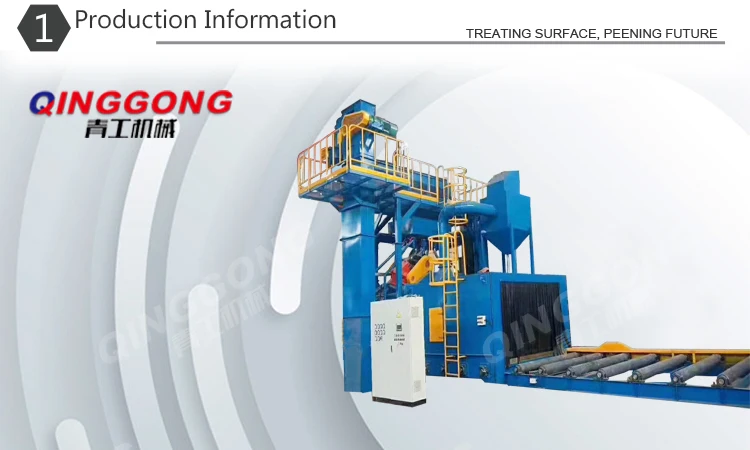

* Roller conveyor shot blasting machine is the most environment-friendly and the most effective process to remove all forms of rust and corrosion materials from steel plate, pipes, steel structure, h beam, steel tube, profiles, steel angles and channels, etc.
* Roller conveyors are mainly used to clean large workpieces, such as steel plates, profiles, I and H beams and simple
constructions in a continuous through feed process.This type of shot blasting machine are mostly used for descaling, derusting, paint removal, paint preparation, deburring and general surface preparation prior welding, cutting, machining and burning operations.
* Treated objects move through the shot blasting machine on a roller conveyor. Blasting turbines are made from wear-resistant materials with power from 5.5 to 30 kW, providing efficient shot blasting. Roller conveyor shot blasting machine robust housing is protected by wear resistant shields made from manganese steel liners. Rubber seal curtains keep the abrasive inside the blasting chamber.Rotating brush and high-pressure fan remove the abrasive from the treated object before it exits the shot blasting machine.Screw conveyors, elevator and sand cleaner provide returning and continuous automatic cleaning of the abrasive.
* Roller conveyors are mainly used to clean large workpieces, such as steel plates, profiles, I and H beams and simple
constructions in a continuous through feed process.This type of shot blasting machine are mostly used for descaling, derusting, paint removal, paint preparation, deburring and general surface preparation prior welding, cutting, machining and burning operations.
* Treated objects move through the shot blasting machine on a roller conveyor. Blasting turbines are made from wear-resistant materials with power from 5.5 to 30 kW, providing efficient shot blasting. Roller conveyor shot blasting machine robust housing is protected by wear resistant shields made from manganese steel liners. Rubber seal curtains keep the abrasive inside the blasting chamber.Rotating brush and high-pressure fan remove the abrasive from the treated object before it exits the shot blasting machine.Screw conveyors, elevator and sand cleaner provide returning and continuous automatic cleaning of the abrasive.
Product Parameters
Type | unit | QGRB600 | QGRB1000 | QGRB1500 | QGRB2000 | QGRB2500 | QGRB3000 |
Effective blasting width | mm | 600 | 1000 | 1500 | 2000 | 2500 | 3000 |
Dimension of entrance(W×H) | mm | 800×300 | 1200×300 | 1700×300 | 2200×300 | 2700×300 | 3200×300 |
Work speed to achieve cleaning of Sa2.5 ISO8501 | m/min | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 |
Number of wheels×power | kW | 4×7.5/11 | 4×11/15 | 4×11/15 | 6×11/15 | 8×11/15 | 8×11/15 |
Wheel optional | kW | — | — | — | 4×15 | 6×15/18.5 | 6×15/18.5 |
Abrasive initial filling capacity | kg | 2000 | 4000 | 4000 | 4500 | 6000 | 6000 |
Processed length of the workpiece | mm | 1200~12000 | 1200~6000 | 1200~12000 | 3000~12000 | 2400~12000 | 3000~18000 |
Foundation pit required | No | No | No | Yes | Yes | Yes |

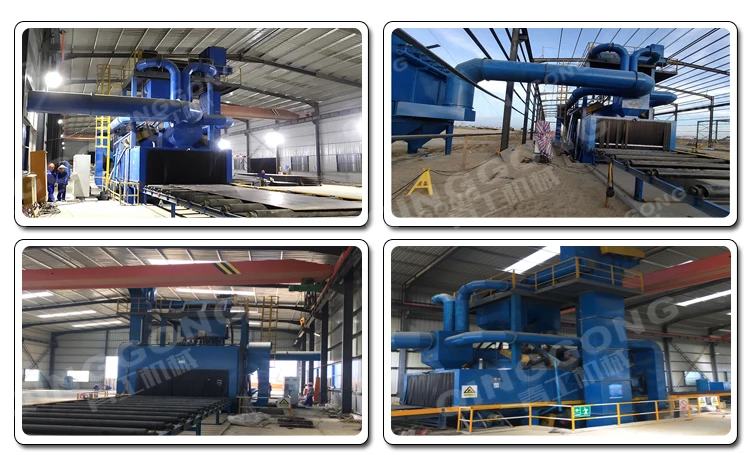

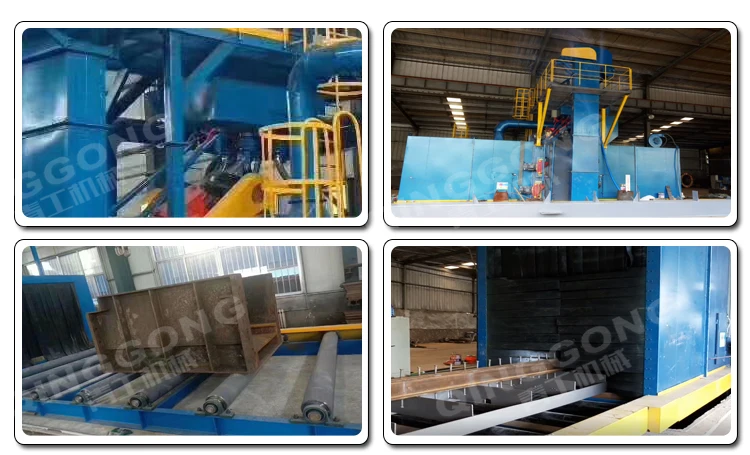

Details Images
Company Profile
* With 45 years experience of innovating and producing, QINGGONG machinery is a professional manufacturer of wheel blast/air blast machines. Qinggong machinery have a R&D team with 30 years experience, 50 workers and a factory covering an area of 30,000 m2.
* Untill 2019, Qinggong machinery have produced 5000+ sets of various kinds of wheel blast, air blast machines for customers from more than 50 different countries. TREATING SURFACE, PEENING FUTURE. has been the spirit of Qinggong machinery for decades. With our determined and responsible attitude, we have the confidence of providing the better surface treatment solutions for your industry.
* Untill 2019, Qinggong machinery have produced 5000+ sets of various kinds of wheel blast, air blast machines for customers from more than 50 different countries. TREATING SURFACE, PEENING FUTURE. has been the spirit of Qinggong machinery for decades. With our determined and responsible attitude, we have the confidence of providing the better surface treatment solutions for your industry.
Certifications
Our Service
* Warranty: 12 months from the date of installation
* Technical support for machine life time.
* Round-the clock problem solving support with our 24-hours hotline.
* Timely supply of spare parts and ware parts.
* Maintenance agreements tailored to the requirements of our customers.
* Training programs for operating and maintenance personnel.
* Installation and commissioning of new machineries.
* Support to ensure your full compliance with local safety and environmental requirements.
* Technical support for machine life time.
* Round-the clock problem solving support with our 24-hours hotline.
* Timely supply of spare parts and ware parts.
* Maintenance agreements tailored to the requirements of our customers.
* Training programs for operating and maintenance personnel.
* Installation and commissioning of new machineries.
* Support to ensure your full compliance with local safety and environmental requirements.
Product packaging
FAQ
Q:How to choose balst machine type?
A:Please tell the information of your work-piece and productivity, experienced engineer will suggest.
Q:How to choose abrasive?
A:Various kinds abrasive with different size: steel shot, cut wire shot, stainless steel shot, etc. Choose according to workpiece.
Q:Quality warranty?
A:1 year for whole machine, 10 years for blasting chamber
Q:Is foundation pit essential?
A:Up to machine size and workshop
Q:How many workers to operate the machine?
A:1-2, up to the machine.
Q:Install assistance?
A:1-1 install assistance & operation training on site by experienced engineer.
Q:After sale service?
A:Full stock for spare parts, regular after sale service.
