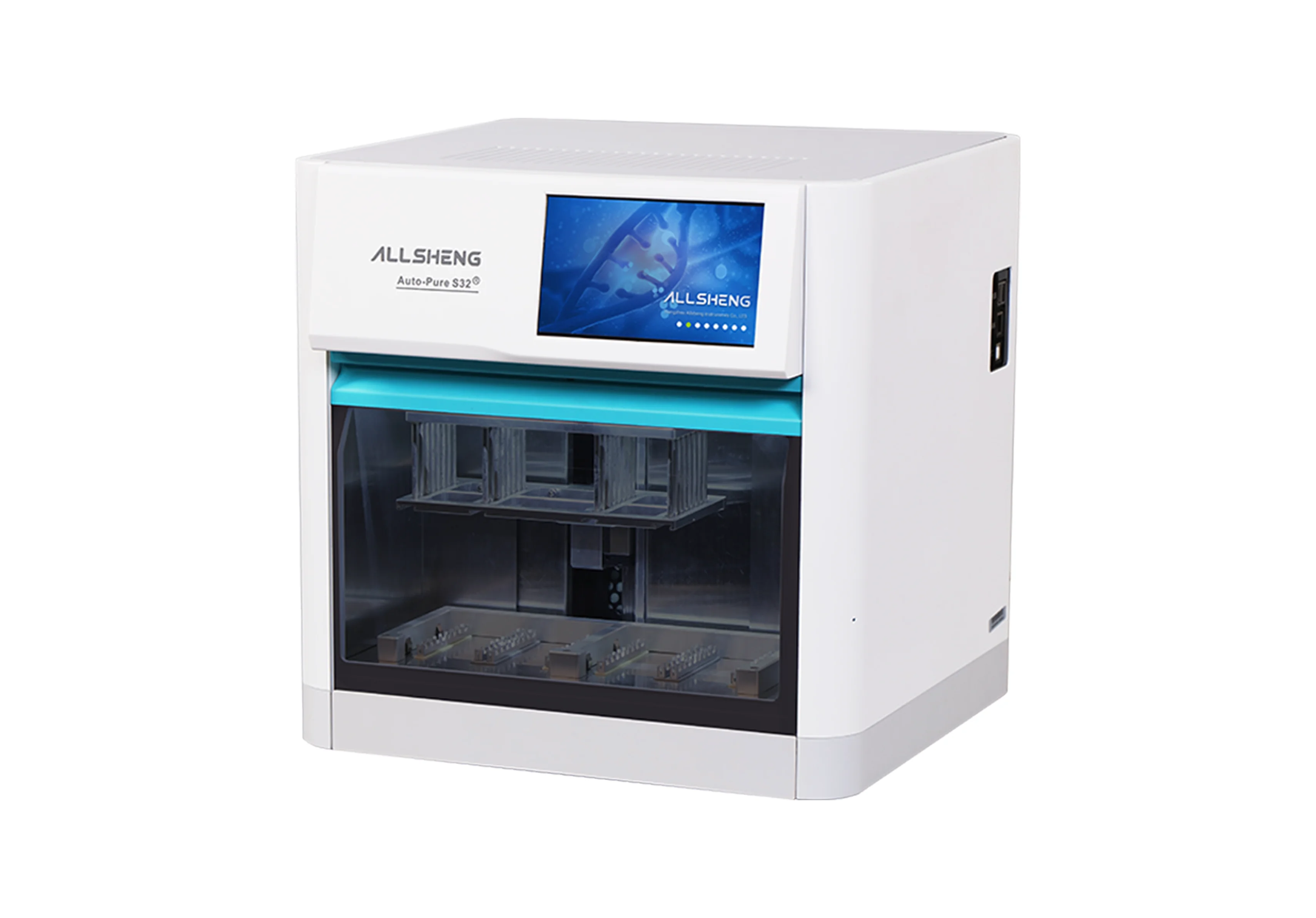

Nucleic Acid Purification System — Auto-Pure S32

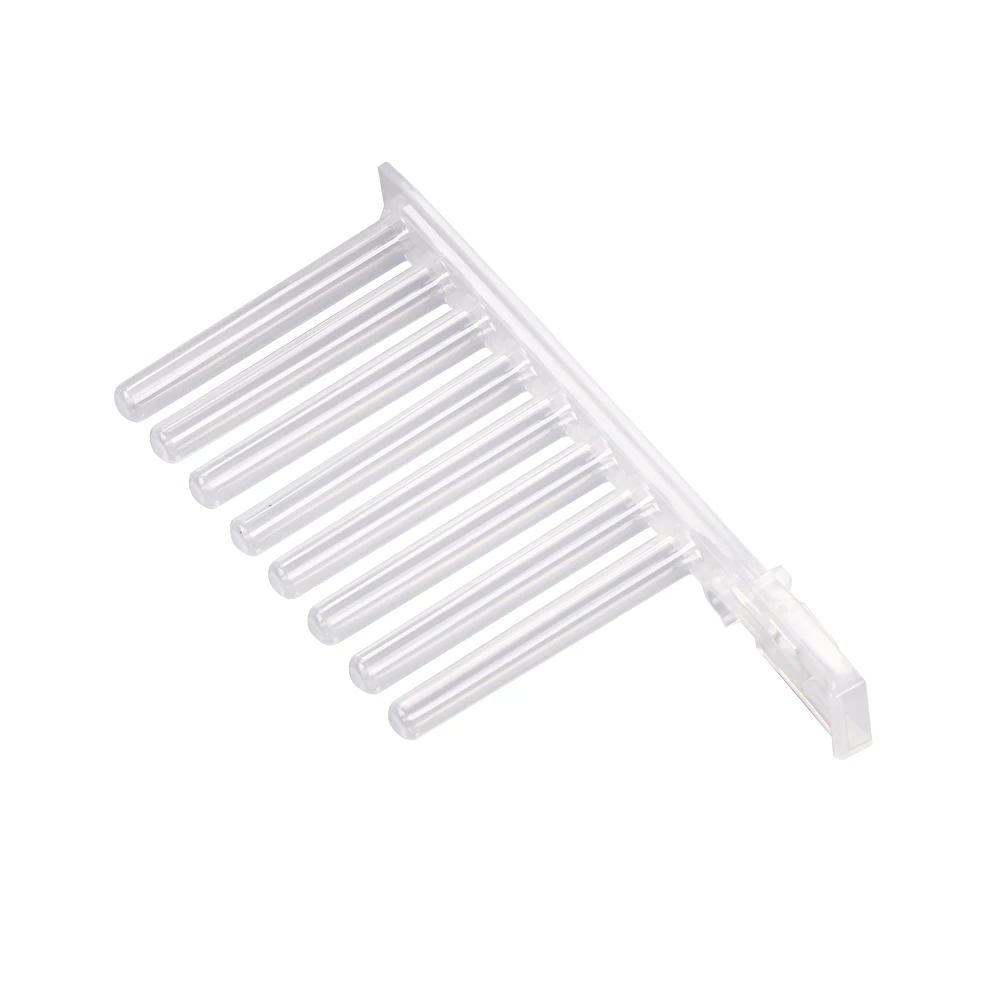

Auto-Pure S32 automatic nucleic acid purification system is a device for nucleic acid extraction and purification based on magnetic bead method. It can be used for fully automatic extraction and purification of DNA, RNA, and protein. Through the adsorption, transfer and release of magnetic beads by magnetic rods and magnetic rod's tip, the transfer of magnetic beads/samples is realized, and the automatic extraction and purification operation is completed. The operation is automated, fast and simple. Using special kits or 96-well plates, 1 to 32 samples can be processed at the same time. With different types of magnetic bead nucleic acid extraction reagents, rapid extraction of animal, plant tissue, blood and other body fluid samples can be achieved. It is mainly used for the extraction and purification of nucleic acid from human samples.
Features
•Humanized Operating System
Chinese and English interface operation, touch screen operation, and external mouse, easy to use
Built-in lighting LED for real-time observation of operating conditions
Short operation time, with different reagents, the general extraction time is 10~60 minutes/time
Support external scanning gun, automatically identify program/sample and other information after scanning
•Open Design, Flexible Extraction
1-32×1 mL samples can be extracted in one run
Realize lysis heating and elution heating
1-10 gears of shaking and mixing can be set flexibly, and the methods are more diverse
•Stable Operation, Safe and Reliable
The instrument runs quietly and the whole machine has no vibration
Automatic reagents and disposable consumables reduce operator exposure to harmful reagents
Select high-quality materials and processes, low loss of magnetic beads, high yield
Built-in UV sterilization function reduces the risk of contamination
•Intelligent and Diverse Network System
Network control----Extensible Ethernet remote control, Wireless WiFi function
APP software ---- can expand the Android tablet computer, mobile phone monitoring system
Expanded functions----IOT to achieve efficient background management
Technical date
Model | Auto-Pure S32 |
Principle | Magnetic bead method |
Throughput | 1~32 |

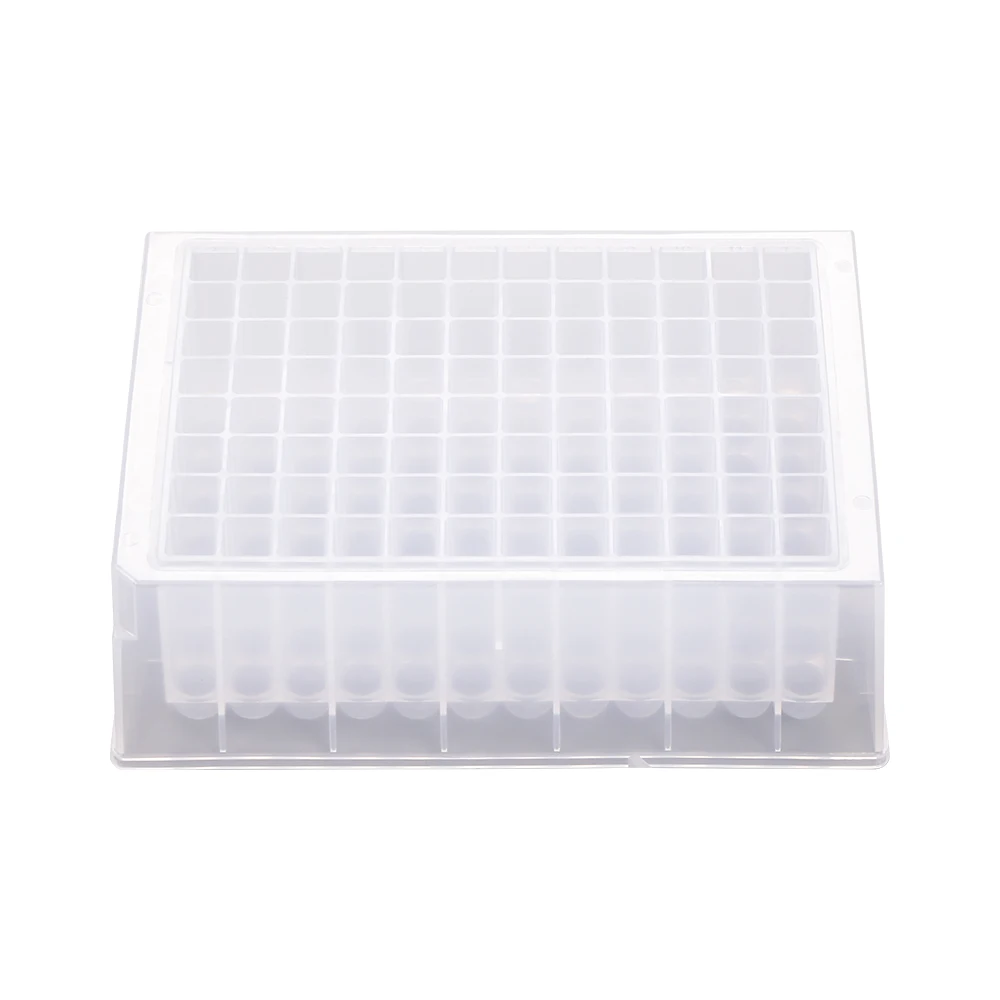

Plate type | 96 deepwell plate |
Process volume /μL | 30~1000 |
Stability | CV≤5 % |
Heating for lysis tube | RT.~120℃ |
Heating for elution tube | RT.~120℃ |
Heating time | RT.~120 ℃≤4 minutes |
Cooling time | 100 ℃~40 ℃ time≤10 minutes (RT.25 ℃) |
Temperature precision | ±0.5 ℃ |
Temperature uniformity | At 100 °C, ±1 °C |
Shake mixing | 1-10 gear can be set |
Operation interface | 7 inch color large touch screen |
Internal procedure | Up to 500 programs can be stored |
Instrument interface | 2 USB (dual A type), 1 USB (B type), 1 Ethernet port |
Network | Standard Wifi network, reserved 4G network |
Barcode scanning | Support external scanning gun, automatically identify program/sample and other information after scanning |
Sterilization | UV sterilization |
Purification filter | Equipped with a purification and filtration system to effectively reduce the risk of cross-contamination such as aerosols |
Power supply | AC110-240 V, 50 Hz/60 Hz, 450 VA |
Dimension (W×D×H) mm | 417×410×426 |
Weight (kg) | 20 |
