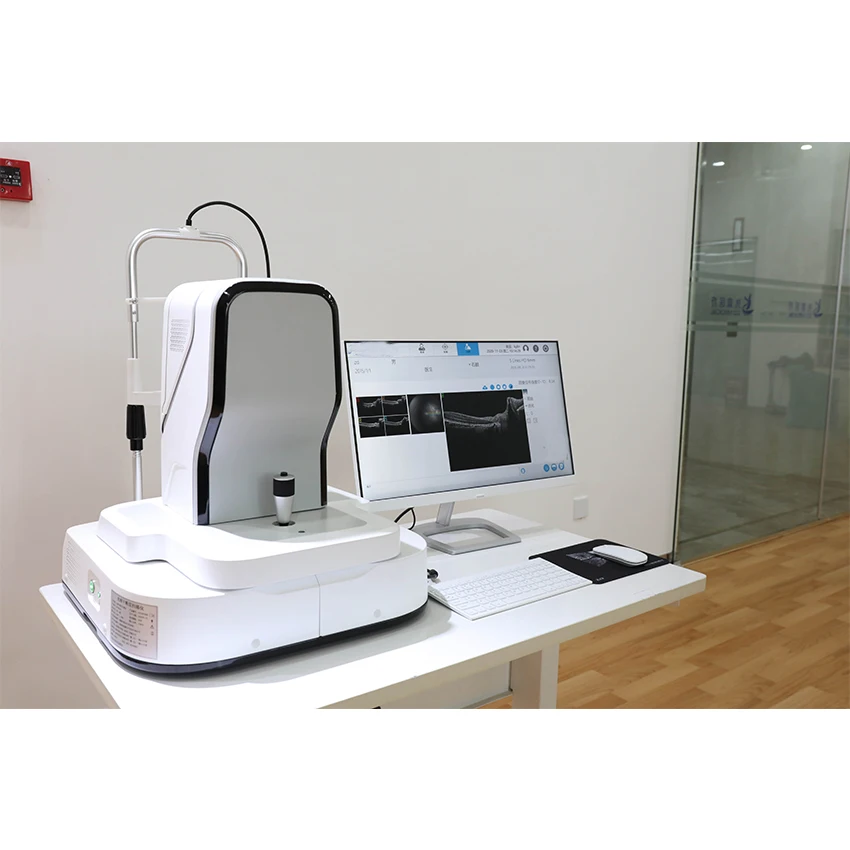

New arrival Super luminescent diode OCT scan device Optical Coherence Tomography
- Category: >>>
- Supplier: Longing Health Limited
Share on (1601039828962):
Product Overview
Description
Product Description
New arrival Super luminescent diode OCT scan device Optical Coherence Tomography
OCT 2020 is a new generation OCT,with upgraded function,clear image and smooth system. It is equipped with professional analysis software to accurately identify retinal diseases, help screen and reduce the missed diagnosis of the initial examination, which can greatly improve the clinical use efficiency.
Optical Coherence Tomography LH OCT2020
OCT2020 from uses LSLO technology, with up to 2.65mm scan depth,and the lateral resolution of retinal fundus image is up to 5μm. Equipped with professional analysis software, LH OCT2020 can obviously show the macular thickness under the macular thickness analysis model, which helps accurately identify clinical macular diseases.

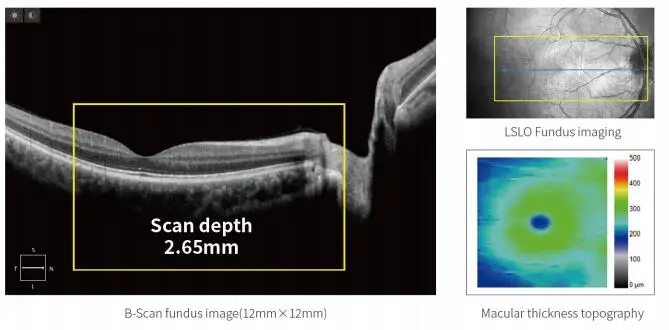

Deep to the Bottom of Fundus
The scan depth is up to 2.65mm, reaching to the choroid arid even the sclera. Fully display of all layers during one scan.
The scan depth (imaging depth) is one of the most important performance parameters in the OCT system. LH OCT2020 has an obvious advantage in depth, that is, the choroid imaging is clearer without affecting the axial resolution. It has significant advantages for fundus diseases involving high depth and high resolution,such as choroid disease diagnosis.
The scan depth (imaging depth) is one of the most important performance parameters in the OCT system. LH OCT2020 has an obvious advantage in depth, that is, the choroid imaging is clearer without affecting the axial resolution. It has significant advantages for fundus diseases involving high depth and high resolution,such as choroid disease diagnosis.
Wide to the Edge of Vision
Large scanning range, clear macular area and optic disc area at a glance.
Large scanning range, clear macular area and optic disc area at a glance.
Auto Focus
LH OCT2020 can automatically complete the tracking of fundus and macula,detect and calibrate the central part of the pupil, detect
and adjust the focus and fault position,and display retina layers of high-defition. The whole acquiring time is limited to 5
seconds,greatly saving the diagnosis time for clinicians.
and adjust the focus and fault position,and display retina layers of high-defition. The whole acquiring time is limited to 5
seconds,greatly saving the diagnosis time for clinicians.

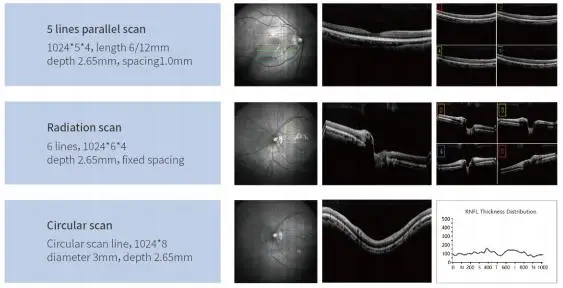

Scan Mode
LH OCT2020 has a variety of scan modes,including area scan,HD one line scan and multilines scan.
Area scan∶512*64，range 6mm*6mm\\range 12mm*12mm
HD one line scan: 1024*30,length 6mm;2048*30,length 12mm
Mutilines scan:5 lines parallel scan, Radiation scan, Circular scan
LH OCT2020 has a variety of scan modes,including area scan,HD one line scan and multilines scan.
Area scan∶512*64，range 6mm*6mm\\range 12mm*12mm
HD one line scan: 1024*30,length 6mm;2048*30,length 12mm
Mutilines scan:5 lines parallel scan, Radiation scan, Circular scan

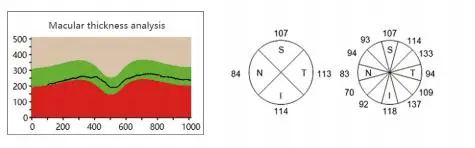

Glaucoma Analysis
Accurately measure the retinal thickness around the fovea and compare it with the age-elated normal data to analyze the deviation of patient's retinal thickness, which helps clinicians diagnose glaucoma.
Perform circular scan around the optic papillia, automatically quantify the optic nerve thickness, and compare the thickness with database, so as to examine the atrophy of the optic nerve as an early sign of glauco- ma.
Perform circular scan around the optic papillia, automatically quantify the optic nerve thickness, and compare the thickness with database, so as to examine the atrophy of the optic nerve as an early sign of glauco- ma.
Follow-up, a More Efficient Patient Management
Accurate and rapid scan helps followup the disease changes,making diagnosis more efficient and easier.
LH OCT2020 can automatically record current scanning position of macular and eyeball and intelligently locate the previous scanning position in the later follow-up examination, to ensure that two scans are in the same position. Based on the trend analysis of retinal thickness in different stages, perform long-term follow-up examinations and trend analysis.
Anterior Segment Examination

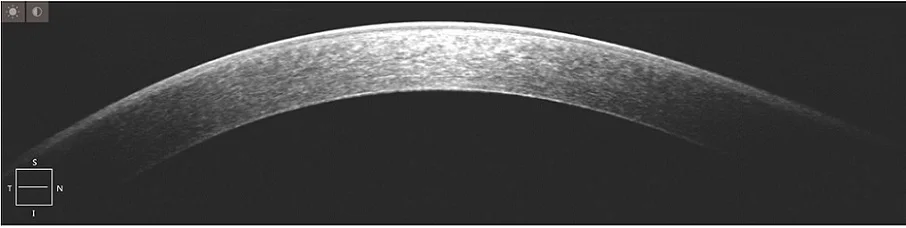

Cornea scan
* HD scan, multiple images combined to produce better image, clear cornea structure
* Auto measurement and manual measurement for each cornea layer thickness
* HD scan, multiple images combined to produce better image, clear cornea structure
* Auto measurement and manual measurement for each cornea layer thickness

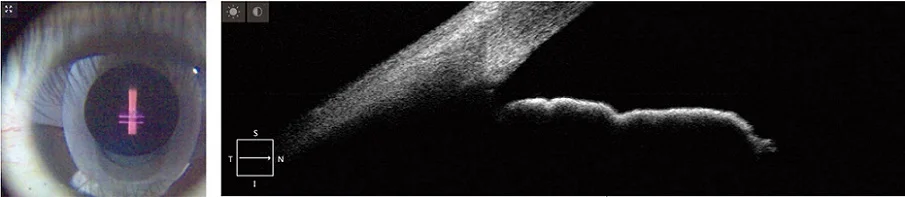

Clearly showing the cornea and iris
Precisely scanning the chamber corner, clearly showing the chamber corner structure
Precisely scanning the chamber corner, clearly showing the chamber corner structure
HOD cornea image, clearly showing the corneal epithelial layer,anterior elastic layer and coneal stroma

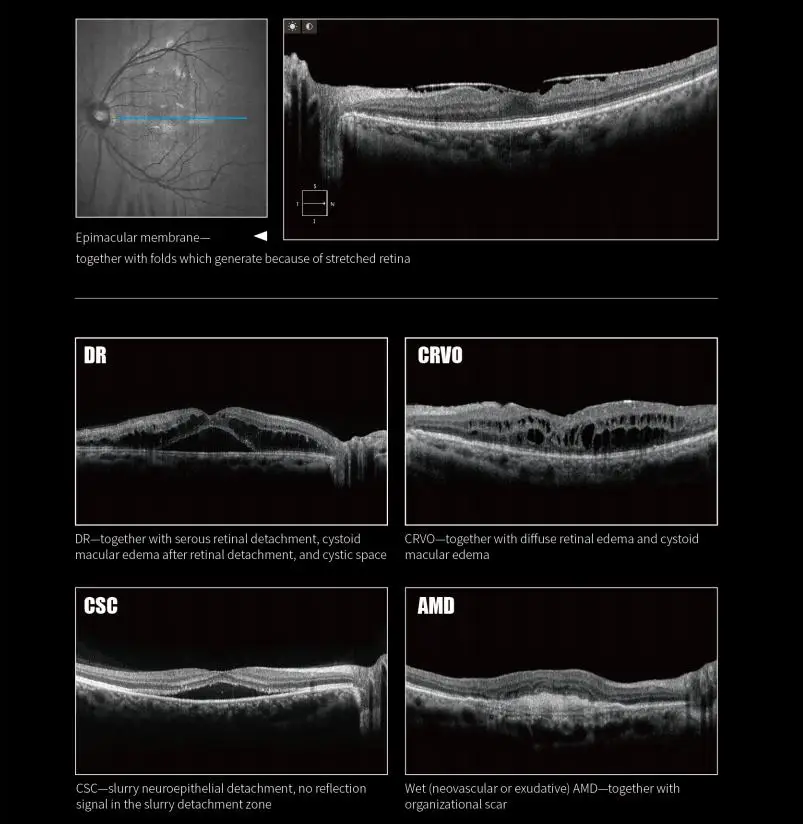

Fundus Imaging
Clear image collected by LH OCT 2020, help you diagnose the disease.
Specifications
Measurement | Axial resolution(in tissue): 5μm(in tissue) |
Horizontal resolution(in tissue): 10μm(in tissue) | |
Scanning | Maximum a scanning speed: 20KHz, tolerance±5% |
Maximum scanning depth≥2.65mm(in tissue), tolerance±3% | |
Maximum scanning range: 12mm × 12mm, tolerance±5% | |
Light Source | Central wavelength: 843nm |
Light power≤740μm(at the Cornea) | |
Refractive compensation range: -20D~+20D | |
Fundus Image | Method: LSLO |
Central wavelength: 780nm | |
Range: 42.0° × 42.0° |

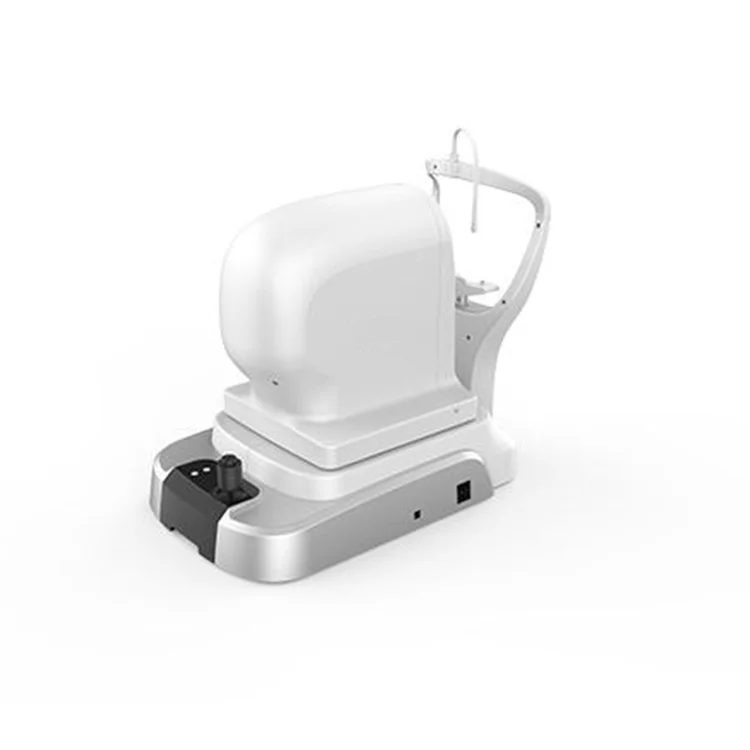

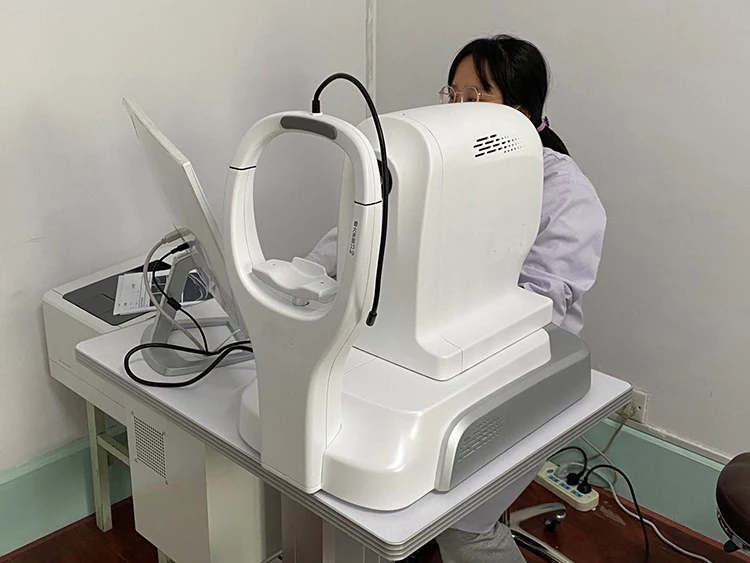

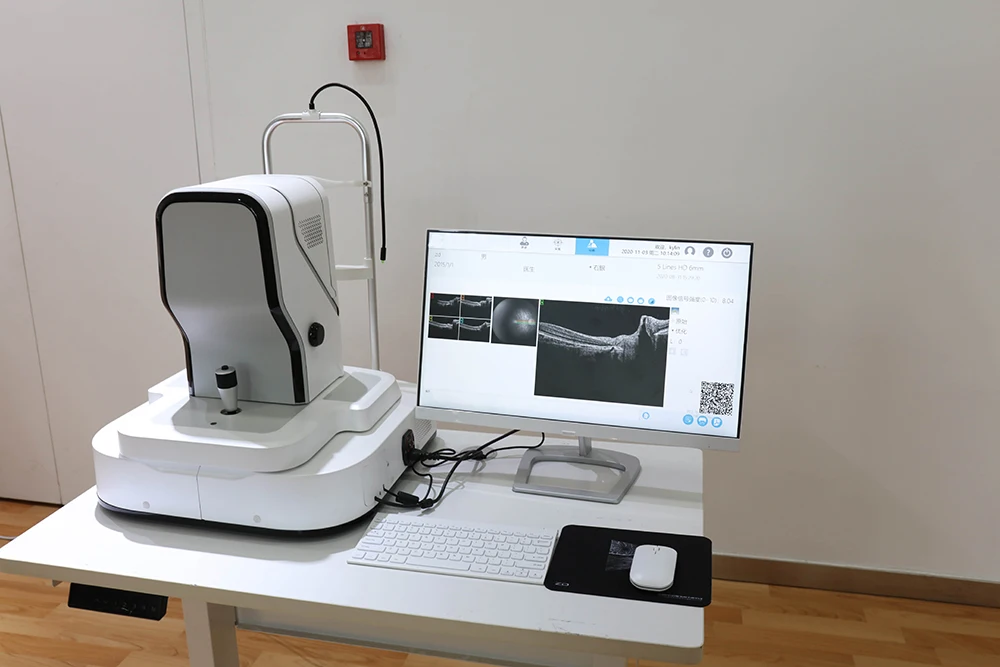

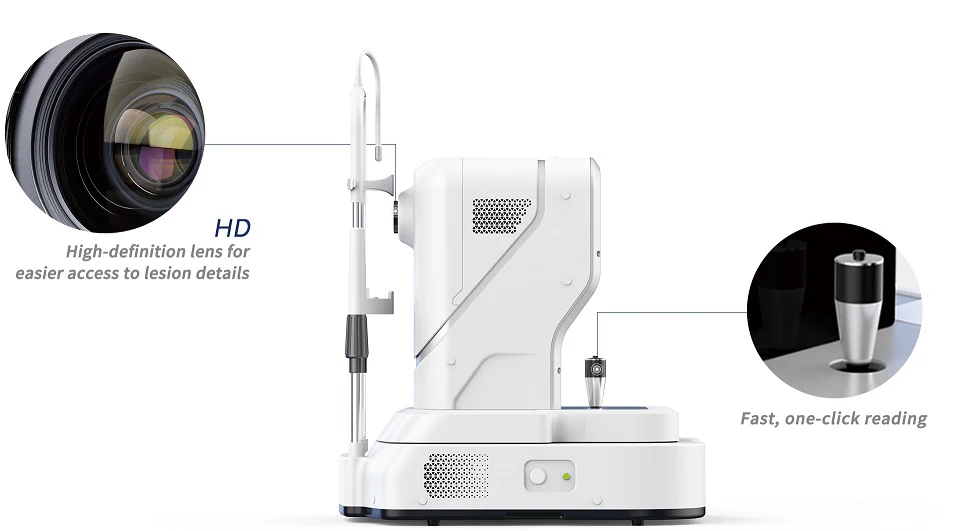

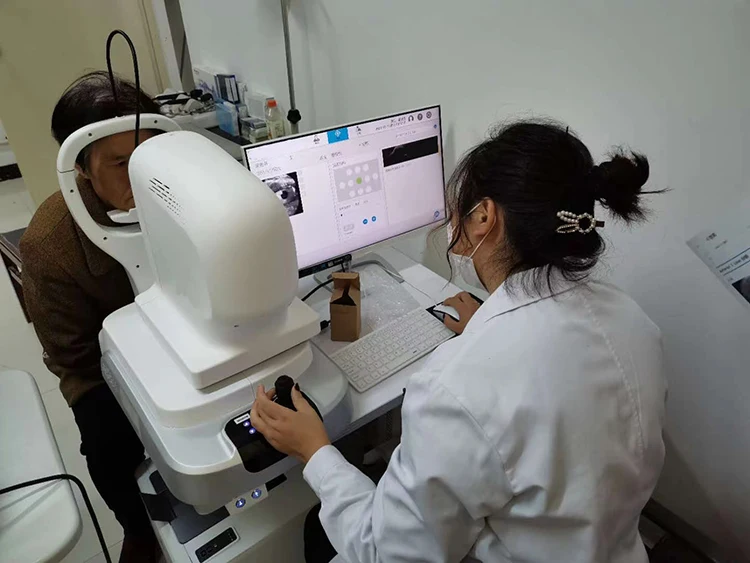

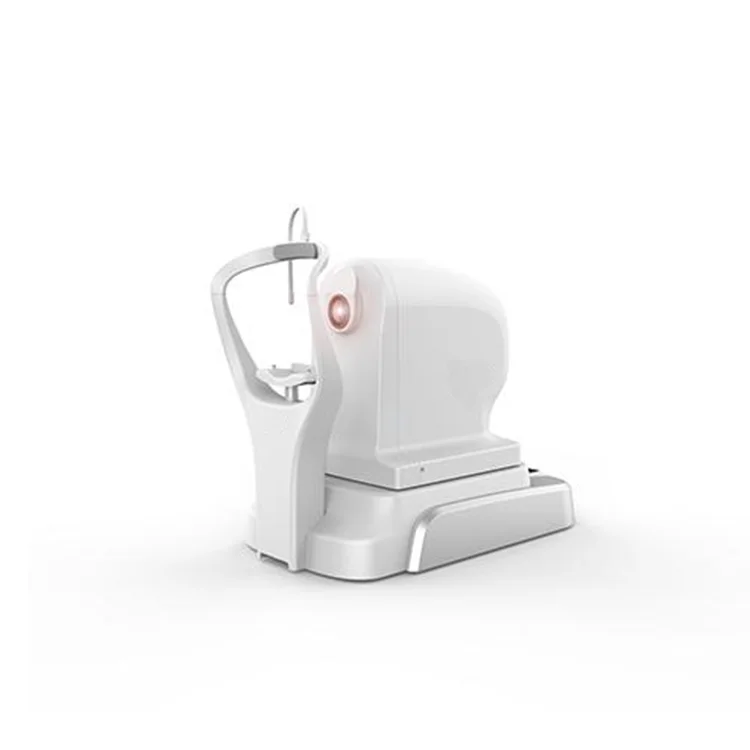

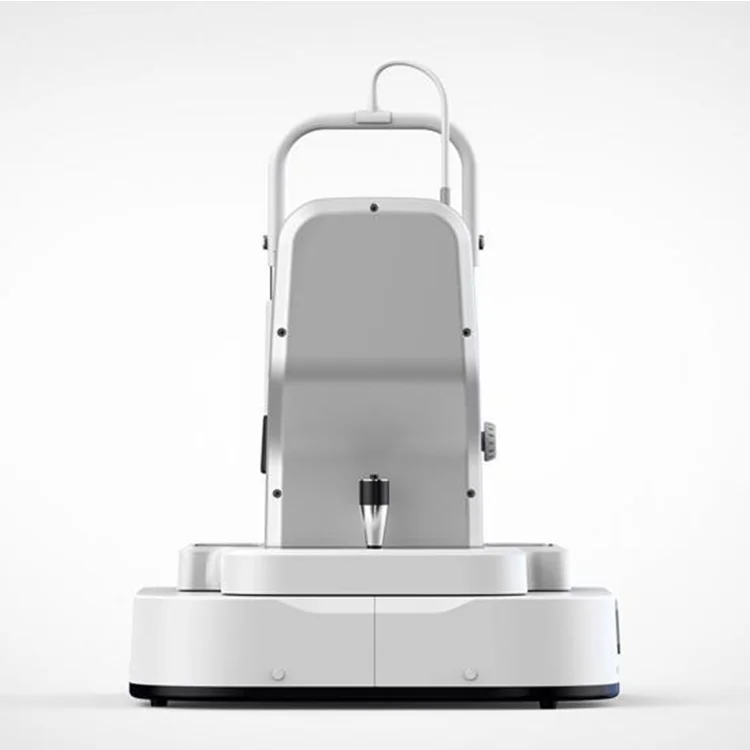

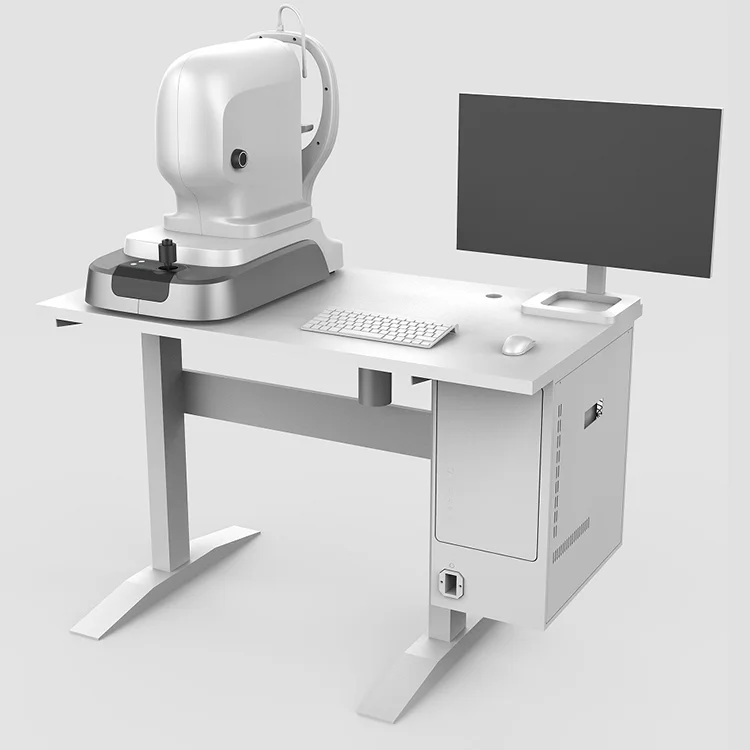

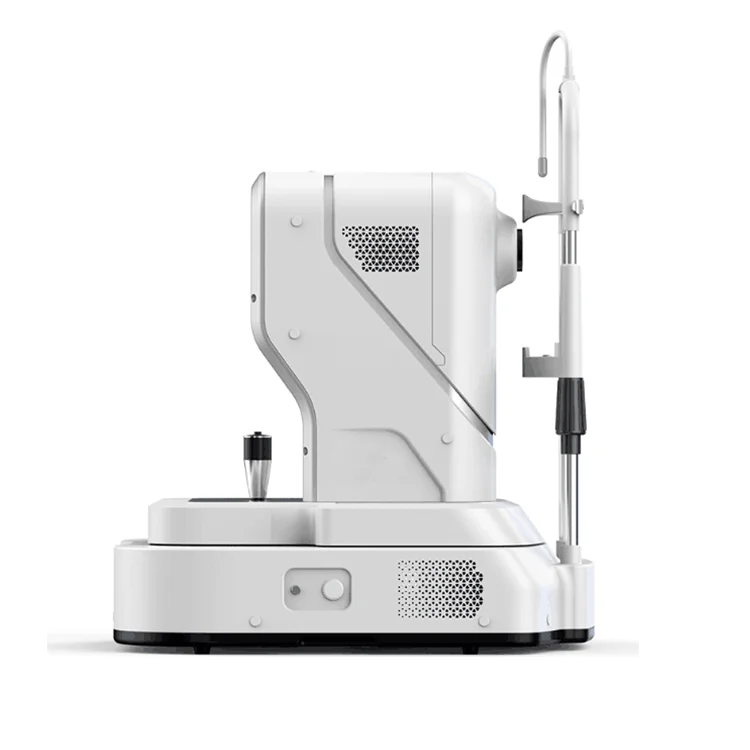

Real product pictures
Package
Company Profile
Longing Health Limited is a professional manufacturer, marketing and sales team specializing in medical devices and other health care related products in the worldwide. As a manufacturer, our R&D team is composed of a group of professional doctors and masters with many years of medical industry experience (More than 60% of the team have master's degree from famous universities).We has a very professional and experienced sales and marketing team which dedicated in the medical device exporting business over 15 years of experience, our products have been exported to more than 100 countries and have obtained good reputations because of our competitive price, high quality products and excellent service. Till now, We had successfully help our partners built the cooperation with hundreds of qualified customers globally.
