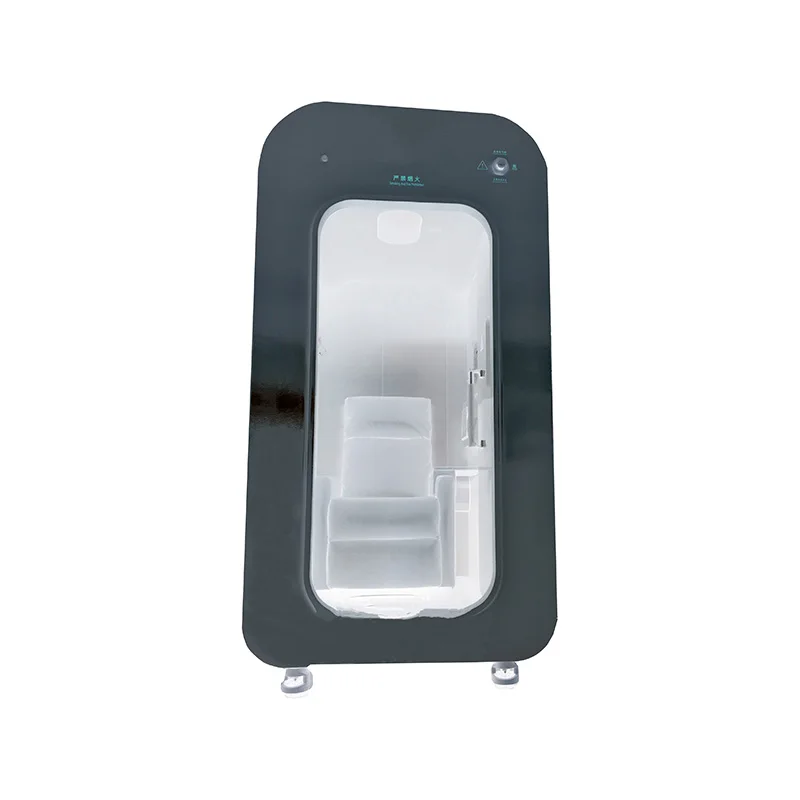

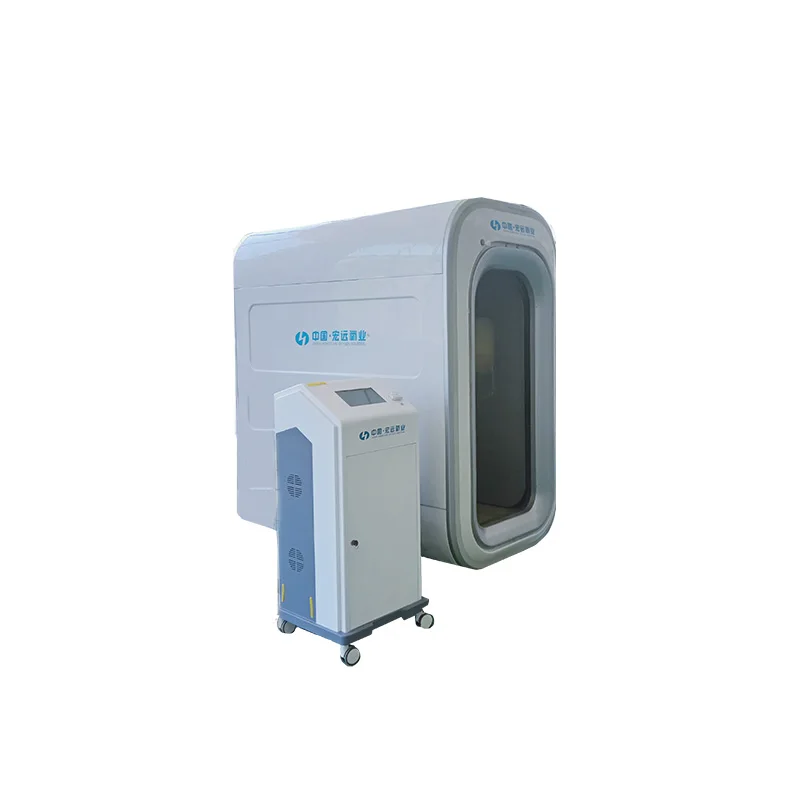

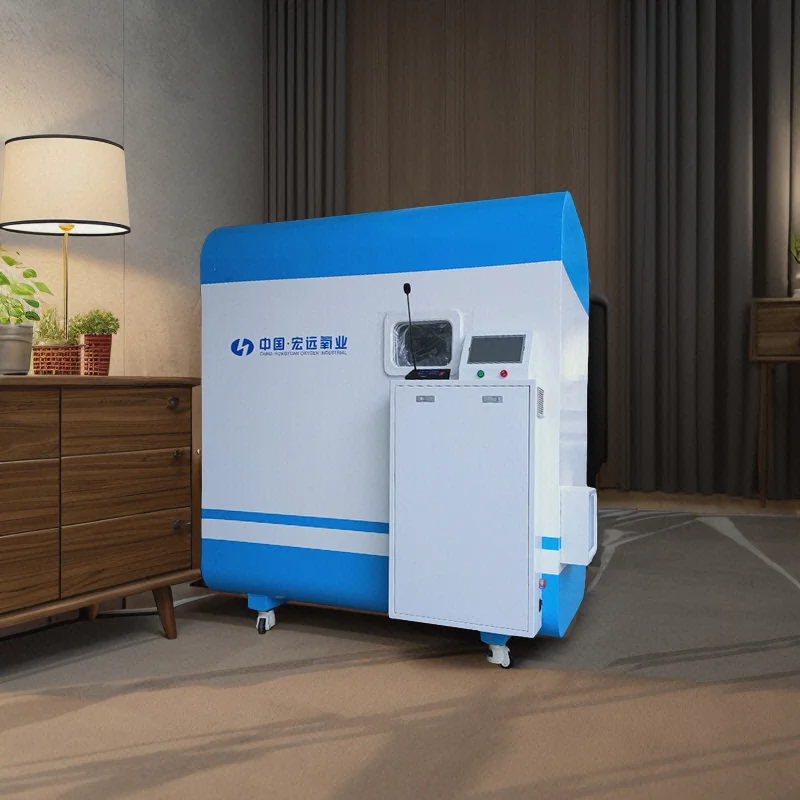

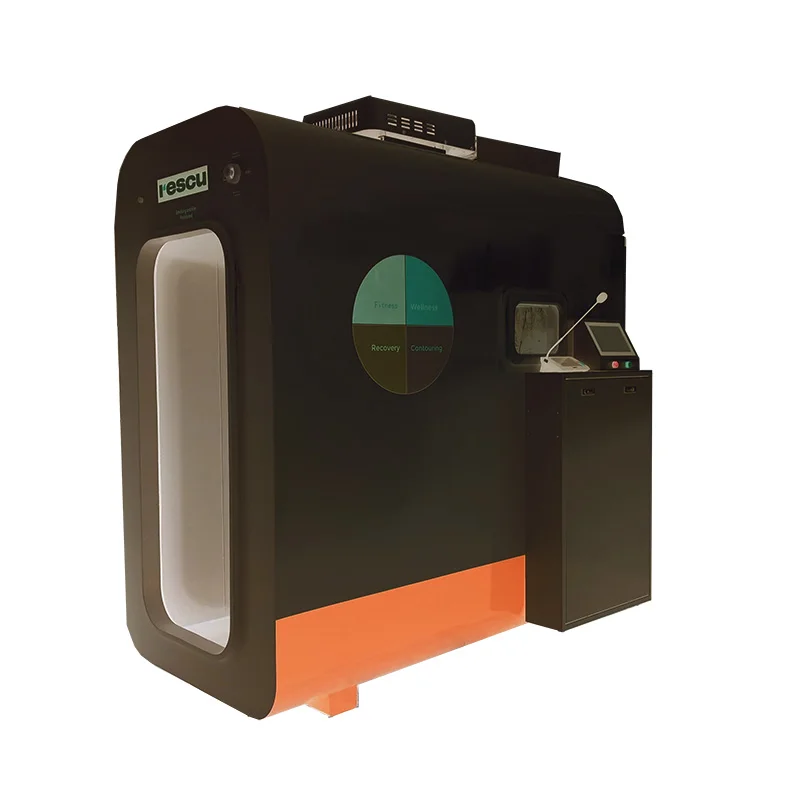

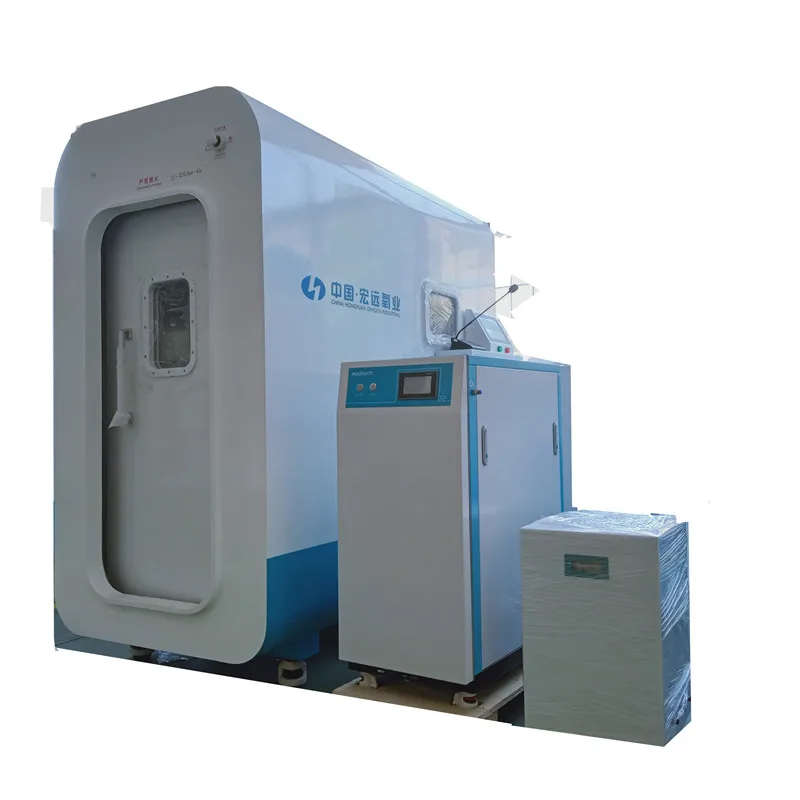

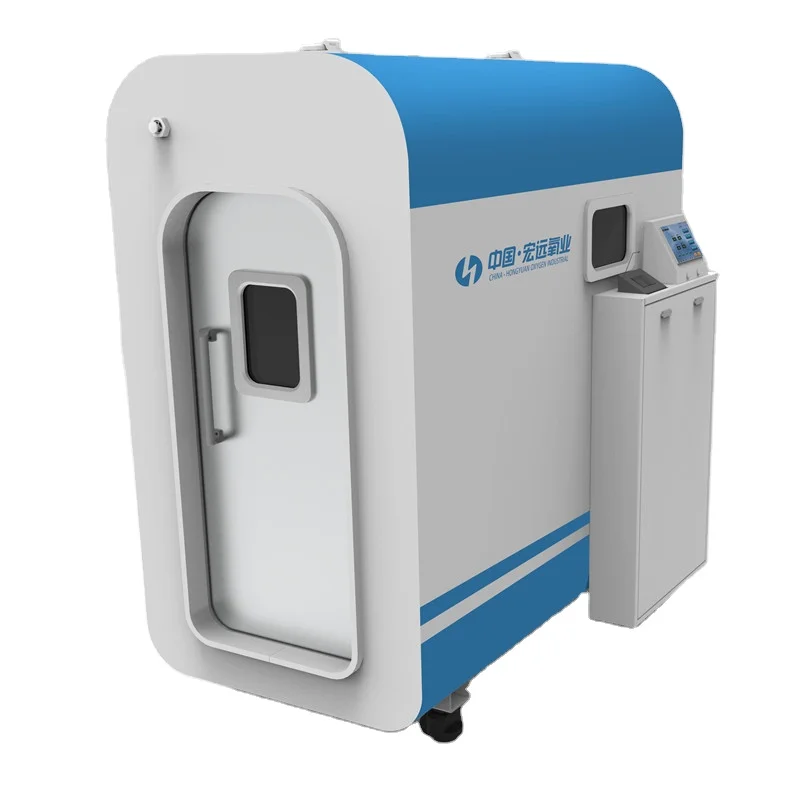

Hongyuan 1.6 ata upright hard shell wheeled hyperbaric oxygen chamber manufacturer oxygen chamber hyperbaric
- Category: >>>
- Supplier: Yantai Hongyuan Oxygen Industrial Inc.
Share on (1601039895108):
Product Overview
Description
Products Description
Single seated steel pressurized chamber
Working Principle
Through the oil-free air compressor set in the control box, the cabin is filled with fresh and clean air to form a micro pressure environment of 1.6 atmospheres. The medical grade oxygen generator or oxygen bottle is used to provide the oxygen needed for oxygen inhalation to the cabin personnel through the oxygen supply pipeline.
1. Simple operation and high safety
It is equipped with automatic integrated control cabinet, integrating air compressor, oxygen generator and control system to reduce the floor area; and equipped with voice announcer in cabin, duplex intercom inside and outside cabin, music playing controlled by Bluetooth in cabin to improve the user experience and use safety; and with the simple control interface and operation process, and complete control function.
2. Application site
The products can be applied to the sports industry (Sports Center, project club, fitness chain organizations, etc.), tourism industry (tourist attractions), health care industry (sanatorium, beauty salon, health life center, yoga center, etc.), plateau (plateau security, mountaineering, plateau camp, plateau enterprises and institutions, large hotels, etc.), others (community, individual family Shopping malls, office buildings and other lunch break venues).
Product Paramenters
Size | L1960*W1237*H2100mm |
Maximum working pressure | 0.06Mpa |
Rated number of passengers entering the cabin | 1 person |
Relative humidity | ≤ 80% |
Pressure reducing noise | ≤65dB |
Pressurized medium | air |
Oxygen concentration in cabin | ≤23% |
Weight | about 1000kg |
Volume | 1.2m³ |
Pressurization time for the equipment | ≤ 15min |
Power Supply | 220V 50Hz |
Working environment temperature | 0 ℃～ + 30 ℃ |
Advantage | Medical grade quality /capacious and comfortable |
Service life | More than 10 years |
Details Images

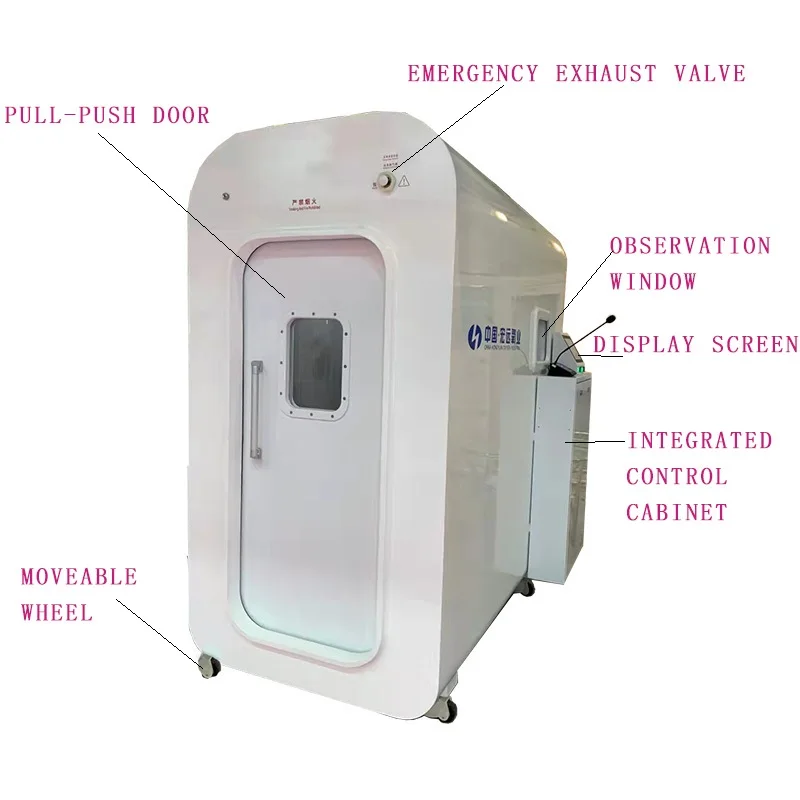

1. Pressure gauge: it is equipped with mechanical pressure gauge in cabin, the person in cabin can observe the current cabin pressure intuitively.
2.Balance valve: the equipment is equipped with balance valve. When the cabin pressure exceeds the service pressure, it will automatically open and release the pressure, and when the pressure drops to the predetermined pressure, it will automatically close to ensure the safe and effective operation of the equipment.
3. Observation window: the observation window can be used to observe whether the cabin personnel are abnormal, and the cabin personnel can see the outside of the cabin through the observation window, so as to reduce the fear of the cabin personnel in a closed container.
4.Mask respirator: it is used when the cabin personnel breathe high concentration oxygen, and the exhaled waste oxygen is directly discharged outside the cabin to prevent the oxygen concentration in the cabin from being too high.
5. the emergency decompression valve is used to control the rate of pressure rise and fall and fast relief the pressure in the cabin. The cabin is equipped with an emergency decompression valve which can be quickly opened both inside and outside the cabin.
6.Control touch screen: the cabin is equipped with control touch single steel cabin, and the touch screen can display the current cabin pressure, oxygen concentration, temperature, humidity and other parameters.
Recommend Products
Company Profile
Package and Shipment
FAQ
1.What is hyperbaric oxygen therapy?
Hyperbaric oxygen therapy(HBOT) is a treatment where patient breathes pure oxygen while enclosedin a hyperbaric oxygen chamber at a pressure greater than one atmosphere, relying on oxygen'sphysical, chemical, and physiological effects to achieve the goal of treating diseases.
Under normal circumstances, oxygen is transported throughout the body only by red blood cells. With HBOT, oxygen is dissolved into all of the body's fluids, plasma, central nervous system, bones and thelymph, and can be carried to areas where circulation is diminished or blocked. In this way, extra oxygencan reach all damaged tissue and the body can support its own healing process. The increasedoxygen greatly enhances the ability of white blood cells to kill bacteria, reduces swelling and allowsnew blood vessels to grow more rapidly into the affected areas.
2.What is the oxygen concentration?
Reach medical oxygen level, oxygen concentration ≥93.
3.Delivery time
Less than ten units are in stock, and more than 15 units are in 30 days delivery ,for hyperbaric oxygen chamber and decompression chamber the delivery time is about 3 months(transportation time is extra).
4.What’s the minimum order quantity?
One set.
5. How long is the treatment?
Usually 60-120 minutes for each time, and rest once every ten days.
Hyperbaric oxygen therapy(HBOT) is a treatment where patient breathes pure oxygen while enclosedin a hyperbaric oxygen chamber at a pressure greater than one atmosphere, relying on oxygen'sphysical, chemical, and physiological effects to achieve the goal of treating diseases.
Under normal circumstances, oxygen is transported throughout the body only by red blood cells. With HBOT, oxygen is dissolved into all of the body's fluids, plasma, central nervous system, bones and thelymph, and can be carried to areas where circulation is diminished or blocked. In this way, extra oxygencan reach all damaged tissue and the body can support its own healing process. The increasedoxygen greatly enhances the ability of white blood cells to kill bacteria, reduces swelling and allowsnew blood vessels to grow more rapidly into the affected areas.
2.What is the oxygen concentration?
Reach medical oxygen level, oxygen concentration ≥93.
3.Delivery time
Less than ten units are in stock, and more than 15 units are in 30 days delivery ,for hyperbaric oxygen chamber and decompression chamber the delivery time is about 3 months(transportation time is extra).
4.What’s the minimum order quantity?
One set.
5. How long is the treatment?
Usually 60-120 minutes for each time, and rest once every ten days.
