Product Overview

Description

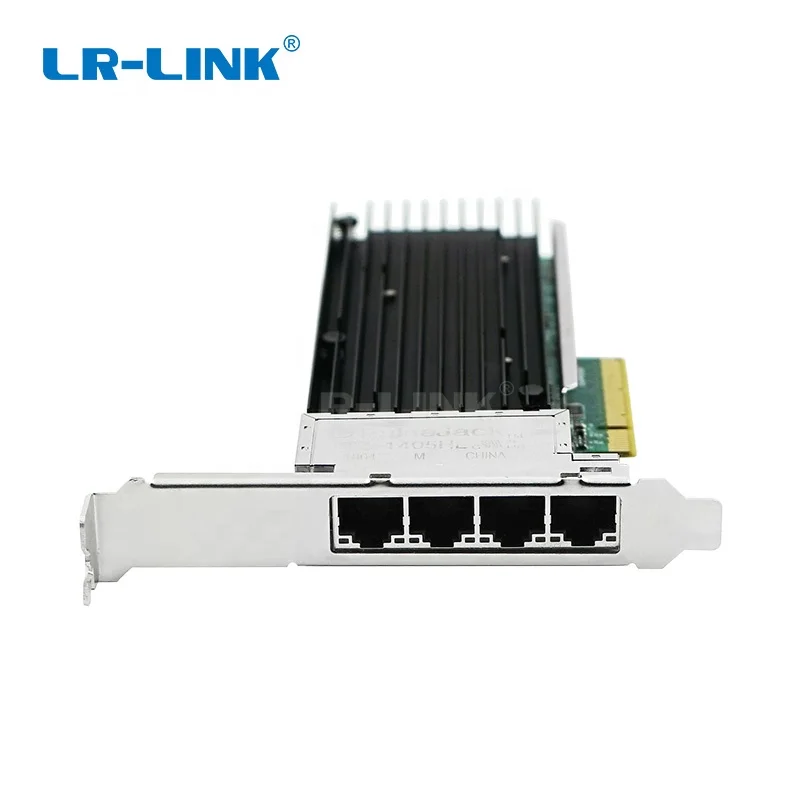

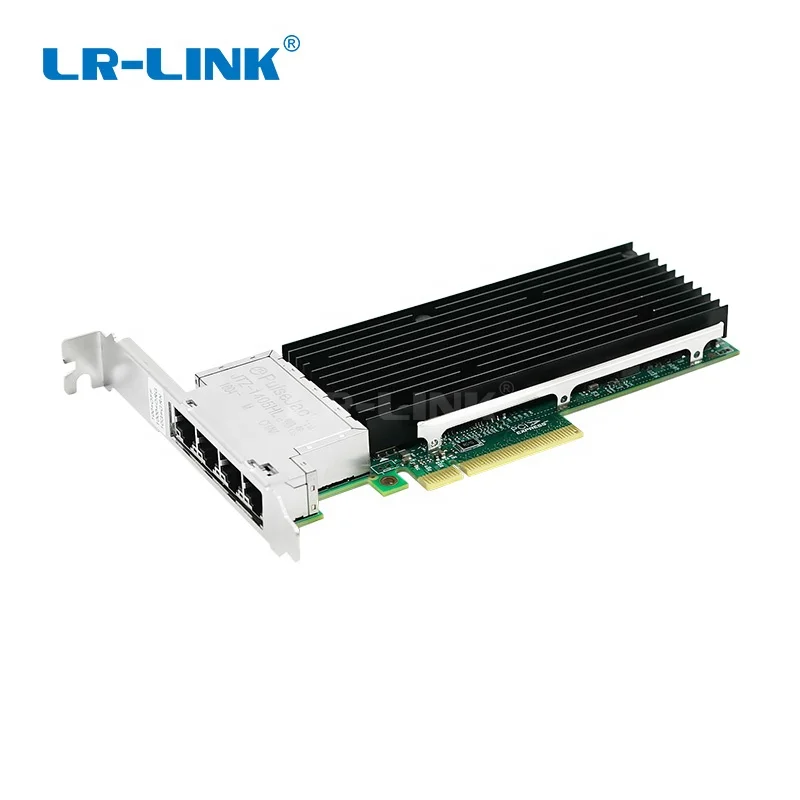

LREC9804BT is a PCIe x8 10Gbps Quad Port Ethernet Copper Network Card based on Intel XL710 chipset, independently developed by Shenzhen Lianrui Electronics CO., and compatible with x16 lanes. The sever adapter,based on the Intel XL710 controller, is compatible with the existing network infrastructure and it will conveniently migrate the existing 100Mb/s and 1GbE networks to 10GbE. It can also link auto-negotiation among the rate of 100Mbps, 1GbE and 10GbE, which meets the most customers’ demanding of smooth transition and ease of migration to 10GbE.
The server adapter has four ports, of each can fully work independently, supporting four different practical application networks while working and decrease the number of slots on the equipment. The adapter has good compatibility with its four ports can be grouped together through their own ports or other Ethernet adaper ports. It can provide multiple fuctions like widening access bandwidth and bandwidth access redundancy to achieve an non-stop access to the network.
The network card uses a simple, universal 10GbE access interface that can be set at any place of a data center conveniently. LREC9804BT support the data transmission distance of 100 metres and plunk for Network structures such as Top of Rack(ToR), Middle of Row(MoR),End of Row(EoR) and etc..Intel Ethernet 700 series network adapter help the server to provide wide interoperability, optimized key performances and flexible IT network solutions among telecommunications, cloud computing and enterprises.

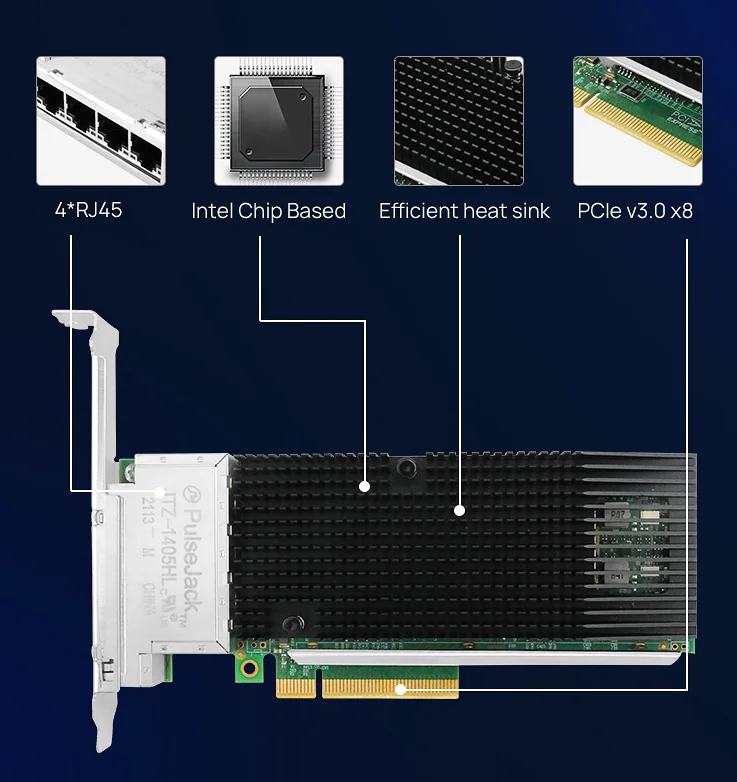

Quad-port 10GbE adapter
PCI Express (PCIe) v3.0, 8.0 GT/s, x8 lanes
RJ45 Connectivity
Network Virtualization
Data Plane Development Kit (DPDK) support
Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
Low Profile and Full Height Bracket




Features
Controller
Intel XL710
Cable medium
Copper cable
Cable Types
Cat 5E and Cat6
1000Base-T up to 100m (POE power supply min requirement Cat5)
Bracket
Half-height&Full-height Bracket
Power consumption (max)
5W
Connector
4 * RJ45
PCIe Bus Type
PCI Express v3.0, 8.0 GT/s x8
Rate
100Mbps/1Gbps/10Gbps
Power Supply
PCIe power supply +12V±8% +3.3V±9%
Operating system support
Windows 7/8/8.1/10
Windows Server 2016/ 2016 Core/ 2012 R2/ 2012 R2 Core/ 2012
Windows Server 2012 Core/ 2008 R2/2008 R2 Core
Linux Stable kernel version 2.6.32/3.x/4.x
RHEL/CentOS 6.x/7.x
Linux SLES 11 SP3 / SLES 12
FreeBSD 9/10/11
VMware ESX/ESXi 5.x/6.x


Technical Features
Support Speed
10G BASE-T, 1000BASE-T, 100BASE-T
IEEE Standard
IEEE 802.3 an 10GBASE-T IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-T
IEEE 802.1Q VLAN
IEEE 802.1ad
IEEE 1588
IEEE 802.1as
Jumbo Frame
Yes
VMDq
Yes
WOL
No
PXE
Yes
DPDK
Yes
iSCSI
Yes


Environment Features
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Storage Humidity
90% non condensing under 35°C


LED Indicators
LED
10Gbps: LINK LED Green, Green ACT LED Blink
1Gbps: LINK LED Yellow, Green ACT LED Blink
100Mbps: Green ACT LED Blink


Physical Features
PCB Size (mm)
161*68*1.6
weight (g)
*


Order Information
M/N
Description
LREC9804BT
PCIe x8 10G Quad Port Copper Ethernet Server Adapter
PS: The above details are for reference only, no notification for any change.
