Hot Sell Factory Price Coconut Cotton Cocoa Bean Sunflower Palm Avocado Olive Hydraulic Oil Press Machine
- Category: >>>
- Supplier: Henan Kaidi Machinery Equipment Co. Ltd.
Share on (1601039940238):
Product Overview
Description

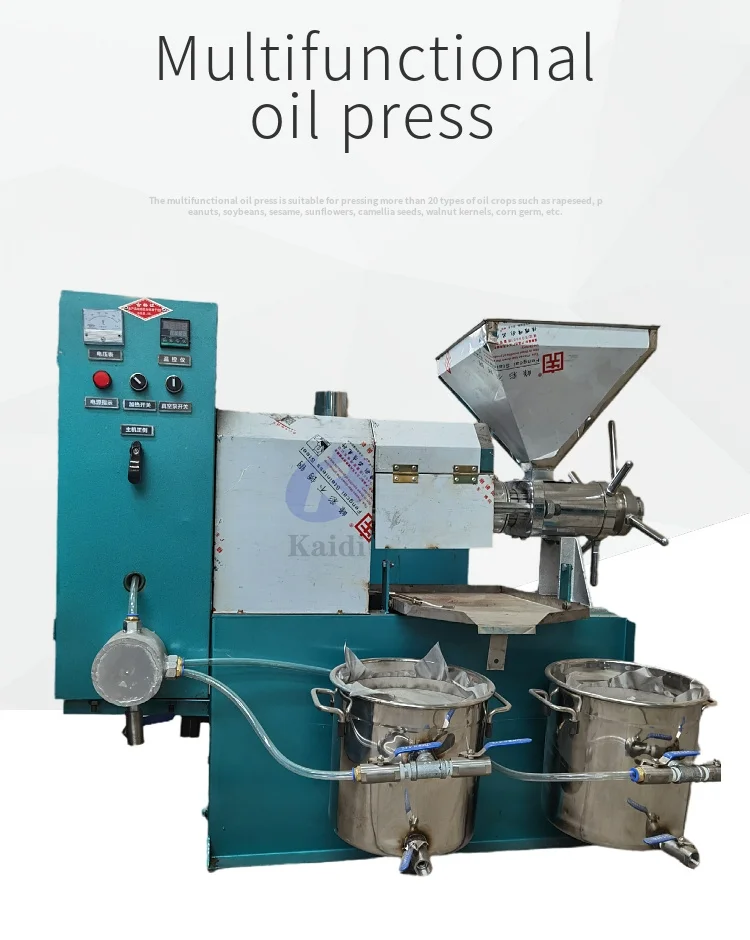

Multifunctional Oil Press
Our sunflower seed oil extraction screw press oil expeller machine are modern products developed and improved our company newly. Automatic Oil Extraction Machine is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components.They may be used for both cold squeeze and hot squeeze and are the most ideal equipment for individual process.
Product Application
The multifunctional oil press is suitable for pressing more than 20 types of oil crops such as rapeseed, cottonseed, soybean, peanut, sesame seed, palm, coconut shell, olive fruit, castor oil, sapphire seed, sesame, sunflower seed, rice bran, corn germ, walnut, almond, evening primrose, tea seedand many other oil crops.
Rapeseed oil
Flaxseed oil
Almond oil
Soybean oil
Sesame oil
Melon seed oil

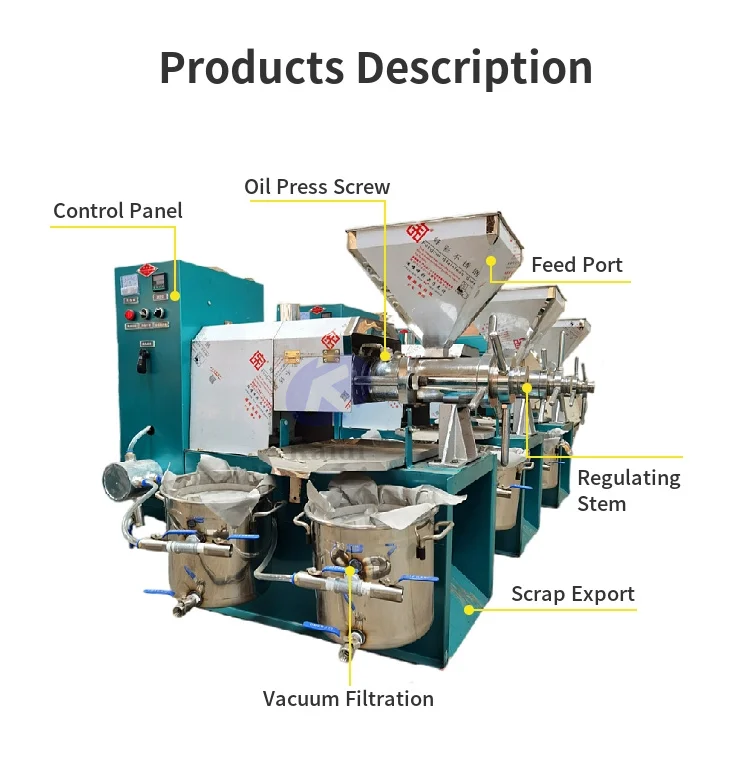

Product Structure
Product Features
1. Full automatic screw oil press with vacuum filtration, rapid purification and automatic temperature control technology
2. The oil output rate is high, about 3% higher than that of ordinary hydraulic press, and the installation is convenient
3. The oil has high purity and can be eaten directly after vacuum filtration
4. Only 10-20 square meters of workshop is needed for oil extraction.
5. The surface of the fuel dispenser is chrome plated stainless steel.
6. High efficiency, energy and labor saving, convenient operation and simple maintenance.
2. The oil output rate is high, about 3% higher than that of ordinary hydraulic press, and the installation is convenient
3. The oil has high purity and can be eaten directly after vacuum filtration
4. Only 10-20 square meters of workshop is needed for oil extraction.
5. The surface of the fuel dispenser is chrome plated stainless steel.
6. High efficiency, energy and labor saving, convenient operation and simple maintenance.
Easy To Operate
Humanized desihn,automatic temperature control,complete mastery of real-time data,simple and convenient adjustment and operation.
High oil yield
The gap between the press rod and the press chamber can be adjusted,the thickness of the fried cake can be controlled,and the oil yield is high.
Stable Performance
High strength alloy steel material,can be continuously generated for a long time,stable performance
Product Introduction
1.This oil extractor oil press machine is suitable for most oil-bearing crops can realize thorough squeezing, continuous squeezed speed, high production efficiency, low energy consumption, high output.
2. Automatic oil extraction machine is applicable to squeeze system various oil seed crops, mainly suitable for the squeeze sesame, peanut, rapeseed, sunflower, soybean oil crops , etc.
3. The series machines are suitable for small and medium-sized oil processing plants and individual professional use, also can be used for oil mill of preparing to squeeze.
4. Fully automatic machine screw press reasonable design, with filter and temperature control, manufacture reliable quality, with nice appearance, simple in structure, convenient in operation, small volume, occupies little space, save work, save electricity.
2. Automatic oil extraction machine is applicable to squeeze system various oil seed crops, mainly suitable for the squeeze sesame, peanut, rapeseed, sunflower, soybean oil crops , etc.
3. The series machines are suitable for small and medium-sized oil processing plants and individual professional use, also can be used for oil mill of preparing to squeeze.
4. Fully automatic machine screw press reasonable design, with filter and temperature control, manufacture reliable quality, with nice appearance, simple in structure, convenient in operation, small volume, occupies little space, save work, save electricity.
Technical Parameter
Model | 80 | 100 | 125 | 150 |
Screw diameter | 80mm | 101mm | 125mm | 150mm |
Screw speed | 47r/min | 38r/min | 36r/min | 35r/min |
Weight | 770kg | 1100kg | 1200kg | 1500kg |
Power | 5.5kw | 7.5kw | 15kw | 18.5kw |
Capacity | 70-140kg/hkg/h | 150-250kg/h | 250-360kg/h | 300-460kg/h |
Dimension(mm) | 1650×1200×1500 | 1800×1300×1650 | 2100×1400×1700 | 2200×1500×17500 |
Product configuration
RECOMMENDED CONFIGURATION
Roaster
Feeding machine
Oil press
Centrifugal oil filter

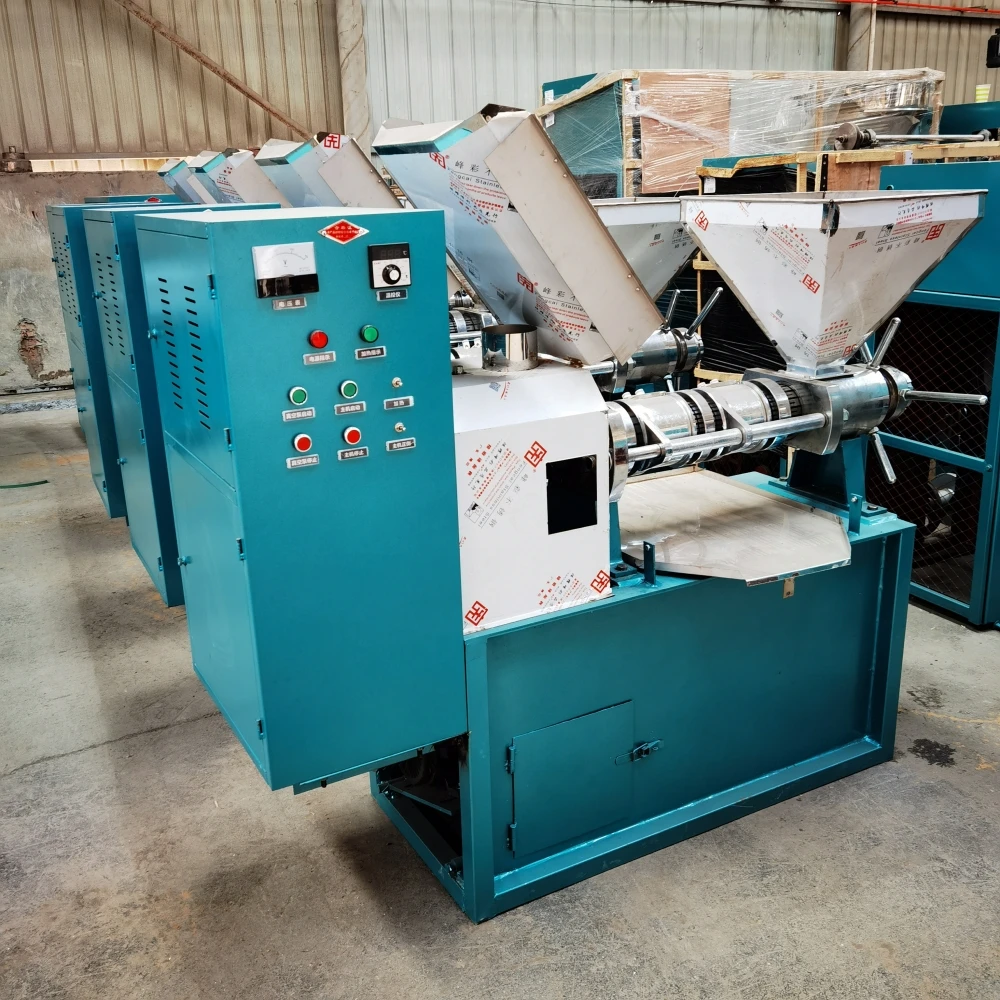

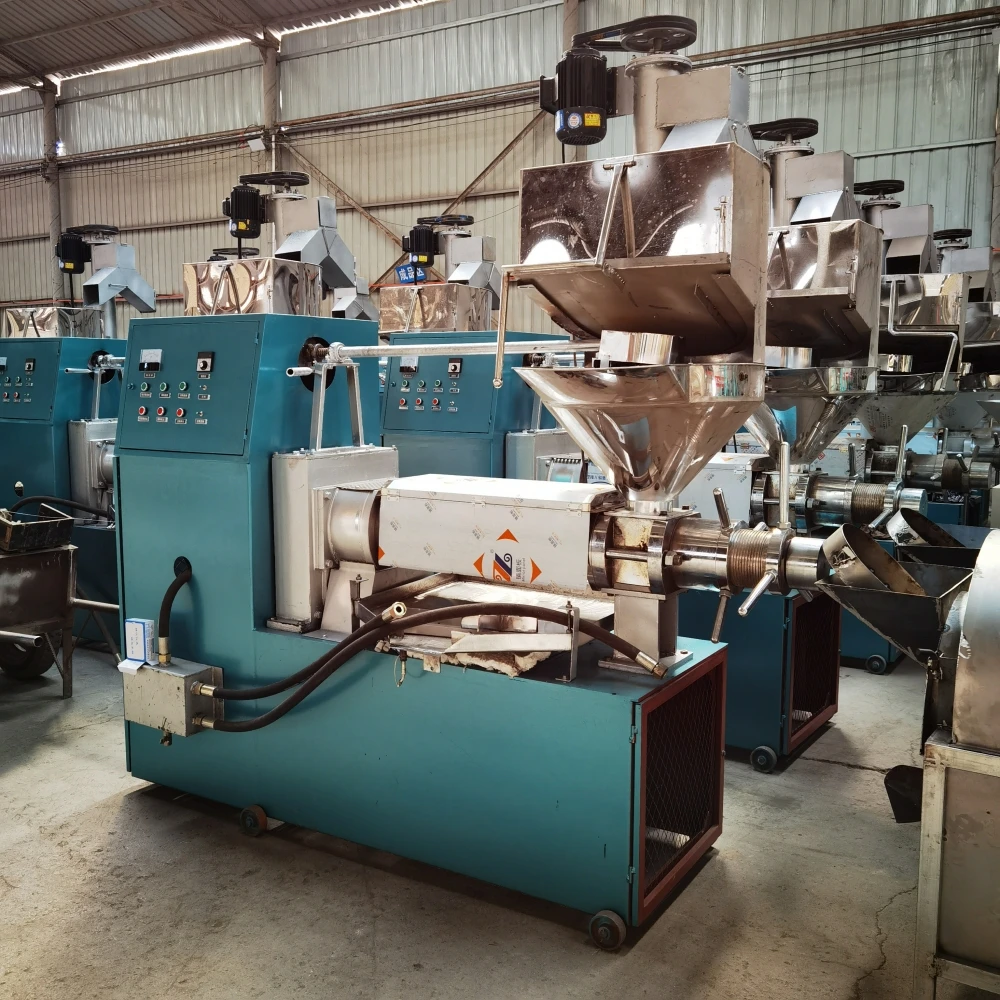

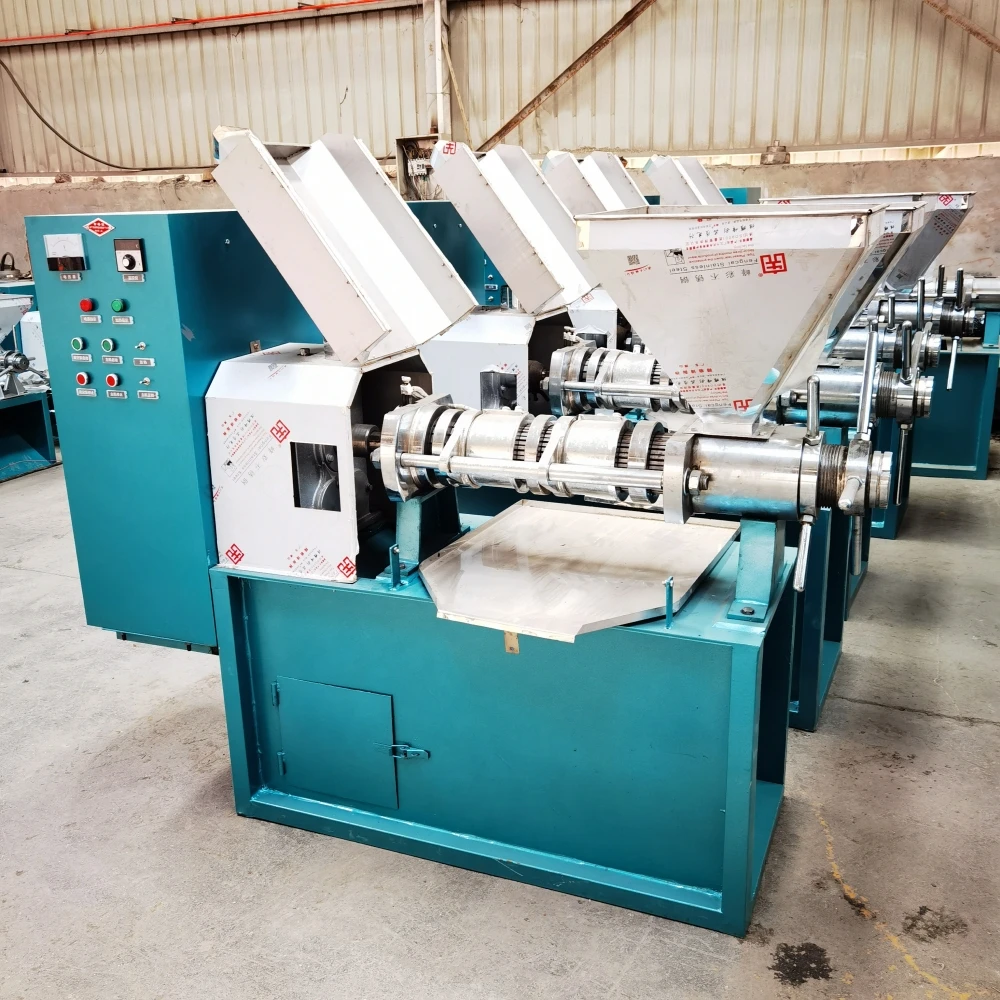

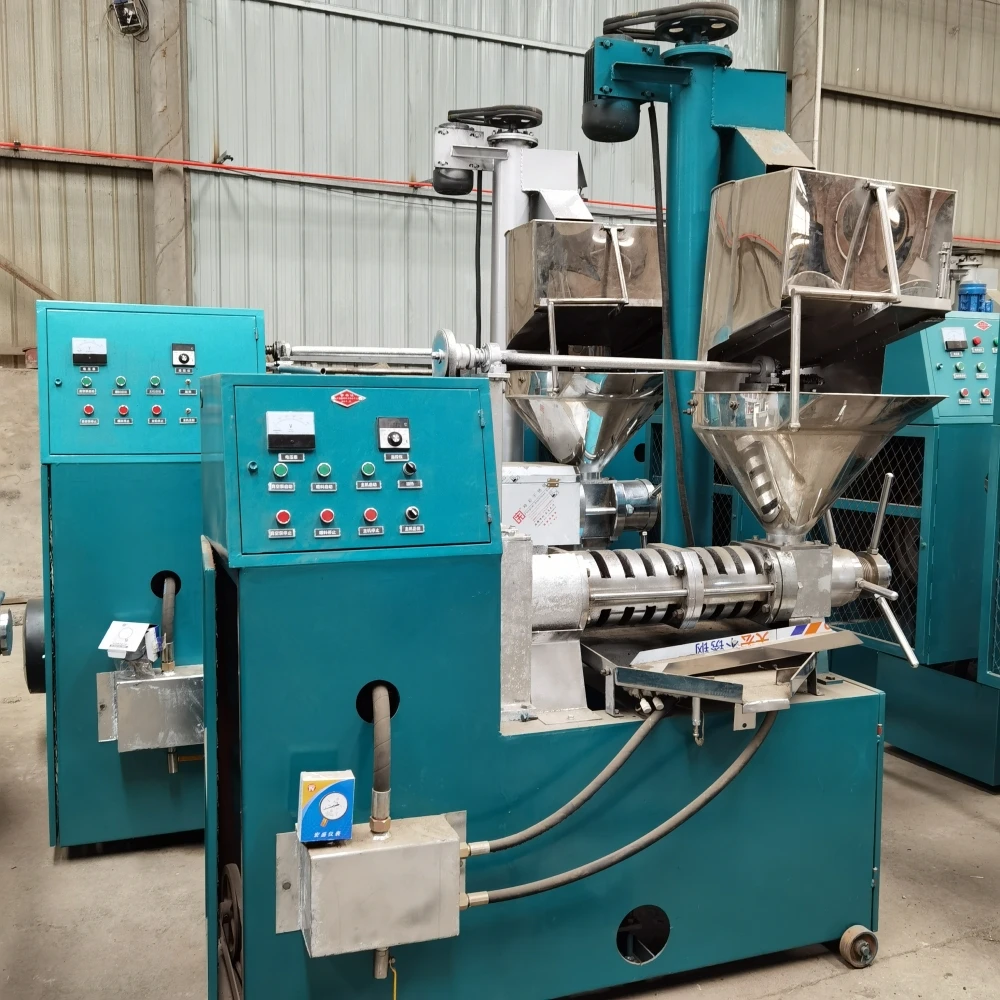

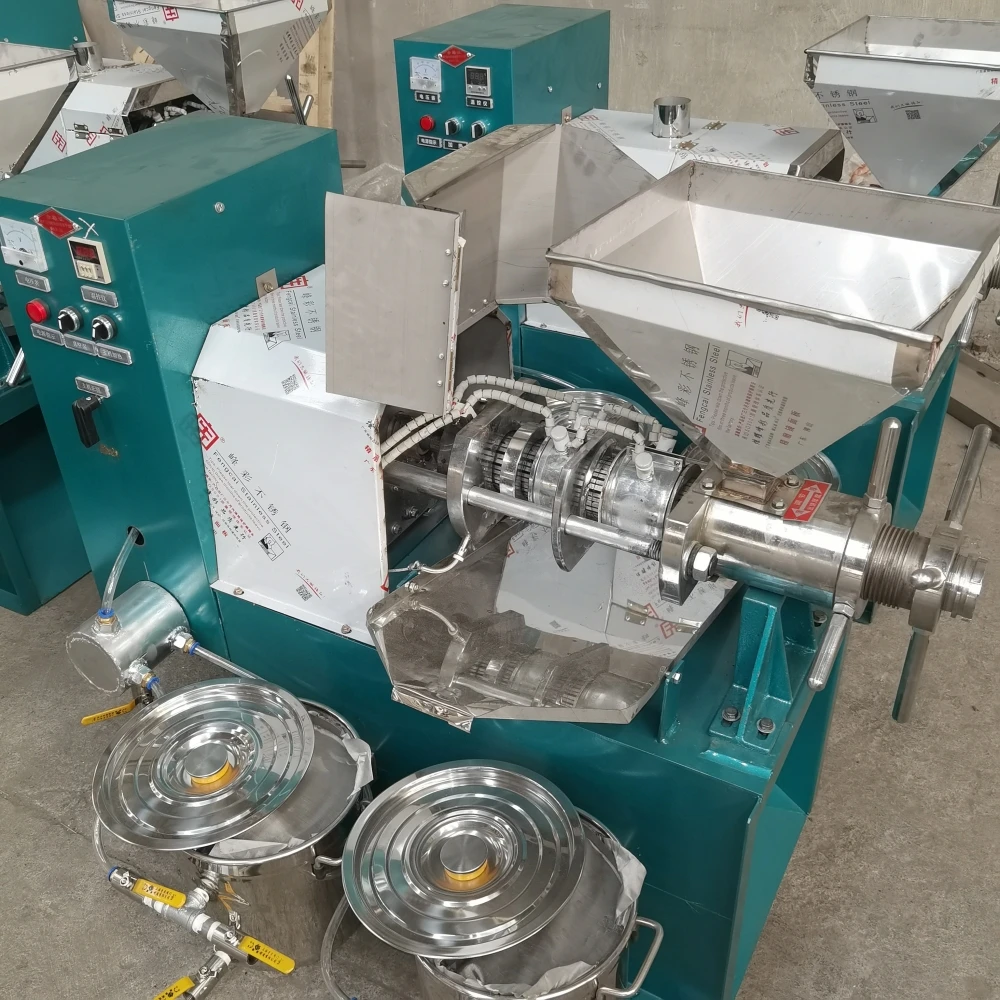

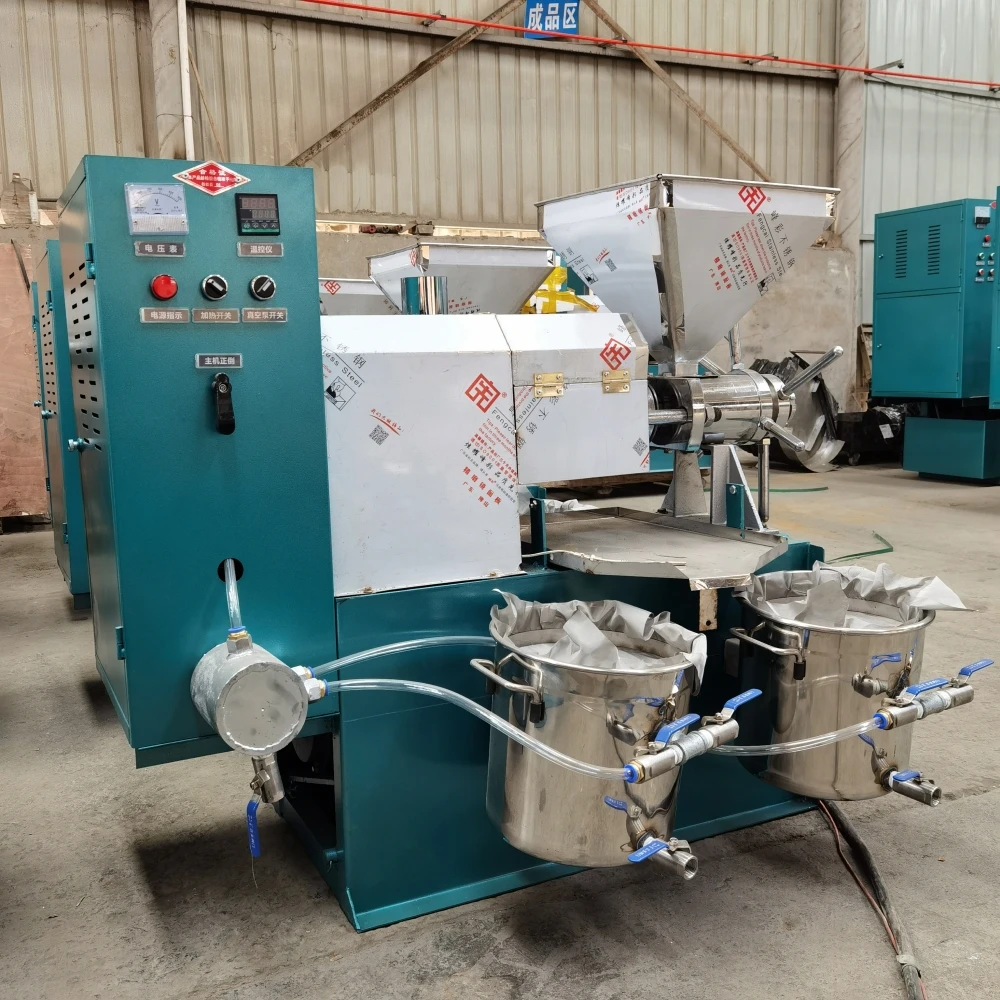

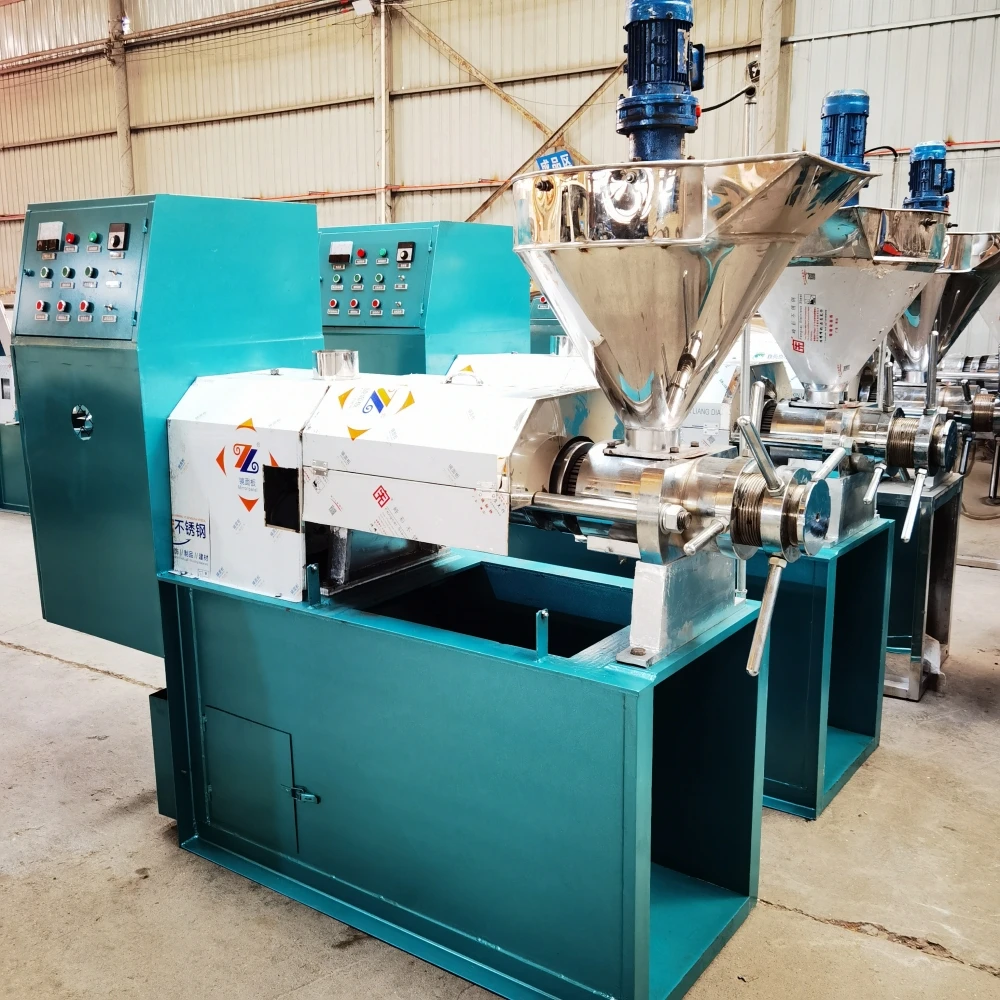

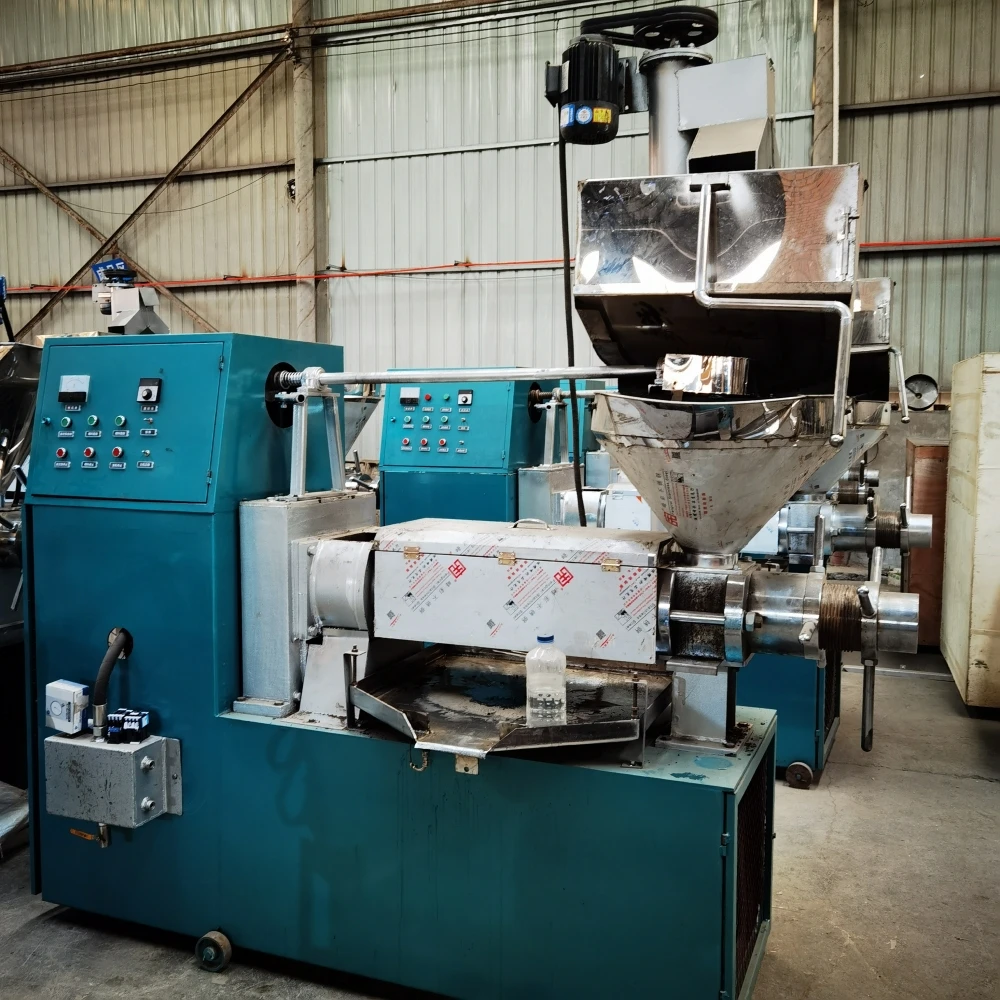

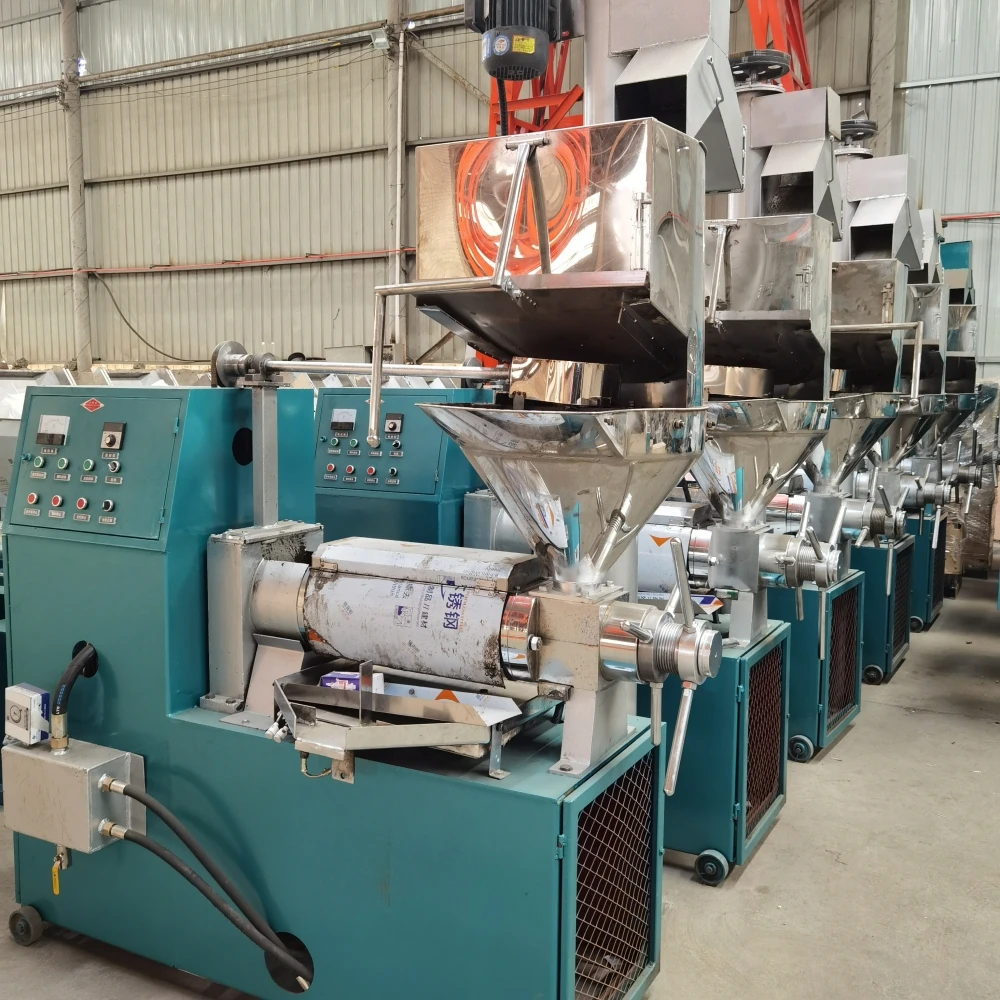

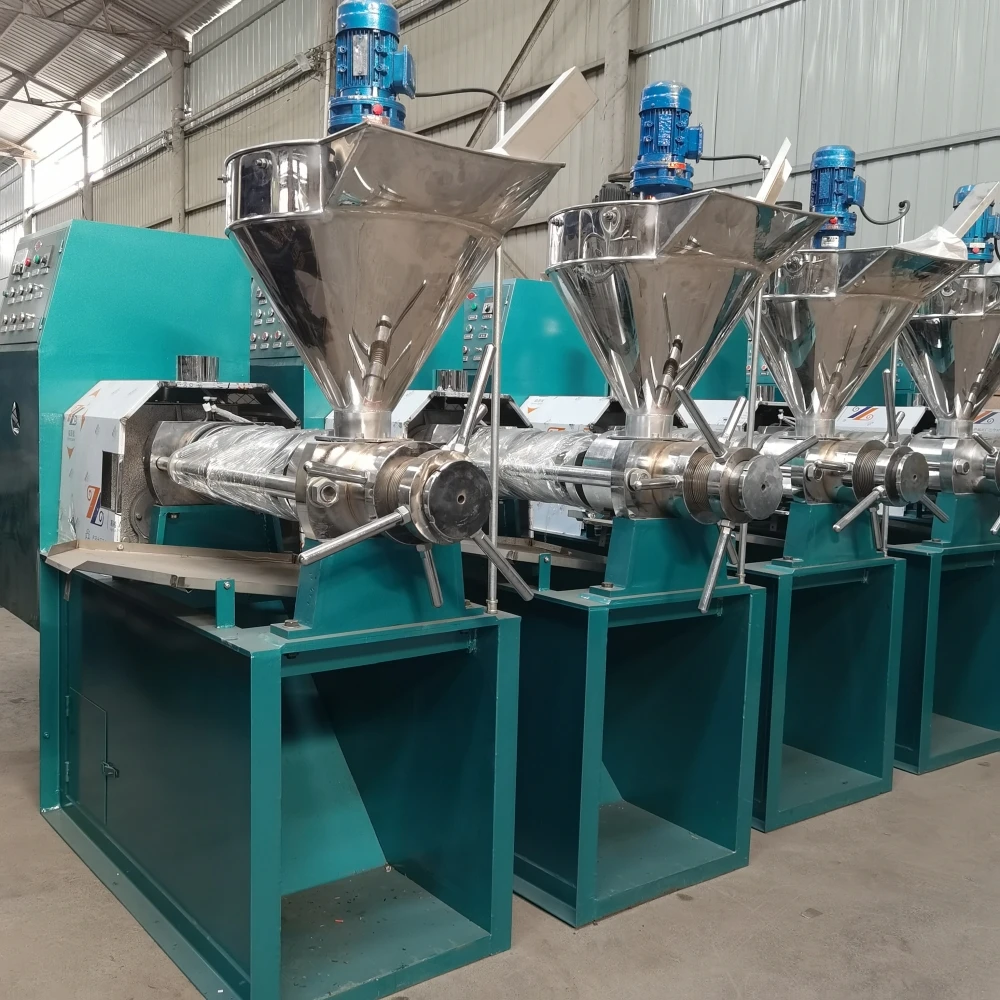

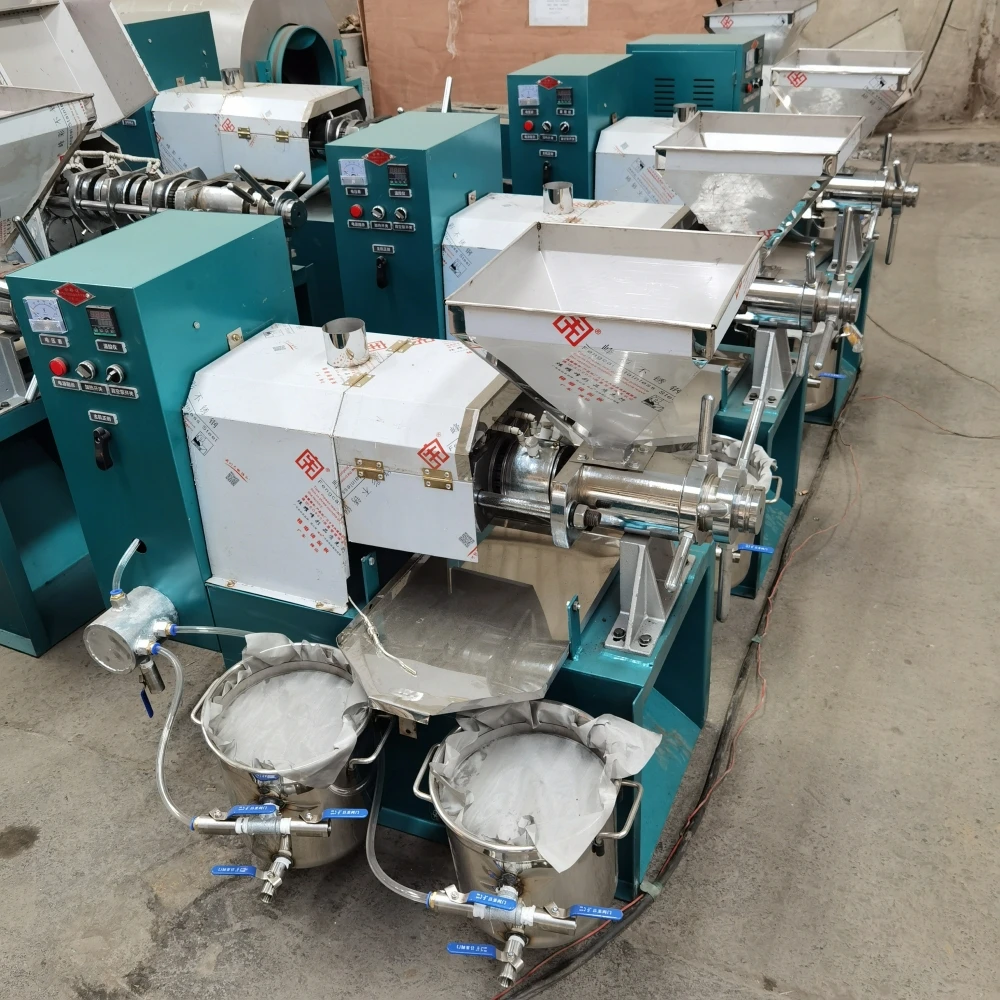

Product Display
FAQ
1: Are you manufacturer?
A:Yes, we are manufacturer with more than 10 years' experience.
2: How about your delivery time?
Generall it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.
3：What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll send you photos of the products and packages before you pay the balance.
4：How to ensure the quality?
We do pre-production samples before mass production, and we do finalinspection before shipment.
5: What is your terms of packing?
A: Generally we use standard wooden case for LCL goods, and fixed well for FCL goods.
6: How long is the warranty of your equipment?
Does your company supply the spare parts? A: The warranty period of equipment is one year. And we will supply the spare parts for you at lowest cost.
7:Do you have some foreign customers useing your equipments?
A:Yes , we have customers all over the world.
8: Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
9: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
