IP65 IP20 Outdoor ceiling lights surface mount 3000k 4000K 5700K 6500K downlight surface mount round in mini led dimmable
- Category: >>>
- Supplier: Shenzhen Smart LED Limited
Share on (1601040028007):
Product Overview
Description
Products Detail
Products Detail

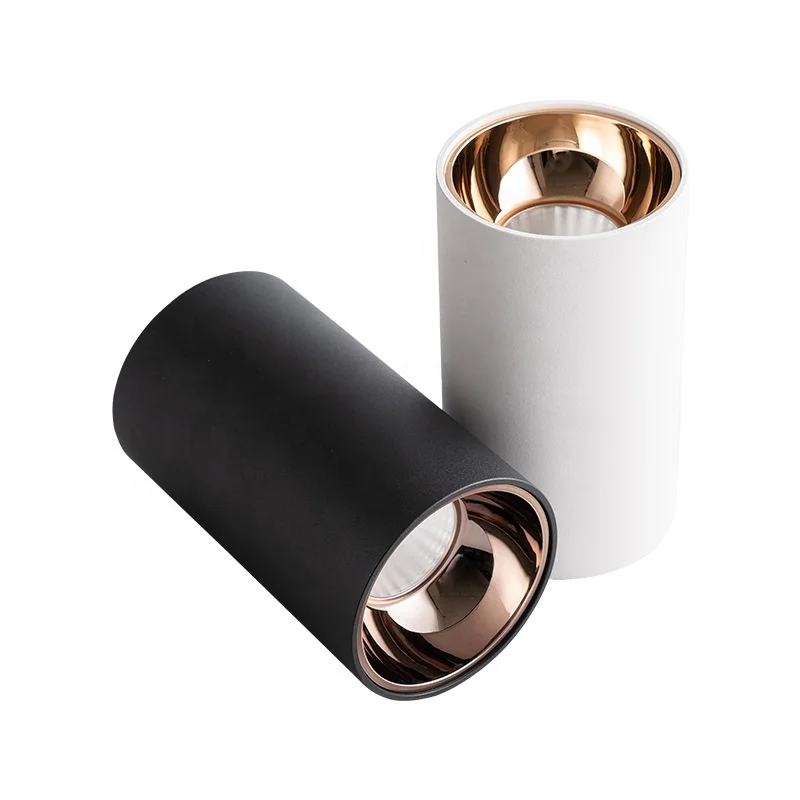

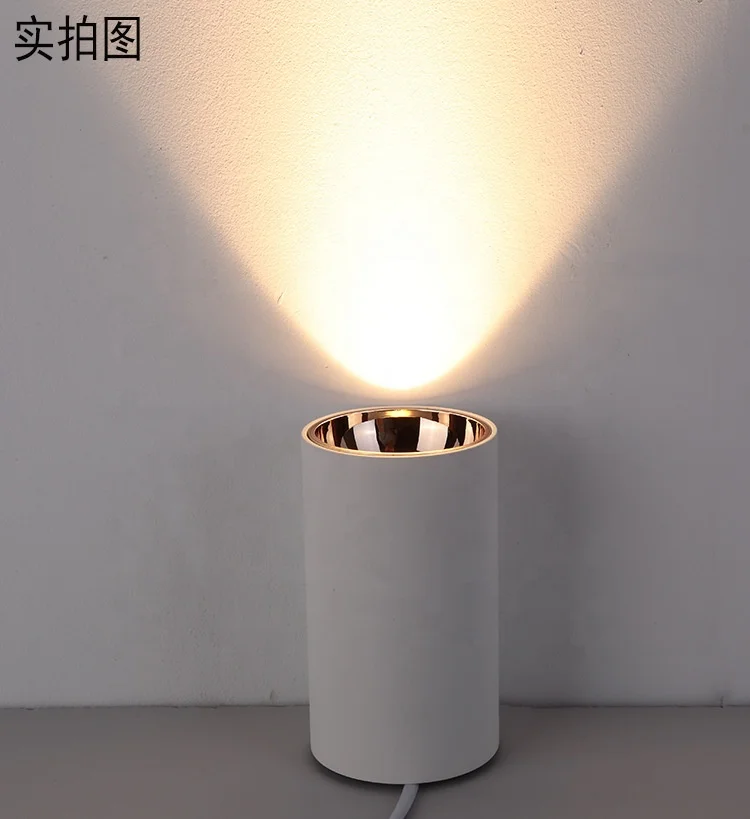

Surface mounted down light
POWER: 15-60W

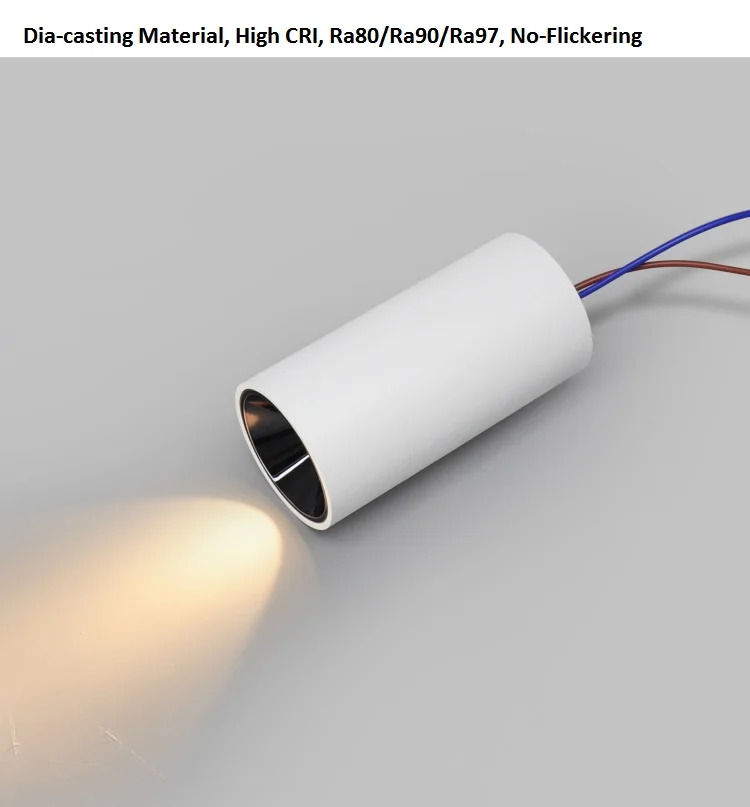

MATERIAL: Dia-casting
CCT: 2700K, 3000K, 4000K, 5000K, 6000K White
CRI: Ra80, Ra90, Ra97
UGR: 10-19
Output Efficiency: 110~130lm/W
INPUT: Ac100-240V, 50-60Hz, No-Flickering
DIMMABLE: Triac Dim, 0-10V Dim, Dali Dim, CCT-Dim (Ordered)
Warranty: 5 years

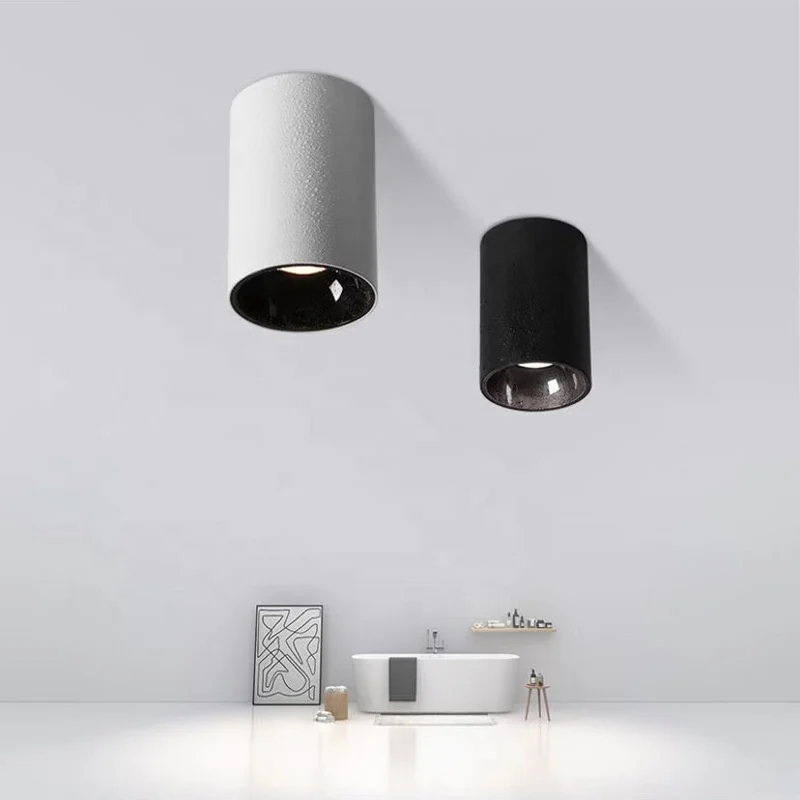

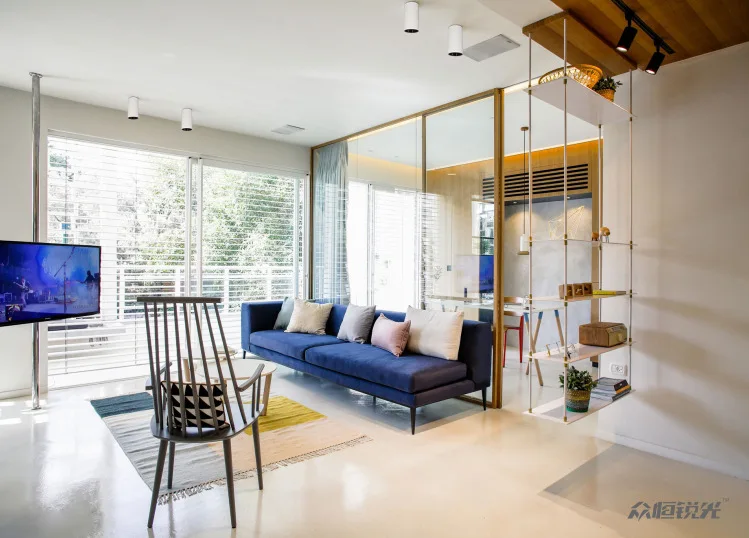

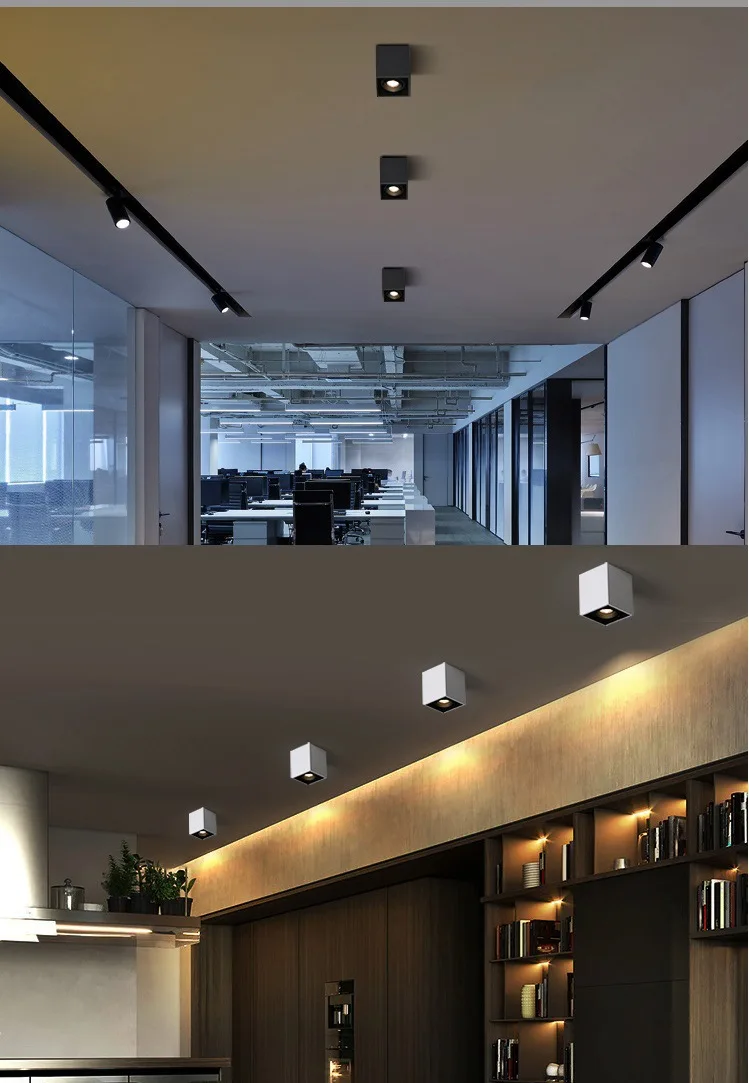

Application:Products are widely used as indoor main illumination lighting in theoffice,commercial center,shopping mall,supermarket,factory,etc.
PRODUCTS PARAMETERS

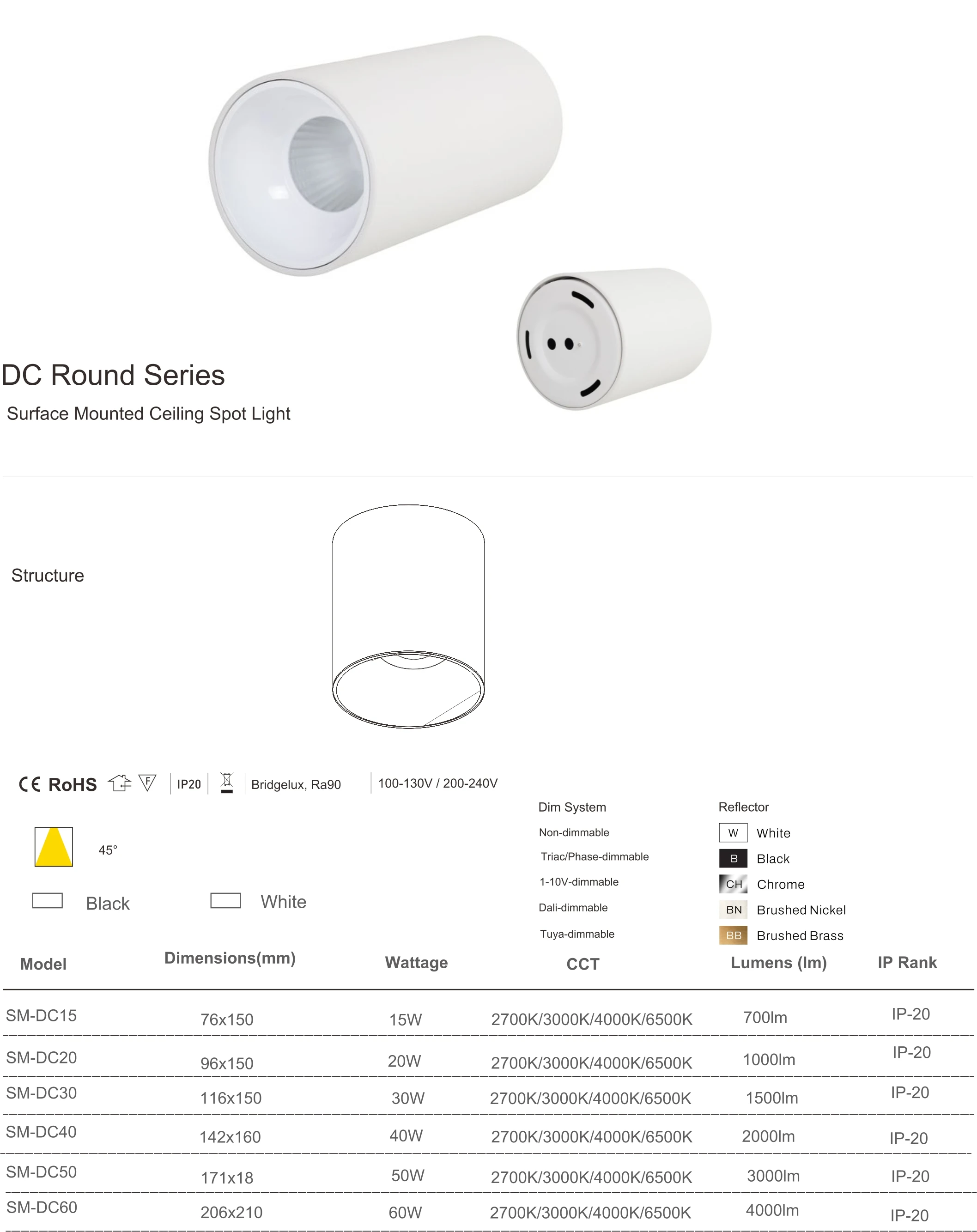

| Round Non Waterproof Version | |||||||
| part number | Watts | Lumen | Dimension (mm) | Beam angle | Input Voltage | Frame | Reflector cup Color |

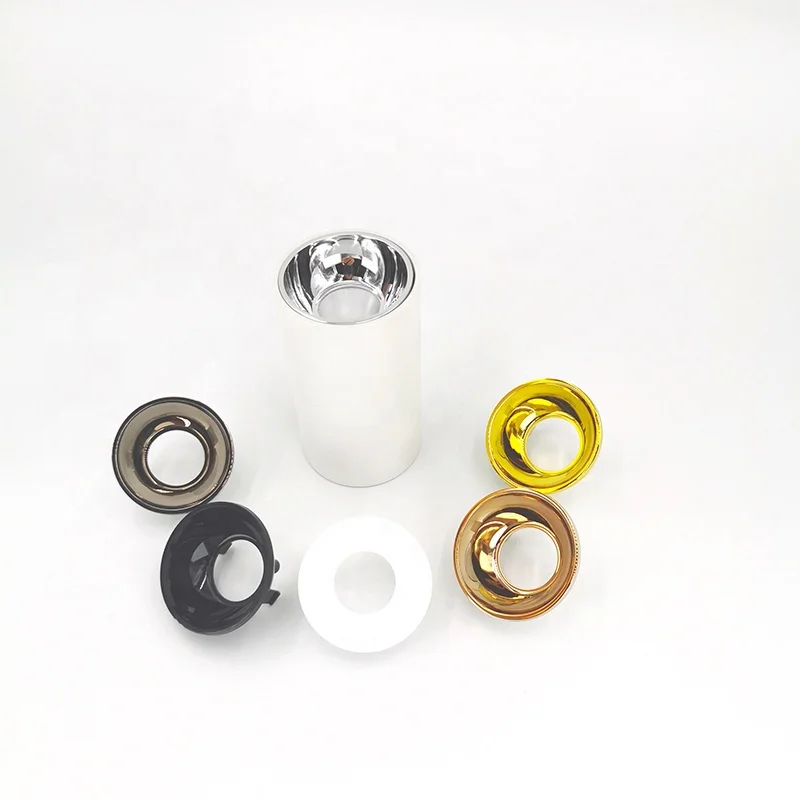

| SM-DC15 | 15W | 1500lm (±50) | 76x150mm | 45° | Ac85-277V | white, black | White, Black, Silver, gold, rose gold, |
| SM-DC20 | 20W | 2000lm (±100) | 96x150mm | 45° | Ac85-277V | white, black | |
| SM-DC30 | 30W | 3000lm (±150) | 116x150mm | 45° | Ac85-277V | white, black | |
| SM-DC40 | 40W | 4000lm (±200) | 142x160mm | 45° | Ac85-277V | white, black | |
| SM-DC50 | 50W | 5000lm (±200) | 171x180mm | 45° | Ac85-277V | white, black | |
| SM-DC60 | 60W | 6000lm (±200) | 206x210mm | 45° | Ac85-277V | white, black | |

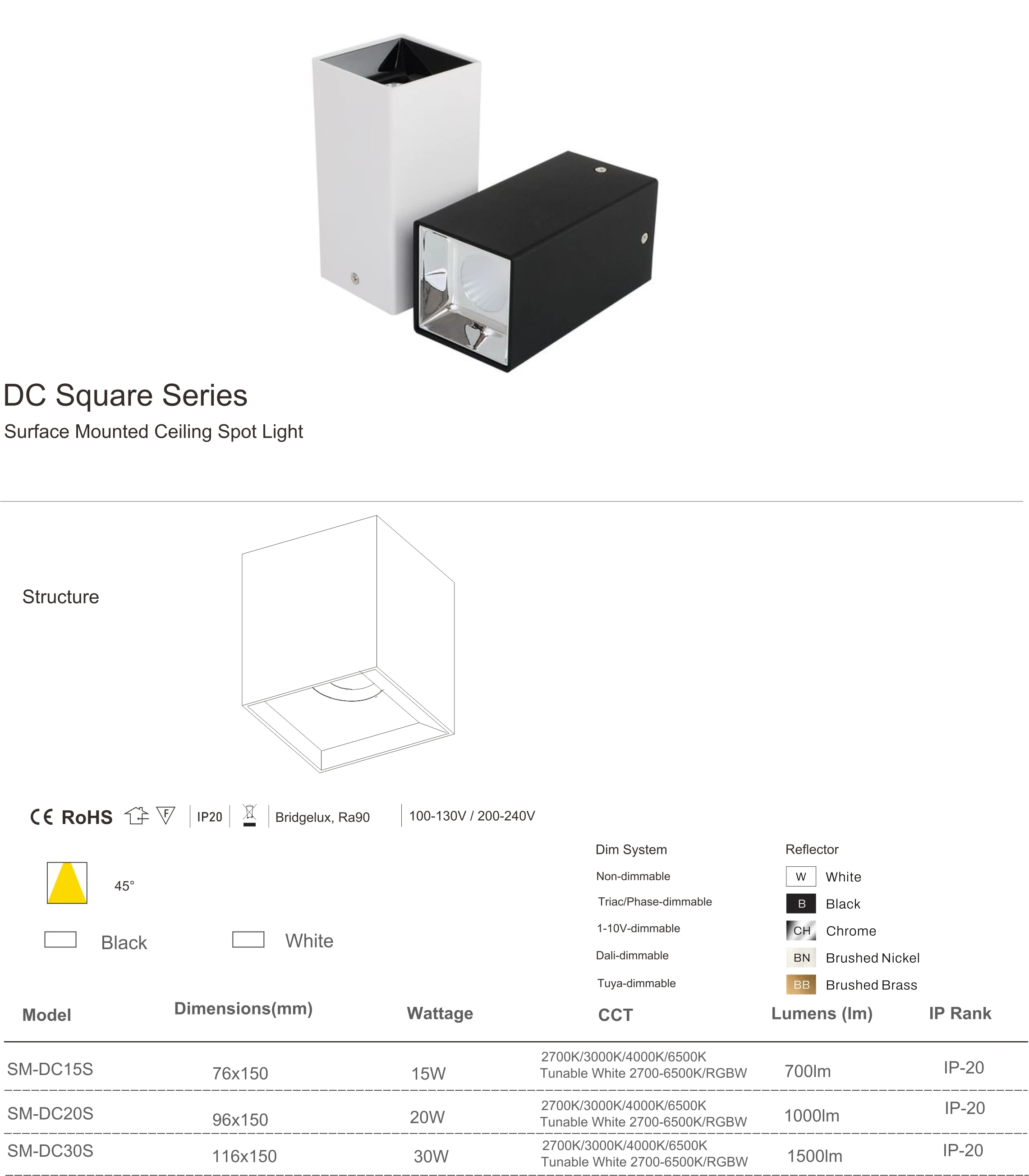

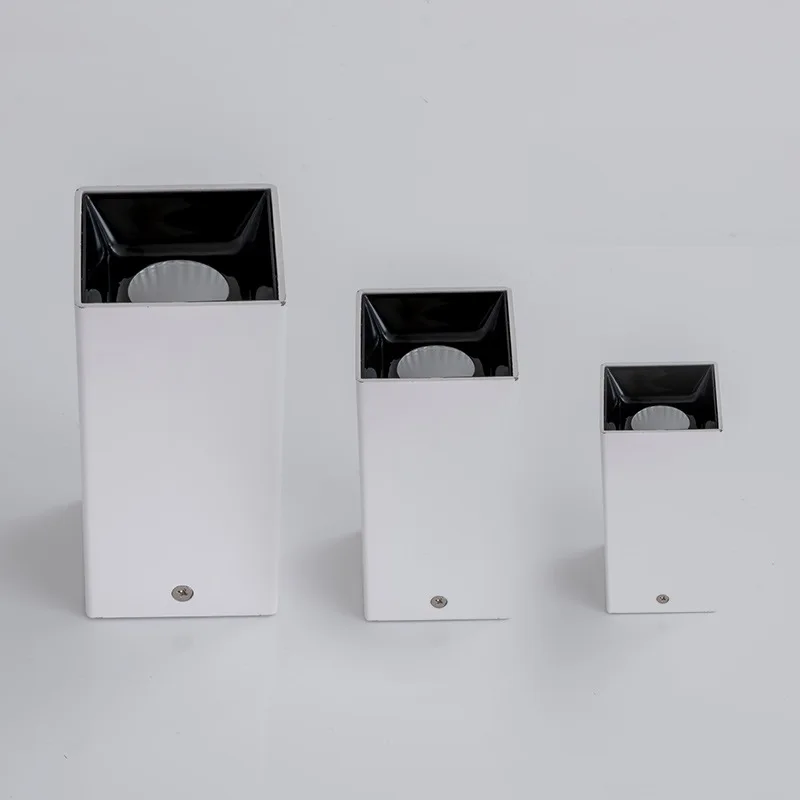

| Square Non Waterproof Version | |||||||
| part number | Watts | Lumen | Dimension (mm) | Beam angle | Input Voltage | Frame | Reflector cup Color |
| SM-DC15S | 15W | 1500lm (±50) | 76x150mm | 45° | Ac85-277V | White | White, Black, Silver |
| SM-DC20S | 20W | 2400lm (±100) | 96x150mm | 45° | Ac85-277V | White | |
| SM-DC30S | 30W | 3000lm (±150) | 116x150mm | 45° | Ac85-277V | White | |
| IP65 Wateproof Version | |||||||
| part number | Watts | Lumen | Dimension (mm) | Beam angle | Input Voltage | Frame | Reflector cup Color |
| SM-WDC15 | 15W | 1500lm (±50) | 73xH108 | 15/30/45° | Ac85-277V | white, black | White, Black, Silver, gold, rose gold, |
| SM-WDC20 | 20W | 2000lm (±100) | 93xH118 | 15/30/45° | Ac85-277V | white, black | |
| SM-WDC30 | 30W | 3000lm (±150) | 113xH136 | 15/30/45° | Ac85-277V | white, black | |
| SM-WDC40 | 40W | 4000lm (±200) | 140xH150 | 15/30/45° | Ac85-277V | white, black | |

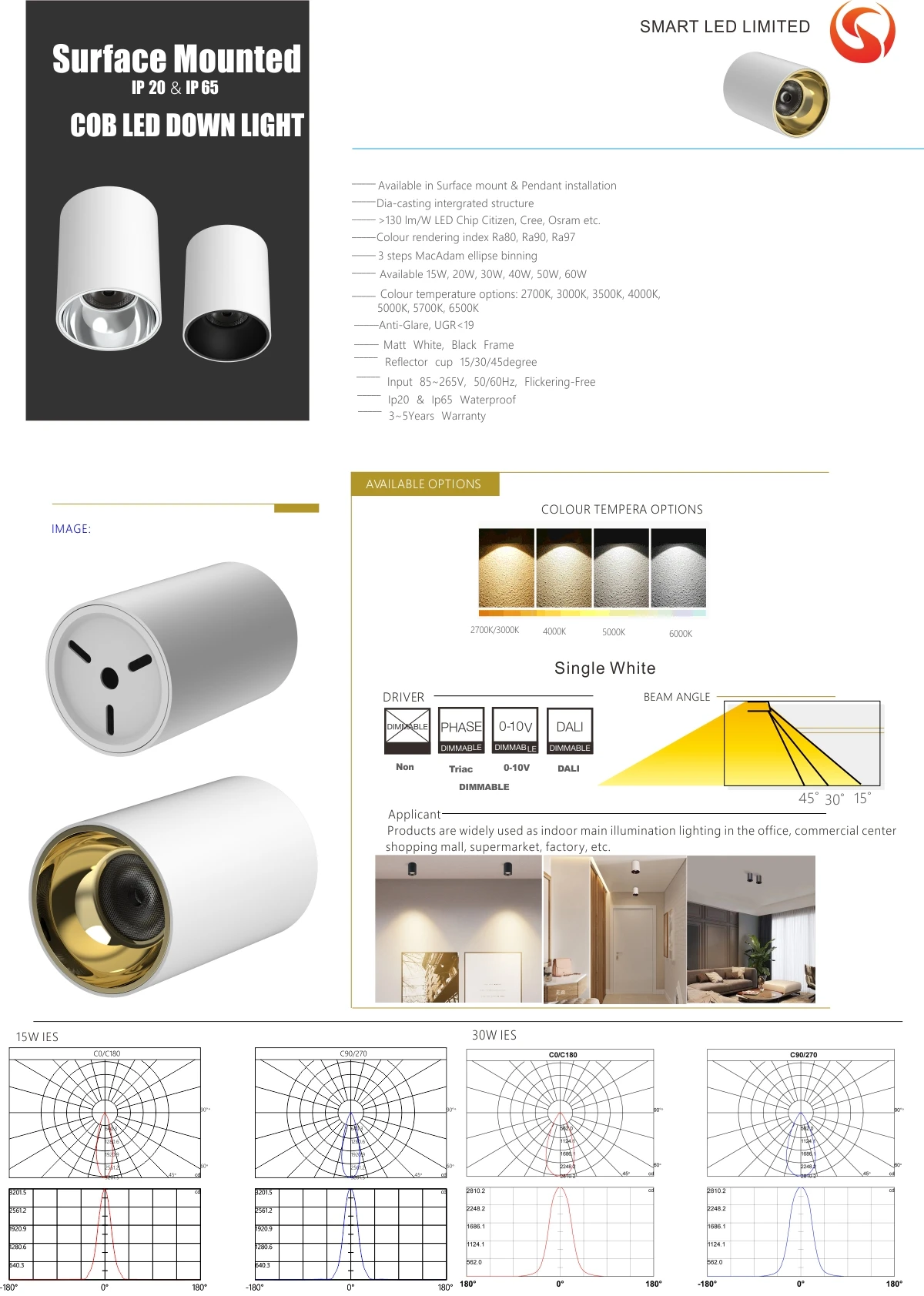

PRODUCTS Spec

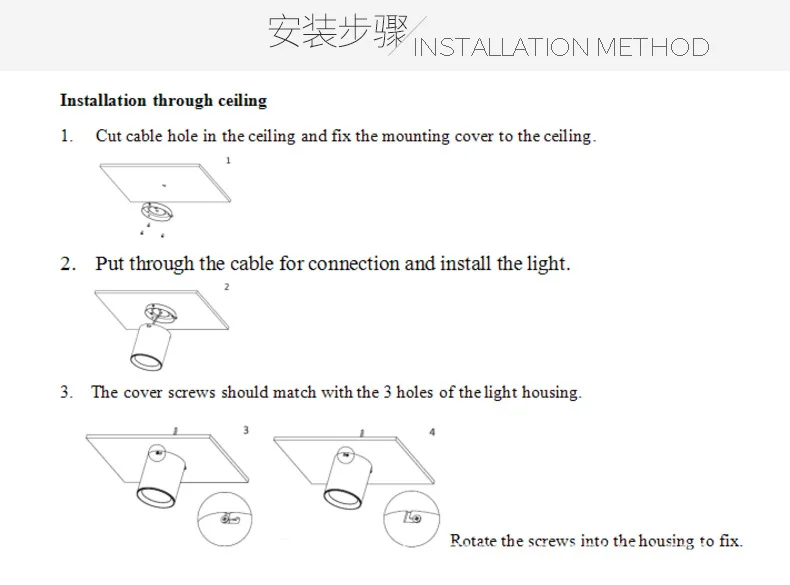

Installation:
PROJECT:
Hot Products
Magnetic Lighting Led Linear Lighting LED Track Light
LED Down Light LED Light Strip LED Suspension Light
COMPANY PROFILE
>>>Click here to get catalogues now
SMART is also quite experienced on ODM&OEM cooperation with customers for personalized products, all new ideas are welcome here.
Q1. Do you have certificate for your products ?
A: Yes, for all of our products have CE (EMC+LVD), Rohs, C-tick, FCC, PSE, REACH, ERP etc. Certification
Q2. What's the warranty?
A: Our Commercial Light are 5 years warranty.
Q3. Can I have the sample light and What's the MOQ?
A: We very welcome you to set sample order to feel our quality, so MOQ=1, and mixed sample will acceptable.
Q4. How long is the delivery time?
A: Sample order is 3-5 days, massive order is 7-20 days depends on the quantity.
Q5. What's your payment terms please?
A: T/T in advance, L/C, Paypal, West Union.
Q6. How to move the order
A: Usually by Express DHL, FEDEX, TNT or UPS, and it will cost 3-5 days on the way, when the order is big, or By Air or By sea cost 10-25days on the way.
Q7. Is it okay to Print your company name or Logo on lamps
A: Yes, pls inform us before ordering
Q8. How to process one orde
A: 1> pls let me know your needed and requirement
2>according as your needed, we quote you all the cost
3> pls confirm all the details on the PI, and arrange the deposit
4> we arrange the production, and ship to you by express and tell you the tracking number to follow
