LiFePO4 Battery 20Ah 25Ah 32Ah 50Ah 80Ah 90Ah 100Ah 105Ah 130Ah 160Ah 230Ah 280Ah 304Ah Lithium Ion Battery
- Category: >>>
- Supplier: Shenzhen Wisdom Science And Technology Co. Ltd.
Share on (1601040041920):
Product Overview
Description
LiFePO4 Battery 20Ah 25Ah 32Ah 50Ah 80Ah 90Ah 100Ah 105Ah 130Ah 160Ah 230Ah 280Ah 304Ah Lithium Ion Battery
EU PL Stock
Provide Dropshipping Service.
PL Warehouse

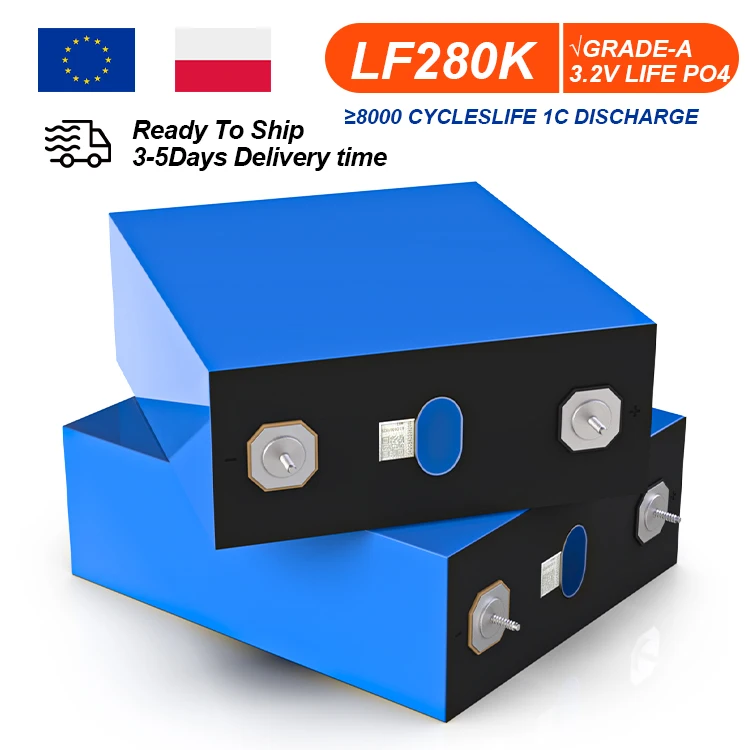

Grade A,Brand New V3 280Ah LiFePO4 Cell
Competitive Price
5 Years Warranty
Free busbars, nuts and screws Matching voltage and internal resistance Free shipping costs and duties Fast dispatch: 3-7 days | ||||
Time | Delivery From Local Warehouse | Transportation from China | ||
ETD | 1-3 working days | 3-7 working days | ||
ETA | 5-7 working days | 35-40 working days | ||
Transportation | Express | By rail/sea +DDP/GIS/UPS(DDP TAX FREE) | ||
DDP : The shipping cost and all import cost for destination are included in the price and you do not have to worry about anything.Any qustions please feel freee to contace us！ Wistek Energy now have enough stock in China/Poland EU location for the 3.2V 280Ah LiFePO4 cell. It's best time to have quick shipping! | ||||
Product Description
Product Parameters
Item | Parameter |

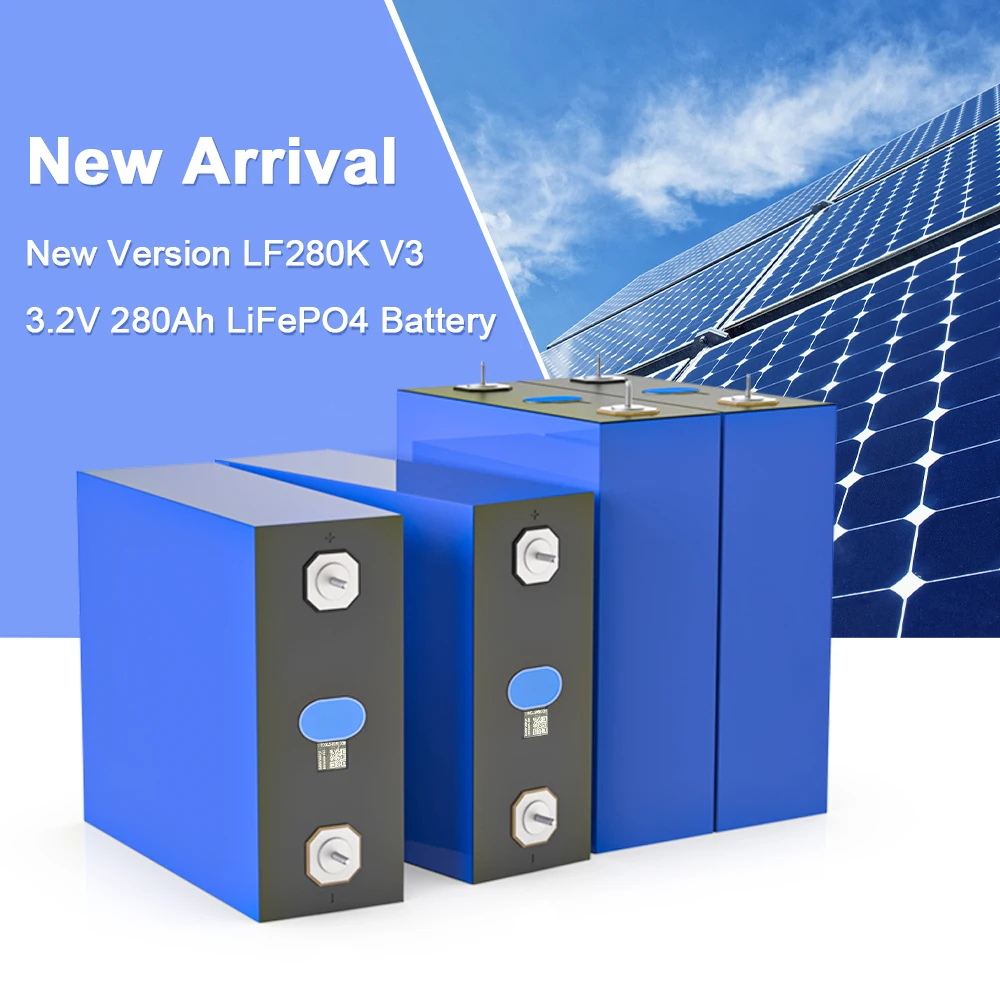

Product Name | 3.2V 280Ah Prismatic LiFePO4 Cell |
Model | EV E LF280K |
Version | V3 |
Quality | Grade A,brand new |
Nominal Voltage | 3.2V |
Nominal Capacity | 280Ah(280 ampere hour)(896Wh) |
Real Capacity | About 310Ah |
AC Impedance Resistance | ≤0.25mΩ |
Charging Current Rate | 0.5P |
Discharging Current Rate | 0.5P |
Peak Current | 0.5P |
Charging Temperature | 0℃～55℃(32℉～131℉) |
Discharging Temperature | -20℃～55℃(-4℉～131℉) |
Cycle Life | 8000 Times |
Weight | 5.42±0.30KG |
Dimensions (W*T*H) | 173*72*207mm |
Stud Model | M6 |
Stud welding method | Laser Spot Welding |
Self-discharging | 3% Per Month |
Recommended Scope of SOC Use | 10%-90% |
Certifications | UL1642,CB,IEC,BIS,CE,MSDS.NU38.3,FCC |
Applications | Solar/Wind Energy Storage System,RV,Motorhome,Camping,Golf Carts,Electric Boats,Yacht,Marine,Trolling Motor,Motorcycle,EV,Wheelchairs,Tricycles,UPS... |
Accessories | Busbars+screws for free |

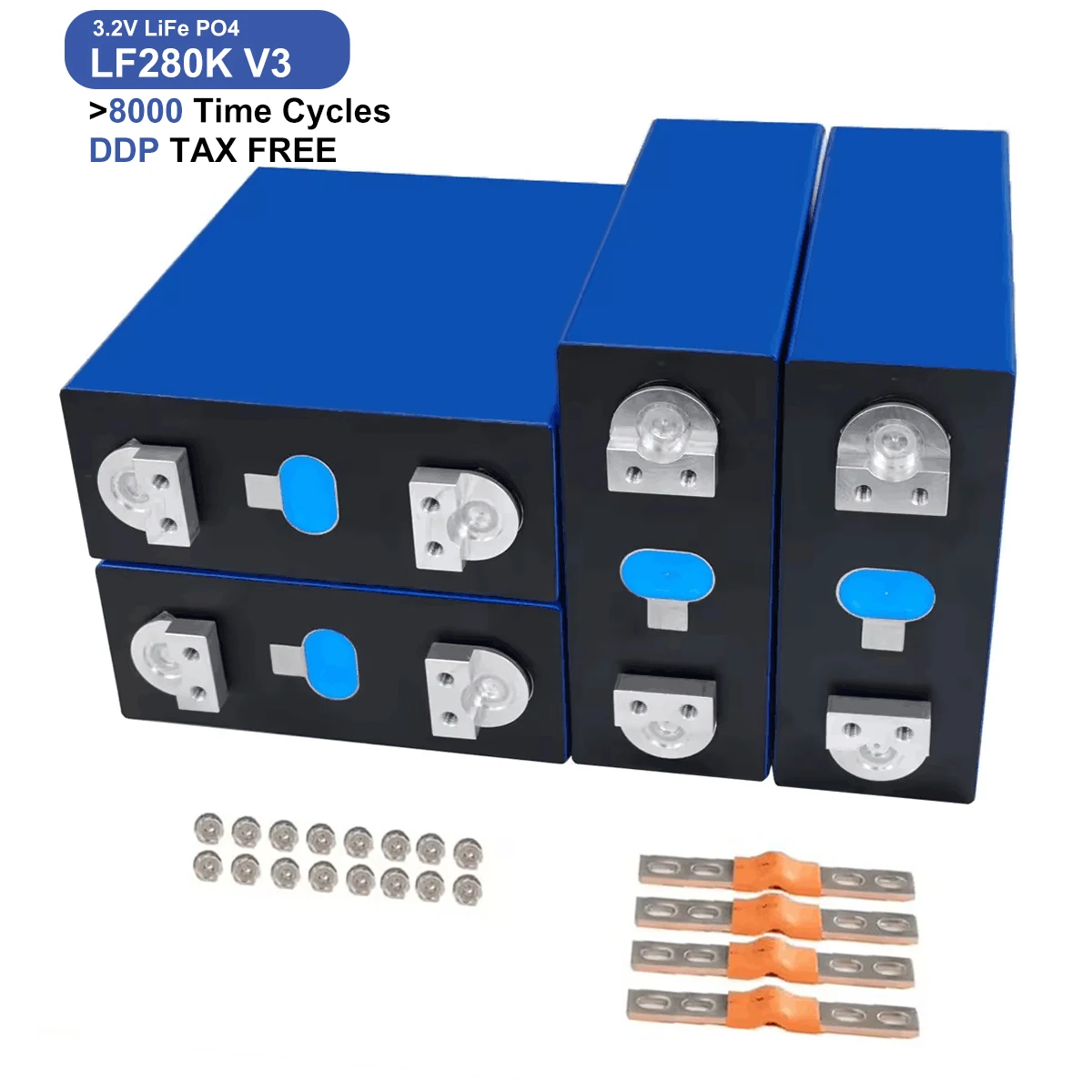

Double Hole Terminal Optinal
Copper Flexible Busbar.

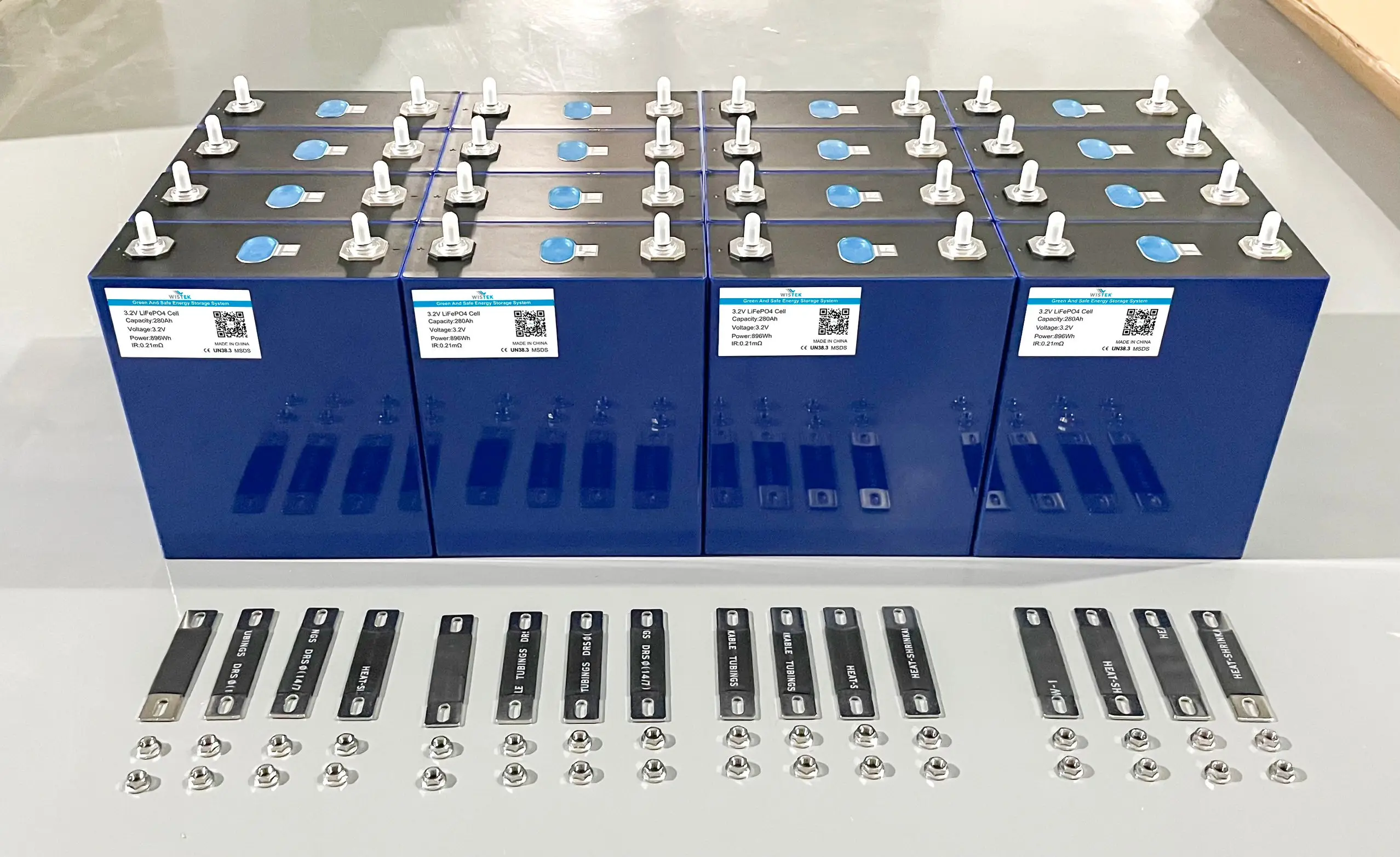

4pcs cells accessories:busbars*4,screws*16
Why Choose Us
Competitive Price
We have a large stock of V3 280Ah in Poland, Europe, offering competitive prices.
All the cells, produced in 2024, are fresh cell, with very low internal resistance, good voltage consistency and cell capacity up to 310Ah, already matched and ready for direct assembly.
All the cells, produced in 2024, are fresh cell, with very low internal resistance, good voltage consistency and cell capacity up to 310Ah, already matched and ready for direct assembly.
Grade A,brand new quality

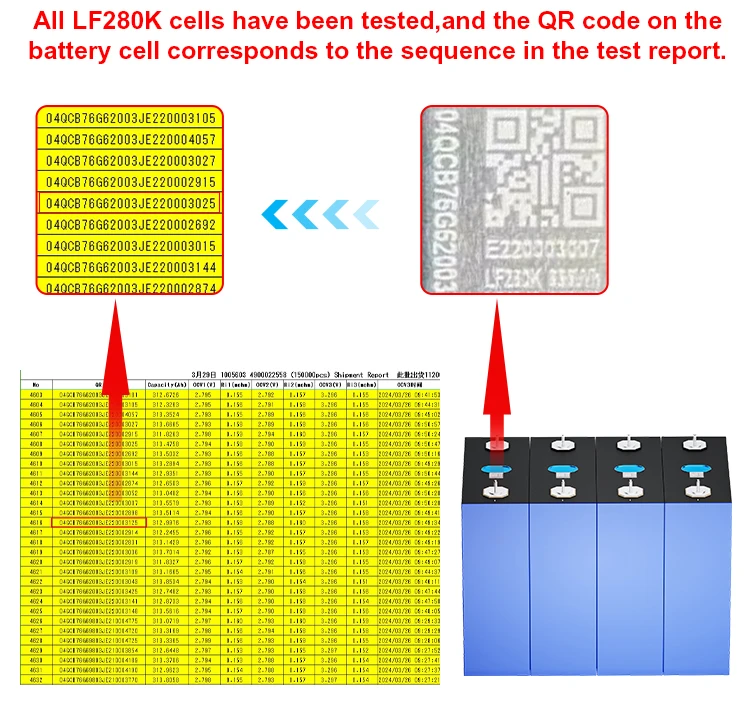

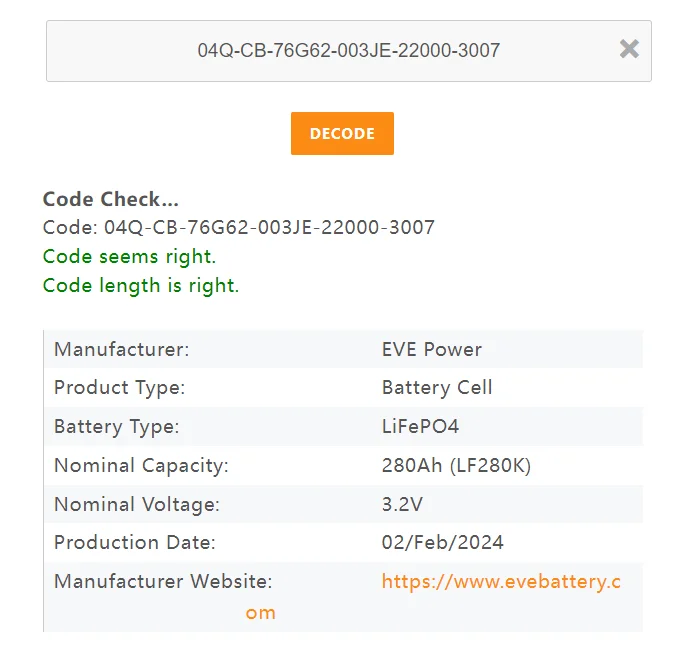

The LF280K V3 comes with the original QR, You can scan the QR code to get the serial number of the product through specific software, which gives you feedback on the date of manufacture and model number of the cell.

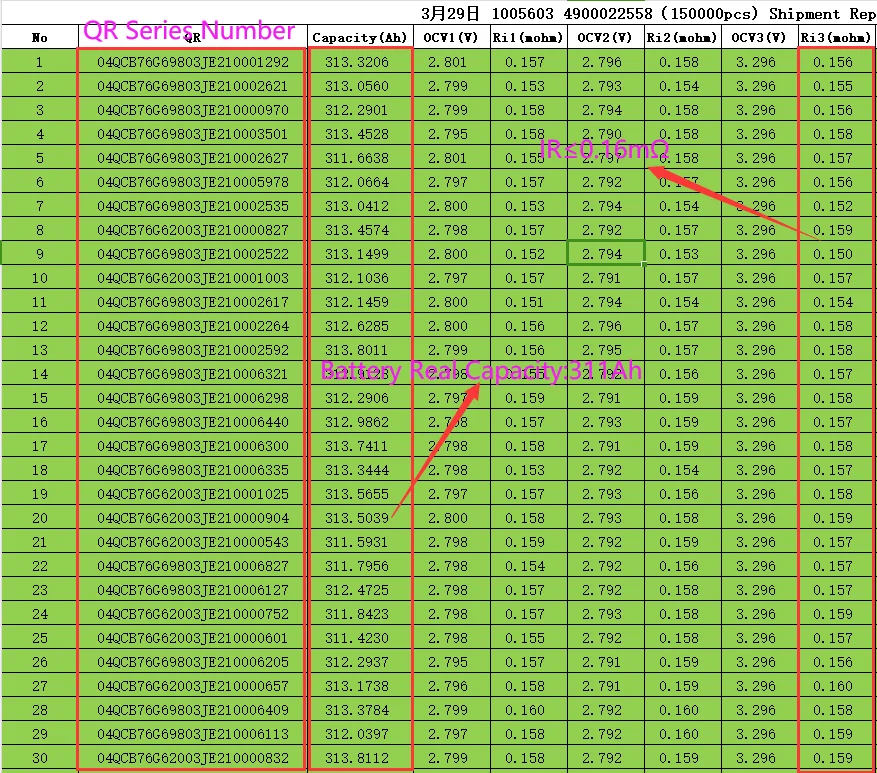

We will share an EXCEL table where you can find the serial number of that battery and view the battery test results.
We will share an EXCEL table where you can find the serial number of that battery and view the battery test results.

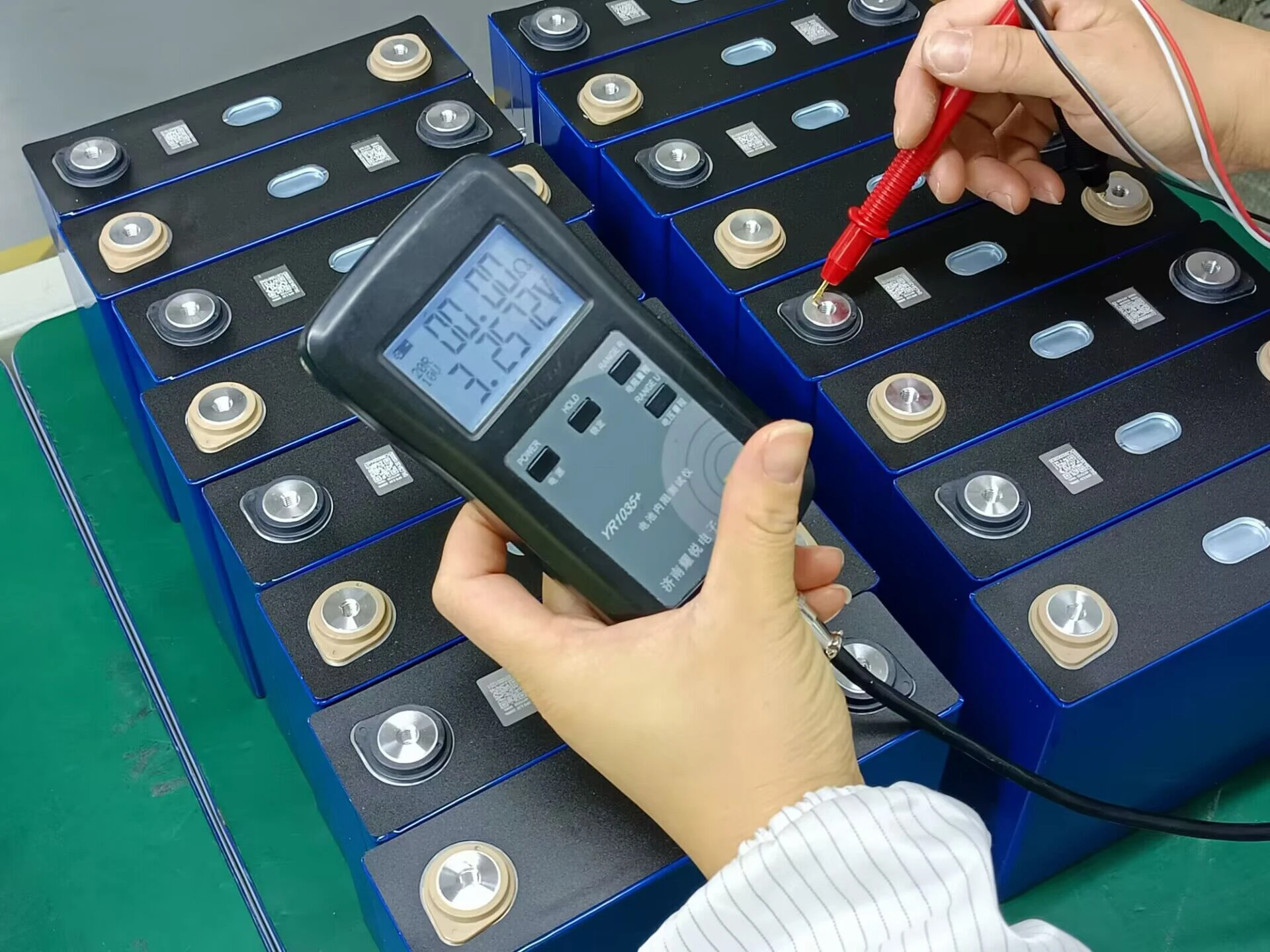

Voltage and internal resistance testing
All cells are tested to confirm that all parameters meet the specification.
In the same shipment, voltage, internal resistance and capacity will be matched so that customers can assemble the cells directly when they get them.
In the same shipment, voltage, internal resistance and capacity will be matched so that customers can assemble the cells directly when they get them.

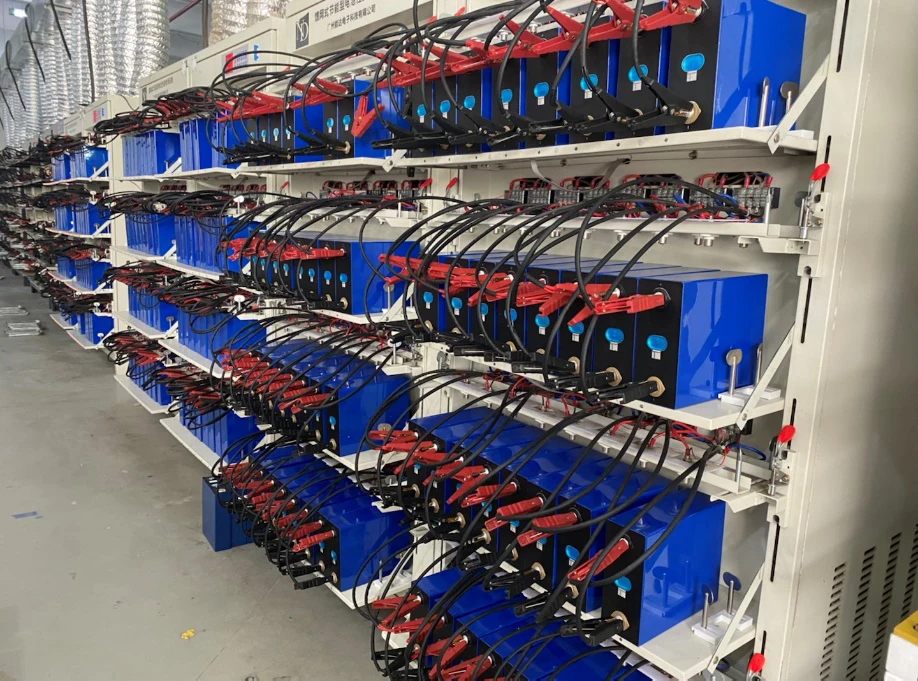

Capacity testing
A complete charge/discharge test will be performed on all cells to screen those that meet the capacity requirements.
Storage conditions
Scientific and safe storage environment, place the battery cells in a dry, ventilated and cool place at 0-35℃. Keep the capacity between 30%-80%.

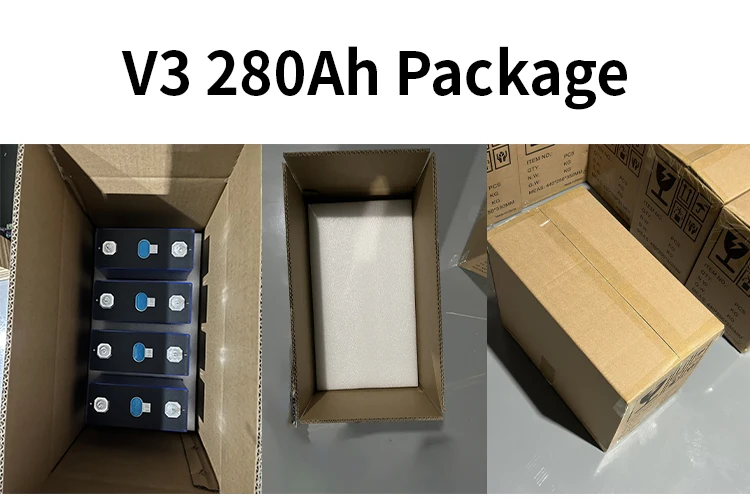

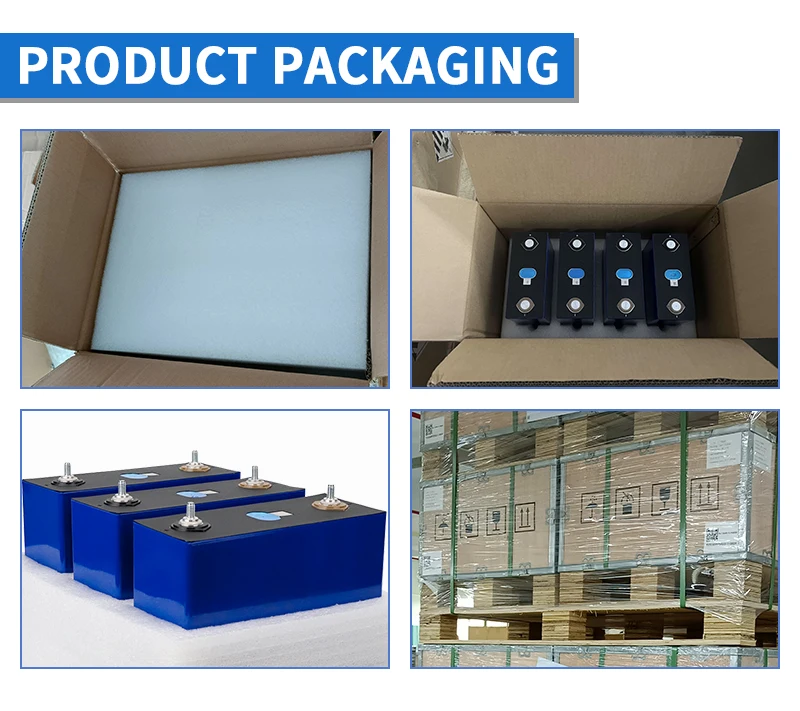

Professional packaging and transportation
Packaging meets the requirements of UN38.3 and complies with export requirements.

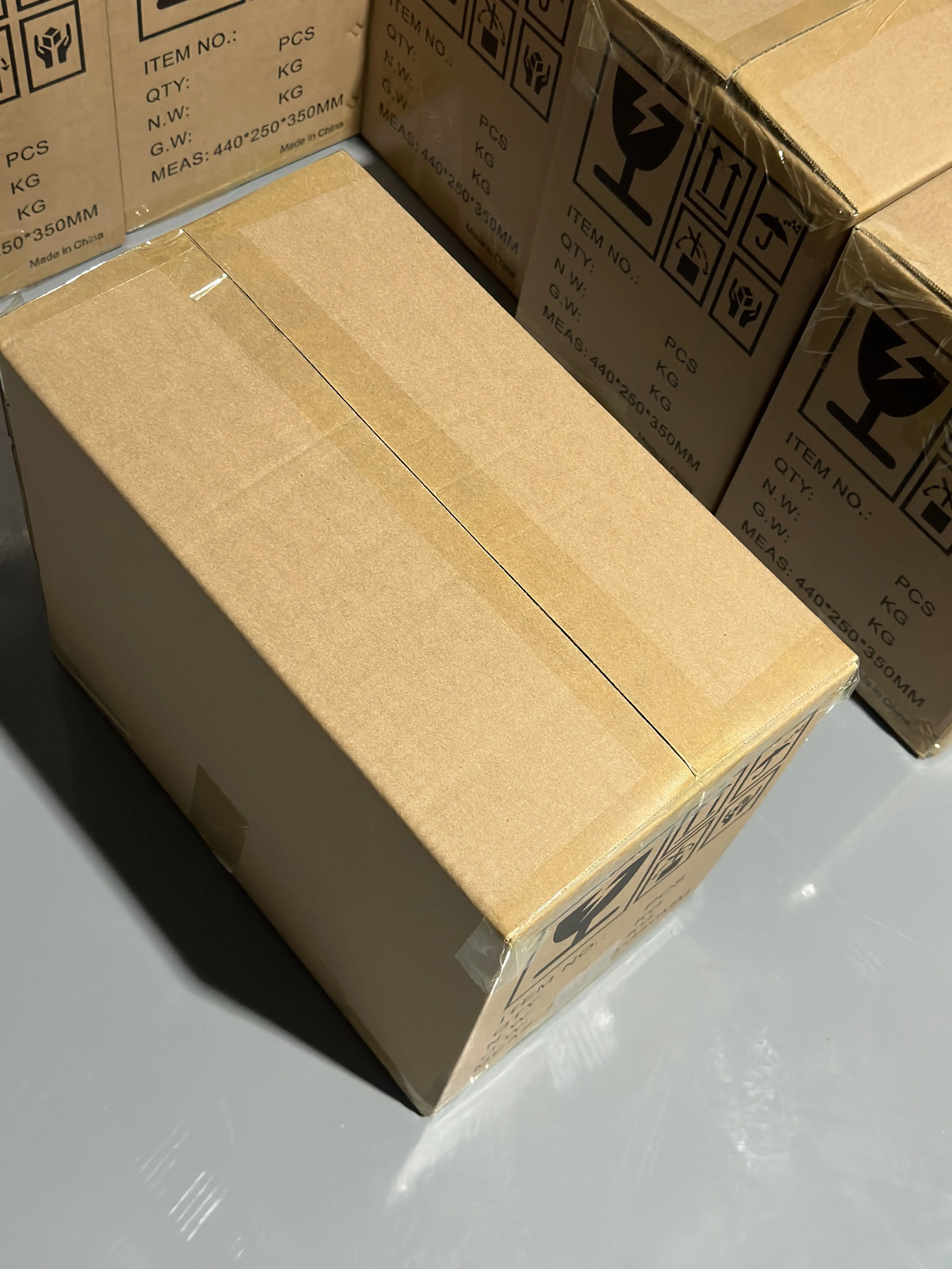

5 layers of dangerous goods export corrugated carton
Use high hardness custom sponge to strengthen the battery
5 layers of dangerous goods export corrugated carton
Use high hardness custom sponge to strengthen the battery

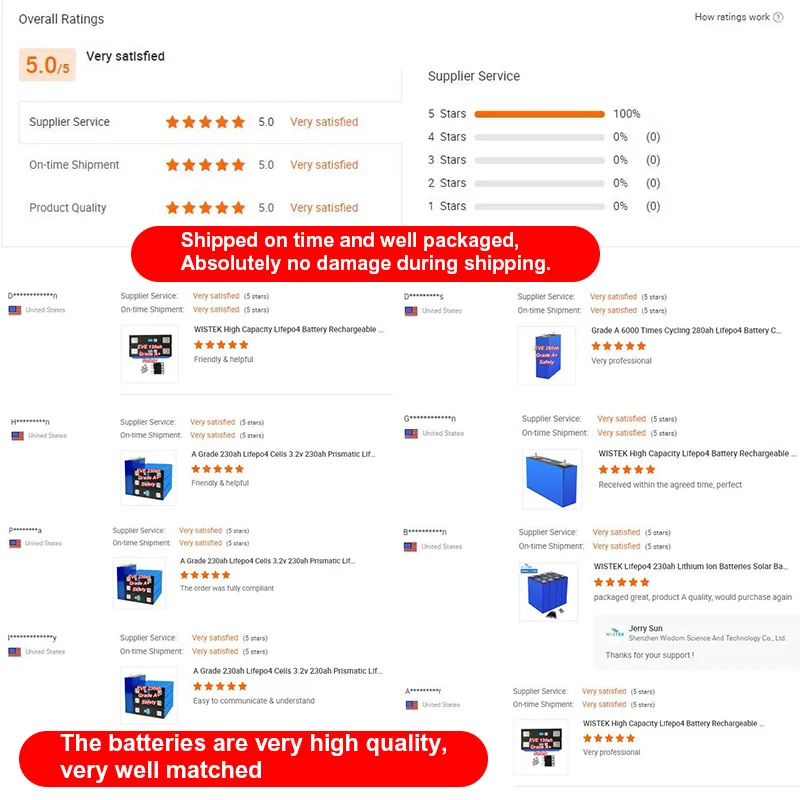

Client Feedback
We export our batteries to different countries around the world and gain recognition from different countries around the world.

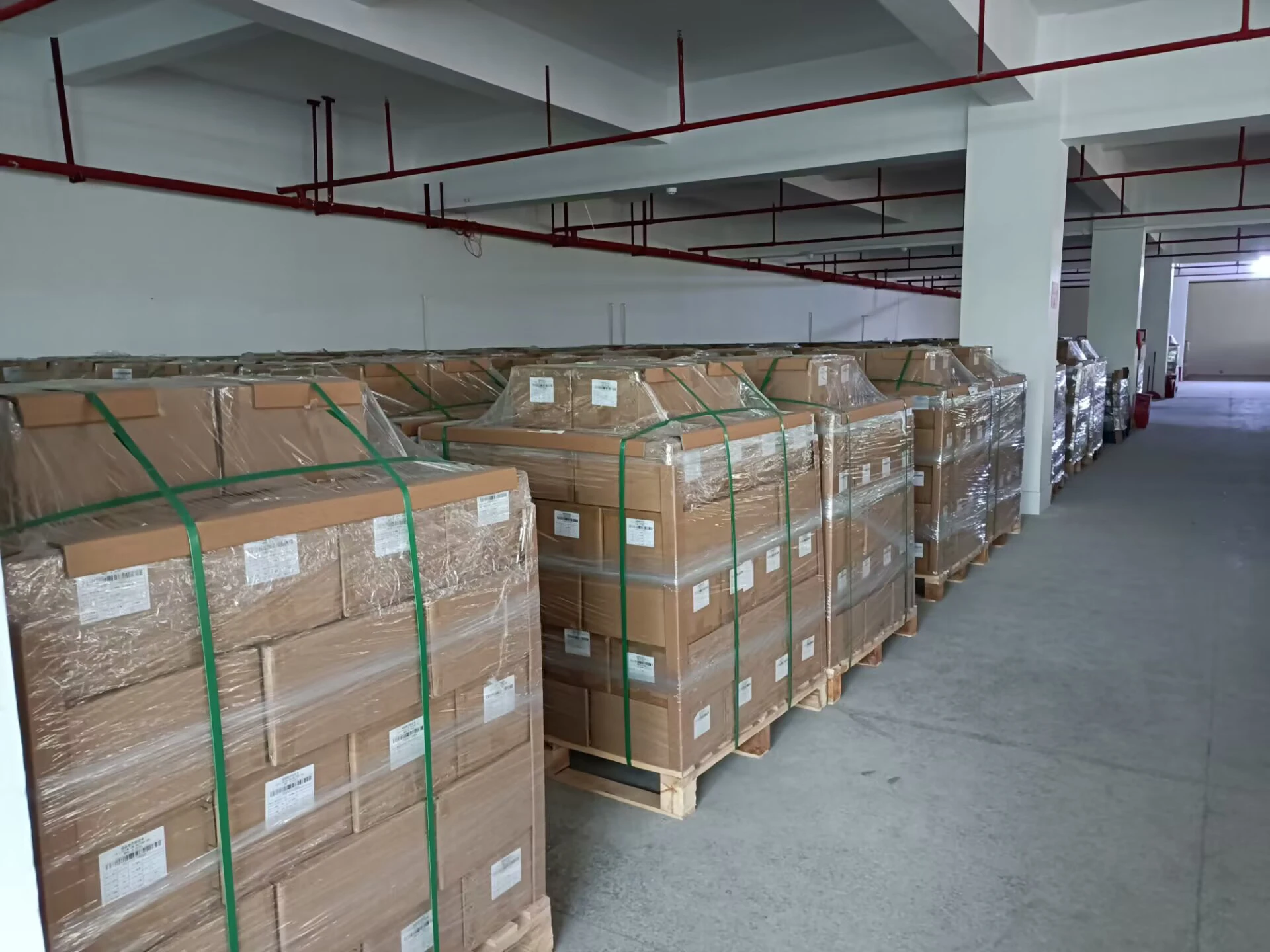

Packaging
Professional export package.
* Use high hardness custom sponge to strengthen the battery
* 5 layers of dangerous goods export corrugated carton
* 5 layers of dangerous goods export corrugated carton
Other Cells Recommended
Provide EV E latest version prismatic lifepo4 cell,LF280K V3,MB30,MB31. V3 280Ah lifepo4 battery, more than 8000 cycles, actual capacity 310Ah. MB30 306Ah 3.2V lifepo4 cell, more than 10000 cycles, actual capacity 330Ah. MB31 314Ah 3.2V lifepo4 battery cell,more than 8000 cycles, actual capacity 330Ah. | ||||||
Model | LF280K V3 | MB30 | MB31 | |||
Brand | EV E | EV E | EV E | |||
Nominal Capacity | 280Ah | 306Ah | 314Ah | |||
Real Capacity | 310Ah | 330Ah | 330Ah | |||
Nominal Voltage | 3.2V | 3.2V | 3.2V | |||
Charge Voltage | 3.65V | 3.65V | 3.65V | |||
AC Impedance Resistance (1KHz) | ≤0.25mΩ | 0.18mΩ±0.05mΩ | 0.18mΩ±0.05mΩ | |||
Charging Temperature | 0℃~55℃ | |||||
Weight | 5.3KG | 5.6KG | 5.6KG | |||
Dimension(W*T*H) | 173*72*207mm | 173*72*207mm | 173*72*207mm | |||
Quality | Grade A & Brand New with Original QR Code | |||||
Cycle Times | 8000 Times | 10000 Times | 8000 Times | |||
Warranty | 5 years warranty | |||||
Remarks: | We also provide inverter,lifepo4 pack,solar panels, power station, please feel free to contact with us if you have requirement, we will give you special discount! 1.All cells will be matched before delivery. 2.Free Busbars and Bolts with each of cell. Extra busbars charged 1USD each set. 3.The latest version of the EV E V3 LF280K is available, which has an actual capacity of up to 310Ah and a cycle life of more than 8,000 cycles. | |||||
Company Profile
FAQ
1.What is your cell brand?
EVE
2.Your cells quality?
Grade A, Brand New
Grade A, Brand New
3.Your cell production date?
Produced in 2024
Produced in 2024
4.What is your cell electrode model?
Positive and negative electrodes are welded with M6 studs by default, double hole electrodes are optional
Positive and negative electrodes are welded with M6 studs by default, double hole electrodes are optional
5.Can you provide a test report?
We can provide the original test report.
6.Does the cell come with the original QR code?
QR is intact
We can provide the original test report.
6.Does the cell come with the original QR code?
QR is intact
