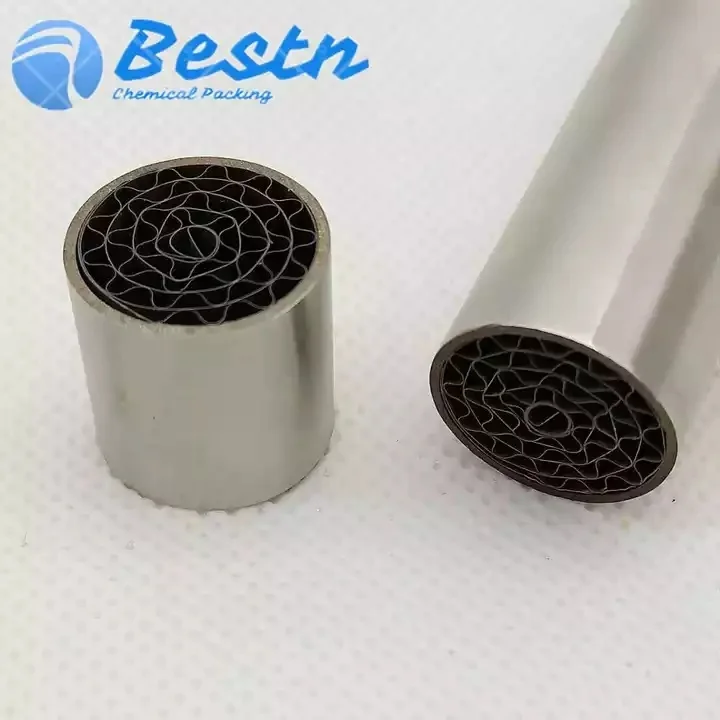

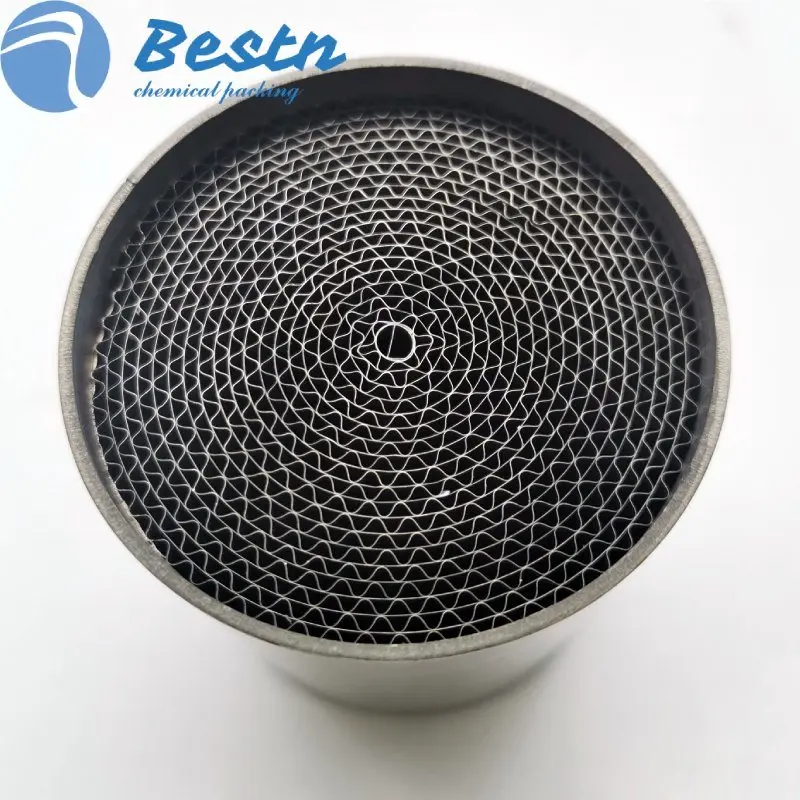

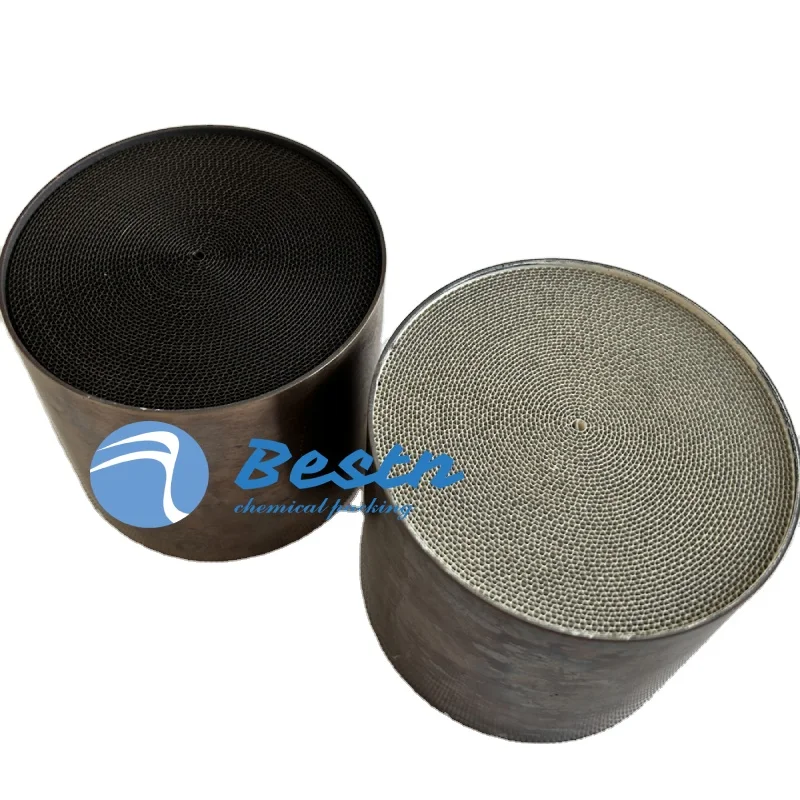

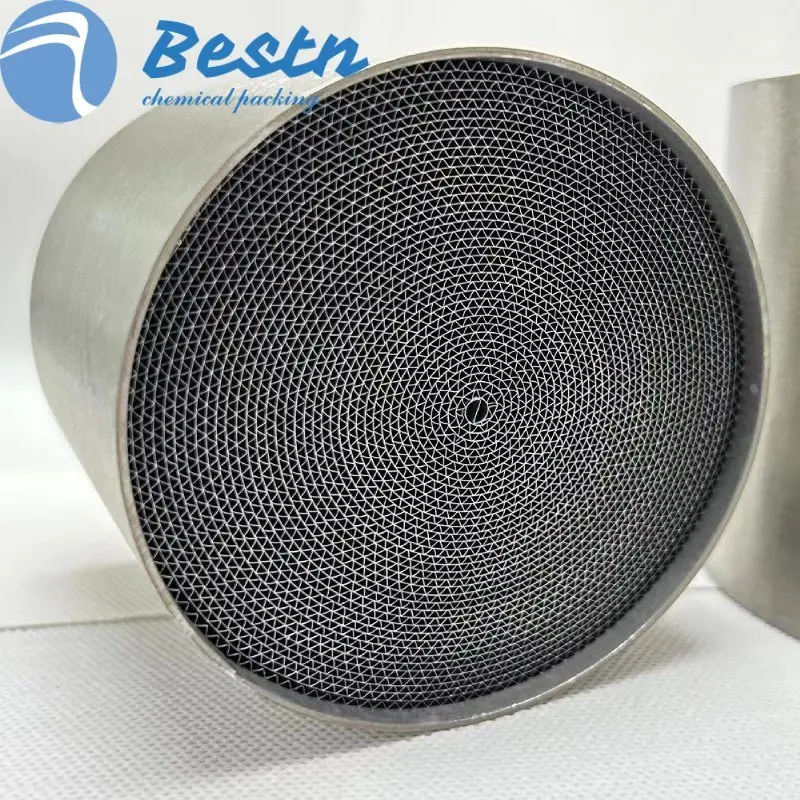

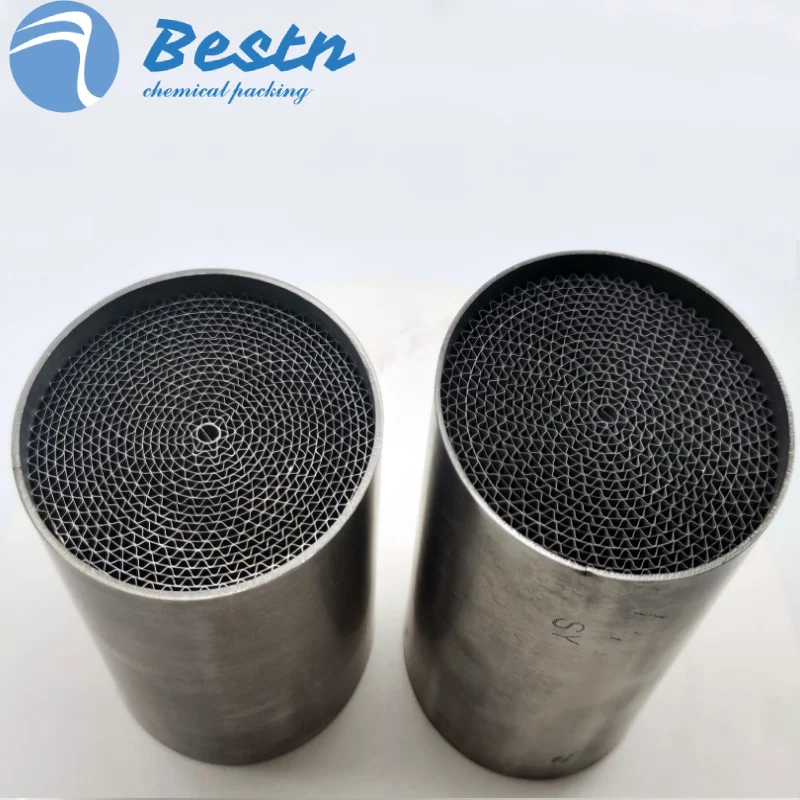

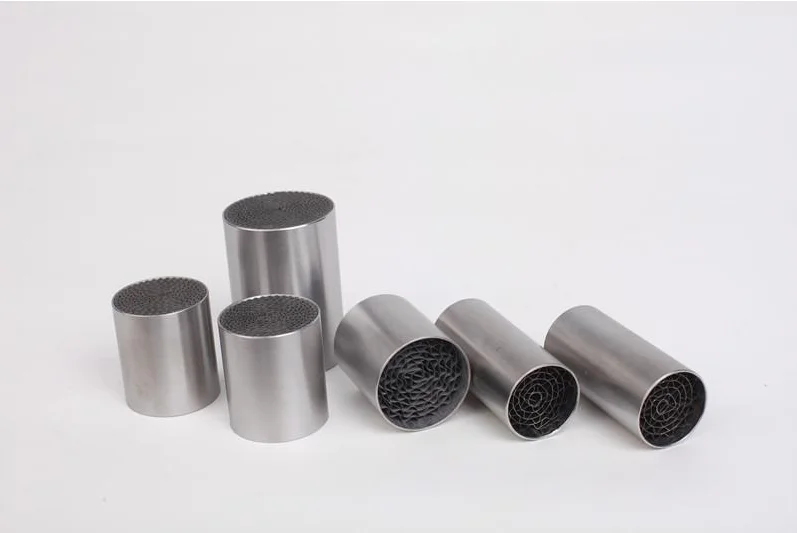

Three Way Catalytic Converter Metal Honeycomb Substrate with Pt Pd Ph for Automotive Exhaust Purification
- Category: >>>
- Supplier: Pingxiang Bestn Chemical Packing Co. Ltd.
Share on (1601040063405):
Product Overview
Description
Product Description
The catalytic converter is coated with rare earth element and noble metals of PT, Pd, Rh. When the engine exhaust passing through the three-way catalytic converter the elements of CO would be oxidized into CO2, the HC is turned into H2O and CO2, while the NOX is deoxidized into nitrogen. The catalytic converter substrate is made of metal honeycomb with stainless steel crust and Fe-Cr-Al honeycomb body. It is a critical part of motorcycles and off-road engines to make the exhaust emission meet government standard. Along with the Europe III, IV emissions implementation, our factory has carried on the optimized design in the original formula foundation, developed a series of combustion initiation temperature to be lower, the transformed efficiency was higher.
The cells of metallic substrate density can be 100, 200, 300, 400, 600 or 900 CPSI and more. The shape is round, oval, racetrack and other special shape.
The shell materials: Ferritic stainless steel SUS444, SUS441, SUS430 and austenitic stainless steel SUS304, SUS316.
The core materials: Domestic FeCrAl (2073/216), import FeCrAl (1.4725/1.4767), copper and iron, etc.
The foil thickness: 0.03-0.1 mm.
The hole density: 100-900 CPSI.
The braze welding: Nickel-based solder.
Shape: Round, oval, racetrack, rectangle and other especial shape according to the design of client.
Type: Spirality series, “S” series and “SM” series.
The core materials: Domestic FeCrAl (2073/216), import FeCrAl (1.4725/1.4767), copper and iron, etc.
The foil thickness: 0.03-0.1 mm.
The hole density: 100-900 CPSI.
The braze welding: Nickel-based solder.
Shape: Round, oval, racetrack, rectangle and other especial shape according to the design of client.
Type: Spirality series, “S” series and “SM” series.
Size for you choose
Shape | Shell size(mm) | Core size(mm) | Cell density(CPSI) |
Round | Dia30*22 | Dia28*20 | 100-400 |
Dia35*20/30/60 | Dia33*20/30/40/50/60 | ||
Dia35*70/100/130 | Dia33*60/90/120 | ||
Dia42*70/100/130 | Dia40*60/90/120 | ||
Dia190*200 | Dia188*190 | 200-600 | |
Dia420*100/130 | Dia416*90/120 |
Specification
Item | Material |
Shell Material | Ferritic stainless steel SUS444,SUS441,SUS430 Austenitic stainless steel SUS304,SUS316 |
Core Material | Domestic FeCrAl Import FeCrAl |
Braze Welding | Nickel-based solder |
Dimension | Cell Density(CPSI) | Foil Thickness(MM) |
Roun shape : Dia 20-60mm Length:550mm | 500 100 200 250 300 400 500 600 900 | |
Oval and racetrack shape | ||
Others |
Advantages
1.Better heat conduction,fast heating
2.Lower back pressure
3.Larger effective area
4.Greater catalytic capacity
5.Smaller and more flexible design
6.Thinner wall
7.Higher mechanical strength
8.Better resistance to thermal shock and resistance to thermal fatigue
9.Longer service life
Application
1.Round and Oval metallic substrate for on-road vehicle
2.Metallic substrate for small engine
3.Metallic substrate for off-road vehicle
4.Metallic substrate for industrial catalyst
5.Special structure metallic substrate for other application
Working principle
When high-temperature car exhaust passes through the purification device, the purification agent in the three-way catalytic
converter will enhance the activity of CO, hydrocarbons, and NOx gases, promoting them to undergo certain oxidation-reduction chemical reactions. CO is oxidized to colorless and non-toxic carbon dioxide gas at high temperatures; Hydrocarbons oxidize into water (H2O) and carbon dioxide at high temperatures; NOx is reduced to nitrogen and oxygen. Three types of harmful gases are transformed into harmless gases, which purify car exhaust gas
converter will enhance the activity of CO, hydrocarbons, and NOx gases, promoting them to undergo certain oxidation-reduction chemical reactions. CO is oxidized to colorless and non-toxic carbon dioxide gas at high temperatures; Hydrocarbons oxidize into water (H2O) and carbon dioxide at high temperatures; NOx is reduced to nitrogen and oxygen. Three types of harmful gases are transformed into harmless gases, which purify car exhaust gas
