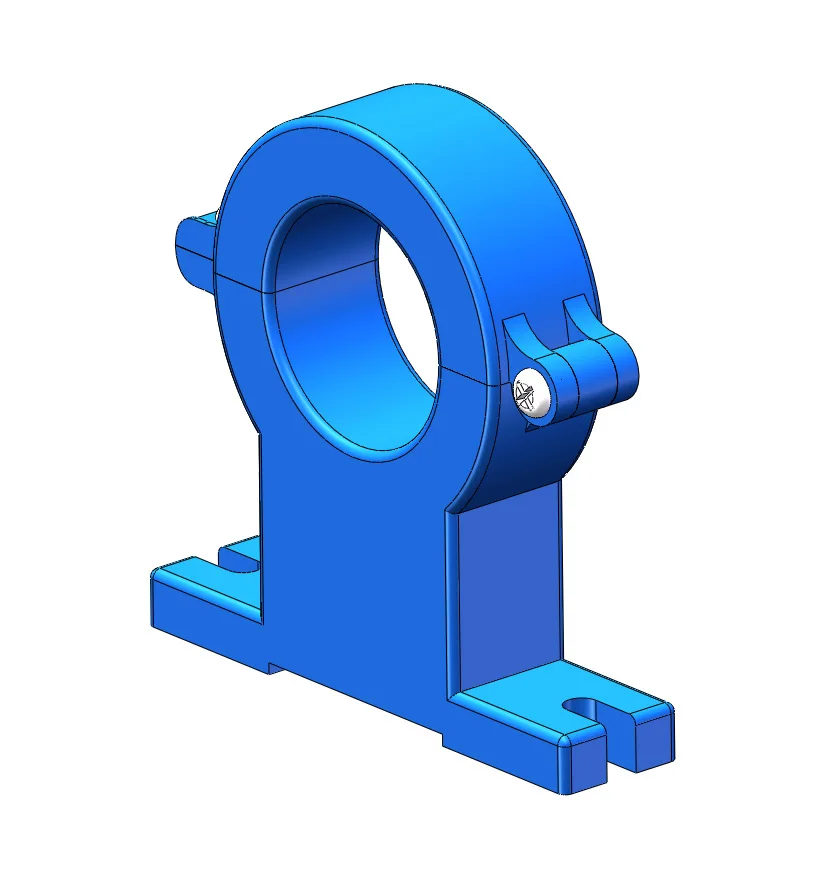

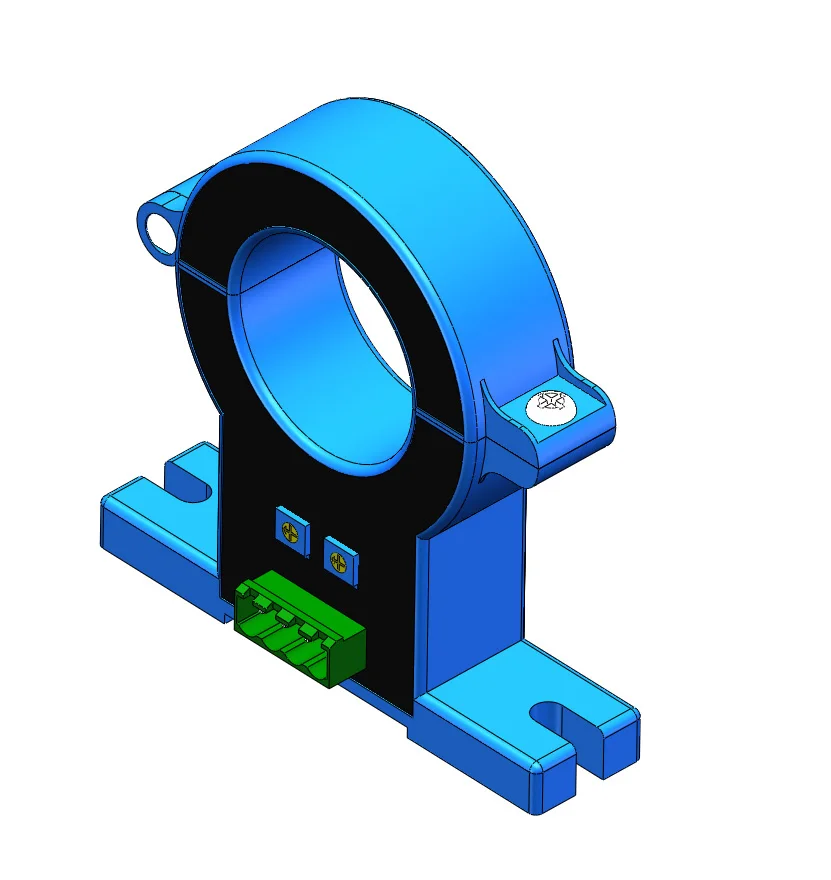

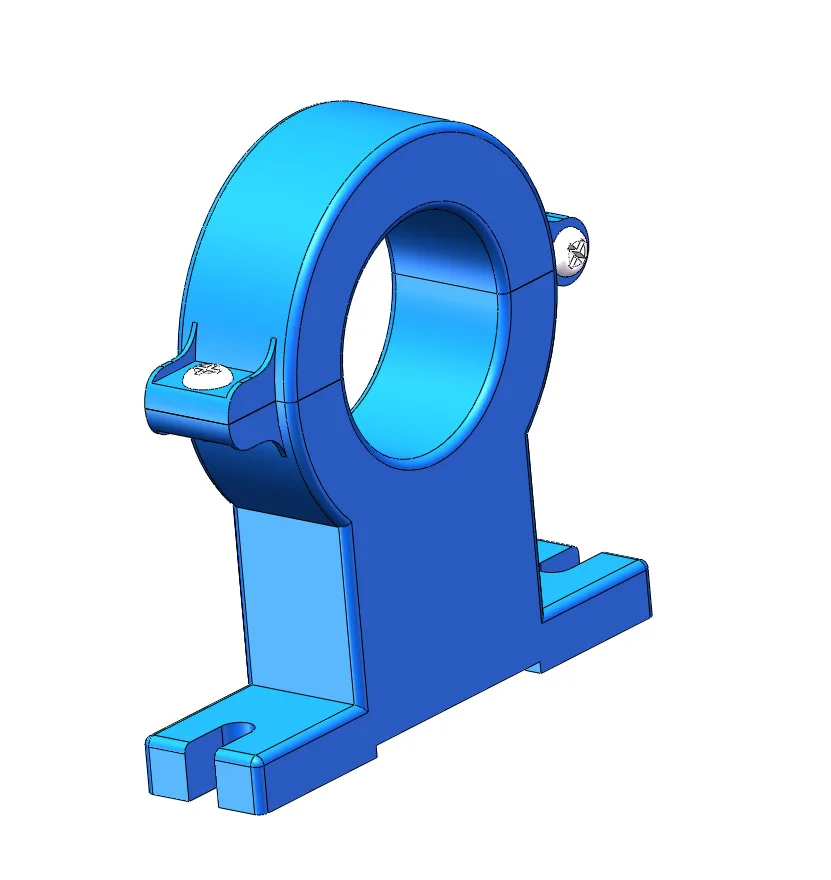

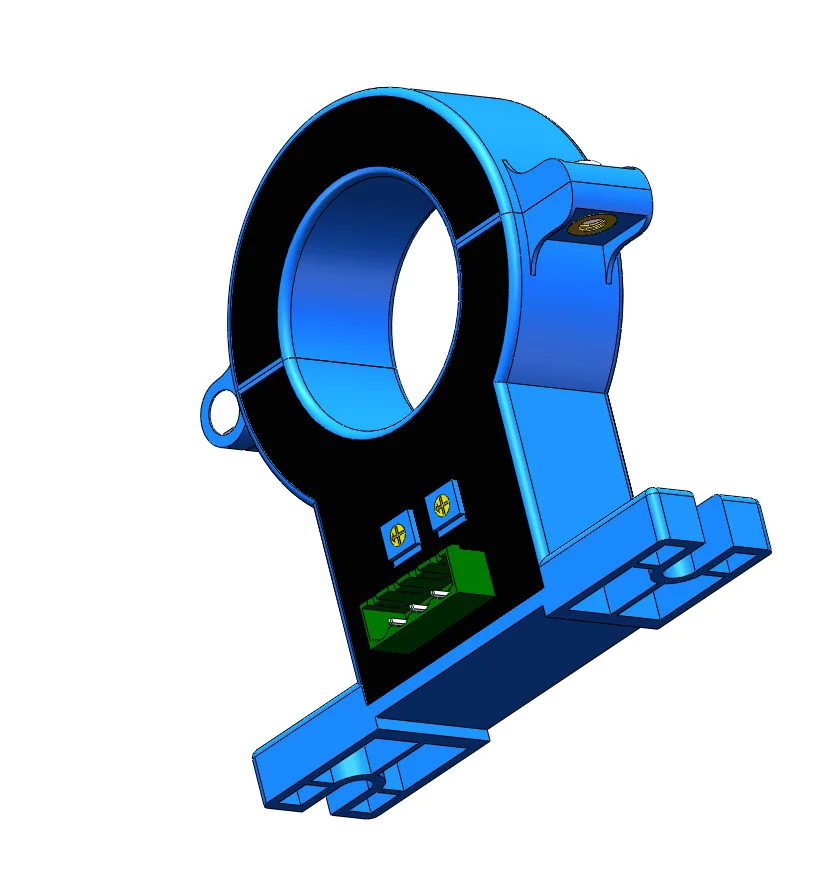

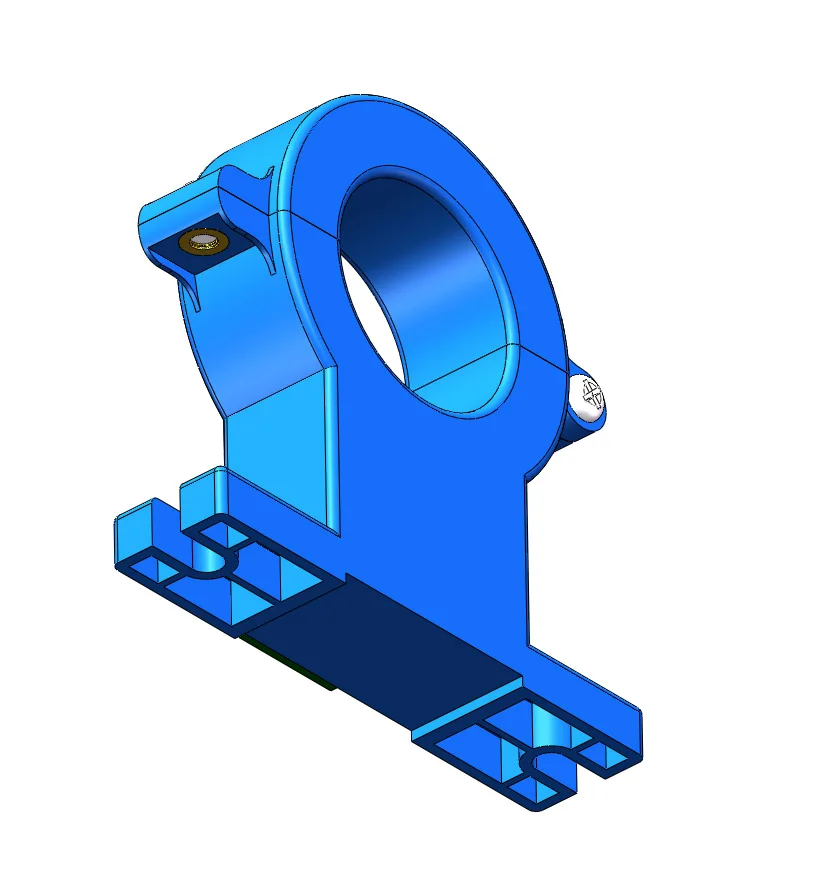

SCY7 Series 40mm diameter 200A..2000A lem current sensor
- Category: >>>
- Supplier: Shenzhen Socan Technologies Co. Ltd.
Share on (1601040090617):
Product Overview
Description
Product Description
SCY7 Series 100A...1000A split core hall current sensor
SCY7 Series Hall Current Sensor is a new generation Open loop Split core current sensor based on Hall effect principle, it could accurately measure DC, AC and pulse current and other various irregular waveforms current in electrical isolation conditions.
Perforations in the form of a round hole type, use for cable connections, it is widely used in inverter, all kinds of power
supply, DC panel, Welding machines and other equipments.
Because the up and down could be open, this model is very easy for installation.
Perforations in the form of a round hole type, use for cable connections, it is widely used in inverter, all kinds of power
supply, DC panel, Welding machines and other equipments.
Because the up and down could be open, this model is very easy for installation.
Working voltage: DC +/-12~+/-15VV
Analog output: ±4V
Primary through inner diameter: ø40mm
Fast response: <5uS
Primary nominal current value (amps): 100A..2000A
Split core design, up and down could be open without remove busbar
Analog output: ±4V
Primary through inner diameter: ø40mm
Fast response: <5uS
Primary nominal current value (amps): 100A..2000A
Split core design, up and down could be open without remove busbar
Specification
item | value |
Series | SCY7 |
Features | Split core, high accuracy |
Mounting Type | Panel |
Description | Hall effect split core current sensor |
Manufacturing Date Code | 2023 |
Model Number | SCY7-200A..SCY-2000A |
Type | Hall Effect Latch |
Place of Origin | China |
Province | Guangdong |
Brand Name | SoCan |
Usage | Detect current |
Theory | Hall effect |
Output | Voltage signal |
Theory | Current Sensor |
Output | Analog SENSOR |
Trademark | SoCan |
Nominal RMS Range(Ipn) | 200A...2000A |
Measuring Range(Ipm) | 2*Ipn |
Working Voltage | DC ±12V or ±15V |
Accuracy (X) | ±1% |
Linearity | ±1% |
Supply Voltage | ±4V or ±5V |
Response Time | <5us |
Packing & Delivery
80UNITS PER Carton Box Package
Company Profile
Shenzhen SoCan Technologies Co., Ltd. (SoCan) was founded in 2005 and is headquartered in Guangming District, Shenzhen, China. SoCan specializes in the development and production of high-performance, low-cost Hall current sensors and DC system modules. SoCan has the most advanced sensor manufacturing equipment in the world, high-efficiency production capacity, and is constantly committed to improving customer value. SoCan owns a number of manufacturing patented technologies and the patented technology of intelligent products in the field, its core management team is composed of a number of industry elites and senior experts in the
field of magnetic sensor technology and engineering services.
For more details, please visit: //www.szsocan.com
field of magnetic sensor technology and engineering services.
For more details, please visit: //www.szsocan.com
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to Domestic Market(35.00%),South Asia(11.00%),Eastern Asia(10.00%),Mid East(6.00%),Central America(6.00%),Northern Europe(6.00%),Western Europe(6.00%),Southeast Asia(5.00%),Eastern Europe(5.00%),South America(3.00%),Oceania(2.00%),Southern Europe(2.00%),North America(2.00%),Africa(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Current Sensor,dc current sensor,ac current sensor,split core current sensor,leakage current sensor
4. why should you buy from us not from other suppliers?
18 years R&D experience in all kinds of Hall Current Sensor; Products approved by ISO9001 Quality/Management System and also hold certifications from UL, RoHS, CE etc; Imported resin assemblied, Long-term operation, Excellent circuit design, Rigorous test.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2005,sell to Domestic Market(35.00%),South Asia(11.00%),Eastern Asia(10.00%),Mid East(6.00%),Central America(6.00%),Northern Europe(6.00%),Western Europe(6.00%),Southeast Asia(5.00%),Eastern Europe(5.00%),South America(3.00%),Oceania(2.00%),Southern Europe(2.00%),North America(2.00%),Africa(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Current Sensor,dc current sensor,ac current sensor,split core current sensor,leakage current sensor
4. why should you buy from us not from other suppliers?
18 years R&D experience in all kinds of Hall Current Sensor; Products approved by ISO9001 Quality/Management System and also hold certifications from UL, RoHS, CE etc; Imported resin assemblied, Long-term operation, Excellent circuit design, Rigorous test.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
