Product Overview

Description




We have two series of drilling rigs, Series 1 and Series 2.

Our products are complete in variety, providing choices for customers with different requirements in specifications, qualities and prices. With 18 years of production and sales experience, our technology is mature and the after-sales service is perfect.

We are a leading exporter of drilling rigs in the Chinese industry.








Product Description

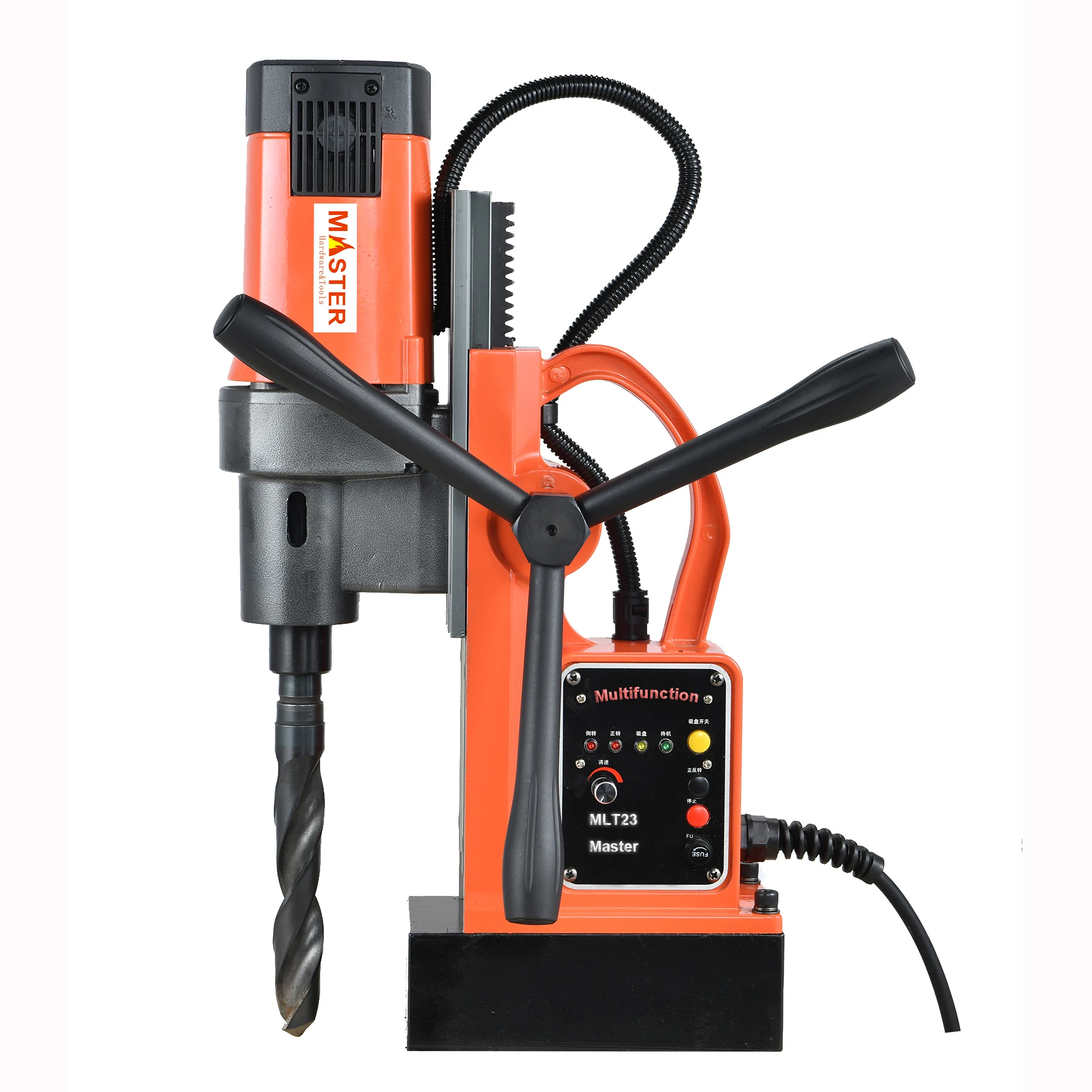

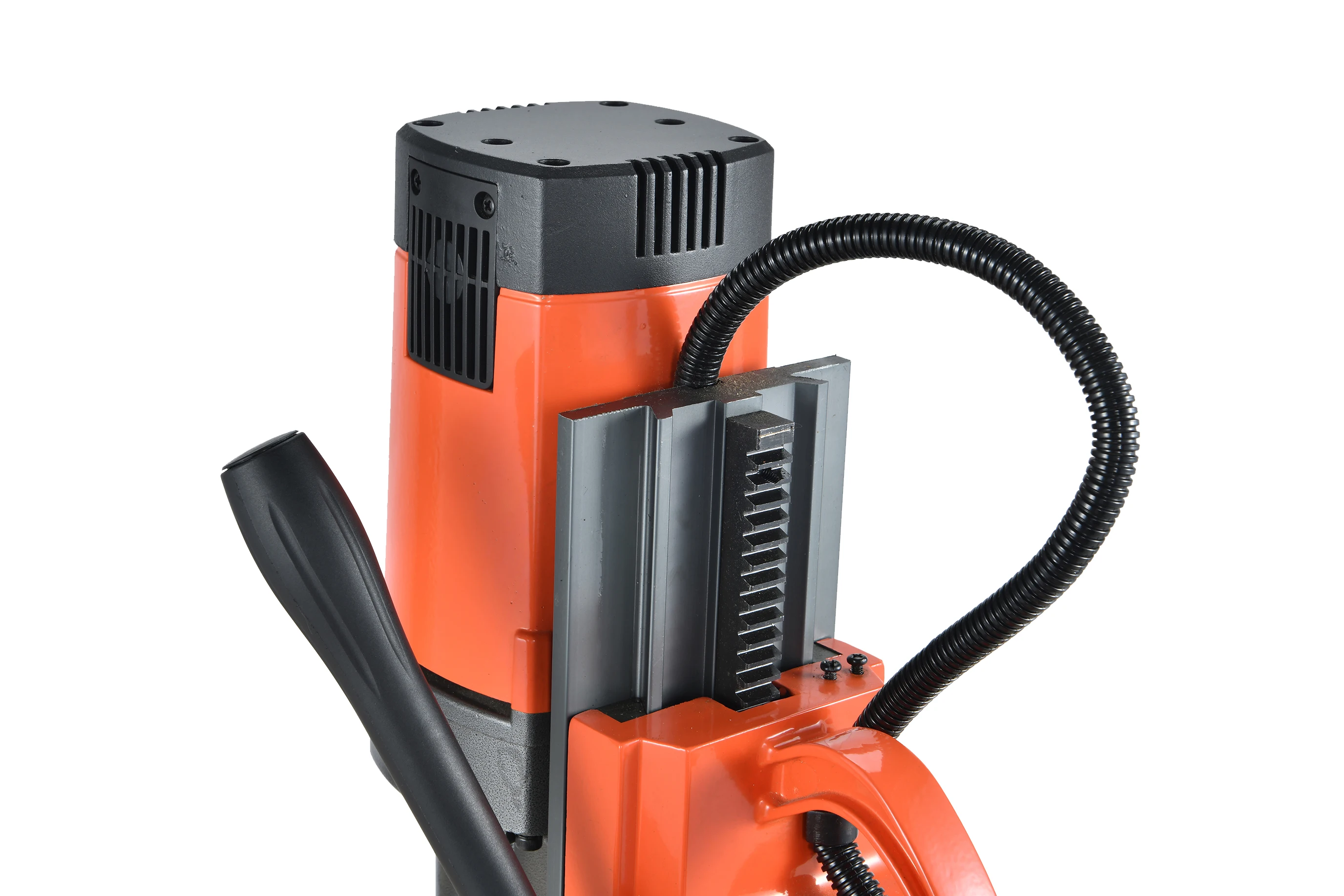

MD23/50 is made for twist drill bits and annular cutter double use with MT2

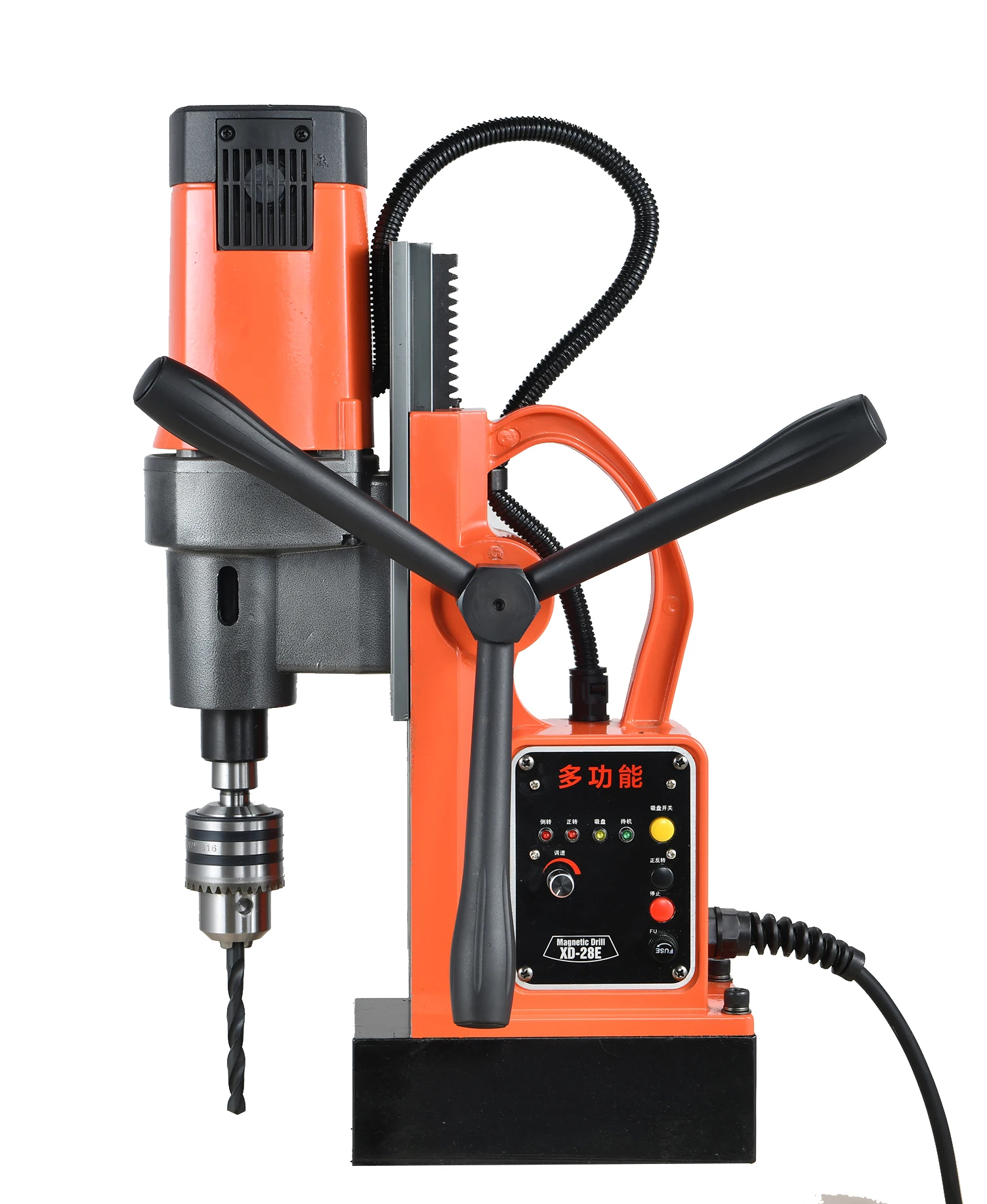

Free drill chuck and plastic case.


Logo/Label/Colour able to changCe


Speed reversable /Tapping function






























SPECIFICATION

























































ModelMD23/50
Cutter Capacity12-50mm annular cutter;1.5-23mm twis drill
Tapping RangeM6-M18
No Load Speed100-690RPM speed adjust
Motor Data220V/110V/50Hz/1400W
 Morse TaperMT2
Magnetic Adhension13500N
Max travel200mm
N.W/G.W18/24KGS
Packing Size47x37x16cm
IncludePlastic carry case







































Hot Magnetic Drill







  40mm/1200W                          MINI  28mm/1200W         2speeds/50mm/1200W       2speeds/60mm/1800W











mag drill.jpg2018431121316552.jpgMAG 40.jpgMT50-2.jpg





            35mm/1050W                  45mm/1450W                 40mm/1200W                    2speeds/50mm/1200W








    SERIES1


    SERIES2











MD23A.jpg2 - .jpgMLT2350.jpg  GHP_5395.jpg


 23mm,1500W                 50mm, 1700W                   23/50mm,1500W                  35mm,1050W


























Contact Us





NAM

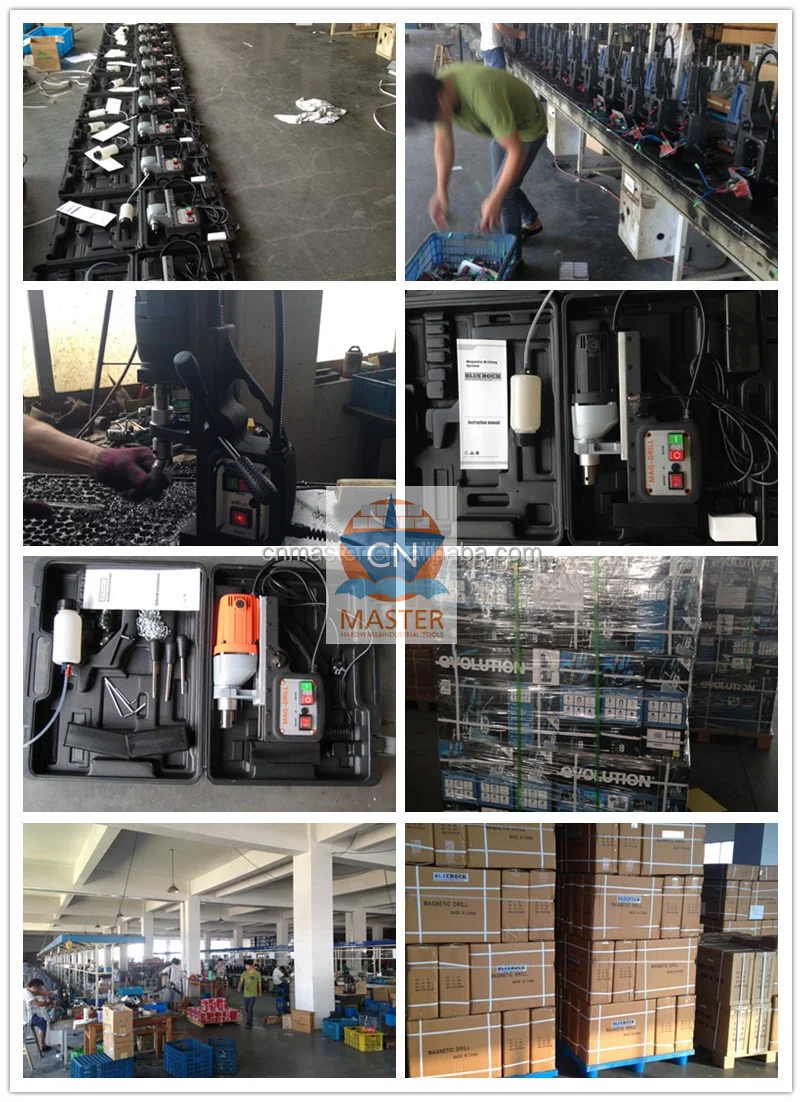

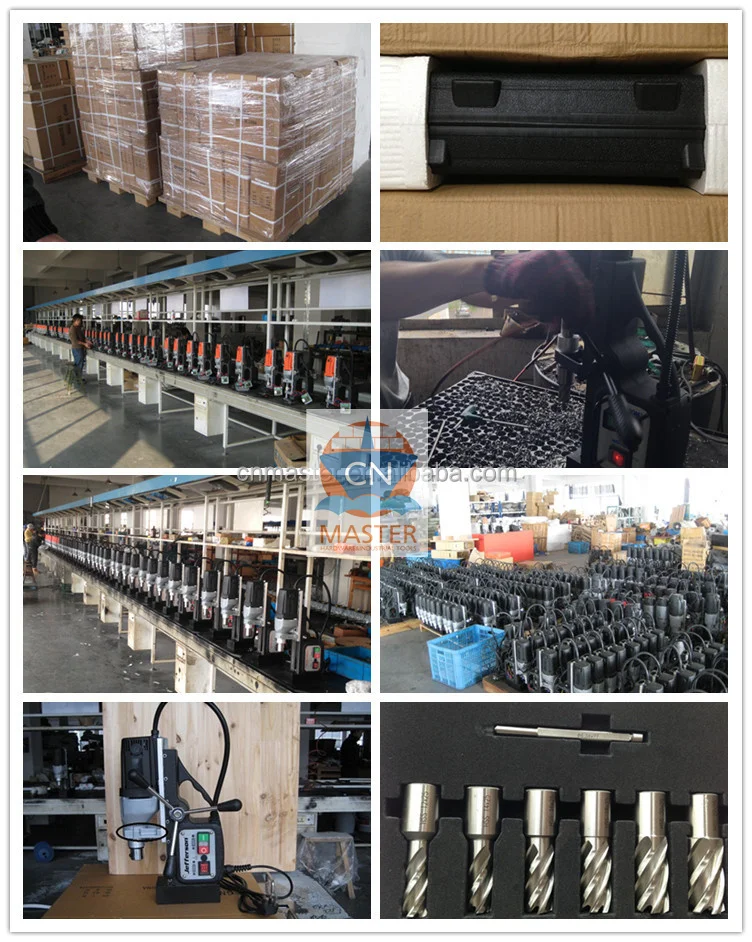

PRODUCTION BASE

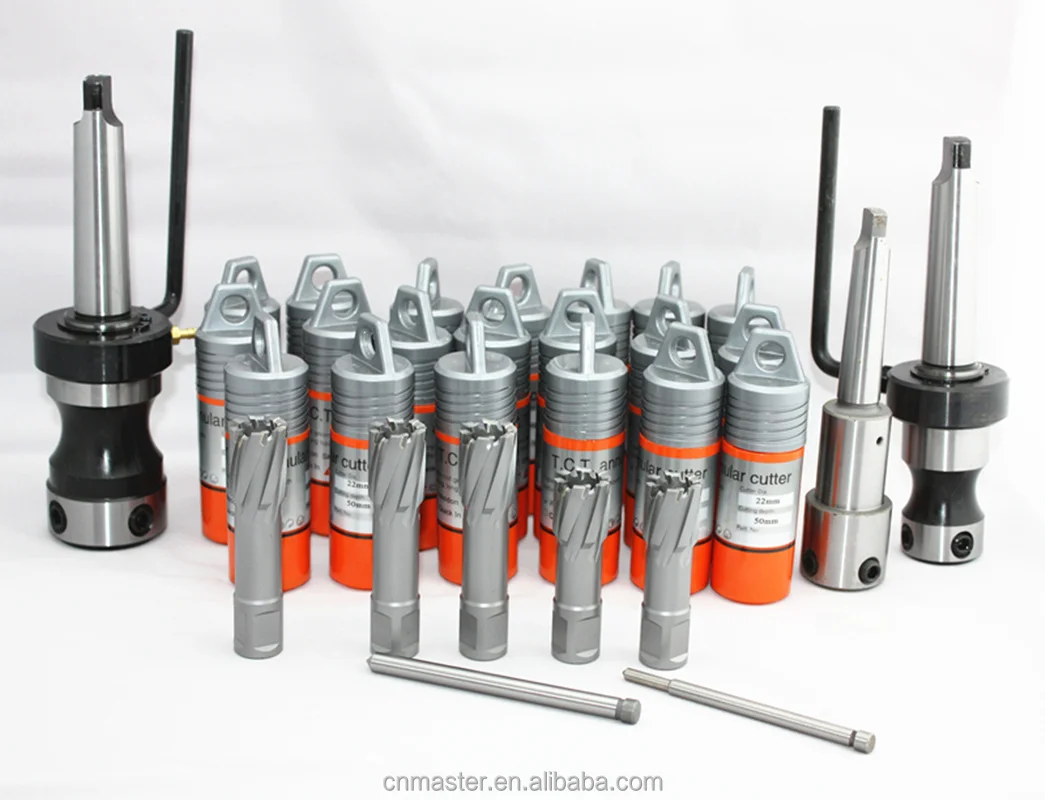

TCT ANNULAR CUTTER
















Product Description

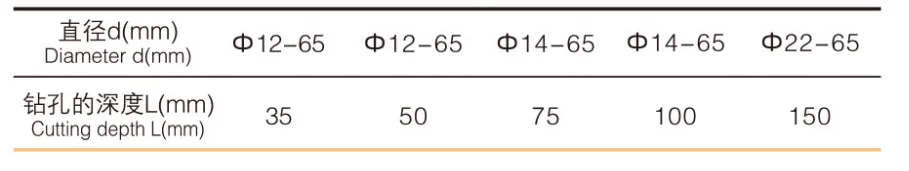

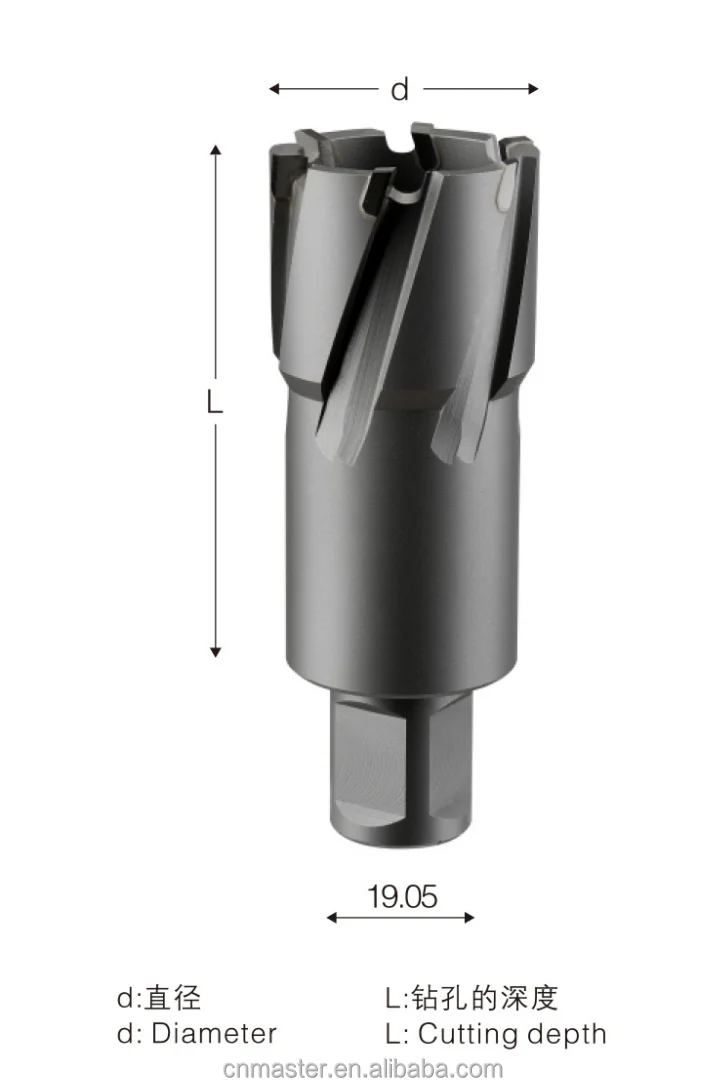

It fully cover from 11 mm to 150 mm diameter, the cutting depth includes  35mm, 50mm, 75mm, 100mm, 150mm; custom-made series maximum diameter is 200mm, maximum cutting depth is 200mm.





Imported High -performance carbide blade, ultra-fine particles,strong and wear-resistant, excellent impact resistance,blade strong bonding process,with stable life awsurance; Three layers geometric blade design, fully reflect the cutting force is small, good centering characteristics.

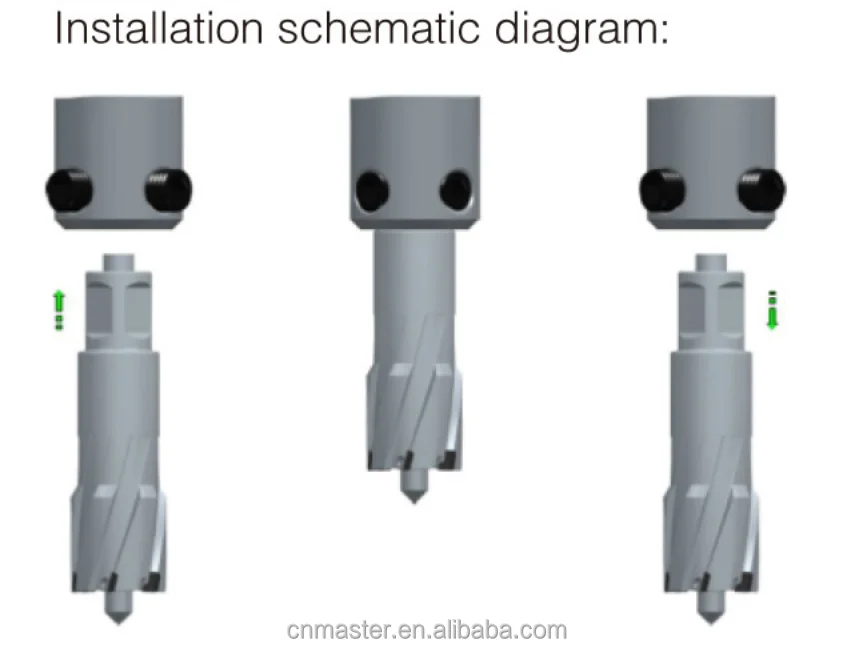

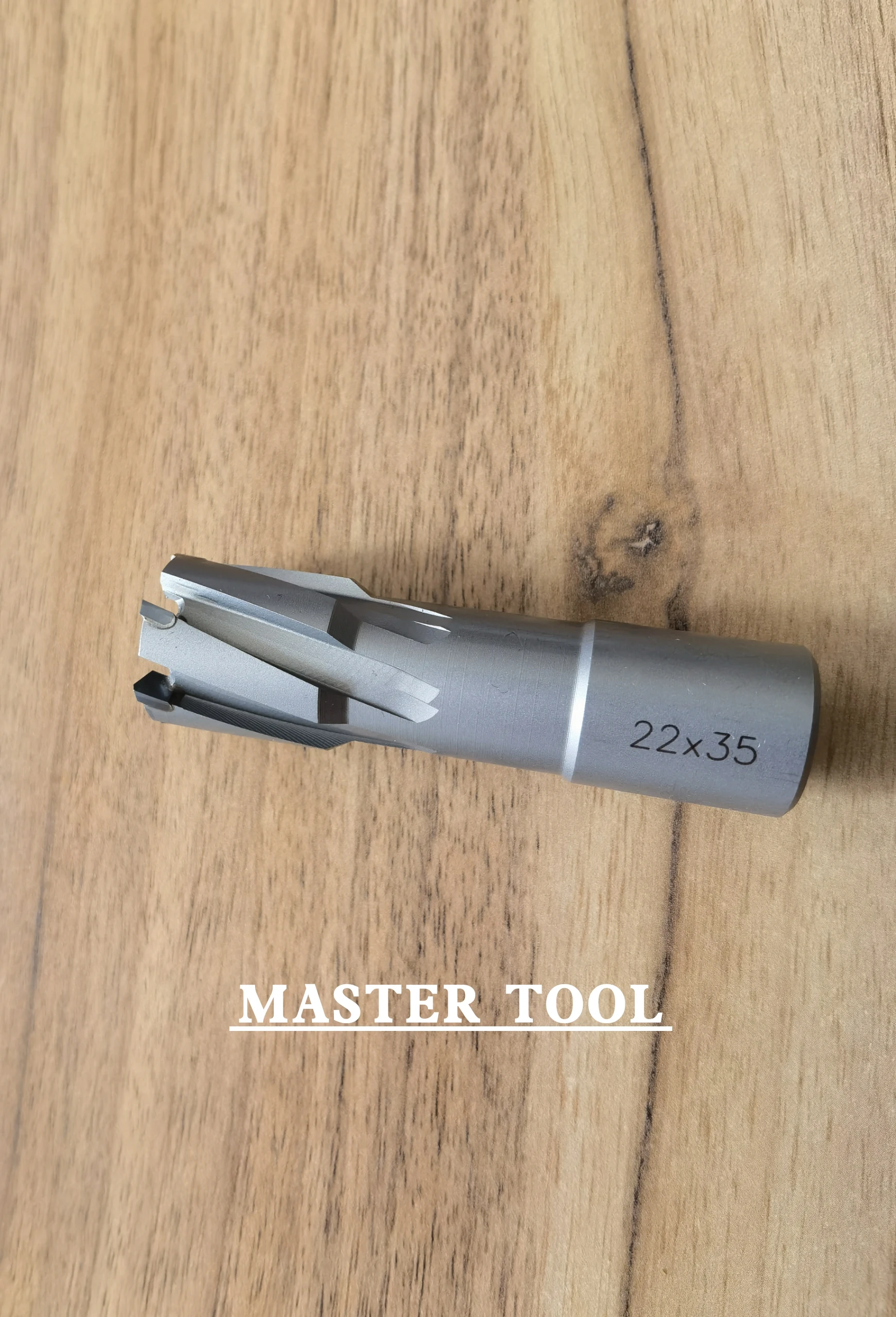

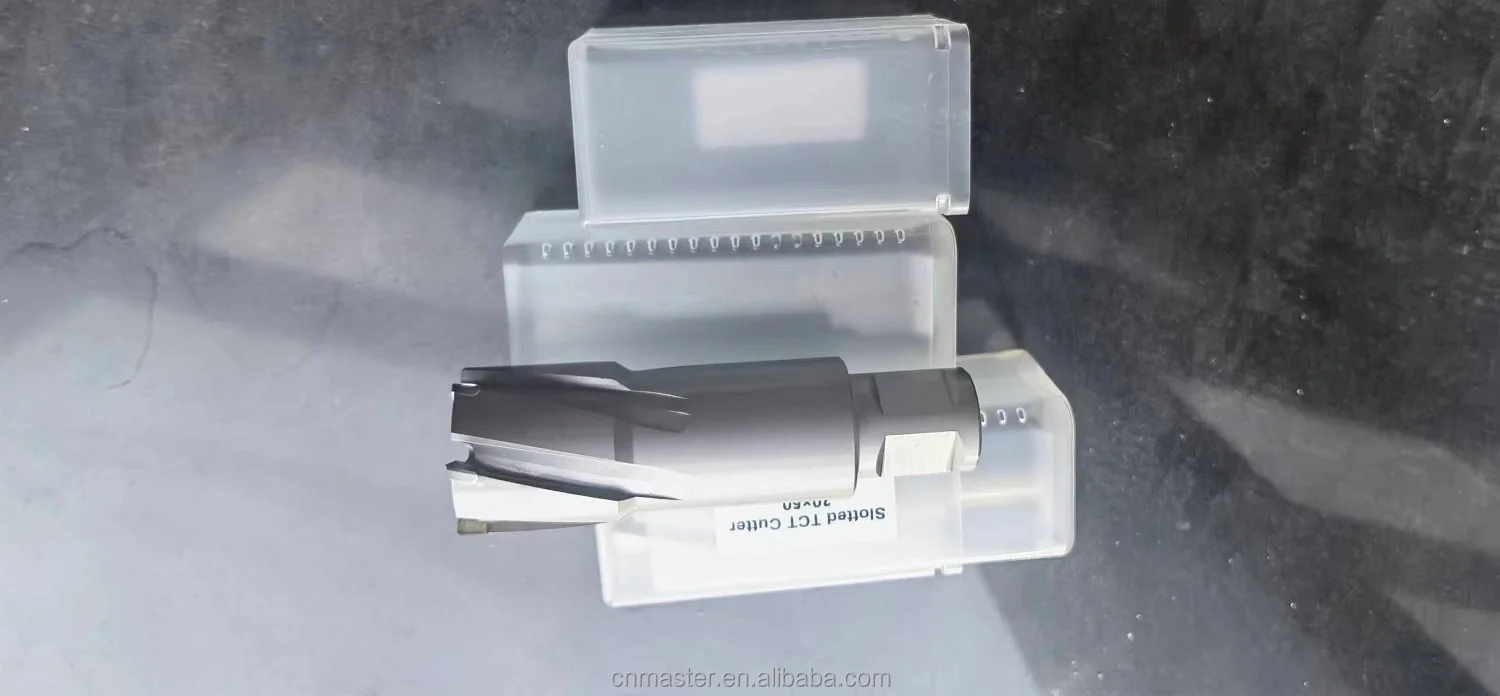

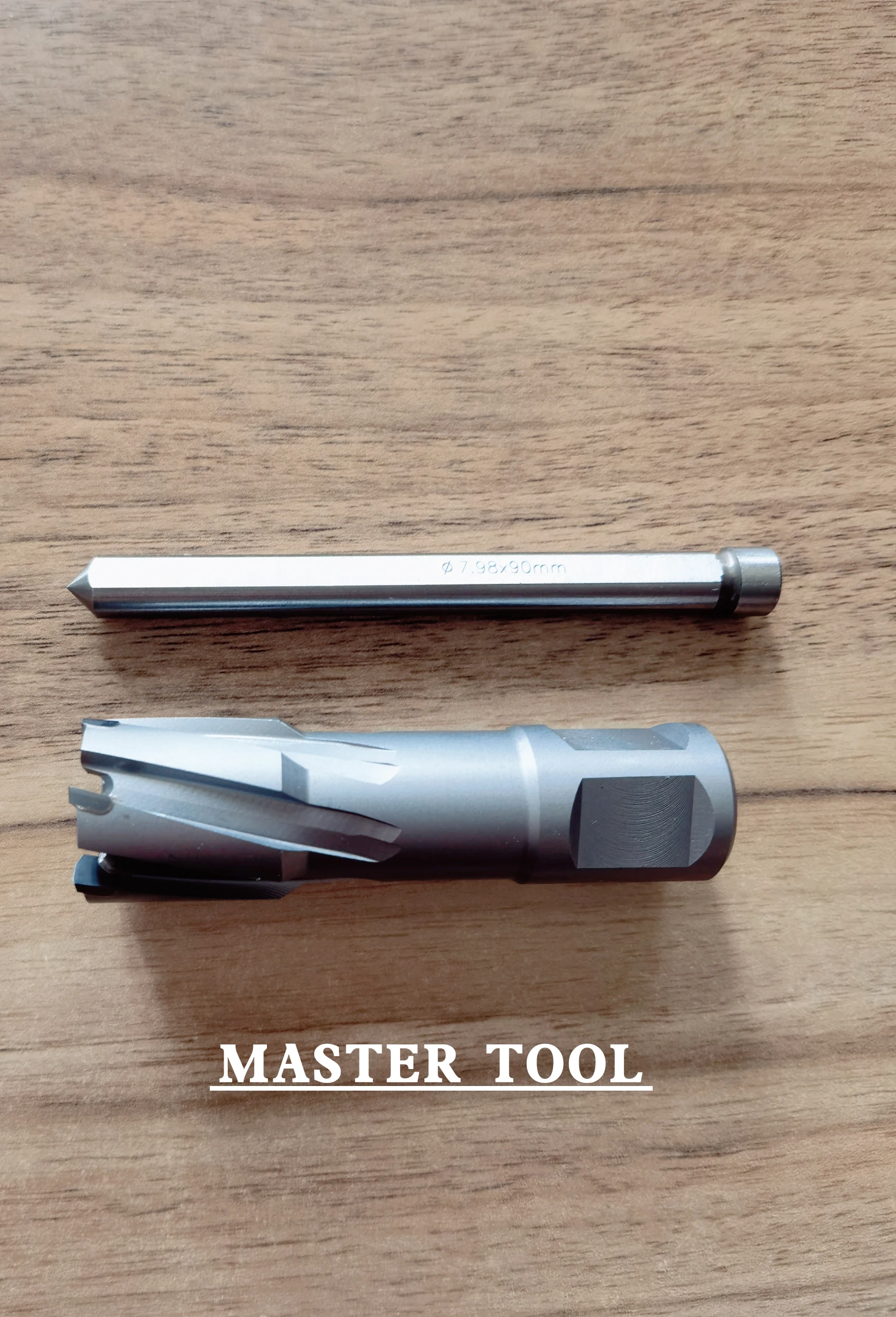

 TCT ANNULAR CUTTER with Weldon Shank

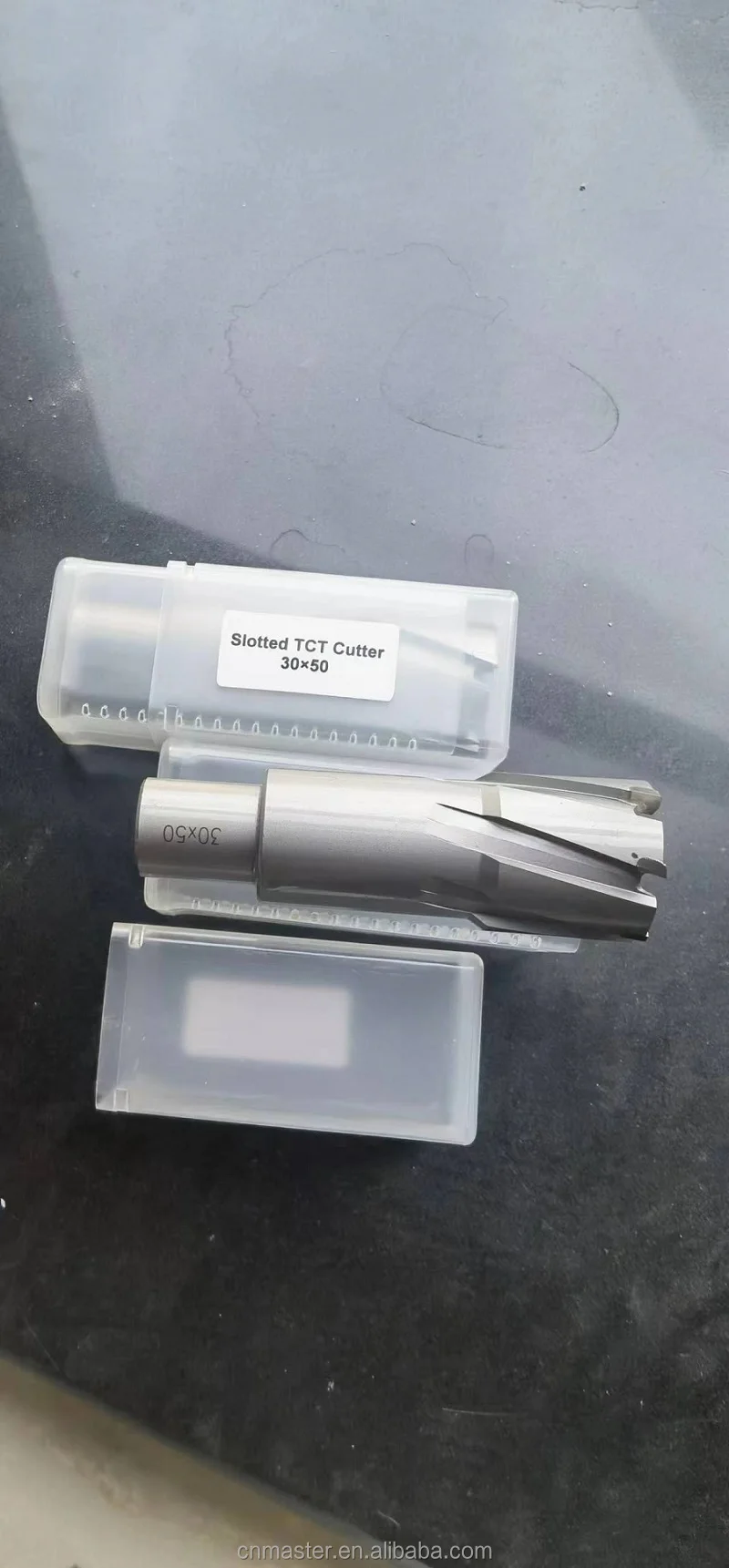

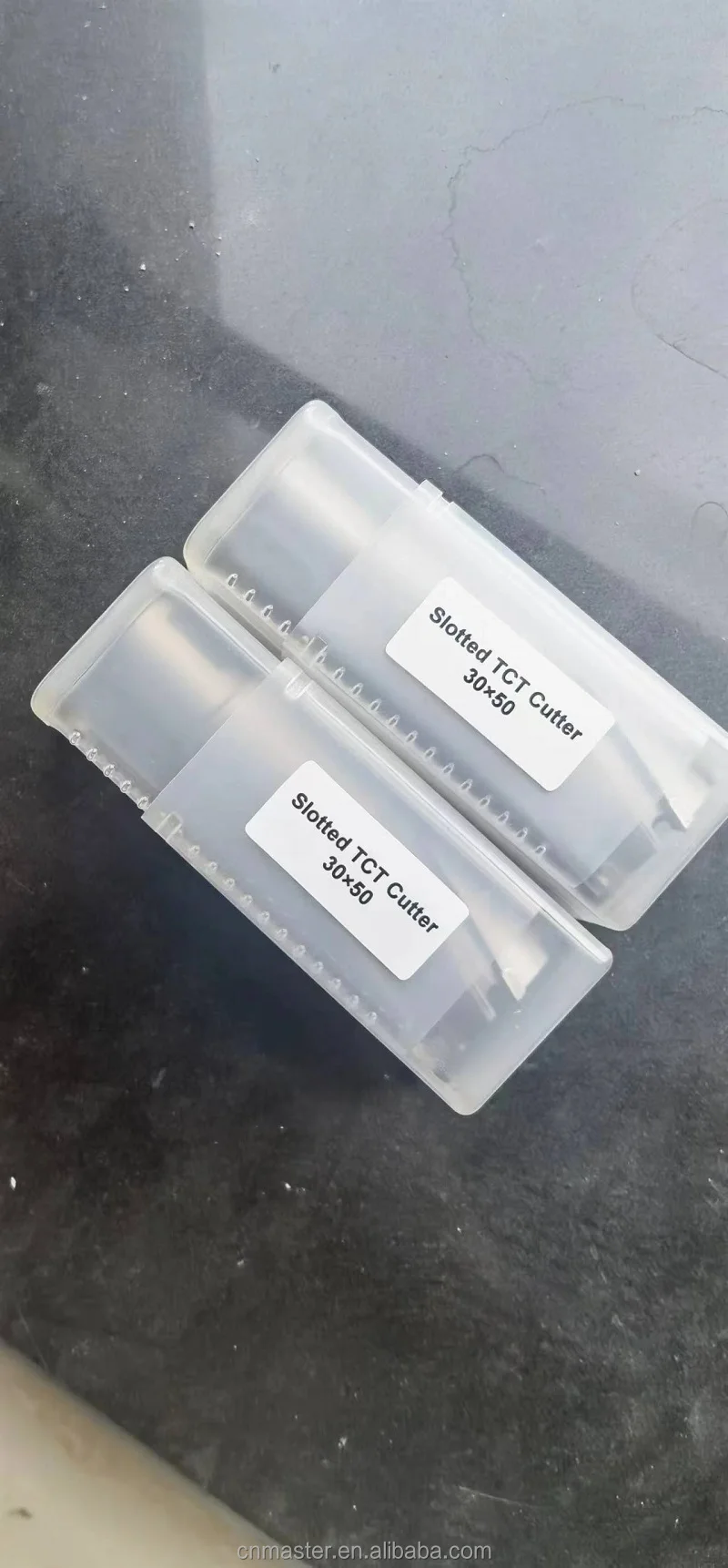

 9999.jpg     000.jpg

































Supply:


Carbide TCT annular cutter with weldon shank


Carbide TCT annular cutter with universal shank


Carbide TCT annular cutter with FEIN-Quick IN shank


Carbide TCT annular cutter with quick change shank
