FAR CREATIVE Multi Function WPC Exterior Strips Outdoor Decking Wood Plastic Compound Wall Panel Making Machine
- Category: >>>
- Supplier: Zhangjiagang City Far Creative Plastic Machinery Co. Ltd.
Share on (1601040097041):
Product Overview
Description
Products Description

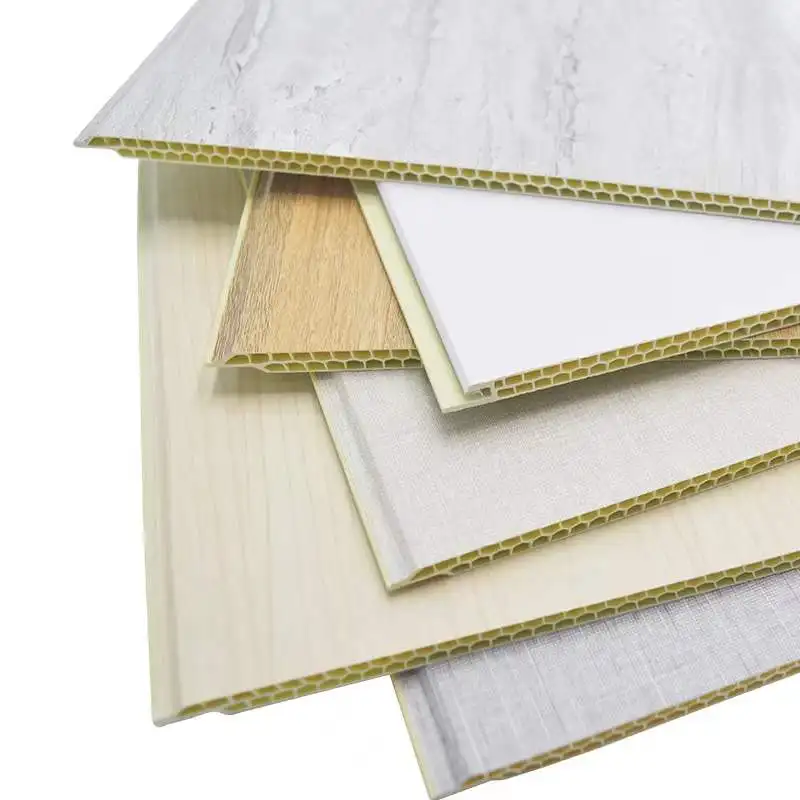

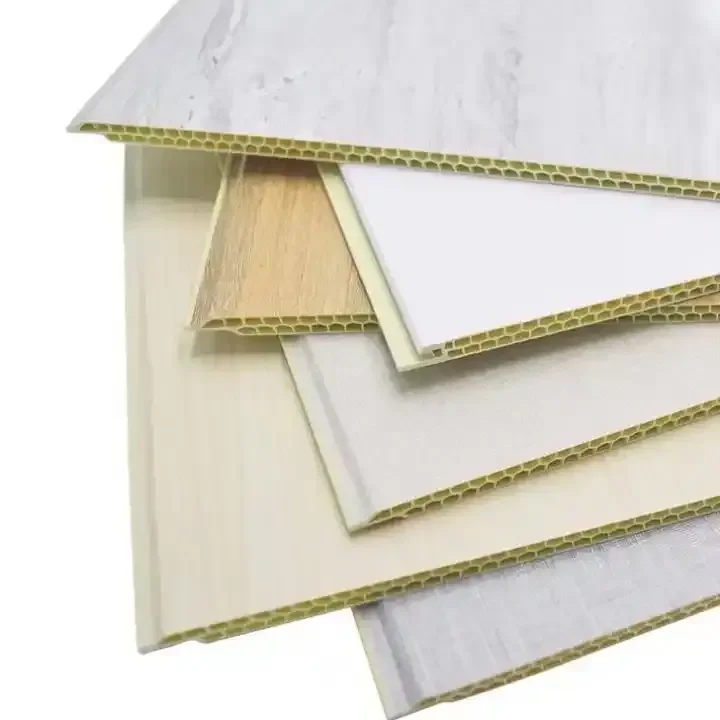

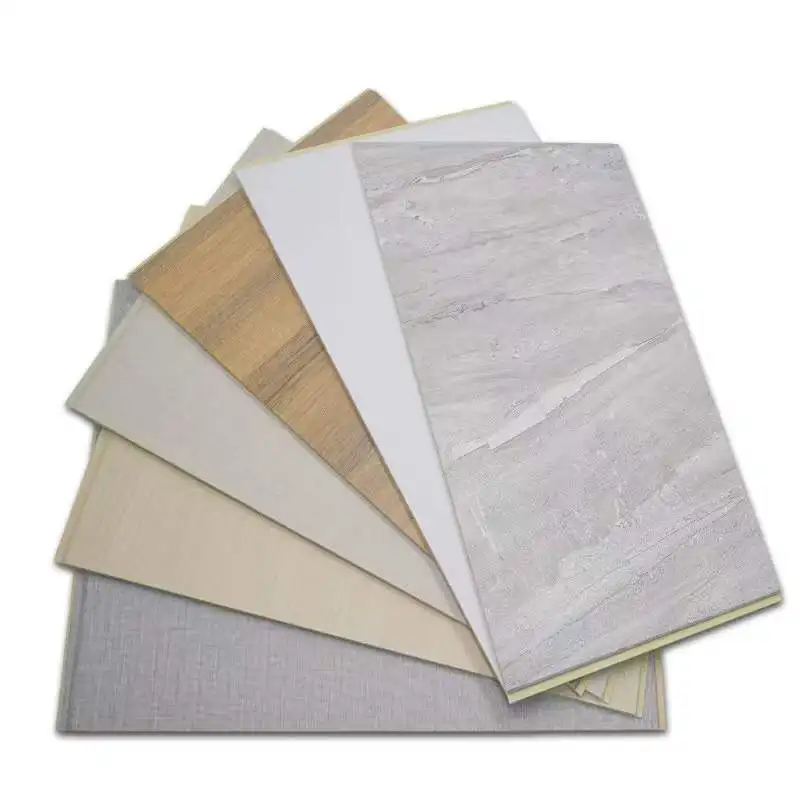

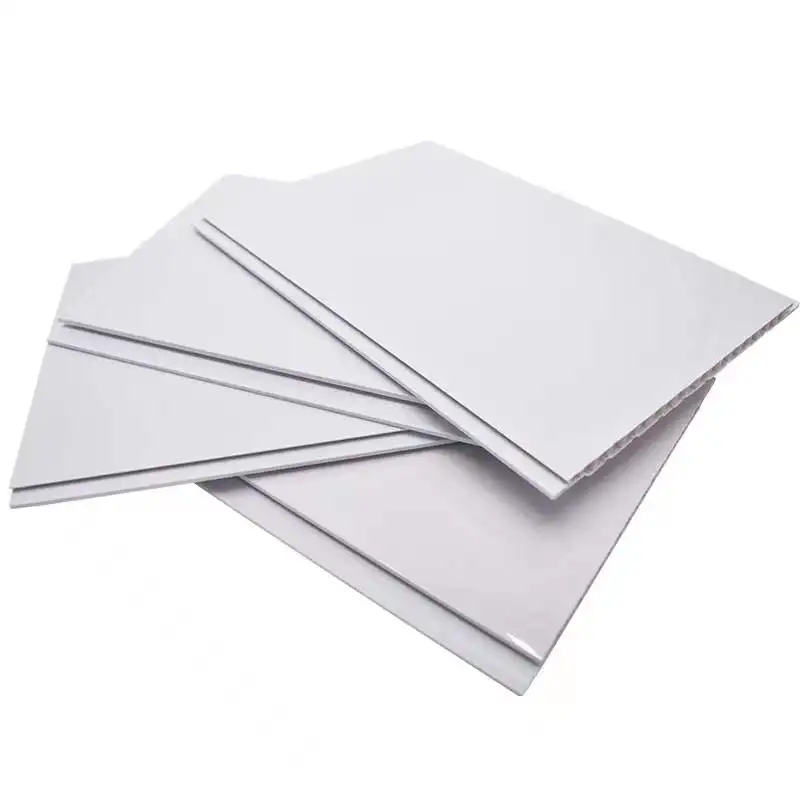

PVC Wall Panel Production Line
Features of the PVC Wall Panel Making Machine:
1. The calcium powder required in the board formula can be increased up to 5%-25% and the required amount of the auxiliary material decreased by 30%.
2. The products made using the PVC Wall Panel extrusion machine offer a fine appearance and uniform plasticization.
3. Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.
2. The products made using the PVC Wall Panel extrusion machine offer a fine appearance and uniform plasticization.
3. Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.
No. | Machine name | Qty. |
1 | Auto loader | 1set |
2 | Twin Screw Plastic Extruder | 1set |
3 | Mould | 1set |
4 | Vacuum Forming Table | 1set |
5 | Hauling Machine | 1set |

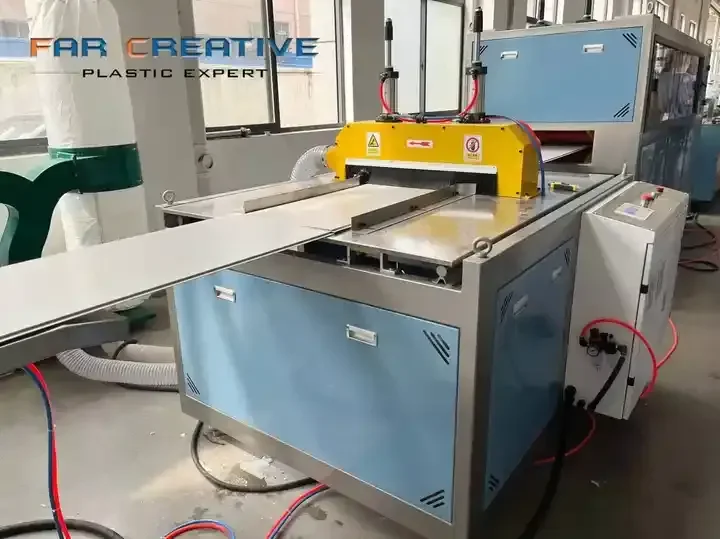

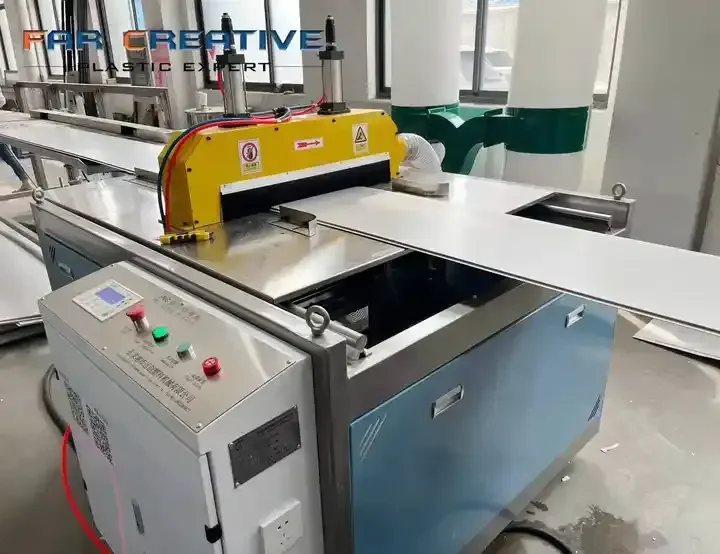

6 | Cutting Machine | 1set |
7 | Stacker | 1set |
Plastic Auxiliary Machines | ||||||||
No. | Machine name | Qty. | ||||||
1 | High speed mixer | 1 | ||||||
2 | Laminating machine | 1 | ||||||
3 | Plastic Crusher | 1 | ||||||
4 | PVC Pulverizer | 1 | ||||||
Product Appliaction
Technical Parameter
Conical Twin Screw Extruder | ||||||||
Model | SJSZ51/105 | SJSZ55/110 | SJSZ65/132 | SJSZ80/156 | ||||
Power(kW) | 18.5 | 22 | 37 | 55 | ||||
Screw Diameter(mm) | ∅51/∅105 | ∅55/∅110 | ∅65/∅132 | ∅80/∅156 | ||||
Rotational Speed | 36 | 36 | 36 | 36 | ||||
Output(kg/h) | 100 | 150 | 250 | 400 | ||||
Details Images

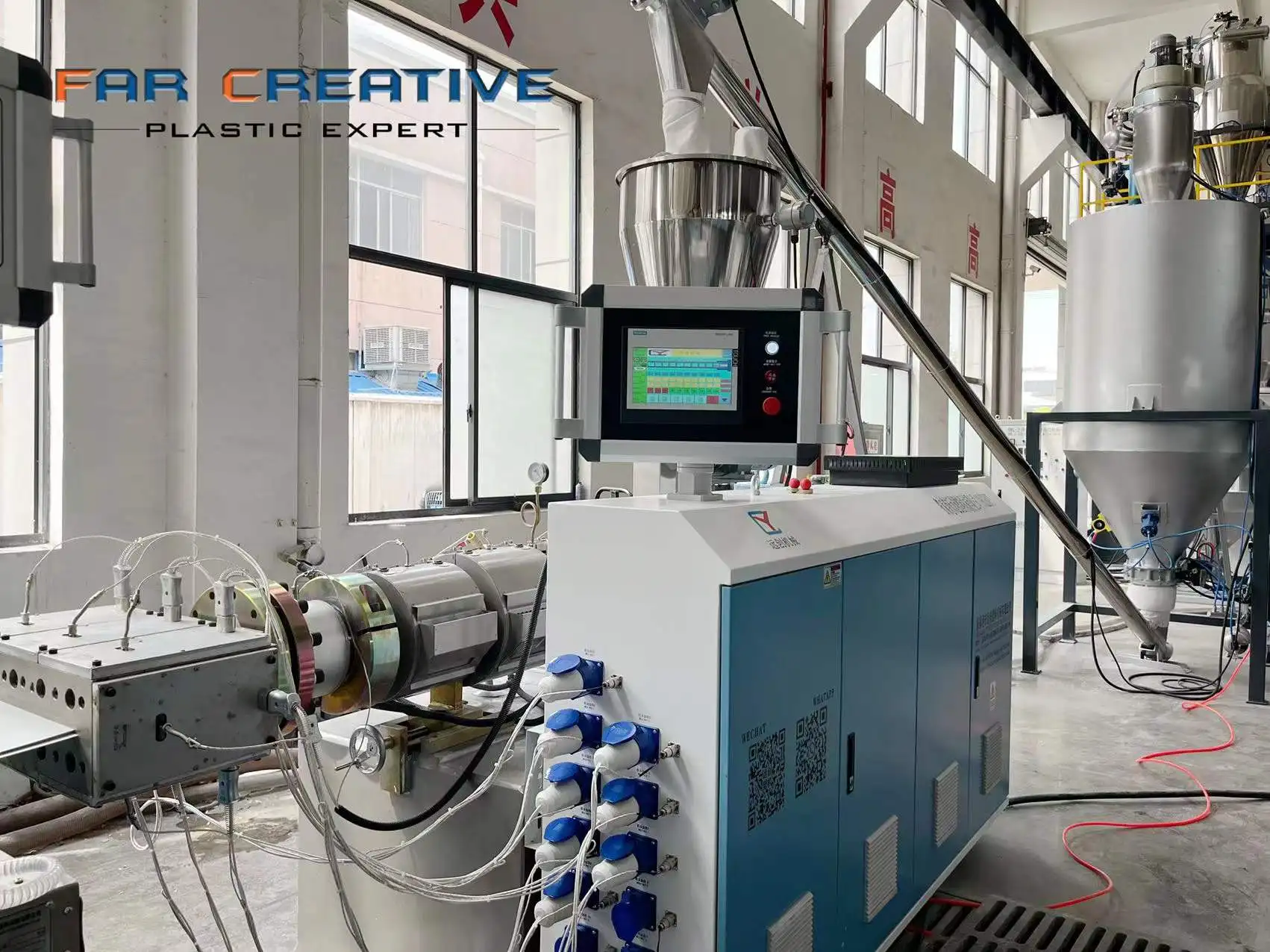

1.Far Creative Twin Screw Extruder
The extruder of PVC profile production line adopts high efficiency screw & barrel, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion. the gearbox is hardening teeth gearbox with self-lubrication system.
The motor adopts Siemens standard motor and speed controlled by ABB inverter. The control system adopts Siemens PLC control or button control.

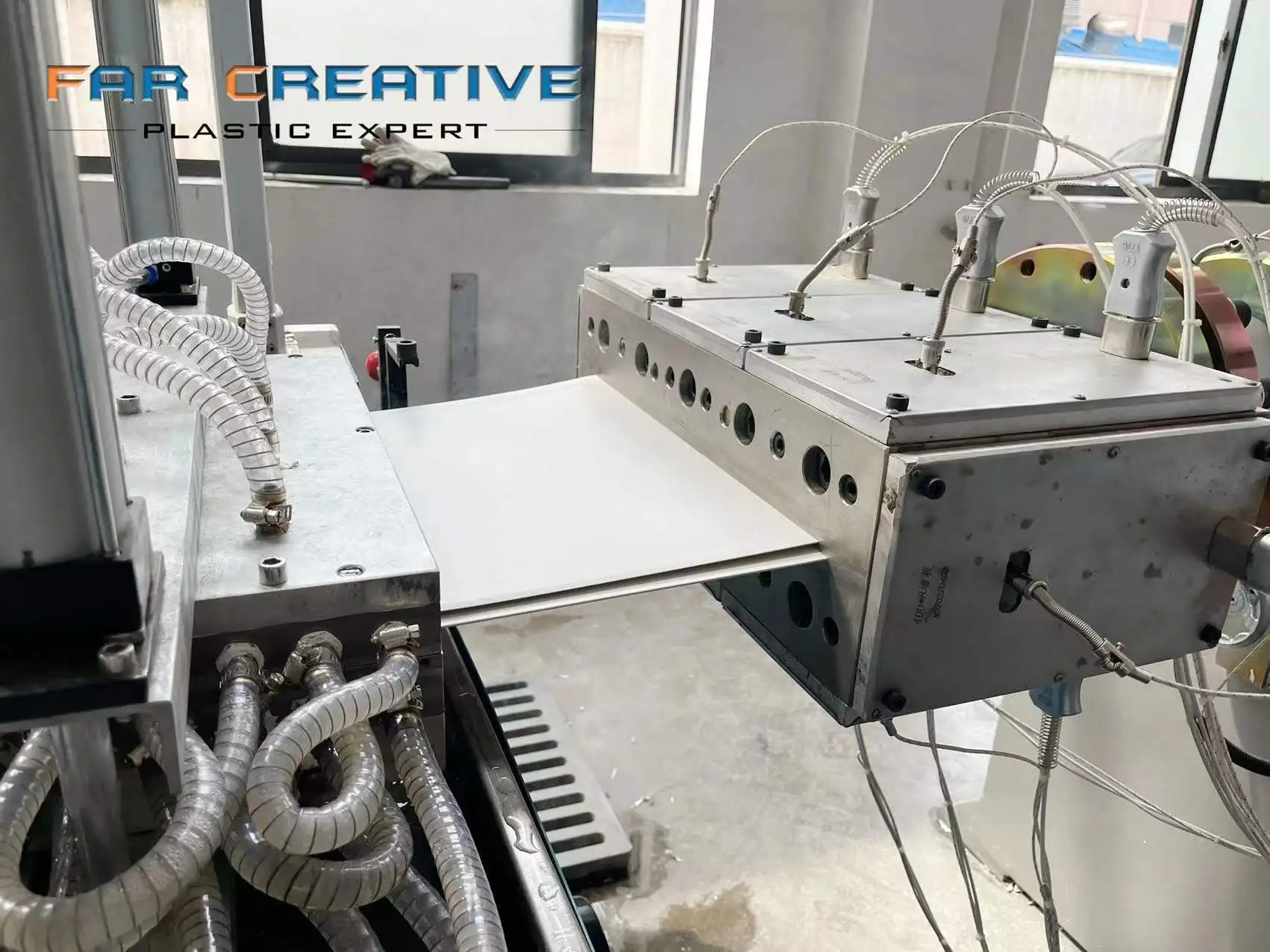

2.Die Mould
- Optimized temperature control and flow channeldesign, precise melt temperature control.

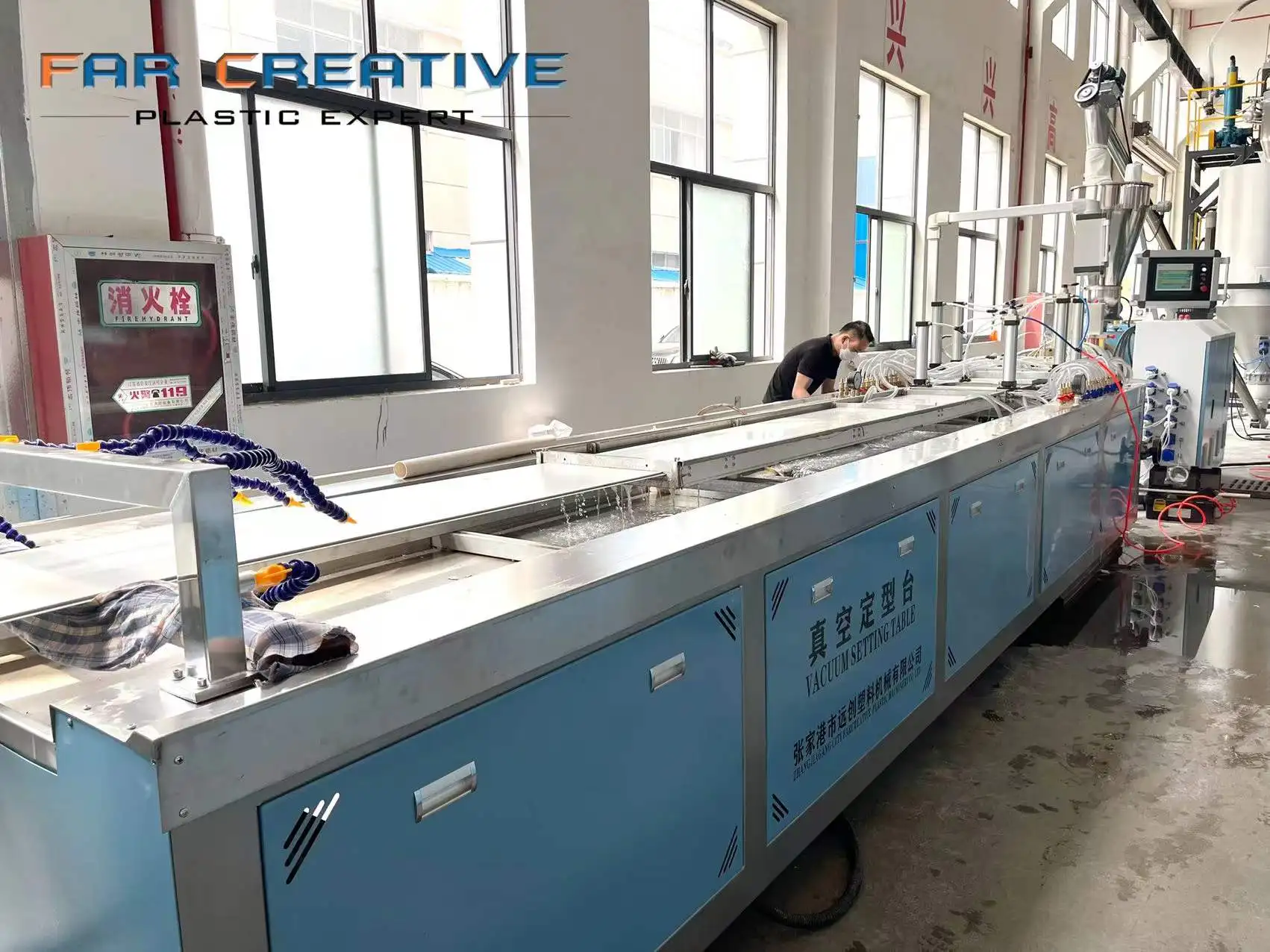

3. Vacuum Calibration Tank
The shaping table is made of 304 stainless steel, and the main shaping part is made of materials such as brass, steel or aluminum to reduce wear and chrome plating.
High-precision high-quality water ring vacuum pump ensures a stable vacuum environment. The cooling is realized by a water bath, the cooling and heating are uniform, and the production process is simple and convenient.
High-precision high-quality water ring vacuum pump ensures a stable vacuum environment. The cooling is realized by a water bath, the cooling and heating are uniform, and the production process is simple and convenient.

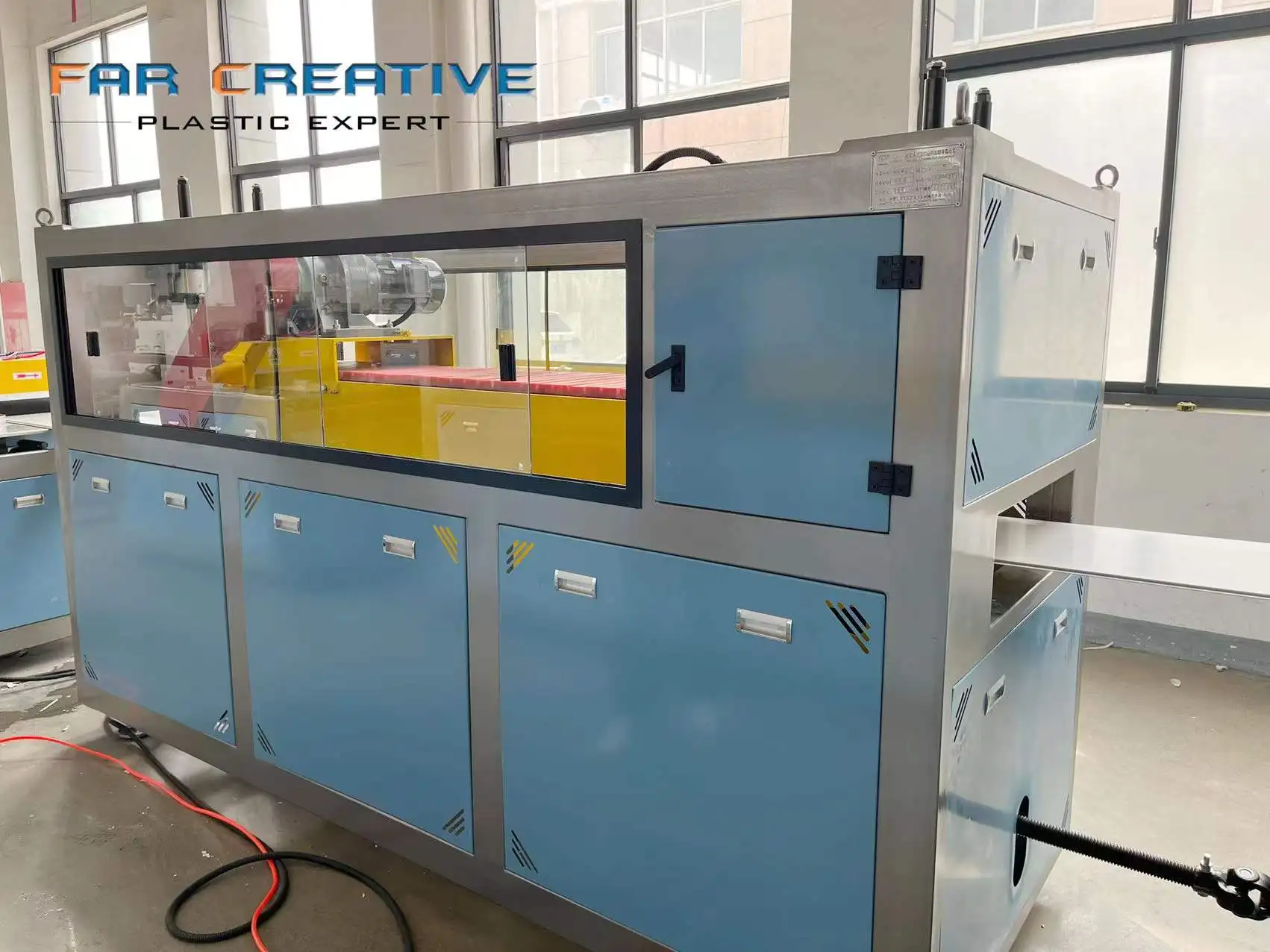

4.Hauling Machine
Purchase the whole design rubber belts, it has the characters of corrosion resistance, haul off speed precisely control.
Haul off speed can be adjusted by inverter automatically . center height can be controlled by the air cylinders automatically. haul off speed controlled by the inverters.
Haul off speed can be adjusted by inverter automatically . center height can be controlled by the air cylinders automatically. haul off speed controlled by the inverters.
5.Manipulator
The grasping and unloading plate manipulator is composed of a vacuum suction cup device, a lifting device and a moving device.
It is used for the composite movement of vertical lifting movement and horizontal movement, for picking up finished plates and profiles and arranging blank plates. The device realizes the automation of plate conveying
Company Information
Why Choose Us
FAQ
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 11 yearsQ: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
