BES 2024 New Automatic Vacuum Block Molding Foam EPS Panel Making Machine Production Line
- Category: >>>
- Supplier: Hangzhou Bes Technology Co. Ltd.
Share on (1601040098384):
Product Overview
Description
Products Description
BES 2024 New Automatic Vacuum Block Molding Foam EPS Panel Making Machine Production Line
EPS block moulding is defined as a process manufacturing blocks for insulation material or civil engineering applications.
Space between foaming beads is maintained approximately 40% even if the beads fully fill a moulding machine. Heating the beads with steam makes the beads be foamed again The evaporation of volatile material in the beads causes the volumetric expansion, eliminating space between beads. This thermally fuses the beads to each other to produce blocks with shapes identical to the space in the moulding machine.
Block moulds are made in various size with different cavity volume as per customer different requirement .
Space between foaming beads is maintained approximately 40% even if the beads fully fill a moulding machine. Heating the beads with steam makes the beads be foamed again The evaporation of volatile material in the beads causes the volumetric expansion, eliminating space between beads. This thermally fuses the beads to each other to produce blocks with shapes identical to the space in the moulding machine.
Block moulds are made in various size with different cavity volume as per customer different requirement .
Specifications and Advantages of BES 2024 New Automatic Vacuum Block Molding Foam EPS Panel Making Machine Production Line
Technical Datas | ||||||||||
Item | BES-PBLZ-2000 | BES-PBLZ-3000 | BES-PBLZ-4000 | BES-PBLZ-6000 | ||||||
Mould Cavity Size | 2040×1240×1030(mm) | 3060×1240×1030(mm) | 4080×1240×1030(mm) | 6100×1240×1030(mm) | ||||||
Block size | 2000×1200×1000(mm) | 3000×1200×1000(mm) | 4000×1200×1000(mm) | 6000×1200×1000(mm) | ||||||
Steam | Entry | DN65 | DN65 | DN100 | DN100 | |||||
Consumption | 30～50kg/cycle | 50～70kg/cycle | 60～90kg/cycle | 100～130kg/cycle | ||||||
Pressure | 0.8Mpa | 0.8Mpa | 0.8Mpa | 0.8Mpa | ||||||
Compressed Air | Entry | DN40 | DN40 | DN40 | DN40 | |||||
Consumption | 1.5-2m3/cycle | 1.8-2.2m3/cycle | 2-2.5m3/cycle | 2--3m3/cycle | ||||||
Pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa | ||||||
Drainage | Vacuum Drain | ￠125mm | ￠125mm | ￠125mm | ￠125mm | |||||
Steam vent | ￠150mm | ￠200mm | ￠200mm | ￠250mm | ||||||
Condensate | ￠100mm | ￠100mm | ￠100mm | ￠100mm | ||||||
Blower Outlet | ￠125mm | ￠125mm | ￠150mm | ￠150mm | ||||||
Cooling Water | Entry | DN50 | DN50 | DN50 | DN50 | |||||
Consumption | 0.2-0.4m3/cycle | 0.4-0.6m3/cycle | 0.6-0.8m3/cycle | 0.8-1m3/cycle | ||||||
Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | ||||||
Throughput | 15kg/m3 | 5min/cycle | 6min/cycle | 7min/cycle | 8min/cycle | |||||
Connected Load | 20.5-24.5KW | 20.5-24.5KW | 24.5-35.5.5KW | 24.5-35.5KW | ||||||
Overall Dimension | 6700×4600×3500(mm) | 6700×4600×4500(mm) | 6700×4600×5500(mm) | 6700×4600×3500(mm) | ||||||
Weight | 6000 kg | 7200 kg | 12000 kg | 15000 kg | ||||||
Room Height Required | 5000mm | 6000mm | 6000mm | 6000mm | ||||||
Note：We make adjustable type and customize machines according to customer’s requirement | ||||||||||

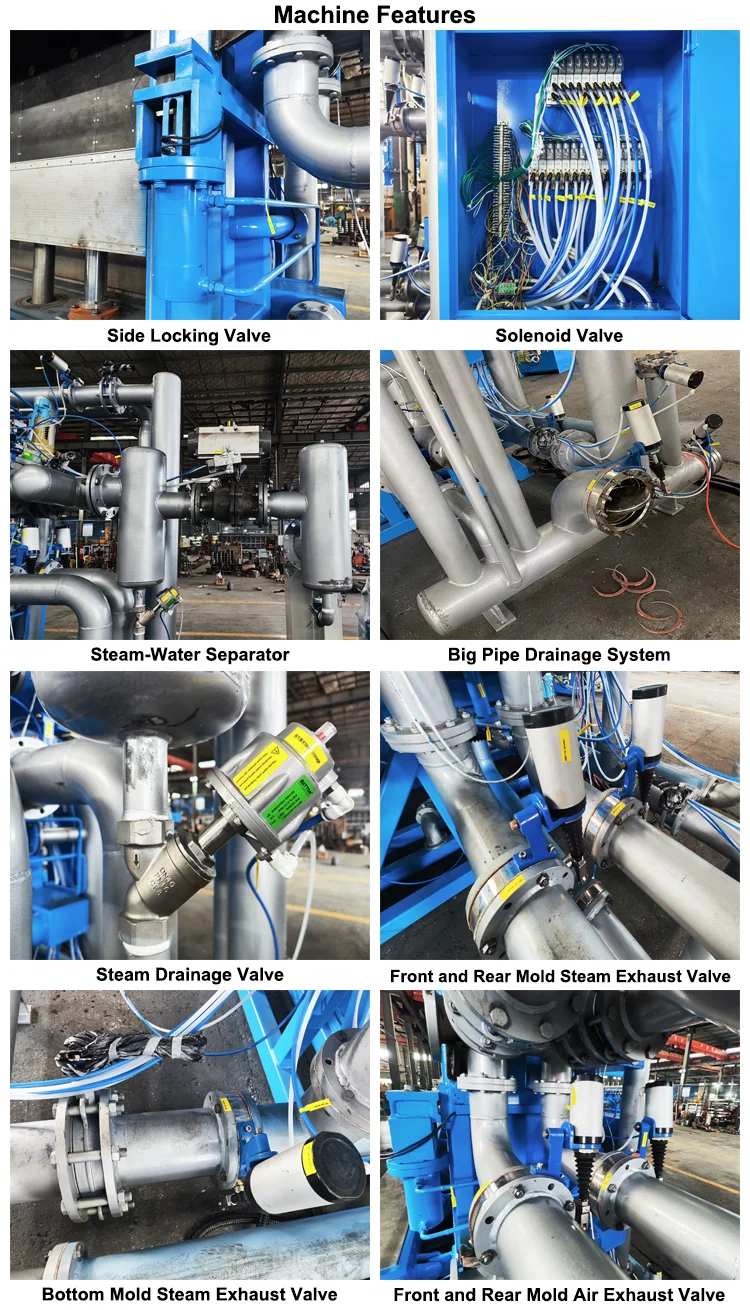

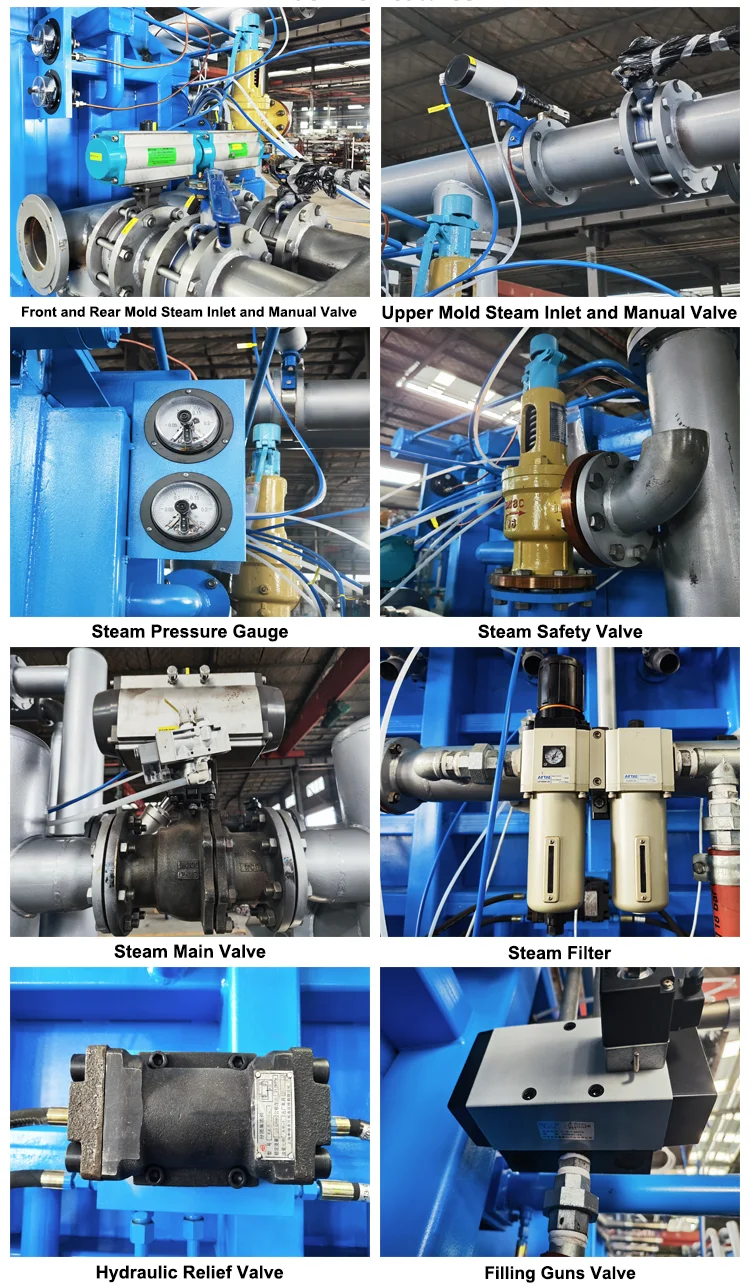

Features and advantages of BES-PBZ-Series EPS Block Moulding Machine
1. High strength frame of block moulding machine; keep more safety test pressure
2. Al Plate with Teflon Coating or stainless steel for block Chamber
3. Less de-form & accurate machining process keep non-leakage instead of changing sealing frequently
4. All gauges , solenoid valve are used world brand’s ones for double safety
5. Mitsubishi PLC, Schneider touch screen for easy operation
6. Automatic working process
7. Energy-saving system
2. Al Plate with Teflon Coating or stainless steel for block Chamber
3. Less de-form & accurate machining process keep non-leakage instead of changing sealing frequently
4. All gauges , solenoid valve are used world brand’s ones for double safety
5. Mitsubishi PLC, Schneider touch screen for easy operation
6. Automatic working process
7. Energy-saving system

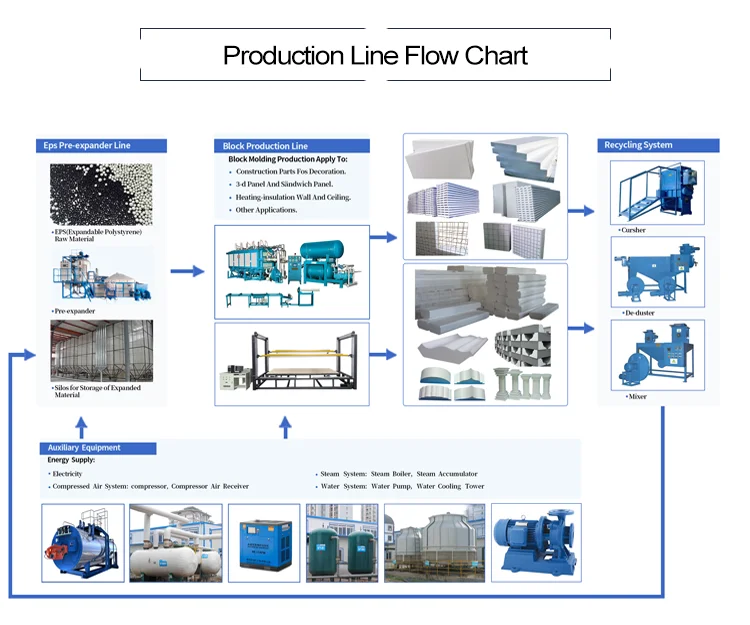

The Production Line

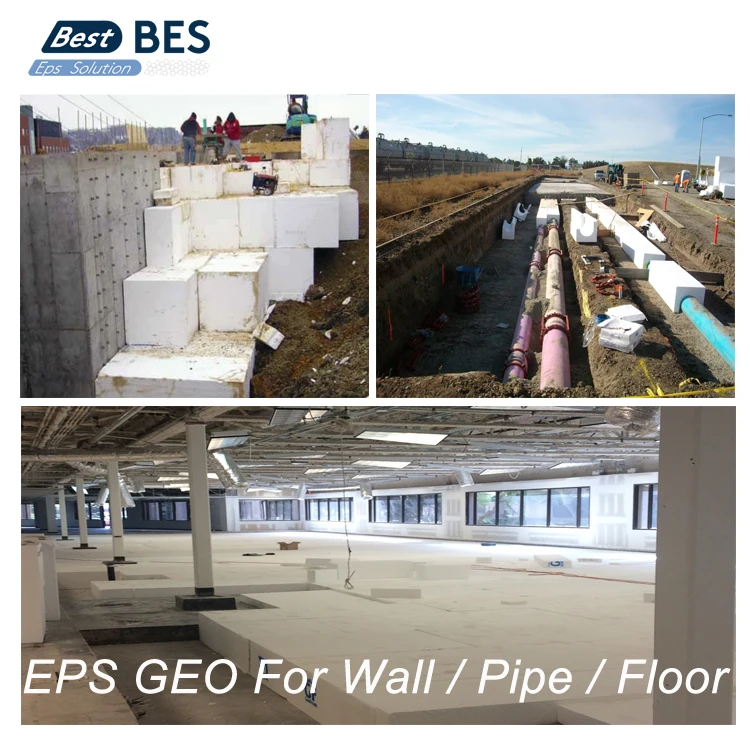

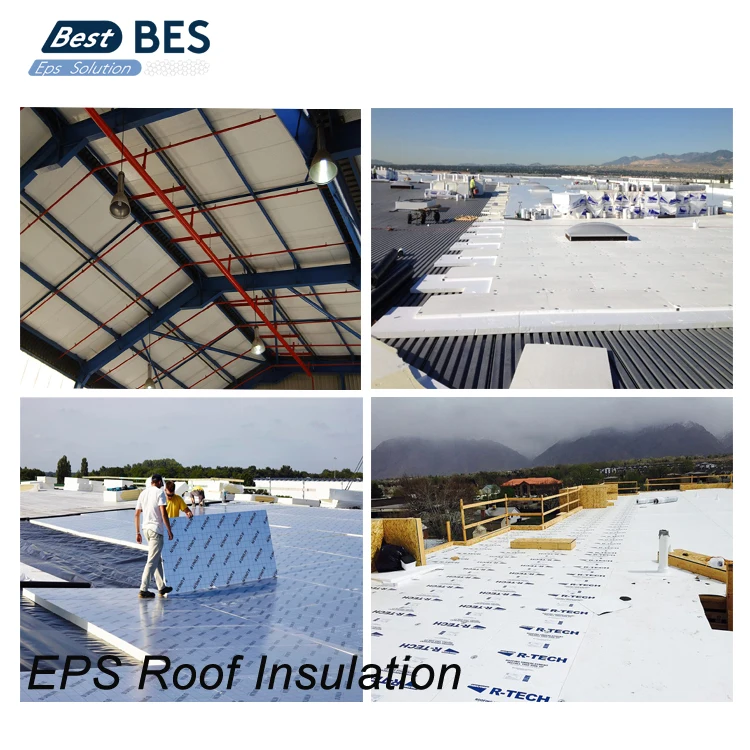

Applications of BES 2024 New Automatic Vacuum Block Molding Foam EPS Panel Making Machine Production Line
Company Profile
BES , offer one-stop service basing on years EPS industry experience under serving over 100+ foreign customer ,high efficiency machine, best EPS solution .
1.Design of Turn-key Production line,make the layout and choose the Best suitable EPS machinery and auxiliary equipment.
2.On-site Installation,Start-up, Staff Training.
3.Optimize production efficiency,Reduce production costs, Decrease energy Costs.
4.Supply on line technical support and door to door technical service.
2.On-site Installation,Start-up, Staff Training.
3.Optimize production efficiency,Reduce production costs, Decrease energy Costs.
4.Supply on line technical support and door to door technical service.
EPS Pre-expander Machine
1. Stable quality: Controlled by touch screen and PLC, easy to operate.
2. Energy saving :High output and save energy,stable quality and less labor.
3. Full automatic and continuous production.
3. Full automatic and continuous production.
EPS Shape Moulding Machine
1. High efficiency :With vacuum system creates fast product molding and cooling, while decreasing water content.
2.Low consumption:P.I.D system will bring the accurate steam control for any type of molds production.
3.Full automatic :Controlled by PLC and touch screen, easy to operate.
3.Full automatic :Controlled by PLC and touch screen, easy to operate.

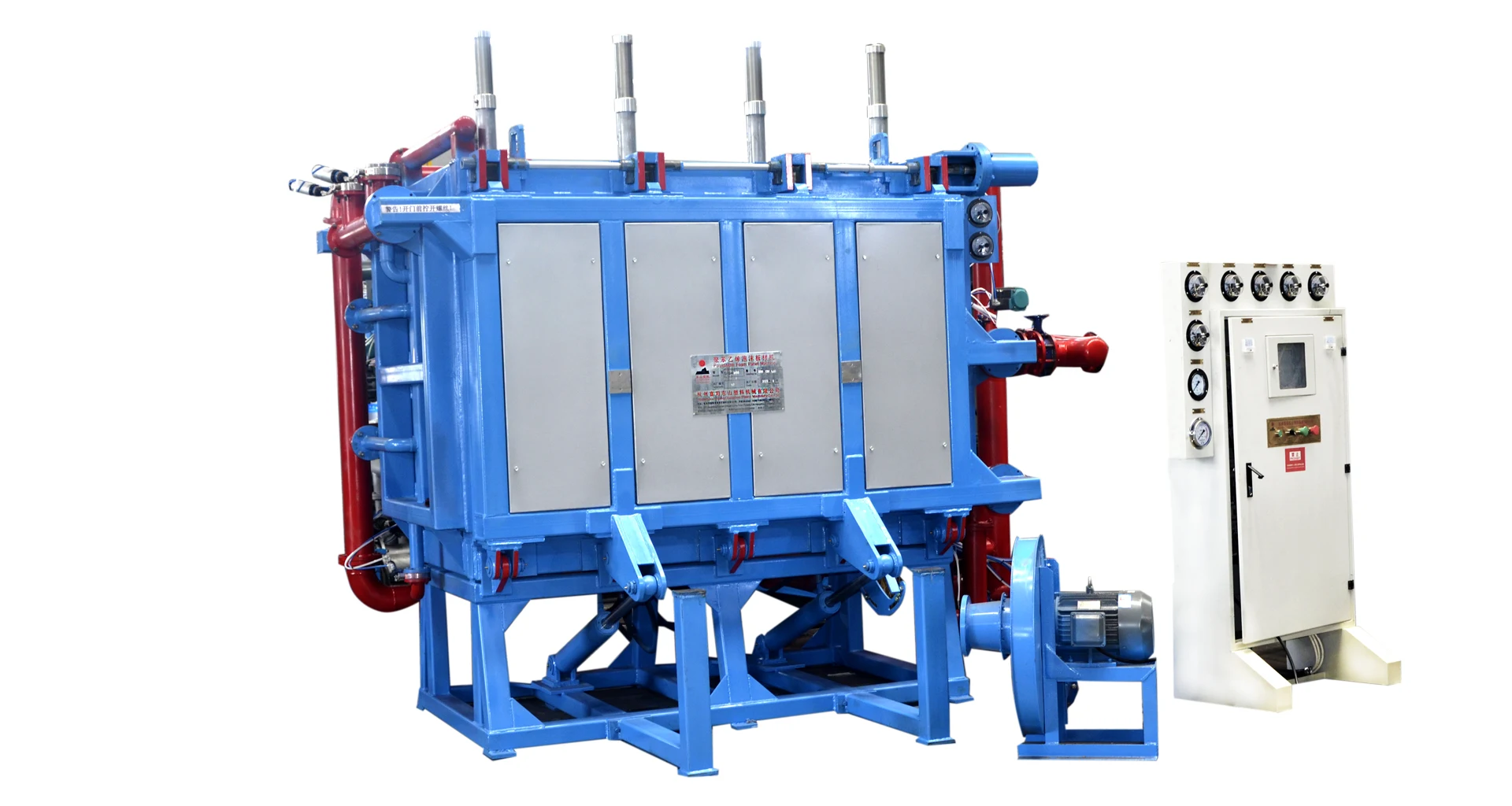

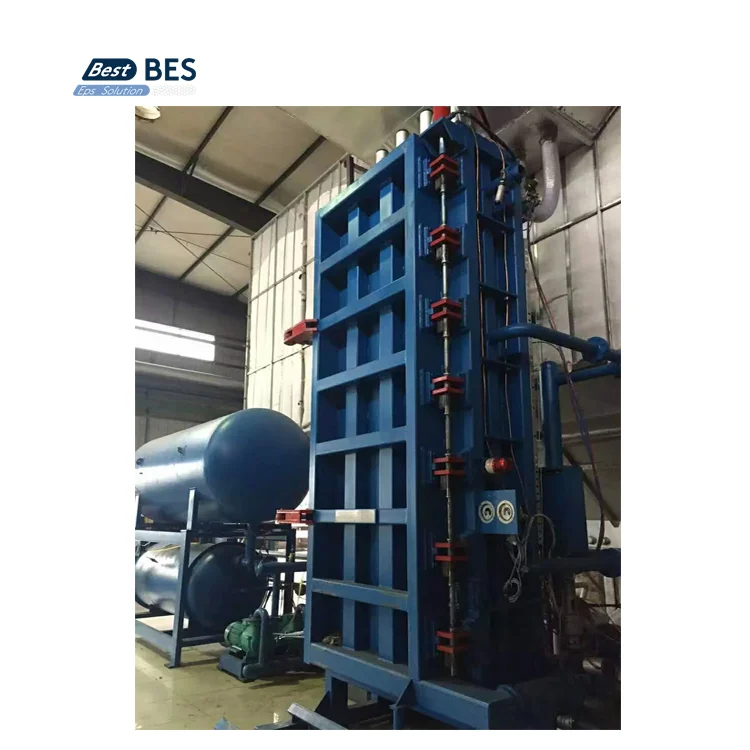

EPS Block Moulding Machine
1. Most of the main components are of world-famous brands, with reliable performance, stable quality, long service life and low maintenance cost.
2. Apply hydraulic pressure transmission, hydraulic ingot stripping, which makes steady running and tight locking.
3. Apply high-efficient vacuum system and cooling device to improve moulding speed and reduce the moisture content.
3. Apply high-efficient vacuum system and cooling device to improve moulding speed and reduce the moisture content.
Our Service
Pre-sales Service | On-purchase Service | After-sales Service |
* EPS Production Designing | * Pre-expander and Material Distribution Management System | * Installation and Training |
* EPS Production Cost Analysis | * Complete EPS Shape Molding Production Line and EPS Molds and Complete EPS Block Production Equipment and Cutting Line System | * Production Process Diagnosis and Optimization |
* Technical Introduction | * Central Vacuum and Cooling System | * On-Line Technical Service Support |
* Complete Plant Layout Design | * Pressurizing Filling System and EPS Recycling System and Mixing Station | * On-Site Technical Service Support |
Packing & Delivery
FAQ
1.How Can I get a EPS machine quotation?
There has multiple way to reach us, please contact us by website live chat, email, or phone number, forms, our expert will
contact with you within 8 working hours.
We can send the quotation lists when get the detail inquire.
Welcome to reach us now.
2.What is the delivery time for EPS machine after placed the order?
It’s depended on what you have ordered, below is regular delivery for your reference.
EPS Expandable Polystyrene machine: 60 days.
EPS Expandable Polystyrene mold: 20-30 days.
EPS Expandable Polystyrene machine spare parts: 3-7 days.
3.What is the normal delivery term to order EPS machine from China?
The standard delivery term for EPS machine is
EXW Factory
FOB Ningbo or Shanghai
CIF
Welcome to contact us to get more information
There has multiple way to reach us, please contact us by website live chat, email, or phone number, forms, our expert will
contact with you within 8 working hours.
We can send the quotation lists when get the detail inquire.
Welcome to reach us now.
2.What is the delivery time for EPS machine after placed the order?
It’s depended on what you have ordered, below is regular delivery for your reference.
EPS Expandable Polystyrene machine: 60 days.
EPS Expandable Polystyrene mold: 20-30 days.
EPS Expandable Polystyrene machine spare parts: 3-7 days.
3.What is the normal delivery term to order EPS machine from China?
The standard delivery term for EPS machine is
EXW Factory
FOB Ningbo or Shanghai
CIF
Welcome to contact us to get more information
