Roller glass coating machine
US $10000-$13000
cnc stained glass edging glass edger grinding portable glass grinder beveling polishing machine
- Category: >>>
- Supplier: Henan Minko Machinery Co. Ltd.
Share on (1601040109025):
Product Overview
Description
Products Description

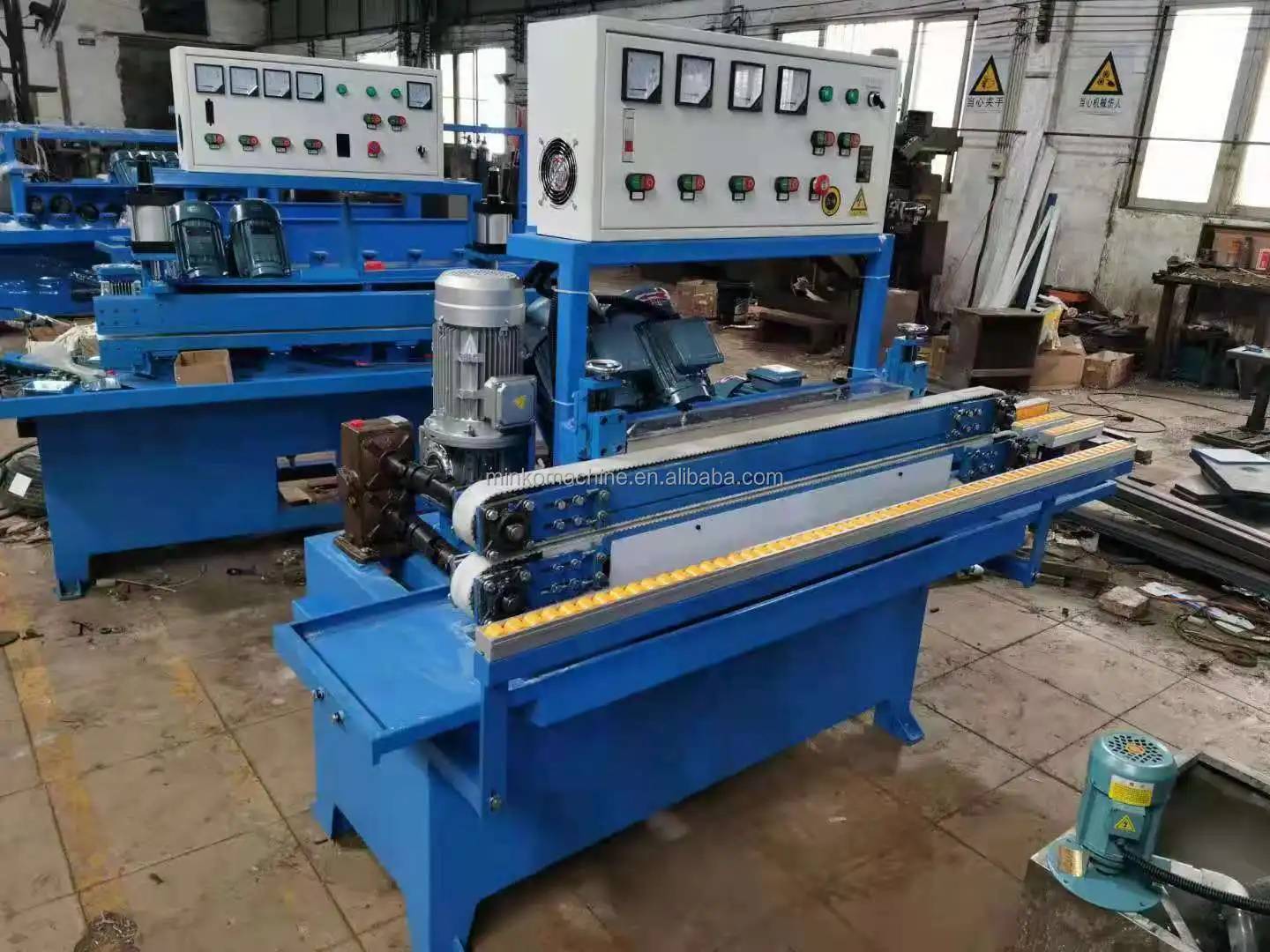

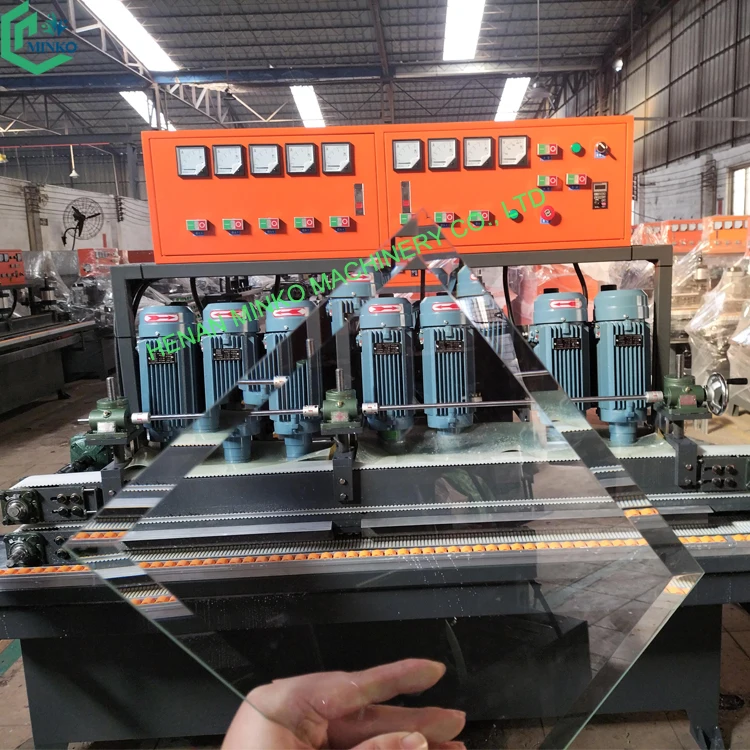

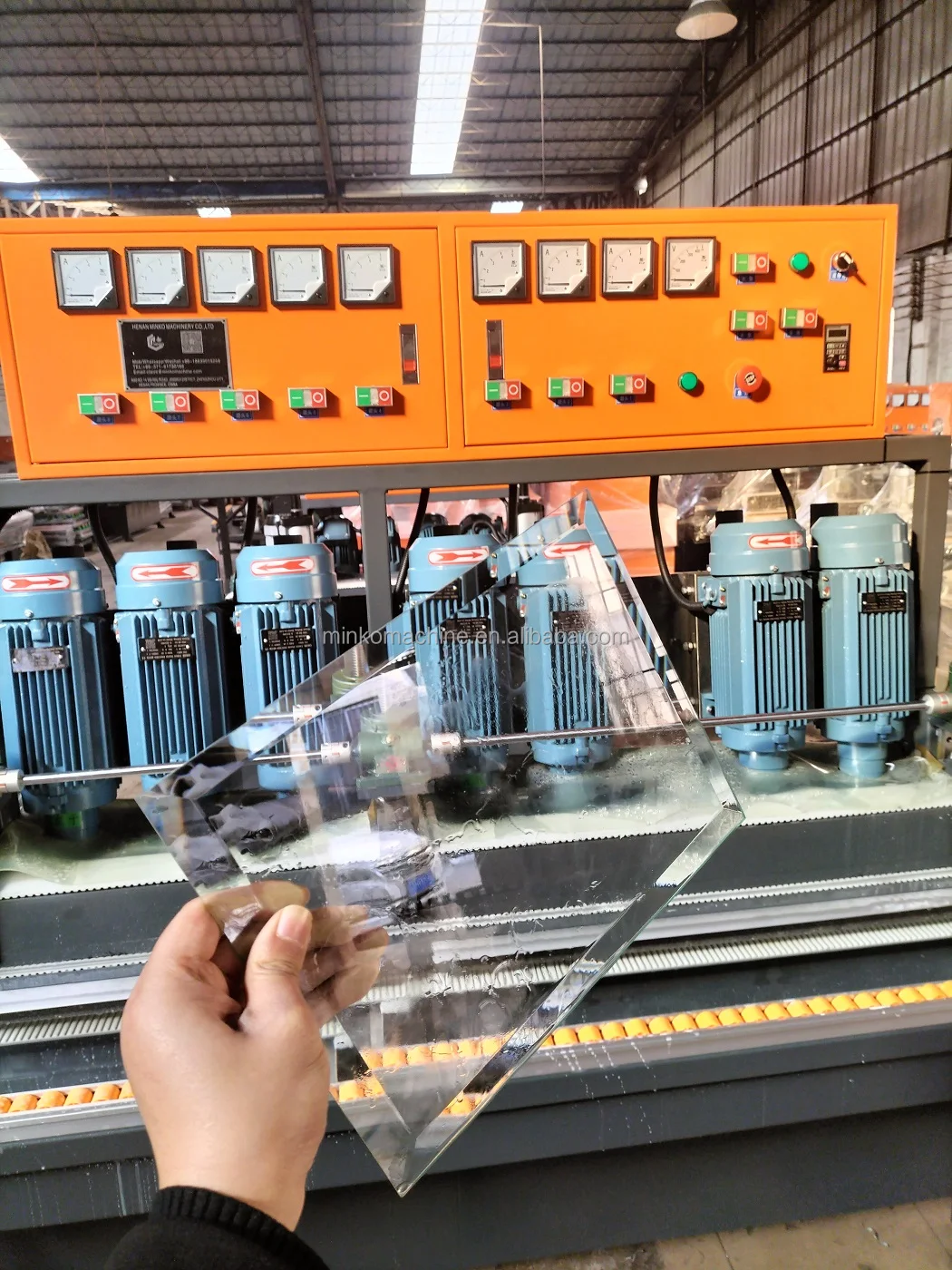

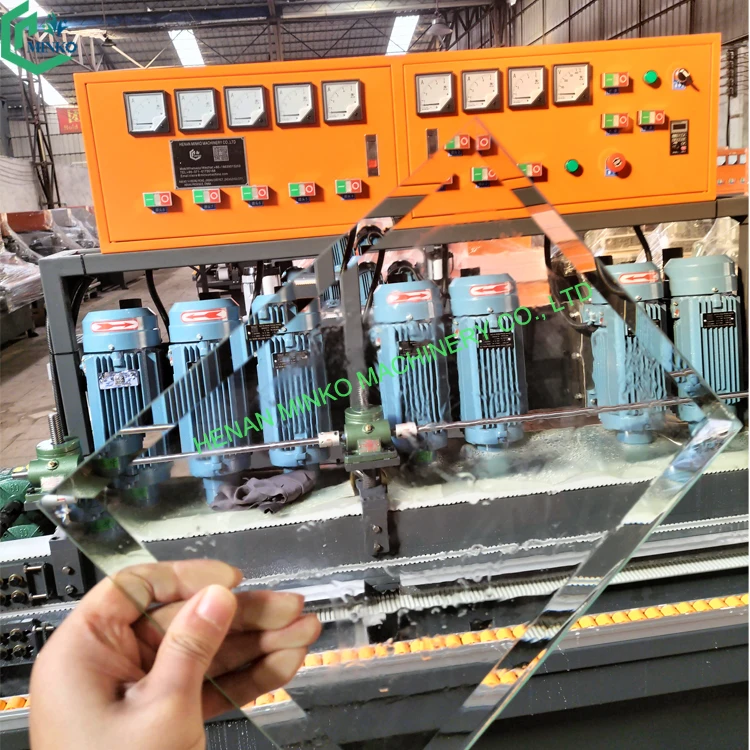

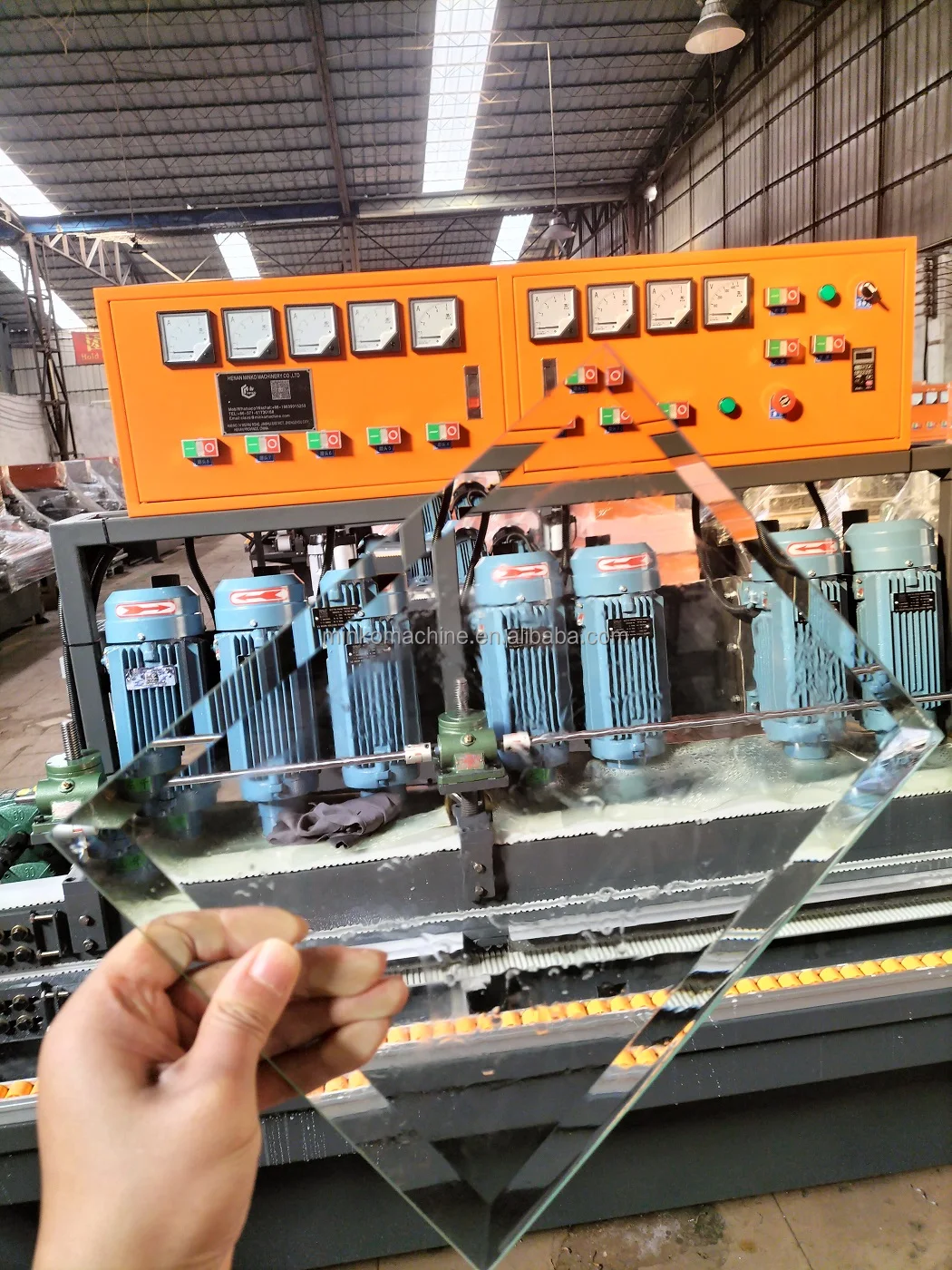

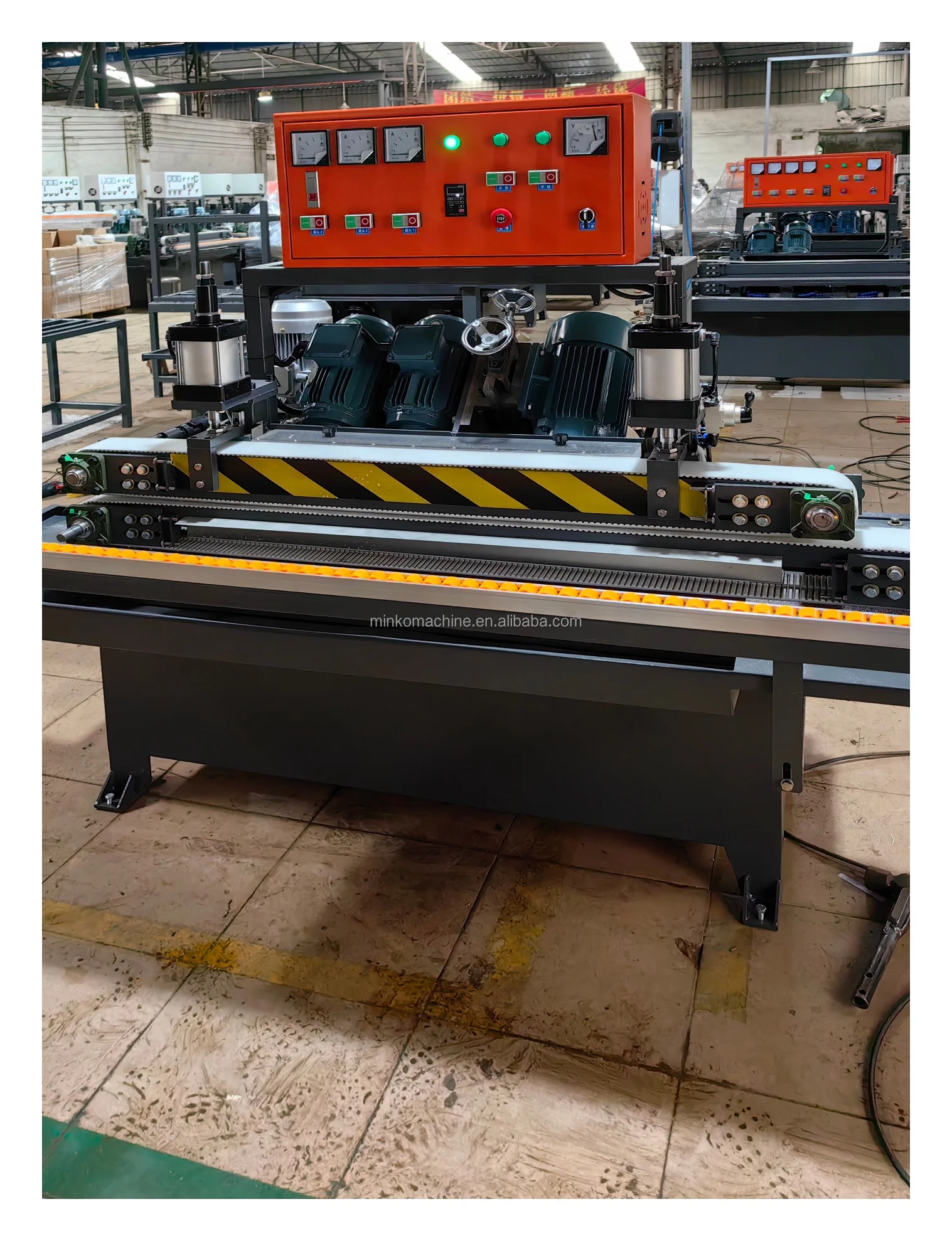

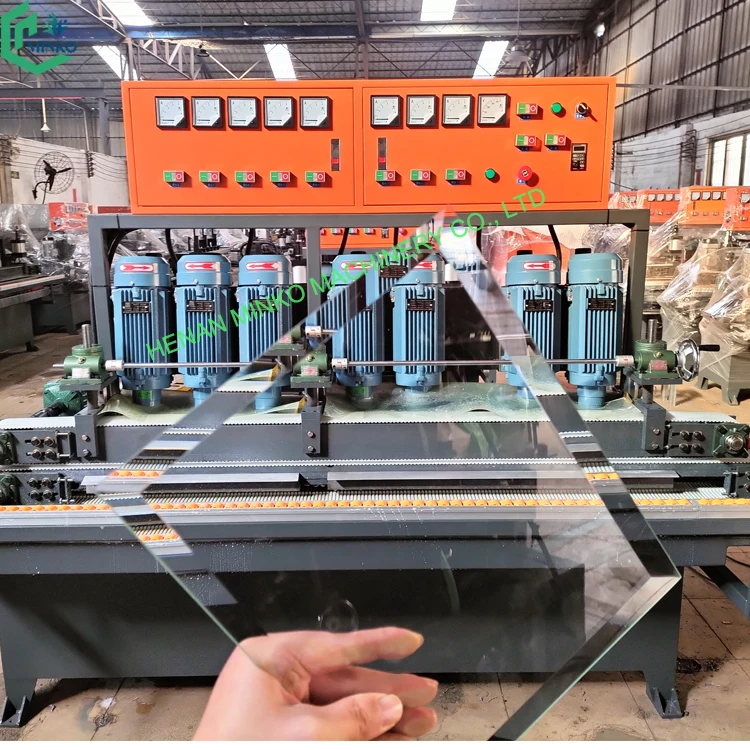

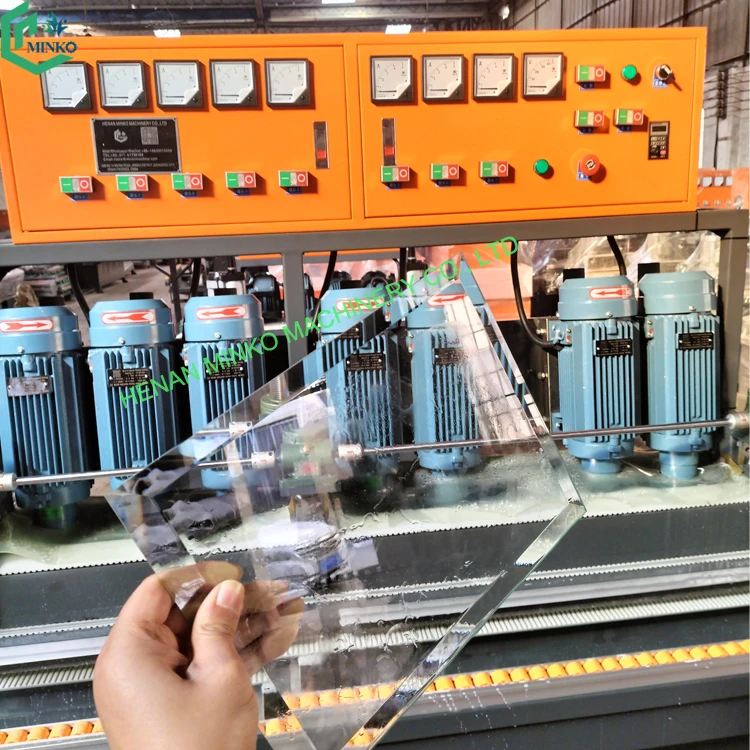

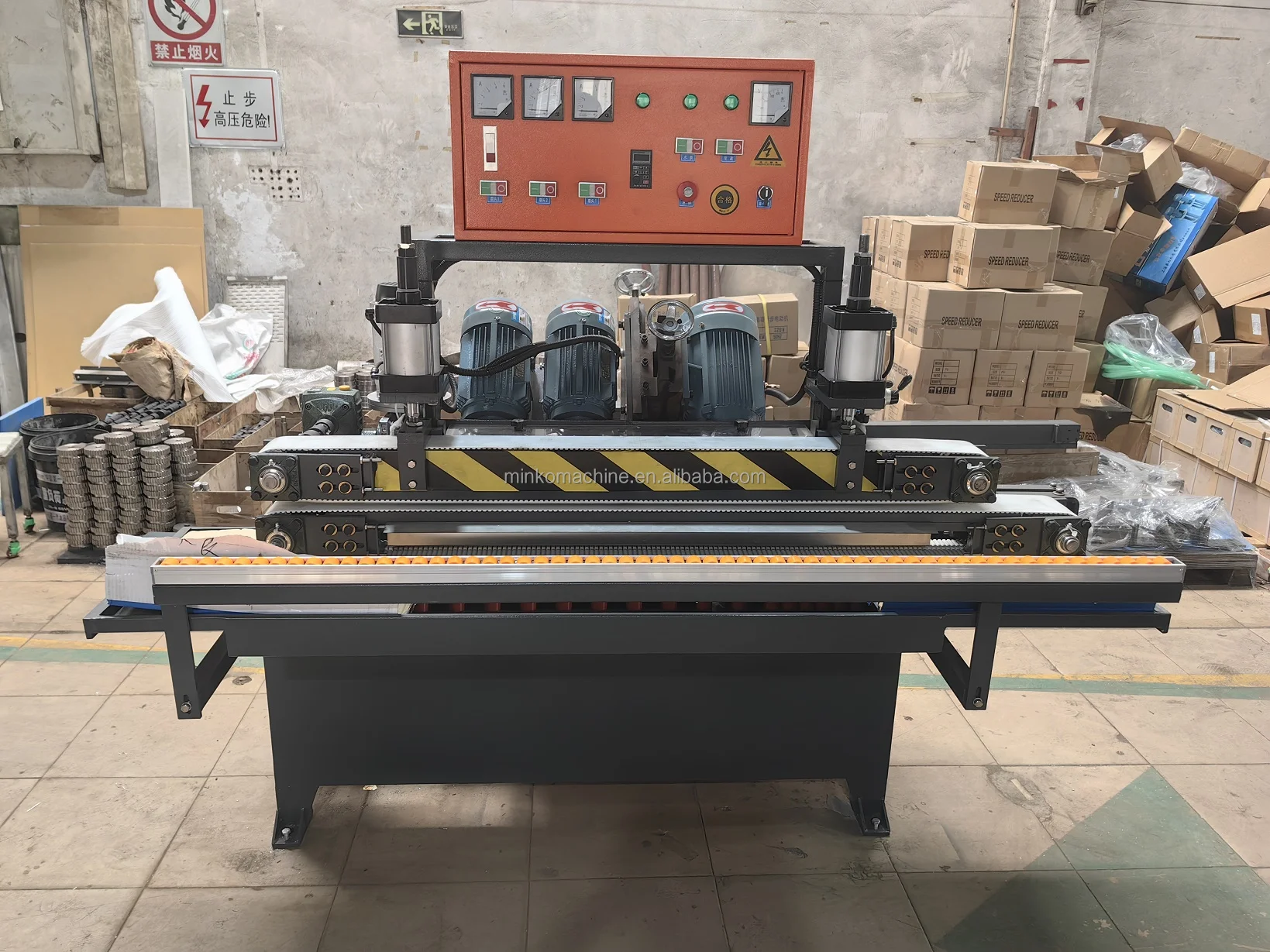

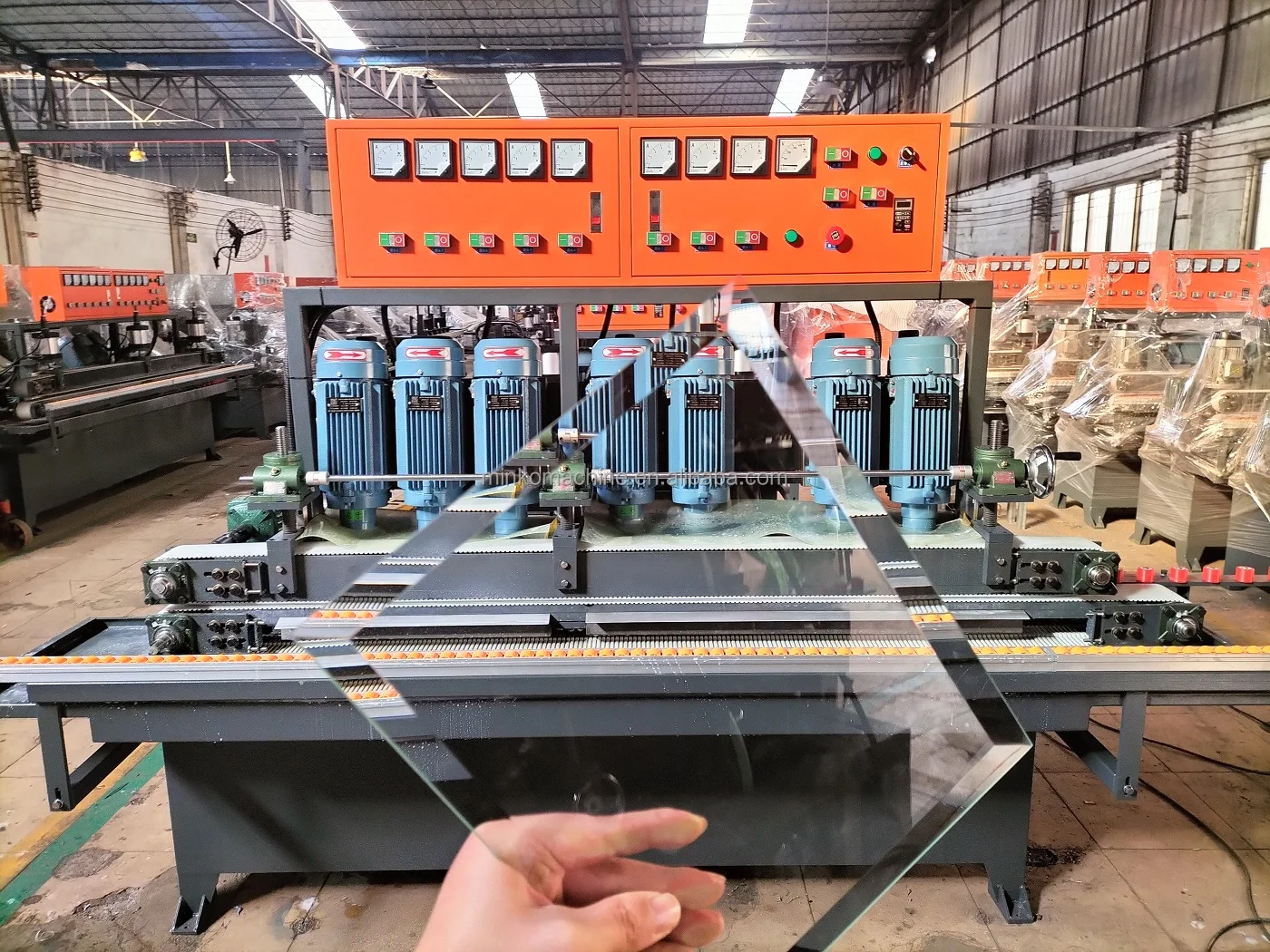

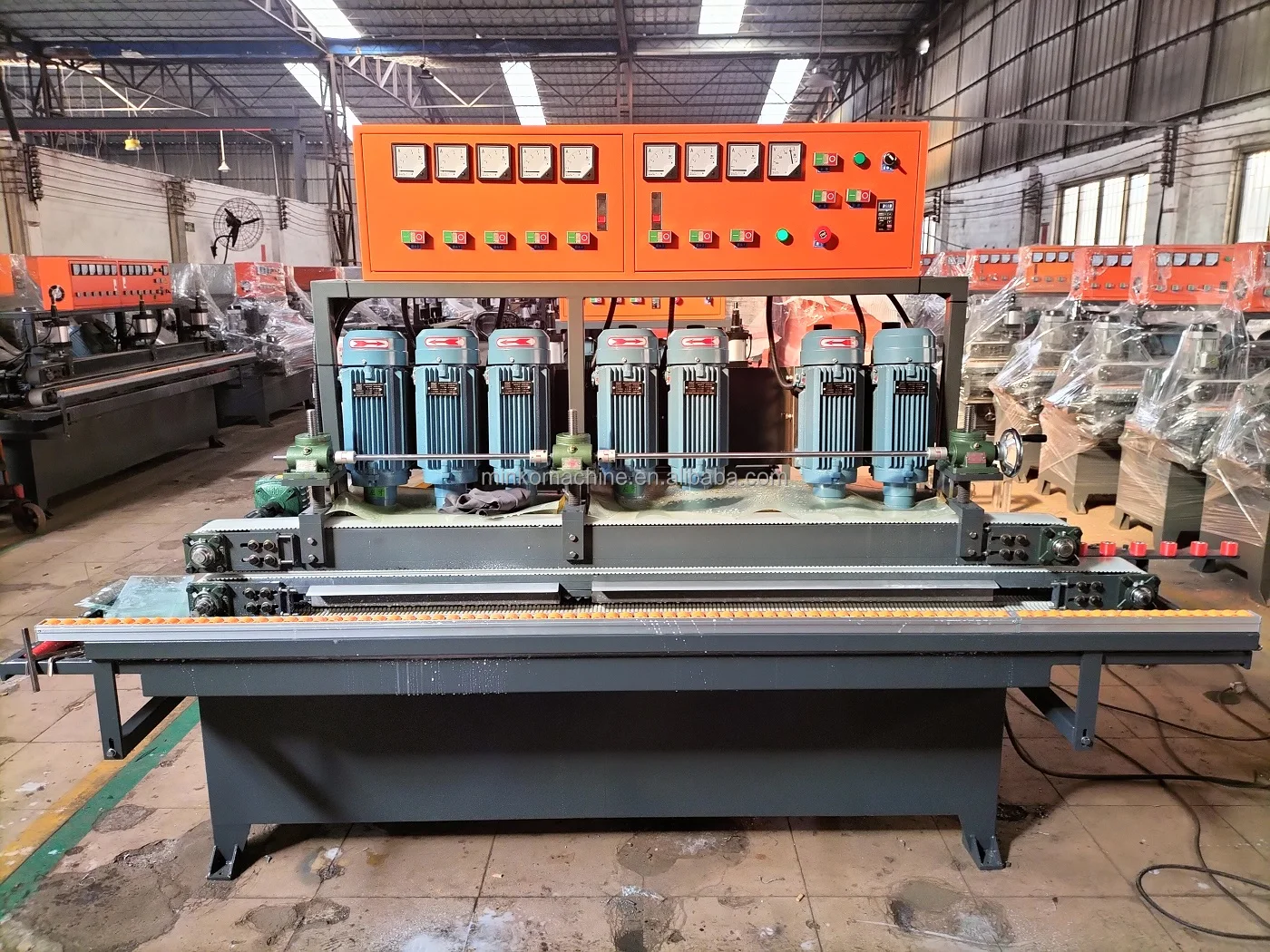

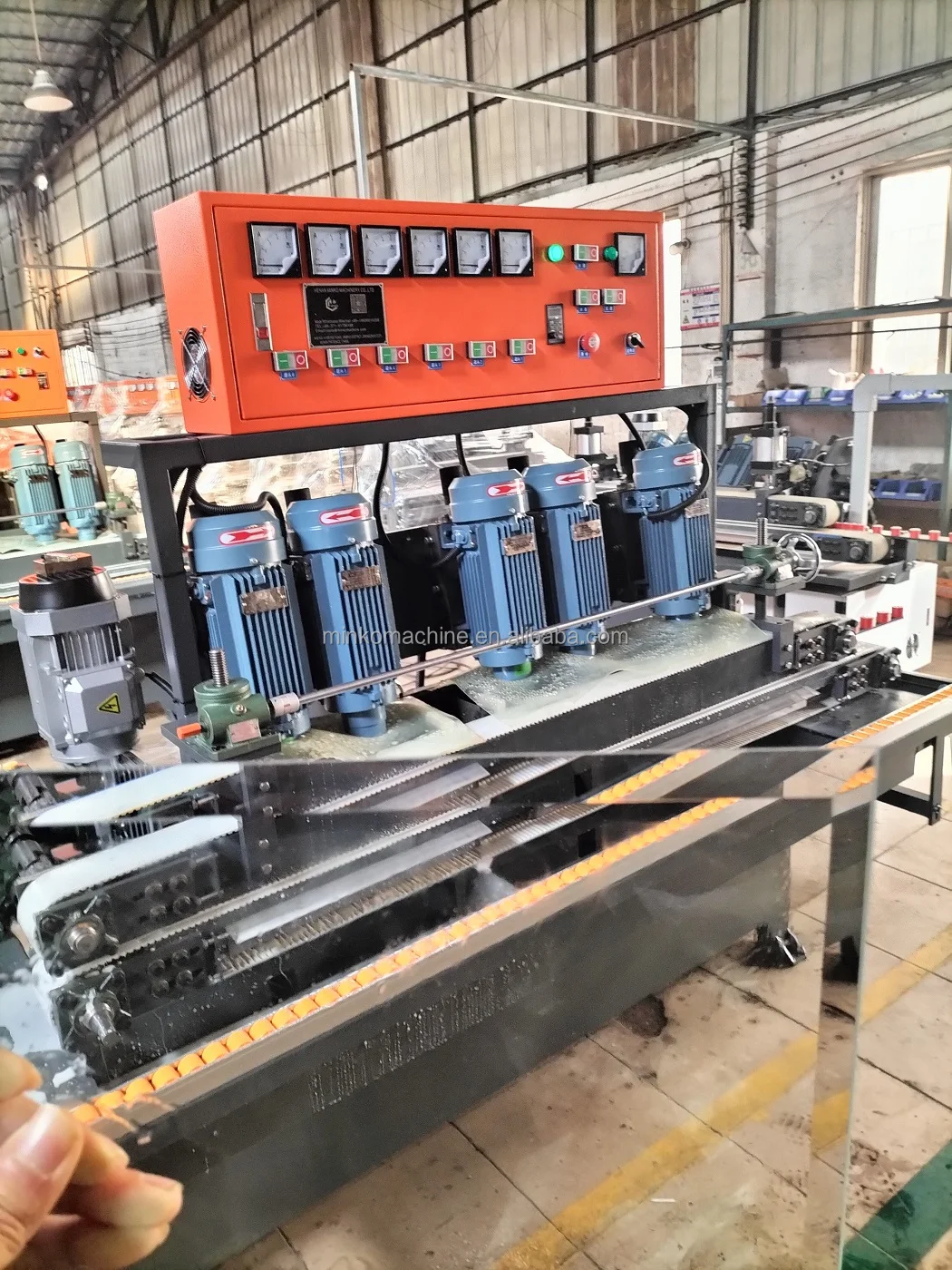

restaurant glass bevelled polishing machine glass straight line edging 9 motors glass edger price
1. This machine is mainly composed of five major systems, control system, grinding system, clamping and conveying system, cooling system and receiving system. The overall structure is compact, the layout is reasonable, and the appearance is harmonious and unified.
2. Control system: select AC contactor and thermal relay protection system and ammeter display operation system, with phase failure, overload, overcurrent protection functions.
3. Grinding system: use high-speed three-phase AC motor to ensure the continuous stability of the machine's performance during long-term use.
4. The clamping part adopts imported timing belt, and the surface is adhered with PU glue, which reduces the glass breakage rate during the clamping and conveying process.
5. Cooling system: Circulating water is adopted, which not only saves water but also guarantees the cooling water quantity.

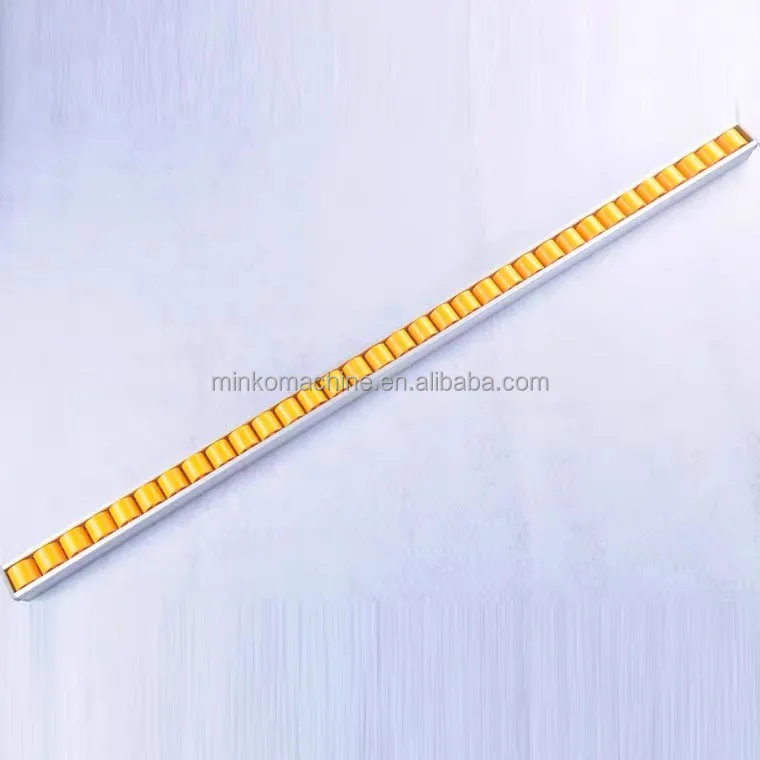

6. Undertaking system: Can choose to use row wheel undertaking frame.
The scope of application of this machine: straight-line edging of small glass handicrafts; straight-line edging of home improvement glass and furniture glass; straight-line edging of architectural glass and frameless glass doors; edging and chamfering of glass for kitchen cabinet doors and stainless steel doors. Straight edge grinding of flat glass and rough grinding, fine grinding, polishing of 45 degree angle straight bevel edge,
2. Control system: select AC contactor and thermal relay protection system and ammeter display operation system, with phase failure, overload, overcurrent protection functions.
3. Grinding system: use high-speed three-phase AC motor to ensure the continuous stability of the machine's performance during long-term use.
4. The clamping part adopts imported timing belt, and the surface is adhered with PU glue, which reduces the glass breakage rate during the clamping and conveying process.
5. Cooling system: Circulating water is adopted, which not only saves water but also guarantees the cooling water quantity.
6. Undertaking system: Can choose to use row wheel undertaking frame.
The scope of application of this machine: straight-line edging of small glass handicrafts; straight-line edging of home improvement glass and furniture glass; straight-line edging of architectural glass and frameless glass doors; edging and chamfering of glass for kitchen cabinet doors and stainless steel doors. Straight edge grinding of flat glass and rough grinding, fine grinding, polishing of 45 degree angle straight bevel edge,
Model | js - 380 | |
Input voltage | 380V 50hz customizable | |
Machine power | 7.5KW | |
Processing speed | 0-5m/min | |
Minimum machining size | 40*40mm | |
Chamfer Angle | 45 degrees | |
Machined thickness | 1-20mm | |
Total machine weight | 650kg | |
External dimension | 1905*1000*1400mm | |
The function of the machine can be customized according to your requirements | ||

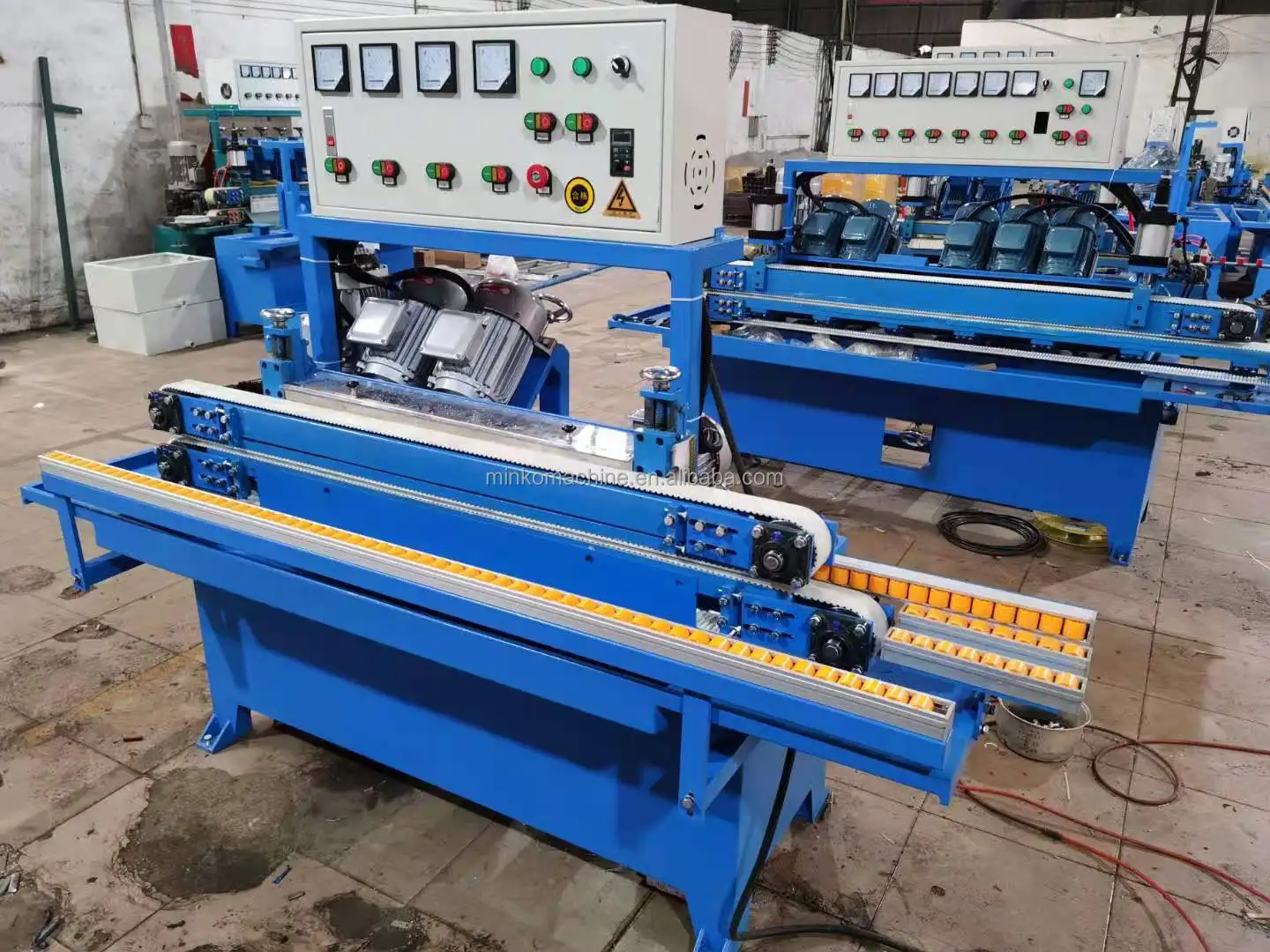

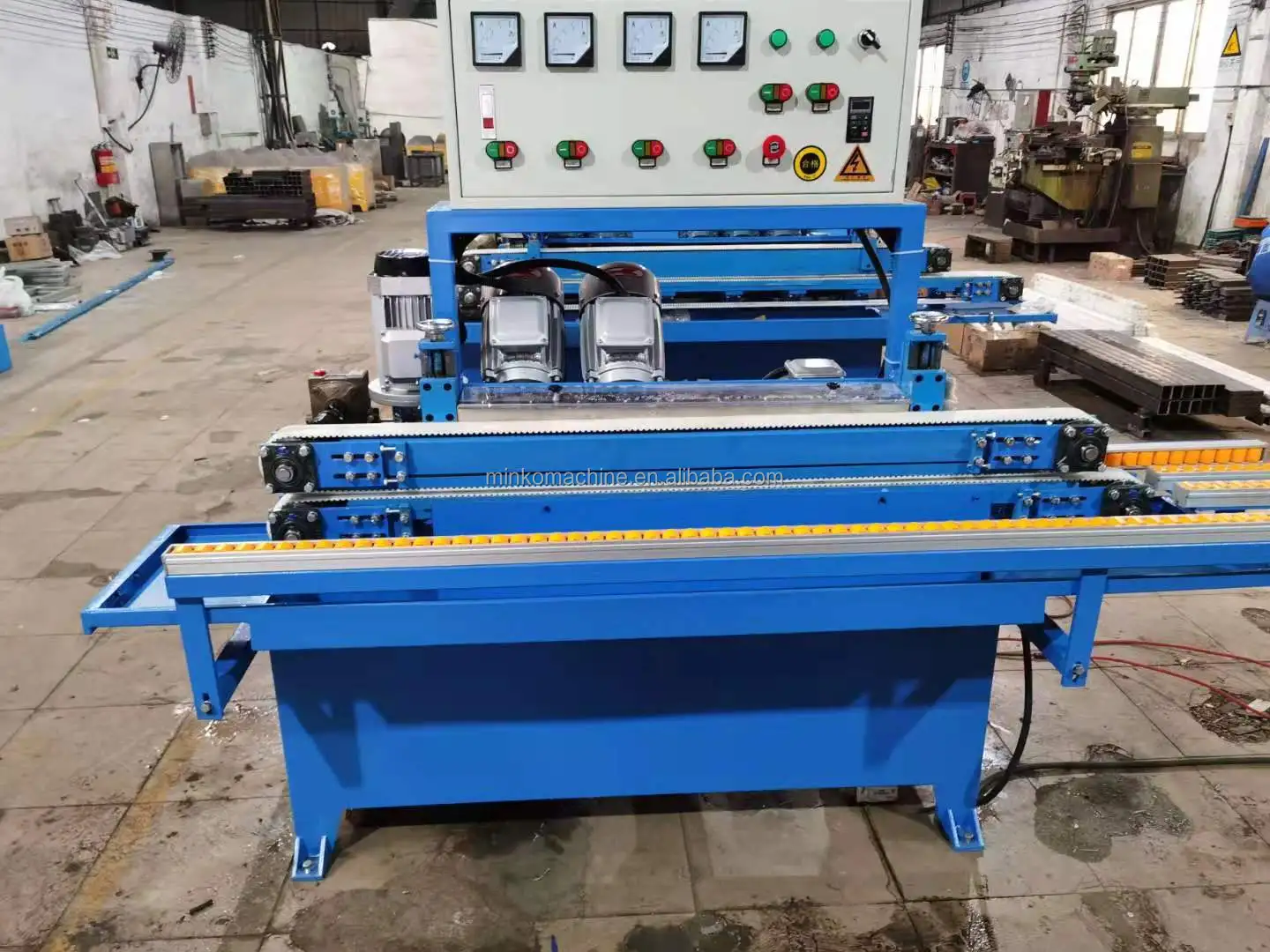

Details Images

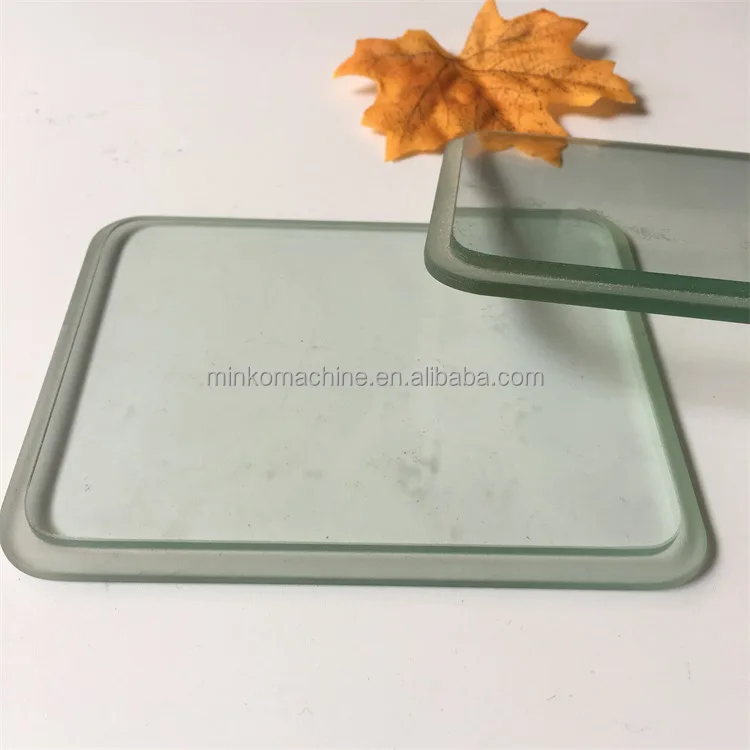

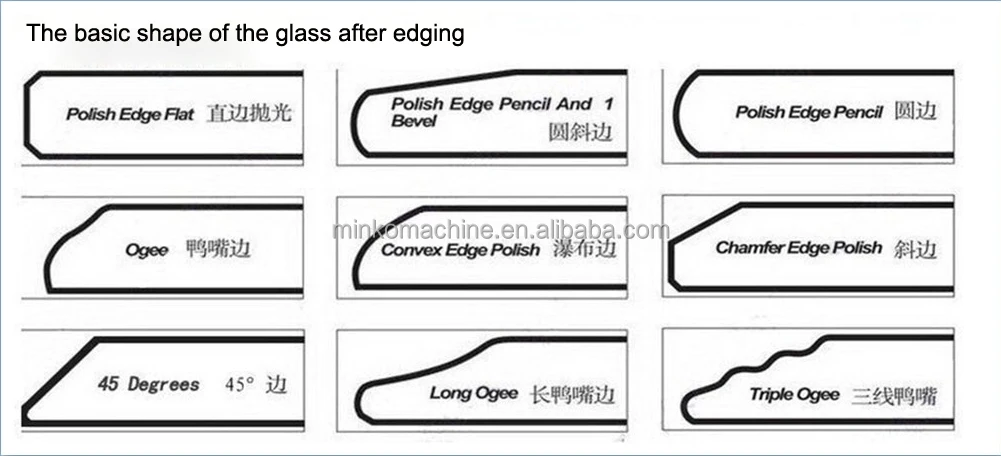

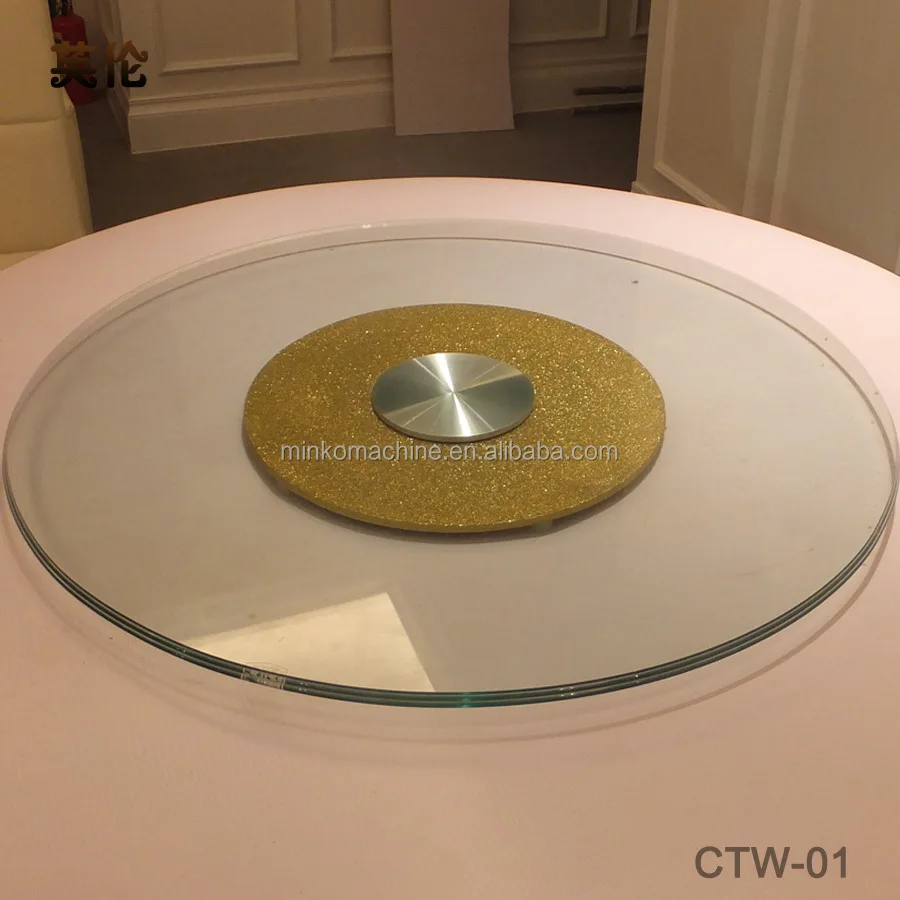

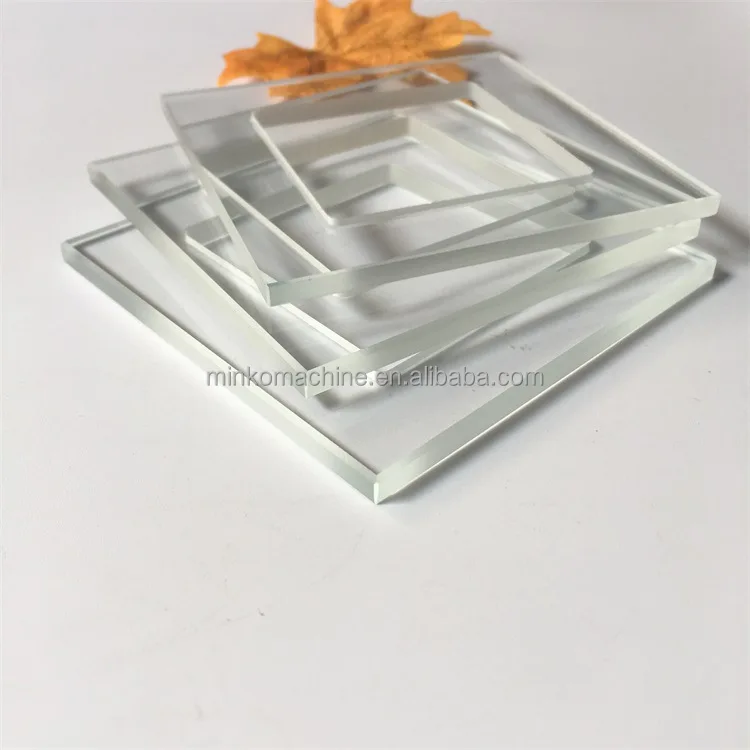

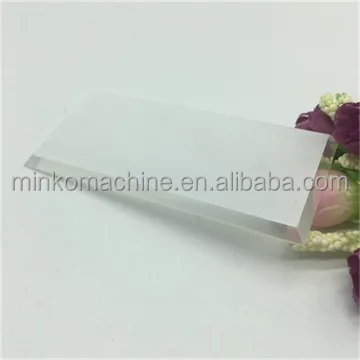

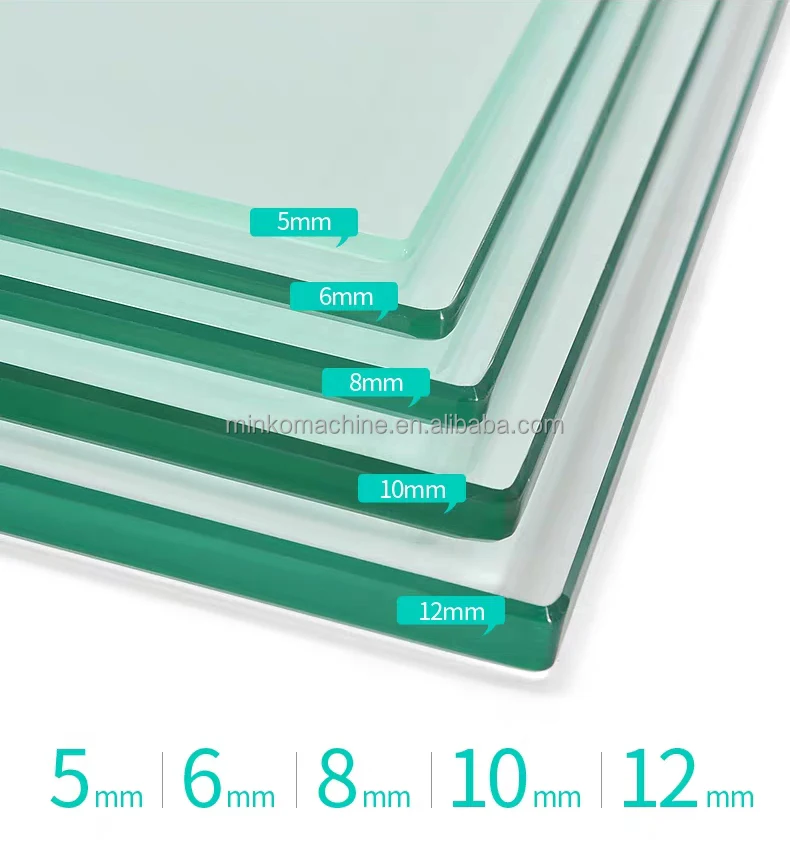

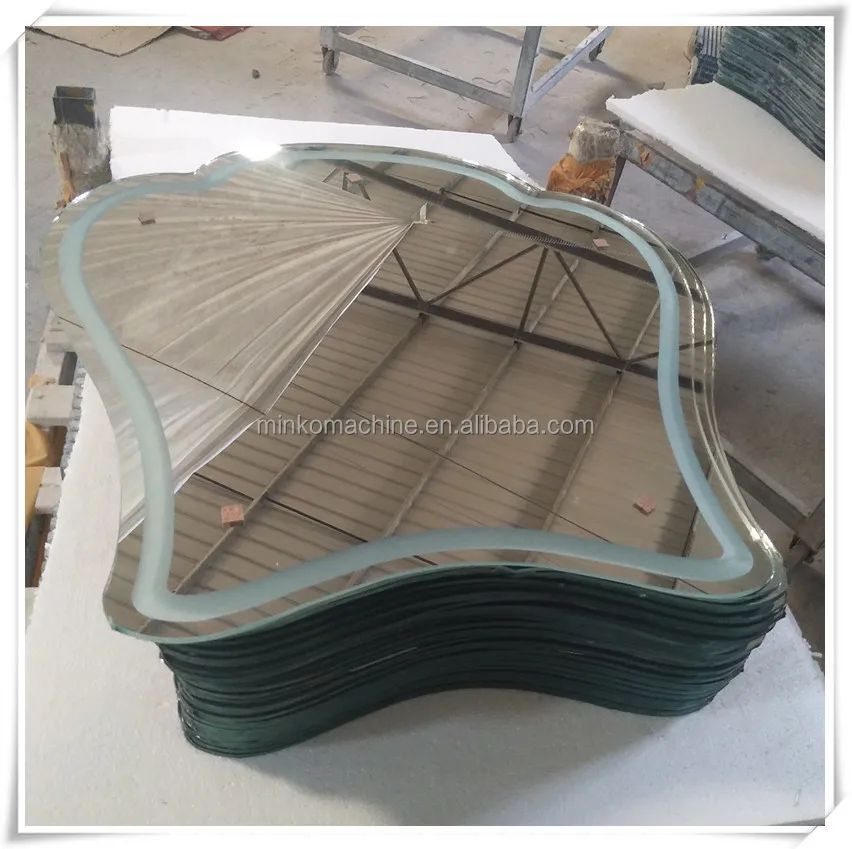

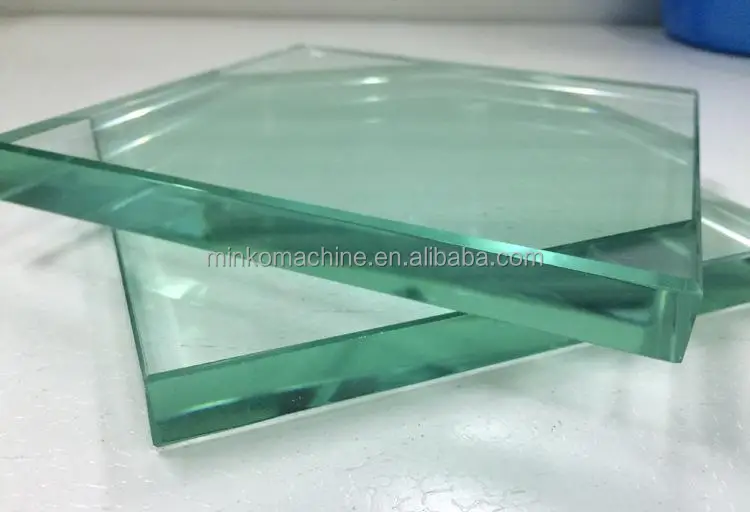

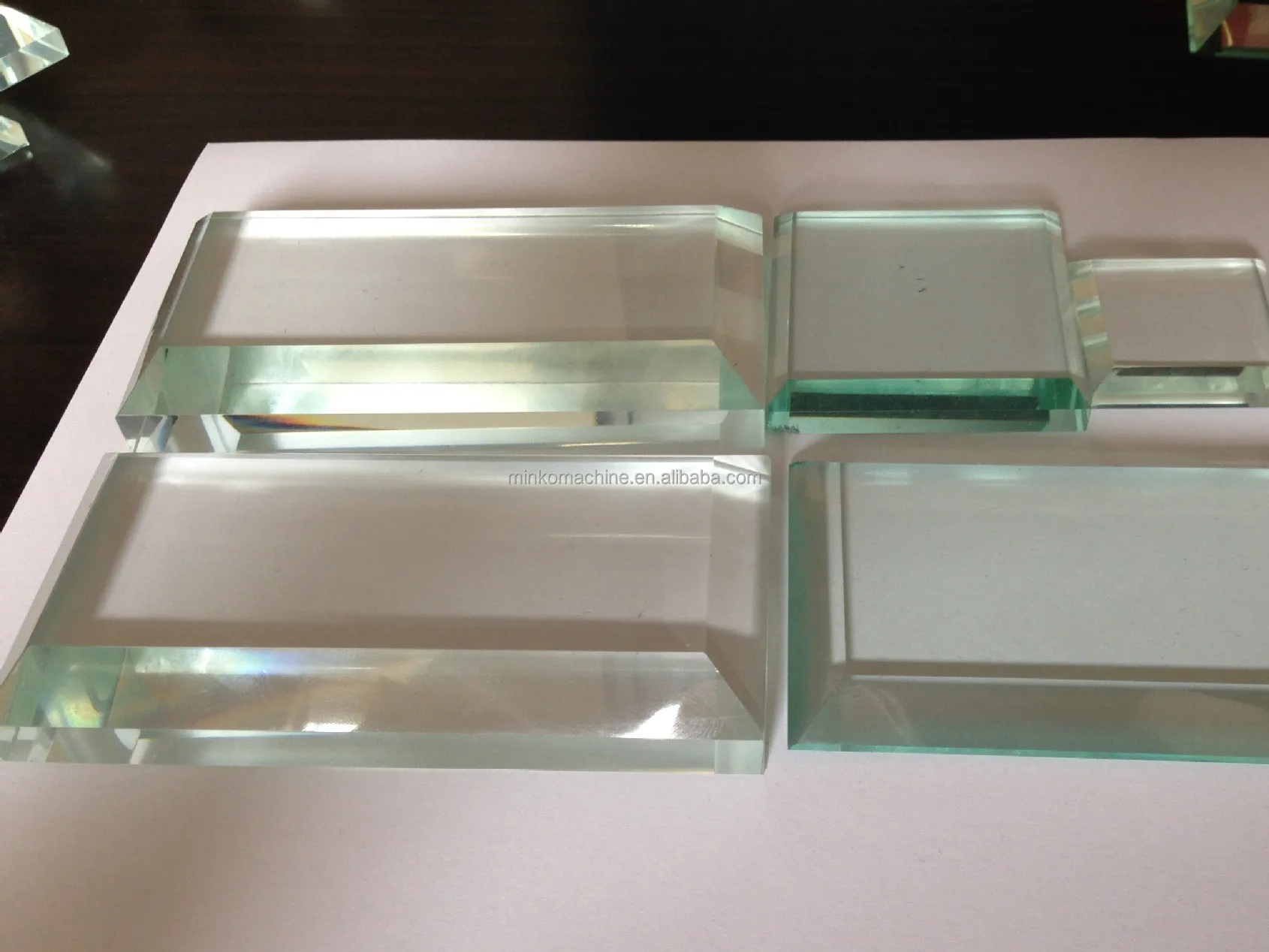

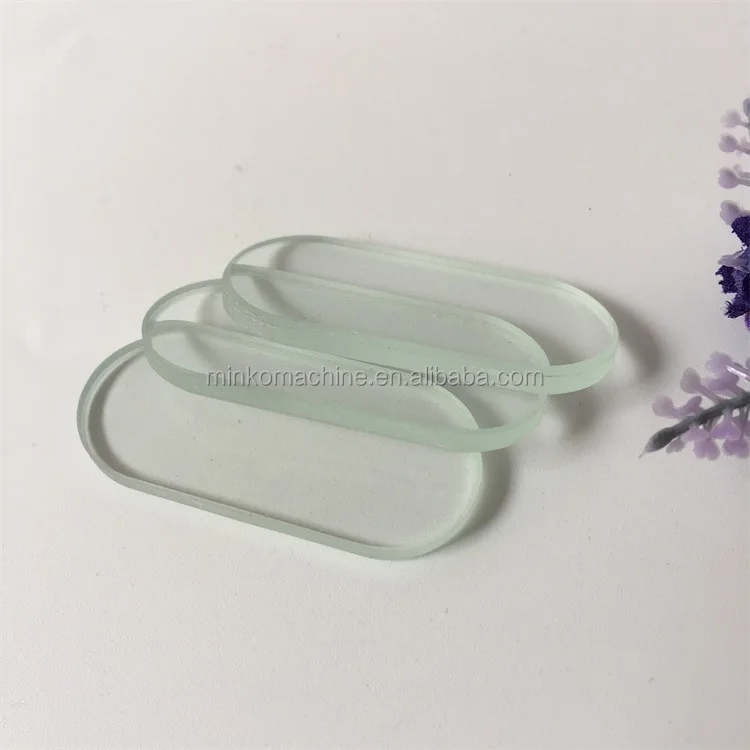

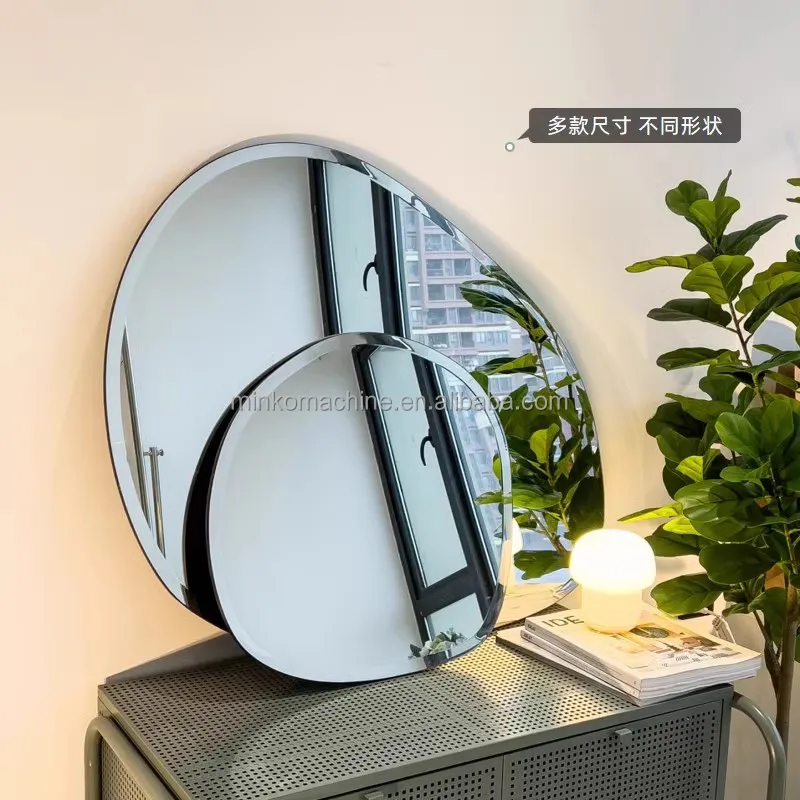

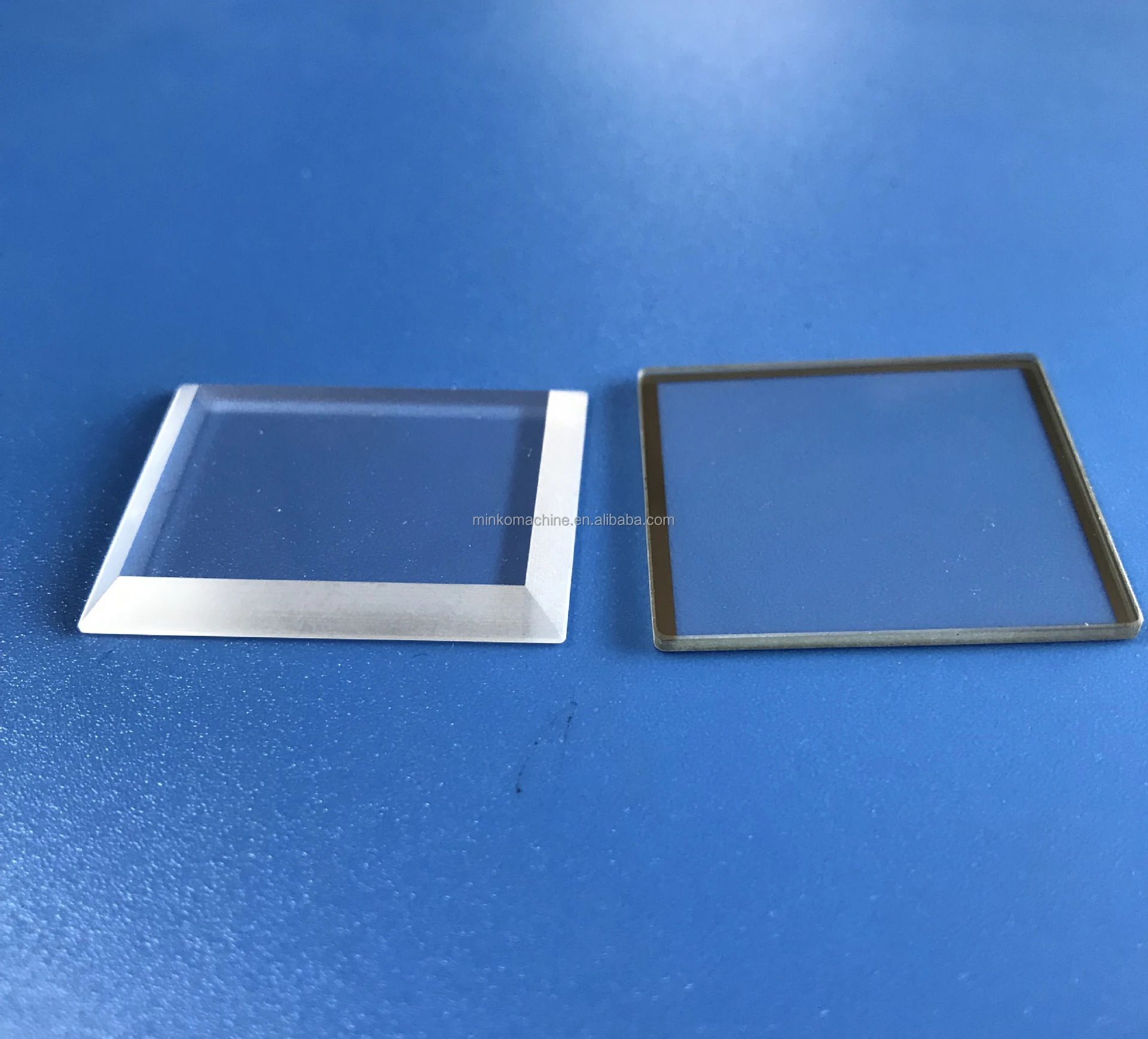

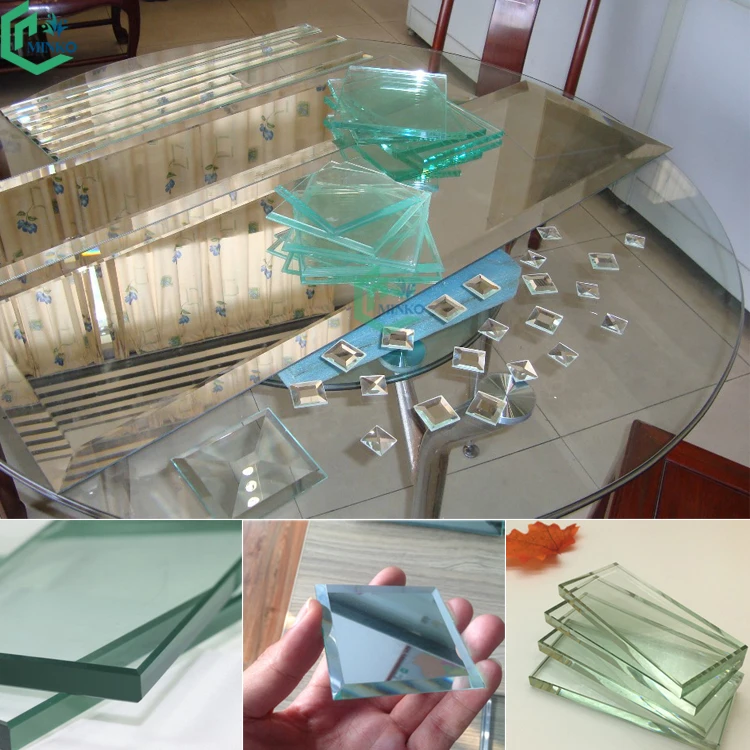

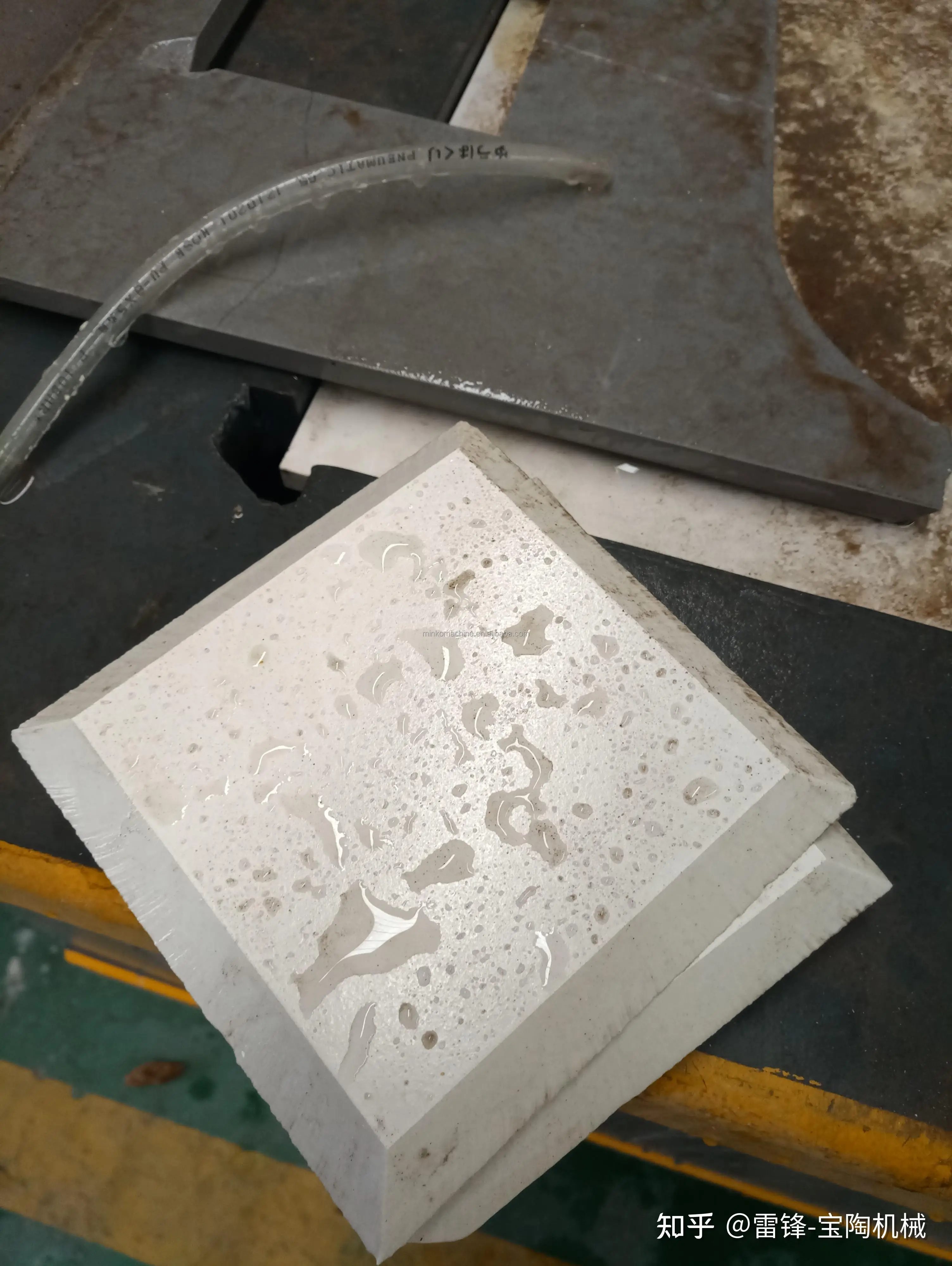

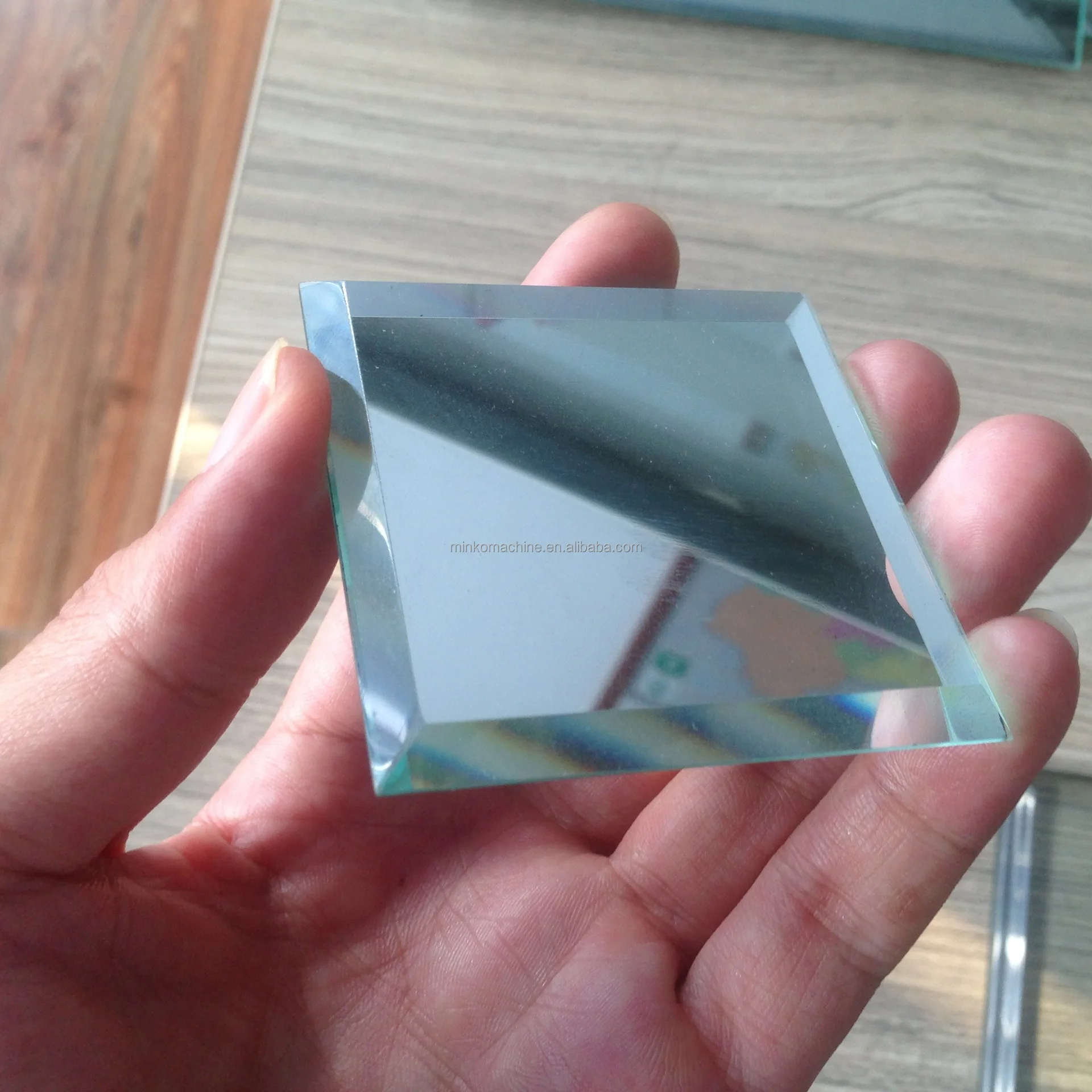

You can choose the style of glass to be processed from the following, or you can design your own style, and we can customize it according to your requirements.

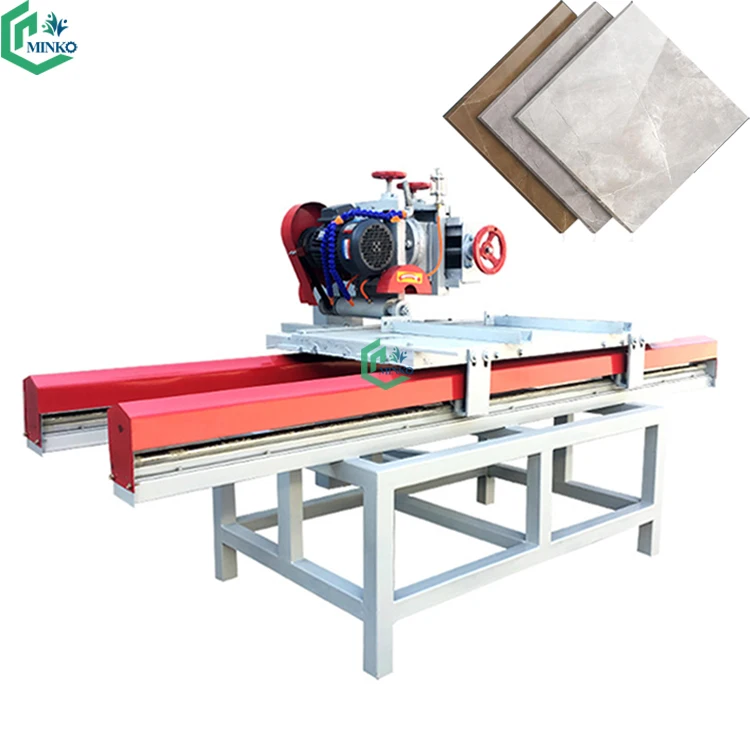

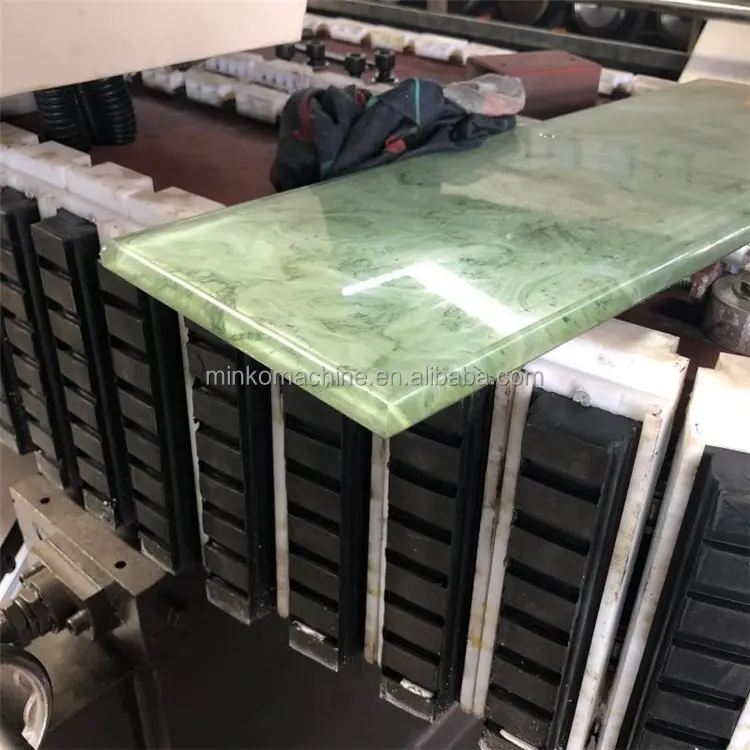

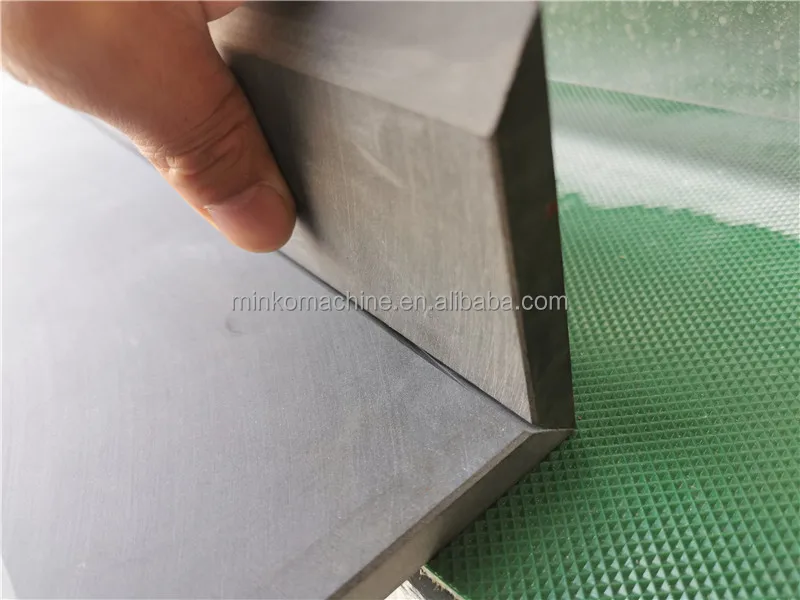

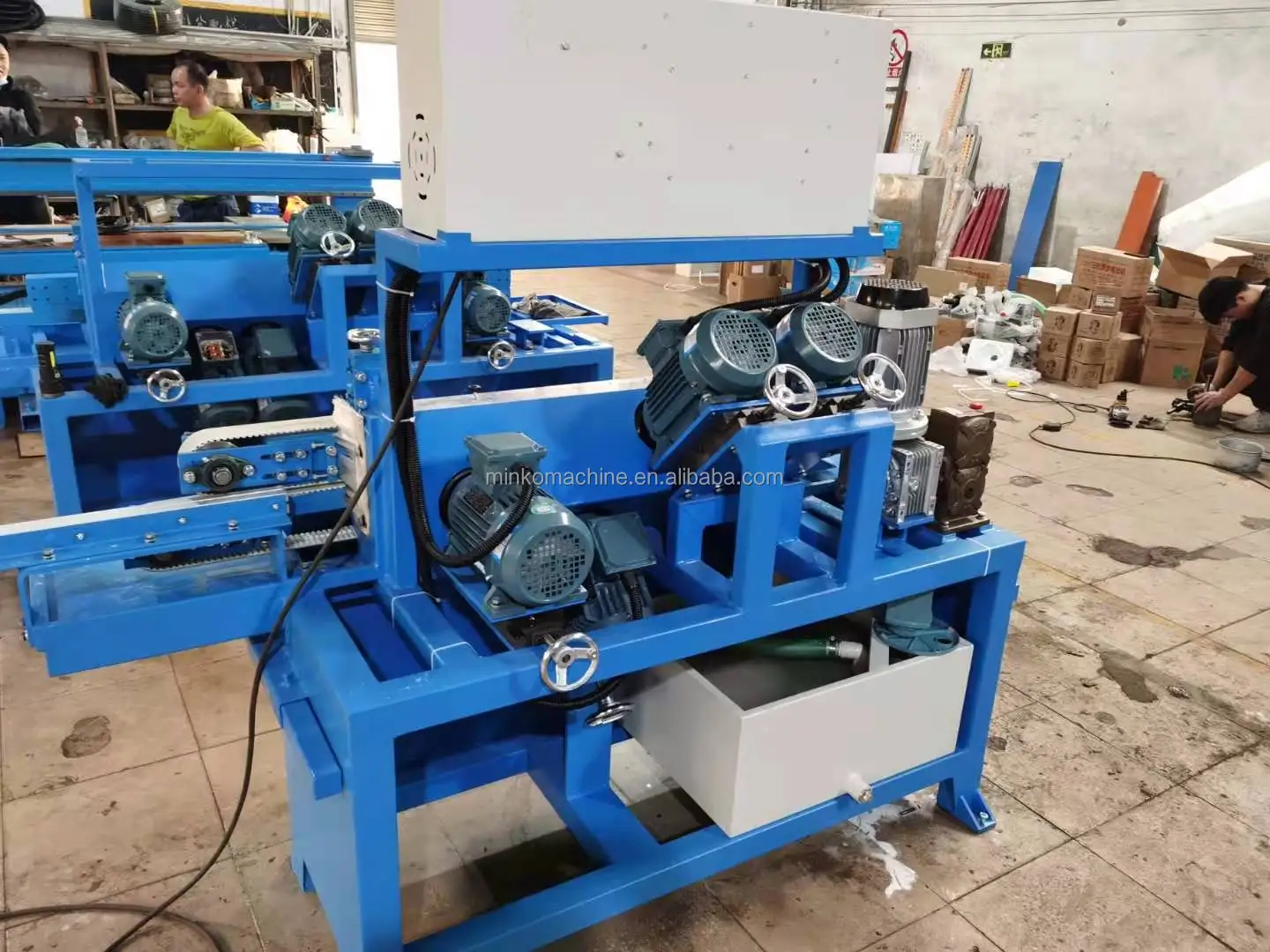

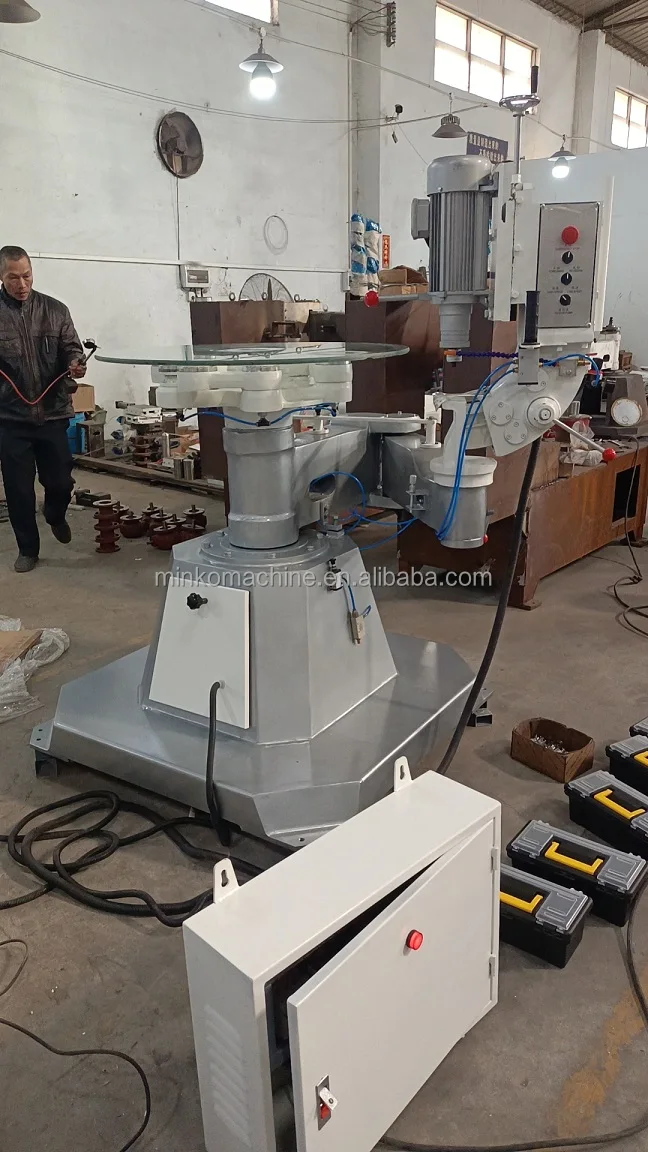

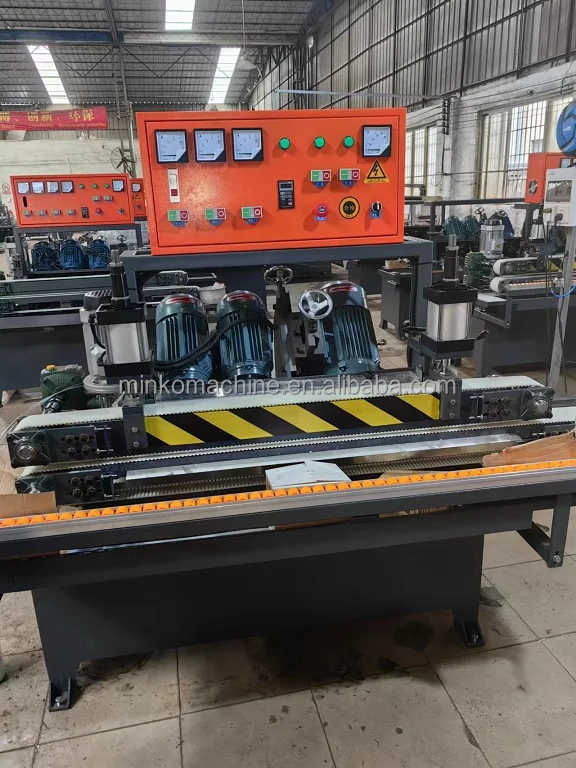

Ceramic tile marble rock slab polishing and trimming machine.

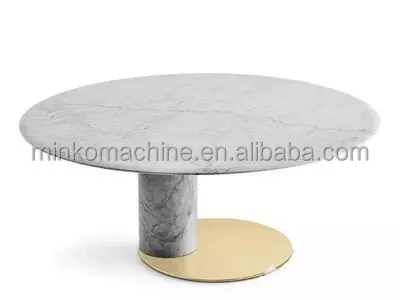

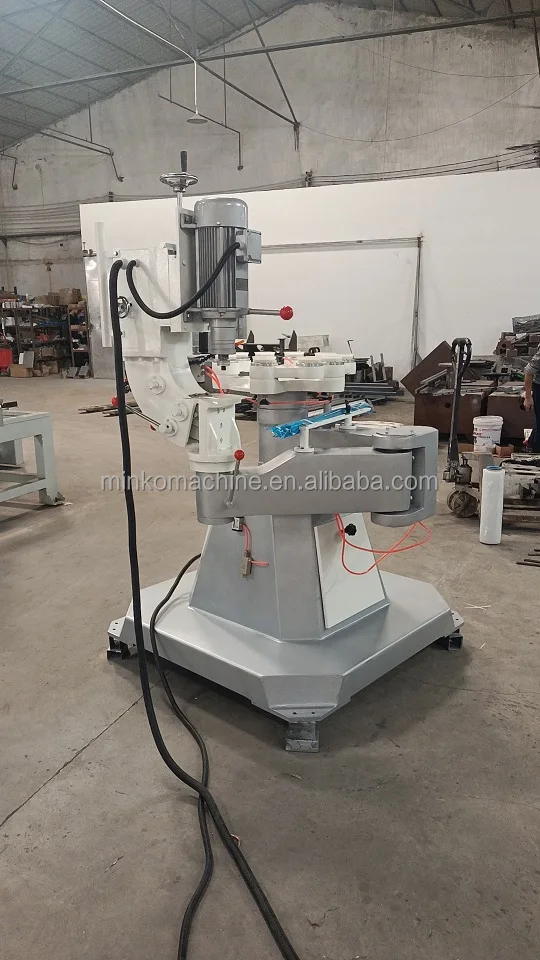

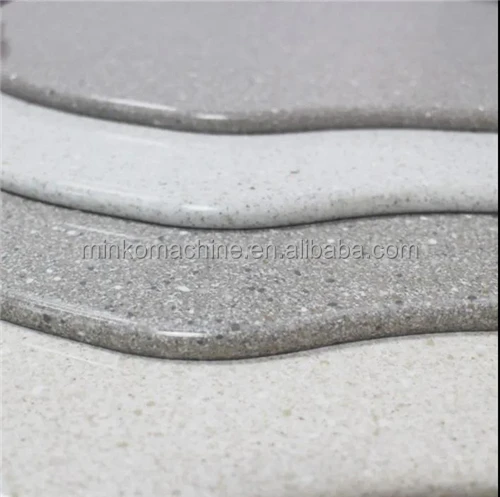

Grinding and polishing of irregular glass, polishing and polishing of rock slabs and marble tabletops

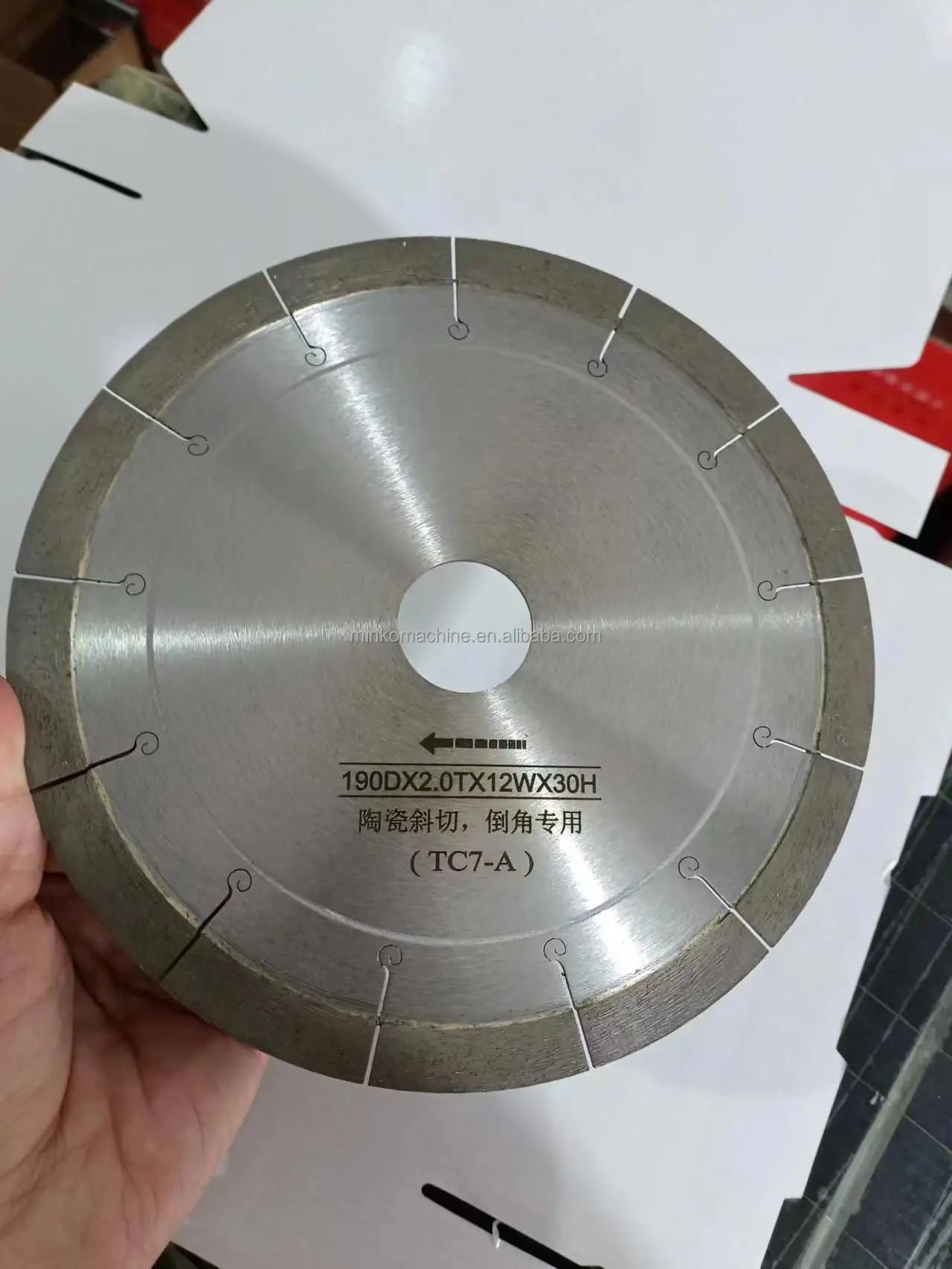

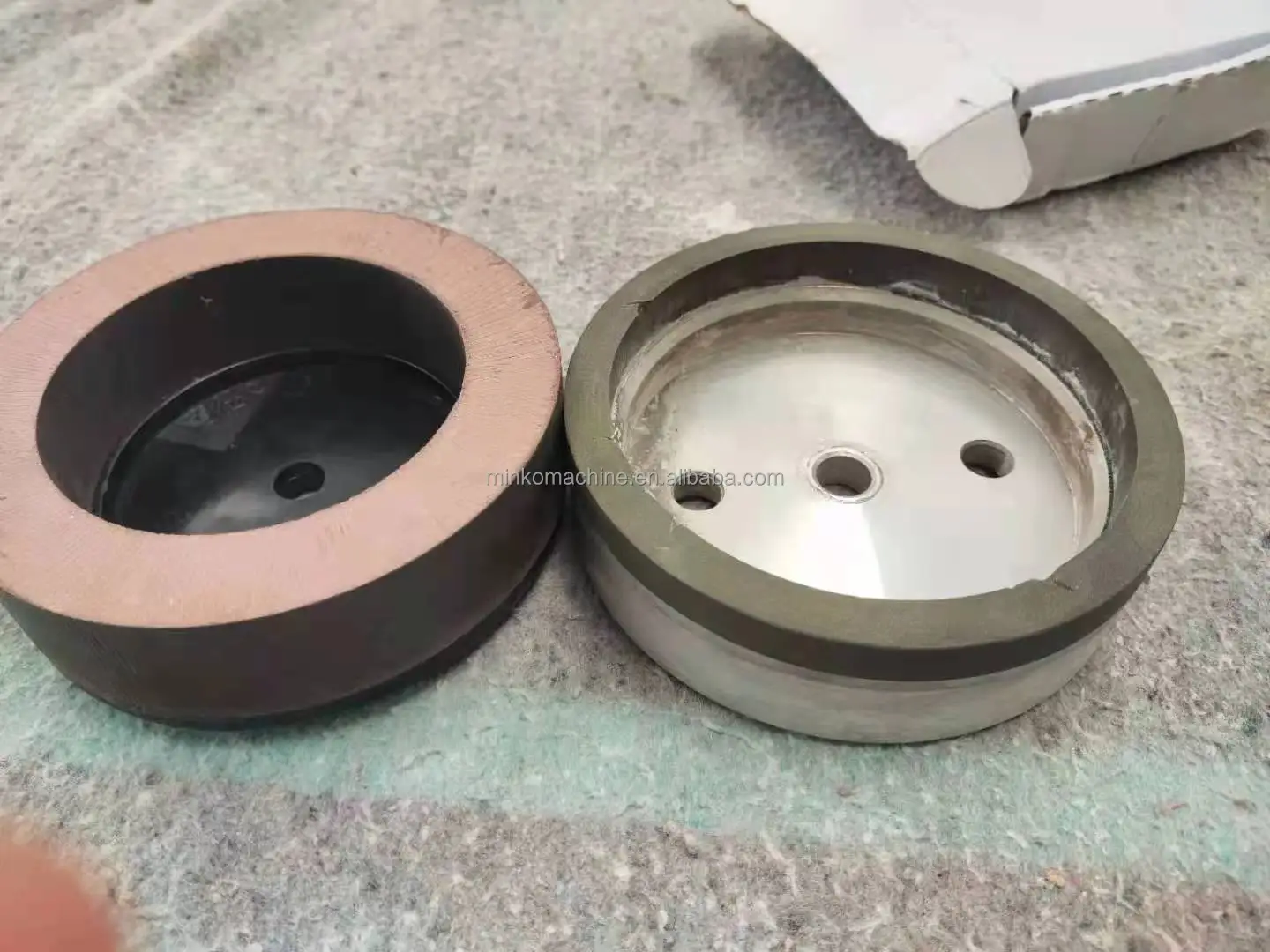

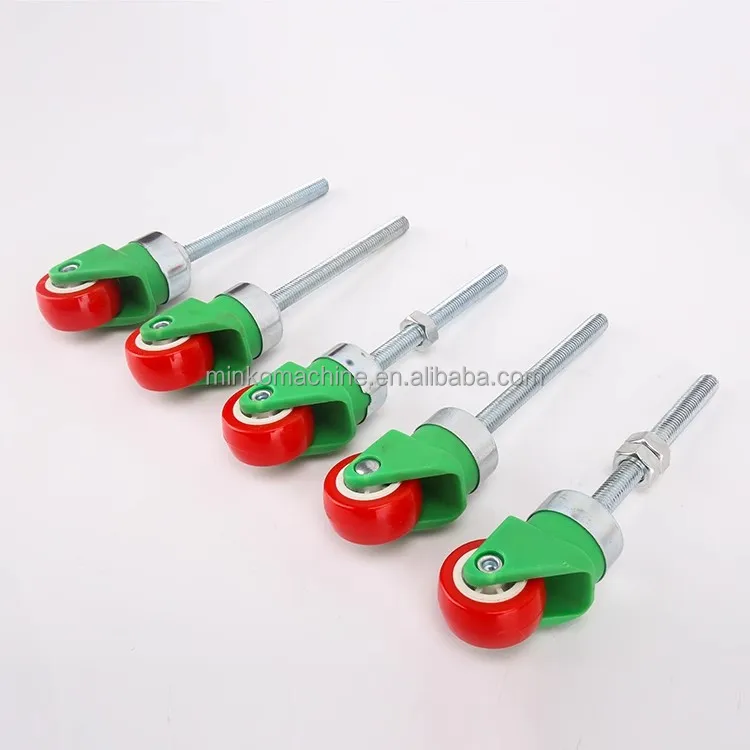

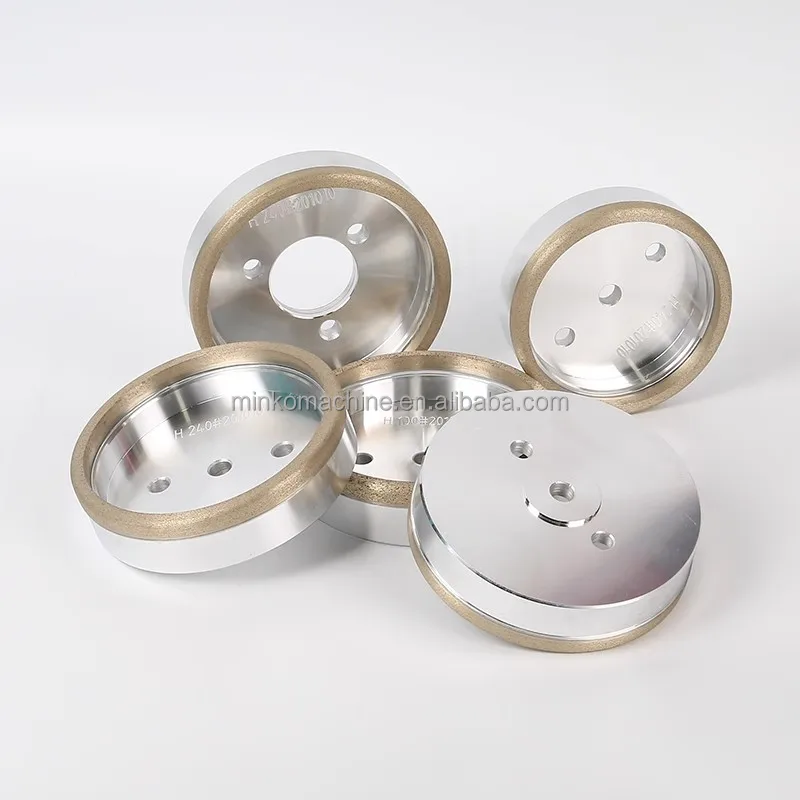

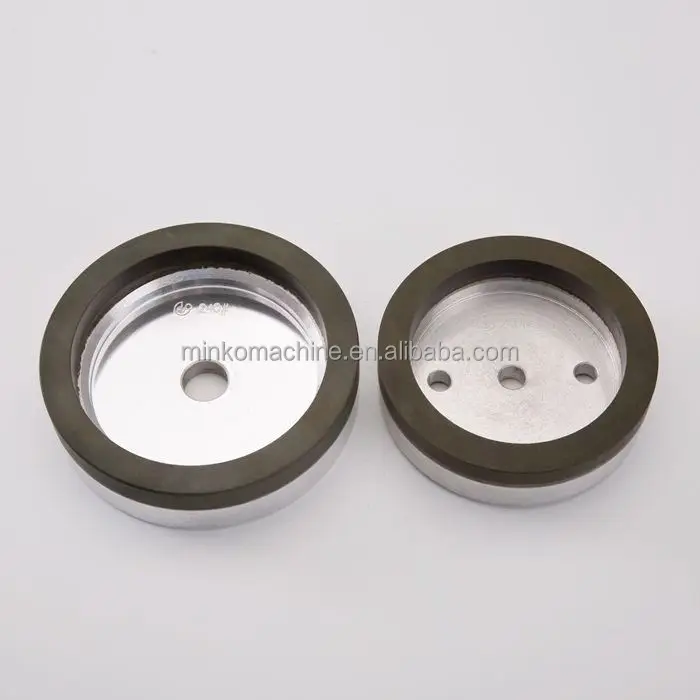

We also provide matching accessories for you to choose from
Recommend Products

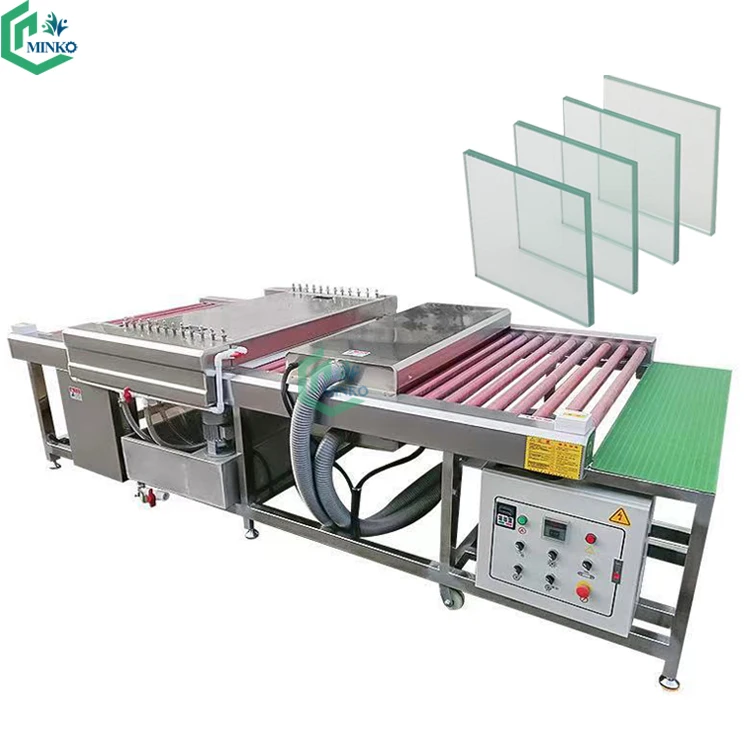

Glass washing machine

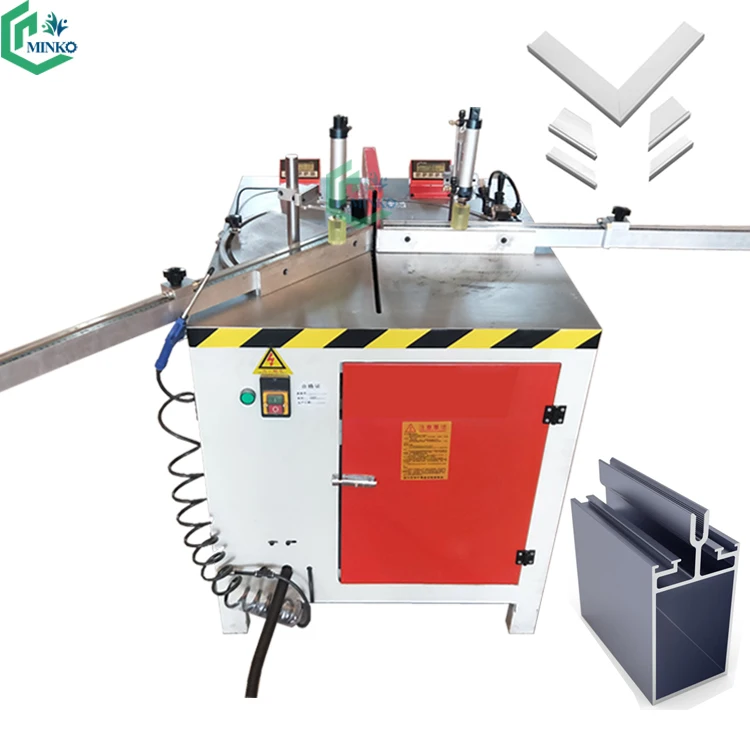

Aluminum 45° cutting machine
