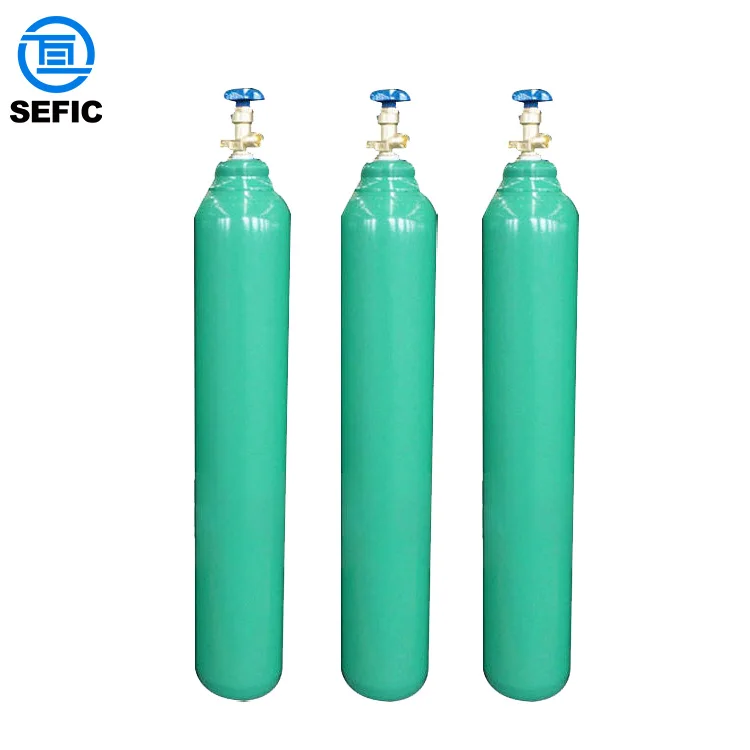

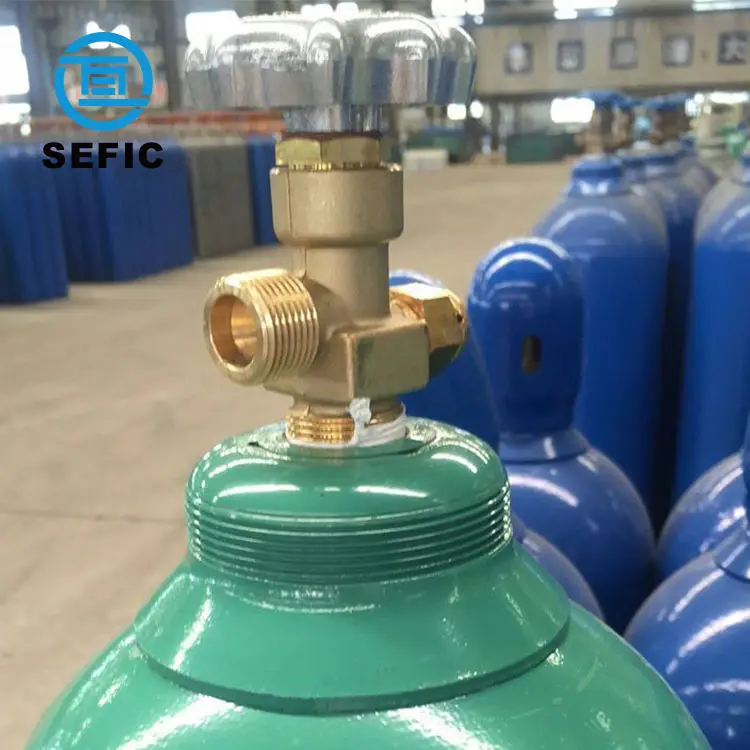

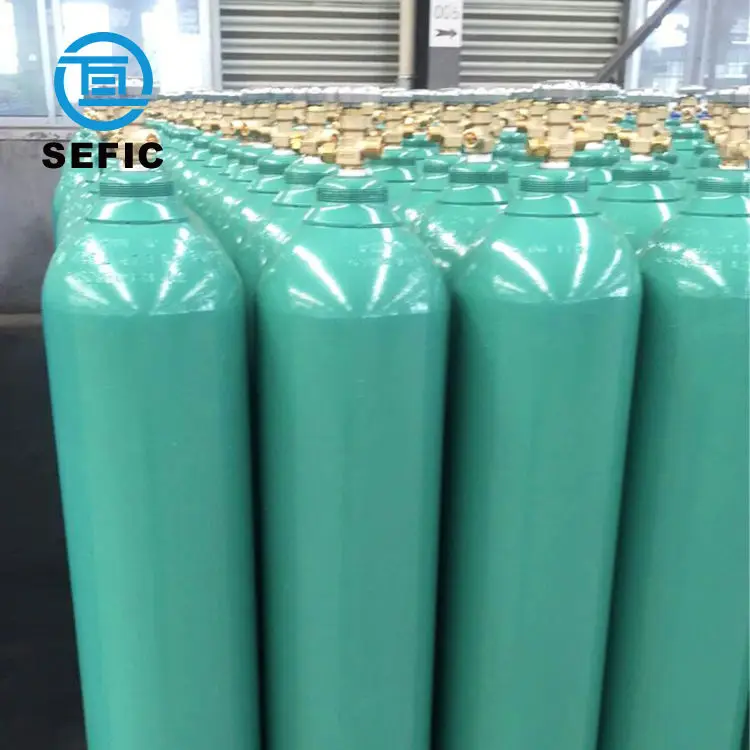

40 liter Oxygen Cylinder Refill Nitrogen/CO2/Argon/Hydrogen Gas Cylinder/Tank/Bottle Price
- Category: >>>
- Supplier: Shanghai Eternal Faith Industry Co. Ltd.
Share on (1601040143583):
Product Overview
Description
Products Description
Standard | Outside diameter（mm） | Water capacity (L) | Height(mm) | Weight(kg) | Certiication | Servic pressure (MPa) | Test pressure (MPa) | Wall Thickness (mm) | Material |
ISO9809-1 | 159 | 8-15 | 553-955 | 12.1-19.8 | TPED | 20 | 30 | 3.5 | 34CrMo4 |
ISO9809-1 | 203 | 13.4-42.0 | 580-1580 | 20.5-49.0 | TPED | 20 | 30 | 5.4 | 34CrMo4 |
ISO9809-3 | 219 | 19-64.5 | 670-2040 | 25-67.5 | TPED | 15 | 25 | 5.3 | 37Mn |
ISO9809-3 | 219 | 20-50 | 715-1615 | 28-60 | TPED | 15 | 25 | 5.7 | 37Mn |
ISO9809-1 | 229 | 20-55 | 660-1608 | 28.9-61.8 | TPED | 20 | 30 | 5.7 | 34CrMo4 |
ISO9809-1 | 229 | 20-55 | 680-1660 | 36.0-75.0 | TPED | 30 | 45 | 6.95 | 34CrMo4 |
ISO9809-1 | 229 | 20-70 | 715-2160 | 44-120 | TPED | 30 | 45 | 8.5 | 34CrMo4 |
ISO9809-1 | 232 | 38-52 | 1110-1475 | 41-54 | TPED | 20 | 30 | 5.4 | 34CrMo4 |
ISO9809-1 | 232 | 38-74.9 | 1120-2152.5 | 43.4-80.9 | TPED | 23 | 34.5 | 5.8 | 34CrMo4 |
ISO9809-1 | 267 | 50-90 | 1120-1920 | 53-85 | TPED | 16.66 | 25 | 5.9 | 37Mn |
ISO9809-1 | 267 | 50-90 | 1120-1920 | 55-91 | TPED | 20 | 30 | 6.2 | 34CrMo4 |
ISO9809-1 | 356 | 50-200 | 710-2360 | 46-174 | TPED | 20 | 30 | 7.5 | 34CrMo4 |
Product packaging
Product Process
1.Raw material
2.Cutting
3.Bottom forming
4.Bottom concave
5.Milling bottom
6.Bottle mouth forming
7.Heat treatment
8.Bottle thread processing
9.Installation neck ring

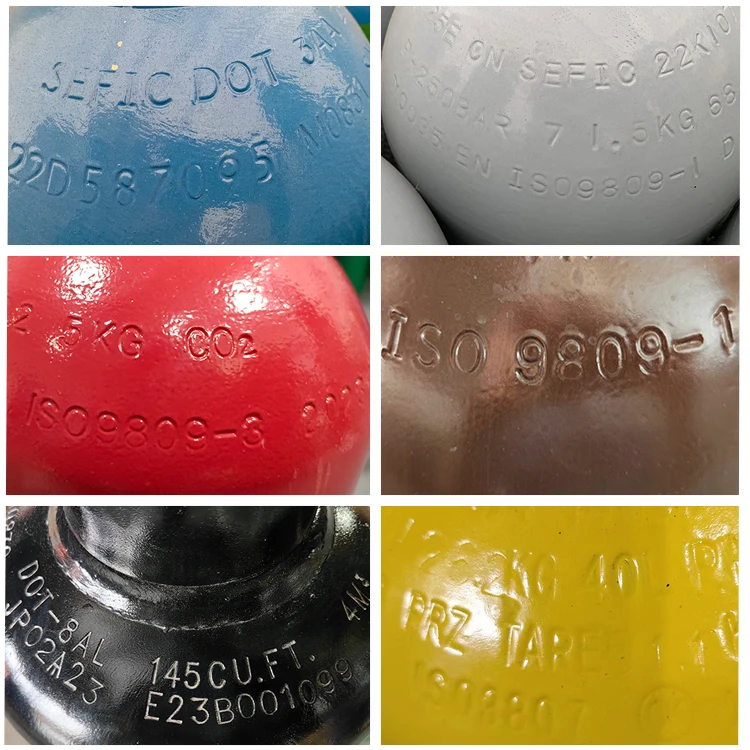

10.Shoulder stamp
11.Water pressure test
12.External polishing
13.Inner polishing
14.Spray paint

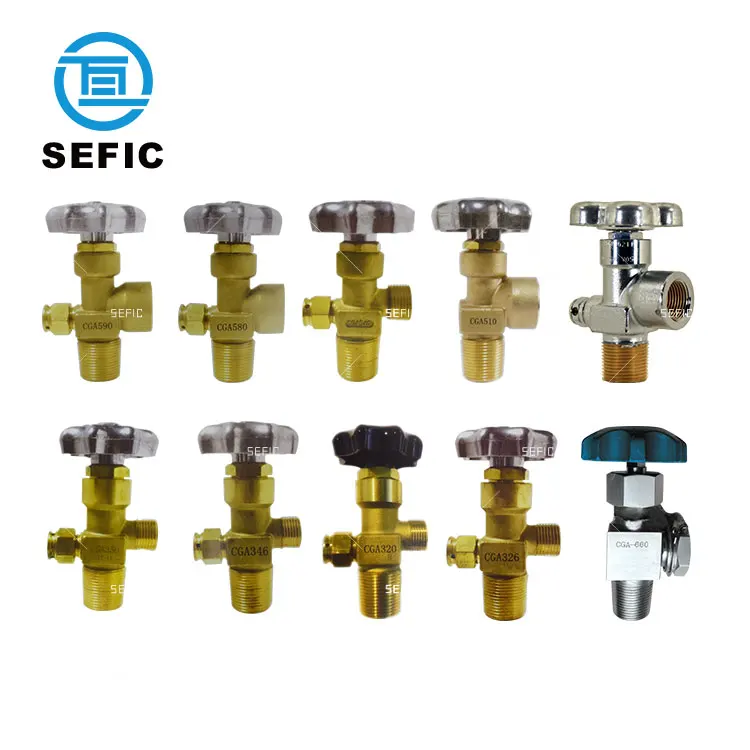

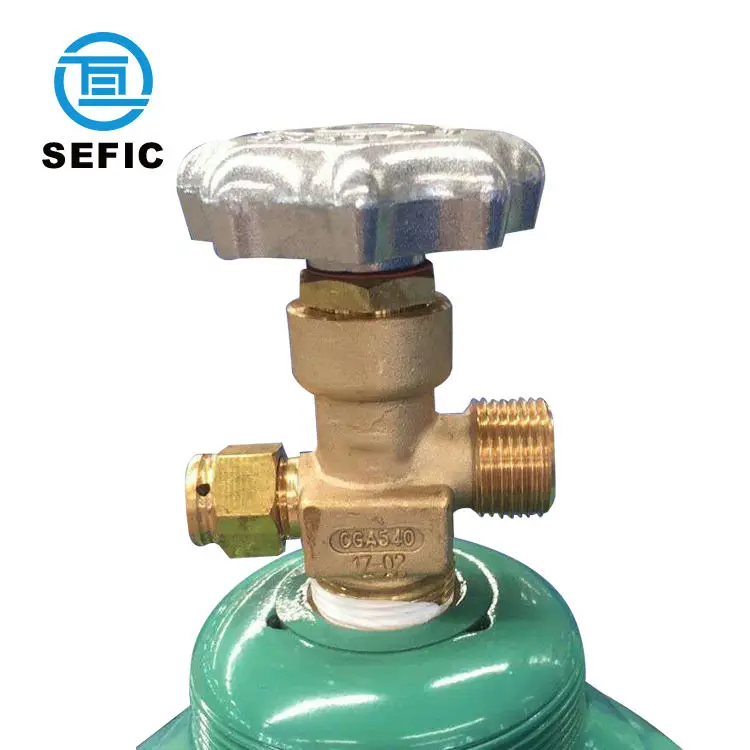

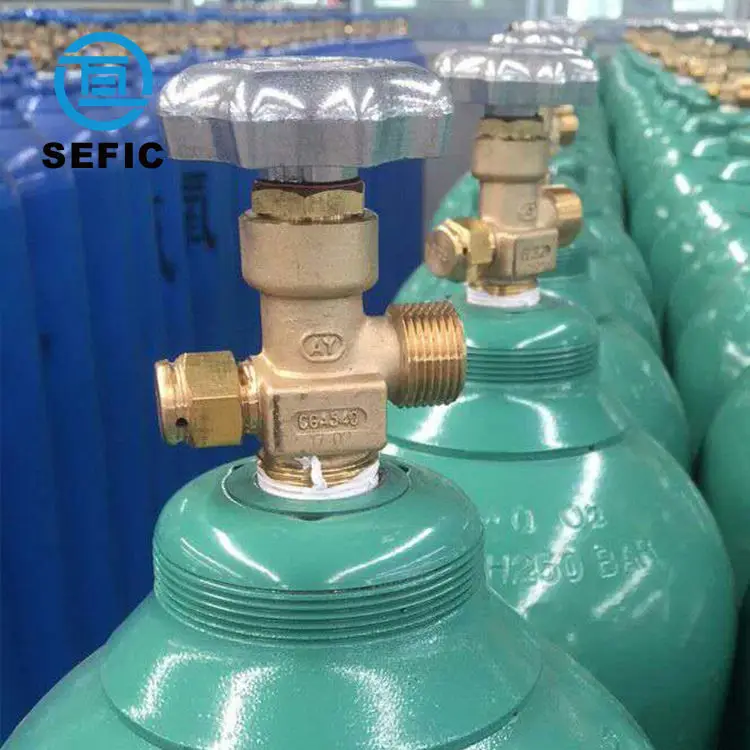

15.Valve installation
16.Airtight test
Company Profile
Located in Shanghai, SEFIC is a professional supplier of gas and gas equipment. Founded in the 90s, the company has already accumulated enough experience and became one of the best suppliers of all kinds of gas and gas equipment. Besides, it is one of the earliest in the country to gain the License of Pressure Vessel Type A2 and C2, ISO9001 and ISO14000 Certification, Private Hi-Tech Enterprise, Hi-Tech Enterprise, and Special Equipment Manufacture Permission.We almost can supply all kinds of gas cylinders with TUV, TPED, CE and PED certification.
We can supply gas cylinders with ISO9809-1/ISO9809-3/ISO7866/ISO3807/DOT3AA/DOT8AL/DOT3AL
/ISO11439:2013 /ASME/EN12245/EN1251/ISO4706,DOT 4BA,DOT4BW, EN1442 /DNV2.7-1/EN12205 /ISO11118 and so on standards and support customization needs.

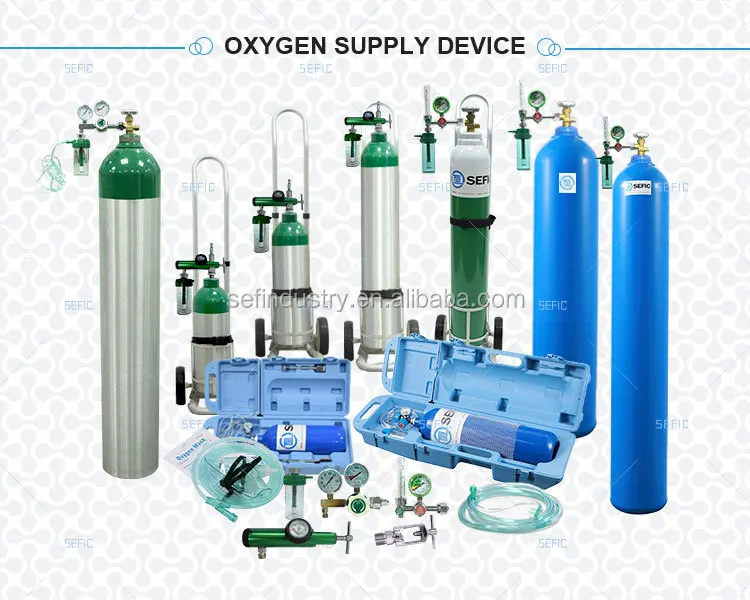

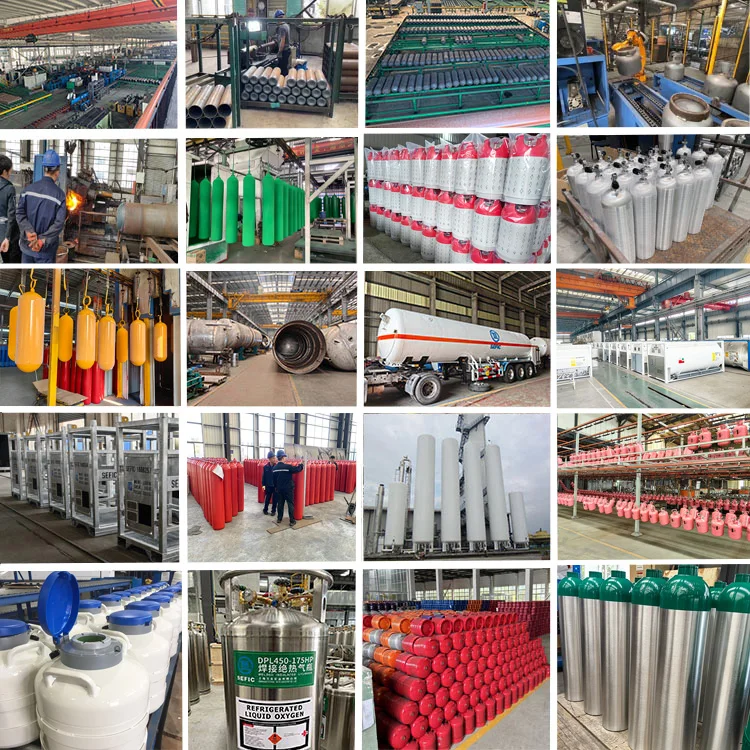

Our main products :Seamless Steel Gas Cylinder,Medical/CO2/Diving Aluminum Cylinder,CNG Cylinder,LPG Cylinder,Carbon fiber Cylinder,Helium Tank For Balloons,Cryogenic Tank,Gas Cylinder Rack,Dewar Tank,Air Separation Plant,PSA,Semi-Trailer,Microbulk Tank,LNG Station,Valve.
We can supply gas cylinders with ISO9809-1/ISO9809-3/ISO7866/ISO3807/DOT3AA/DOT8AL/DOT3AL
/ISO11439:2013 /ASME/EN12245/EN1251/ISO4706,DOT 4BA,DOT4BW, EN1442 /DNV2.7-1/EN12205 /ISO11118 and so on standards and support customization needs.
Our main products :Seamless Steel Gas Cylinder,Medical/CO2/Diving Aluminum Cylinder,CNG Cylinder,LPG Cylinder,Carbon fiber Cylinder,Helium Tank For Balloons,Cryogenic Tank,Gas Cylinder Rack,Dewar Tank,Air Separation Plant,PSA,Semi-Trailer,Microbulk Tank,LNG Station,Valve.
We also put the common product samples in our headquarters office for the convenience of customers to view samples and know more product information of SEFIC. If you need the relevant product information, catalogues and samples are provided; Any call or emails are welcomed, or you can also visit SEFIC official website: www.sefic.com.cn or leave messages on the product page, SEFIC will be happy to serve you!
SEFIC has rich experience in business operating and management, and own capability of processing various gas cylinders.SEFIC have adopted certifications of ISO by International Standardization Organization, DOT of America, TC of Canada, TUV of Germany, KGS of Korea and some other certifications. Adhering to the Corporate Philosophy of “ regard quality as credit, credit as brand and brand as life”, and “Repeat simple things, do repeated things with heart, quality goods comes out of concentration”. With safe and dependable products and quality service, SEFIC has established good corporate image and won recognition and praise of the industry.
We have more than 30 years experience in gas equipment industry and have gained a sound reputation all over the world. Our products have served customer satisfaction from more than 50 countries all over the world. So far, our business has expanded globally to countries and regions such as the US, EU (mainly Germany, Portugal, Romania and Bulgaria), South America (mainly Chile, Peru and Bolivia), and Africa (mainly Angola and South Africa).
With high-quality products, competitive prices, fast delivery time and superior service, SEFIC won the customer's trust and praise. Since 2005, SEFIC has established trade relations with more than thirty thousand customers in more than 50 countries and regions. Many of our VIP clients have visited SEFIC repeatedly and discussed the regional agency service with us. Currently, SEFIC has established product agency services with clients in Italy, Saudi Arabia, South Africa，Australia , Mexico, Kuwait, Chile and other countries and regions.Cooperation with SEFIC, we have the following advantages：
FAQ
1、What is the capacity of the Gas Cylinder Price you can provide?
A: We can offer 2L- 120L cylinders as your required.
2、 What is the delivery time of the Gas Cylinder Price in sefic?
A: 25 Days once deposit received and workshop drawings confirmed about the cylinder.
3、What certificates do you provide for Gas Cylinder Price ?
A:We are authorised by ISO9809-1/ISO9809-3/ISO3807/ISO7866/DOT3AA/DOT8AL/DOT3AL standard.
4、Do you have any protection for the head of the Gas Cylinder Price ?
A: Yes, in SEFIC, each cylinder tube is equiped with a tulip cap which can make sure the safety of the gas cylinder during the transportation.
5、Why SEFIC is more worthy of our choice?
A:（1）Original Manufacturer: SEFIC has professional equipments for gas cylinders.
（2） Large Output capability: SEFIC has the capability to produce more than 50,000pcs of Gas Cylinders per month.
（3）Series: SEFIC has different series and models for different standards.
（3）Series: SEFIC has different series and models for different standards.
（4）Exporting experience: We have 30 years' experience for exporting business.
