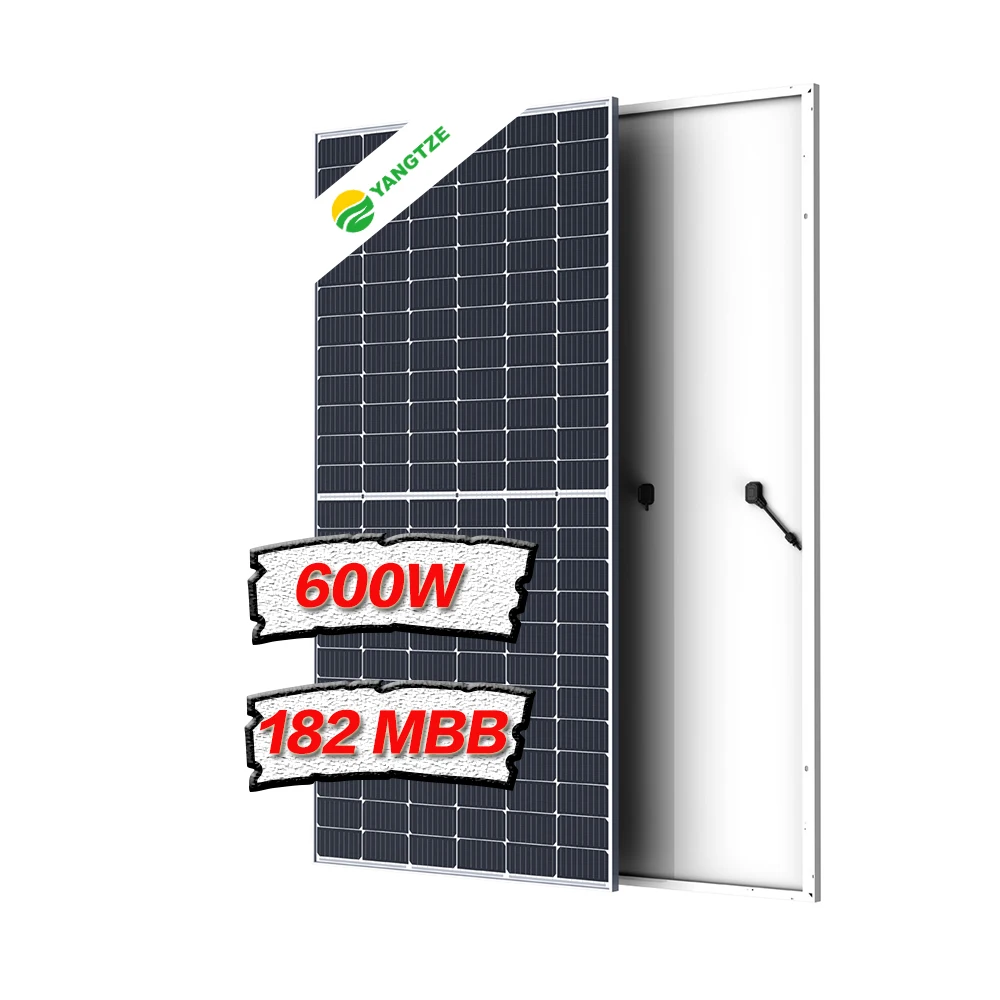

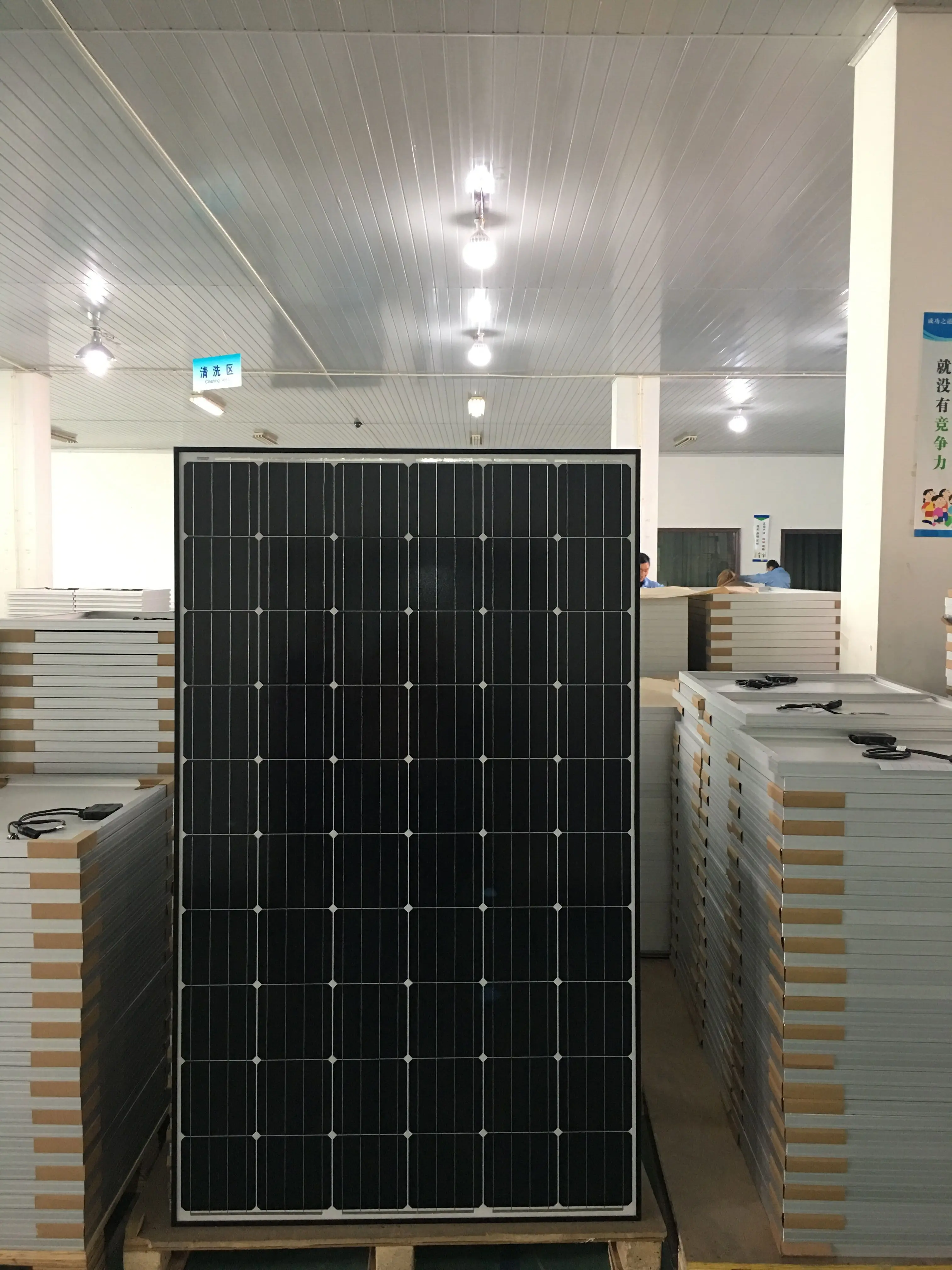

Yangtze 600 Watt Monocrystalline Solar Cell Scribing and Encapsulation Machine OEM Power with Glass Front Cover TUV Certified
- Category: >>>
- Supplier: Hefei Yangtze Solar Power Co. Ltd.
Share on (1601040208056):
Product Overview
Description
Product Description&Specification
Model Type | YS550M-72 | YS560M-72 | YS570M-72 | YS580M-72 | YS600M-72 | |||||
Rated Maximum Power at STC | 550W | 560W | 570W | 580W | 600W | |||||
Maximum Power Voltage (Vmp) | 40.9V | 41.1V | 41.3V | 41.5V | 42.1V | |||||
Maximum Power Current (Imp) | 13.45A | 13.63A | 13.72A | 13.98A | 14.25A | |||||
Open Circuit Voltage ( Voc) | 49.62V | 49.72V | 49.82V | 49.91V | 49.99V | |||||
Short Circuit Current (Isc) | 14.03A | 14.33A | 14.62A | 14.81A | 14.97A | |||||
Module Efficiency | 21.33% | 21.72% | 22.1% | 22.49% | 23.27% | |||||
Working Conditions&Working Conditions | ||||||||||
Operating Temperature | -40°c~+85°c | |||||||||
Maximum System Voltage | DC 1000V(IEC) / 1500V(IEC) | |||||||||
Maximum Series Fuse | 25A | |||||||||
Power Tolerance | 0~+5W | |||||||||
Temperature Coefficient of Pmax | -0.35%/°c | |||||||||
Temperature Coefficient of Voc | -0.29%/°c | |||||||||
Temperature Coefficient of Isc | +0.048%/°c | |||||||||
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5 | ||||||||||
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S | ||||||||||

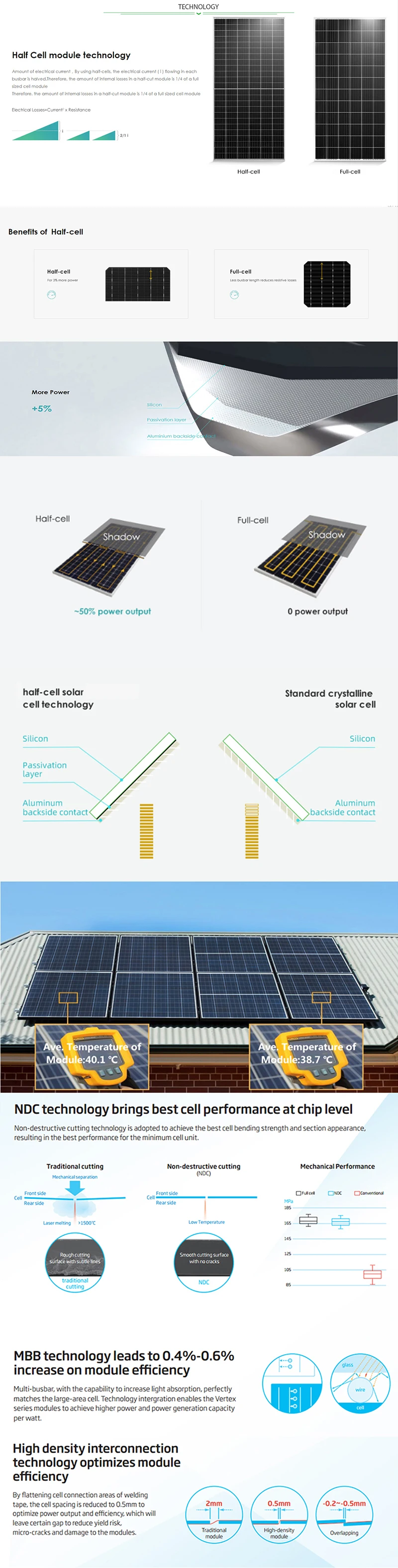

Manufacturing Technique

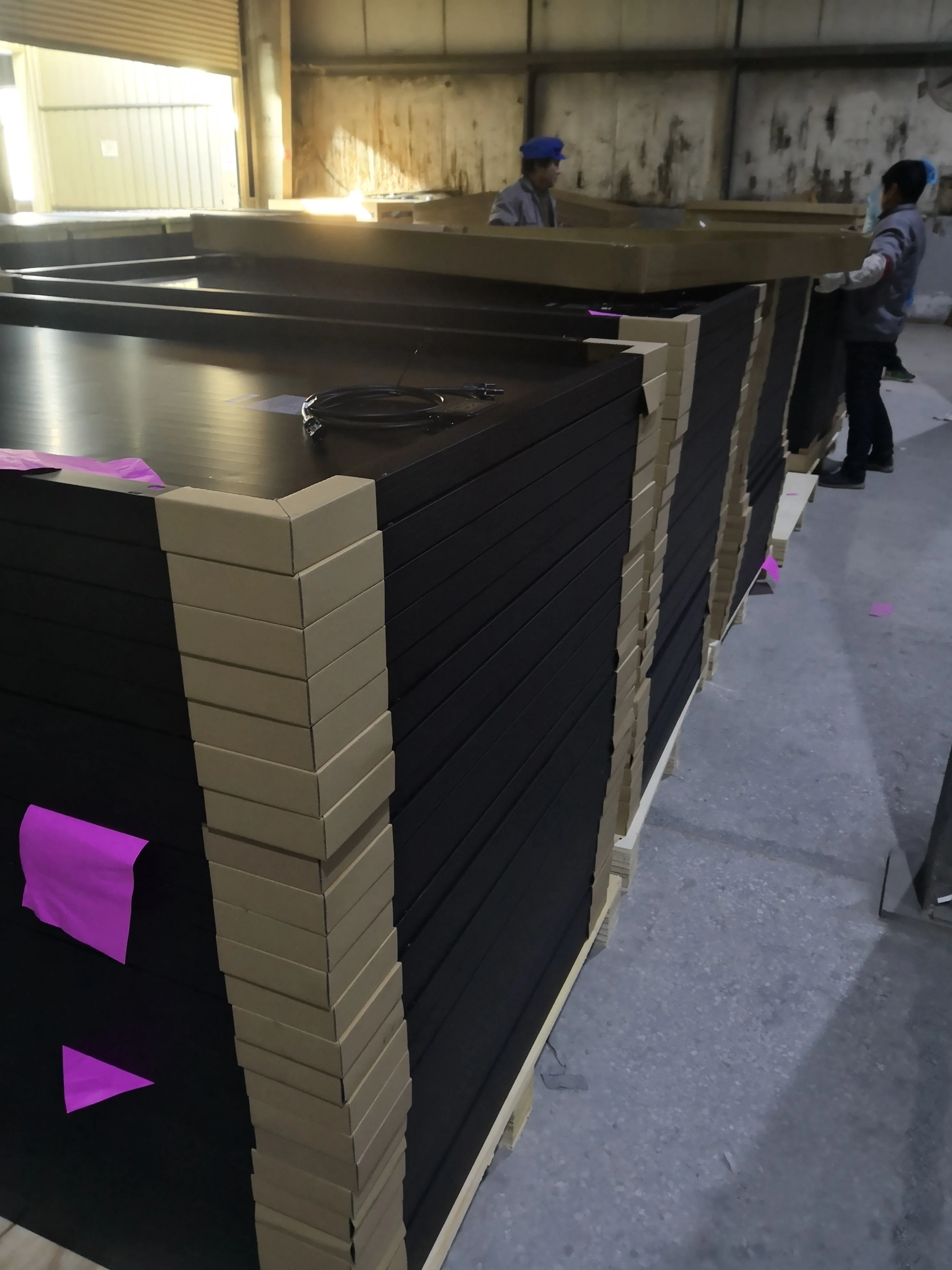

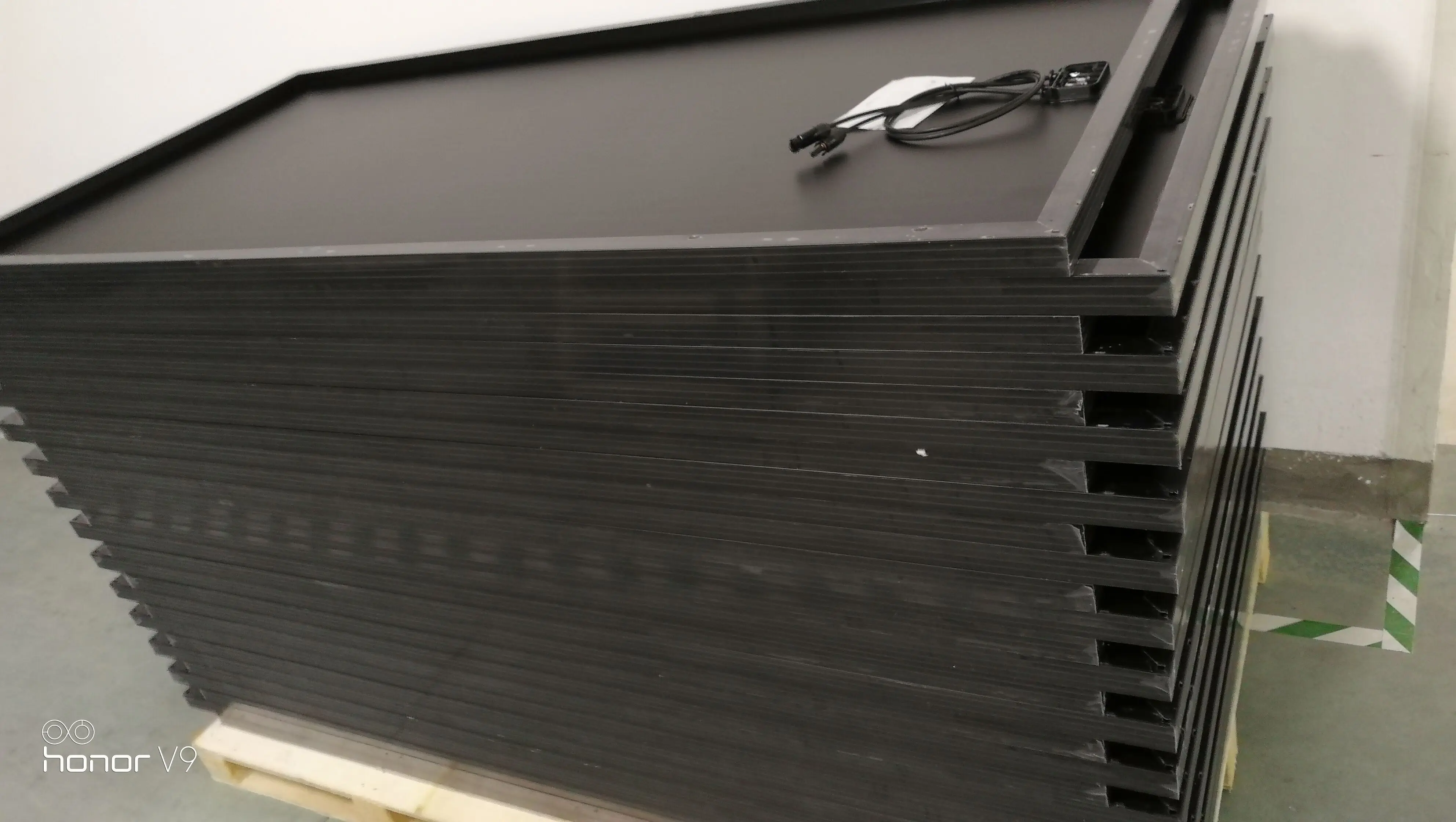

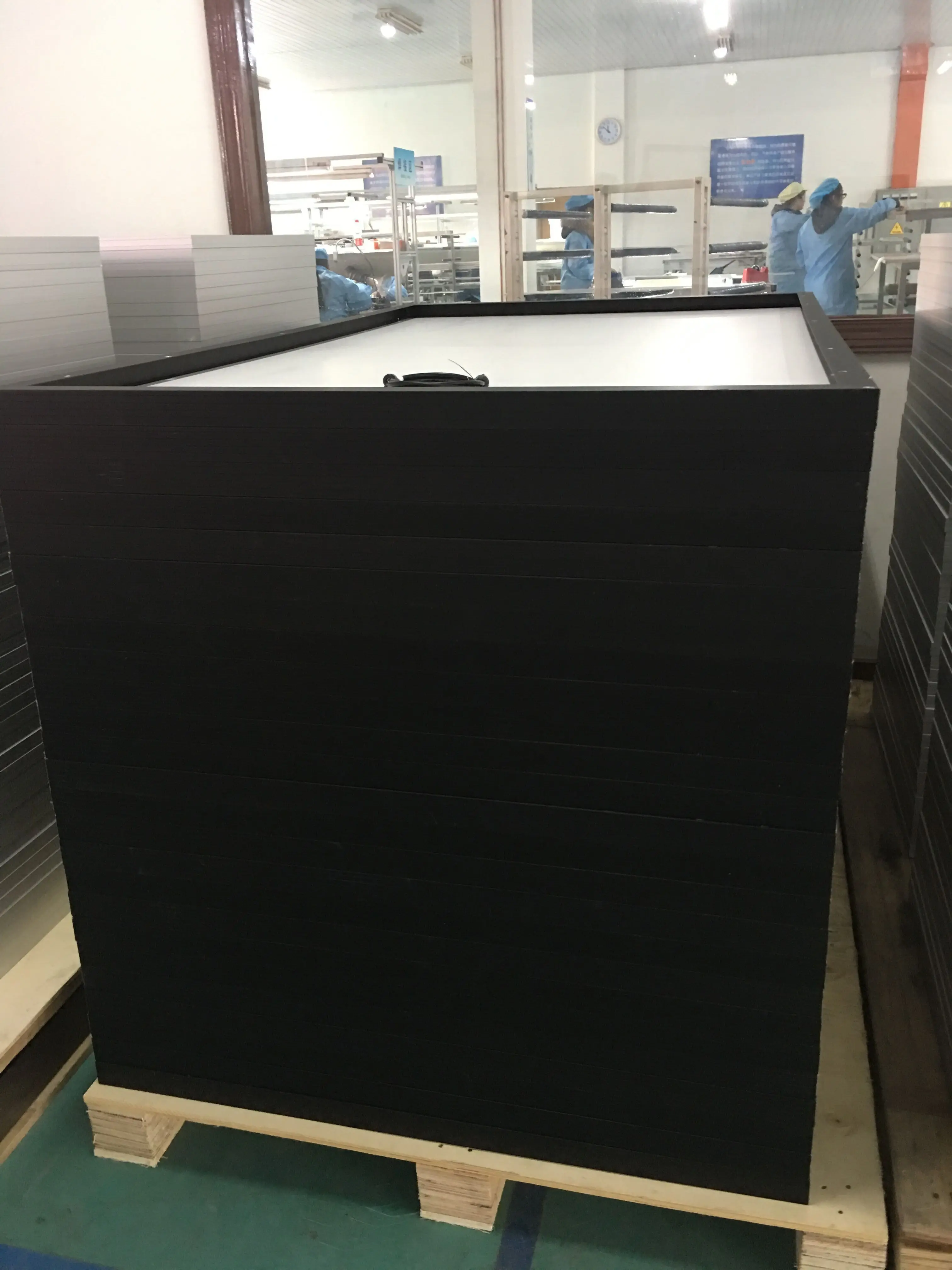

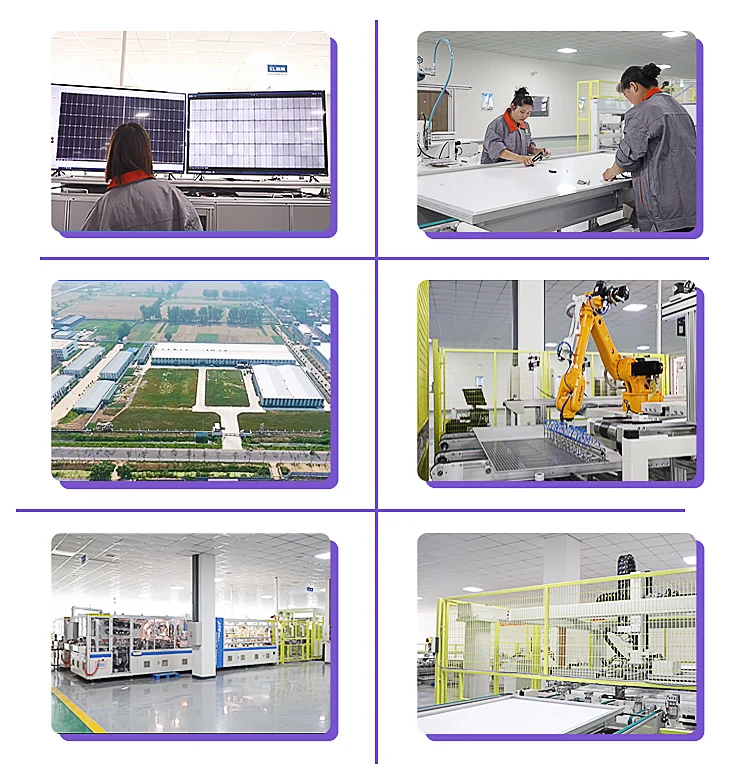

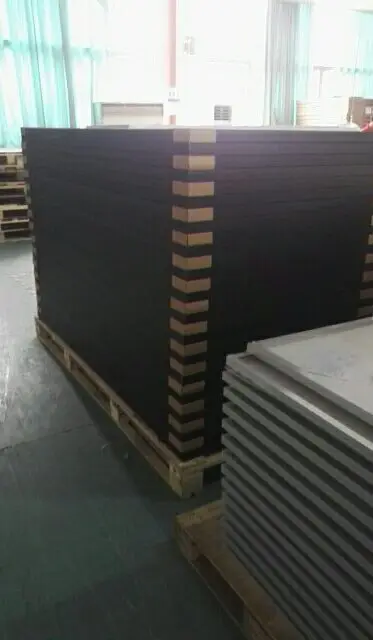

Our Factory&Packaging
Factory Details:
♦ Founded in 1994 , 300MW solar panel production capacity , millions of battery, charge controller and inverter production
capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
capacity
♦ Three factories , solar panel factory , battery factory , solar charge controller and inverter factory
♦ Products are exported to more than 150 countries
♦ Products are certified by TUV(Germany) ,CE
♦ Turn-key solar systems are offered , to save the time and money for the clients
♦ Rich experience in overseas construction of solar projects
Certifications
Solar Project
Exhibition

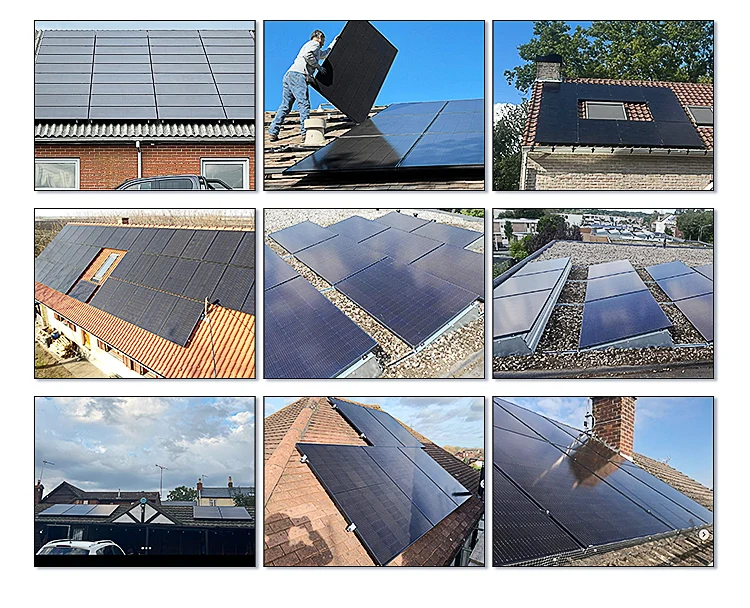

Customer Photos
