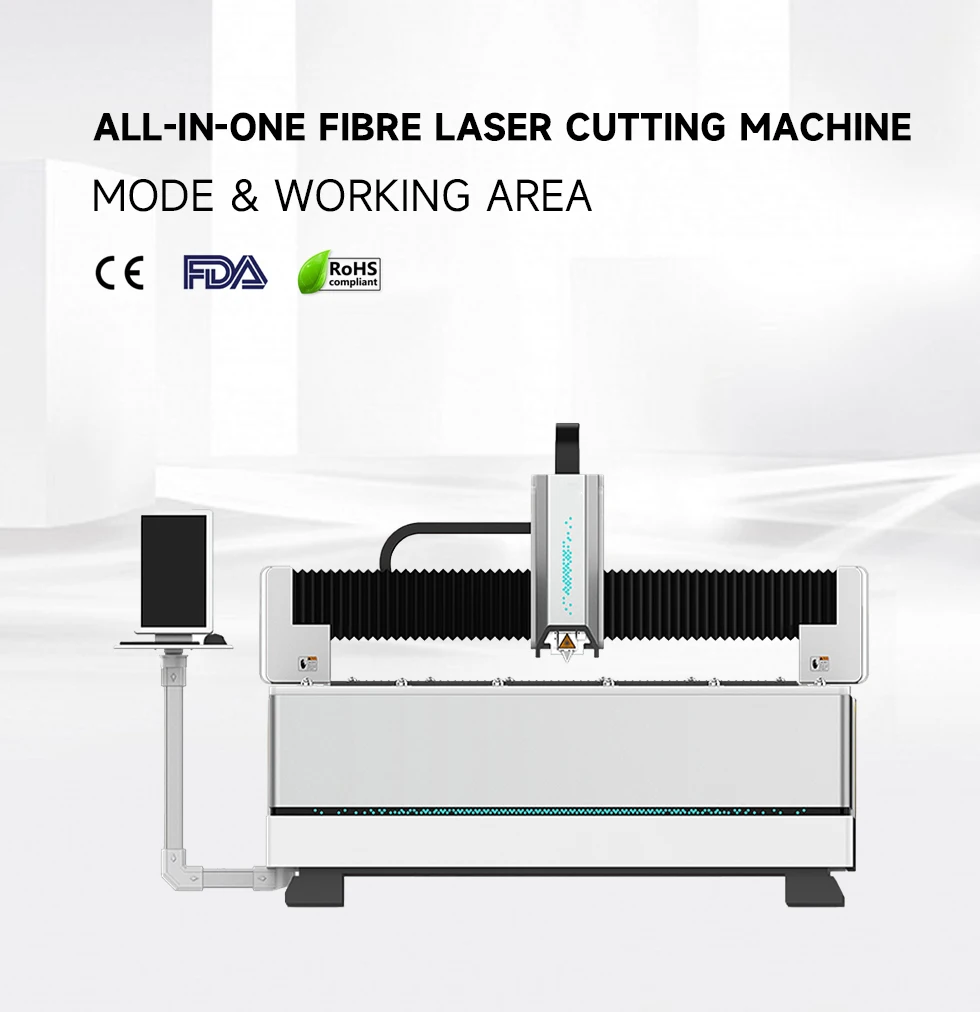

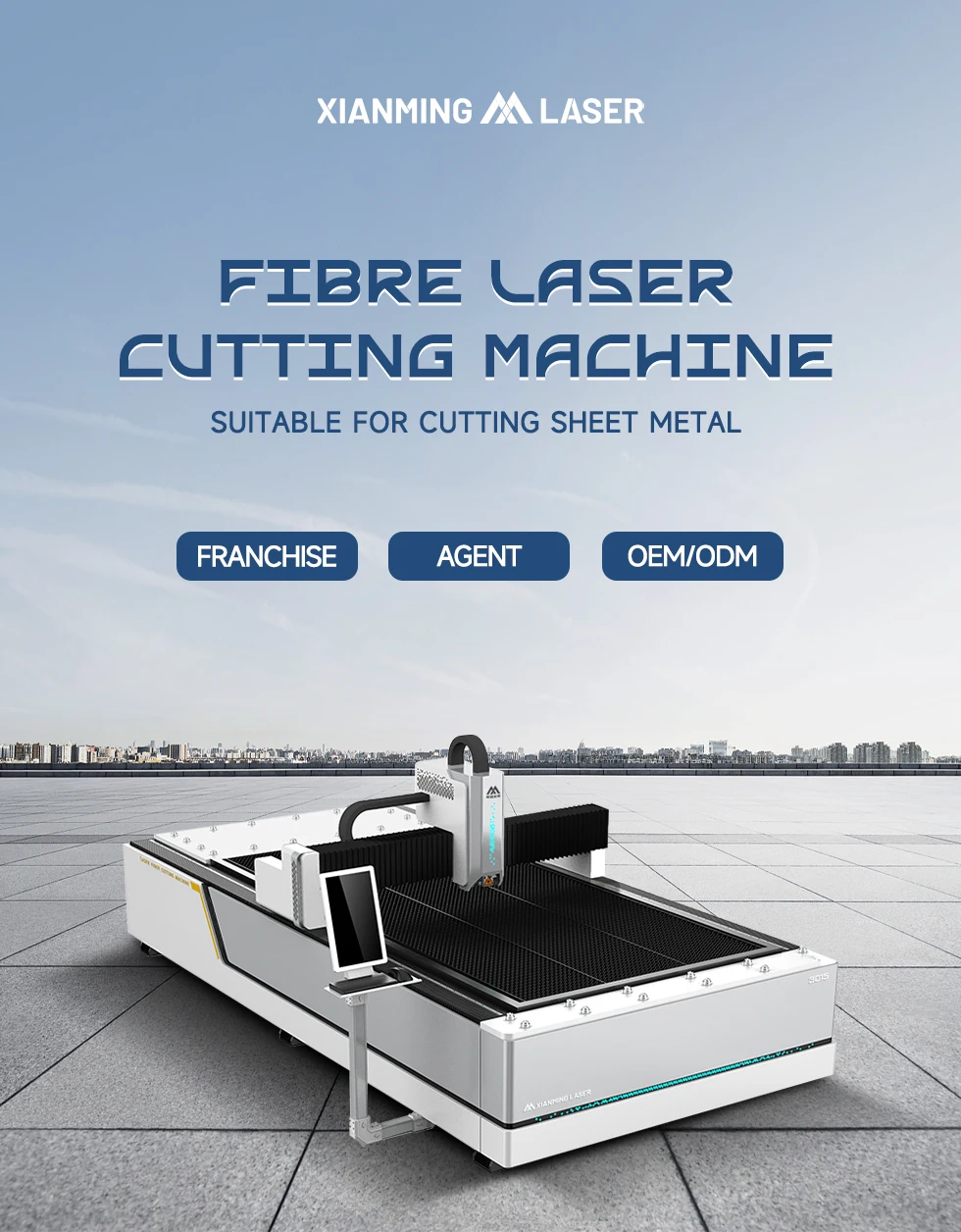

XM 1530 3015 Raycus Stainless Steel Laser Cutting Machine Fiber 4KW 1500W 2000W Metal Laser Cutting Machine
XM 1530 3015 Raycus Stainless Steel Laser Cutting Machine Fiber 4KW 1500W 2000W Metal Laser Cutting Machine
XM 1530 3015 Raycus Stainless Steel Laser Cutting Machine Fiber 4KW 1500W 2000W Metal Laser Cutting Machine
XM 1530 3015 Raycus Stainless Steel Laser Cutting Machine Fiber 4KW 1500W 2000W Metal Laser Cutting Machine
XM 1530 3015 Raycus Stainless Steel Laser Cutting Machine Fiber 4KW 1500W 2000W Metal Laser Cutting Machine
XM 1530 3015 Raycus Stainless Steel Laser Cutting Machine Fiber 4KW 1500W 2000W Metal Laser Cutting Machine
XM 1530 3015 Raycus Stainless Steel Laser Cutting Machine Fiber 4KW 1500W 2000W Metal Laser Cutting Machine

XM 1530 3015 Raycus Stainless Steel Laser Cutting Machine Fiber 4KW 1500W 2000W Metal Laser Cutting Machine

Share on (1601040229002):


Price:$8,559.00 - $12,999.00

Quantity:


Product Overview

Description

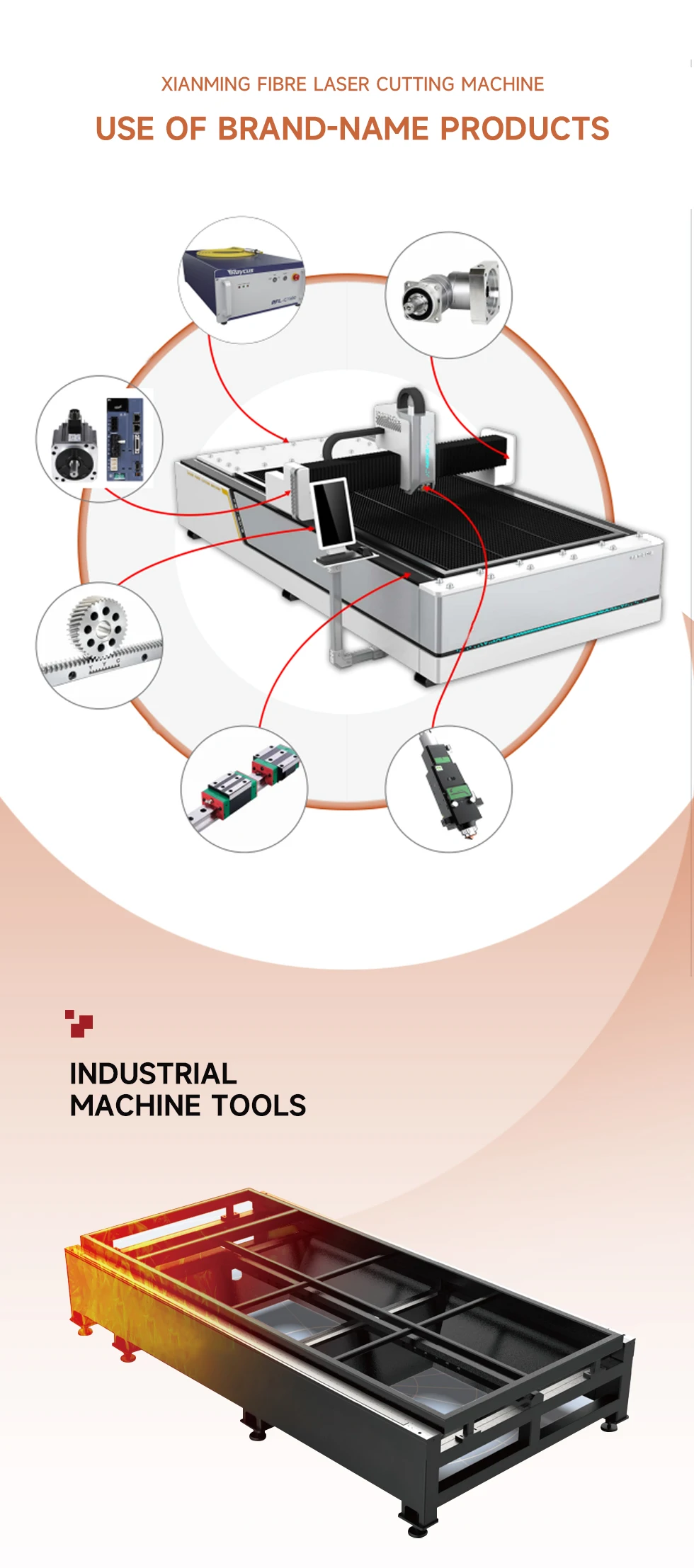

Main Configuration
Model
XM-I Series
Control System
CypOne-Friendess
Driver and Motors
Japan Fuji Servo Motor System

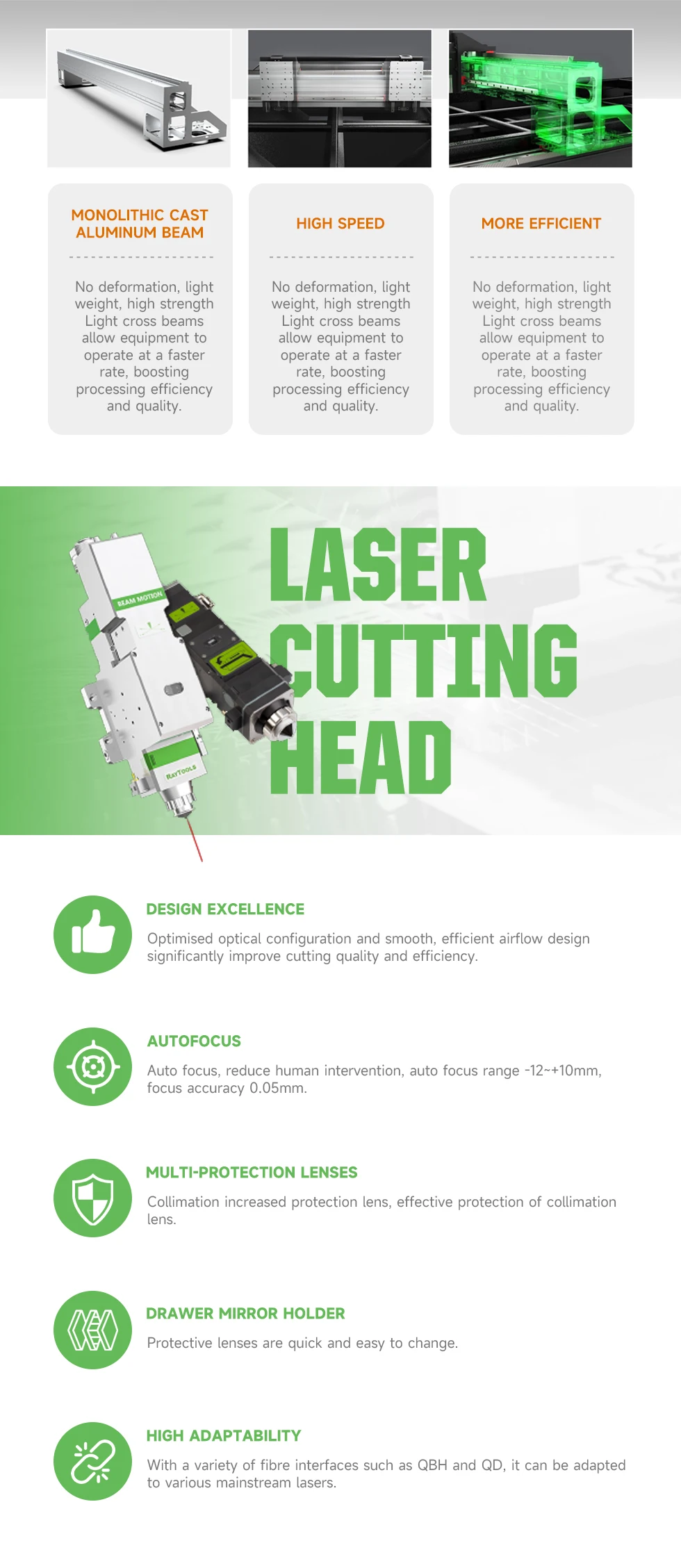

Fiber Laser Head
Raytools BT240S Laser Head
Fiber Source
Raycus or Max
Lubrication System
Electrical Motored
Guide Rails
Taiwan HIWIN Rails
Rack and Gear
Taiwan YYC Rack
Driver system power
X=750W,Y=750W,Z=400W
Reducer
Janpan SHIMPO
Electron Component
DELIXI ELECTRIC
Chiller
HanLi/S&A
Voltage
220V 1Ph or 380V 3Ph,50/60Hz
xmross weight
1.5T


PRODUCT DETAILS








Product Parameters


Technical Parameters
Model
XM-3015 Fiber Laser Cutting Machine
Working Size
1500*3000mm
Laser Power
1000W
Laser Wavelength
1080nm
Laser Beam quality
<0.373mrad
Working Life of Fiber Source
More than 10,0000hours
Position Type
Red Dot Pointer

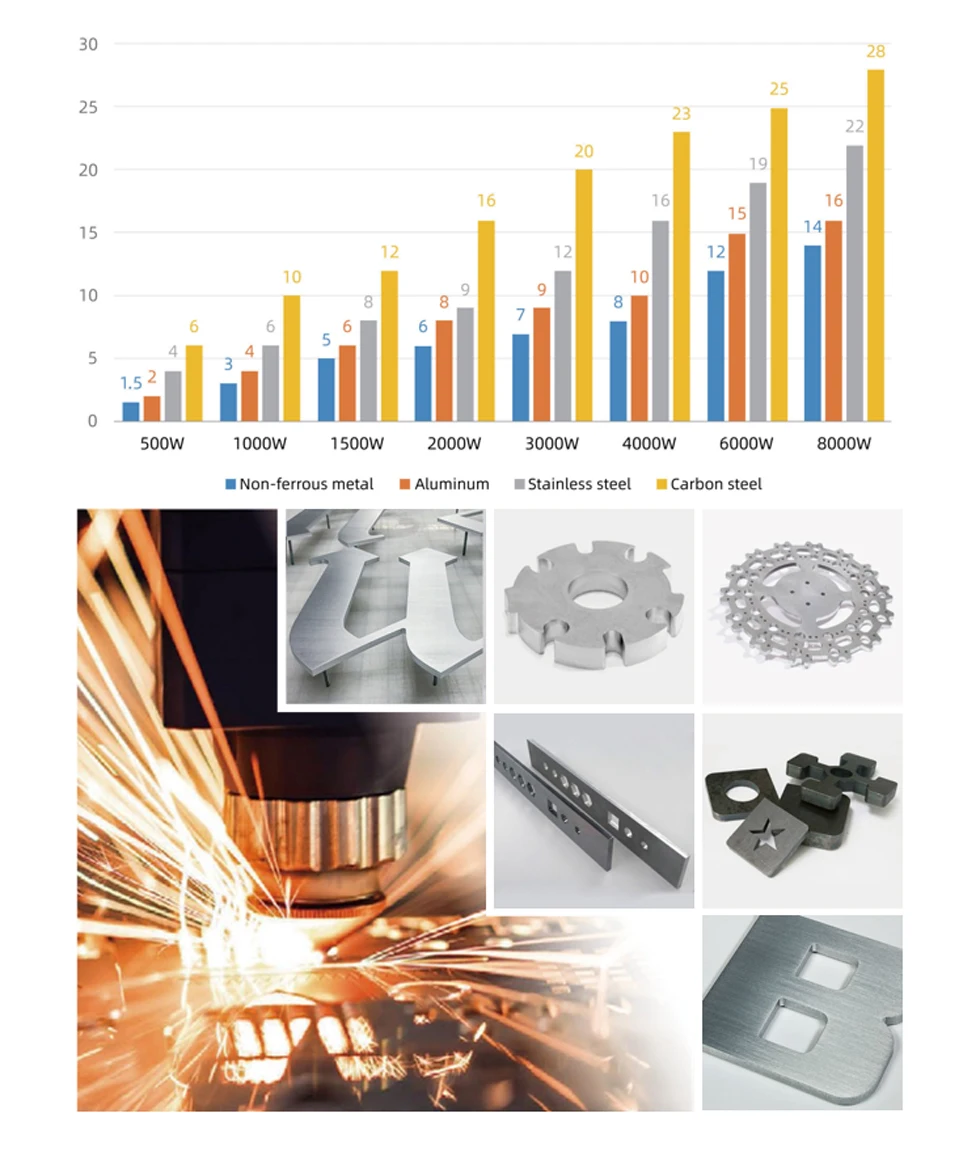

Cutting Thickness
0.5-10mm Within The Range Standard Precision
Max.Idle Running Speed
80-110M/min
Max acceleration
1G
Reorientation Accuracy
Within ±0.01mm
Lubrication System
Electrical Motored
Cooling mode
Water cooling and protection system
Machine power
≤9.3KW
Auxiliary Gas for Cutting
Oxygen,Nitrogen,Compressed Air
Compatible Software
AutoCAD,CorelDraw,etc.
Handle Control
Wireless Control Handle
Graphic Format
DXF/PLT/AI/LXDGBX/NC code
Power Supply Voltage
220V 1Ph or 380V 3Ph,50/60Hz
Warranty
2 Years




Products APPLICATTION

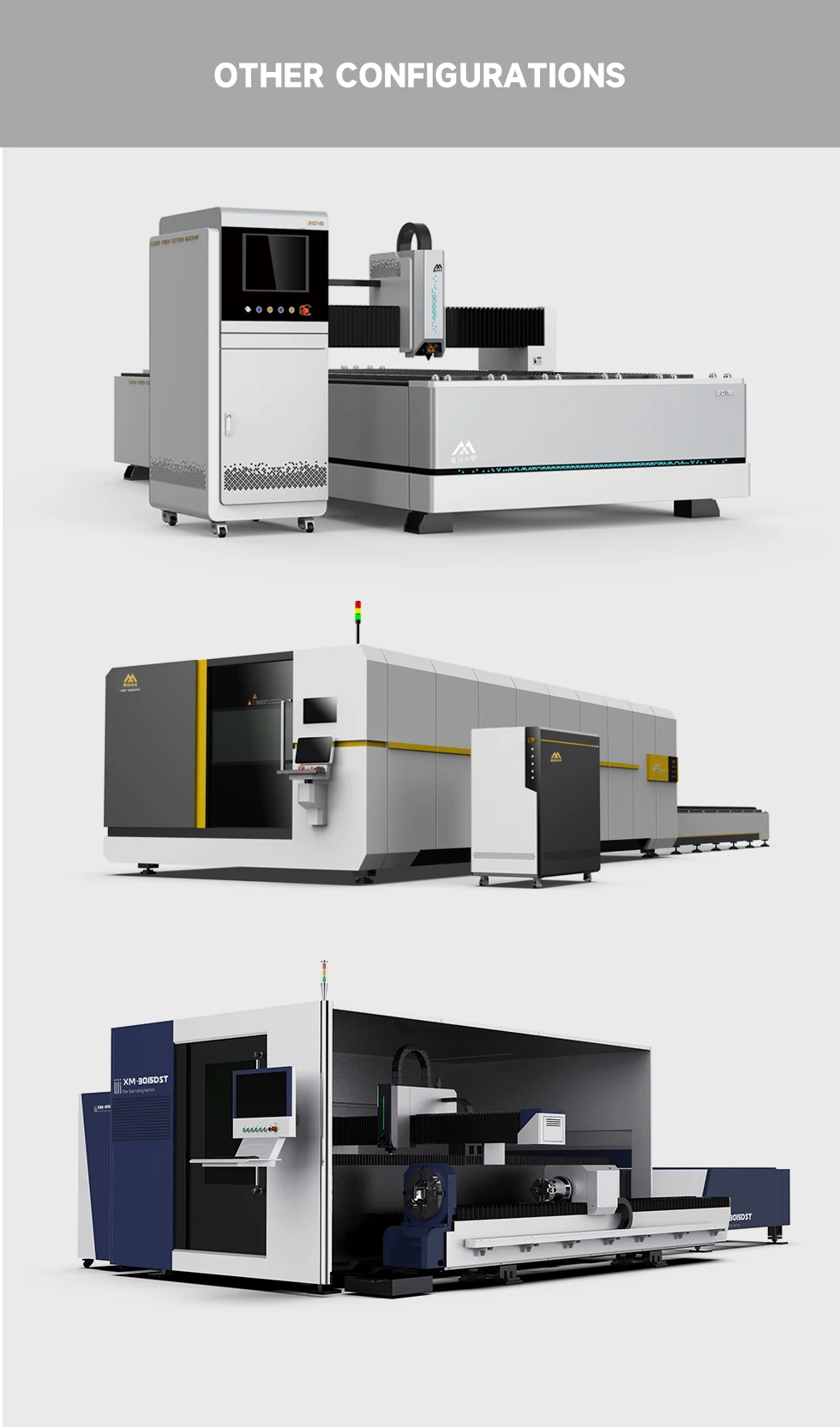

Optional Configuration
Model
Detail
Difference of Price
Control System
CypCut
USD
Driver and Motors
Yaskawa Servo Motor System
USD
Fiber Laser Head
RAYTOOLS BM110 Automatic Focus Laser Head
USD
Stabilizer
Made in China
USD
Exhaust fan
3KW
USD
Wooden packing
With metal bracket
USD
