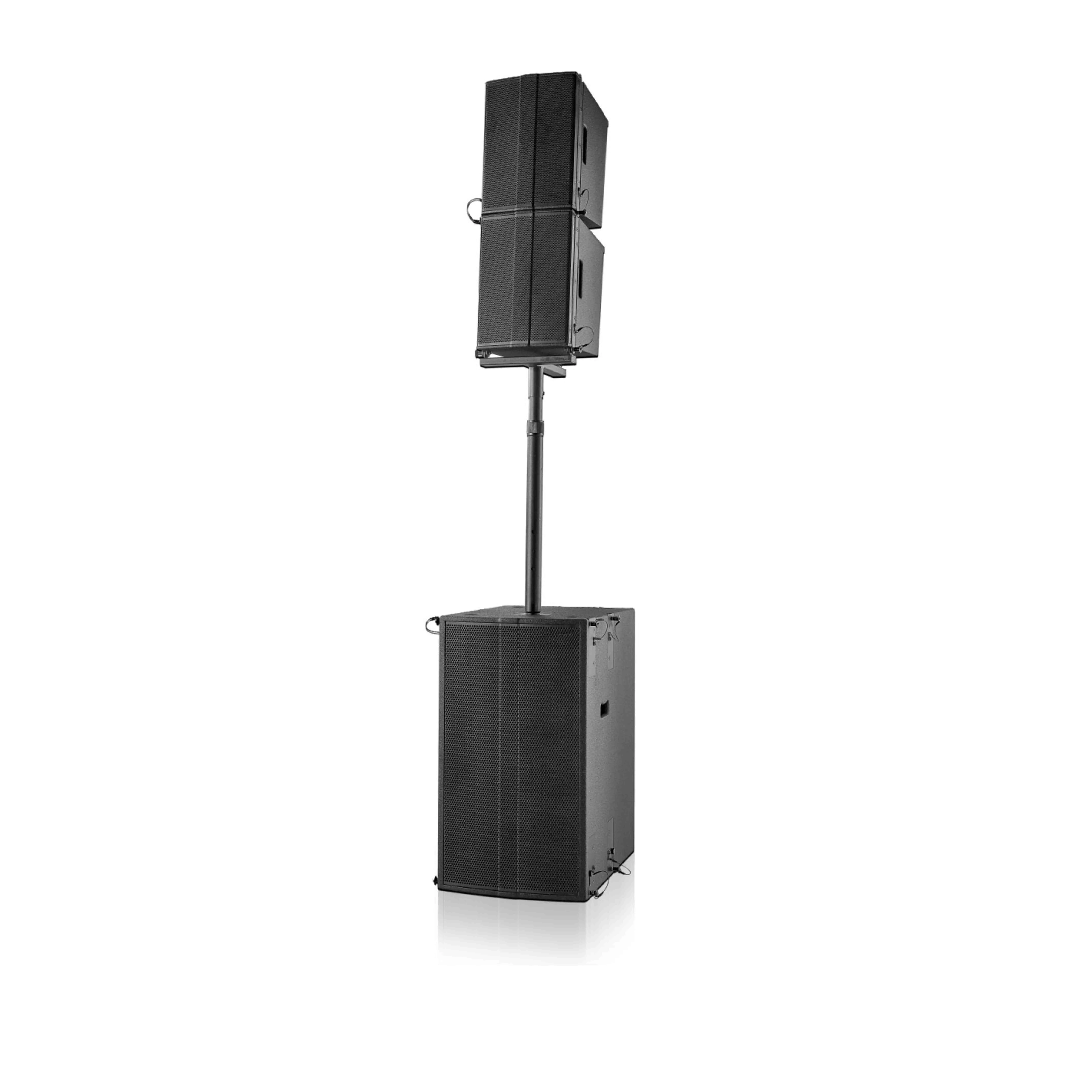

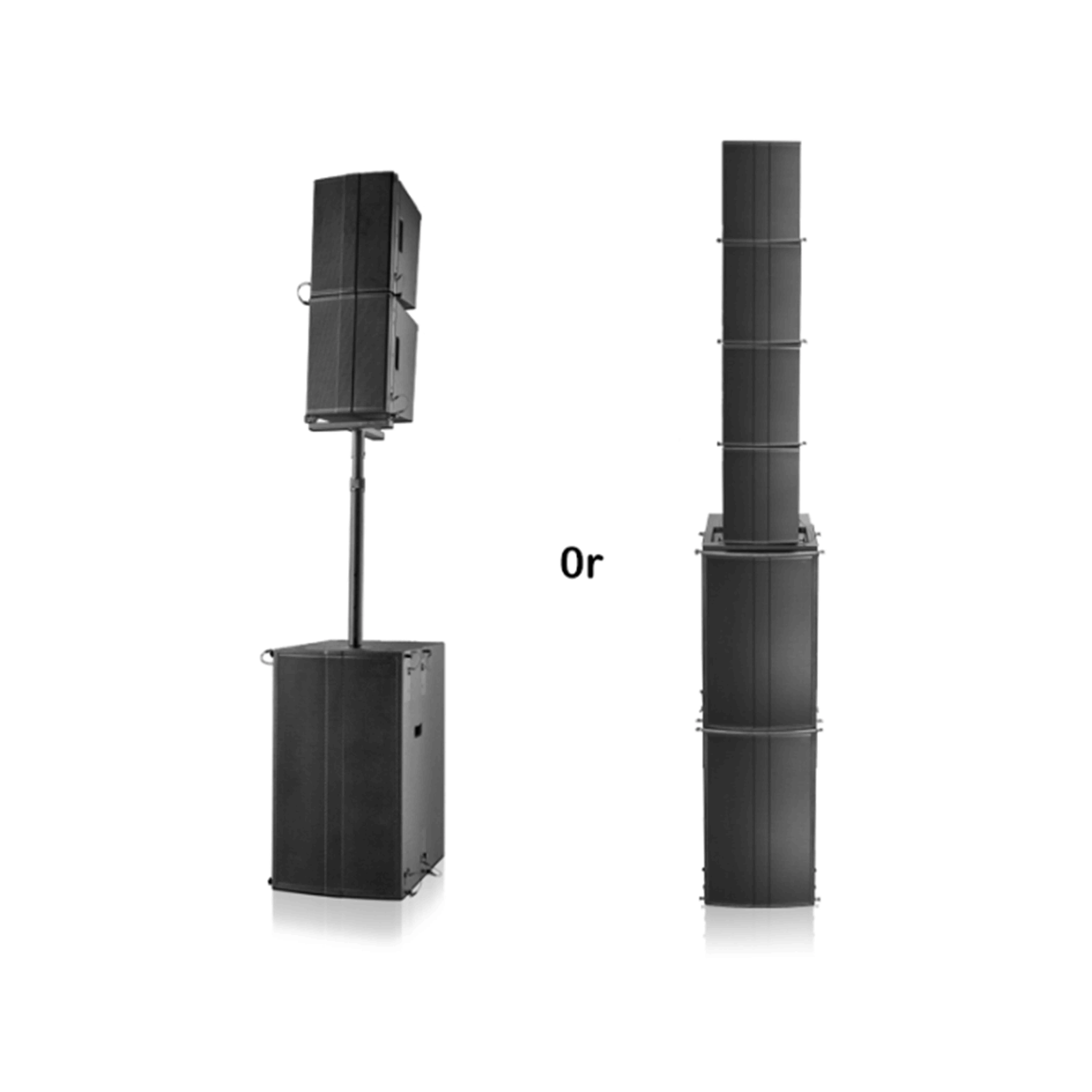

DSPPA Professional line array speaker sound system for stage live performance
- Category: >>>
- Supplier: Guangzhou DSPPA Audio Co. Ltd.
Share on (1601040277265):
Product Overview
Description
Extra Discount?
Details Images
Feature
● Employs imported neodymium magnetic components.
● Features a built-in DSP audio processing module for accurate fine-tuning.
● Utilizes a high-power, single-channel class-D active amplifier module.
● Compact and lightweight, yet highly efficient.
● Easy to transport and install.
● Ideal for use in various settings such as Churches, Conference Rooms, Theaters, Theme Parks, Museums, and Hotels
● Features a built-in DSP audio processing module for accurate fine-tuning.
● Utilizes a high-power, single-channel class-D active amplifier module.
● Compact and lightweight, yet highly efficient.
● Easy to transport and install.
● Ideal for use in various settings such as Churches, Conference Rooms, Theaters, Theme Parks, Museums, and Hotels
Product Paramenters
Model | LA-8300 |
Unit Component | MF 8×3” neodymium magnetic unit, HF 8×1” neodymium magnetic unit, with cooling module |
Horn Coverage (-6dB) | 120°(H)×16°(V) |
MAX. SPL. (PEAK) | 124dB (continuous)\\130dB (peak) |
Frequency Range (±0.25dB) | 20Hz~20KHz |
Signal Processing | 48kHz, 24-bit DSP processor, delay: input 120ms/output 20ms, filter, EQ, compressor, limiter |
Amplifier Power | Class-D, 8Ω/2×300W |
S/N Ratio | ＞100dB |
Damping Factor | ＞300 (under the condition of 8Ω load, 400kHz) |
Distortion | ＜0.05% (under the condition of 20Hz~20KHz, 8Ω load, 3dB) |
Gain | 34dB |
Signal Input/Output | XLR 3-pin female line-level input |
Power Input/Output | Neutrik PowerCon (Max: 15A) |
Power Supply | AC100~240V, 50/60Hz |
Control | On/Off switch |
Protection | Input current limiter, short circuit protection, on/off mute, DC fault protection, power limiter |
Case Material/Painting | 15mm selected multi-layer wood panel, black polyurea paint |
Product Dimensions (H×W×D) | 360mm×260mm×288mm |
Net Weight | 13Kg |
Model | LA-212SUB |
Unit Component | LF 2×12” (300mm) neodymium magnetic woofer |
MAX. SPL. (PEAK） | 134dB |
Frequency Response (±3dB) | 50Hz～300Hz |
Digital Amplifier Module | DSP processor, class-D amplifier |
Amplifier Channel/Power | Single channel, 1500W/8Ω |
THD | ＜0.1% |
Input/Output | XLR (balanced) |
Power Supply | AC110V~250V, 50Hz/60Hz |
Product Dimensions (H×W×D) | 706mm×400mm×580mm |
Net Weight | 38.5Kg |
