All Kind Of Seeds Olive Cotton Seeds Palm Sunflower Coconut Oil Processing Machine Cooking Oil Extraction Oil Press Machine
- Category: >>>
- Supplier: Henan Kaidi Machinery Equipment Co. Ltd.
Share on (1601040348850):
Product Overview
Description
Product overview
The screw oil press has multiple functions such as automatically controlling heating, oil pressing, and filtering. It can heat the pressing chamber before pressing, improve oil yield, and filter the crude oil in a timely manner during the pressing process. The screw oil press uses very little electricity, occupies only a few square meters, realizing the automation of production. Moreover, this type of oil press continues to maintain the advantages of simple structure and long service life of the hydraulic oil press.
Product structure
The screw oil press is mainly composed of five parts: an automatic control part, a heating and pressing part, an adjustment part, a transmission part, and a vacuum oil filter.
Product Specifications
Model | 60 | 80 | 100 | 125 | 150 |
Screw diameter | 55mm | 80mm | 101mm | 125mm | 150mm |
Screw speed | 52r/min | 47r/min | 38r/min | 36r/min | 35r/min |
Capacity | 30-60kg/h | 70-140kg/hkg/h | 150-250kg/h | 250-360kg/h | 300-460kg/h |
Power | 2.2kw | 5.5kw | 7.5kw | 15kw | 18.5kw |
Weight | 220kg | 770kg | 1100kg | 1200kg | 1500kg |
Dimension（mm） | 1300×800×1150 | 1650×1200×1500 | 1800×1300×1650 | 2100×1400×1700 | 2200×1500×17500 |
Advantages of oil press
1. It can save labour and save cost : only 1 or 2 person can finish the production.
2. Different oil materials have different oil yielding.
3. Small-land using: only 10-20 square maters can meet the need of production.
4. Cake thickness can be adjusted once the machine stop running.
5. It is easy to operate .
2. Different oil materials have different oil yielding.
3. Small-land using: only 10-20 square maters can meet the need of production.
4. Cake thickness can be adjusted once the machine stop running.
5. It is easy to operate .
High Quality Screw Rod With High Oil Yield
Made of special steel,it has high hardness,abrasion resistance,and is not easily damged.It can easily crush materials press drier,leaving a thin and dry residue,making the oil output clearer,and having a high oil output rate.
Feed Port
Large Capacity Feeding Hopper,Saving Feeding Time.
Easy To Operate
Automatic temperature control,simple operation.
Product Application
This Multifunctional Oil Press Machine oil press machine is suitable for All oil-bearing crops. Such as Sunflower seeds,Peanuts, Soybean, Rapeseed, Sesame seed, Walnut, almond, multiple cro pping oil seeds, Cottonseed, prickly ash seed, Beans, peas, garbanzo beans, Castor,nuts of apricot and so on.
White Peanut
38-47%Oil Rate
Walnut Kernel
50-60%Oil Rate
Tea Seed Kernel
30-38%Oil Rate
Sunflower Seed
35-48%Oil Rate
Pine Nuts
35-41%Oil Rate
Pumpkin Seeds
38-45%Oil Rate
Rapeseed
29-38%Oil Rate
Flax Seed
29-38%Oil Rate
Almond
49-55%Oil Rate
Soybean
7-15%Oil Rate
Perilla Seed
38-47%Oil Rate
Olive Kernel
16-21%Oil Rate

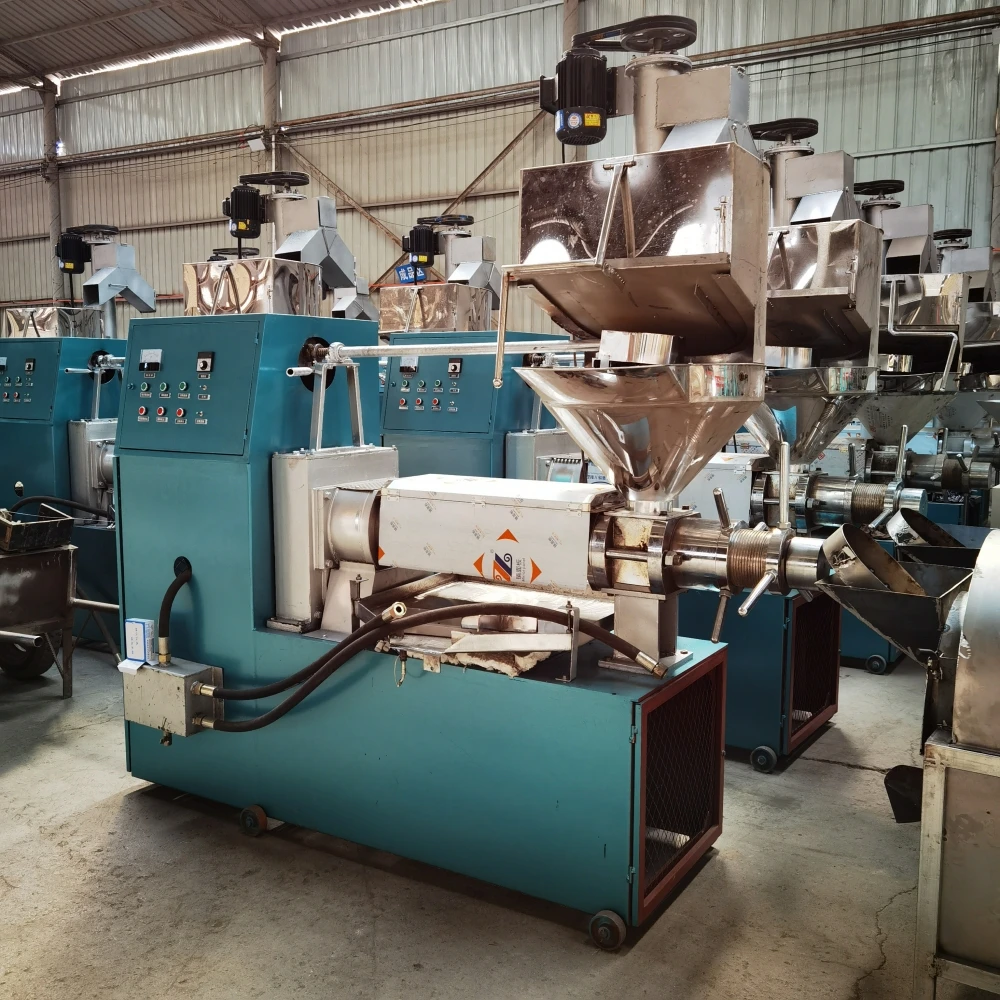

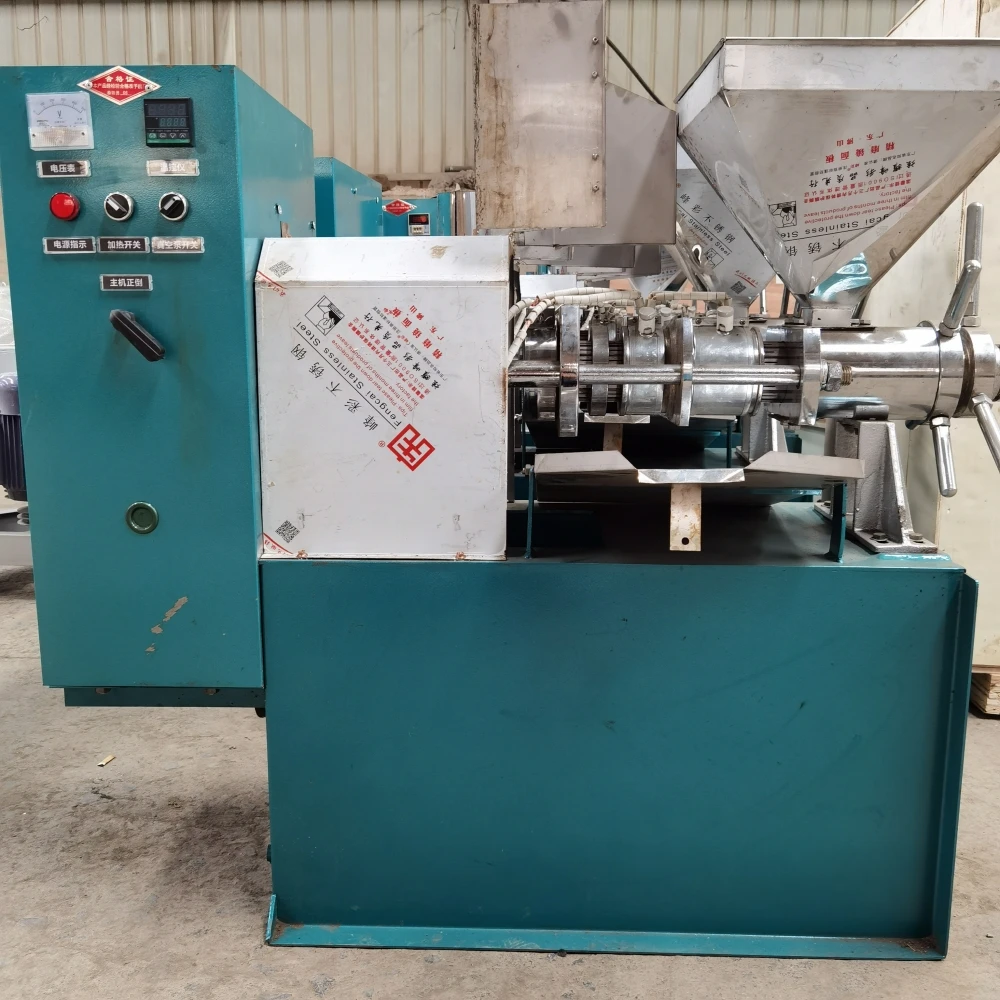

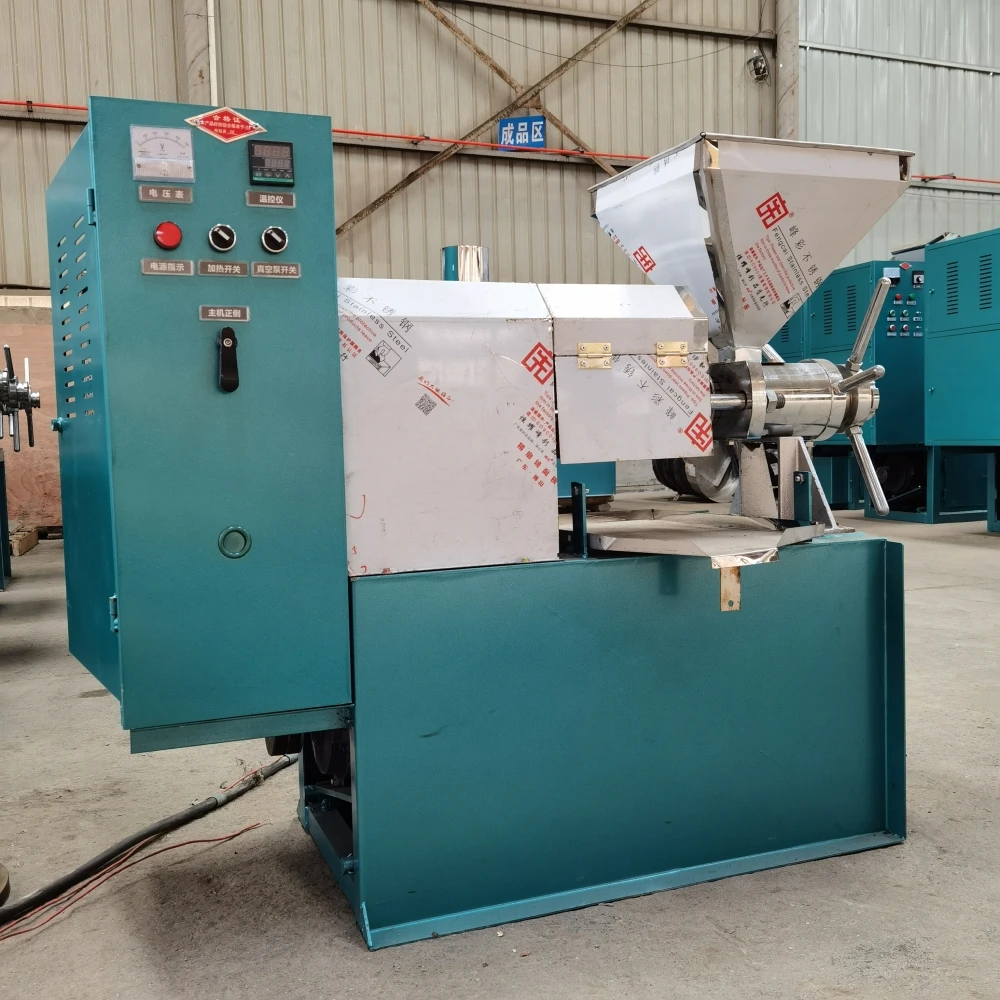

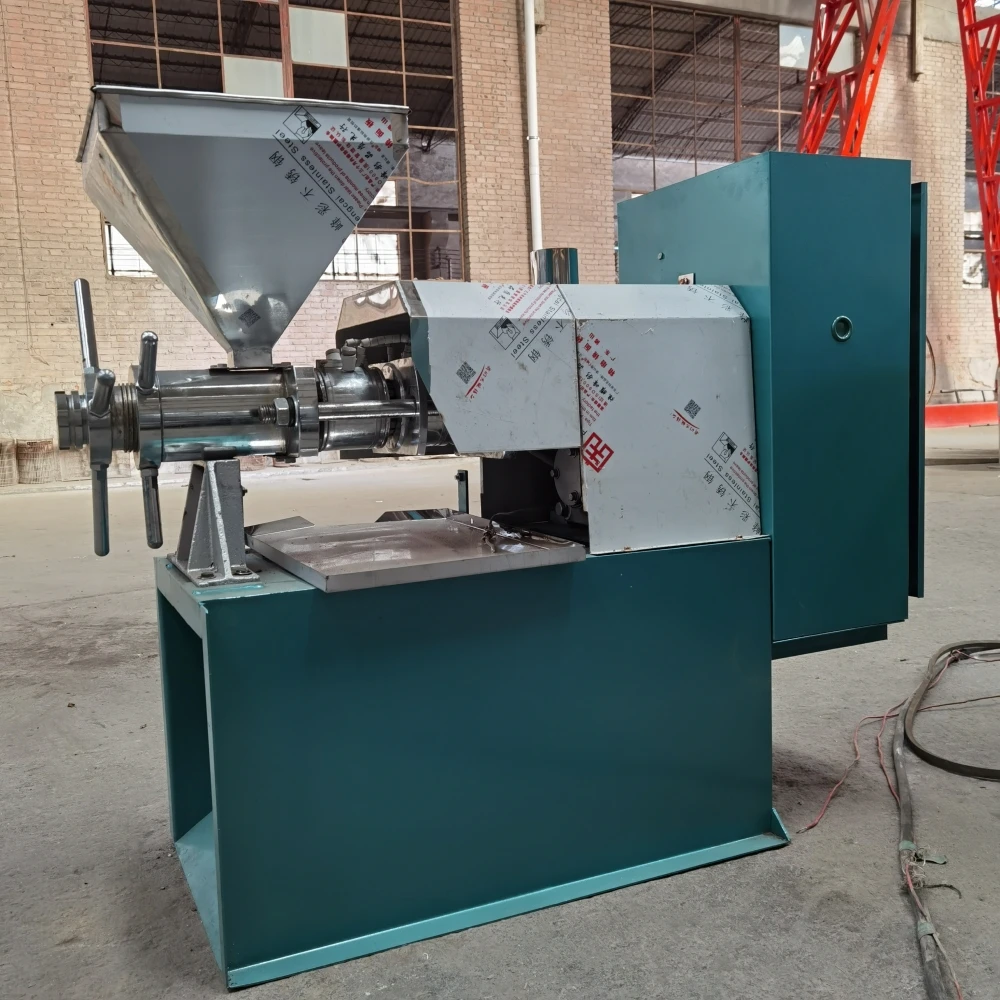

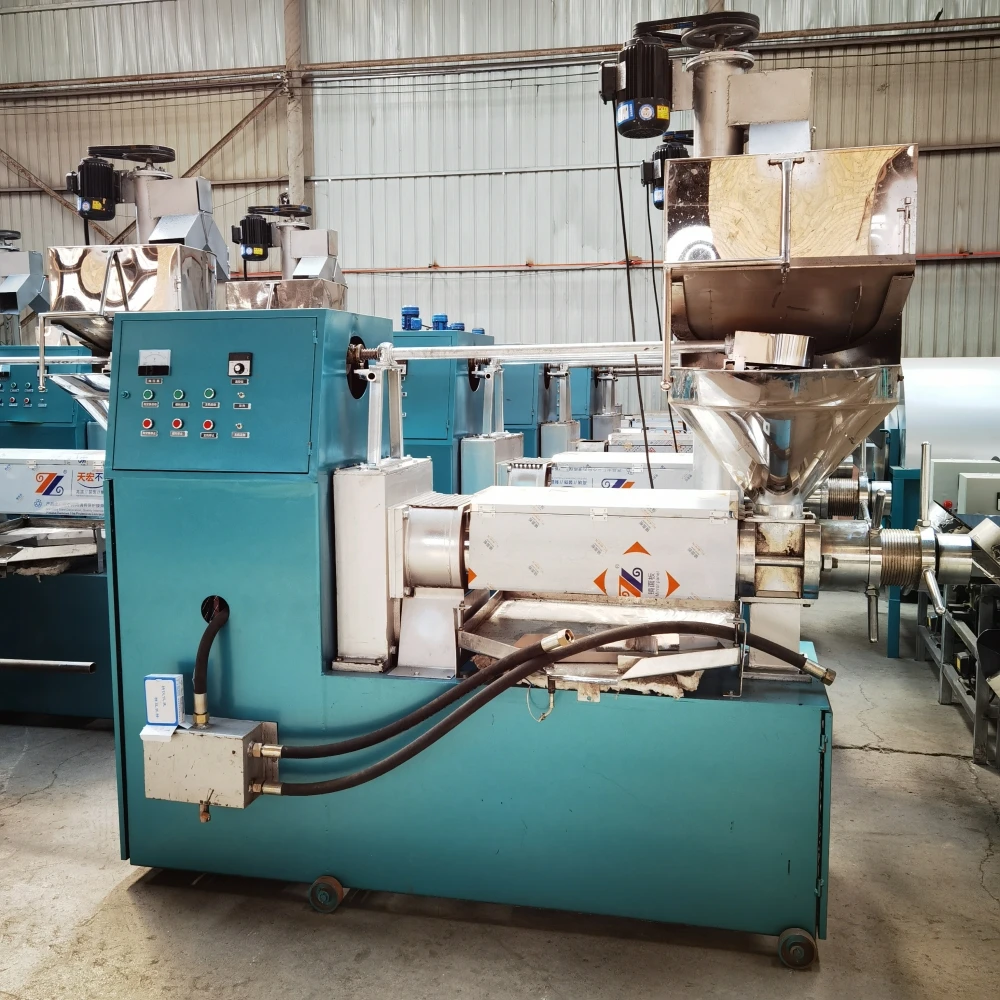

Product Photograph
FAQ
1: Are you manufacturer?
A:Yes, we are manufacturer with more than 10 years' experience.
2: How about your delivery time?
Generall it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to
quantity.
3：What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll send you photos of the products and packages before you pay the balance.
4：How to ensure the quality?
We do pre-production samples before mass production, and we do finalinspection before shipment.
5: What is your terms of packing?
A: Generally we use standard wooden case for LCL goods, and fixed well for FCL goods.
6: How long is the warranty of your equipment?
Does your company supply the spare parts? A: The warranty period of equipment is one year. And we will supply the spare parts for you at lowest cost.
7:Do you have some foreign customers useing your equipments?
A:Yes , we have customers all over the world.
8: Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
9: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Generall it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to
quantity.
3：What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll send you photos of the products and packages before you pay the balance.
4：How to ensure the quality?
We do pre-production samples before mass production, and we do finalinspection before shipment.
5: What is your terms of packing?
A: Generally we use standard wooden case for LCL goods, and fixed well for FCL goods.
6: How long is the warranty of your equipment?
Does your company supply the spare parts? A: The warranty period of equipment is one year. And we will supply the spare parts for you at lowest cost.
7:Do you have some foreign customers useing your equipments?
A:Yes , we have customers all over the world.
8: Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
9: Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
