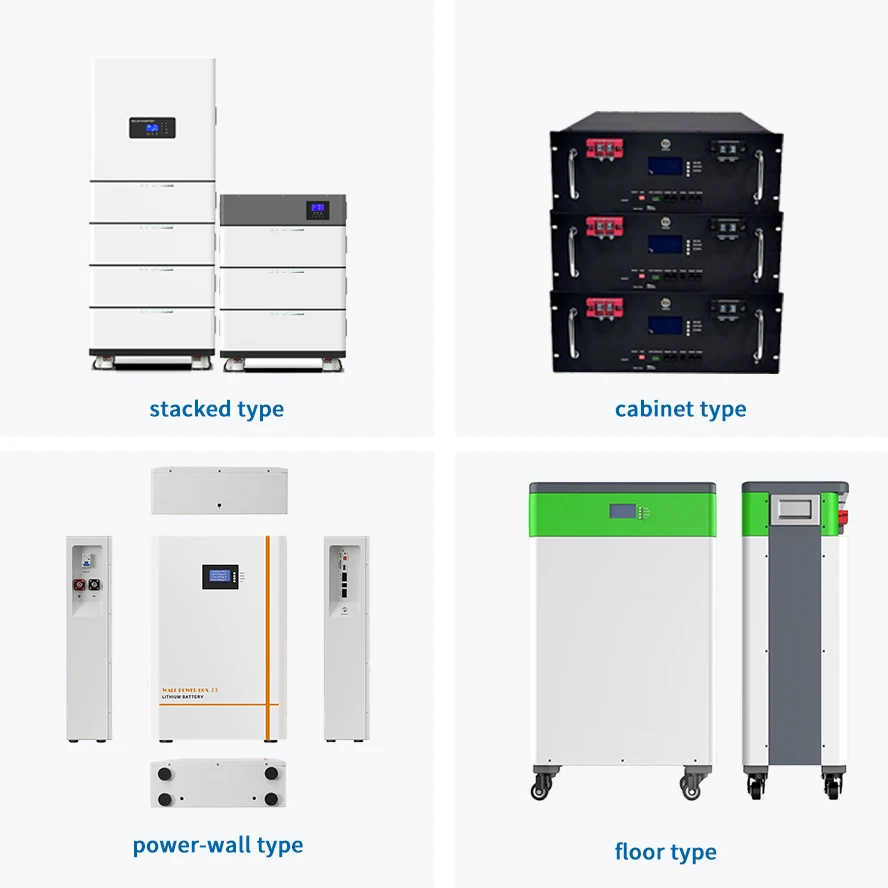

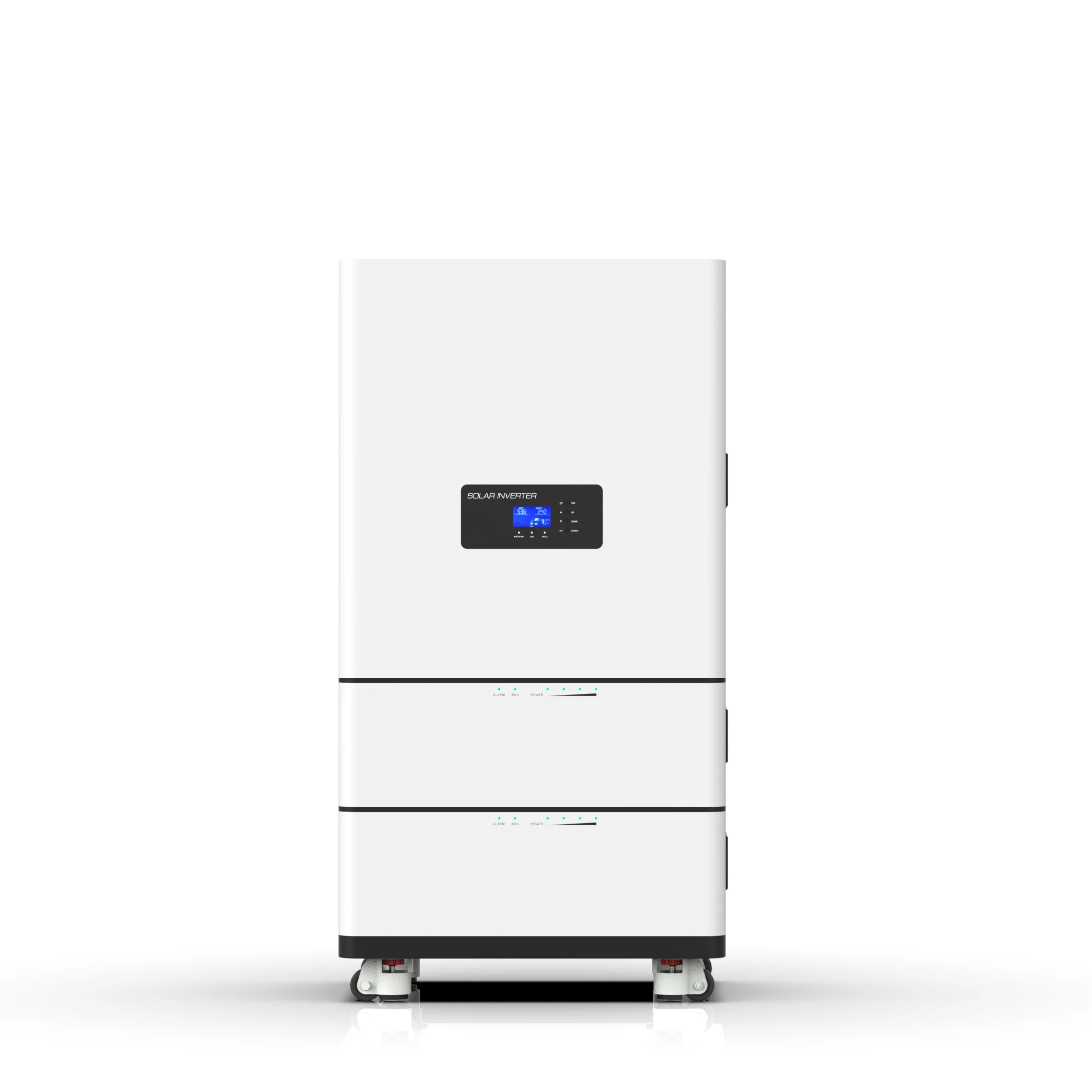

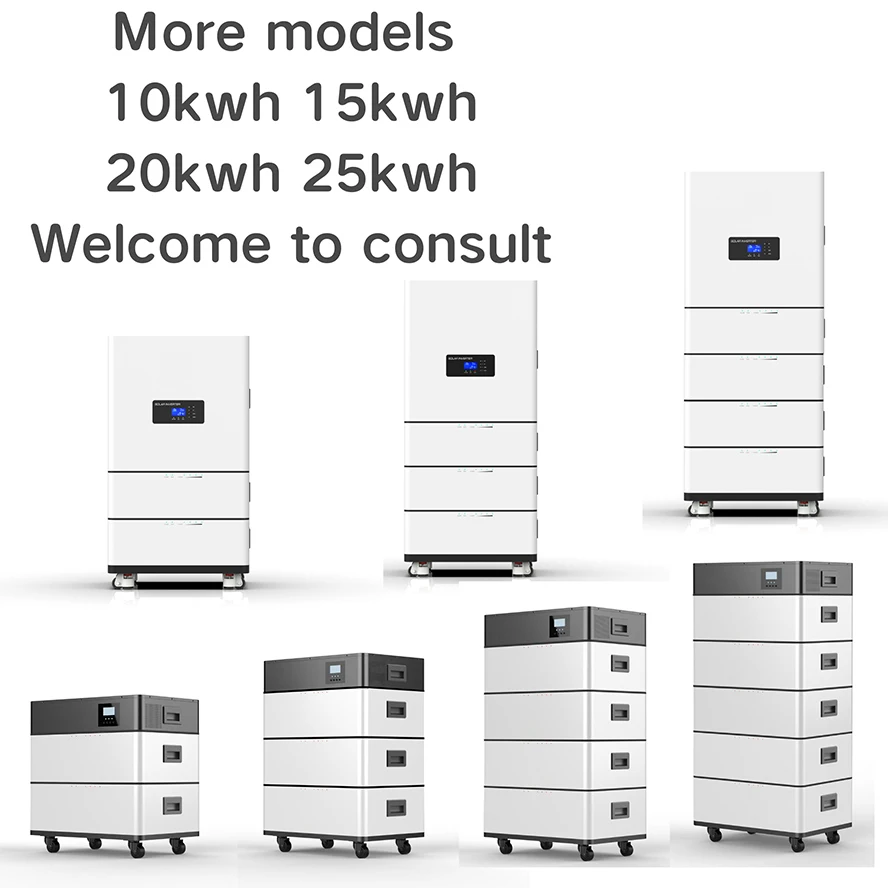

Custom Power Generator 5KW 10KWh 15KWh All In One Stacked Hybrid Inverter 36V 48V 52V LifePO4 Battery Home Energy Storage System
- Category: >>>
- Supplier: Shenzhen Pucent Technology Co. Ltd.
Share on (1601040469526):
Product Overview
Description

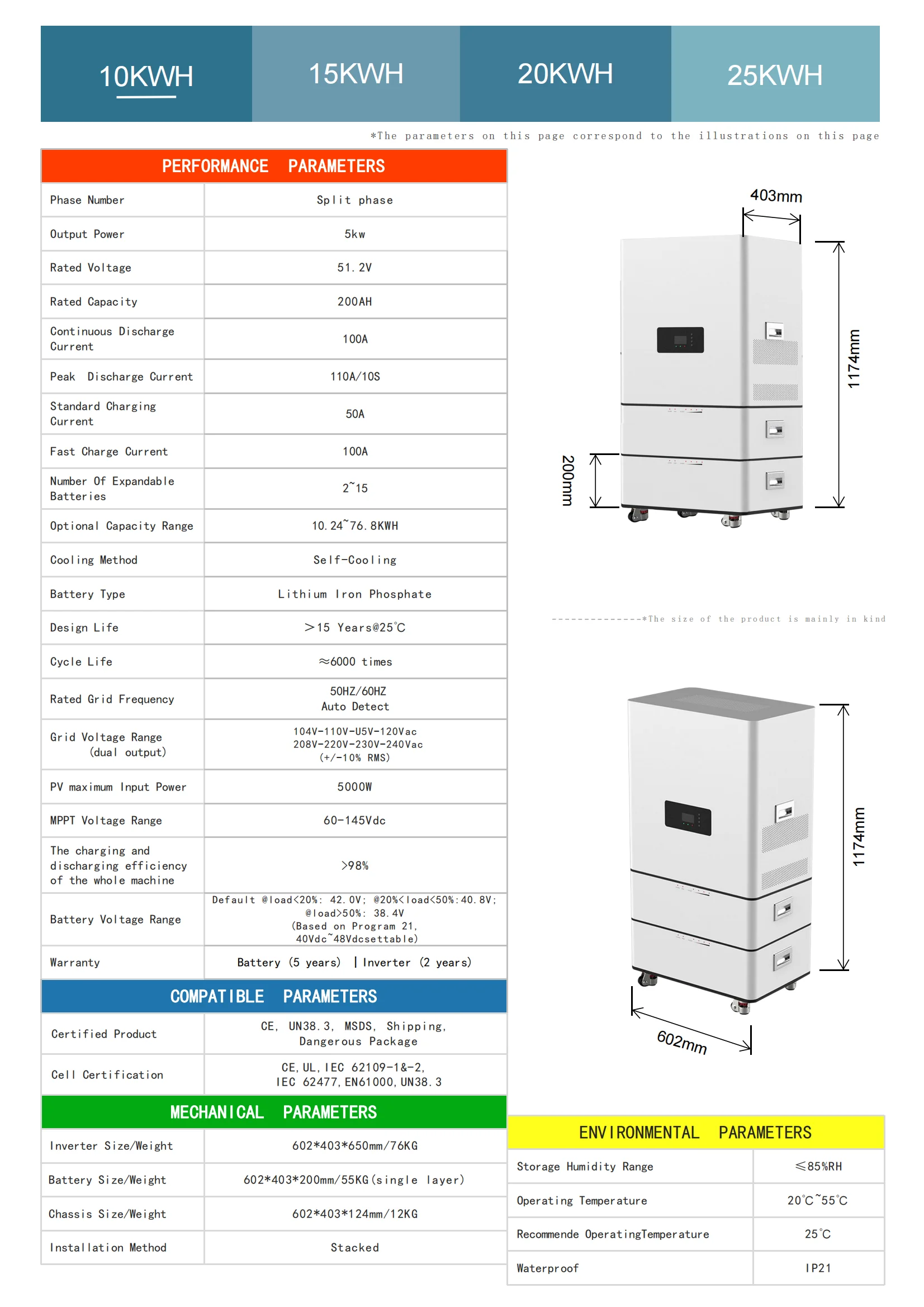

Specification
Norminal Voltage | 51.2V |
Norminal Capacity | 300Ah |
Norminal Battery Energy | 5120WH |
Internal Resistance | ≤35mΩ |
Cycle Life | >6000 |
Months Self Discharge | <3% |
Charge Voltage | 58.4±0.2V |
Charge Mode | 0.2C to 58.4V, then 58.4V, charge current to 0.02C (CC/CV) |
Charger Current | 50A |
Allowed Max. Charge Current | 100A |
Charge Cut-off Voltage | 58.4±0.2V |
Continuous Discharge Current | 100A |
Allowed Max. discharge current | 300A（30S） |
Discharge cut-off voltage | 40V |
Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) |
Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) |
Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) |
Enclosure Protection Level | IP65 |
Shell material | Iron shell |
Product Description

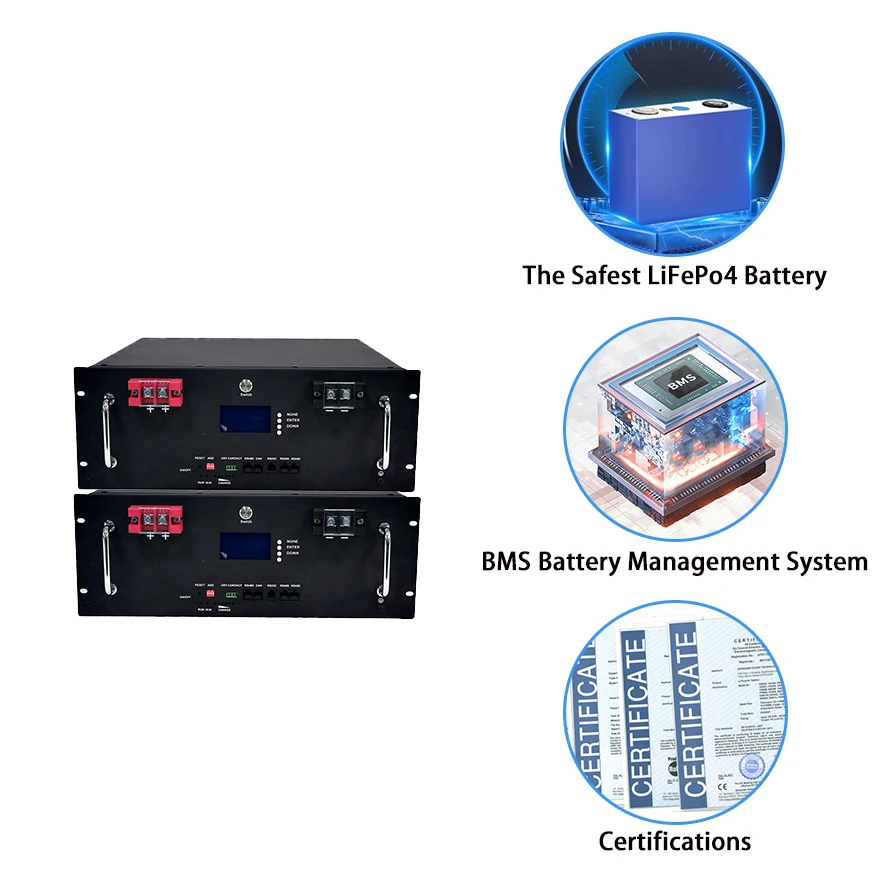

Battery Advantages
♦Longer Cycle Life : Offers up to 2500 times longer cycle life and five times longer float/calendar life than lead acid battery
,helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging
or short circuit situation
,helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging
or short circuit situation
Storage.
1 Store the battery in cool, dry and well-ventilated conditions.
2 Store the battery in a individual room,
separate from the other carriage.
3 Regulations vary for different countries. Dispose of in accordance
with local regulations.
4 Please store the battery in the adequate temperature as mentioned in
specifications and recharge if keep in storage more than 6 months.
2 Store the battery in a individual room,
separate from the other carriage.
3 Regulations vary for different countries. Dispose of in accordance
with local regulations.
4 Please store the battery in the adequate temperature as mentioned in
specifications and recharge if keep in storage more than 6 months.

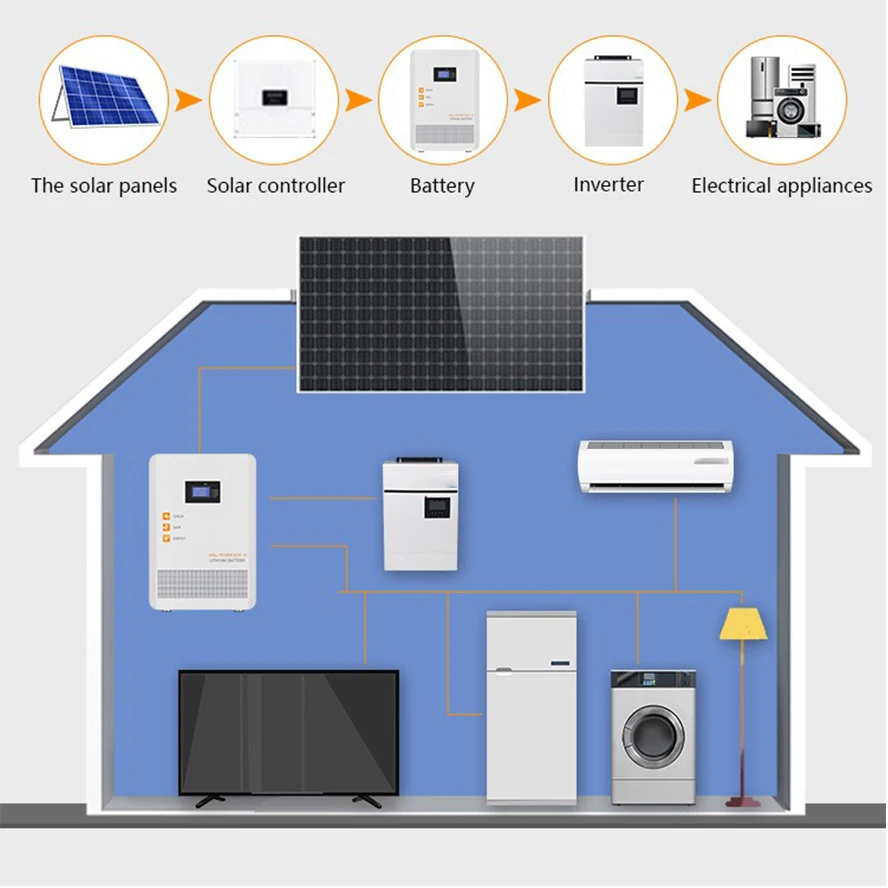

Product Application
WIDESPREAD APPLICATION：
Solar energy storage system
Home solar storage system
RV,Boat
Emergency rescue standby power supply
Communication stations
Factory solar energy storage system
Solar energy storage system
Home solar storage system
RV,Boat
Emergency rescue standby power supply
Communication stations
Factory solar energy storage system
Cautions in use
1.Do not make the battery exposure or thrown into fire.
2.Never reverse charge the battery.
3.Never short circuit the battery.
4. Avoid excessive physical shock or vibration.
5.Do not disassemble or deform the battery
6.Never allow the battery to get wet or be immersed in water.
7.Do not use different types together.
8.Keep away from children.
9.Charge at the appropriate conditions.
10.Never use the faulty charger to charging.
10.Never use the faulty charger to charging.
11.Never keep charging more than 24 hours.

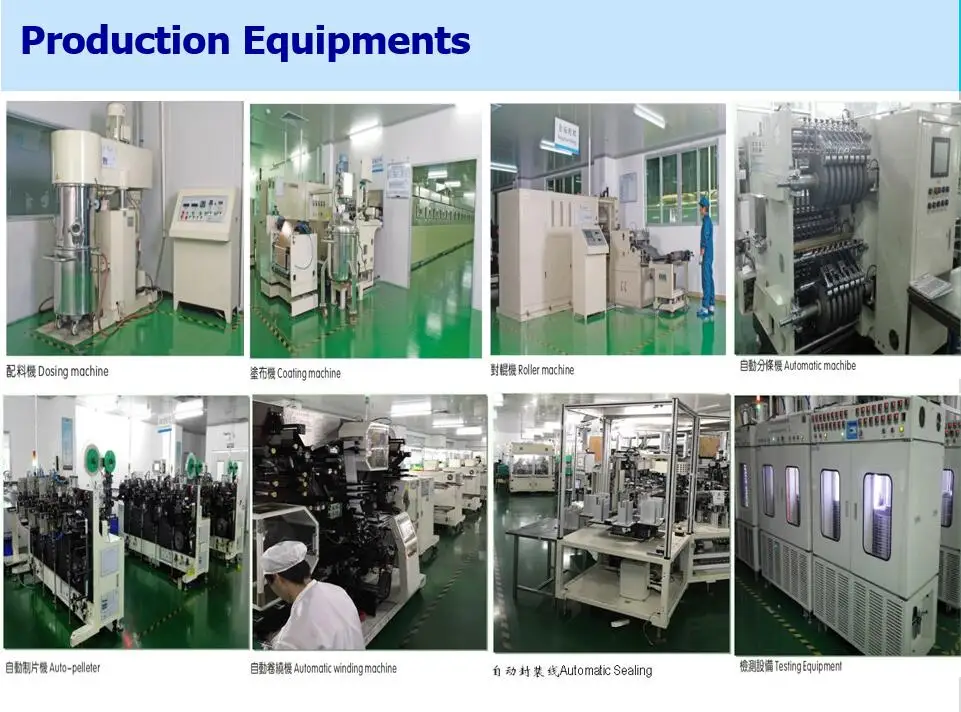

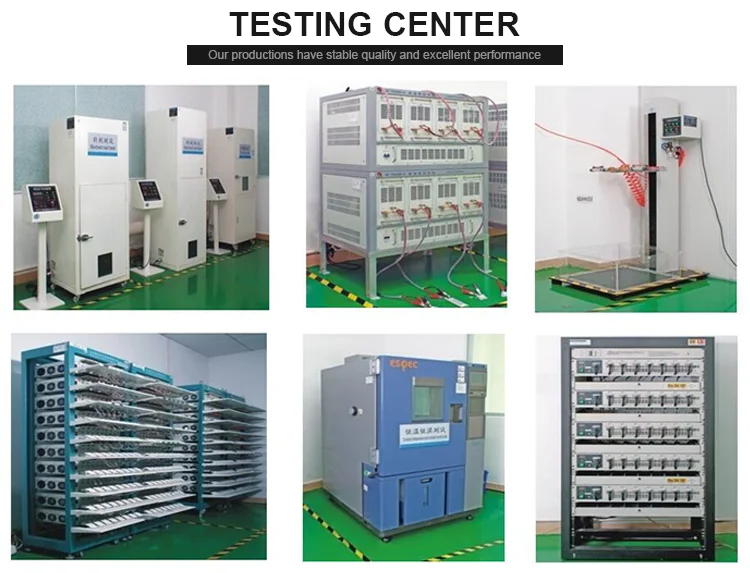

Company Profile
FAQ
1.Are you factory / Manufacturer ?
We are a direct factory in Shenzhen, Guangdong, with more than 15 years experience.
2.OEM&ODM are available?
Sure, OEM&ODM are warmly welcomed.
3.Can I get a lower price if I order large quantity?
Yes, all the prices given are our lowest agency prices, discounts can be offered for large quantity.
4.Can I get the pre-production sample?
Yes, we will send you samples after you confirm, then we will start production.
5.How long is the delivery time?
Normally 3-20 working days after receiving your payment.
We are a direct factory in Shenzhen, Guangdong, with more than 15 years experience.
2.OEM&ODM are available?
Sure, OEM&ODM are warmly welcomed.
3.Can I get a lower price if I order large quantity?
Yes, all the prices given are our lowest agency prices, discounts can be offered for large quantity.
4.Can I get the pre-production sample?
Yes, we will send you samples after you confirm, then we will start production.
5.How long is the delivery time?
Normally 3-20 working days after receiving your payment.
