IMX323 1080P H.264 Robot ATM facial recognition camera module 2mp Low illumination Mini Webcam UVC Camera Module

Share on (1601040496807):


Price:$15.00 - $28.00

Quantity:


Product Overview

Description

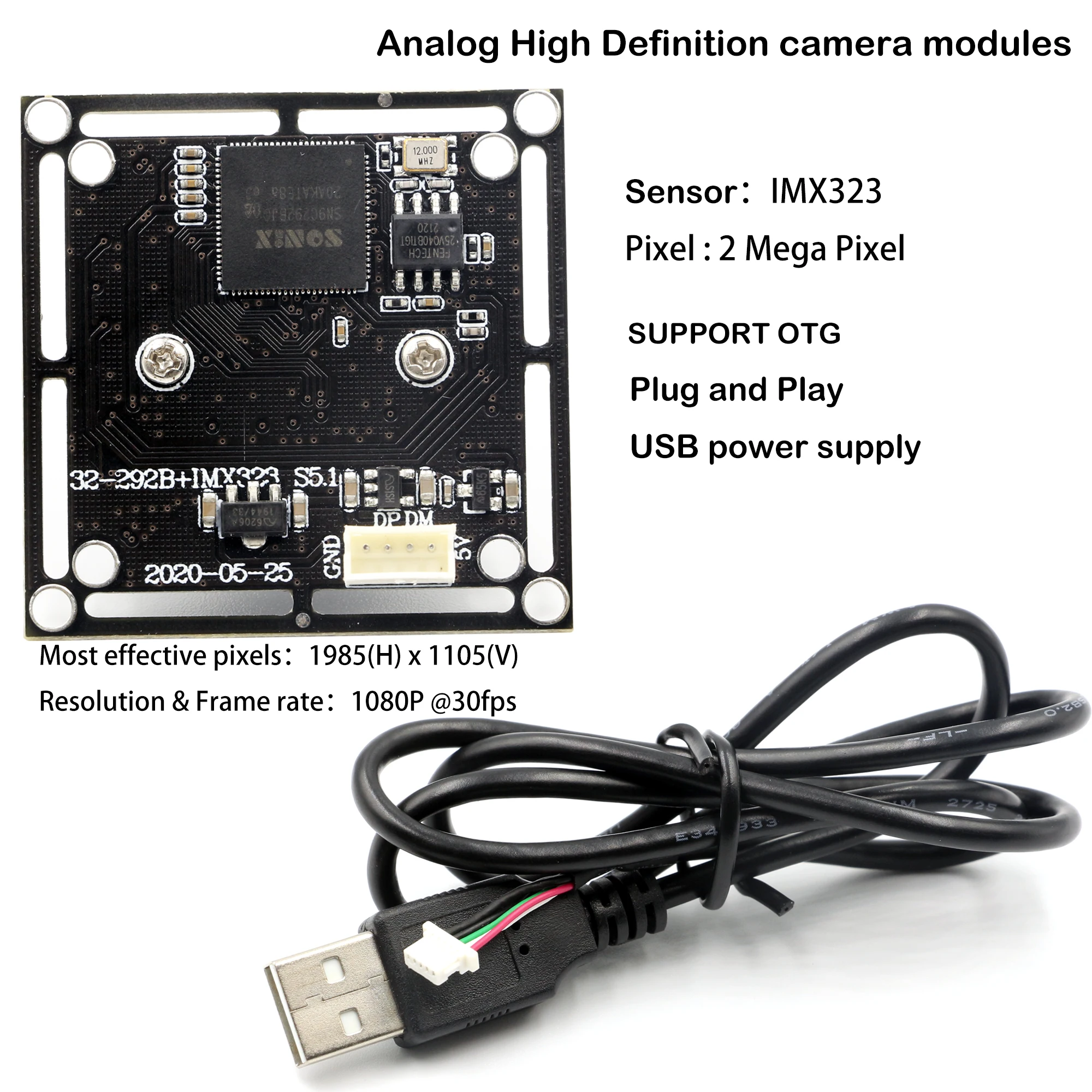

IMX323 2MP USB CAMERA MODULE

This product is mainly composed of 2.0M pixel color CMOS sensor and USB2.0 output Industrial Camera Module. High sensitivity, low
dark current and no smear are achieved through the adoption of R, G andB primary color piament mosaic filers,The product is mainly used in Consumer use drive recorder, Consumer use network camera. this product is composed of CMOS chip, DSP, lens,connector and PCB, etc. This product has high-definition FHD (1920*1080 ), HD (1280*720) and other images, and supports YUY2 and M-JPEG two
video formats.

































































































































Module No.


IMX323

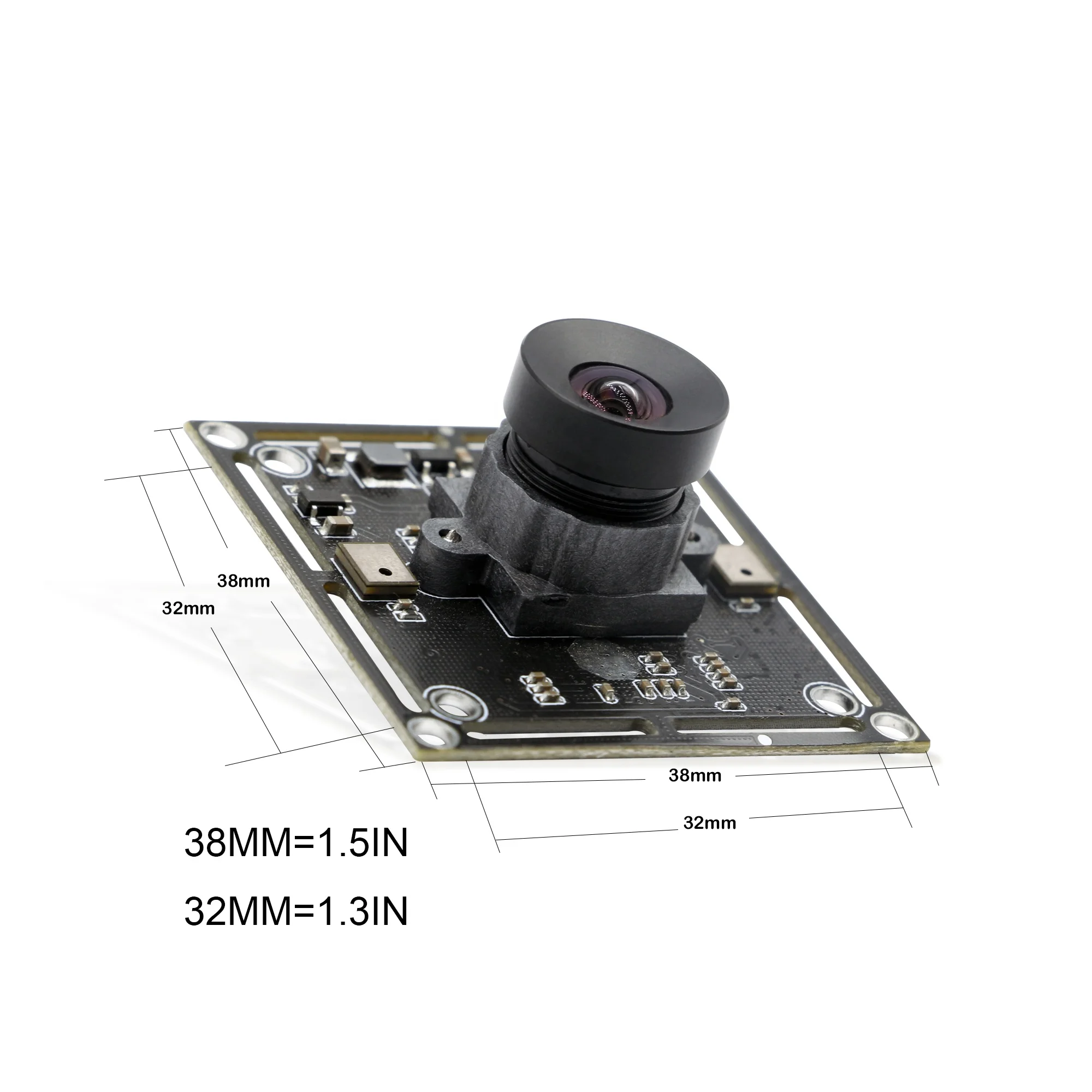

Module Size


38mm *38mm


Object distance


1CM-∞


Resolution


800LW/PH (Center)


Focus


Fixed


working Voltage


5V


Working current


100mA(1080P)


Temperature (Operation)


-20°C to 70°C


Temperature (Stable Image)


0°C to 50°C

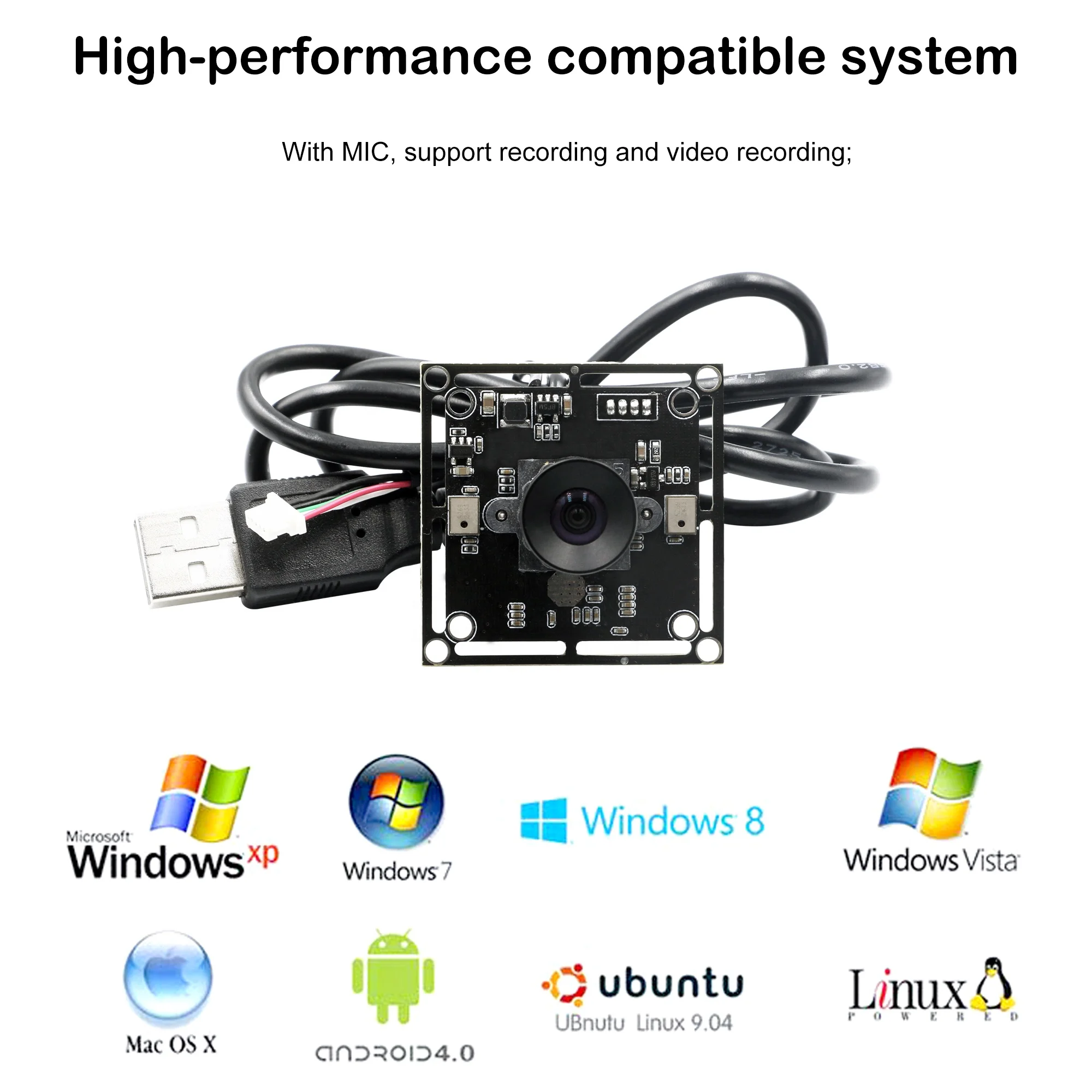

Operating system request


Windows 2000 、Windows XP/ 7 / 8 /10 /Linux or OS with UVC Driver


Package


Anti-electrostatic tray


Sensor Type





Sensor No


Sony IMX323


Sensor Type


1/2.9"


Active Array Size


1920*1080


Sensitivity


3700mV/(Lux·sec)


Pixel Size


2.8μm x 2.8μm


Maximum Image Transfer Rate


1080P@30fps,720p@60fps


Dynamic Range


69DB


LENS





Lens Type


5G

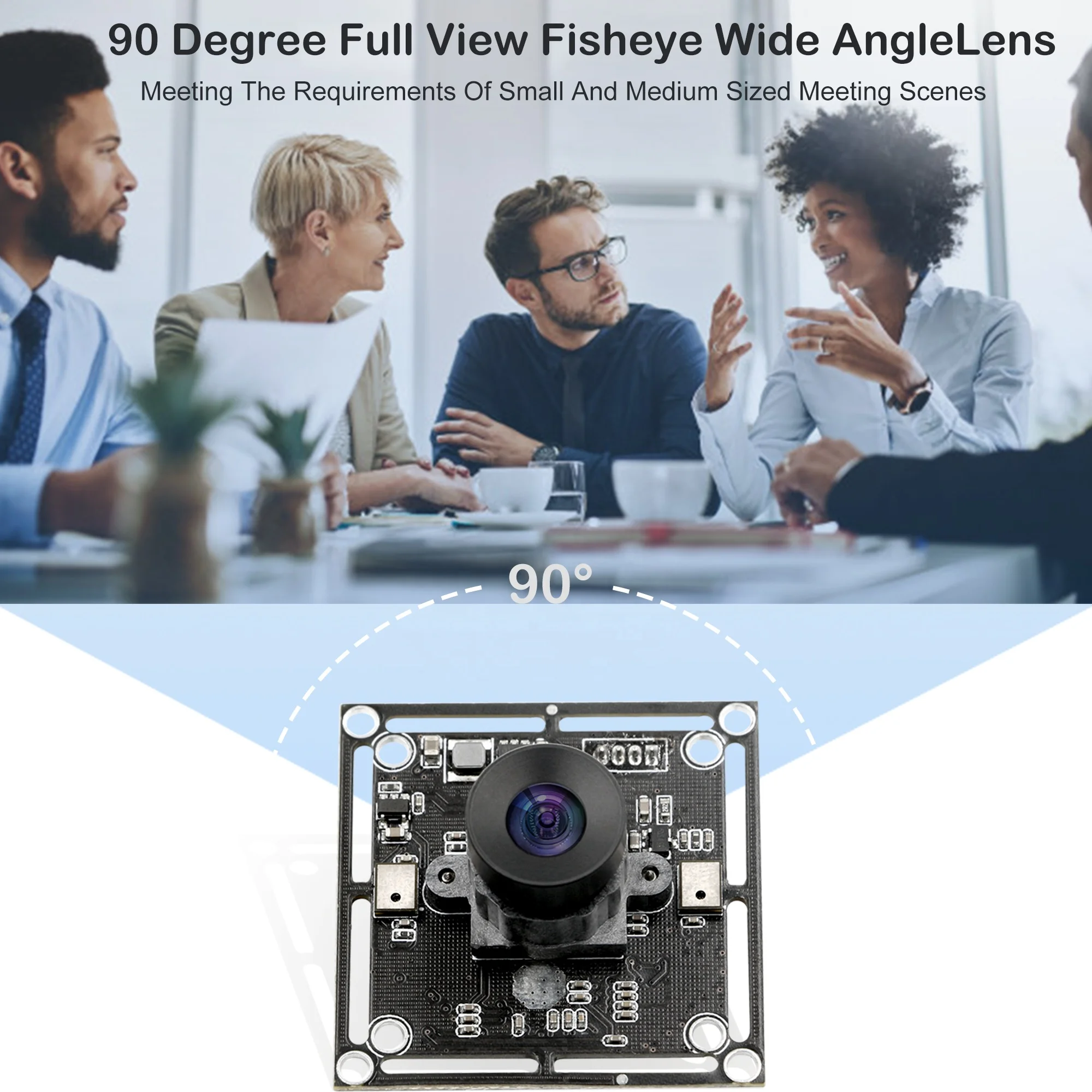

FOV


D=90°


Mount


M12*p0.5mm


DSP Type





GC/EC/Whiter balance


Auto


Interface

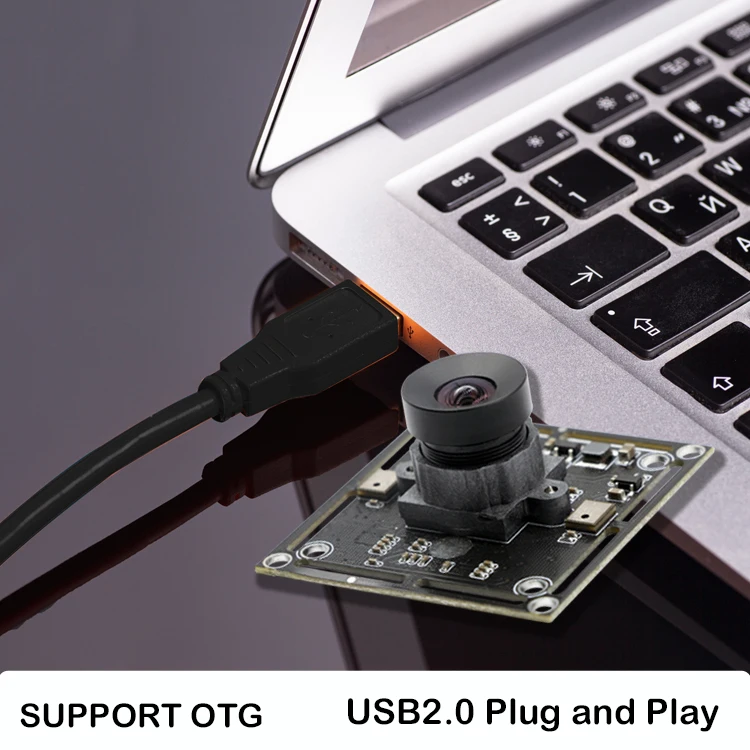

USB 2.0

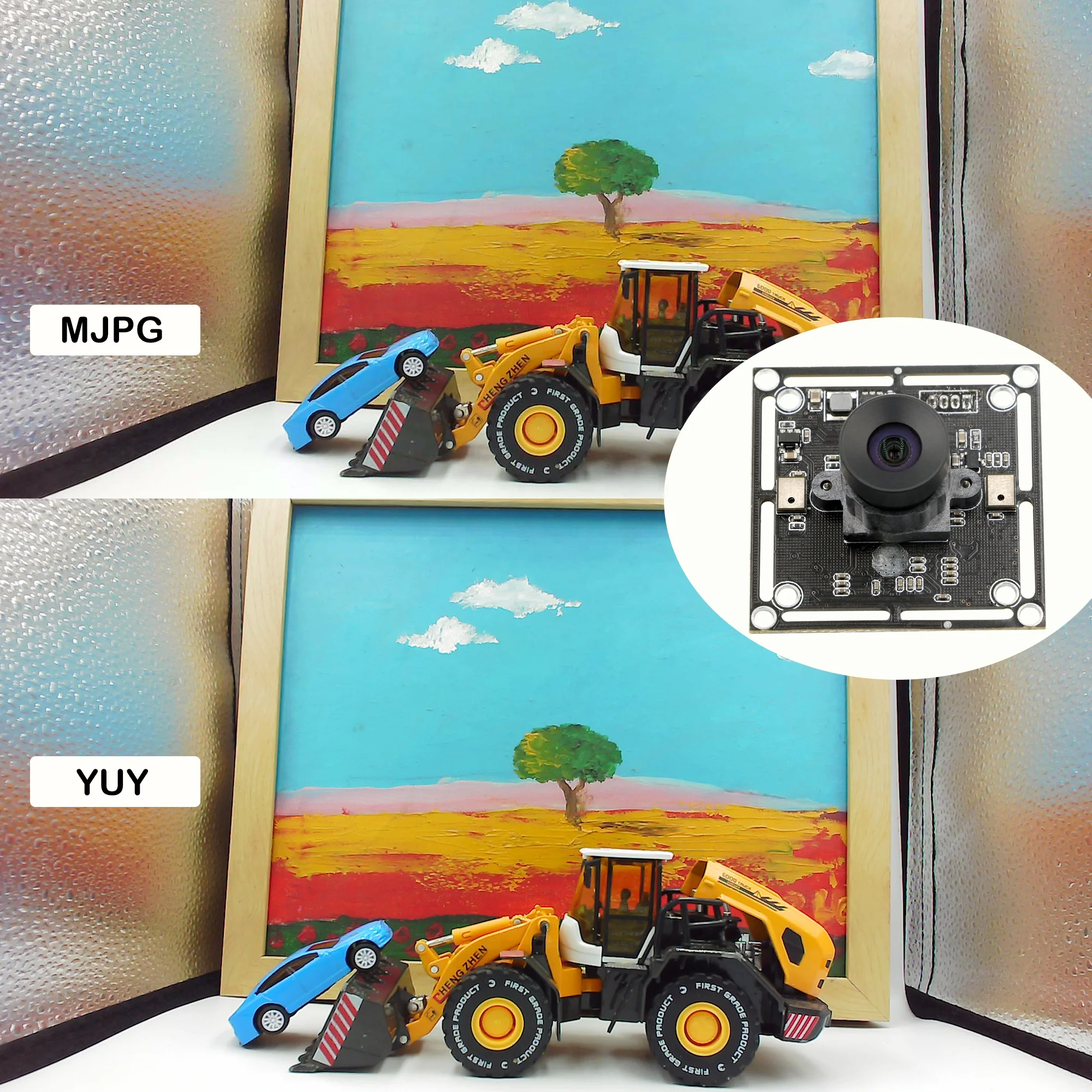

Output Formats


YUY2/MJPG


Application





Application


Face Recognition,AR, AI,VR, Robot


















































Certifications













Our Packaging














Shiping & Payment














Our service







1. Good quality products and low factory direct price 2. Free technical support and professional advice,timely communication and after-sale service 3. 24-hour aging process, 1-year warranty, CE/FCC/RoHS compliant 4. OEM/ODM service a) Customized camera housing b) Print logo on the camera c) Any your idea on camera we can help you design and put it into production 5. Fast delivery, 3-7 days for production 6. Accept paypal, T/T, western union payment 7. Delivery by DHL/EMS/FedEx, by air or by sea etc







FAQ







1. who are we?
We are based in Guangdong, China, start from 2014,sell to Eastern Asia(20.00%),Western Europe(18.00%),Oceania(12.00%),Domestic Market(11.00%),Northern Europe(10.00%),Southern Europe(9.00%),Eastern Europe(8.00%),South Asia(5.00%),North America(2.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.How can I get a sample for testing?
Please contact us first to confirm. We do not provide free sample and the cost and shipping fee of the sample should be paid by buyers. Usually we can offer it in about 3 working days.

4. What is your guarantee for quality
We have 12 months warranty and we will take responsibility for our quality and free to repair.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
