Cast Iron Groove V Belt Driving Pulley V Belt Vee Belt Sheaves Pulley
- Category: >>>
- Supplier: Liaocheng Zhongye Materials Co. Ltd.
Share on (1601040501160):
Product Overview
Description
Product Description
1) European standard:

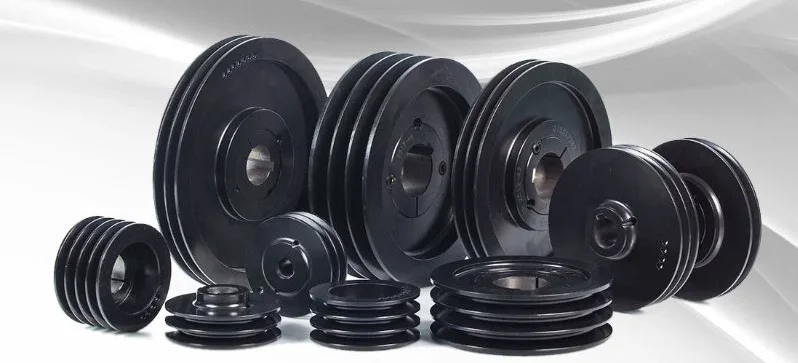

a) V-belt pulleys for taper bushings: SPZ, SPA, SPB, SPC; up to 10 grooves
b) Adjustable speed V-belt pulleys and variable speed pulleys
c) Flat belt pulleys and conveyor belt pulleys
2) American standard:
a) Sheaves for taper bushings: 3V, 5V, 8V
b) Sheaves for QD bushings: 3V, 5V, 8V
c) Sheaves for split taper bushings: 3V, 5V, 8V
d) Sheaves for 3L, 4L or A, and 5L or B belts: AK, AKH,2AK, 2AKH, BK, BKH,2BK, 2BKH, 3BK
e) Adjustable sheaves: poly V-pulley, multi-pitch H, L, J, K and M
Parts can be made according to drawings and/or samples, OEM service is welcomed.
3) Bore type: pilot bore, finished bore, taper bore, bore for QD bushing.
4) Surface finish: paint, phosphating, zinc plated.

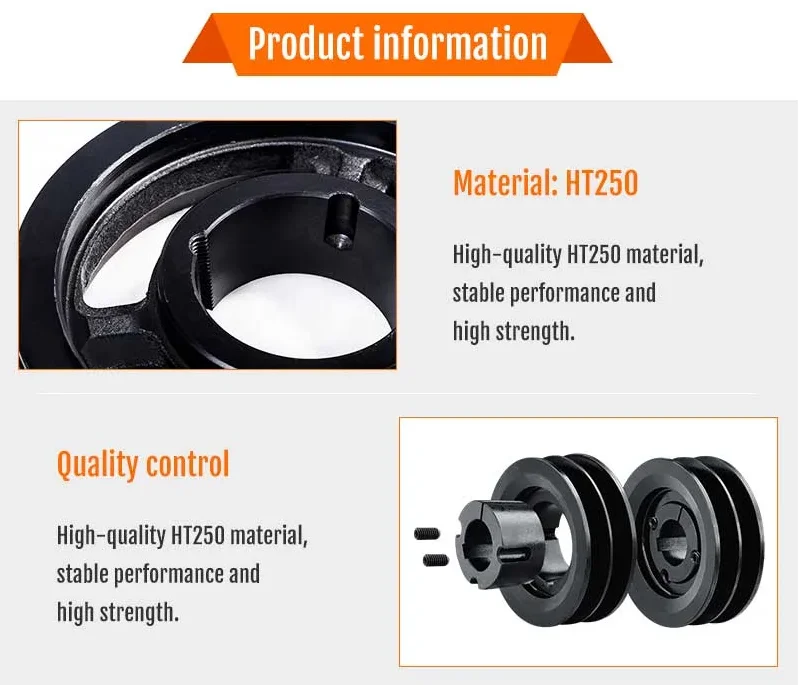

5) Material: cast iron, ductile iron, steel, nylon, aluminum.
6) Made according to drawings and/or samples, OEM inquiries welcomed.

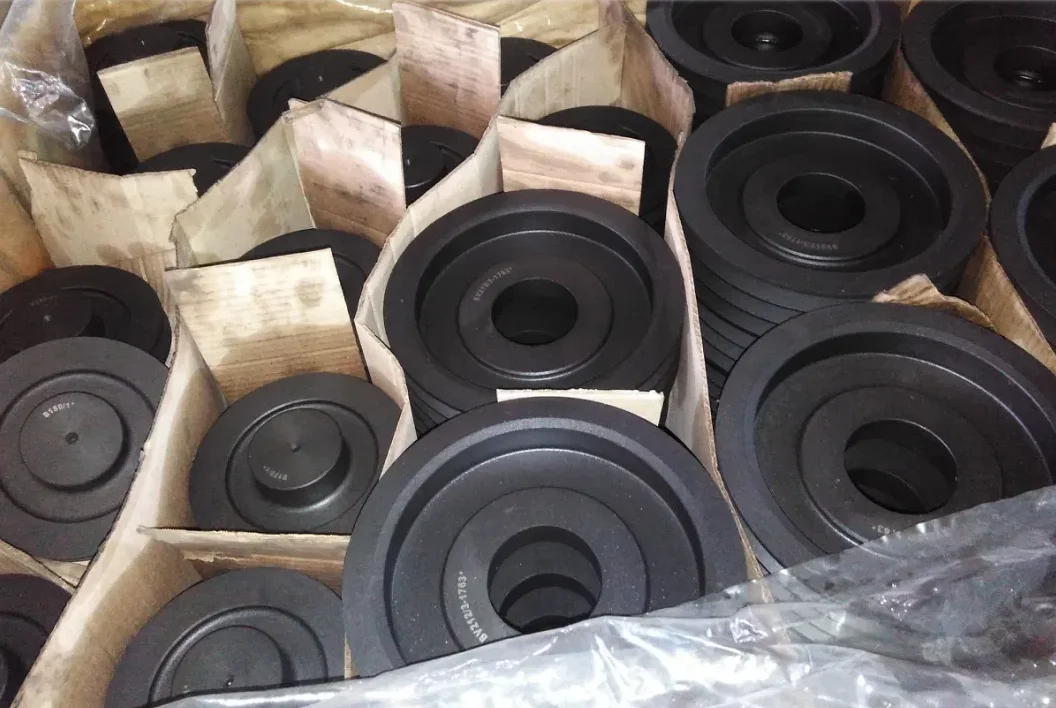

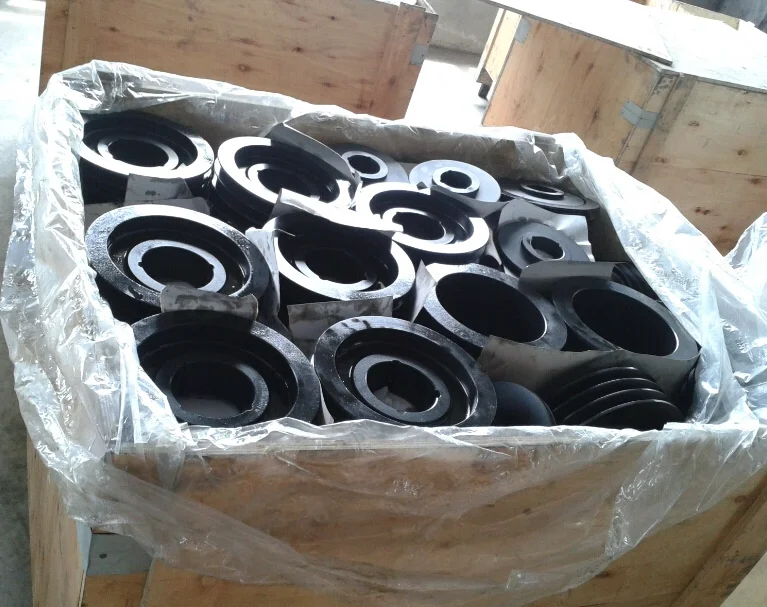

Packaging & Shipping
Our Services
Groove | WP | b | t | e | f | PD | Angle aº | g |
| SPZ | 8.5 | 2.0 | +0.6 11.0 0 | 12±0.3 | 8.0±0.6 | ≤80 | 34±1 | 9.72 |
| >80 | 38±1 | 9.88 | ||||||
| SPA | 11.0 | 2.8 | +0.6 13.8 0 | 15±0.3 | 10.0±0.6 | <118 | 34±1 | 12.68 |
| >118 | 38±1 | 12.89 | ||||||
| SPB | 14.0 | 3.5 | +0.6 17.5 0 | 19±0.4 | 12.5±0.8 | ≤190 | 34±1 | 16.14 |
| >190 | 38±1 | 16.41 | ||||||
| SPC | 19.0 | 4.8 | +0.6 23.8 0 | 25.5±05 | 17.0±l | ≤315 | 34±0.5 | 21.94 |
| >315 | 38±0.5 | 22.31 |
FAQ
FAQ
1. What do you do?
2. How can I get some samples?
1. What do you do?
We are a professional manufacturer with over 15 years' export experience for designing and producing vehicle machinery parts.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make casting according to our drawing?
3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make die casting part based on our samples?
4. Can you make die casting part based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What's your quality control device in house?
5. What's your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of die casting part.
