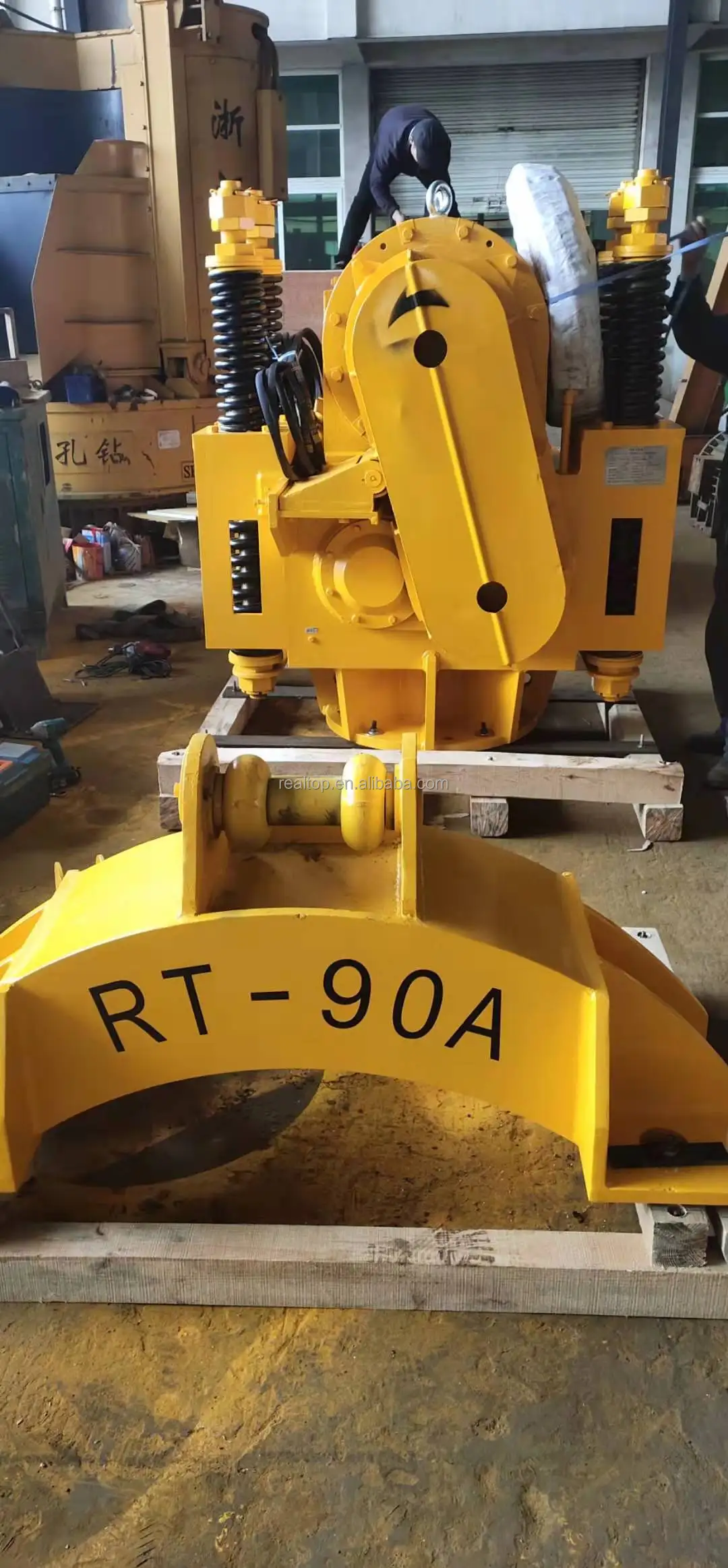

Vibro hammer RT 90A crane type electric vibro pile hammer for steel pipe piles
- Category: >>>
- Supplier: Realtop Heavy Industry Co. Ltd.
Share on (1601040520115):
Product Overview
Description
Product Description
Product Application
RT-90A ELECTRIC VIBRATORY PILE HAMMER
RT serious are developed and researched by our company independently on the basis of combination of foreign and domestic technologies according to the features of our foundations at home.
It is a hammer with higher effective,widely applied to the work including sheet pile, steel casing pile.

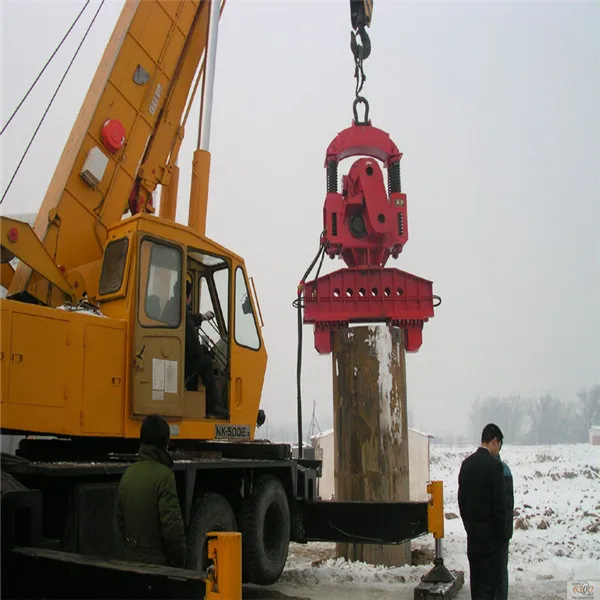

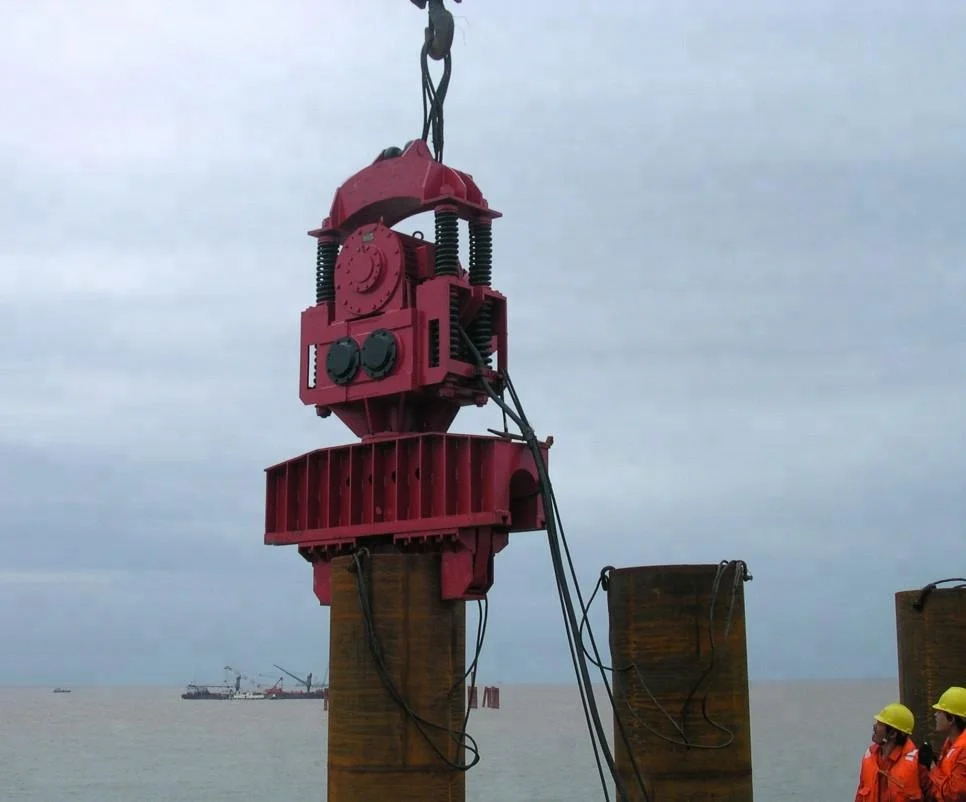

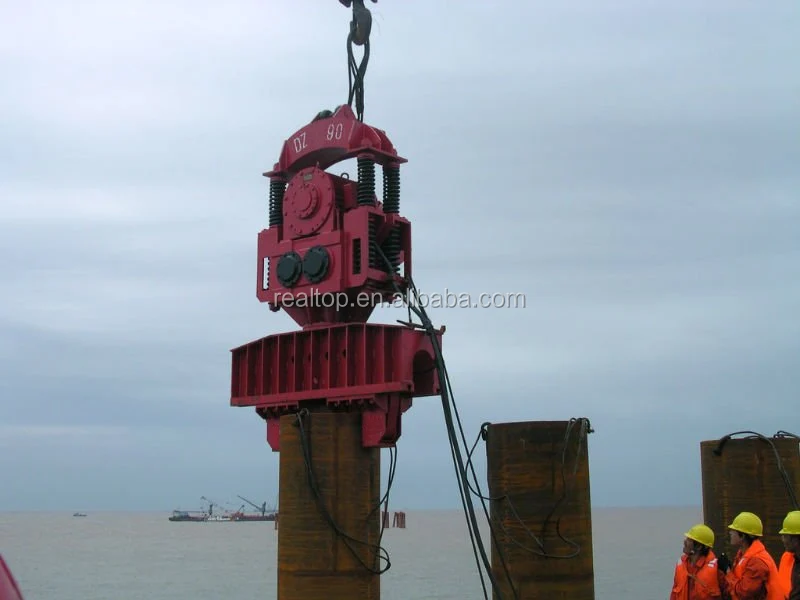

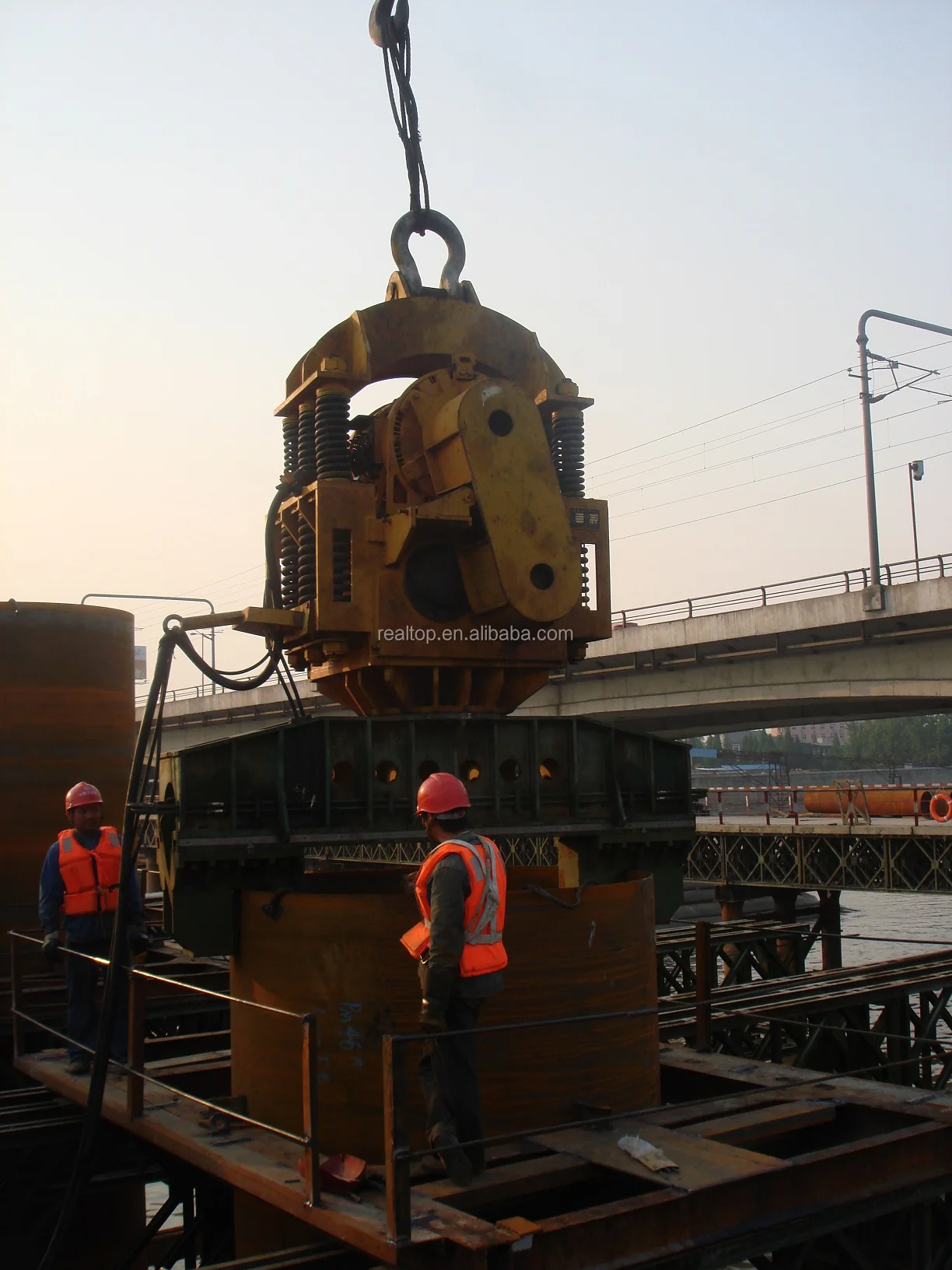

Assembled with our hydraulic clamp, it can extract steel piles and concrete piles. It is a good equipment for the foundations in building, road, highways, railways, airport, bridges, harbors and docks.
And we are 15 years golden supply, very stable quality, had been verified by market.
SPECIFICATIONS FOR 90KW ELECTRIC VIBRO PILE HAMMER | ||||
Item | Unit | RT90A | ||
Motor model | YNZ90-6-W | |||
Motor Power | KW | 90 | ||
Eccentric moment | N.m | 463 | ||
Speed of eccentric swift | R/min | 1050 | ||
Exciting Vibration Force | KN | 570 | ||
Unloaded Vibration Amplitude | MM | 10.3 | ||
Allowable Power of Pulling up a pile | KN | 240 | ||
Weight | KG | 5200 | ||
Outer Size (LWH) | MM | 1560×1425×2285mm | ||
Main Features
1.Equipped with pressuring device, which can effectively pressurize the Injection force, improving the work effective.
2.The strength V-belt is adopted to improve its transmission capacity, prolonging its service time.
3.Common motor with protector Y serial is adopted, featuring in lower cast and easy repairing, it can be equipped with an additional anti-vibration motor according to the requirement of the user.
4. It has two eccentric moments to adapt the requirements for different soils.
2.The strength V-belt is adopted to improve its transmission capacity, prolonging its service time.
3.Common motor with protector Y serial is adopted, featuring in lower cast and easy repairing, it can be equipped with an additional anti-vibration motor according to the requirement of the user.
4. It has two eccentric moments to adapt the requirements for different soils.
5. Better shock absorbent capacity, lower noise, no pollution, less troubles, easy operation..
Single Jaw parameters | ||||
Item | ZYJ-48 (Single jaw) | ZYJ-68 (Single jaw) | ||
Motor power (kw) | 4 | 4 | ||
Rotary speed (r/min) | 1450 | 1450 | ||
Clamping force (ton) | 56 | 80 | ||
System working pressure (mpa) | 16~18 | 16~18 | ||
Max. flow l/min | 14.4 | 23.2 | ||
Remarks: single jaw is fit for sheet steel piles and spun steel piles with diameter from 325mm-800mm. | ||||
Double jaw parameters | ||||
Item | ZYJ-60-II | ZYJ-80-II | ||
Motor power (kw) | 4 | 4 | ||
Rotary speed (r/min) | 1450 | 1450 | ||
Clamping force (ton) | 50*2 | 80*2 | ||
System working pressure (mpa) | 16~18 | 16~18 | ||
Max flow l/min | 23.2 | 23.2 | ||
Remarks: 1. Fixed double jaw is fot for spun steel piles with: Dia (mm) 480~530, 600~720, 720~820. 2. Flexible double jaws fit for spun steel piles with: Dia (mm) 600~1200, 600~1600, 600~1800, 600~2000, 600~2500, 600~3000. | ||||
Certifications
Detailed Images
Machine Parts

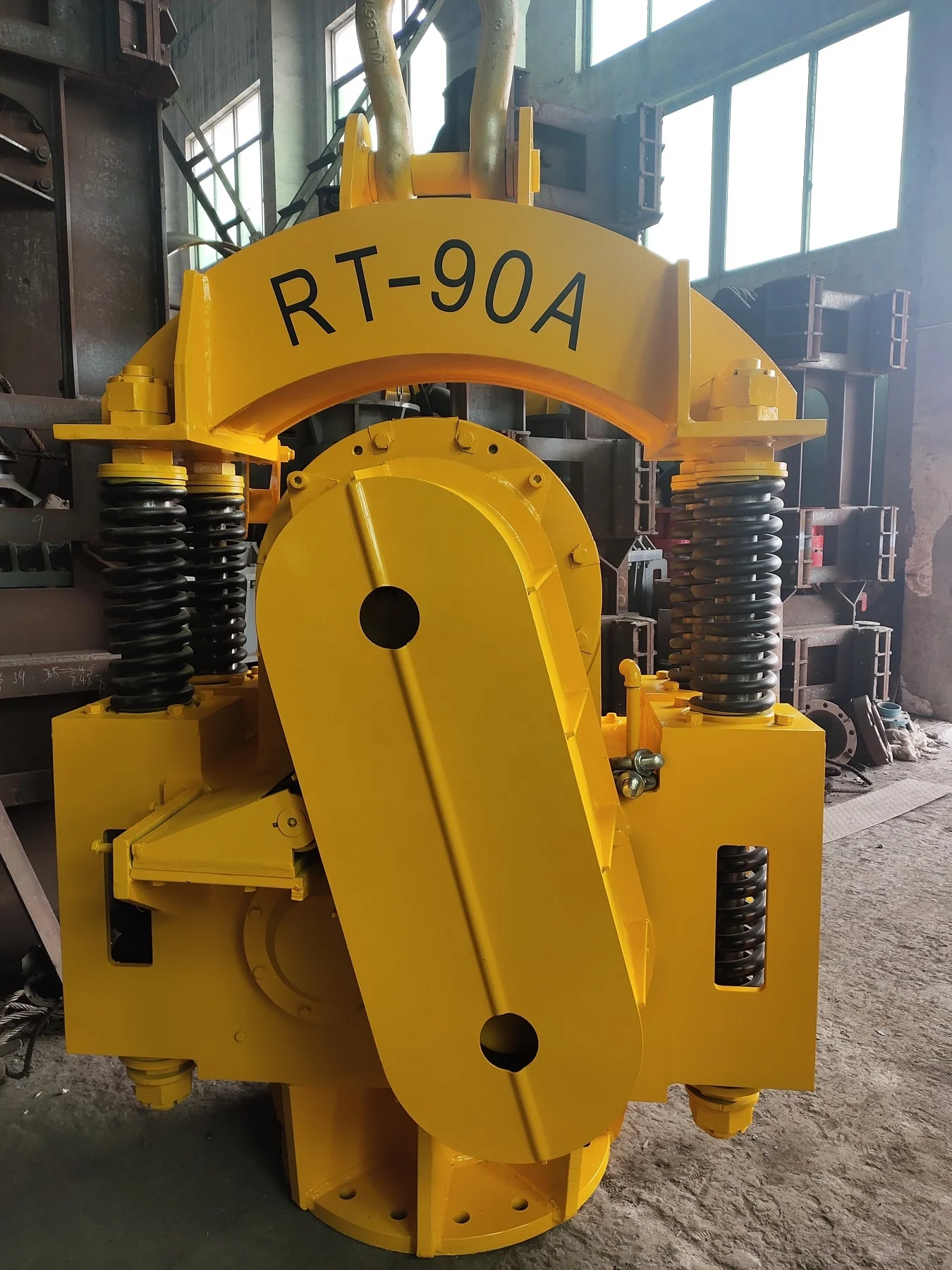

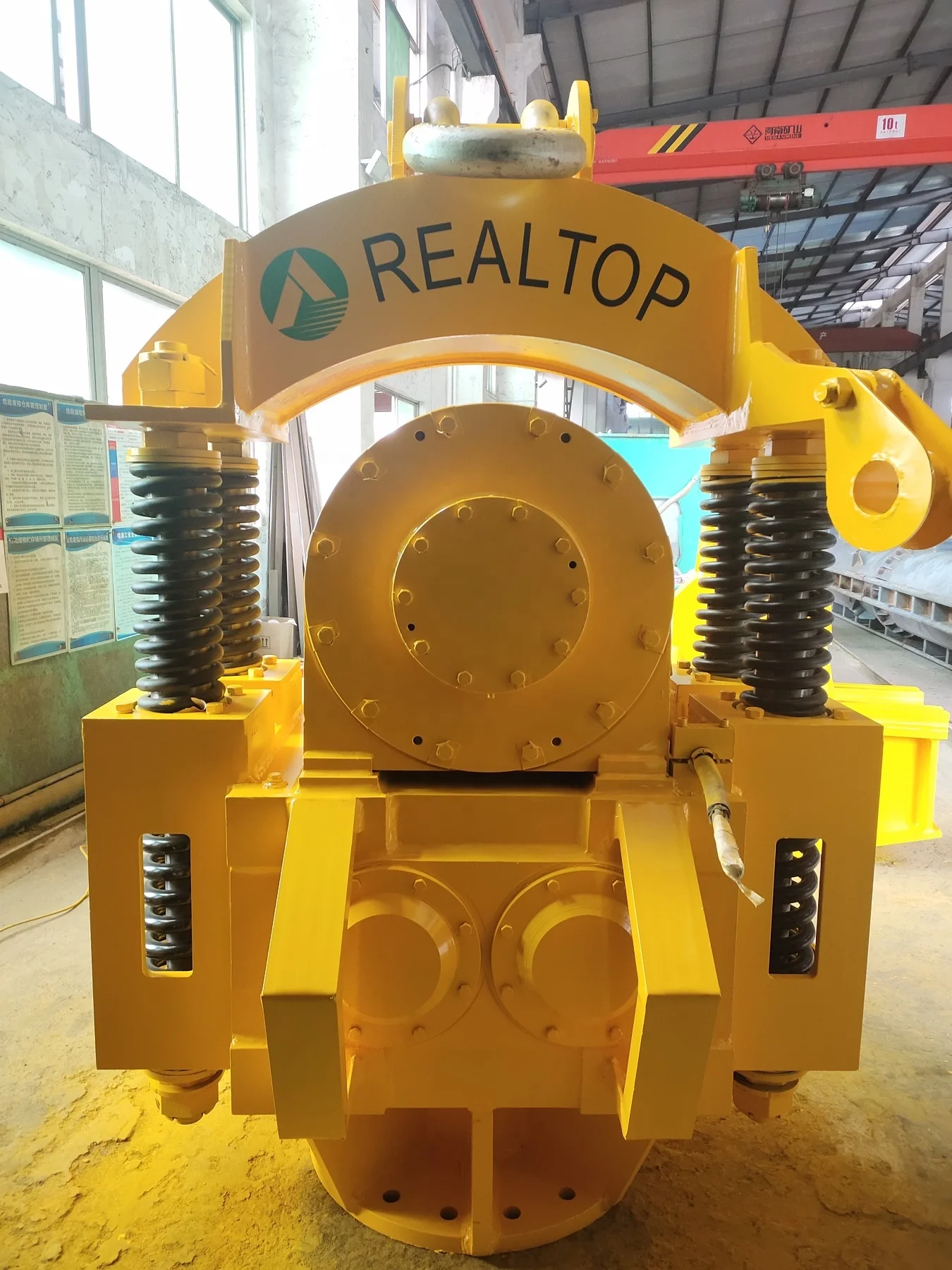

Name: Main body
Brand: REALTOP
Original: China
The main body of the hammer, with 90kw vibro motors, head beam, belt, springs, the shell.
Main Features
Name: Hydraulic oil
Original: China
Hydrauli oil for hydraulic grip, about80-90L accordingly to different models.
Machine Parts

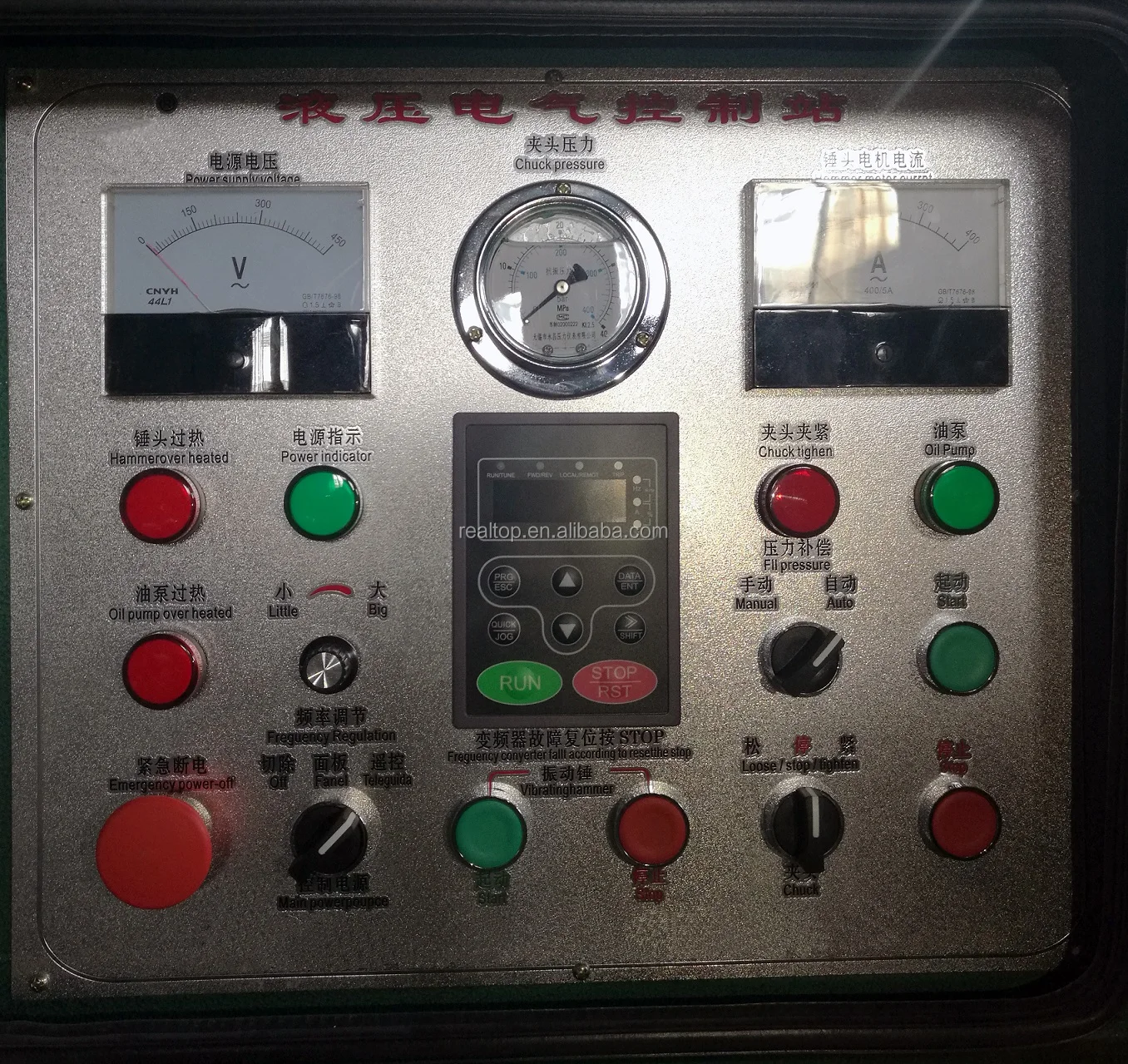

Name: Control panel
Original: China
The control panel with Chinese and English.
Standard and simple design, easy operate.
Both have manual and auto mode.
Main Features
Name: Electric teminals
Brand: REALTOP
Original: China
International standard connections.
N is grounded.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
No. | Item | Qty |
1 | Vibratory pile hammer | 1 unit |
2 | Hydraulic grippers | 1 unit |

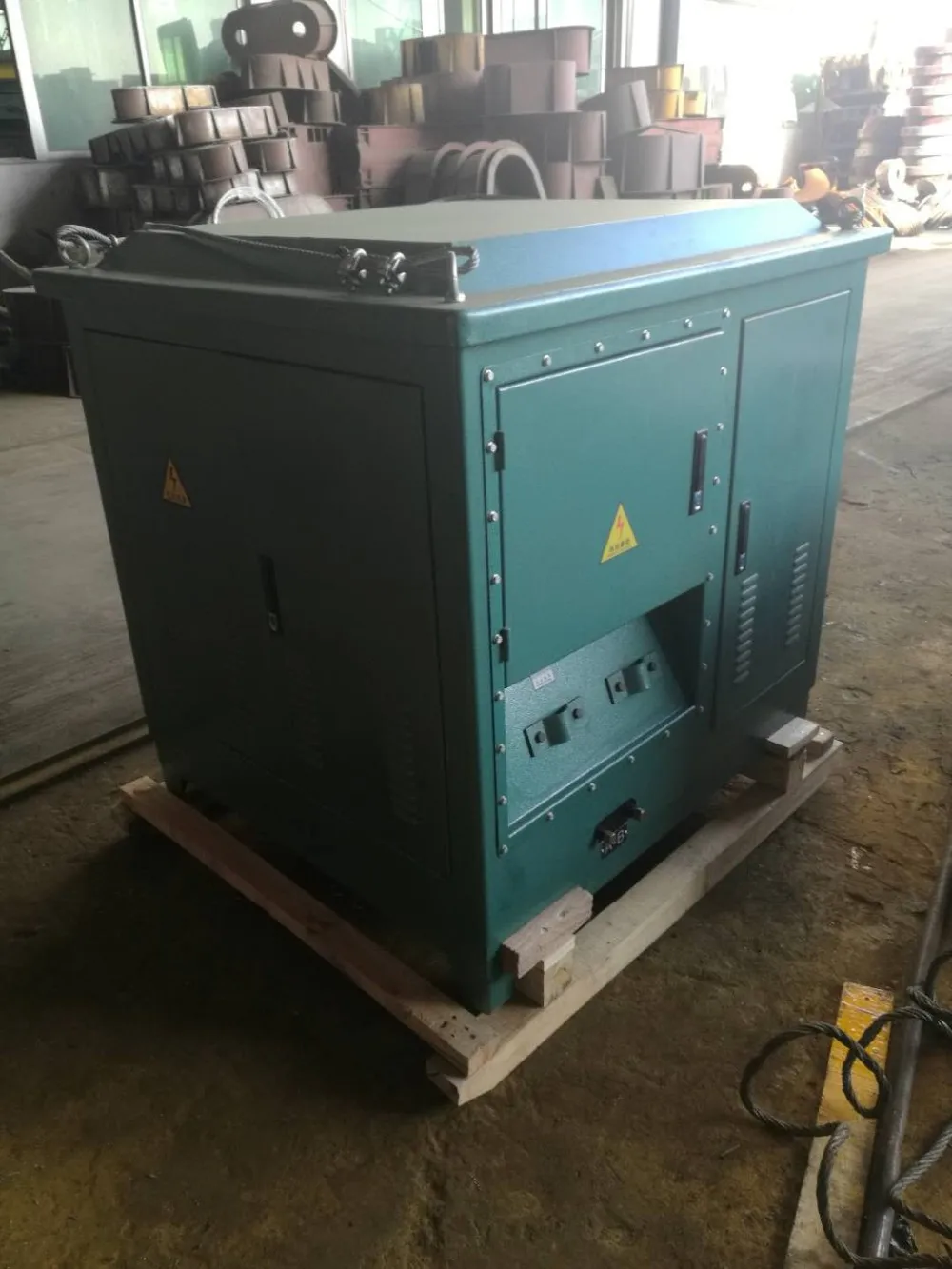

3 | power distribution and control cabinet | 1 unit |
4 | High-pressure oil tube | 2 pieces |
5 | cable | 1 piece |
6 | Connecting screw bolt | 1 sets |
7 | Special tools | 1 sets |
8 | User's manual and technical papers | 1 sets |
CTN No. | Description | Weight(kg) | CBM |
1 | 90A pile hammer | 4800 | 6.39 |
2 | Wearing parts | 1050 | 2.14 |
3 | Control cabinet | 1100 | 3.6 |
4 | Single gripper | 1300 | 1.83 |
Total | 8250 | 13.96 |
