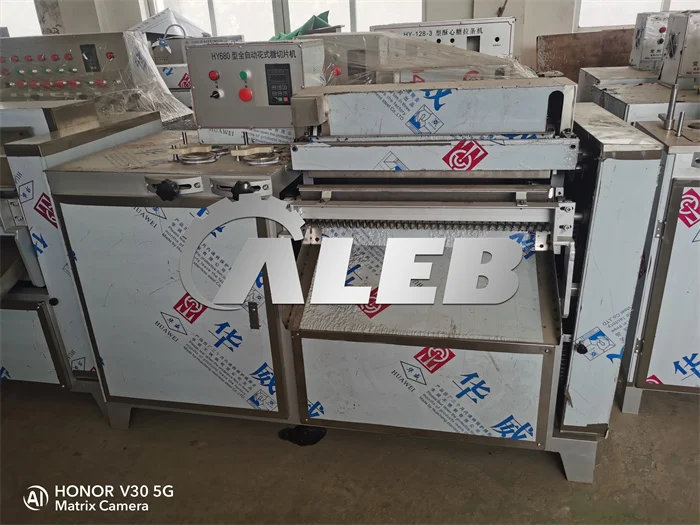

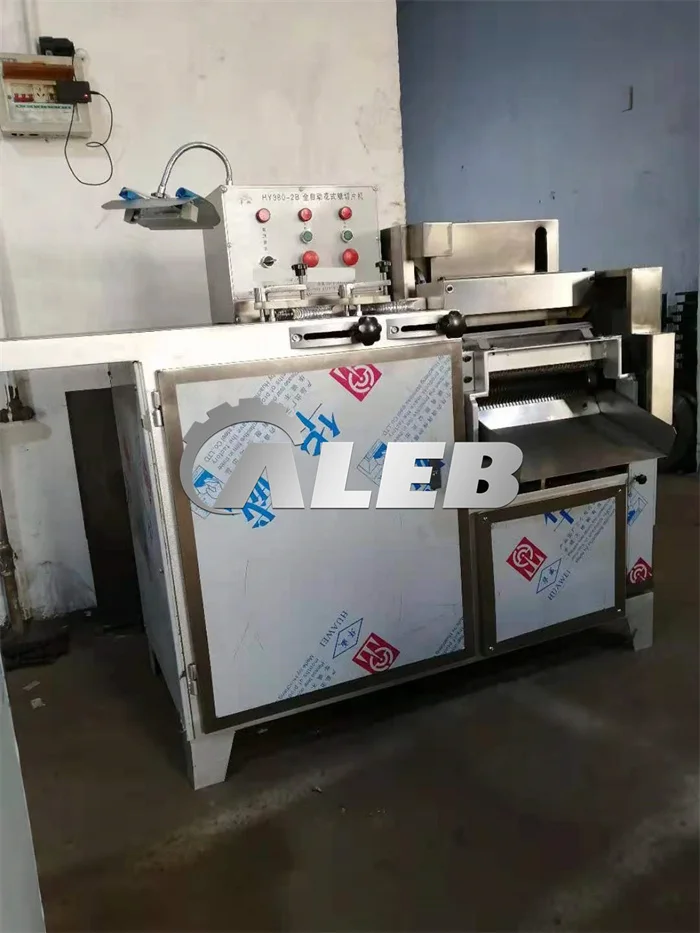

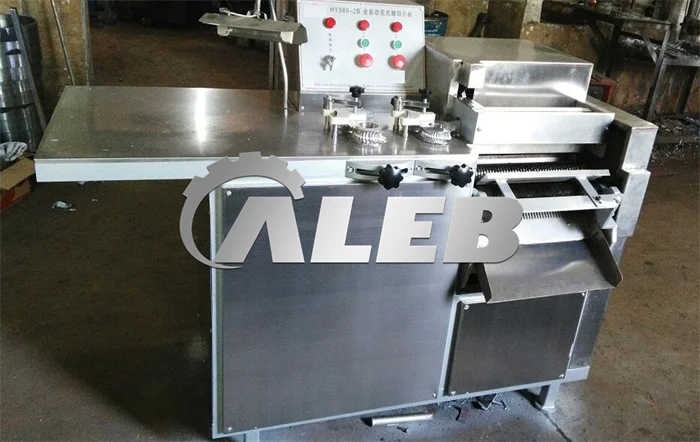

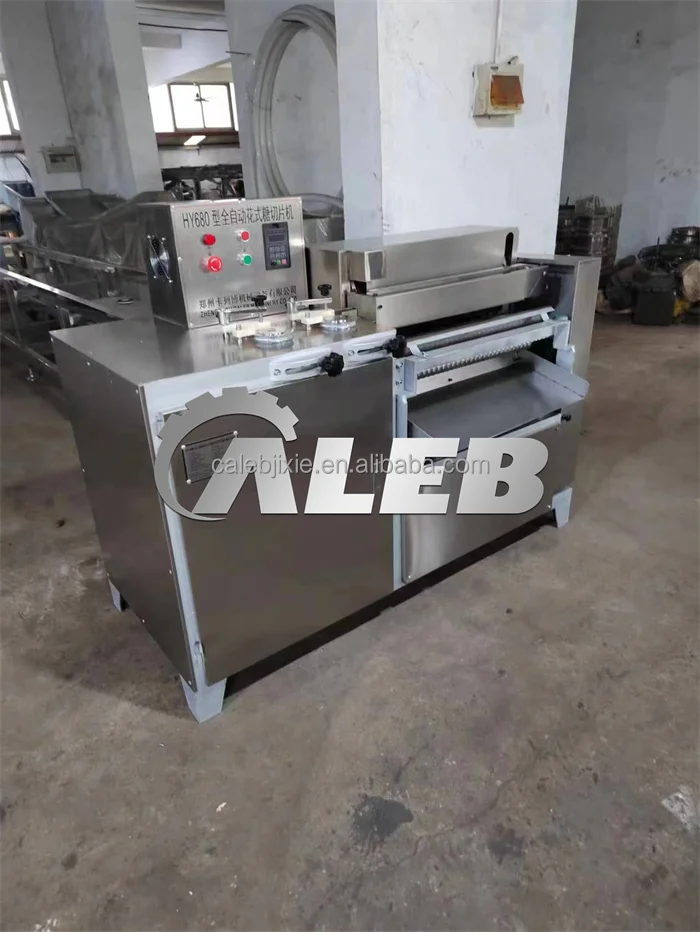

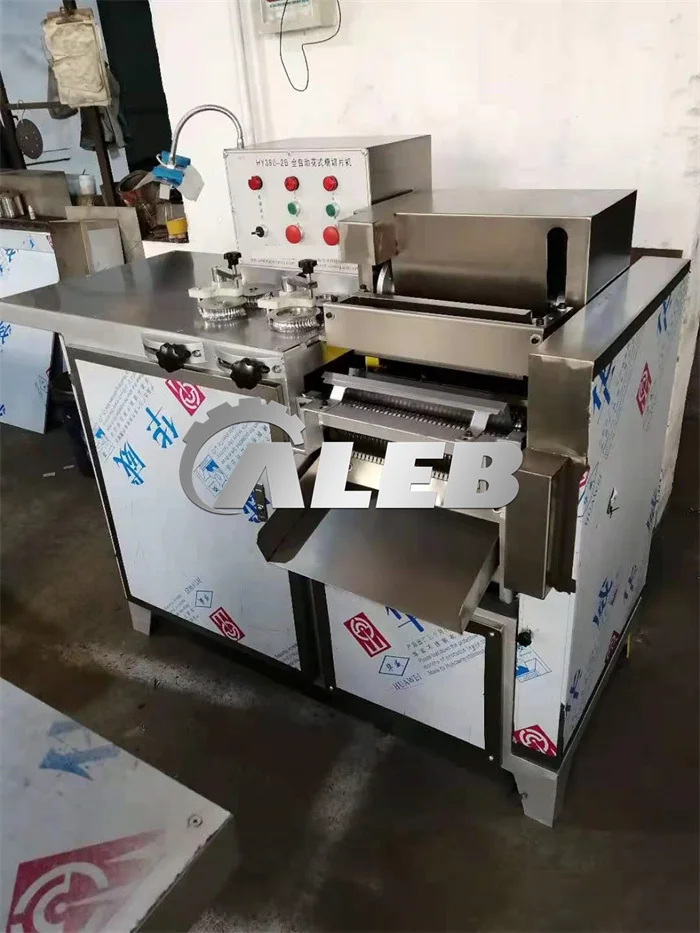

Stainless steel Hard sugar maker making machine
- Category: >>>
- Supplier: Zhengzhou Caleb Machinery Co. Ltd.
Share on (1601040535917):
Product Overview
Description
Products Description

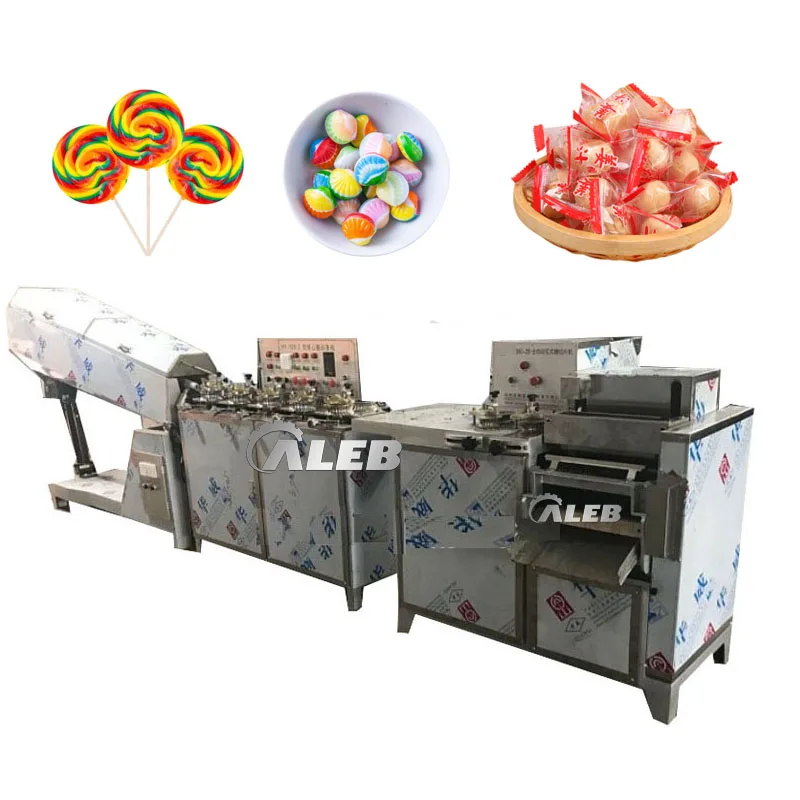

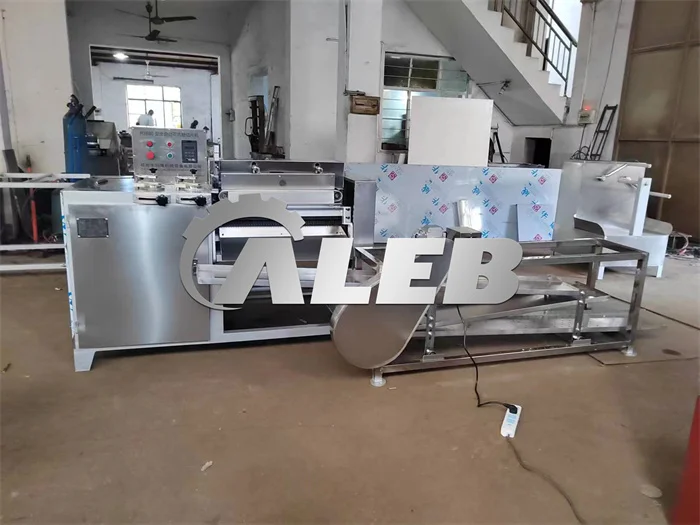

HOT SALE CANDY MAKING MACHINE
This machine is mainly used to produce all kinds of round and diameter shaped candy bars Such as palace lantern shape Drum shape Jujube shaped Cylindrical Oblate Capsules Rosy Round shape etc For example white rabbit candy Coconut sugar Taffy.Fruit bars Sliced marshmallows.
Product Paramenters
Model | CE-HY-380 | CE-HY-680 | CE-HY-900 |
Roller Cutting blade length | 380mm | 680mm | 900mm |
Capacity | 80-120kg/h | 100-200kg/h | 150-300kg/h |
Power | 1.5kw 4 grade motor | 1.5kw adjustable speed motor | 1.5kw adjustable speed motor |
Weight | 300kg | 450kg | 500kg |
Dimension | 1600*600*1100mm | 1600*800*1200mm | 1700*750*1200mm |
it also can match sugar cooking pot and candy rope rolling machine to save labor and improve efficiency
Sugar cooking pot----batch rolling machine--pulling rope machine---candy shape forming machine ----cooling conveyor ----candy
packaging machine
Sugar cooking pot----batch rolling machine--pulling rope machine---candy shape forming machine ----cooling conveyor ----candy
packaging machine
Item | power | voltage | weight | size | output |
Sugar cooking pot | 12kw | 380V/220V | 150kg | 950*950*1400mm | 100kg/h |
batch roller | 0.75kw | 380V/220V | 250kg | 2300*600*1550mm | 260kg/h |
Rope sizer | 1.5kw | 380V/220V | 200kg | 1400*600*1300mm | 300kg/h |
Candy cutter | 2.2kw | 380V/220V | 420kg | 1700*800*1300mm | 300kg/h |
Candy Cooling screen | 0.75kw | 380V/220V | 100kg | 240*400*800mm | 400kg/h |
Details Images
sugar cooking pot
machine can melt sugar into paste. also suitable for other food processing like meat paste, chili sauce,etc. you can choose heating by electric or gas, automatic discharging function, etc. according to different capacity, the pot volume is different.

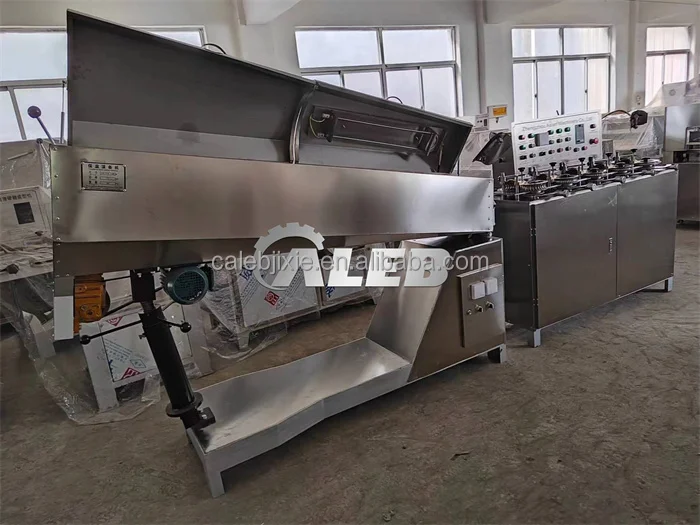

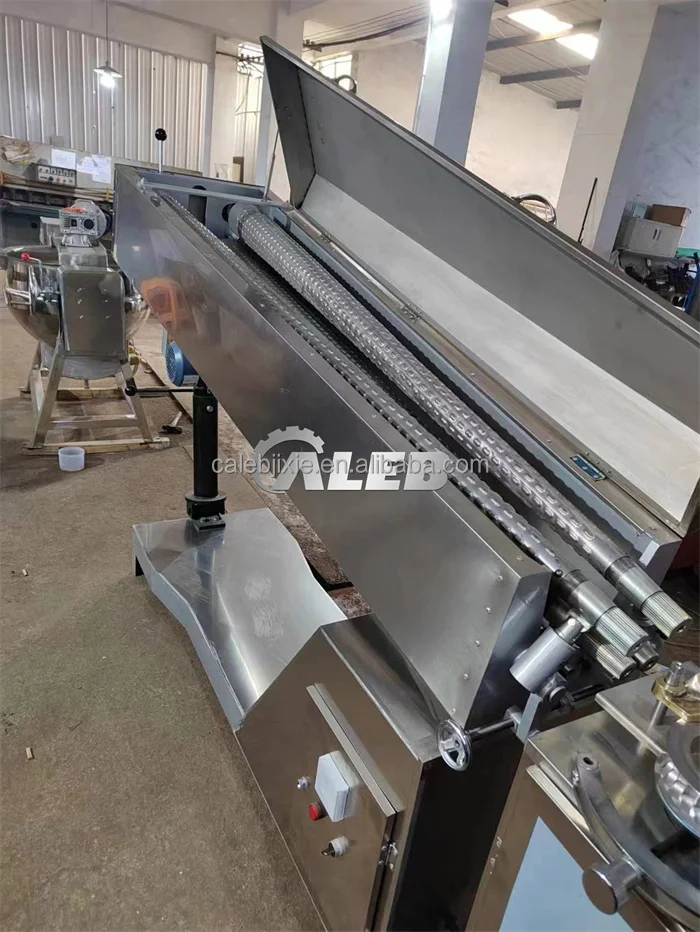

sugar rolling machine
heat-preserving rolling machine mainly consists of wheel box, tumbling box, riser and electrical appliance-controlling system. It is used to preserve the heat of the soft and solid syrup which has been boiled and cooled to 60-70℃, and then roll and temper these syrup. Finally it produces soft candy strips and sends them to the strip-equilibrating machine. after cooling from the table, this machine is to make the steep sugar into strip.

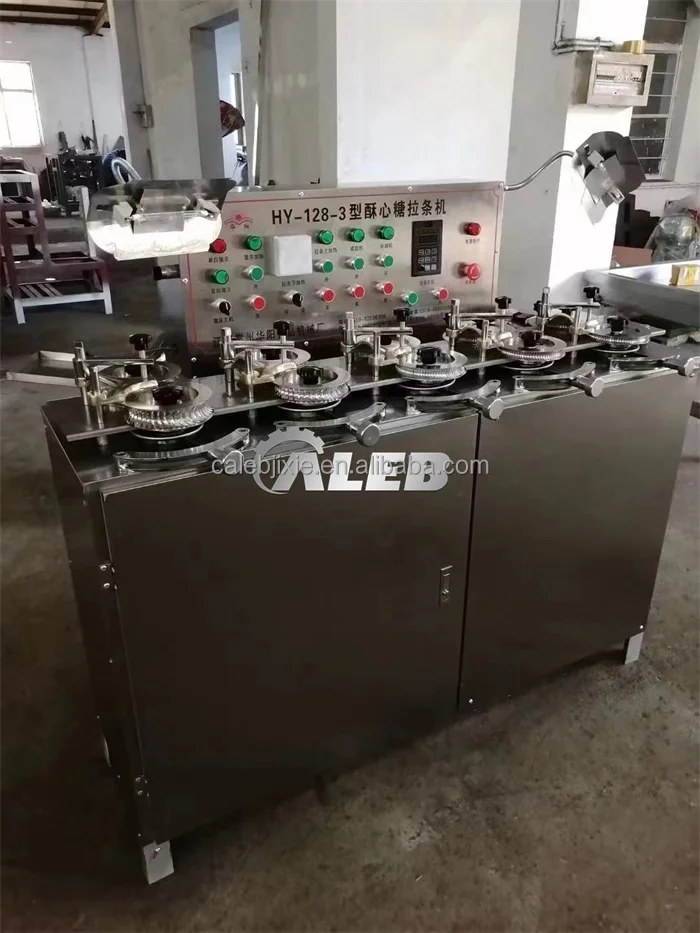

candy pulling rope machine
this machine is also called strip-equilibrating machine, mainly consists of strip-equilibrating groupware, electrical appliance-controlling system, etc. It is used to symmetrically draw the candy strips. Cooperating with other shaping machines, it can produce strip and other designs of candy.

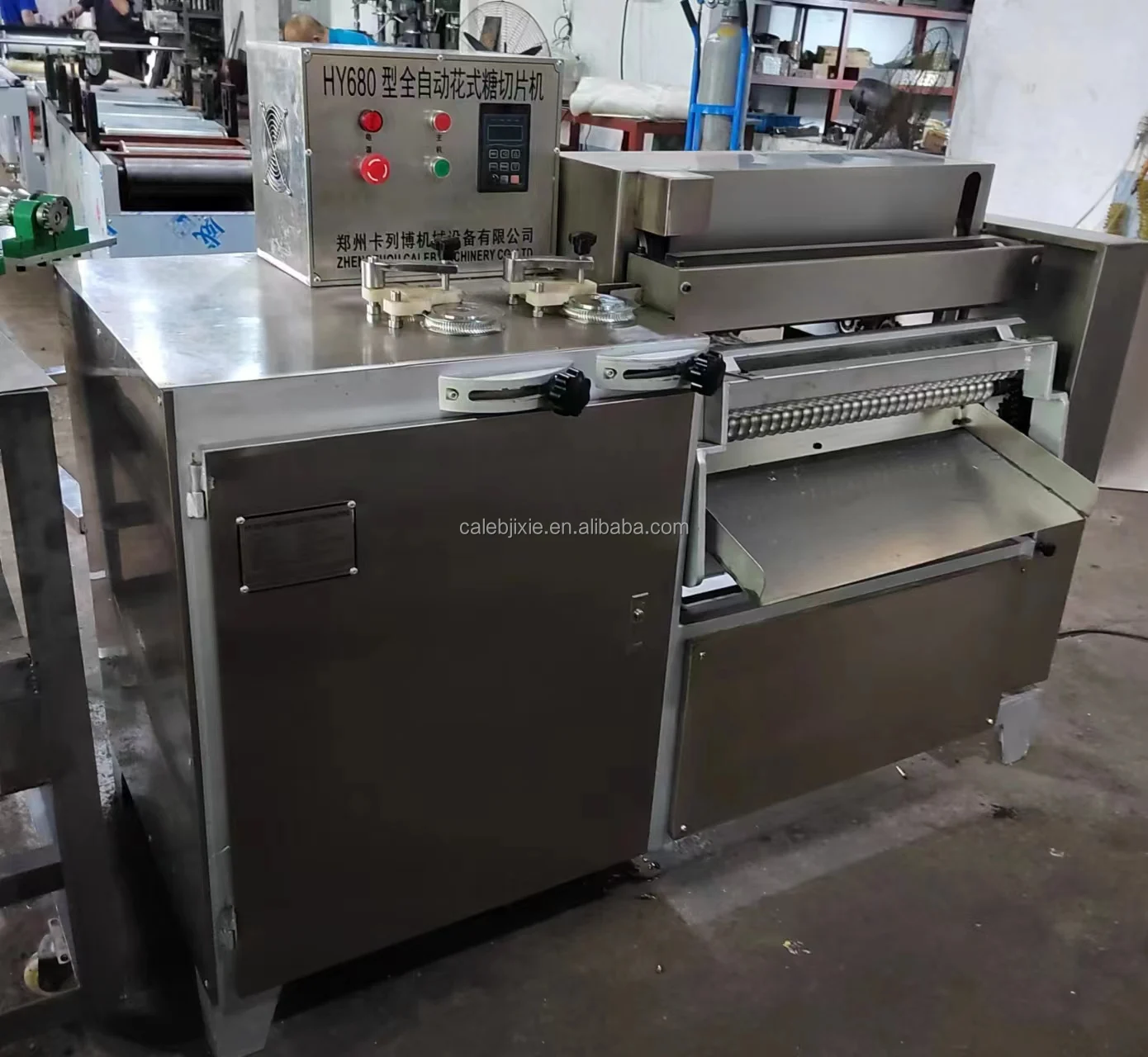

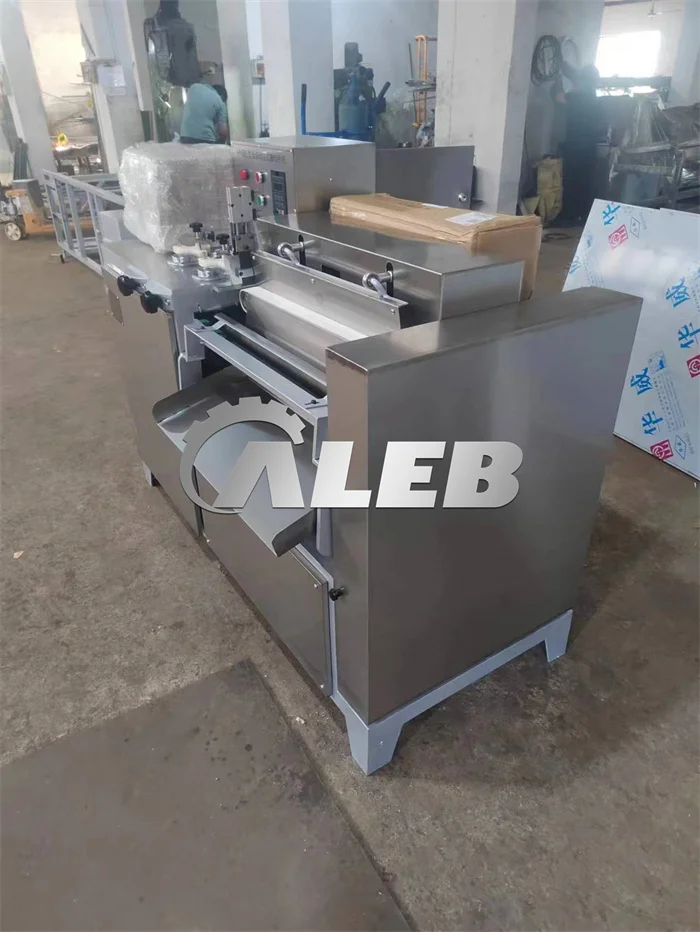

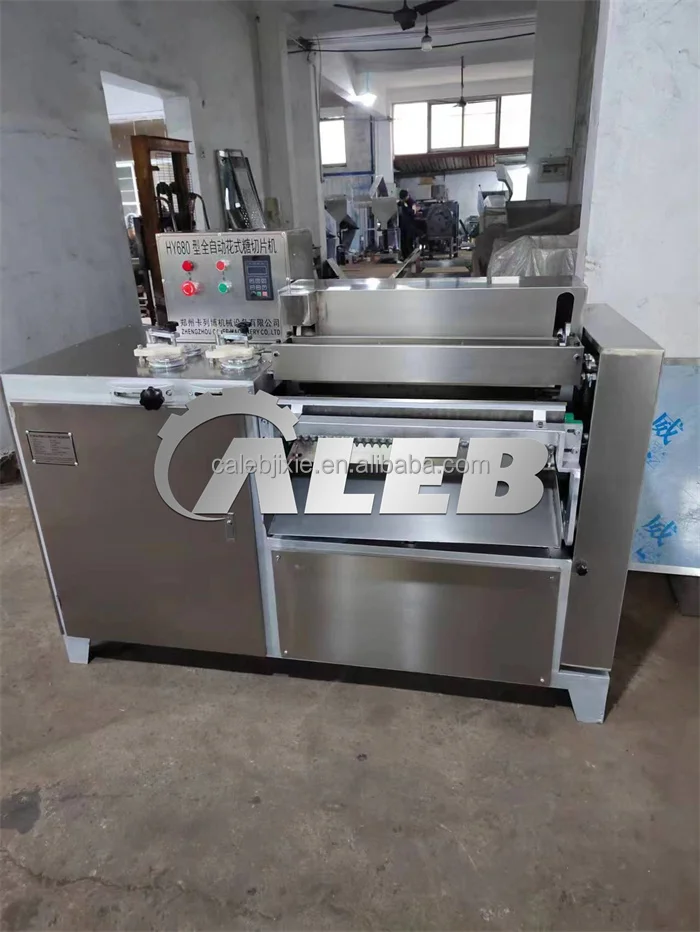

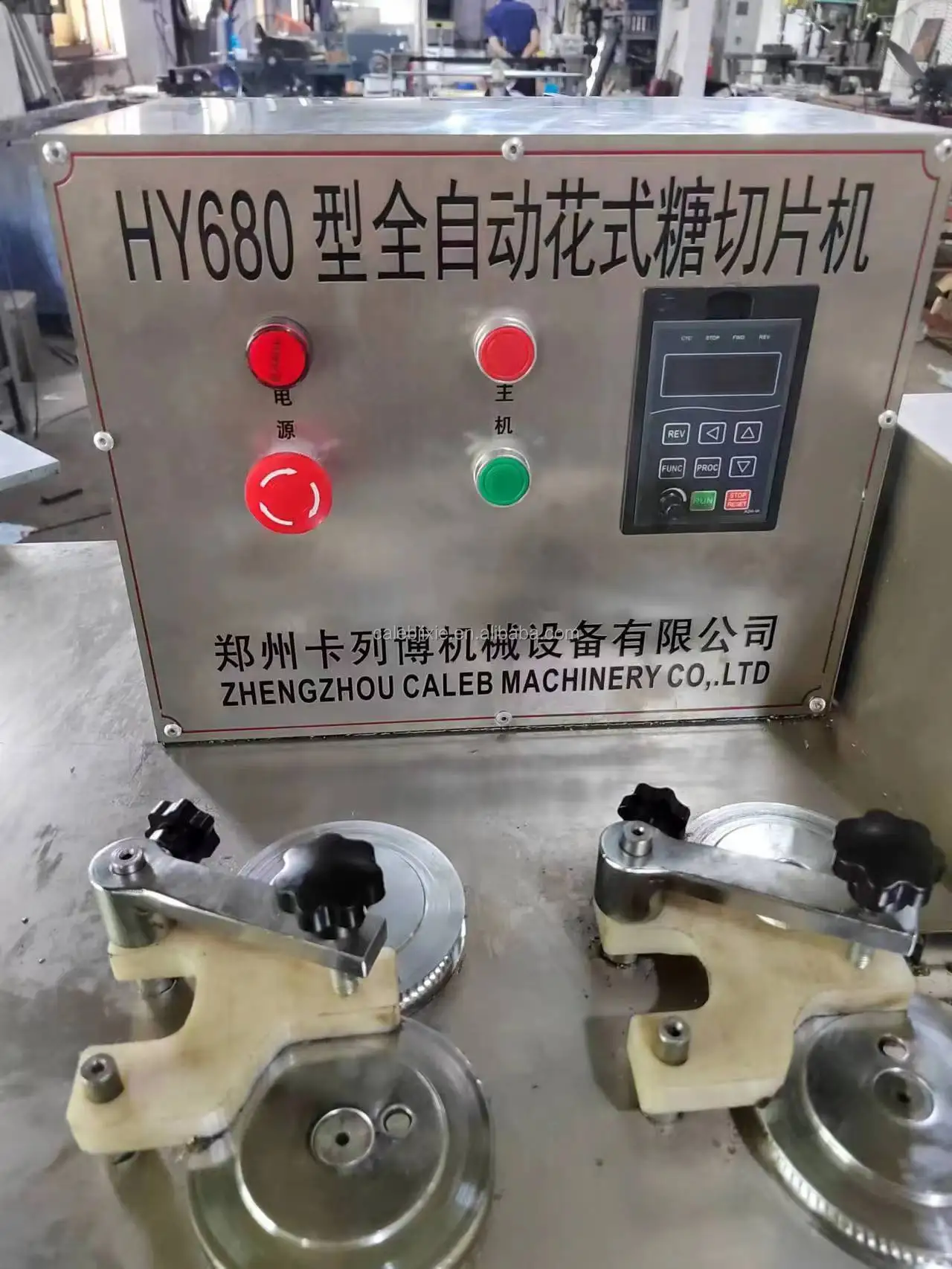

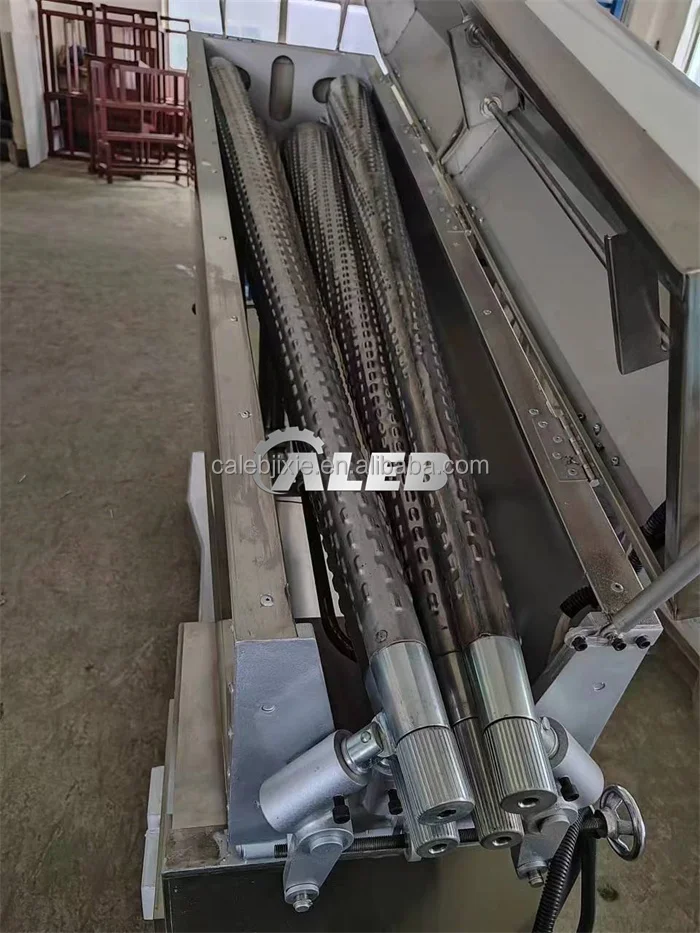

candy forming and cutting machine

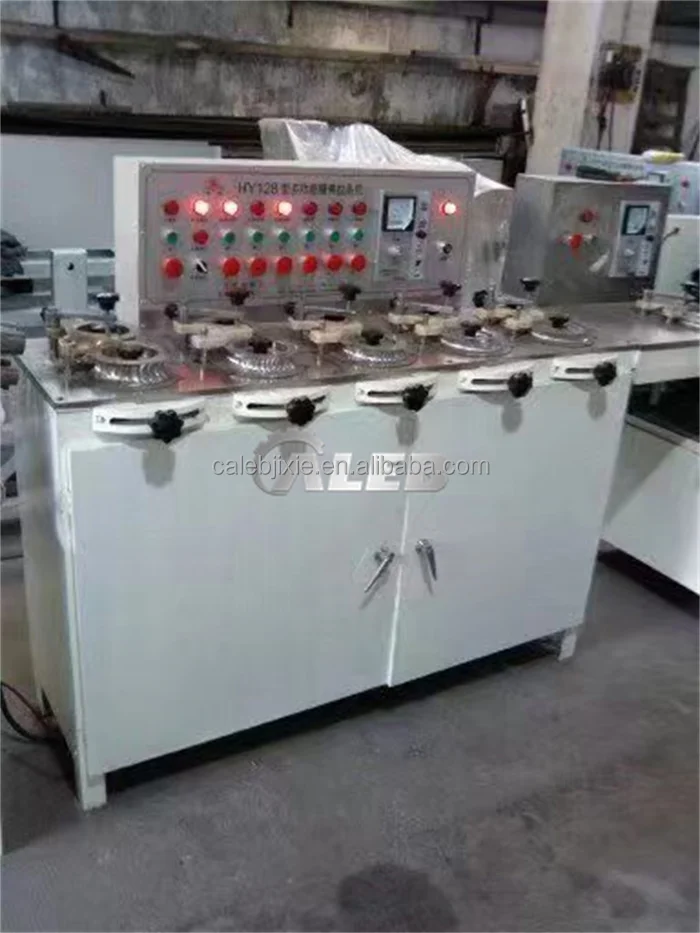

different final hard candy, different forming cutting machine. so we have 2 type candy forming and cutting machine: strip-twisting cutting machine, punch die forming machine
different final hard candy, different forming cutting machine. so we have 2 type candy forming and cutting machine: strip-twisting cutting machine, punch die forming machine

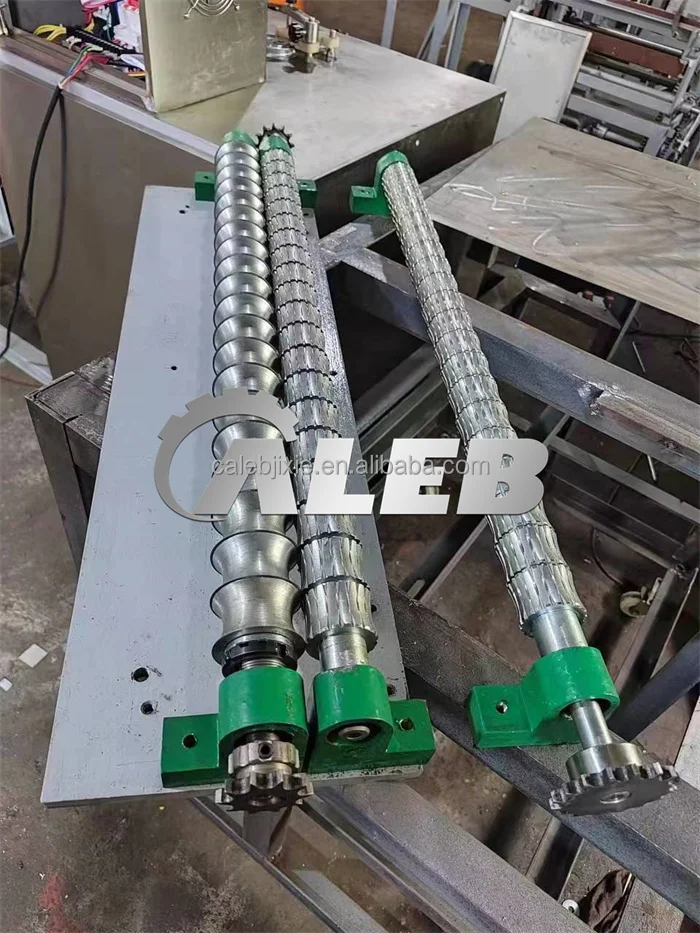

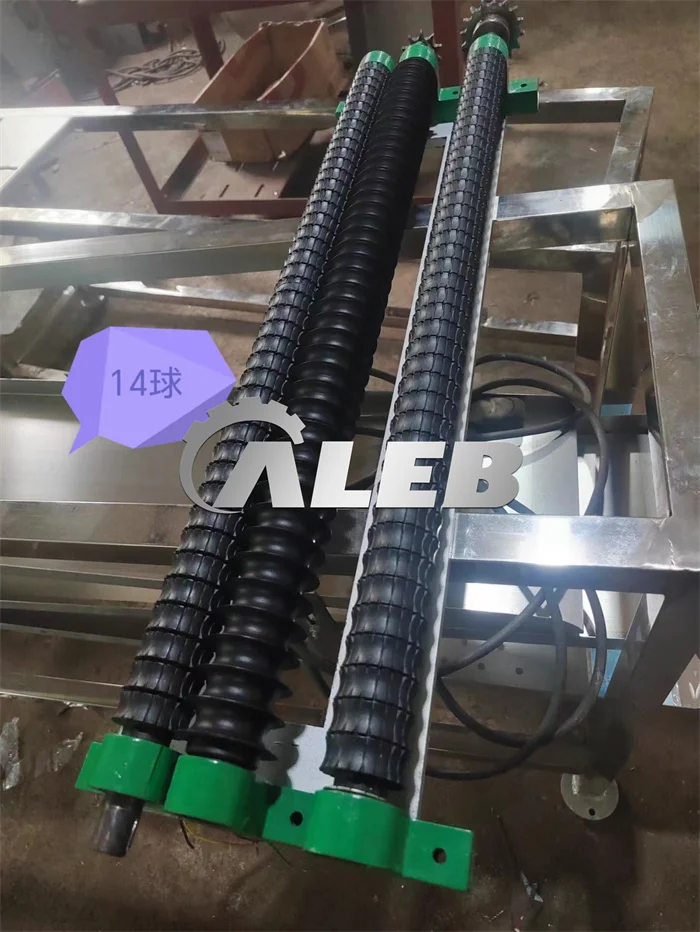

strip-twisting and cutting machine
mainly consists of strap groupware, cutting groupware, electrical appliance-controlling system, etc. It is used to twist, roll and convert the candy strip, and make the candy surface produce twist strips and use the knife to cut them as required.

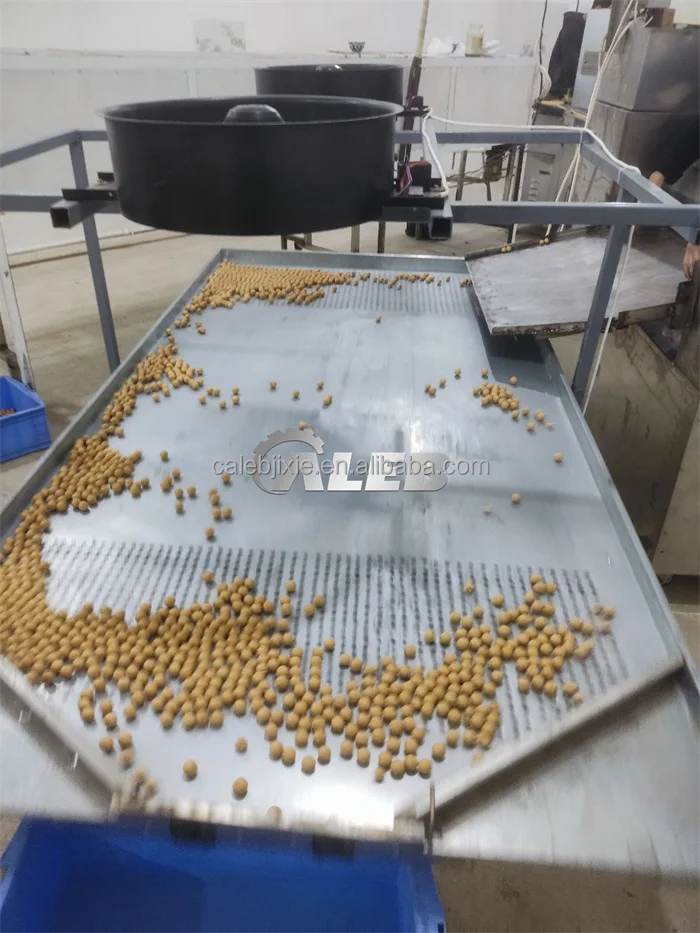

candy cooling sieving conveyor
This machine can be used after candy forming equipment, with vibration and air fun, it can make newly produced candy cooling without distortion and blocking . thus guarantee high quality of final candy.

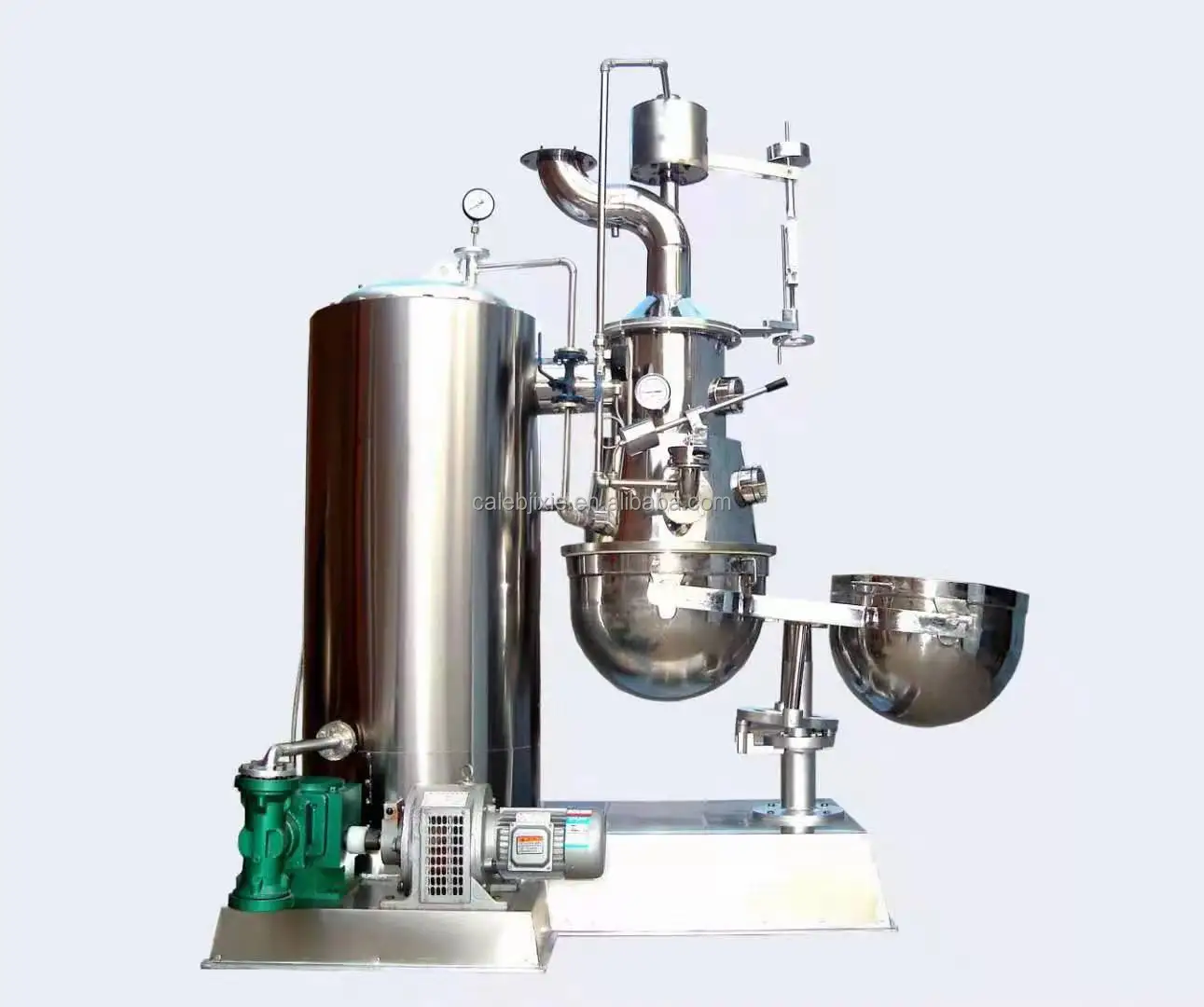

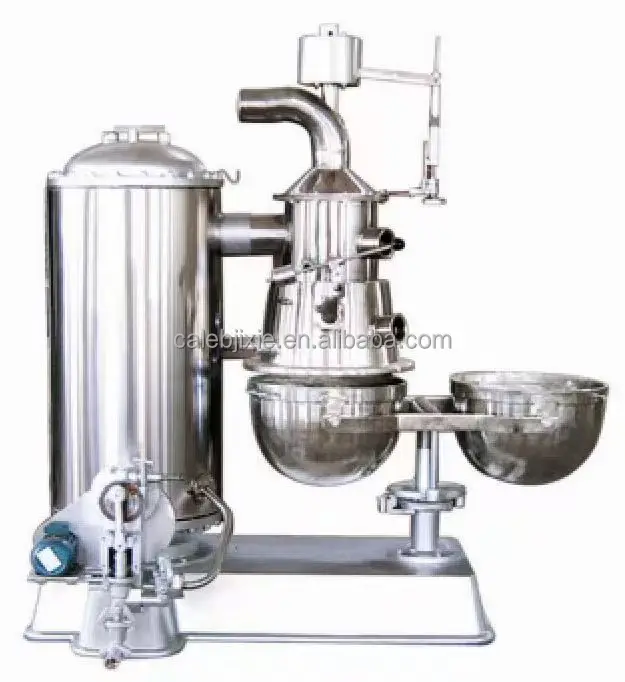

sugar melting machine, we have jacketed kettle type , and vacuum sugar melting machine for optional.

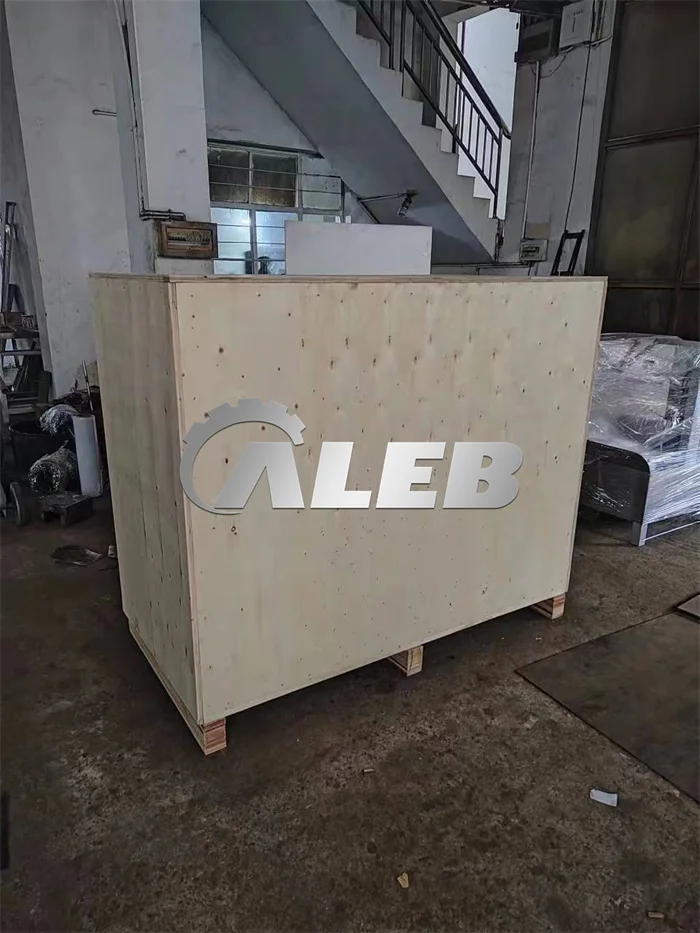

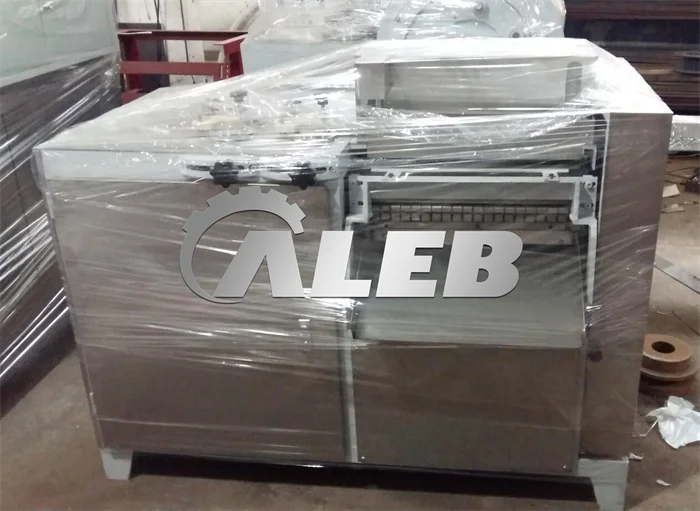

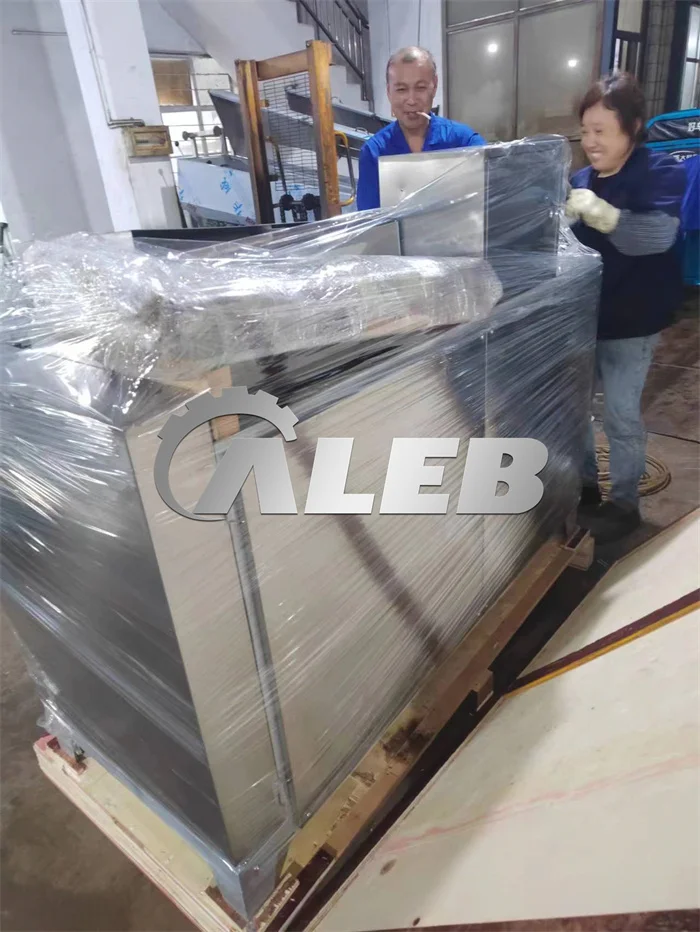

Product packaging

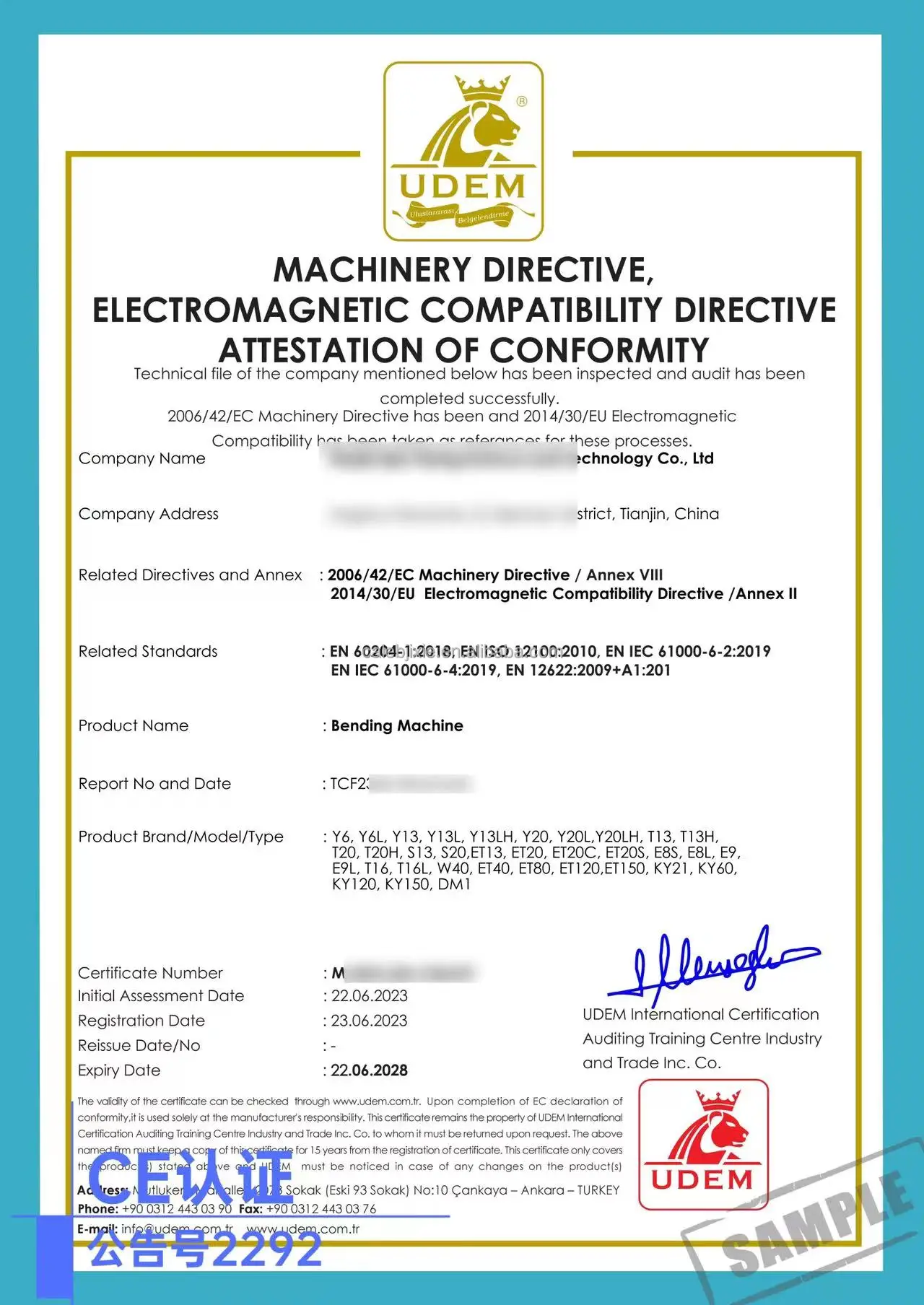

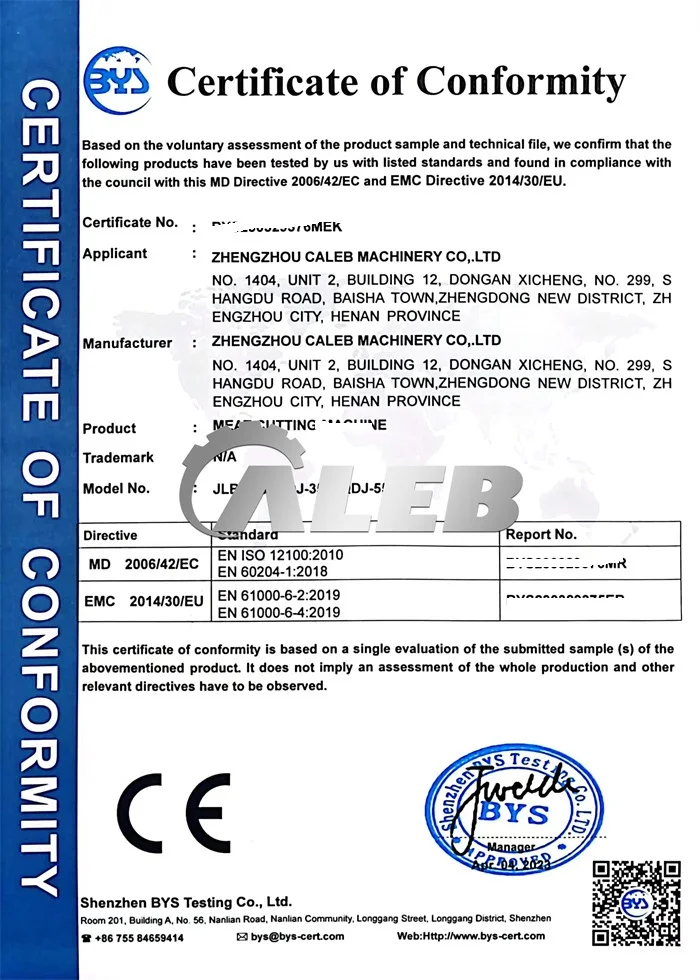

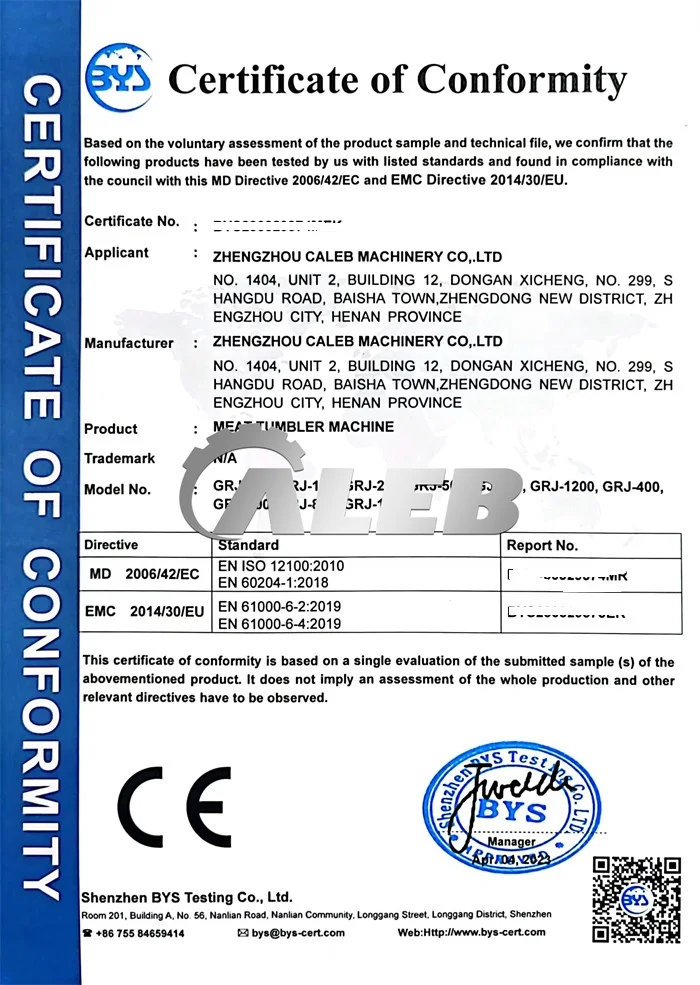

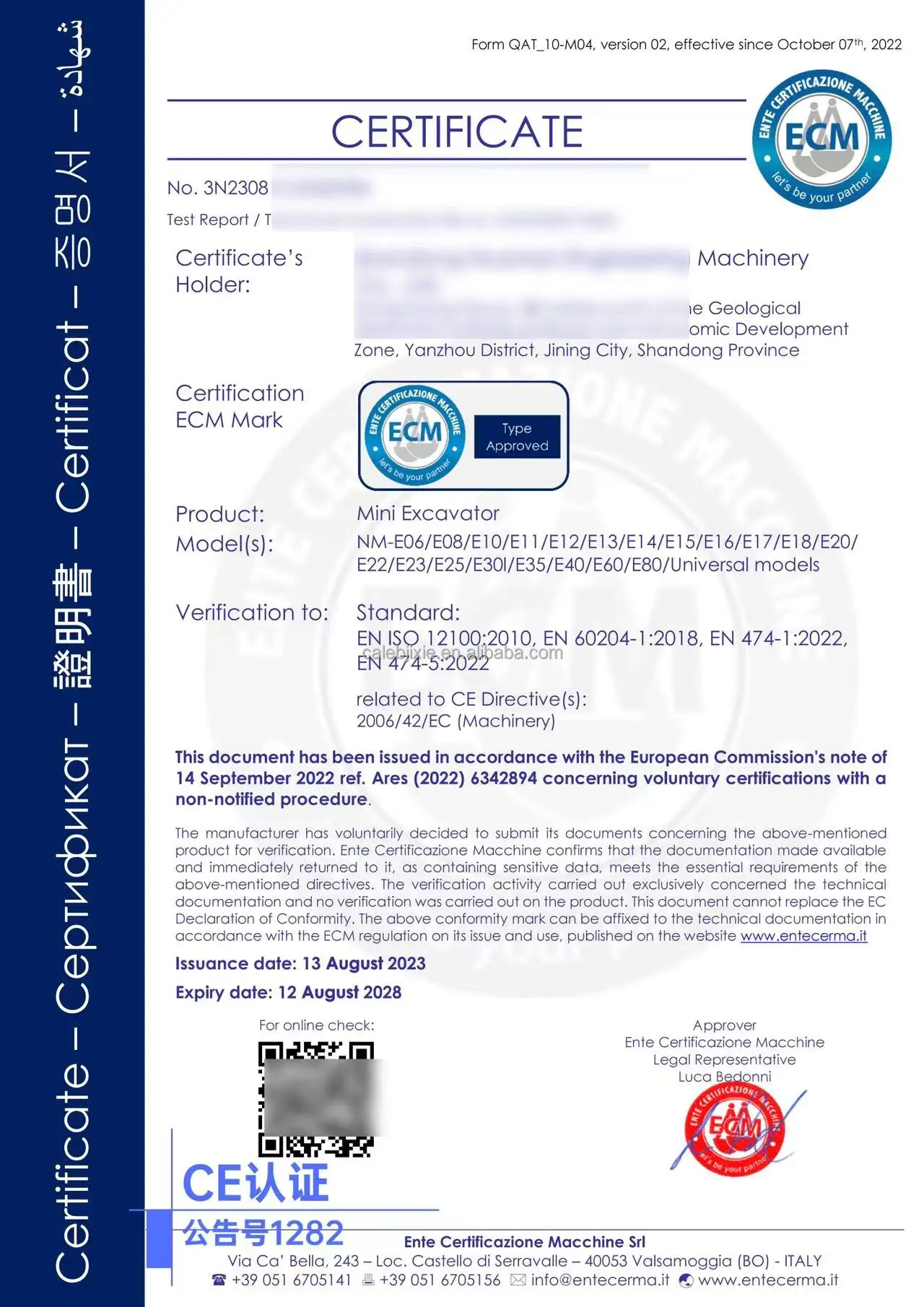

Certifications

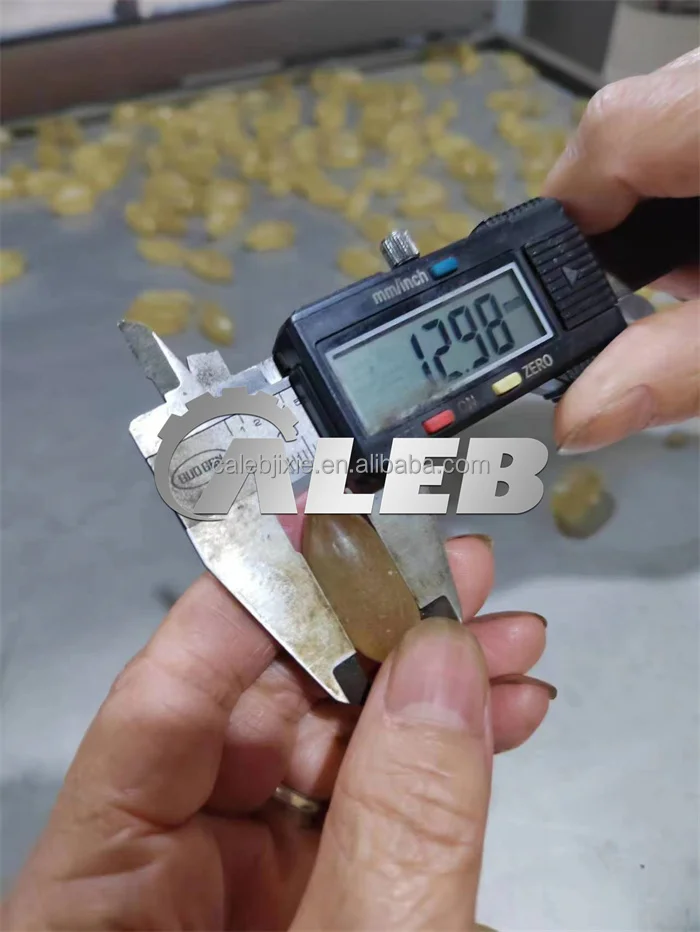

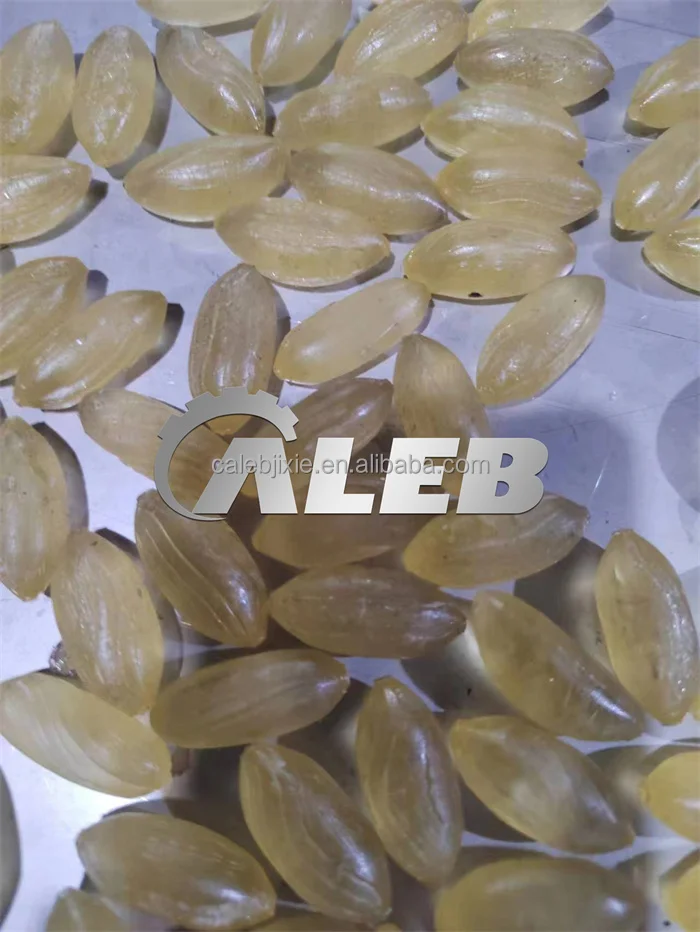

Customer Photos
FAQ
1.What are your advantages compared with your competitors?
With rich industry experience and strict Product Quality Control systems, we provide
1) Stable and reliable product at reasonable price)
2) Good customer service: Fast response to any inquiry or question
3) on-time delivery
2.Are you manufacturer?
Yes, we are manufacturer with more than 10 vears' experience
3.About customization
OEM business partner will be warmly welcome
4.How to order?
Inquiry >>confirmation>>payment>delivery
5.Do you have Mog?
Our MOQ is one set
With rich industry experience and strict Product Quality Control systems, we provide
1) Stable and reliable product at reasonable price)
2) Good customer service: Fast response to any inquiry or question
3) on-time delivery
2.Are you manufacturer?
Yes, we are manufacturer with more than 10 vears' experience
3.About customization
OEM business partner will be warmly welcome
4.How to order?
Inquiry >>confirmation>>payment>delivery
5.Do you have Mog?
Our MOQ is one set
