Feasycom Free SDK BT5.2 Dual Mode IoT 450m Long Range IP40 OTA USB Bluetooth Programmable Beacon for Advertising
- Category: >>>
- Supplier: Shenzhen Feasycom Co. Ltd.
Share on (1601040547833):
Product Overview
Description
Products Description
Specification

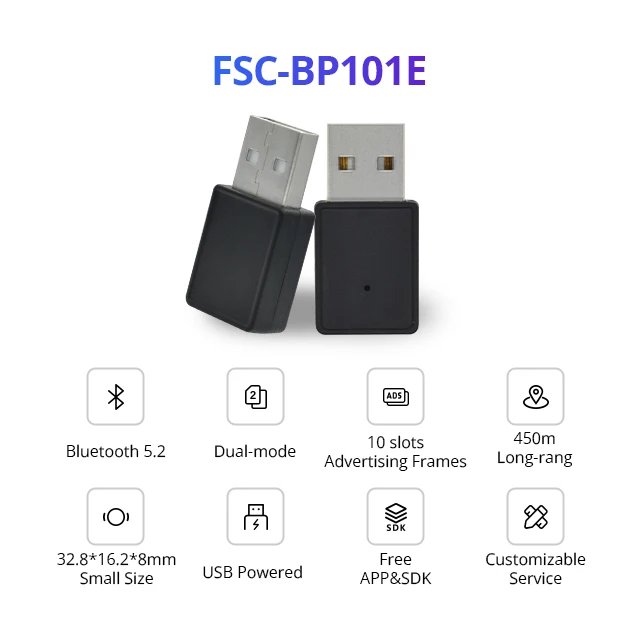

The Feasycom FeasyBeacon FSC-BP101E is an ultra mini size USB powered beacon that supports a long-range transmit distance of up to 450m. It simultaneously supports iBeacon, Eddystone (e.g. URL, UID), and AltBeacon for broadcasting and provides the ability to advertise up to 10 slots of advertising frames. With low cost and long cover range features, it's the best choice for business marketing projects with limited budget.
With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own applications, such as Broadcast, Proximity Marketing, Digital Signage, Indoor Location, Asset Tracking, Vehicle Tracking, etc.
Features
* USB Powered, Small Size
* Up to 450m cover range
* CE certification
* Dual-mode Bluetooth 5.2 USB BT beacon
* Pre-programmed with Feasycom Standard Beacon Firmware
* Up to 10 slots of Advertising Frames
* Configurable by Free FeasyBeacon Mobile App and SDK
* Customizable Color, Logo, Hardware, Software
* Up to 450m cover range
* CE certification
* Dual-mode Bluetooth 5.2 USB BT beacon
* Pre-programmed with Feasycom Standard Beacon Firmware
* Up to 10 slots of Advertising Frames
* Configurable by Free FeasyBeacon Mobile App and SDK
* Customizable Color, Logo, Hardware, Software
Item | Description |

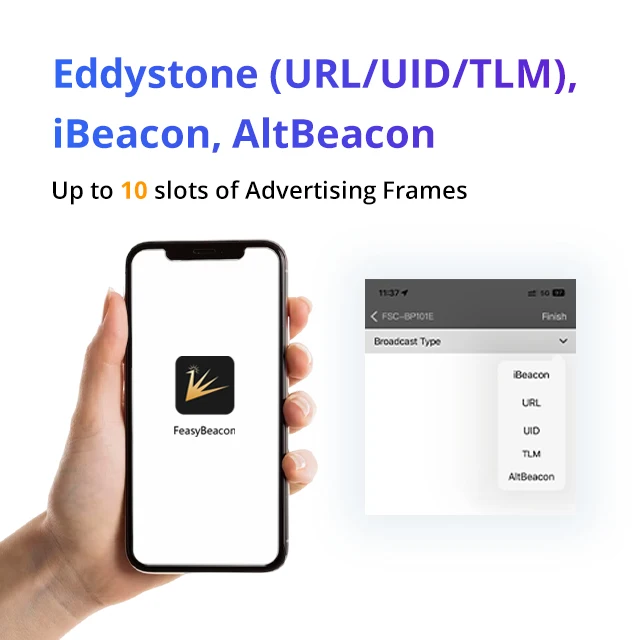

Advertising Format | Eddystone (URL/UID/TLM), iBeacon, AltBeacon |
Configuring Method | FeasyBeacon SDK compiled app (e.g. FeasyBeacon app, iOS & Android) |
Advertising Interval | Default 1300 ms, range from 100 ms to 2000 ms |
Security | Access password required, Default Pin Code 000000 |
Max Number of Broadcast | 10 Slots configurable advertising frames |
Default Broadcast Interval | 100 ms for iBeacon & Eddystone |
System Compatibility | iOS 9.0+, Android 4.3+ |

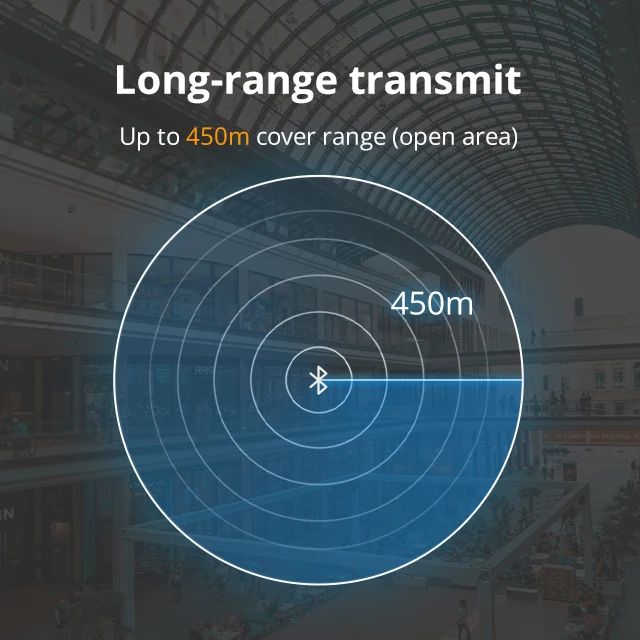

Advertising Distance | Up to 450m (open area) |
Firmware Upgrading | OTA (upgrade firmware over the air) |
Item | Description |
Chipset | Feasycom FSC1011 |
Bluetooth Version | Dual-mode Bluetooth 5.2 |
TX Power | 5 dBm (Maximum) |
Antenna | PCB Coil antenna |
Power Supply | 5V USB |
Material | ABS plastic |
Color | Black or customized |

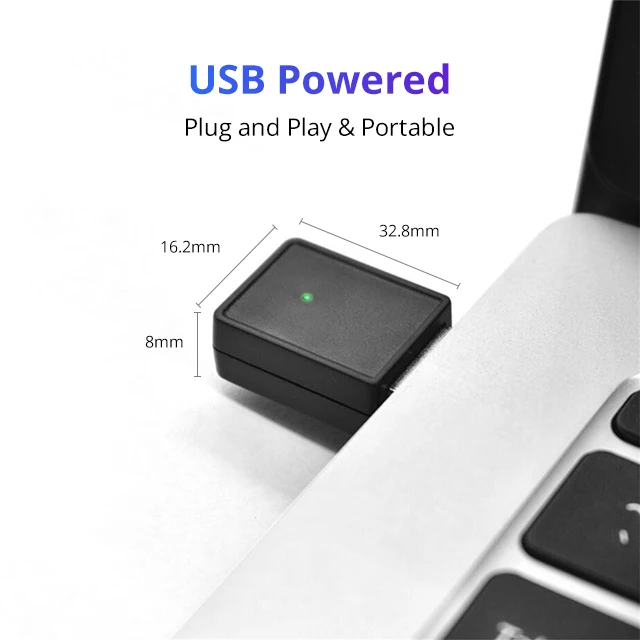

Size | 32.8 * 16.2 * 8 mm |
Net Weight | 3.5 g |
Protection | IP40 |
Operating temperature | -10°C to +70°C |
Certification | CE |
Company Profile
Feasycom focuses on the researching and developing of IoT (internet of things) products, including Bluetooth Modules
,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
* SDK
* APP Support
* PCB Design
* Development Board
* Firmware Development
*Depth Customization
* Certification Request
* Turn-Key Production Testing & Manufacturing
Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location,
Lighting and more. Aiming at "Make Communication Easy and Freely", Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.
Exhibition
Certifications
Customer Evaluation
Packing & Delivery
FAQ
Q1.Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete
solution according to your requirements.
Q3.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate
(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete
solution according to your requirements.
Q3.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate
(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
