ZR EUO01 3 Plug and Recharge Type2 5M Cable EVSE Charger Electric Car Charger for Electric Vehicle
- Category: >>>
- Supplier: Hebei Yujinhong Technology Co. Ltd.
Share on (1601040550152):
Product Overview
Description
ZR-EUO01-1 AC European standard Type2 back-buckle portable charger floor-standing/wall-mounted dual-use 16A
Recommend Products
Specification
ITEM | DISPLAY | ||||

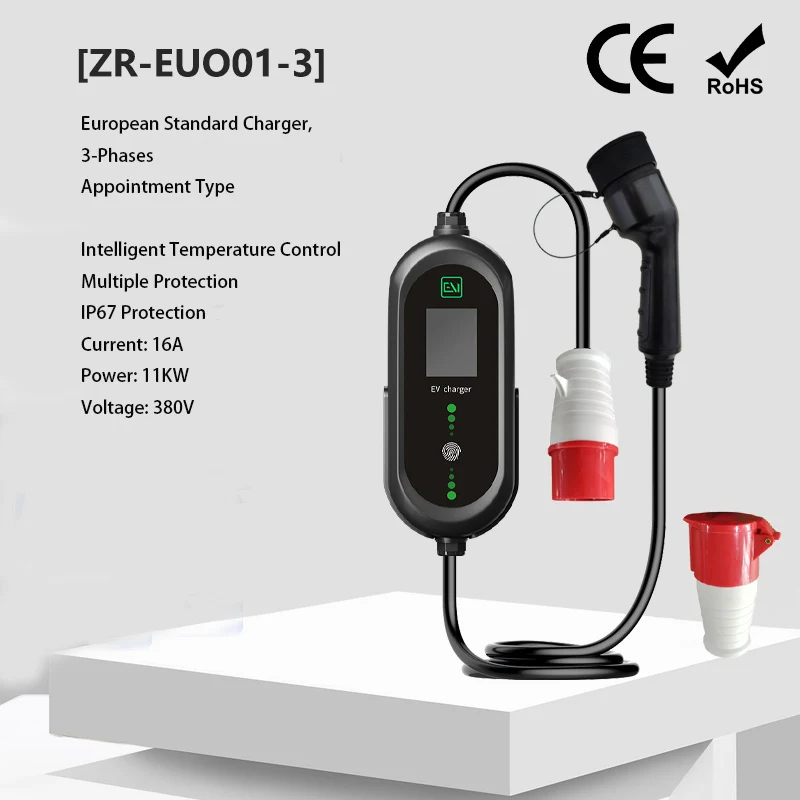

Product model | ZR-EUO01-3 | ||||

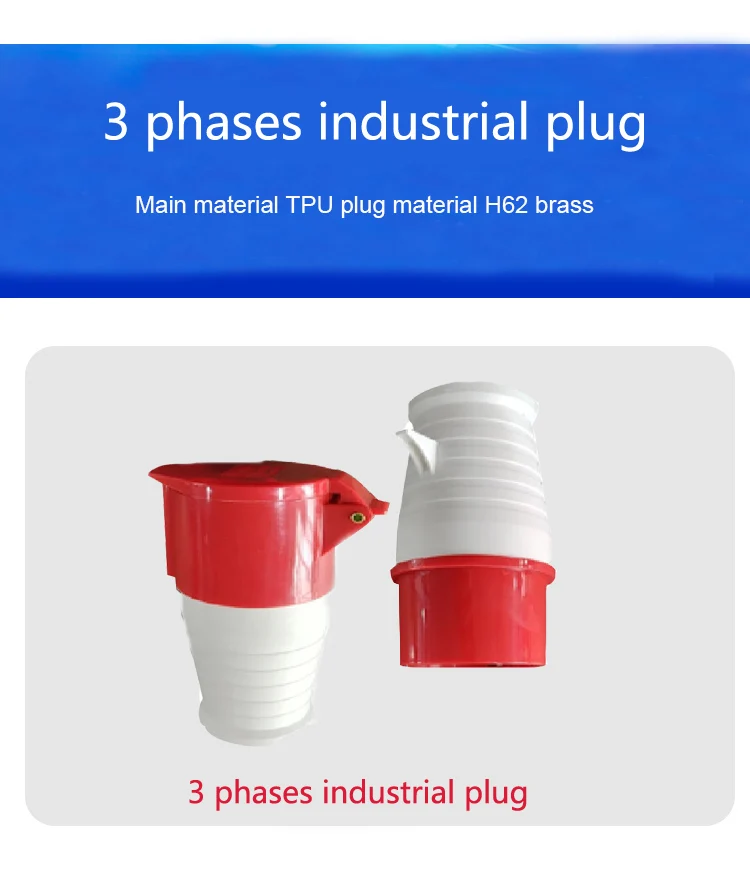

Interface standard | AC type2 3 phases industrial plug | ||||
Application | Home portable car charging pile | ||||
Wire specifications | 5*2.5MM²+0.75MM² | ||||
Equipment weight | About 3.4 kg | ||||
Output current | 16A | ||||
Output voltage | AC 380V | ||||
Input frequency | 50HZ/60HZ | ||||
Maximum power | 11KW | ||||
Standby power | 3W | ||||
Wire length | 5 meters or customized | ||||
Shell material | Charger head-control box PC9330 | ||||
Equipment size | Charger head 240*98*70MM/Control box 245*105*76MM[H*W*D] | ||||
Installation method | Floor-standing/wall-mounted | ||||
Working temperature | -30℃~+50℃ | ||||
Protection level | IP67 for charger head/IP67 for control box | ||||
Safety standards | IEC 62196-2 | ||||
Flammability rating | UL 94 V0 | ||||
Product certification | TUV, CE, ROHS, CB | ||||
Screen | LCD 2.4-inch display | ||||
Carton size | L*W*H: 410*410*125 MM | ||||
Safe design | *Undervoltage protection, *Overvoltage protection, *Overload protection. *Overcurrent protection, *Overtemperature protection, *Leakage protection, *Grounding protection, *Lightning protection, *Electrostatic protection, *Flame retardant protection | ||||
Product Description
PRODUCT SAFETY PRECAUTIONS
1. Safe to Use
1) Don't put flammable, explosive or combustible materials, chemicals, flammable vapors and other dangerous items near the charging gun.
2) Keep the charging gun head clean. If it's dirty, please wipe it with a clean dry cloth. It's strictly forbidden to touch the charging gun core with your hands when charging.
3) Don't attempt to disassemble, repair, or modify the charging pile. If there is a need for maintenance or modification, please contact the staff. Improper operations may cause damage, water leakage, and electricity leakage.
4) If there is any abnormal situation during use, all input and output power can be cut off immediately.
5) In case of rain and thunder, please charge carefully.
6) Don't not allow children to approach and use the charging gun during the charging process to avoid injury.
7) During the charging process, the vehicle is prohibited form driving, and charging can only be performed after the electric vehicle is turned off.
2. Line Requirements Notes
1) 16A use no less than 2.5 square meters of national standard copper wire(≥2.5 square copper wire), and aluminum wire is prohibited.
2) 32-50A use no less than 6 square meters of national standard copper wire(≥6 square cooper wire), and aluminum wire is prohibited.
3. Precautions for Space Requirements
1)16A uses a 16A special socket, and the air switch is no less than 20A.
2) 32-50A uses a 2p air switch. When using a special meter, the air switch shouldn't be lower than 40A; When the charging pile and household appliances share a meter, the air switch shouldn't be lower than 100A.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing:
Packing method: 1pc/box, 5pcs/carton,
Outer carbon size: 60*42*42cm
Weight: 29kg
Company Profile
Hebei Yujinhong Technology Co., Ltd.
Our company was established in 2009. Covering an area of more than 4,000m³.
We are committed to producing electric vehicle chargers. Currently we have 4 production lines, mature technology and professional quality inspection are essential for us.
Our products have passed TUV, ROH, CE, CB and other certifications. Exported to Europe, America, Southeast Asia and other regions around the world.
We always insist on providing customers with high-quality pre-sales and after-sales services and producing high-quality products.
CERTIFICATE DISPLAY
Why choose us
FAQ
Q1: How can I put my order?
A1: If any questions, please contact our sales who can provide you with a full quotation and understanding of your needs. We have an efficient sales team who will reply you in good time and who strive to give you the best service.
Q2: How much do you charge for shipping?
A2: Each product has been weighed and we will price it according to the carrier's charges, Please contact us leave your shipping address.
Q3: What payment method do you accept?
A3: We accept all payment methods include PayPal, T/T, Credit Card, Alibaba Assurance, Western Union and bank transfers please contact us for more details.
Q4: What if my item arrives damaged, faulty or incorrect?
A4: On the unfortunate case that this happens, please contact us as soon as you receive the item. please provide your name, order number and issue so that we can get it resolved quickly for you.
Q5: What power/kw to buy?
A5: First, you need to check the obc specifications of the electric car to match the charging station. Then check the power supply of the installation facility to see if you can install it. However, although our EV charging station are three phase and single phase compatible so even you buy a three phase charger, with only single phase power supply, it can be installed too.
