large capacity 15000 Liters lawn greening hydroseeding mulch equipment machine
- Category: >>>
- Supplier: Zhengzhou Wode Heavy Industry Co. Ltd.
Share on (1601040554491):
Product Overview
Description
Product Description
WHS15190 hydroseeder machine is a new, big capacity, wide applicability, simple operation and maintenance hydroseeder. WHS series hydroseeding machine a driven by diesel engine. Tank capacity is 2000L, 3000L, 6000L, 8000L, 13000L or 15000L. Our machine is equipped with a specially designed centrifugal pump to handle the thickest slurries.
Product Paramenters
Model | WHS15190 |
Power | 190KW, Cummins engine, water-cooled |
Tank Size | Liquid capacity: 15000L Working capacity: 13500L |
Pump | Centrifugal pump:6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 32mm solid clearance |
Agitation | Twin mechanical agitators with helical paddle orientation and liquid recirculation |
Rotating speed of mixer shaft | 0-130rpm |
Maximum horizontal conveying distance | 85m |
Spraying guns type | fixed standing gun and pipe gun |
Height of fence | 1100mm |
Dimensions | 7200x2500x2915mm |
Weight | 8500kg |
Options | Stainless steel material for whole unit,Hose Reel with hose,Remote control unit |
Features
1. More horsepower with high efficiency: 190kw Cummins diesel engine, Air-controlled over-center clutch;
2. Specially design centrifugal pump:6’’x3’’, capacity is 120m³/h;
3. Spraying distance of up to 85m from cannon;
4. Dual cannons design for spraying on both sides of the machine for hard-to reach areas;
5. Swivelable hydraulic hose reel with reel in and reel out functionality;
6. Twin mechanical agitators with helical paddle orientation and liquid recirculation;
7. Removable hoppers for mulch hatch and normal fillwell;
8. Centralized electronic control to improve work efficiency;
9. Wireless remote control makes operate more easily during work.
2. Specially design centrifugal pump:6’’x3’’, capacity is 120m³/h;
3. Spraying distance of up to 85m from cannon;
4. Dual cannons design for spraying on both sides of the machine for hard-to reach areas;
5. Swivelable hydraulic hose reel with reel in and reel out functionality;
6. Twin mechanical agitators with helical paddle orientation and liquid recirculation;
7. Removable hoppers for mulch hatch and normal fillwell;
8. Centralized electronic control to improve work efficiency;
9. Wireless remote control makes operate more easily during work.
Product Details
CENTRIFUGAL PUMP
Special type mud centrifugal pump,
wear-resistant, long service life
OPERATING PLATFORM
Wide operating platform, raised guard rail,
safe and convenient
INLET
When the water tank is short of water, it will automatically alarm the water pump to stop working
POWER SYSTEM
Dual generation,
full power, long range
Product Application

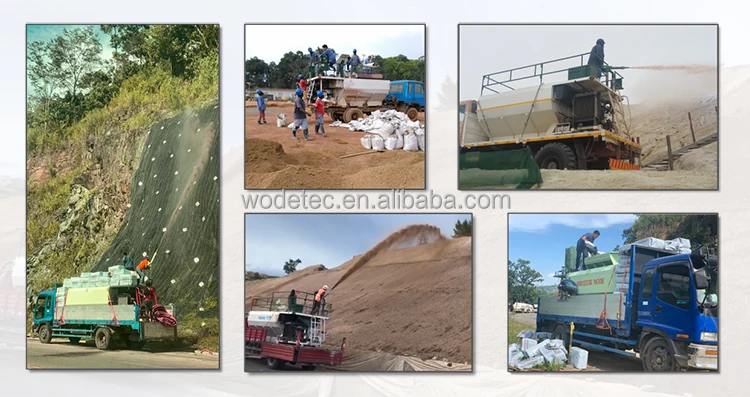

WHS Series hydroseeding machine and hydroseeder technology is more and more applied in road greening, expressway slope greening, erosion control, landfill cover, mine reclamation, dust control, landscaping, etc. projects and also involves in planting permanent vegetation, spraying slurry, slope protection, grassing and erosion prevention.
Packaging&Shipping
Related Product
Company Profile
Zhengzhou Wode Heavy Industry Co., Ltd(short "wodetec") is a set of production, sales and export in one of the machinery manufacturing and research and development of high-tech enterprises. The company is located in the transportation hub city -Zhengzhou City, relying on the transportation routes of Zhengzhou City to transport the company's machinery and equipment to various places. The company mainly develops, produces and sells construction engineering equipment.
Compared with other hydroseeders, WHS hydroseeding machine with following outstanding features:
➢Powerful diesel engine: Cummins or Yuchai etc. famous brand diesel engine. Powerful, low fuel
consumption, low maintenance cost. Powerful engine, ensure an evenly mixing and also improves
the spraying efficiency.
➢Powerful mixing shaft: Strong mixer shaft, also suitable for thick material.
➢High configurations: 13000L or bigger hydroseeders with twin agitators, twin cannons etc.
➢High production: Wear-resisting centrifugal pump, most efficient during working.
➢High density material: Soil substrate, green grass seed, water retention agent, binder, fertilizer and water. The solids could up to 60%.
➢Long distance of spraying: suitable for long and high spraying distance. Solids up to 60%, level distance could up to 100m by hose.
➢Hydraulic hose reel: customize according to demands.
➢Extreme Efficiency: Simple control panel, easy operation.
➢High quality structural steel: More durable, a longer working life. Also have stainless steel tank and pipeline for option.
FAQ
1.Q: Are you a manufacturer or a trade company?
A: We are a manufacturer, and we have our own foreign trade department, we market our own products.
2.Q: How long is your product warranty?
2.Q: How long is your product warranty?
A: 12 months is available from the date of shipment.
3.Q: I plan to put our label to your product, is it possible?
3.Q: I plan to put our label to your product, is it possible?
A: Of course, it is ok. OEM and ODM is available for us, please send your logo, brand name and other info to us, then we’ll produce them per your requires.
4.Q: How can you ensure your product quality?
4.Q: How can you ensure your product quality?
A: We have our professional testing department, after finishing the machine,we’ll test the machine for twice before shipment.
5.Q: Payment?
5.Q: Payment?
A: We will confirm the payment with you when quoting, like FOB, CIF or others. we accept 30% deposit, and shipping after paying the balance. T/T is the main payment, and L/C is acceptable as well.
