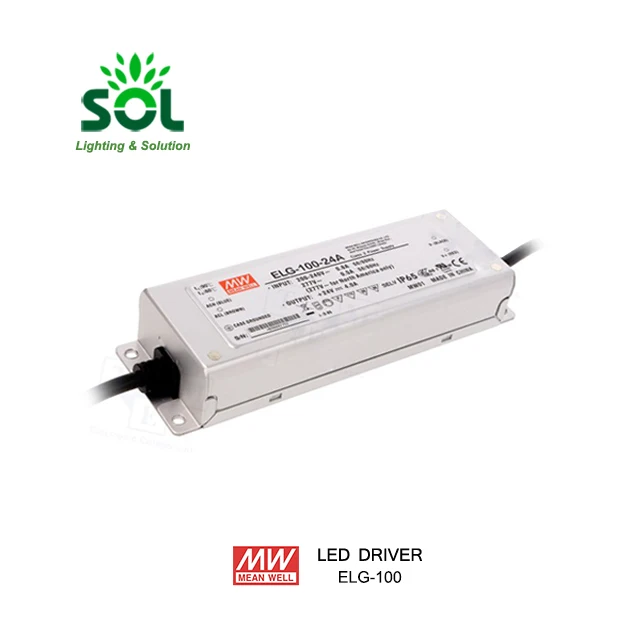

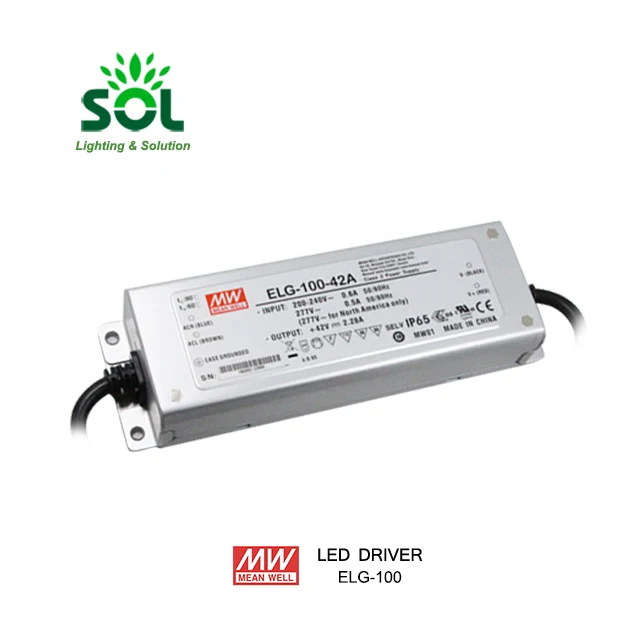

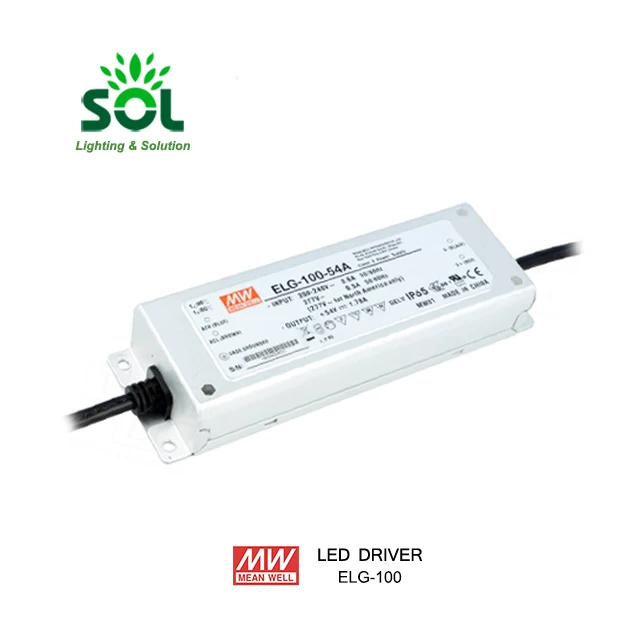

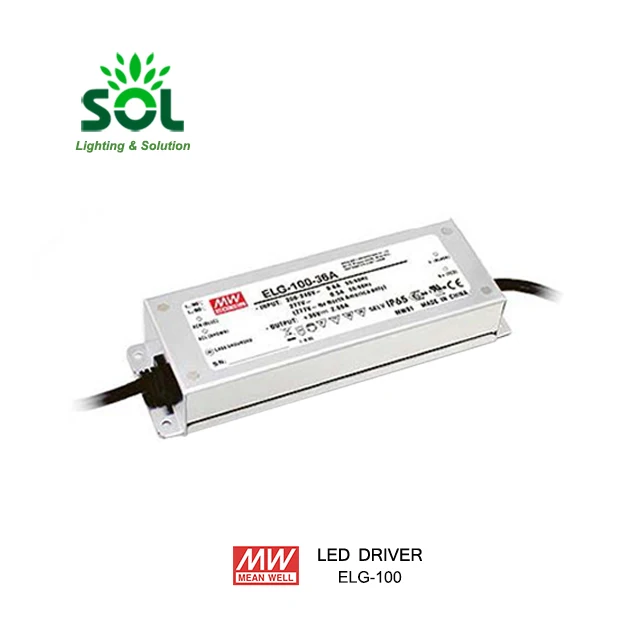

Meanwell ELG 100 48 3 in 1 Dimming 100W 48V Dimmable LED Driver
- Category: >>>
- Supplier: Ningbo SOL-LED Lighting Co. Ltd.
Share on (1601040576830):
Product Overview
Description
Features of MeanWell (MW) Led Power Supply
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- Class 2 power unit
- No load /Standby power consumption < 0.5W
- IP67 / IP65 rating for indoor or outdoor installations
- Function options : output adjustable via potentiometer;
- Function options : output adjustable via potentiometer;

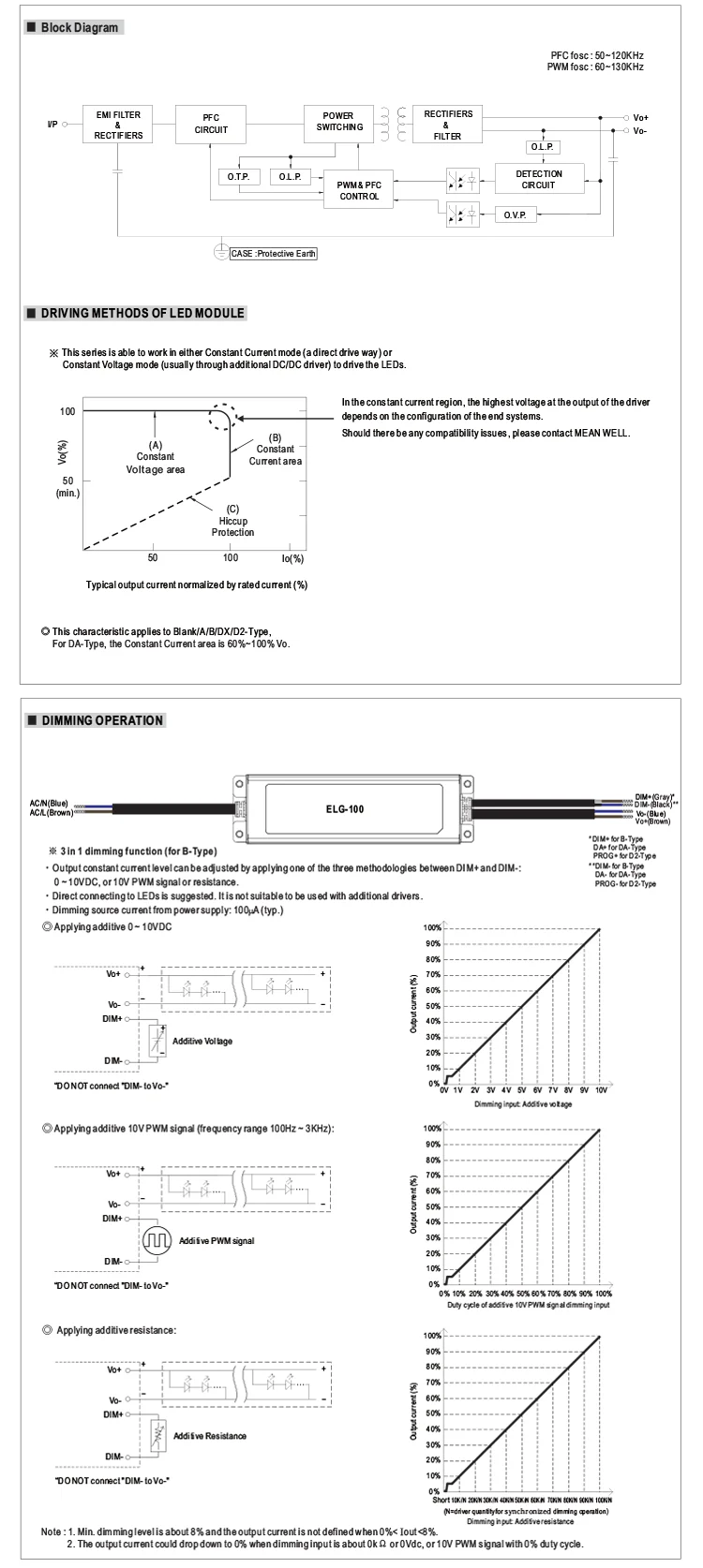

3 in 1 dimming(dim-to-off);Smart timer dimming; DALI
- Typical lifetime > 50000 hours
- 5 years warranty
- Typical lifetime > 50000 hours
- 5 years warranty
Applications:
- LED street lighting
- LED street lighting
- LED architectural lighting
- LED bay lighting
- LED floodlighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location
QUICK VIEW
Product Name : Meanwell (MW) LED Power Supply ELG-100-48

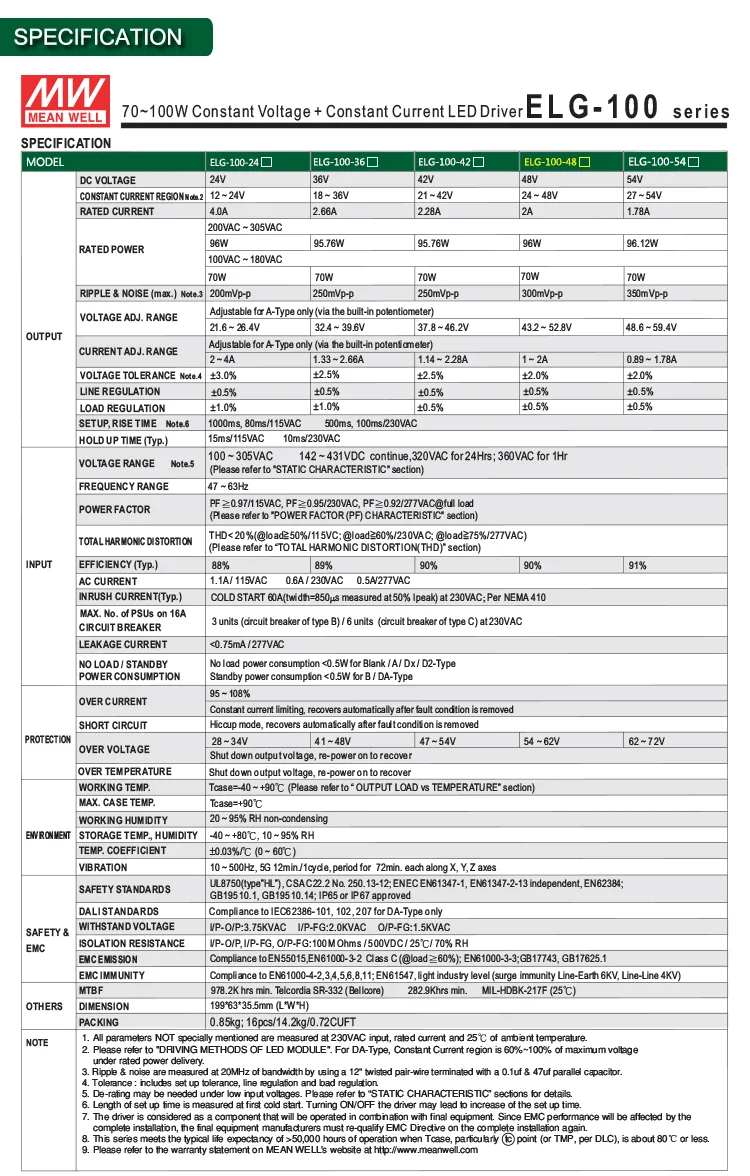

| MODEL | ELG-100-24 | ELG-100-36 | ELG-100-42 | ELG-100-48 | ELG-100-54 | |
| OUTPUT | DC VOLTAGE | 24V | 36V | 42V | 48V | 54V |
| RATED CURRENT | 4A | 2.66A | 2.28A | 2A | 1.78A | |
| RATED POWER | 70~96W | 70~95.76W | 70~95.76W | 70~96W | 70~96.12W | |
| INPUT | VOLTAGE RANGE | 100~305VAC 142~431VAC | ||||
| FREQUENCY RANGE | 47-63Hz | |||||
| EFFICIENCY(Typ.) | 85% | 89% | 90% | 90% | 91% | |
| AC CURRENT | 1.1A/115VAC 0.6A/230VAC 0.5A/277VAC | |||||
ELG-100series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG-100 operates from 100~360VAC and offers models with different rated voltage rangingbetween 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40°C ~ +90°Ccase temperature under free air convection. The design of metal housing andIP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-100 is equipped with various function options, such asdimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
FAQ
Q1. Can I have a sample order for Meanwell (MW) LED Power Supply ELG-100-48?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A:Sample needs 5-7 days, mass production time needs 2-3 weeks. The actual time is up to the quantity.
Q3. Do you have any MOQ limit for Meanwell (MW) LED Power Supply ELG-100-48 order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Meanwell (MW) LED Power Supply ELG-100-48?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to use my own package?
A: Yes.Normally we offer the white box without any printing.If you have the deisgn of box,we can help you produce in China and pack it.
