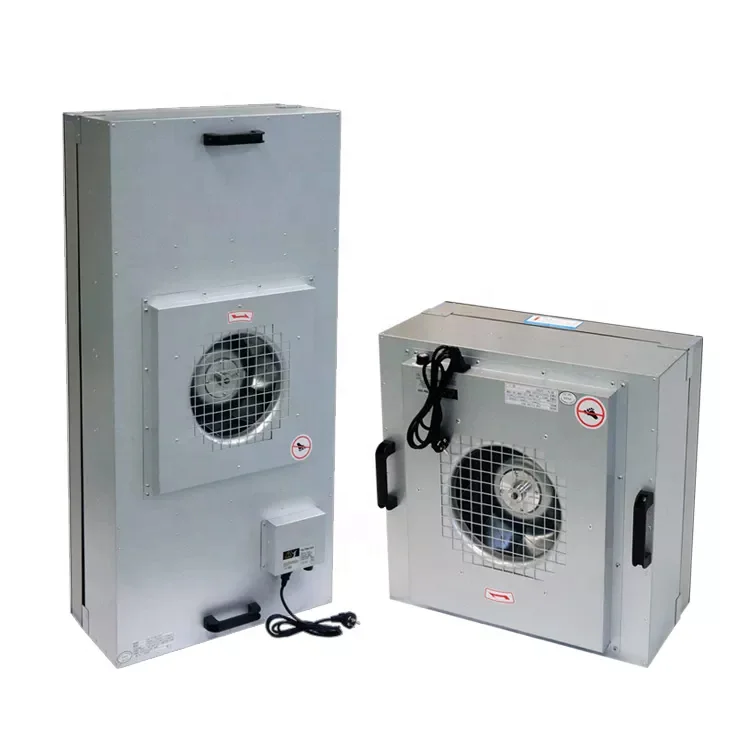

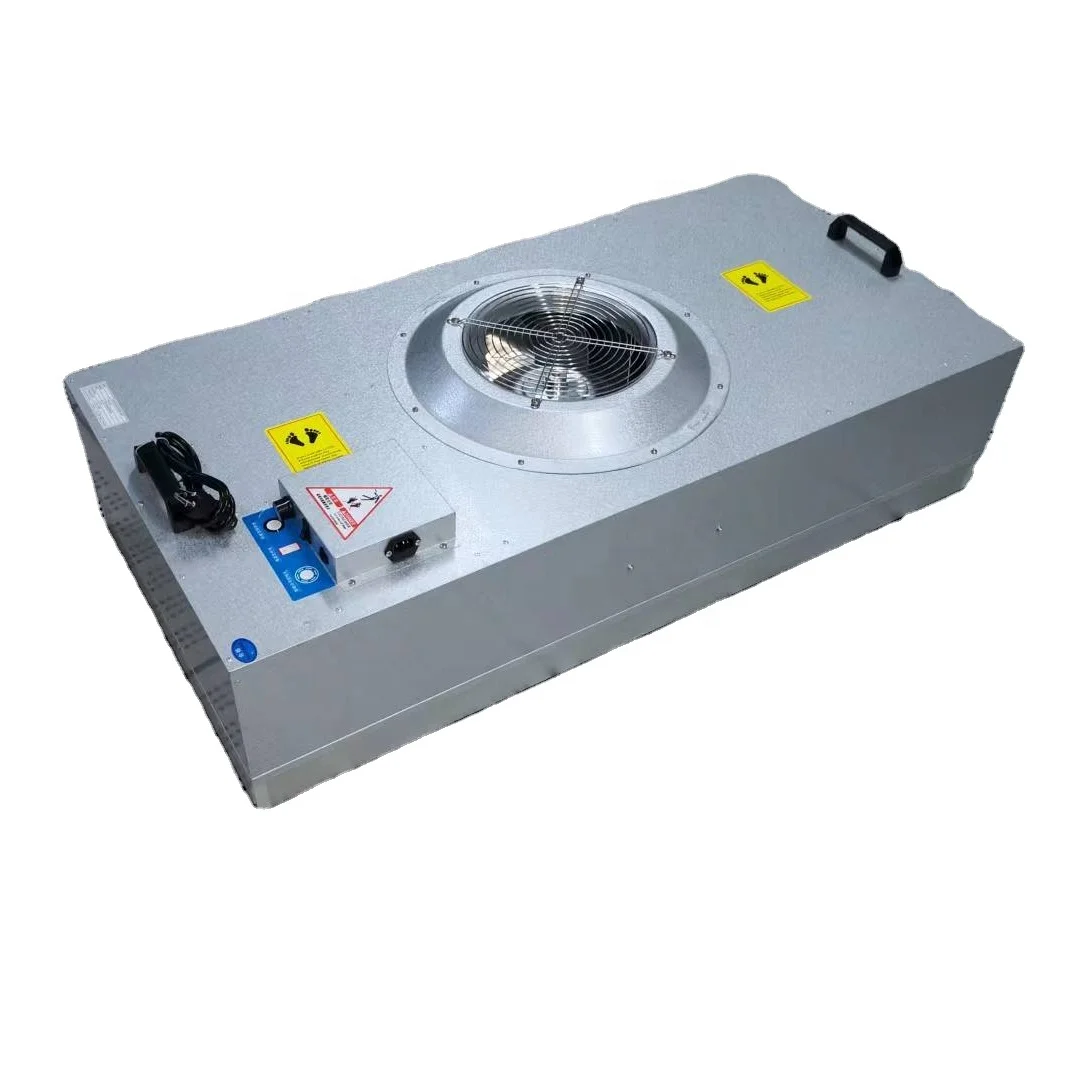

FFU Fan Filter Unit H13 H14 HEPA Filter Laminar flow air supply fan filter unit For Ventilation System of the Clean room
- Category: >>>
- Supplier: Dongguan Yichang Refrigeration Technology Limited
Share on (1601040607996):
Product Overview
Description
Product Description
Yichang filter produces the head Fan Filter Unit (FFU), which takes the domestic newest technology, suitable for 100, 000-1000 magnitude environment and obtain the highest grade of clean environment 100.
It is different for different size, cleanliness level of clean room micro-environment, clean bench, clean production, the assembly type clean room and laminar covers and other applications high-tech and humanization of computer software system, also can design according to clients’ requirements for additional monitoring system. Particularly suited to assemble line, can be formed many series of 100 level assembly line.
It is different for different size, cleanliness level of clean room micro-environment, clean bench, clean production, the assembly type clean room and laminar covers and other applications high-tech and humanization of computer software system, also can design according to clients’ requirements for additional monitoring system. Particularly suited to assemble line, can be formed many series of 100 level assembly line.

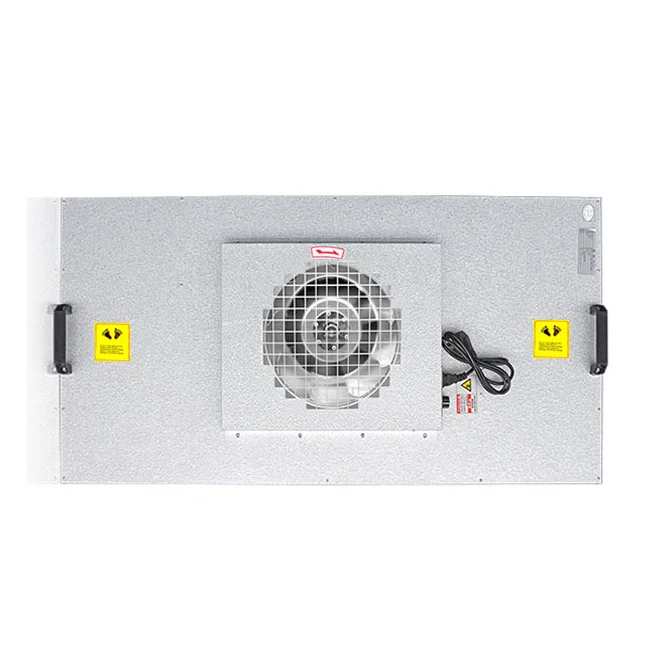

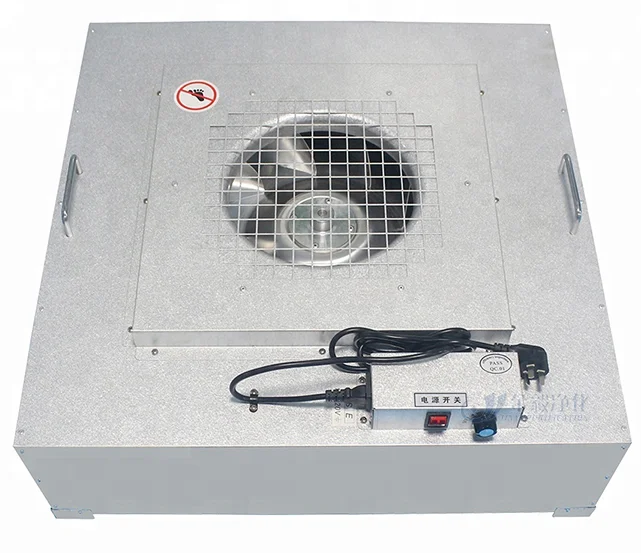

product Name | Clean Room Fan Filter Unit (FFU) |
External frame | Stainless Steel or Galvanized Steel with Aluminum Painting |
Fan | Low Vibration, Low Noise, Imported or Domestically Fan |
Media | Domestic Glass Fiber Filter Proposed or HV Filter Paper |
Wind speed | 0.4-0.8m/s (adjustable) |
HEPA efficiency | 99.99%@0.3um ~ 99.999%@0.3um |
Air flow | 1000-2000m³/h |
System control mode | AC and DC |
Max. operating temp. | 80 Degree Celsius |
Humidity | 80% |
Noise Db(A) | ≤57dB |
Motor | 220V 50Hz, 1phase |
Specification
Overall Size | 575*575*260mm | 1175*575*260mm | |
Hepa Filter size | 570*570*69mm | 1170*570*69mm | |
Cleanliness of location air | Class 100,Class 1000, Class 10000 etc | ||
Hepa filter efficiency | 99.99%, 99.995% H13 or H14 | ||
Air velocity | 0.45m/s or 90 FPM | ||
Average air flow | 600m3/h | 1200m3/h | |
Power supply | 1PH, 220V 50-60HZ or DC motor | ||
Power consumption | 80w | 110w | |
Casing material | steel coated, SUS201, SUS304, Galvanized steel | ||
Noise | 56-60dBA | ||
Weight | 25kg | 30kg | |

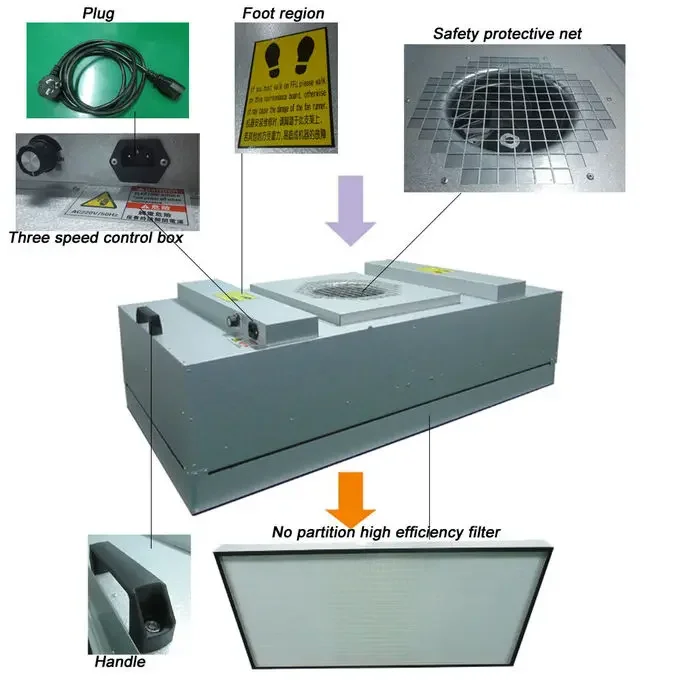

Product Features:
1) Low operating cost, convenient use.
2) Unique low vibration, low noise.
3) Adjustable speed.

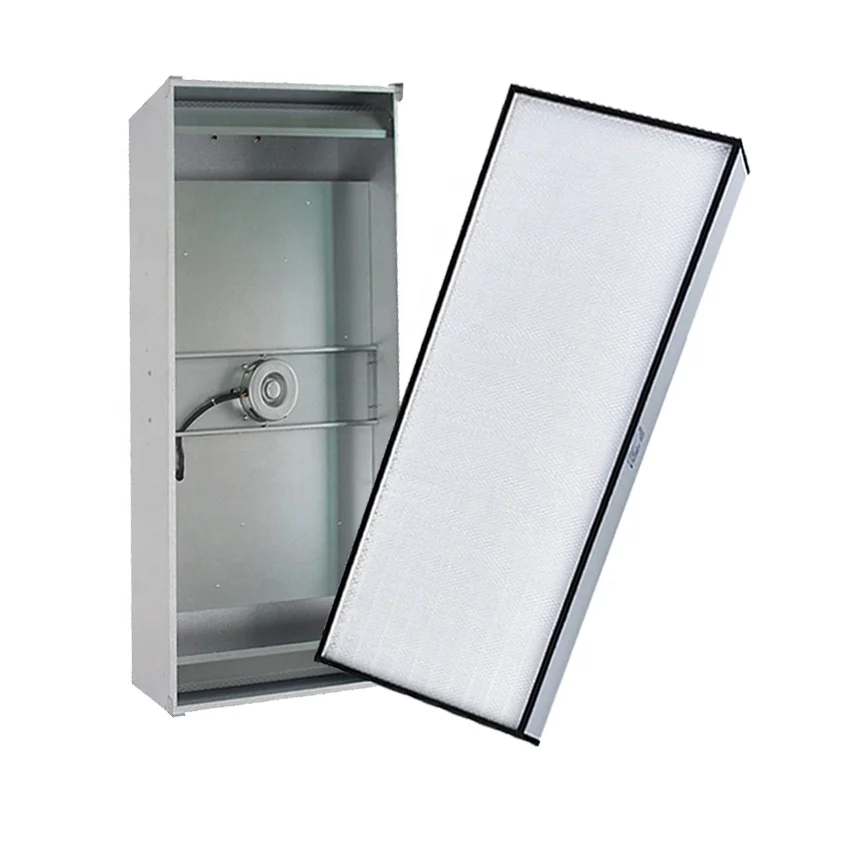

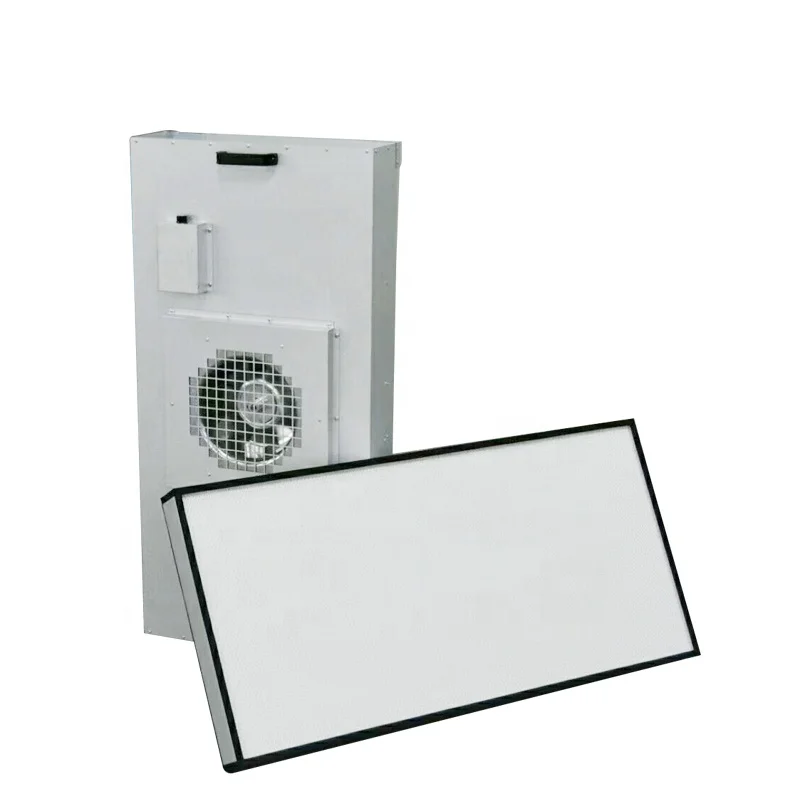

4) Fan box and filter fission,
easy replacement.
easy replacement.
5) Using high efficiency centrifugal fan.
6) Made of cold rolled steel sheet for box.

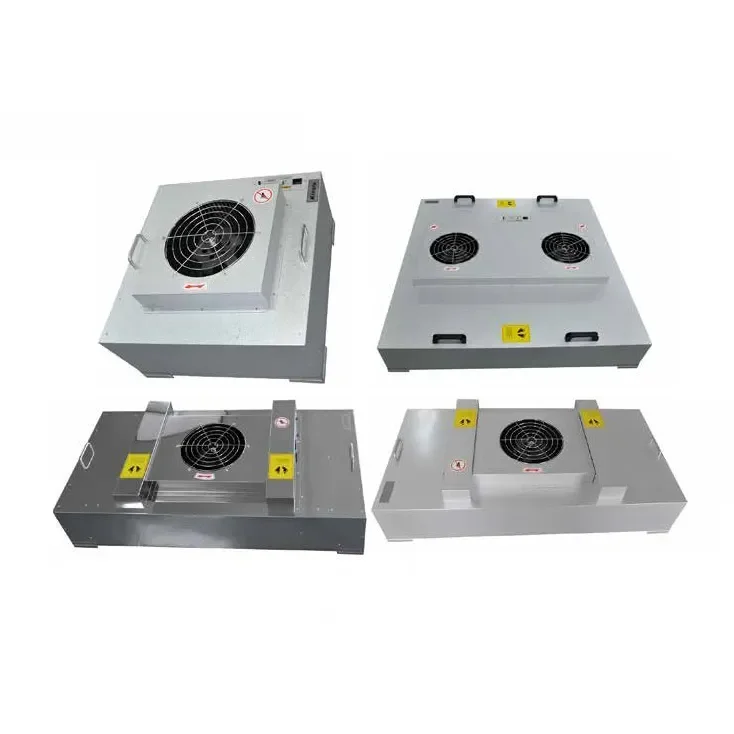

7) Customized design is available.
Brand: YICHANG
Original: GUANGDONG, CHINA
Galvanized steel material, H13 H14 hepa filte optional, aluminum fan, AC 220/50-60Hz
Name: FAN FILTER UNIT
Brand: YICHANGOriginal: GUANGDONG, CHINA
Galvanized steel material, H13 H14 hepa filte optional, aluminum fan, AC 220/50-60Hz

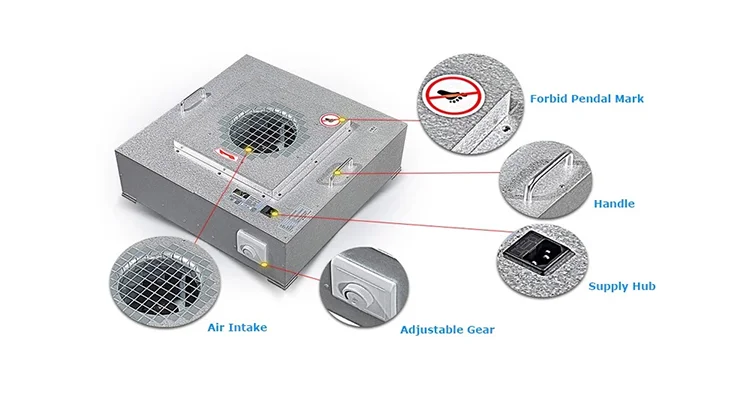

Detail Images
FFU Advantages:
1) FFU it has work long hours, low noise, maintenance-free, small vibration, variable speed adjustment, air velocity uniformity and easy installation and other characteristics.

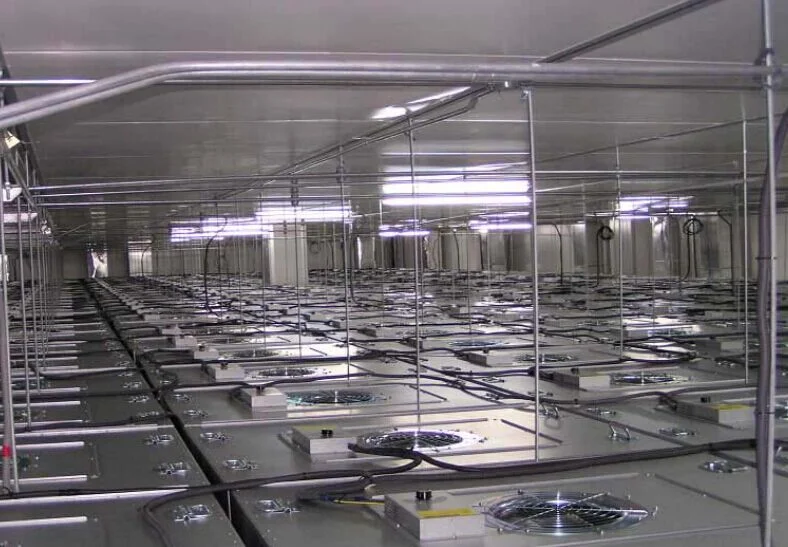

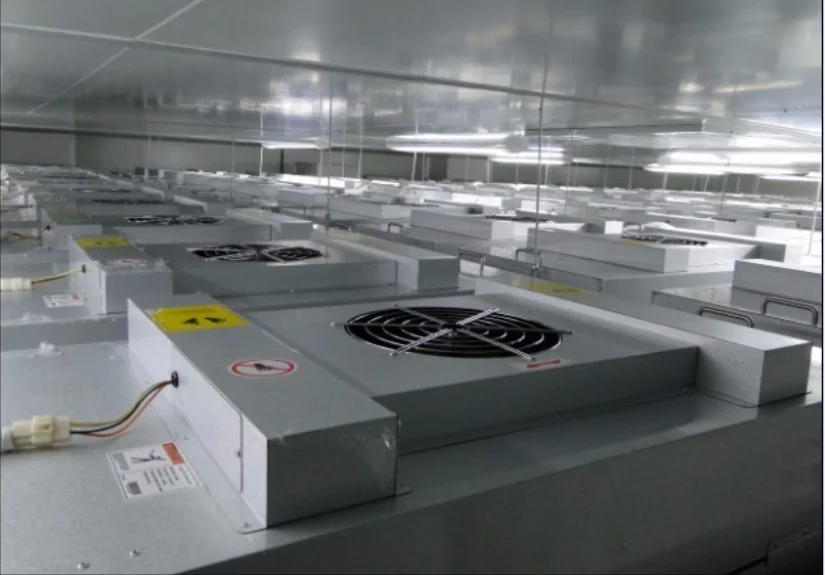

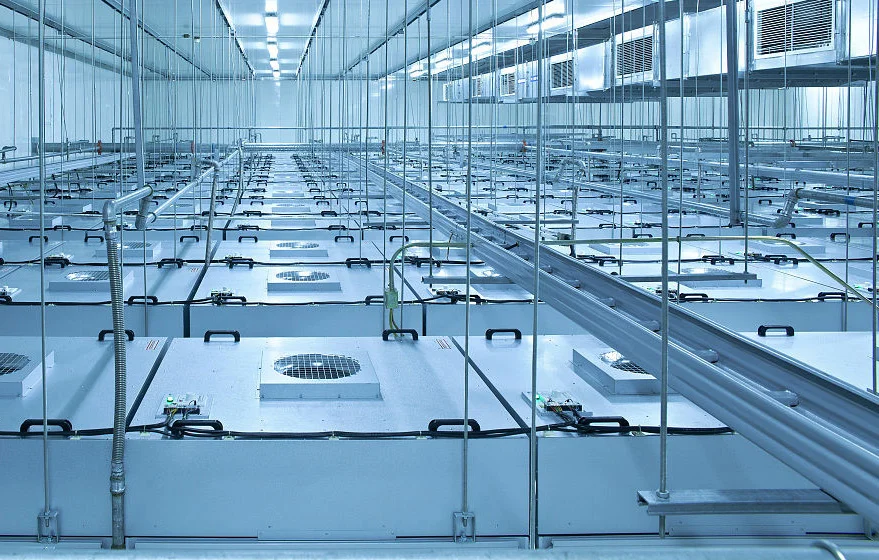

2) FFU modular structure design, making FFU are widely used in clean rooms, clean desk, clean lines, locally 100 clean class area of the clean room and other applications.

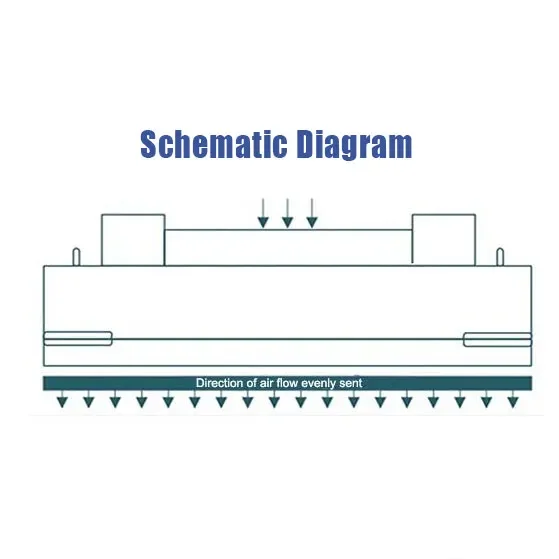

3) FFU has pre-filter, HEPA filters. Fan absorb the air flow from the top of the FFU and filtered by the pre-filter, then HEPA
filter, filtered clean air at 0.45M / S ± 20% uniform sent. 4) FFU provides high-quality clean air for different sizes, different

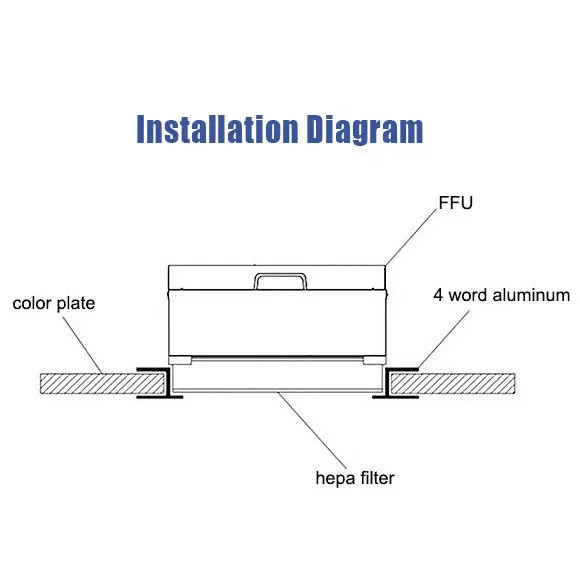

clean class levels of clean room micro-environment. 5) In the new built clean room, clean room renovation can improve the clean levels, reduce noise and vibration, and also can greatly reduce the cost, easy installation and maintenance, is an ideal component of a clean environment.
2) FFU modular structure design, making FFU are widely used in clean rooms, clean desk, clean lines, locally 100 clean class area of the clean room and other applications.
3) FFU has pre-filter, HEPA filters. Fan absorb the air flow from the top of the FFU and filtered by the pre-filter, then HEPA
filter, filtered clean air at 0.45M / S ± 20% uniform sent. 4) FFU provides high-quality clean air for different sizes, different
clean class levels of clean room micro-environment. 5) In the new built clean room, clean room renovation can improve the clean levels, reduce noise and vibration, and also can greatly reduce the cost, easy installation and maintenance, is an ideal component of a clean environment.
