DWIN 10.4 Inch 1024*768 IPS TFT LCD Industrial Capacitive Touch Panel Android Display Compatible with 4G WIFI RS232 RS485 Port
- Category: >>>
- Supplier: Beijing DWIN Technology Co. Ltd.
Share on (1601040629282):
Product Overview
Description
Features
*** Industrial Android intelligent display terminal based on RK3288, running Android 8.1 OS.
*** 10.4-inch, 1024*768 pixels resolution, 16.7M colors, IPS-TFT-LCD, capacitive touch, with UV protection.
*** Compatible with 4G, WIFI, Bluetooth, microphone, camera and other rich peripherals.
*** Available for USB and SD card updates.
*** Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.
*** Available for downloading Android general apps to realize functions such as Wi-Fi ,wired internet , browsing, music and video playback, data copy, etc.
*** 10.4-inch, 1024*768 pixels resolution, 16.7M colors, IPS-TFT-LCD, capacitive touch, with UV protection.
*** Compatible with 4G, WIFI, Bluetooth, microphone, camera and other rich peripherals.
*** Available for USB and SD card updates.
*** Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.
*** Available for downloading Android general apps to realize functions such as Wi-Fi ,wired internet , browsing, music and video playback, data copy, etc.

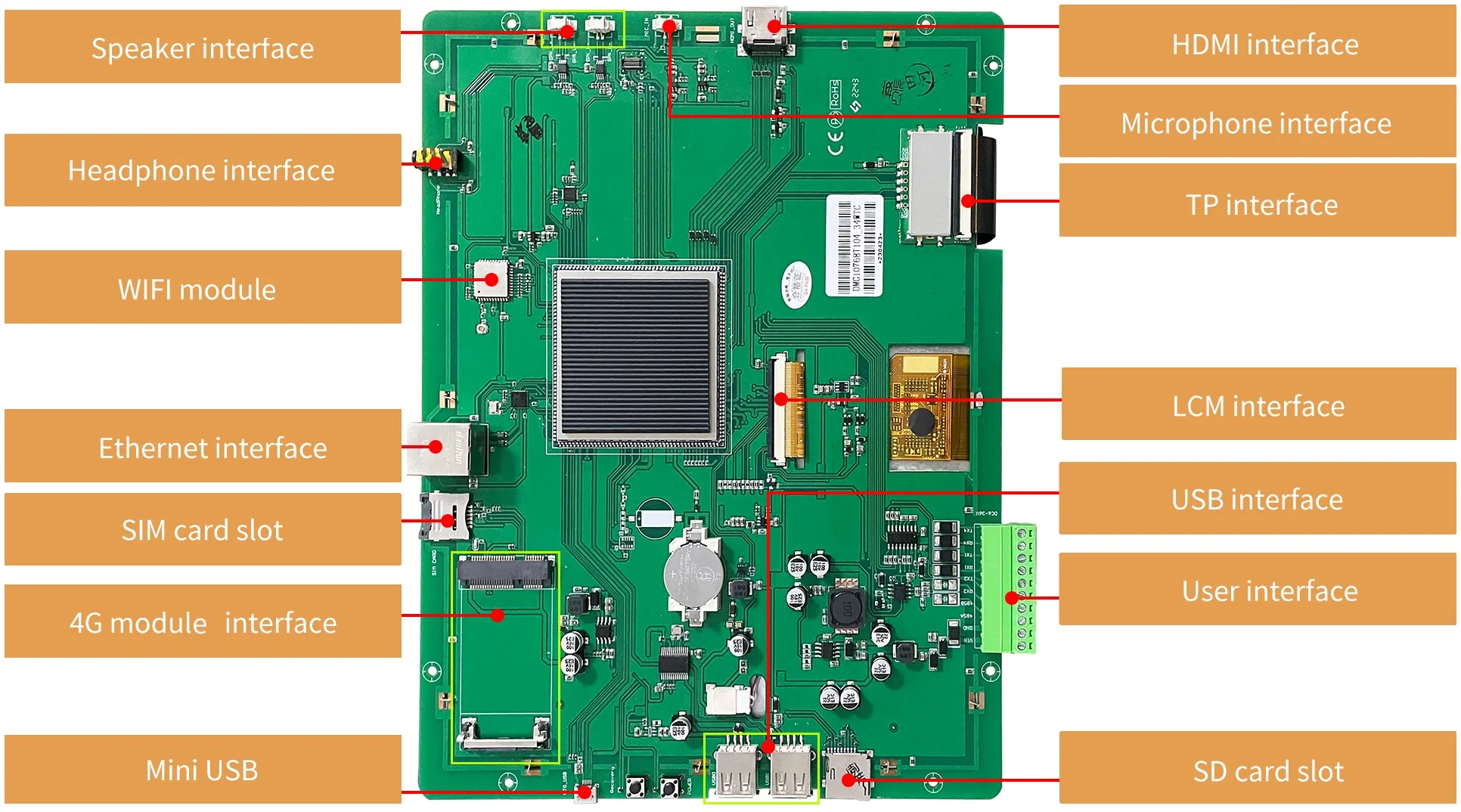

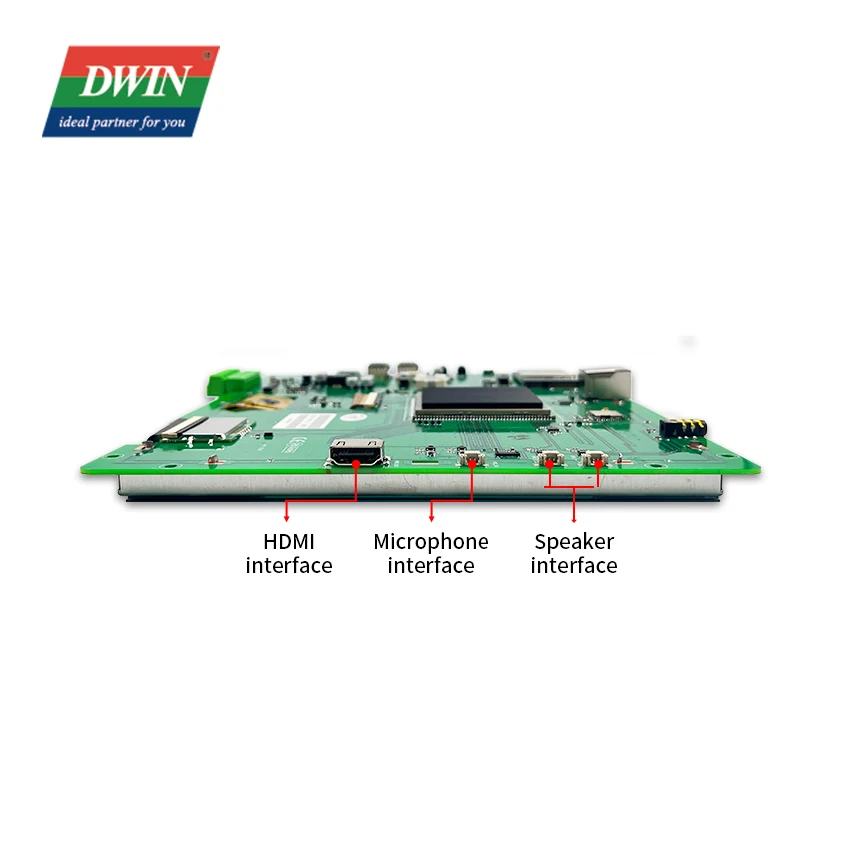

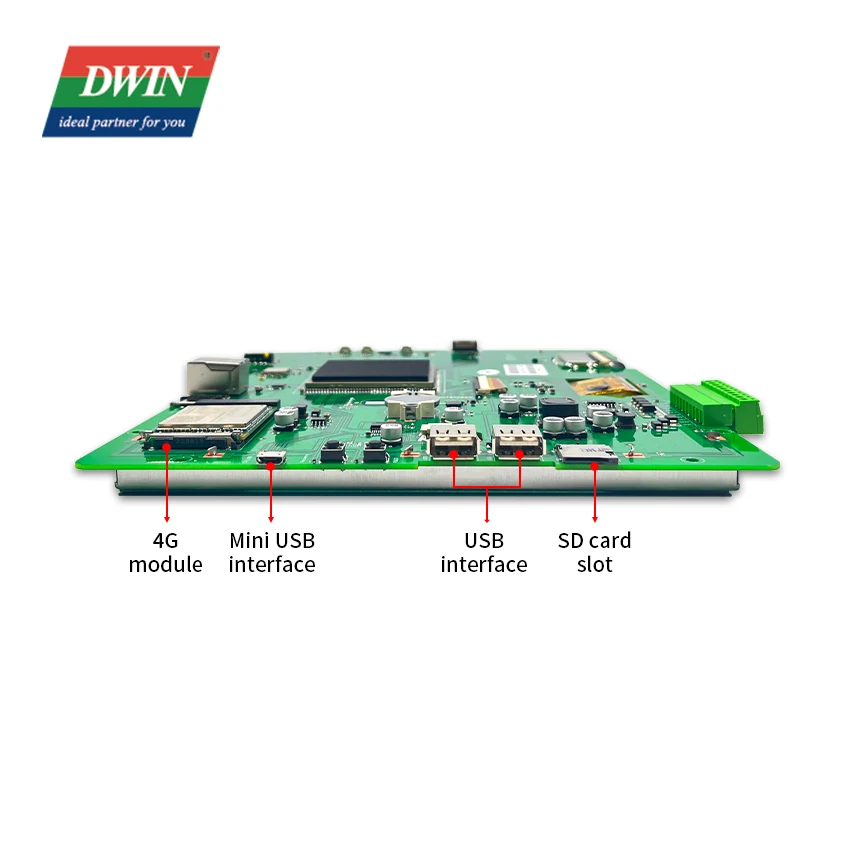

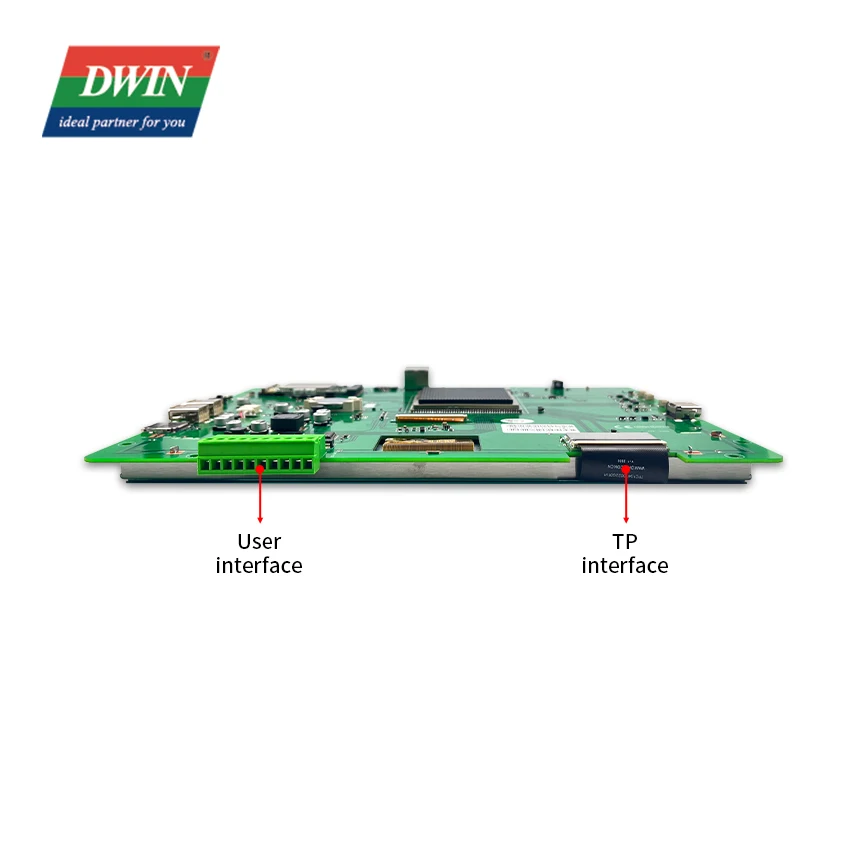

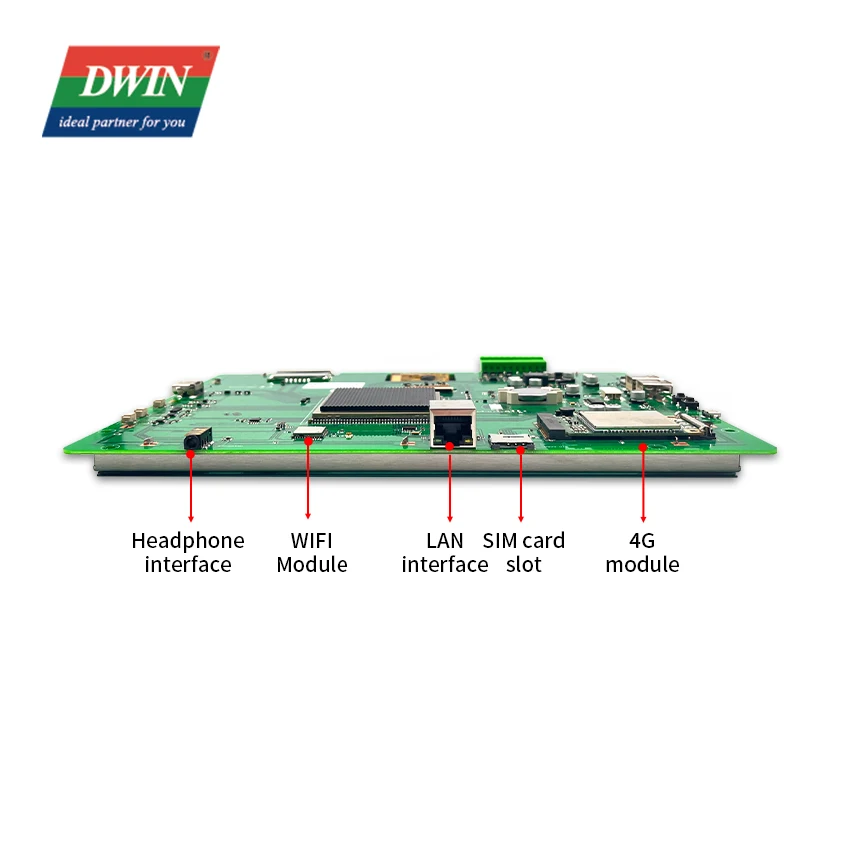

Master Control Parameters | ||
Properties | Parameters | |
Motherboard Level | Industrial | |
CPU | RK3288, ARM Cortex-A17, Quad-core | |
OS | Android 8.1 | |
FLASH | 8Gbytes EMMC5.0 | |
RAM | 2Gbytes DDR3 | |
Display Parameters | ||||
Properties | Parameters | Description | ||
Color | 16.7M(16777216)colors | 24 bit color 8R8G8B | ||
Panel Type | IPS | IPS process, TFT LCM with wide view angle | ||
Viewing Angle | 85/85/85/85 (L/R/U/D) | Best view angle : symmetrical | ||
Active Area (A.A.) | 211.2mm (W)*158.4mm (H) | 1024*768 Pixel | ||
View Area (V.A.) | 211.2mm (W)*158.4mm (H) | 1024*768 Pixel | ||
Resolution | 1024*768 Pixel | Available for 0°/90°/180°/270°rotated display | ||
Backlight | LED | ≥30000H(time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) | ||
Brightness | 250nit | 100 levels adjustment(It's not recommended to set brightness to 1%~30% of the maximum, which may lead to LCD flicker.) | ||
Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | ||||
Voltage & Current | ||||||||||
Properties | Conditions | Min | Typ. | Max | Unit | |||||
Power Voltage | - | 7.0 | 12.0 | 36.0 | V | |||||
Operation Current | VCC = +12V, Backlight on | - | 490 | - | mA | |||||
VCC = +12V, Backlight off | - | 260 | - | mA | ||||||
Recommended power supply: 12V 1A DC | ||||||||||
Reliability Test | ||||||||||
Properties | Conditions | Min | Typ. | Max | Unit | |||||
Working Temperature | 60%RH at 12V voltage | -20 | 25 | 70 | ℃ | |||||
Storage Temperature | - | -30 | 25 | 80 | ℃ | |||||
Working Humidity | 25℃ | 10% | 60% | 90% | RH | |||||
Conformal Coating | Yes | |||||||||
ESD | Air discharge±8KV; Contact discharge±6KV | |||||||||
EFT | Group pulse interference ±2KV | |||||||||
Peripherals and Interfaces | ||||
Properties | Parameters | Description | ||
COM | 2-way RS232 | UART1 & UART4 | ||
1-way RS485 | UART3 | |||
TTL/COMS | UART2(Debug interface) | |||
USB Interface | 3-way | HOST*2,OTG*1 | ||
Headphone Interface | 1-way | 3.5mm spacing interface | ||
Speaker Interface | 2-way | Left & right | ||
Microphone Interface | 1-way | - | ||
Camera Interface | 1-way | Mipi&USB | ||
SD Card Slot | 1-way | Drawer type card slot(Max 64G) | ||
SIM Card Slot | 1-way | Drawer type card slot | ||
4G Module | 1-way | With reserved interface, customizable to add | ||
Ethernet | 1-way | 10/100Mbps | ||
WIFI | 1-way | IEEE 802.11Bb/g/n,2.4G,Bluetooth | ||
RTC | Built-in | Button cell for power supply, Accuracy: ±20ppm @25℃ | ||
HDMI Interface | 1-way | HDMI interface | ||
Interface | ||||||||||
Properties | Conditions | Min | Typ | Max | Unit | |||||
Baud Rate | User Set | 2400 | 115200 | 230440 | bps | |||||
Output Voltage (TXD) | Output 1 | - | -5.0 | - | V | |||||
Output 0 | - | 5.0 | - | V | ||||||
Input Voltage (RXD) | Input 1 | - | -5.0 | - | V | |||||
Input 0 | - | 5.0 | - | V | ||||||
Baud Rate | User Set | 2400 | 115200 | 921600 | bps | |||||
(V_AB) | Output 1 | 2.5 | 5.0 | - | V | |||||
Output 0 | - | -5.0 | -2.5 | V | ||||||
(V_AB) | Input 1 | 0 | 2.5 | - | V | |||||
Input 0 | - | -2.5 | -0.2 | V | ||||||
Interface | Support TTL/COMS,RS232 or RS485 level | |||||||||
Socket | 10Pin_3.81mm Socket | |||||||||
Packing Capacity & Dimension | ||||||||

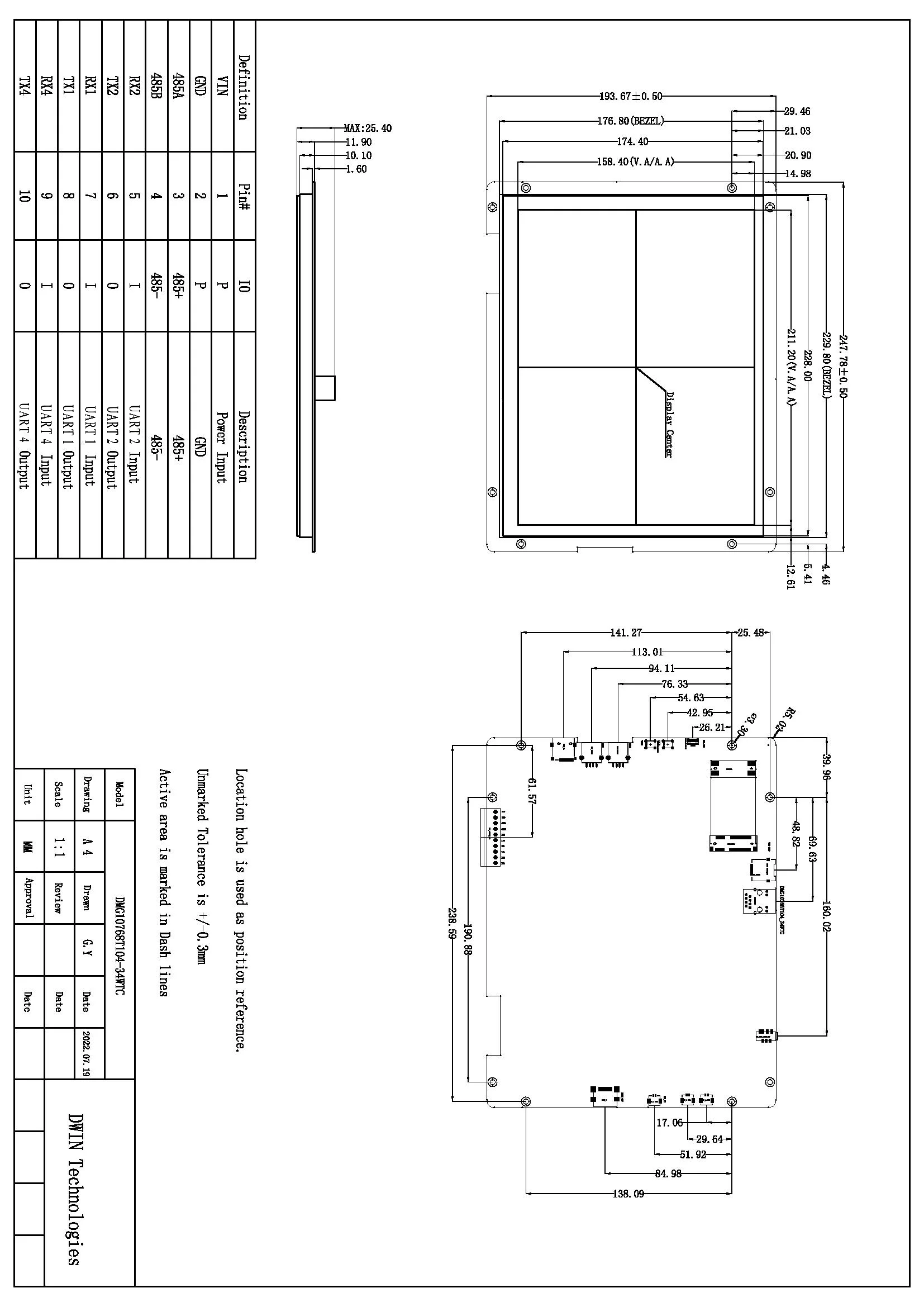

Dimension | ||||||||

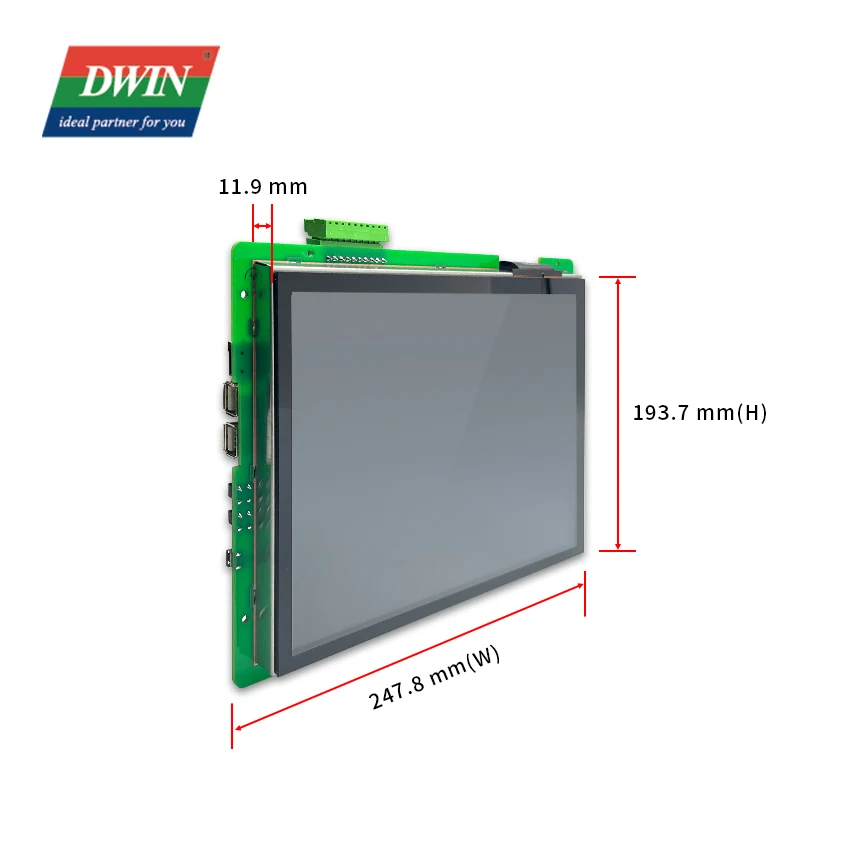

Dimension | 247.8(W)*193.7(H)*25.4(T)mm | |||||||
Net Weight | 830g | |||||||
Packing Capacity | ||||||||
Model | Size | Layer | Quantity/Layer | Quantity(Pcs) | ||||
Carton1： | 220mm(L)*160mm(W)*47mm (H) | - | - | - | ||||
Carton2： | 250mm(L)*200mm(W)*80mm (H) | - | - | - | ||||
Carton3： | 320mm(L)*270mm(W)*80mm (H) | 2 | 1 | 2 | ||||
Carton4： | 450mm(L)*350mm(W)*300mm(H) | 1 | 10 | 10 | ||||
Carton5： | 600mm(L)*450mm(W)*300mm(H) | 1 | 16 | 16 | ||||
