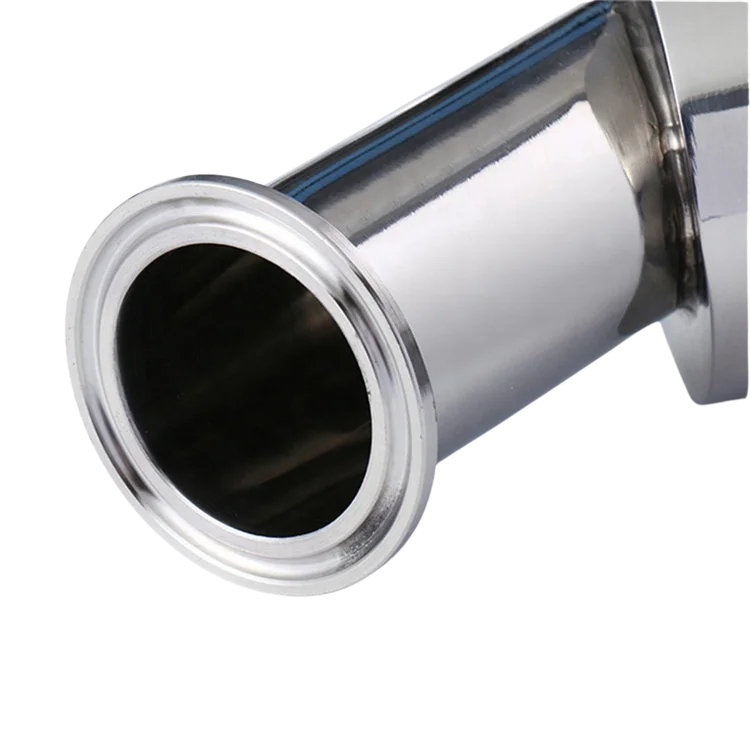

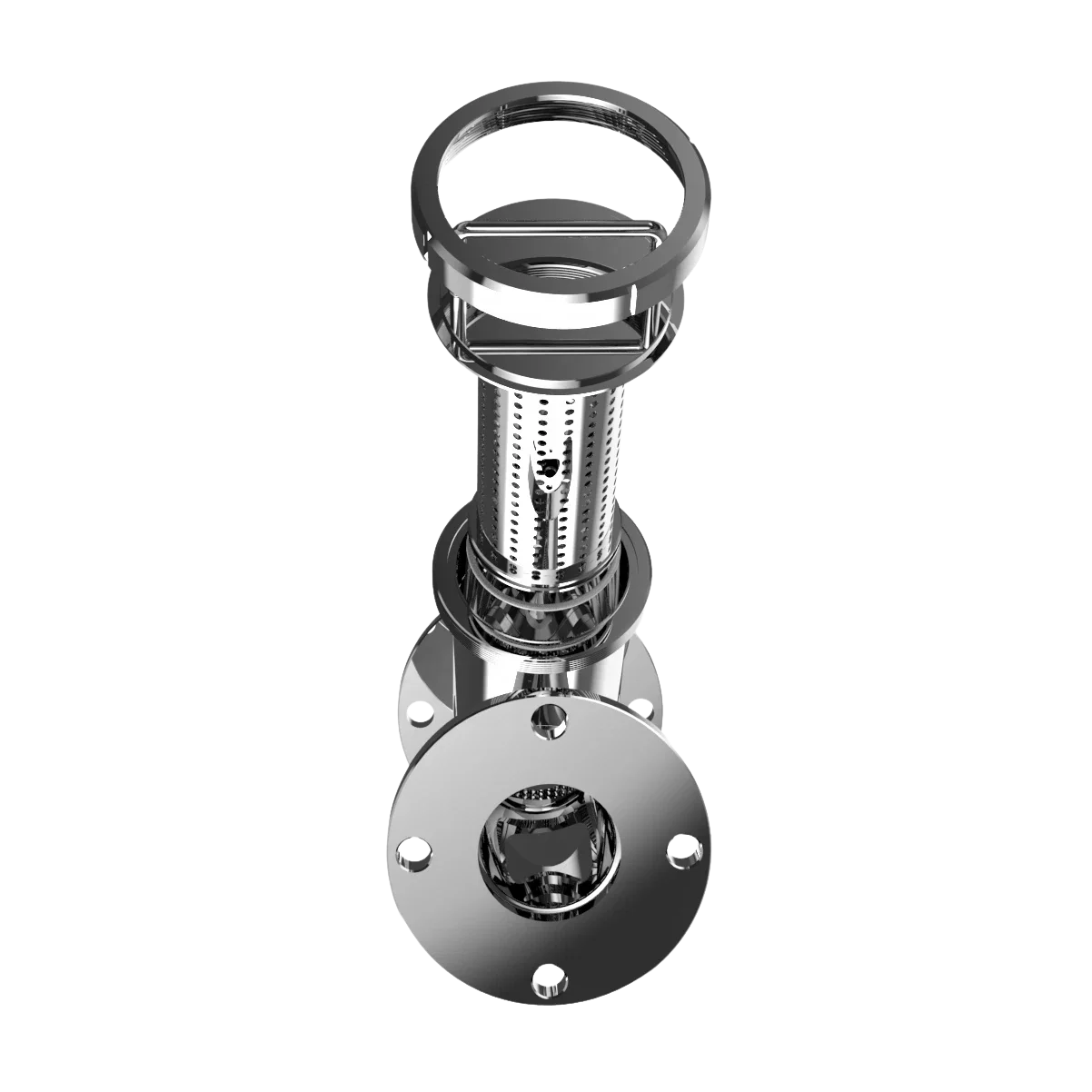

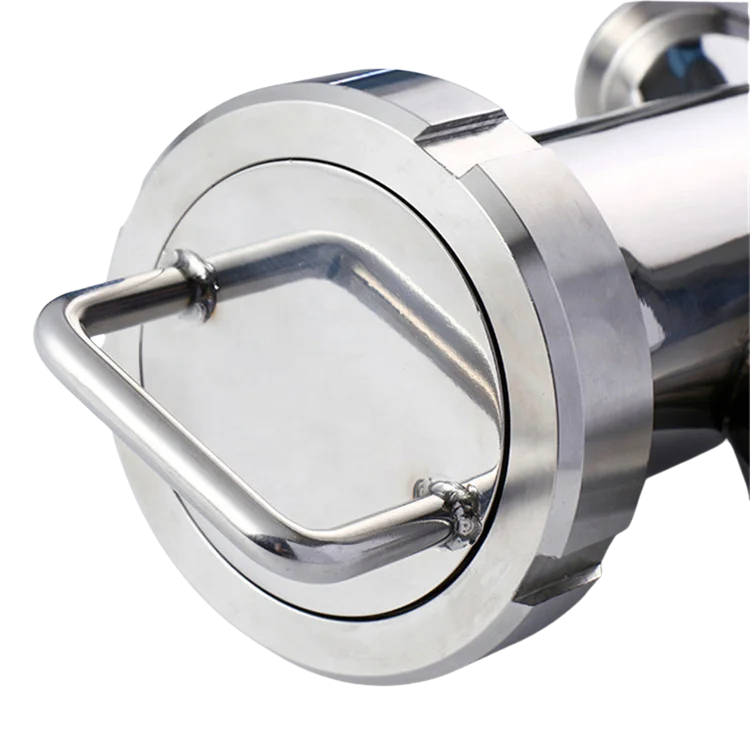

Food Grade 40 Mesh Flange End Hygienic Stainless Steel 304 Y Type Strainers pipe filter
- Category: >>>
- Supplier: Shanghai Lvda Filtration System Co. Ltd.
Share on (1601040649156):
Product Overview
Description
We are a real manufacturer. Next I will show you my product information, as well as my production workshop, laboratory, filtration effect, delivery packaging and other information. Please browse.I can provide you with customized products, welcome to consult.

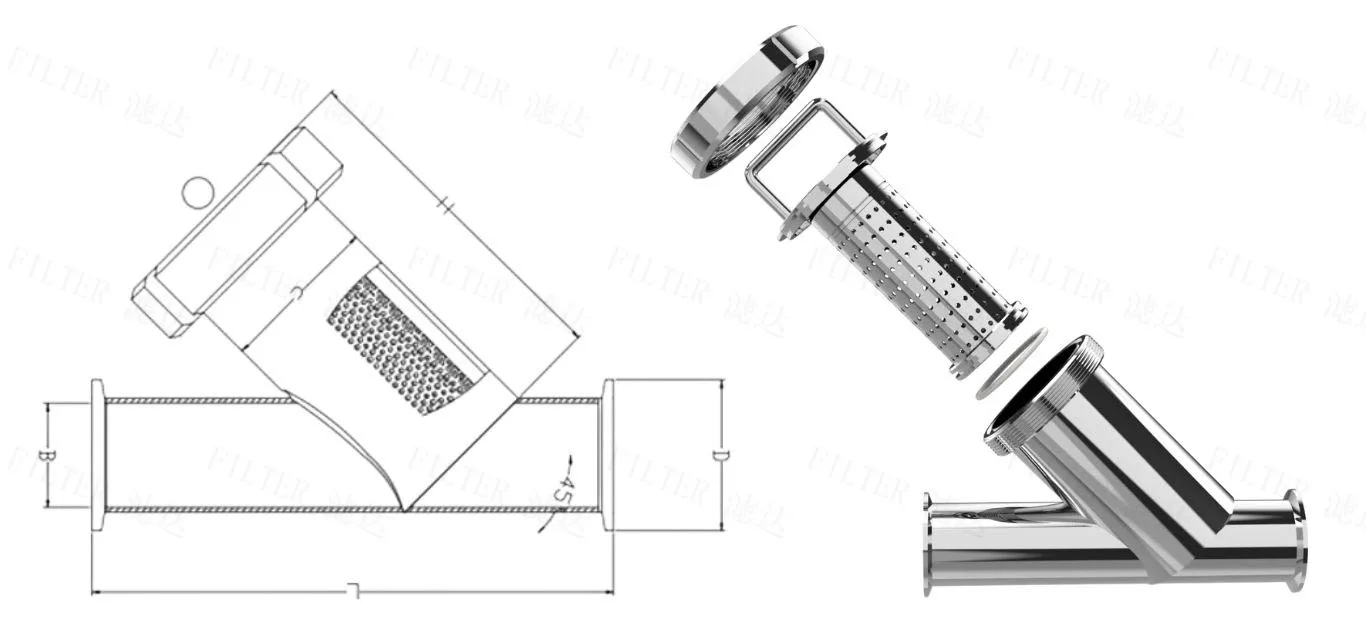

Schematic
This series of filters has the advantages of compact structure, large filtration capacity, small pressure loss, wide application range, easy maintenance, and low price. Its main applicable materials include food, pharmaceuticals, and materials with hygienic requirements in production, such as beer and beverages. , dairy products, syrups, etc. Y-type filter, angle filter, no need to disassemble the pipe, just loosen the nut or clamp of the filter to remove the filter.

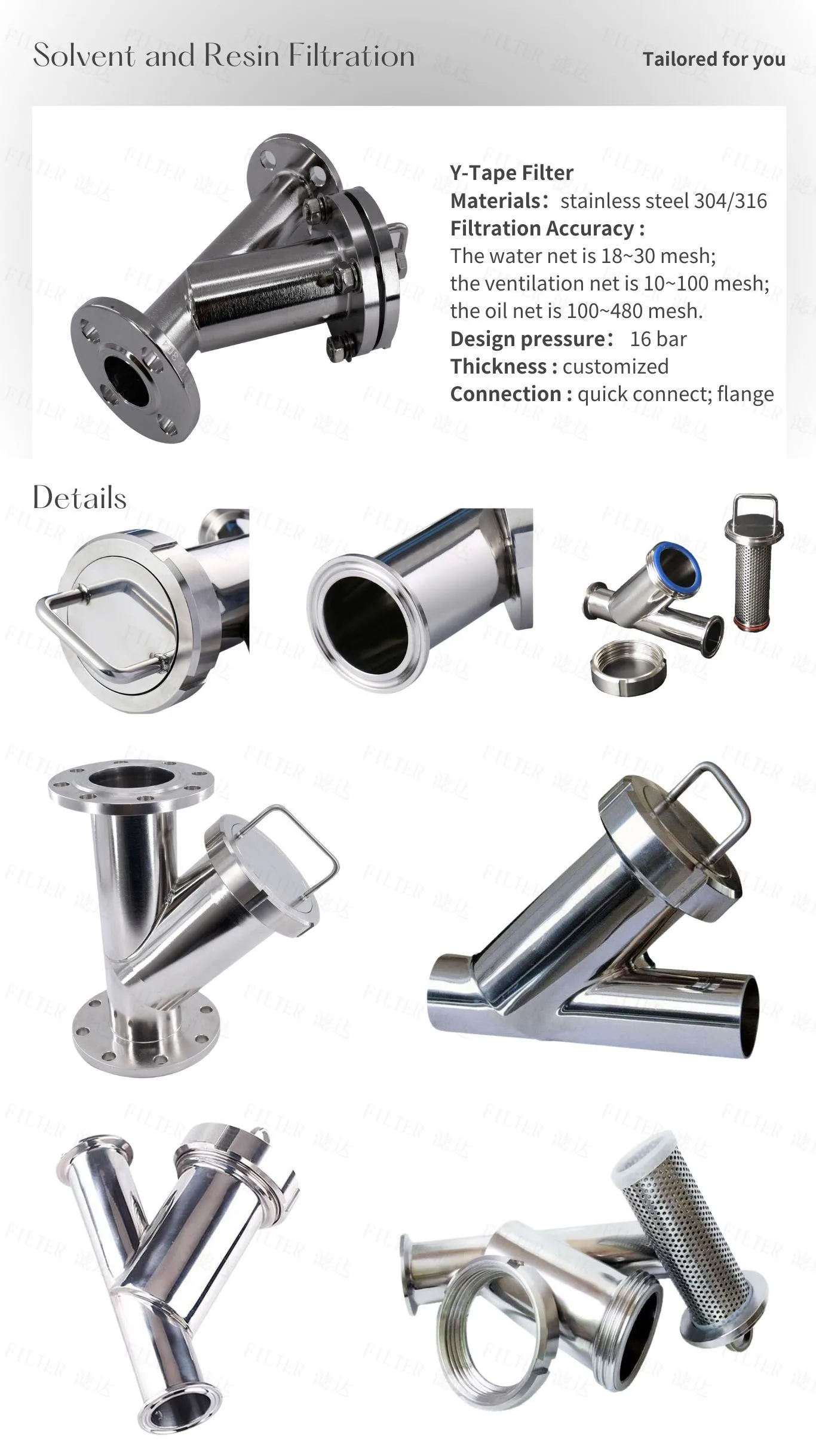

Products Description
Specification Data
1. Suitable materials:
a. Weakly corrosive materials in chemical and petrochemical production, such as water, ammonia, oil, hydrocarbons, etc.;
b. Corrosive materials produced in chemical industry, such as caustic soda, soda ash, concentrated and dilute sulfuric acid, carbonic acid, acetic acid, ester acid, etc.;
c. Low-temperature materials in refrigeration, such as: liquid methane, liquid ammonia, liquid oxygen and various refrigerants;
d. Materials with hygienic requirements in light industrial food and pharmaceutical production, such as: beer, beverages, dairy products, grain pulp and medical supplies, etc.;
2. Filtration precision: 10-480 mesh (generally, the water mesh is 18-30 mesh/cm2, the ventilation mesh is 40-100 mesh/cm2, and the oil mesh is 100-480 mesh/cm2.);
3. Working temperature: ≤90℃;
4. Nominal diameter: DN25—DN600mm;
5. Nominal pressure: PN≤1.6Mpa (other working pressures can be designed according to user requirements);
6. Sealing materials: PTFE, nitrile rubber, oil-resistant asbestos rubber, EPDM rubber.
a. Weakly corrosive materials in chemical and petrochemical production, such as water, ammonia, oil, hydrocarbons, etc.;
b. Corrosive materials produced in chemical industry, such as caustic soda, soda ash, concentrated and dilute sulfuric acid, carbonic acid, acetic acid, ester acid, etc.;
c. Low-temperature materials in refrigeration, such as: liquid methane, liquid ammonia, liquid oxygen and various refrigerants;
d. Materials with hygienic requirements in light industrial food and pharmaceutical production, such as: beer, beverages, dairy products, grain pulp and medical supplies, etc.;
2. Filtration precision: 10-480 mesh (generally, the water mesh is 18-30 mesh/cm2, the ventilation mesh is 40-100 mesh/cm2, and the oil mesh is 100-480 mesh/cm2.);
3. Working temperature: ≤90℃;
4. Nominal diameter: DN25—DN600mm;
5. Nominal pressure: PN≤1.6Mpa (other working pressures can be designed according to user requirements);
6. Sealing materials: PTFE, nitrile rubber, oil-resistant asbestos rubber, EPDM rubber.
Laboratory filtration effect

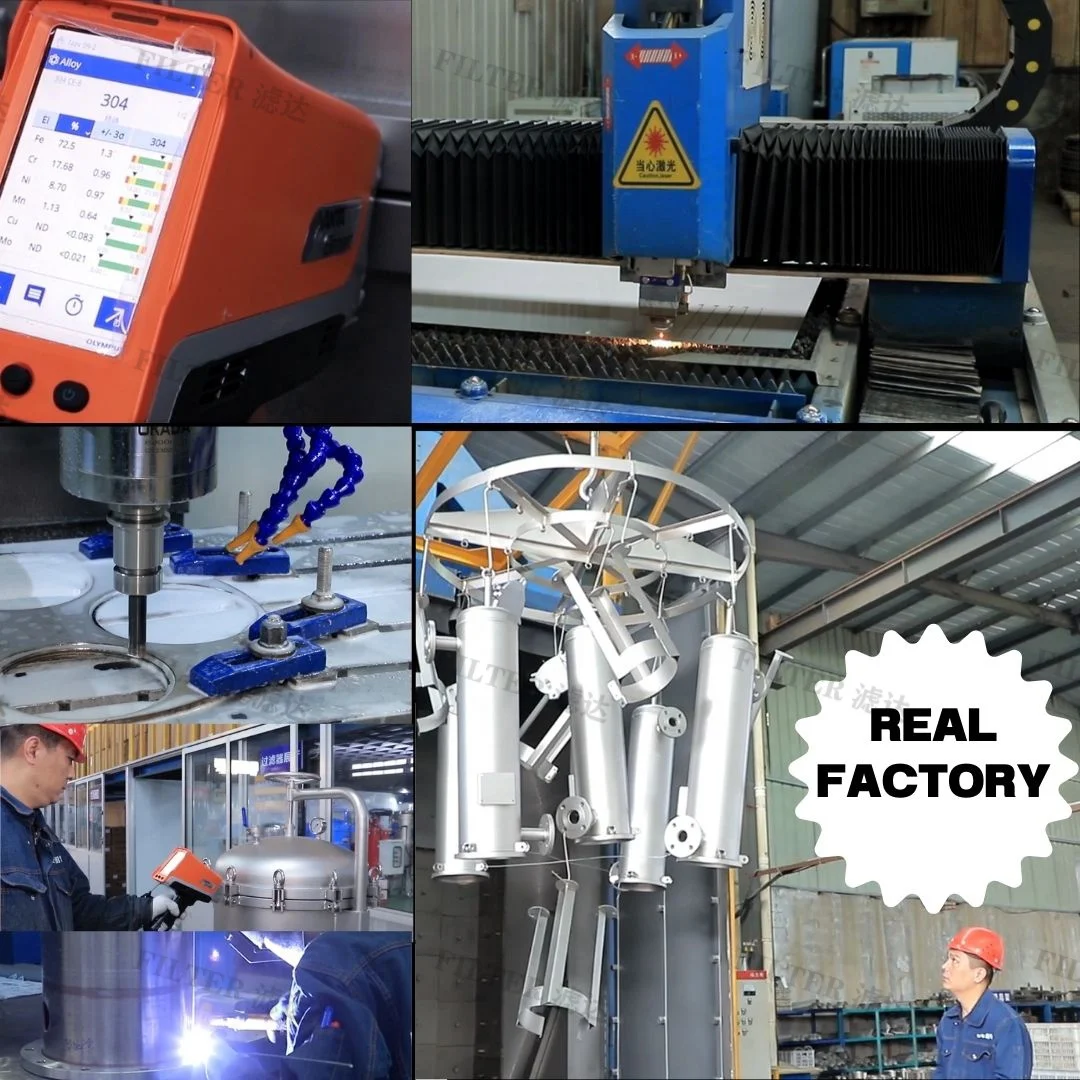

Company Profile
Shipping and Packing
FAQ
1. What is the minimum order quantity?
A: One
2. Payment?
A: We accept wire transfer, 30% advance payment, and the goods will be shipped after the balance is paid.
3. Delivery time?
A: 7 days
4. Customized?
A: Accept customization, including logo customization
5.CAD drawings?
A: We have professional engineers who can provide you with drawing confirmation
6. Packaging?
A:Professional export wooden boxes. The filter will be wrapped with a membrane and fixed in a wooden box. It will not shake or bump during transportation.
7. After sales?
A: Professional customer service is online 24 hours a day. You can find me at any time and tell me the problems you encounter. I will do my best to solve them for you.
