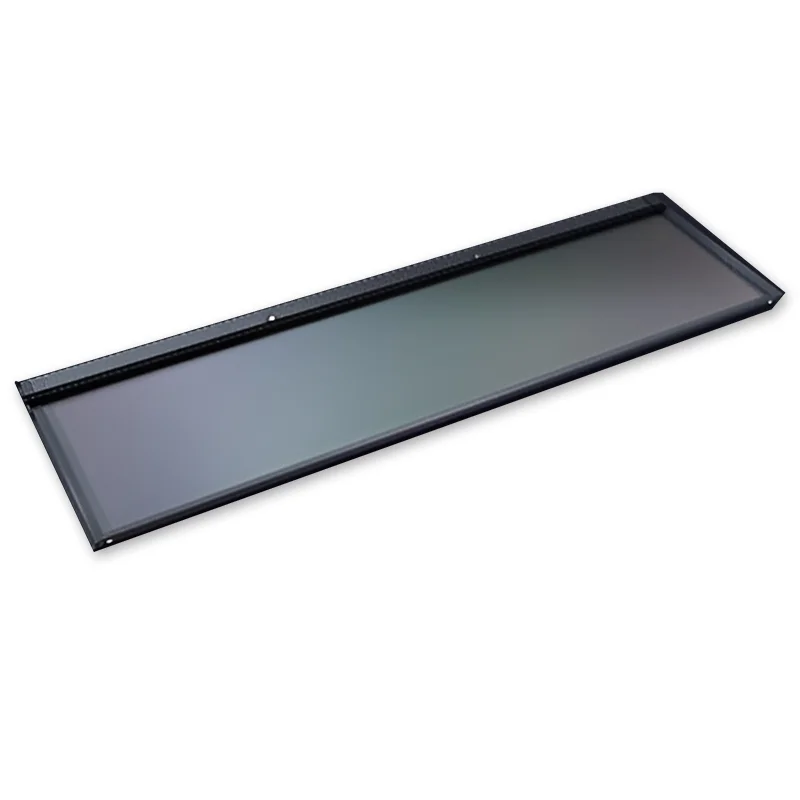

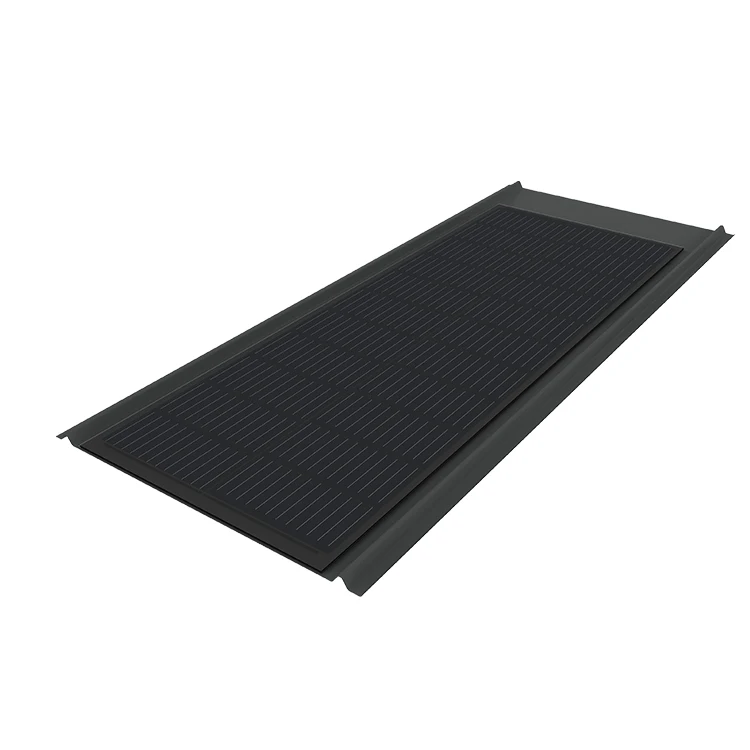

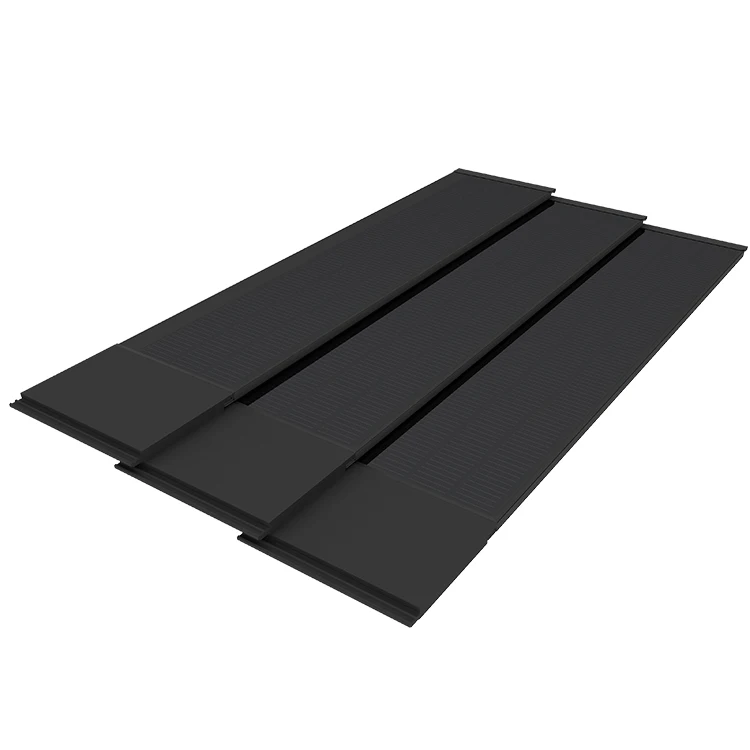

changsun BIPV solar tile rooftop PV modules High strength light corrosion High efficiency green buildings energysolar tile
- Category: >>>
- Supplier: Beijing Changsheng International New Energy Co. Ltd.Beijing Ltd.
Share on (1601040665889):
Product Overview
Description
Product Paramenters

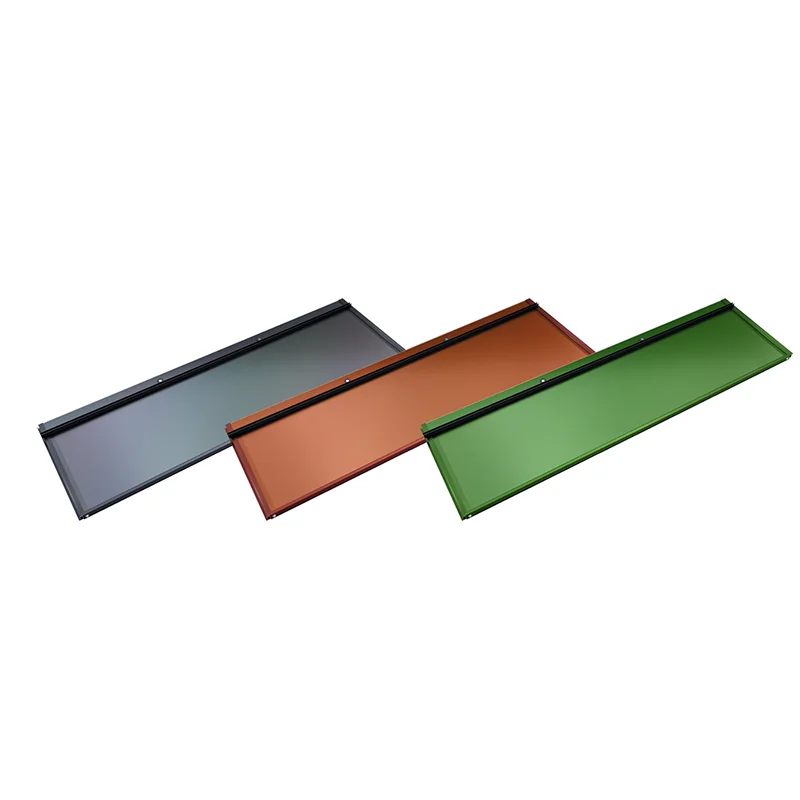

Flat tile solar panels | Black | Green | Red | ||||
Product Type | DF201090 | DF201095 | DF201100 | DF202085 | |||
Single Product Power [W) | 90/80/70 | 90/80/70 | 90/80/70 | 90/80/70 | |||
Power per sqm.[W] | 180 | 190 | 200 | 170 | |||
Open Circuit Voltage [V] | 31.01 | 31.06 | 31.1 | 31.1 | |||
Short Circuit Current (A) | 3.78 | 3.96 | 4.14 | 3.52 | |||
Voltage at Maximum Power [V] | 26.25 | 26.46 | 26.68 | 26.68 | |||
Current at Maximum Power (A) | 3.43 | 3.59 | 3.75 | 3.19 | |||
Dimension L*WH[mm] | 1460*435*21(土1)(Height with the fram) | ||||||
Thickness [mm] | 7.5（±1） | ||||||
Weight per pc. [kg] | 12（±0.5） | ||||||
Weight per sqm. [kg] | 24（±0.5） | ||||||
liner power warranty [yearl | 25 | ||||||
Surface Glass | High Transmission, Low lron, Tempered Glass | ||||||
Back Glass | High Transmission, Low lron, Tempered Glass | ||||||
Frame | Anodized Aluminium Alloy | ||||||
Juntion Box | IP67,MC4 connector | ||||||
Thin-film technology subversionand innovation
The overall product warranty is 10 years, and the power guaranteeby the 25th year, the power generation shall not be less than 85% ofthenominalpower
Insteadoftraditional building materials highvalue-addedgreen buildingmaterials

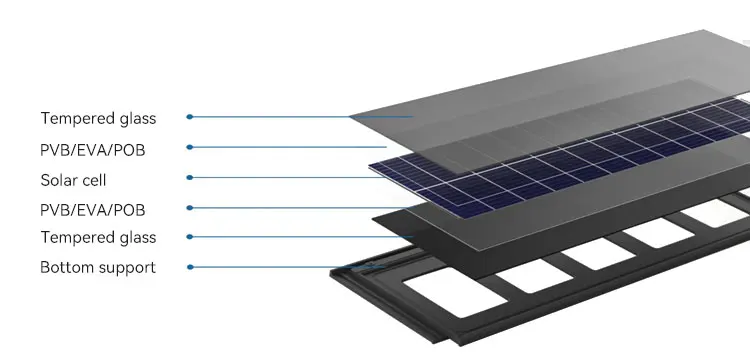

1.High transparenttempered glass protection
2.High conversion efficiencygood low light performance
2.High conversion efficiencygood low light performance

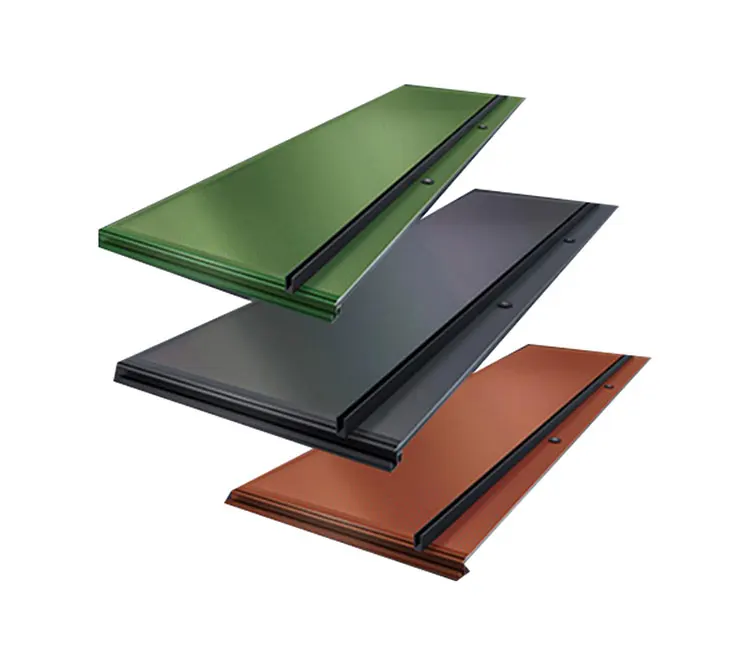

3.Optional surface material
4.Appearance is strictly controlled
4.Appearance is strictly controlled

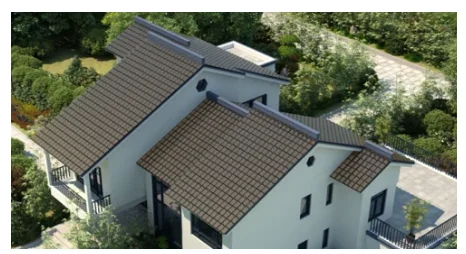

Total solar roof tile solution

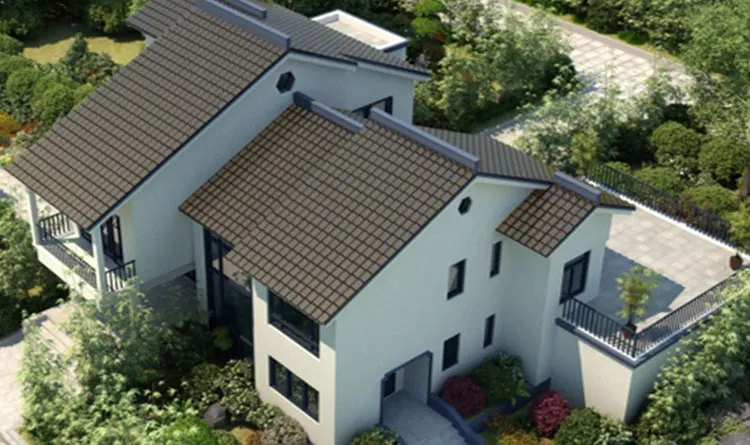

Perfect three curved tile villa building scheme, to solve the various situations needed in the building

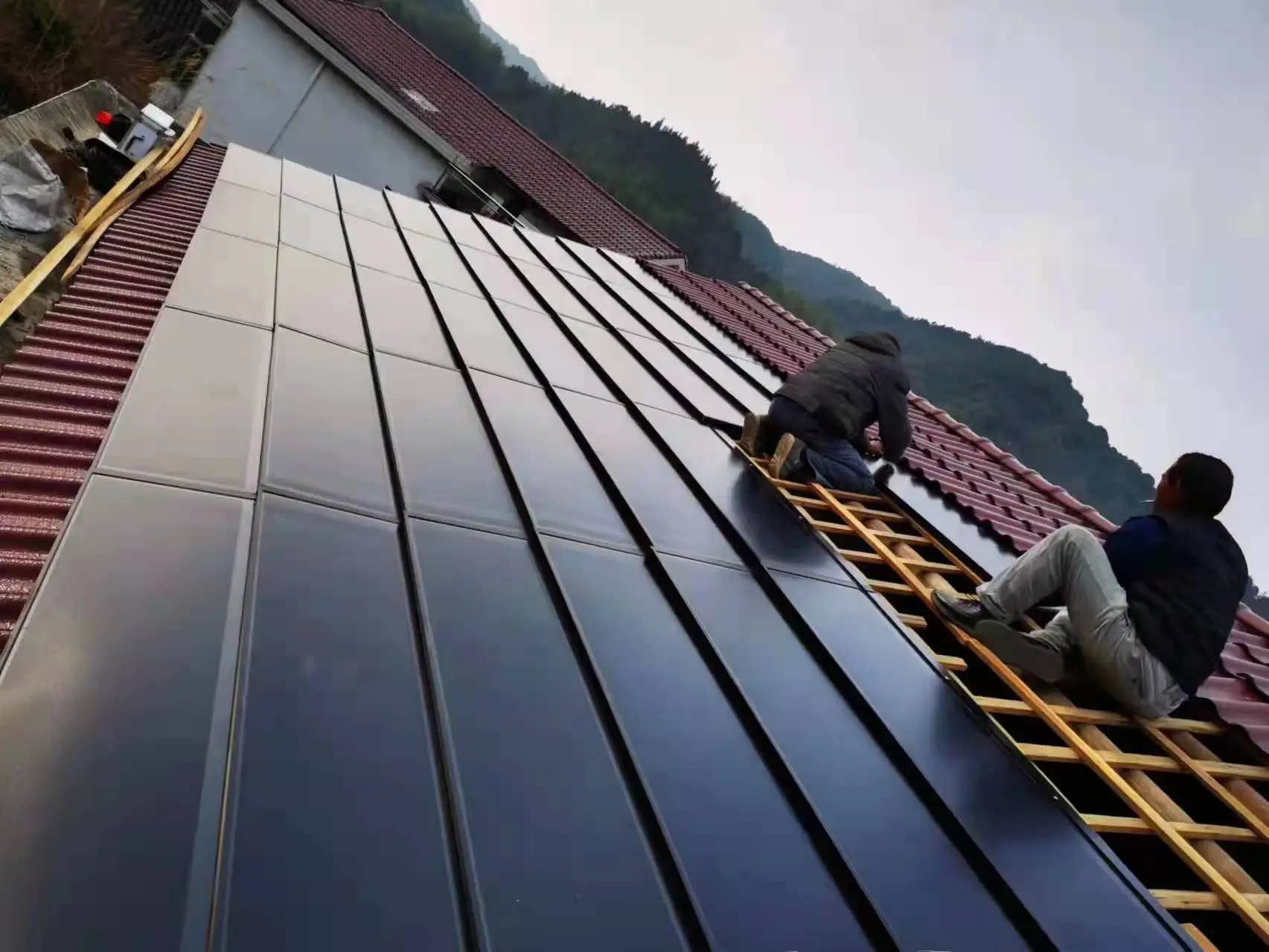

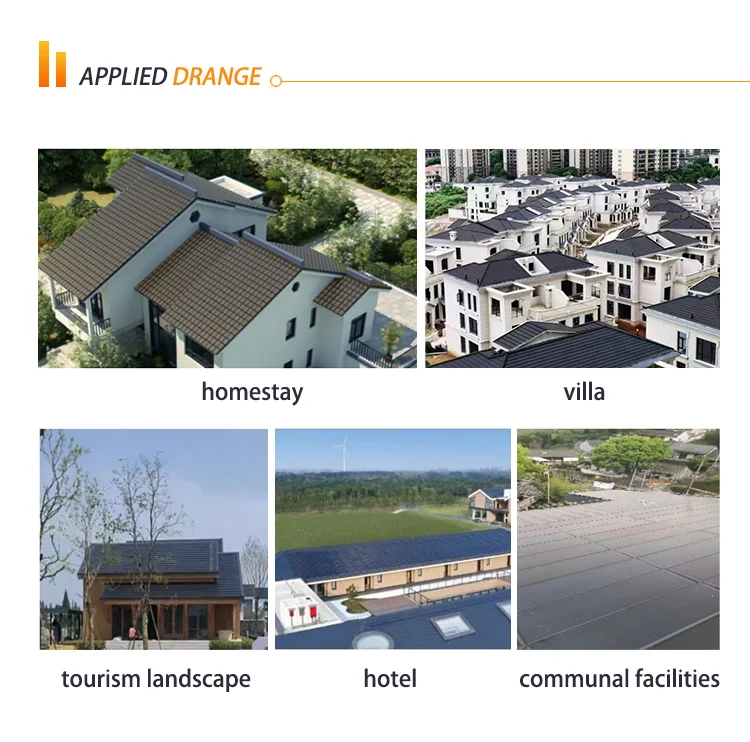

Our Projects
Product packaging

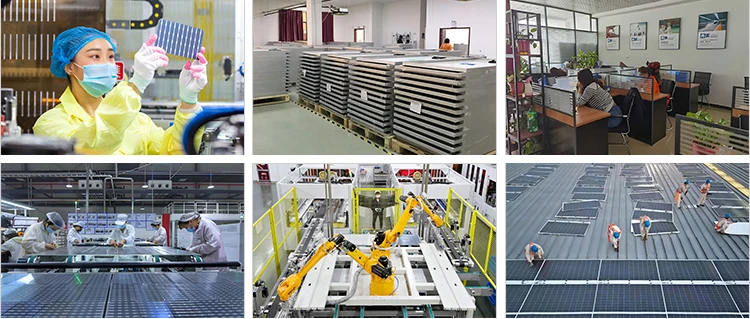

About us
Changsun International manufactures and sells solar panels,Solar Shingle ,curved photovoltaic tiles, energy storage batteries and other photovoltaic products. At the same time, we focus on overseas photovoltaic power plant projects.
At the same time, we have sufficient stock of goods and our products have passed the certification of relevant international organizations, the product quality is reliable. we can also provide you with factory prices,also,we ship from China to your port within 15days.
we Improve the pre-sale, sale and after-sales system construction, has established channel partners in many countries.Welcome to cooperate with us!
At the same time, we have sufficient stock of goods and our products have passed the certification of relevant international organizations, the product quality is reliable. we can also provide you with factory prices,also,we ship from China to your port within 15days.
we Improve the pre-sale, sale and after-sales system construction, has established channel partners in many countries.Welcome to cooperate with us!
Certifications
