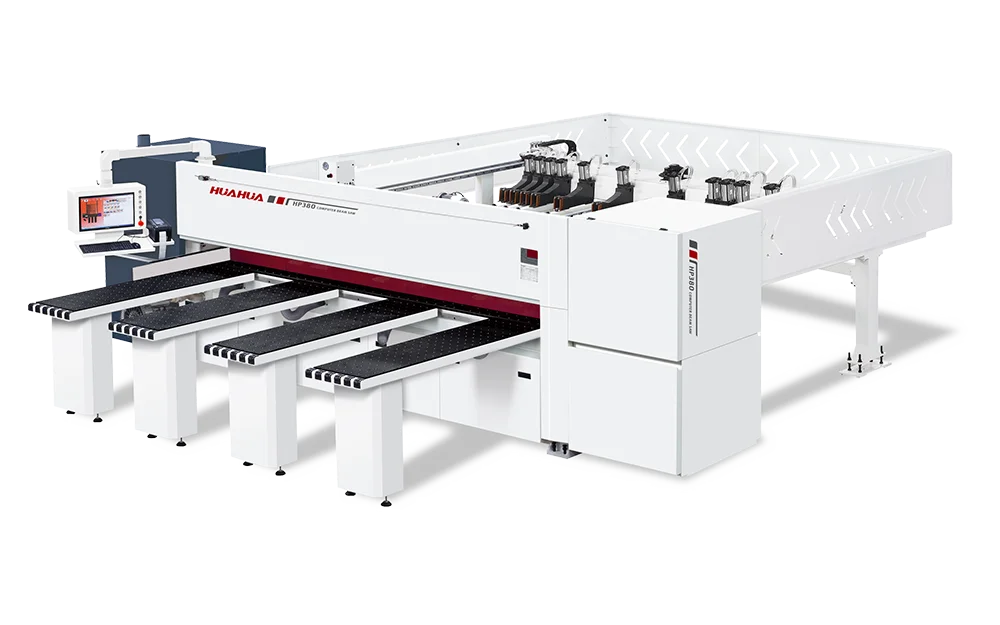

HUAHUA HP380 High Speed Intelligent Automatic CNC Computer Beam Saw With Floating Table
- Category: >>>
- Supplier: Guangdong Shunde Changsheng Machinery Manufacturing Co. Ltd.
Share on (1601040666229):
Product Overview
Description
Products Description
products details

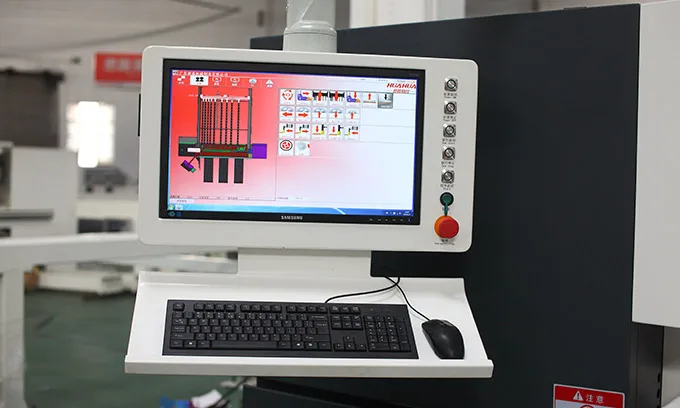

Industrial PC control system
1. Easy operation, safety & reliable.
2. Which has complete operating hints and troubleshooting guide functions.
3. It’s cutting plan can edit manually; can simulate or execute cutting plans.
4.Can compatible with bar code manage software or factory automation software.
2. Which has complete operating hints and troubleshooting guide functions.
3. It’s cutting plan can edit manually; can simulate or execute cutting plans.
4.Can compatible with bar code manage software or factory automation software.
Optional Cutting optimization software
Automatic calculate system,
Cutting plan layout system,
Remains management system;
Greatly enhance user productivity, reduce production costs, increase revenue, and improve the panels utilization rate.
Cutting plan layout system,
Remains management system;
Greatly enhance user productivity, reduce production costs, increase revenue, and improve the panels utilization rate.

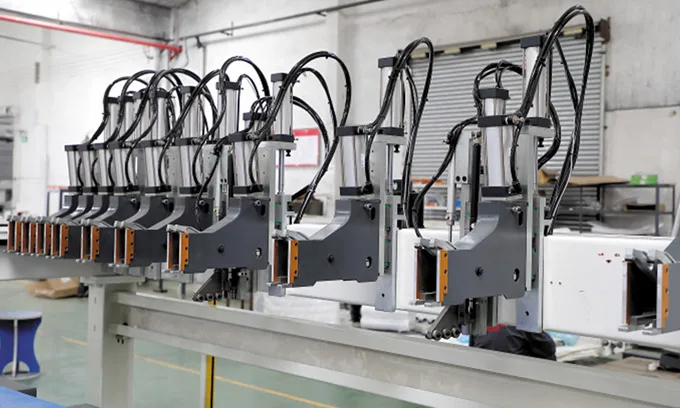

Pneumatic Clamping
The industry-leading two-finger clamping structure is adopted, panel is clamped by air cylinder, before feeding, passing the roller conveyor to ensure the cutting accuracy without damaging panel surface.
Saw Carriage Drive Servo Motor
Equipped with 2kw servo motor, saw carrigae power reducer, gear reducer three-phase asynchronous motor, make sure high efficiency and stable cutting.
Saw Carrige
Main saw and scoring saw are lifted and lowered independently, sawing stroke can be automatically positioned according to different cutting thickness and width. standard 18.5kw main saw motor is equipped, saw blades fastly replace, which effectively reduces the burden on workers.

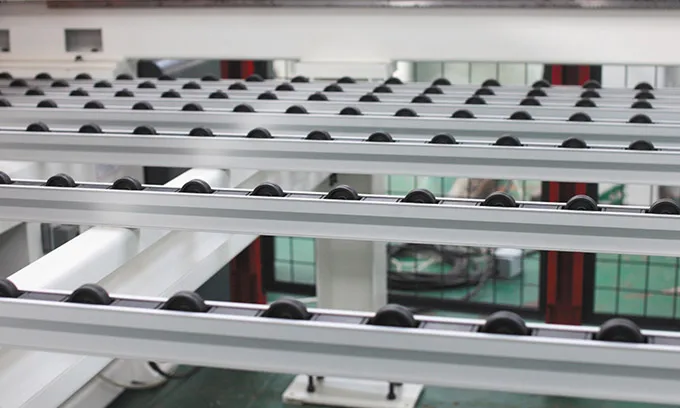

Roller Conveyor
Rollers assist the panel moving, protect surface of the panel and prevent scratching, heavy panel is easy to move too.

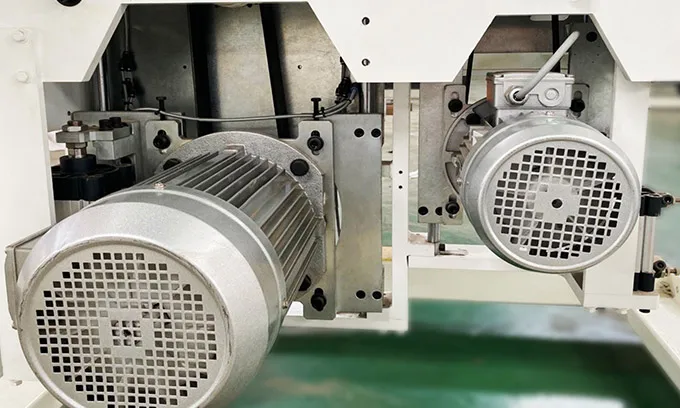

Saw Carriage Lifting Mechanism
18.5kw motor, main saw shaft rotation speed is 4000rpm, precision reducer can automatically adjust the cutting height according to the panel thickness, high speed, stable, and flexible.
Cutting Bench
1.with air Floating bead, easy to move the board and Avoid scratching on board;
2.The design of the sawing table is upgraded, which is narrower than the traditional bench;
The advantage is that it is not easy to sink or deform.
And cutting panel edge is not easy to burst.
2.The design of the sawing table is upgraded, which is narrower than the traditional bench;
The advantage is that it is not easy to sink or deform.
And cutting panel edge is not easy to burst.
Optional Side aligner device
Fix cutting panel width side, control panels not move or shake when sawing, ensure width sawing precision.
Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.
Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.

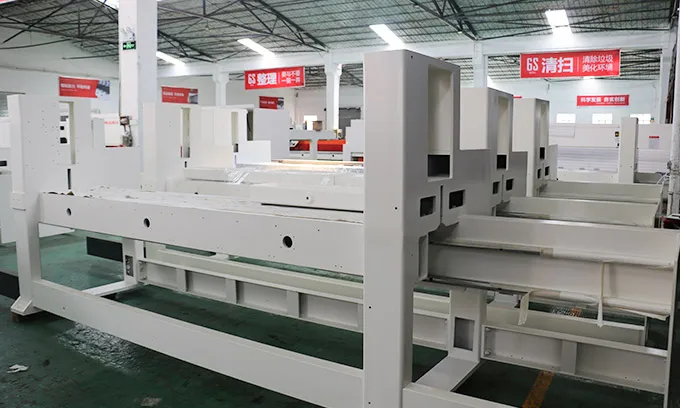

Main Steel Frame
After the welding of the frame is completed, it is placed for one month, and then heat treated;
Eliminate the residual stress generated during the machining process;
Change the crystal structure inside the material;
Enhance the stability of the subject;
Afterwards, it will be treated for 6 months;
Then send to the machining center for precision machining.
Eliminate the residual stress generated during the machining process;
Change the crystal structure inside the material;
Enhance the stability of the subject;
Afterwards, it will be treated for 6 months;
Then send to the machining center for precision machining.
Max. cutting length | 3800mm | Saw carrier driving motor power | 2kw ( AC Sevro ) |
Max. cutting thickness | 120mm | Automatic feeding motor | 2kw ( AC Sevro ) |
Main saw blade | Φ380mm(option450mm) | High-pressure blower motor | 3kw+2.2kw |
Main saw shaft diameter | Φ75mm | Side aligner motor | 0.25kw |
Main saw shaft rotation speed | 4000rpm | Total power | 30.15kw |
Scoring saw blade diameter | Φ200mm | Automatic Feeding speed | 85m/min |
Scoring saw shaft diameter | Φ50 | Air pressure | 5-7kg/cm² |
Scoring saw shaft rotation speed | 5200rpm | Worktable height | 980mm |
Saw carriage forward speed | 0-100m/min | Net weight | 6300kg |
Saw carriage backward speed | 0-120m/min | Machine size | 7060*6040*2060mm |
Main saw motor power | 18.5kw | Air floating table quantity | 4 |
scoring saw motor power | 2.2kw |
* Welcome to our official website
https://www.huahuacnc.com/
Company Profile
Our Customer
Packing＆Delivery
FAQ
Q1. Are your trading company or factory?
A1. We are factory with more than 55000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine，smart solution line etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost.
A1. We are factory with more than 55000m2 workshop located in Longwei Road, Xichong Industrial Park, Lunjiao Town, Shunde Dist., Foshan, Guangdong, China.
Q2. What machine can you supply?
A2. Our main machines are computer beam saw, edge banding machine, cnc drilling machine, cnc router machine，smart solution line etc.widely used for panel furniture production.
Q3. What is the payment term?
Q3. T/T 30% in advance and balance before shipment, LC or by negotiation.
Q4. What is the delivery time?
A4. Normal 380V voltage is 15-30 days, other voltage is 30-45days.
Q5. What is the guarantee?
A5. 12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price.You will also get technical support and service all the lifetime.
Q6. Can you support the pre-sales service before confirm the order?
A6. Yes ,you will get experienced pre-sales engineer to support, not only including machine and auxiliary selection but also electrical ,air, machine layout in factory ,etc.
Q7. What is the after sales services?
A7. you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by online tools.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost.
