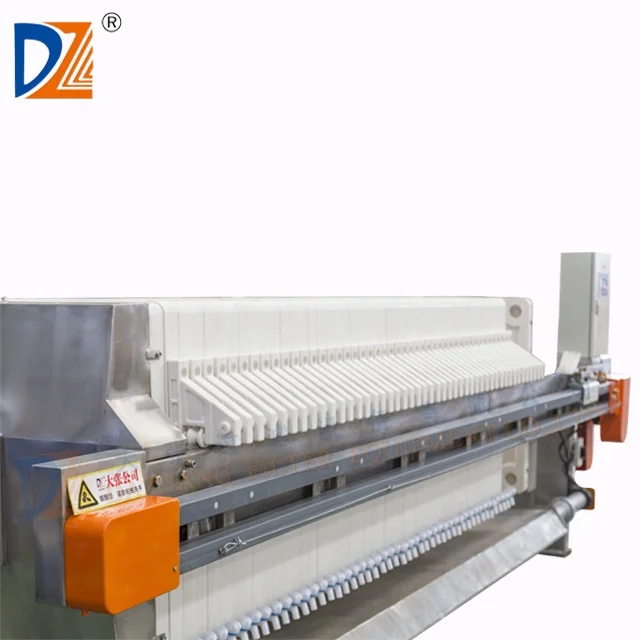

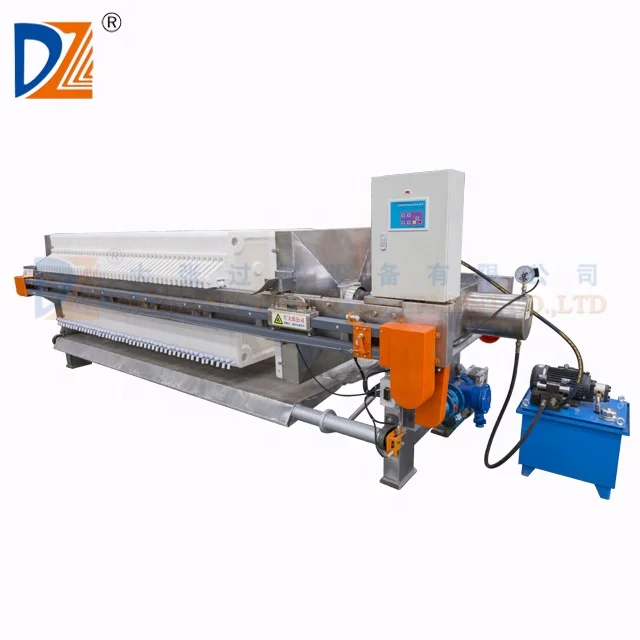

Brewery Mash Dewatering Stainless Steel Recessed Filter Press for Beer Factory
- Category: >>>
- Supplier: Yuzhou Dazhang Filter Equipment Co. Ltd.
Share on (1601040707127):
Product Overview
Description
Product Description

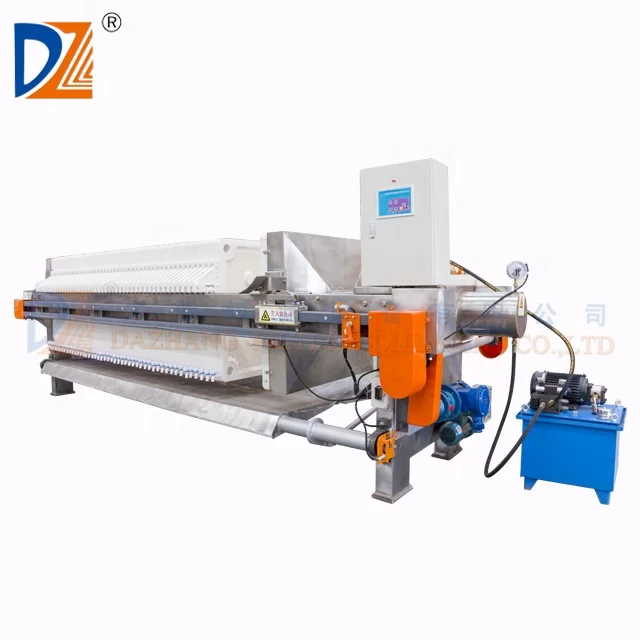

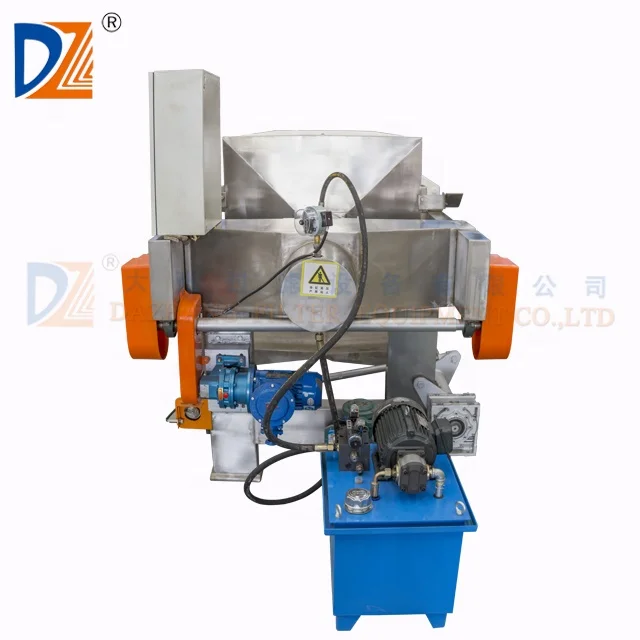

Brewery Mash Dewatering Stainless Steel Recessed Filter Press for Beer Factory
Its structure is covered by stainless steel. It can anti-high temperature and anti-acid and alki. It has the following features:
1. Filter plate pressing automatically;
2. Collector plate open/ close automatically;
3. Filter plate releasing automatically;
4. Filter plate withdrawing automatically.
Technical Data

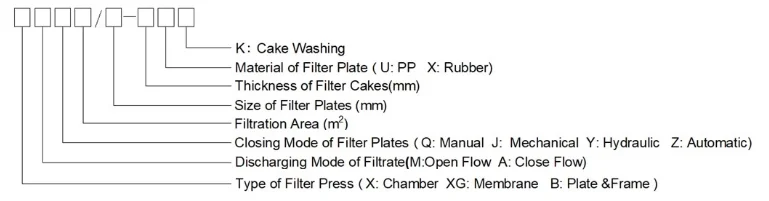

Model | Chamber Volume (L) | Plate Qty (PCS) | Filtration Pressure ( Mpa) | Motor Power (KW) | Weight(kg) | Dimension L*W*H (mm) |
XMZ50/1000-30U | 736 | 28 | >=0.6 | 4.0 | 4128 | 4290*1580*1380 |
XMZ60/1000-30U | 889 | 34 | 4636 | 4710*1580*1380 | ||
XMZ70/1000-30U | 1041 | 40 | 5143 | 5010*1580*1380 | ||
XMZ80/1000-30U | 1193 | 46 | 5651 | 5370*1580*1380 | ||
XMZ100/1000-30U | 1475 | 57 | 6628 | 6030*1580*1380 | ||
XMZ120/1000-30U | 1777 | 69 | 7644 | 6750*1580*1380 |

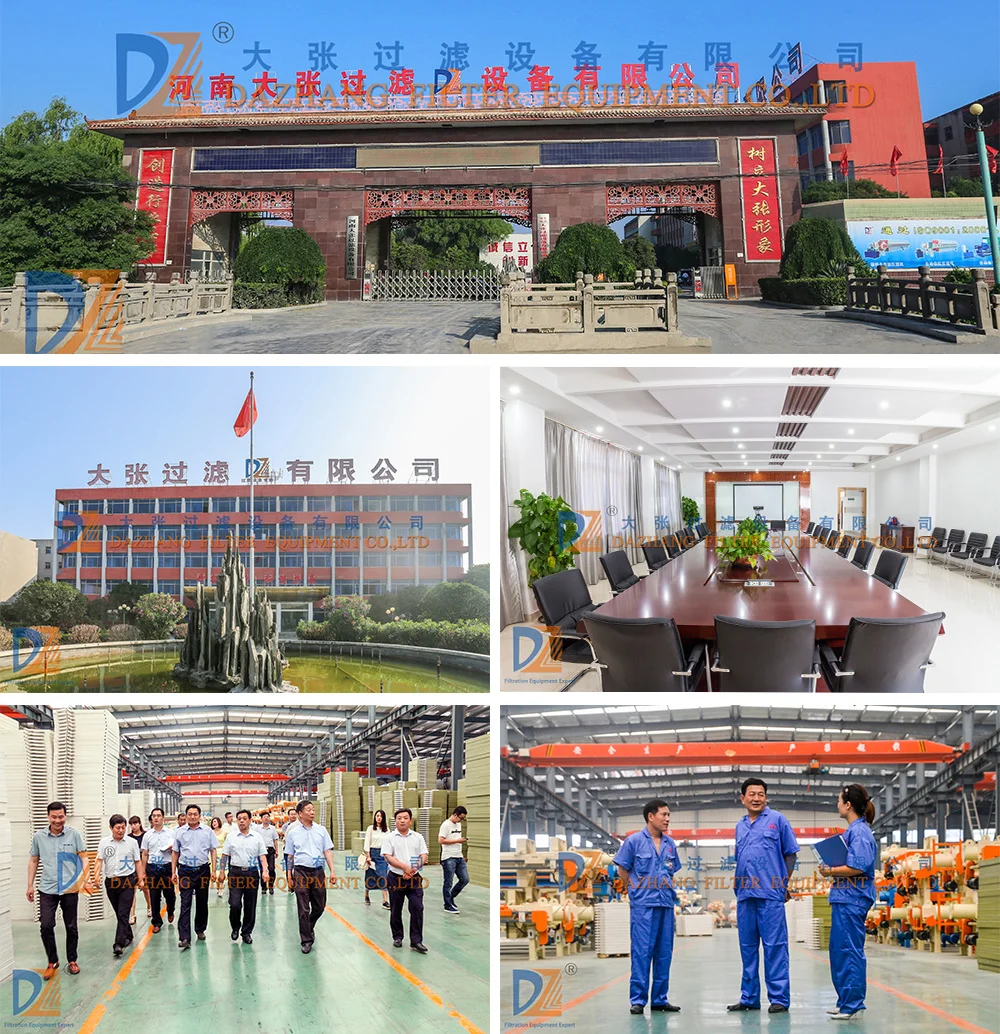

Our Company
Henan Dazhang Filter Equipment Co., Ltd.
Founded in 2004, Dazhang Filter Equipment Co., Ltd is dedicated to providing professional filter equipment and efficient project solutions. Now Dazhang has two production bases in Shanghai and Henan Province totally 250,000m², more than 700 employees, is one of the top3 filter equipment providers in China.Main products are: plate and frame filter press, chamber filter press, diaphragm filter press, belt filter press, multi-layer filter, mechnical filter, etc. We also supply relating spare parts such as filter
plate, filter cloth, cartridge, filter sack, filter paper, vane, etc.
The products have passed strict ISO9001/CE certifications, and operate successfully in 39countries for more than 30,000projects. Dazhang had developed Singapore distributor and Vietnam branches to serve better for customers.
We had professional technology dept. providing suitable solutions for customers, strict quality control system, quick-response aftersales service team for overseas market, and adequate spare parts supply, to make sure success work and create more value for customers.
Our Warehouse

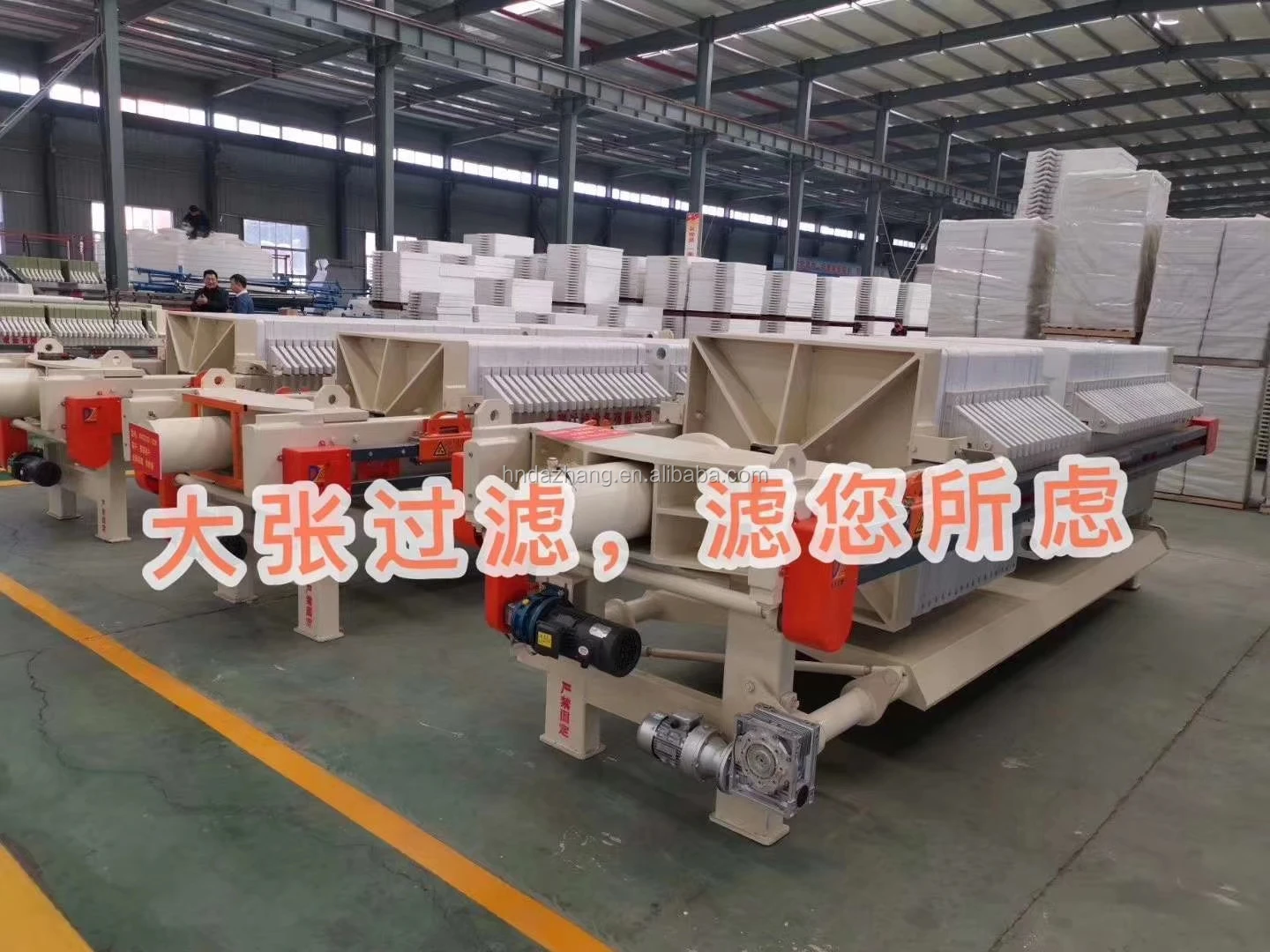

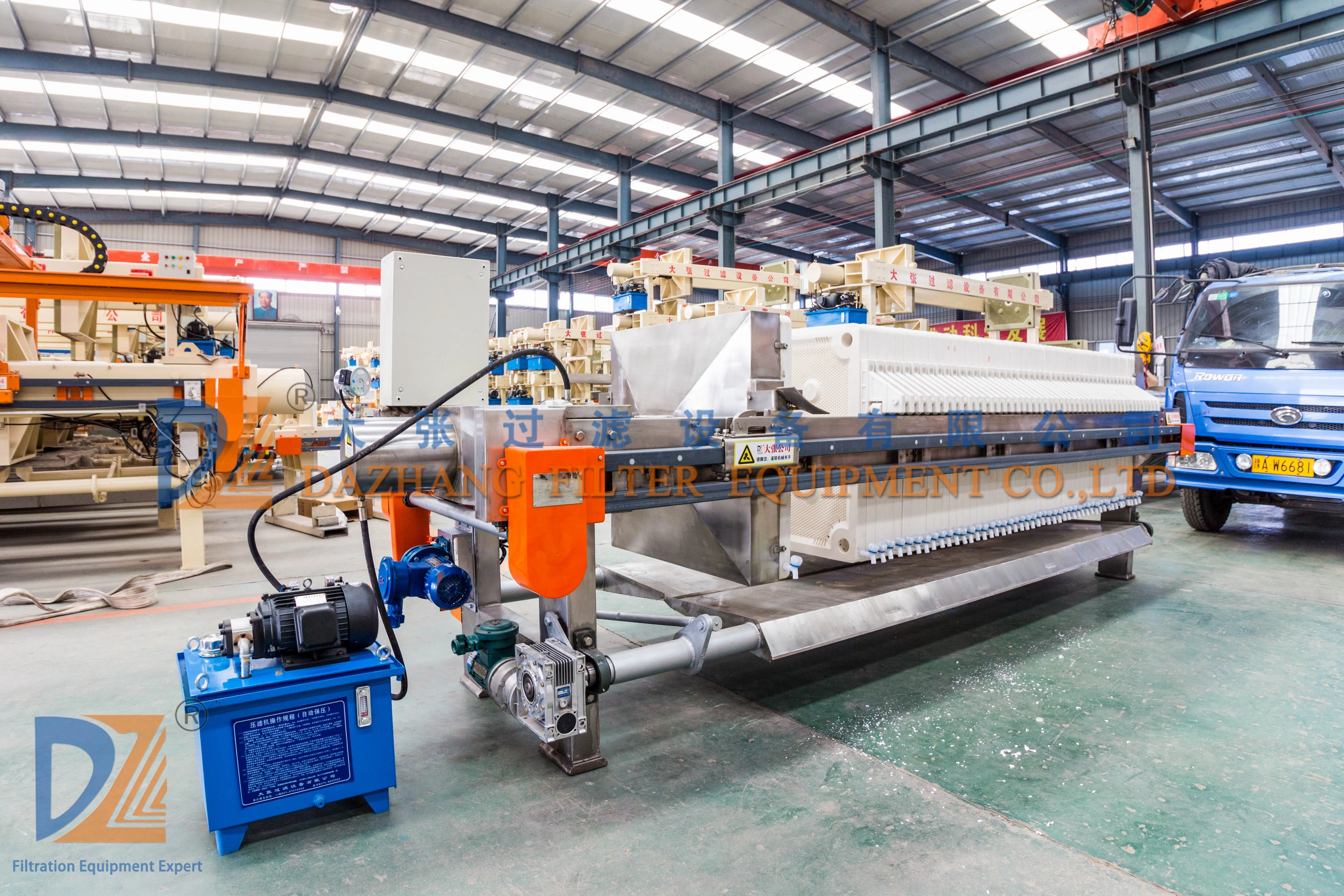

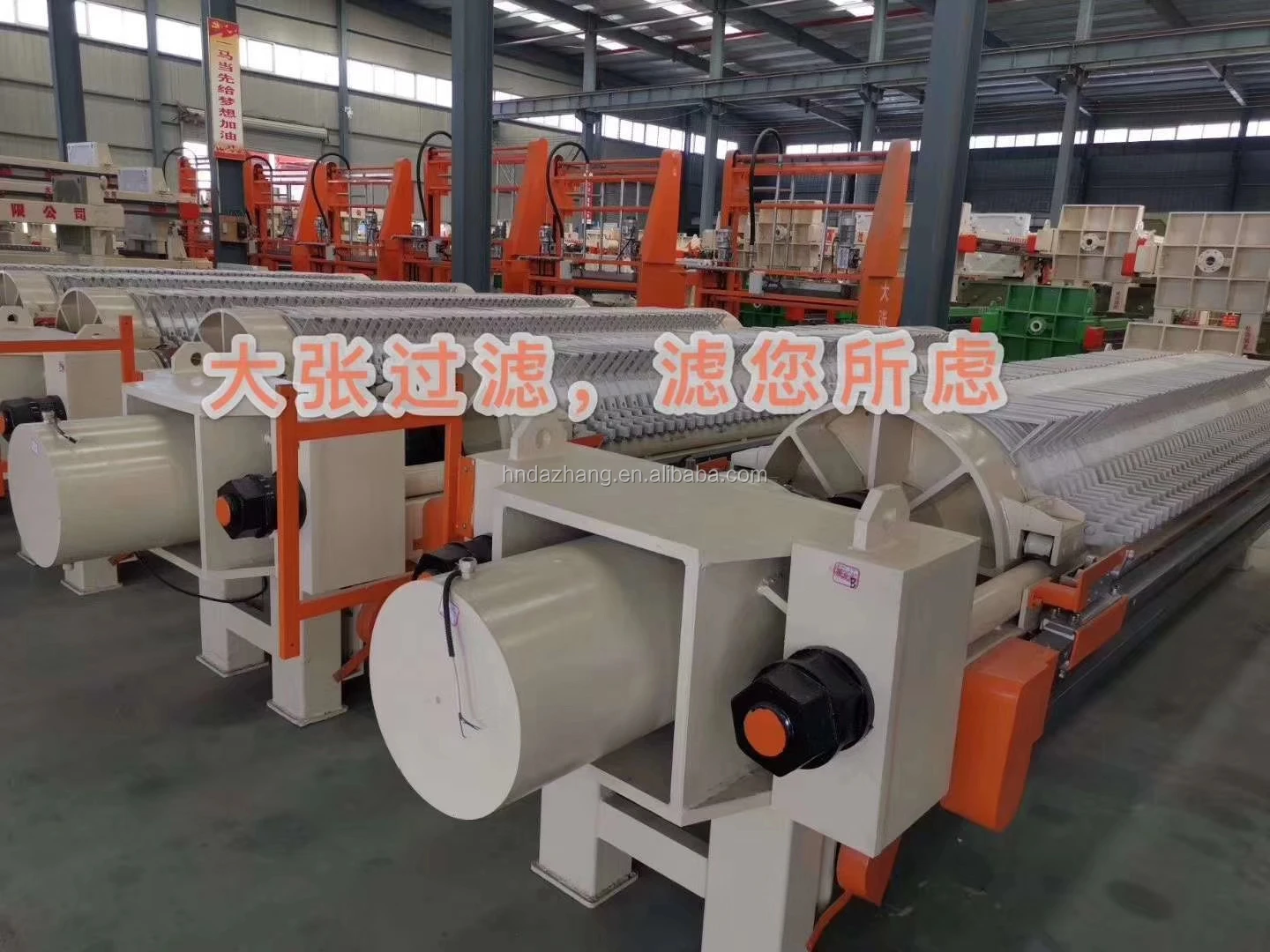

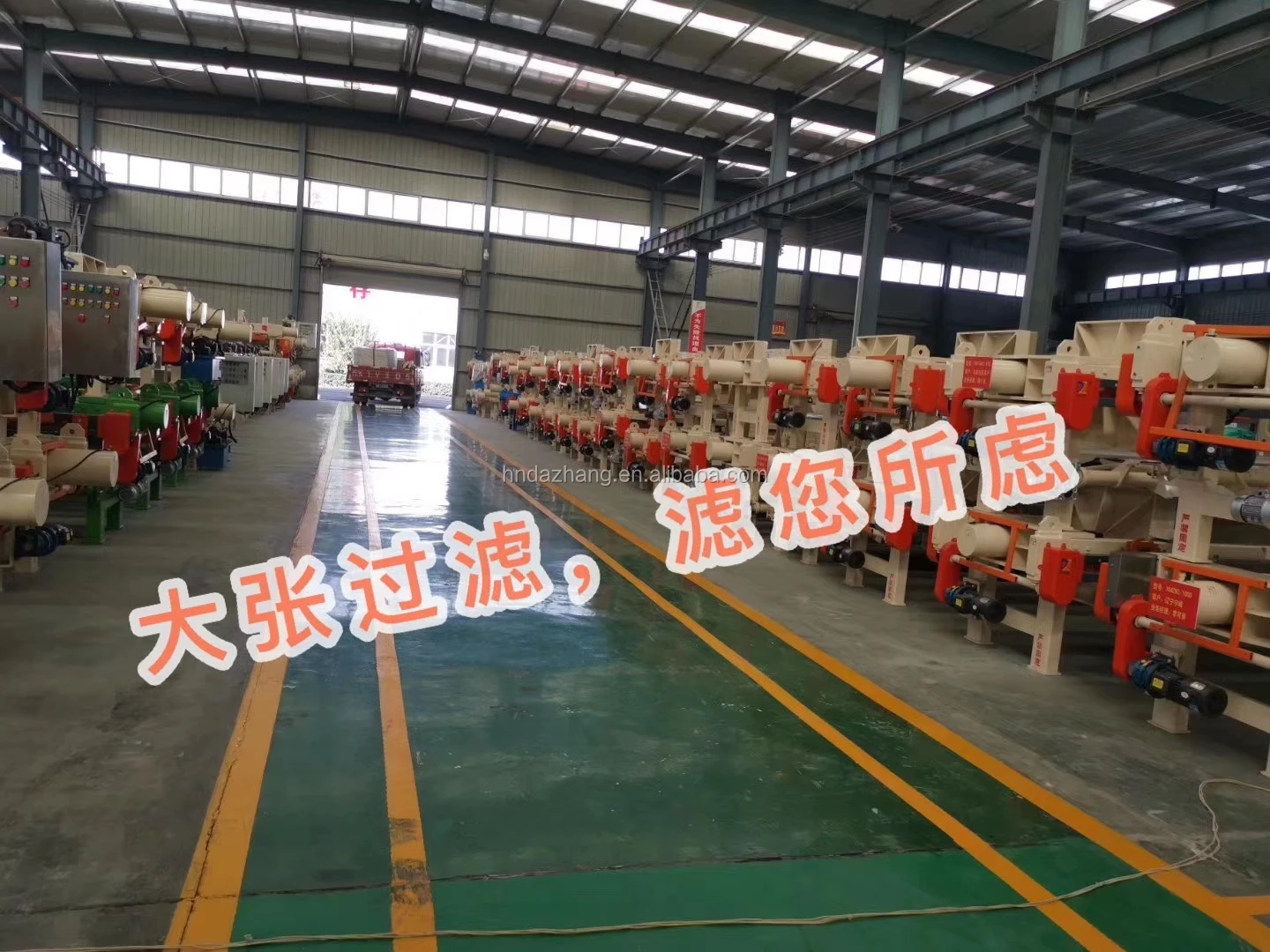

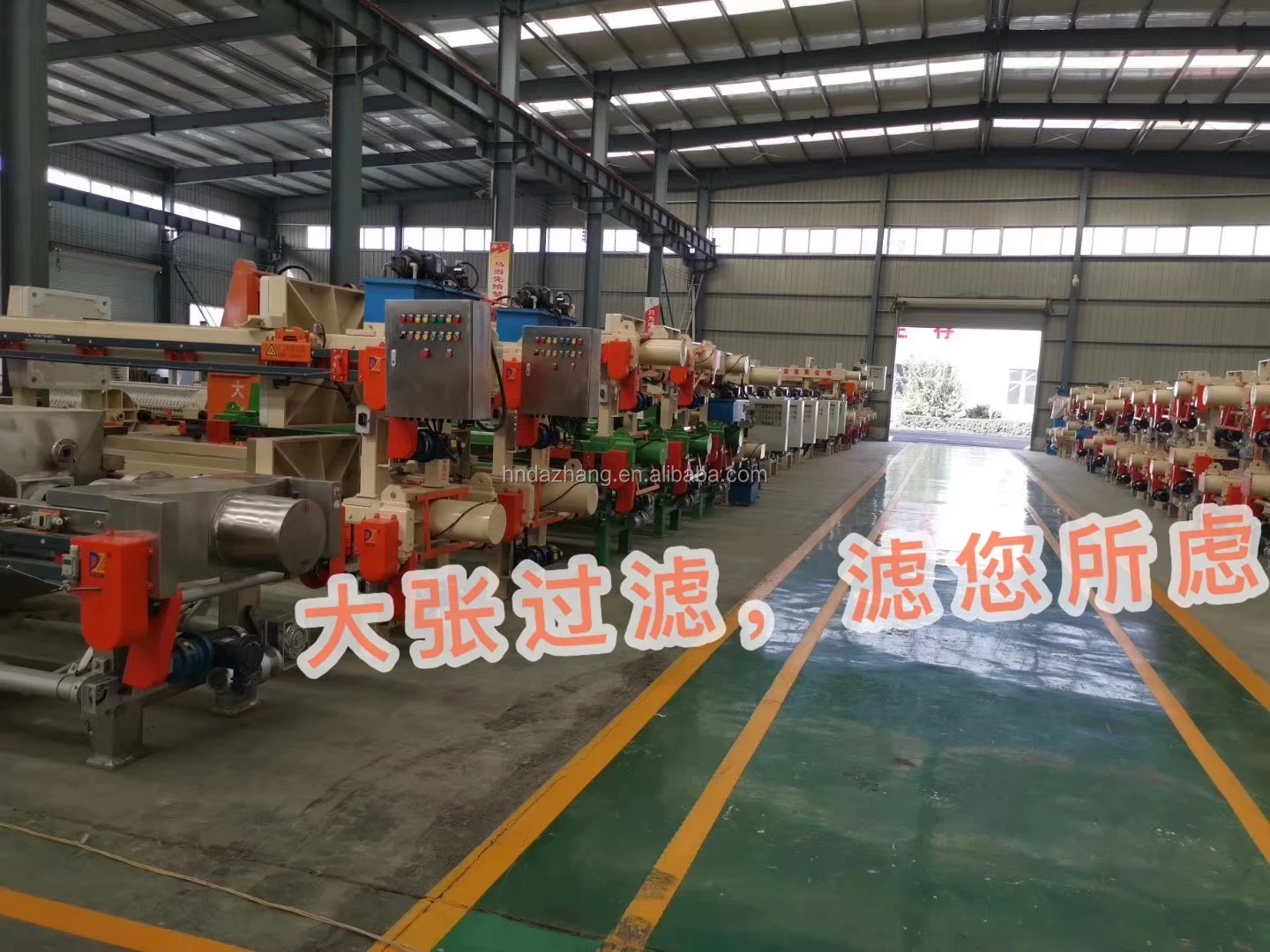

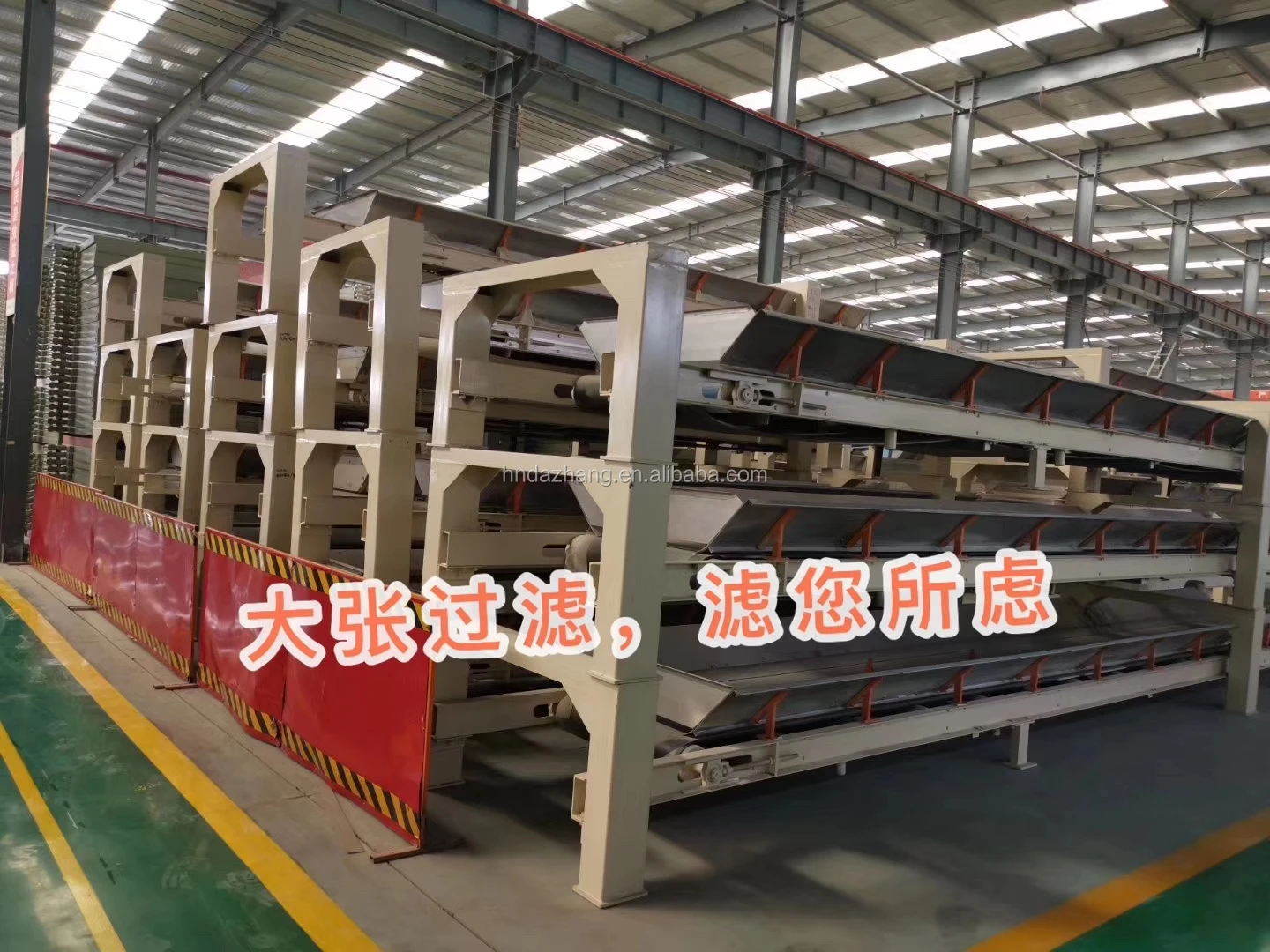

Our Workshop

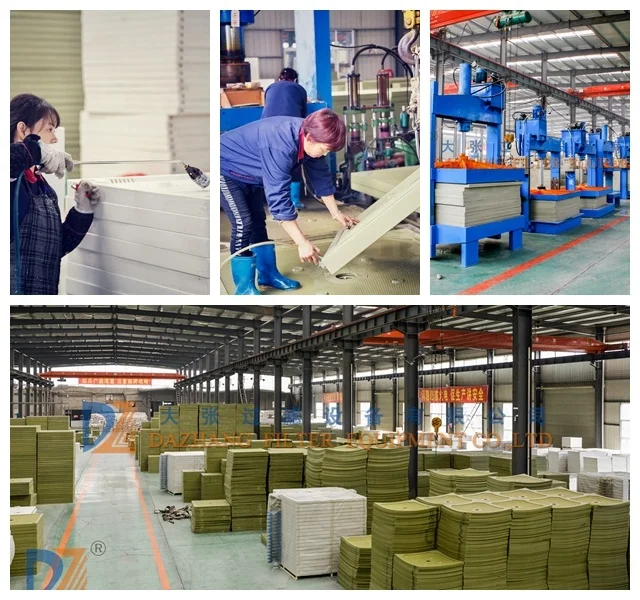

HOW WE GET FILTER PLATE

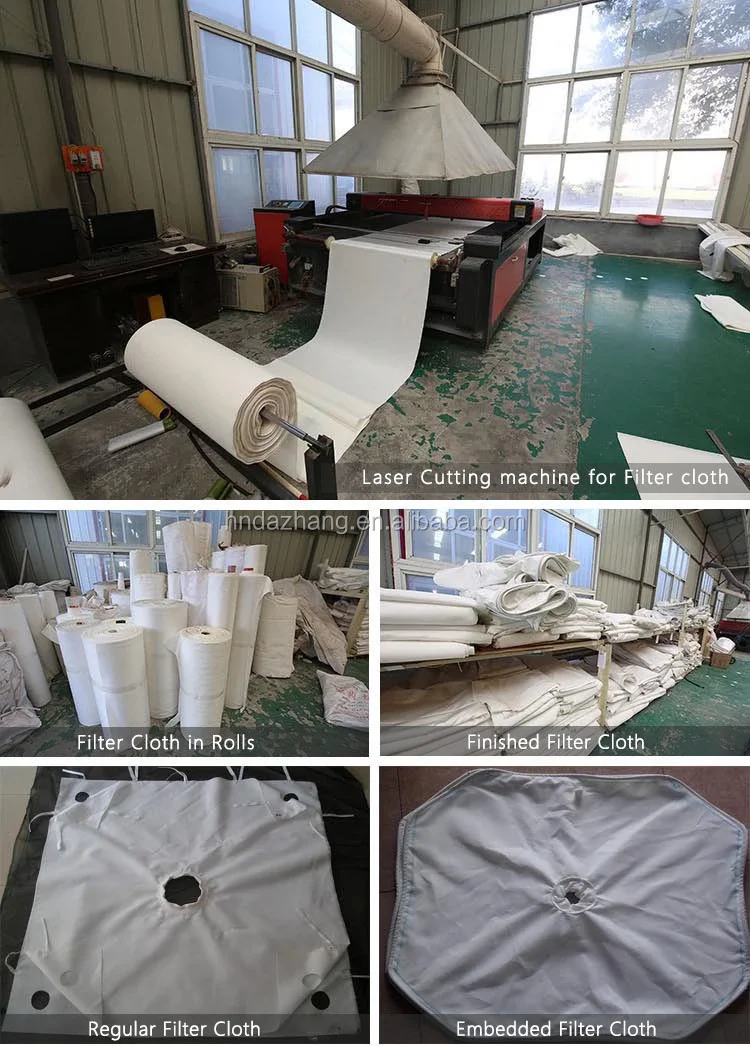

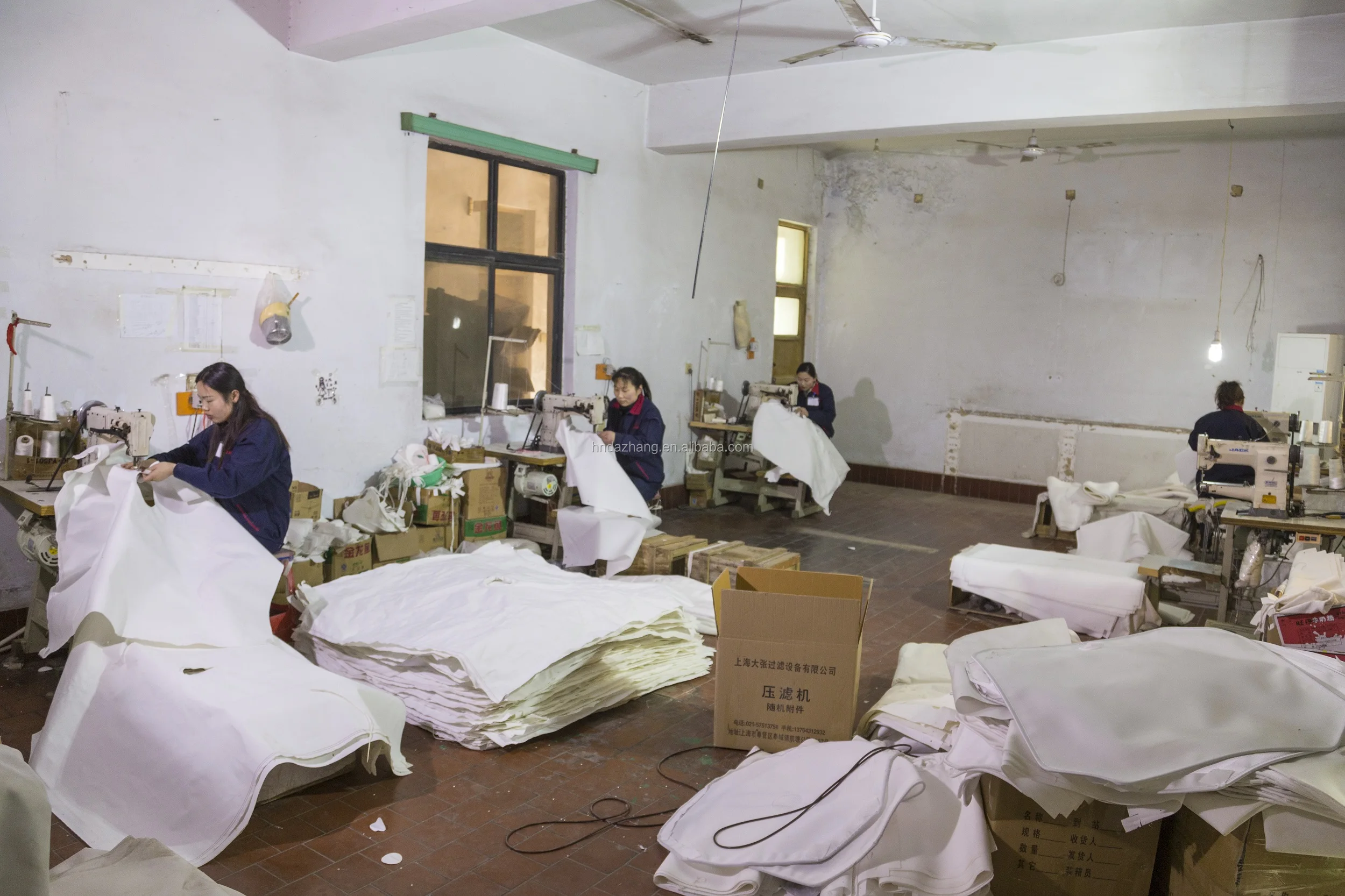

HOW WE GET FILTER CLOTH

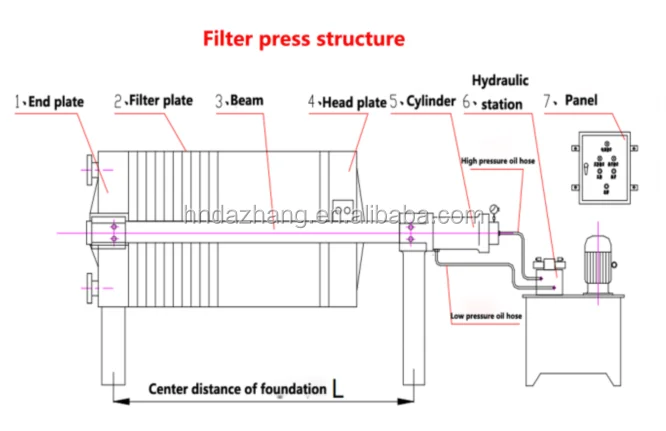

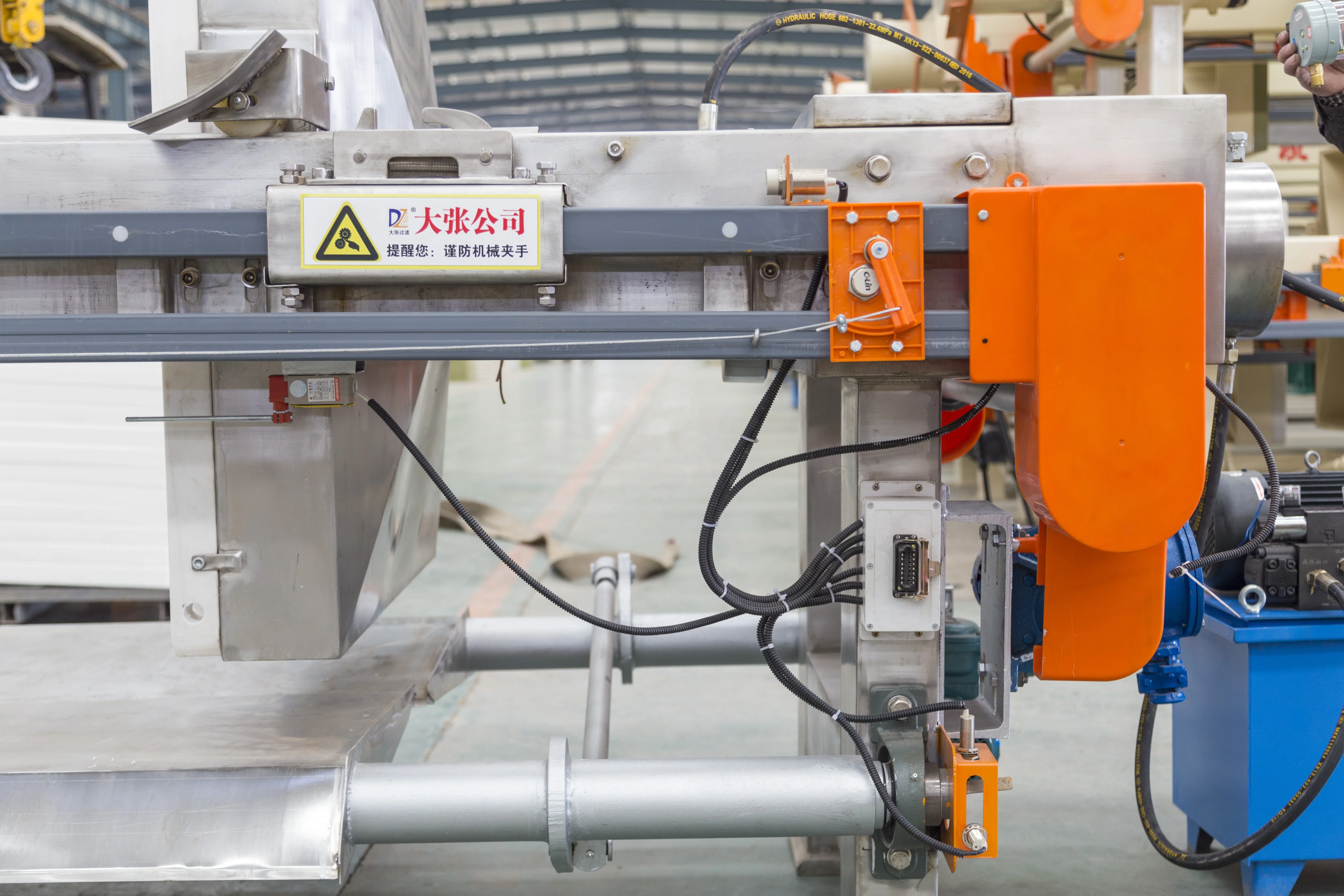

End Plate, Oil Cylinder & Hydraulic Station
End Plate
Hydraulic Station
Oil Cylinder

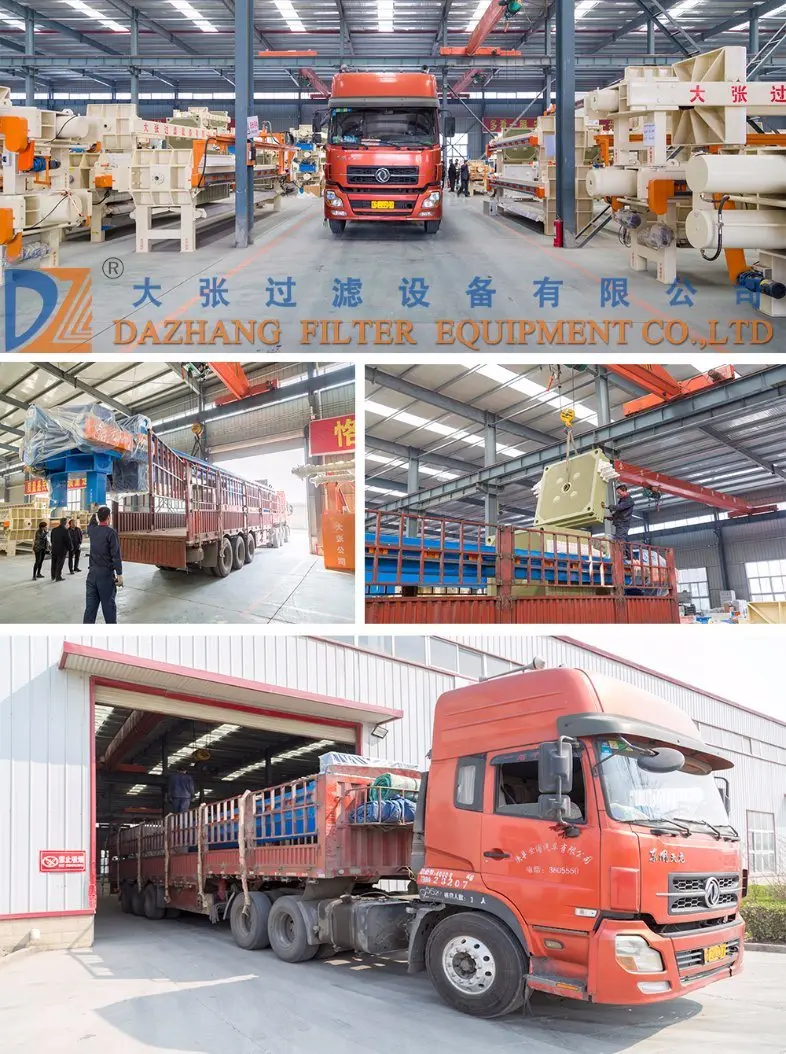

Package and Shippment

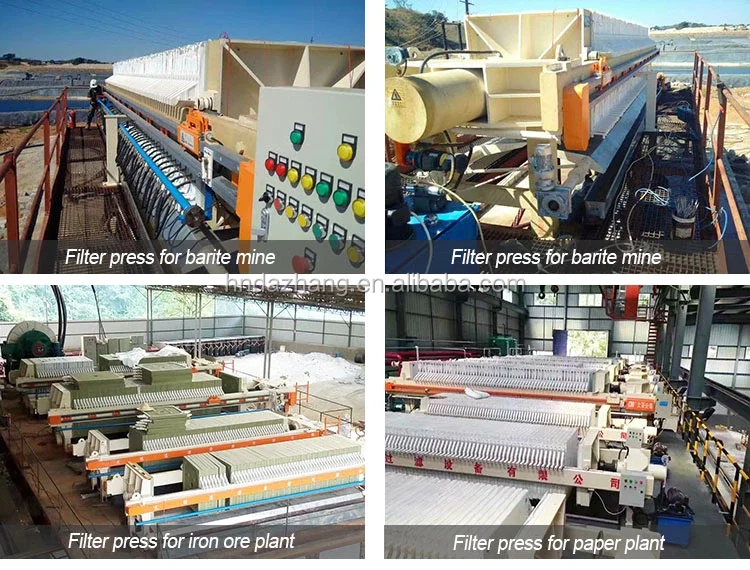

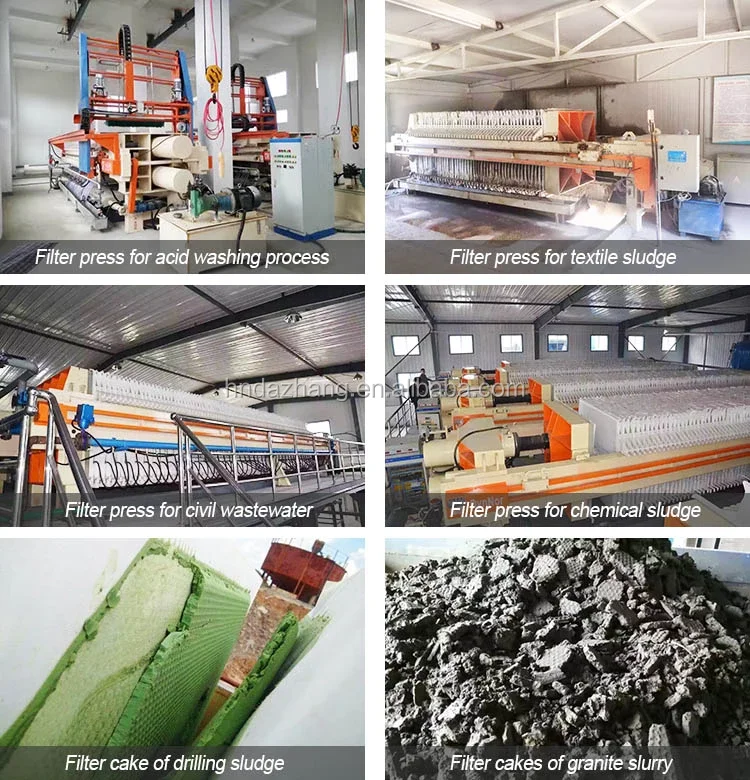

Our customer site
Our customer
Our Certification
Our Partner
Our Severice
