Product Overview

Description





Product name:

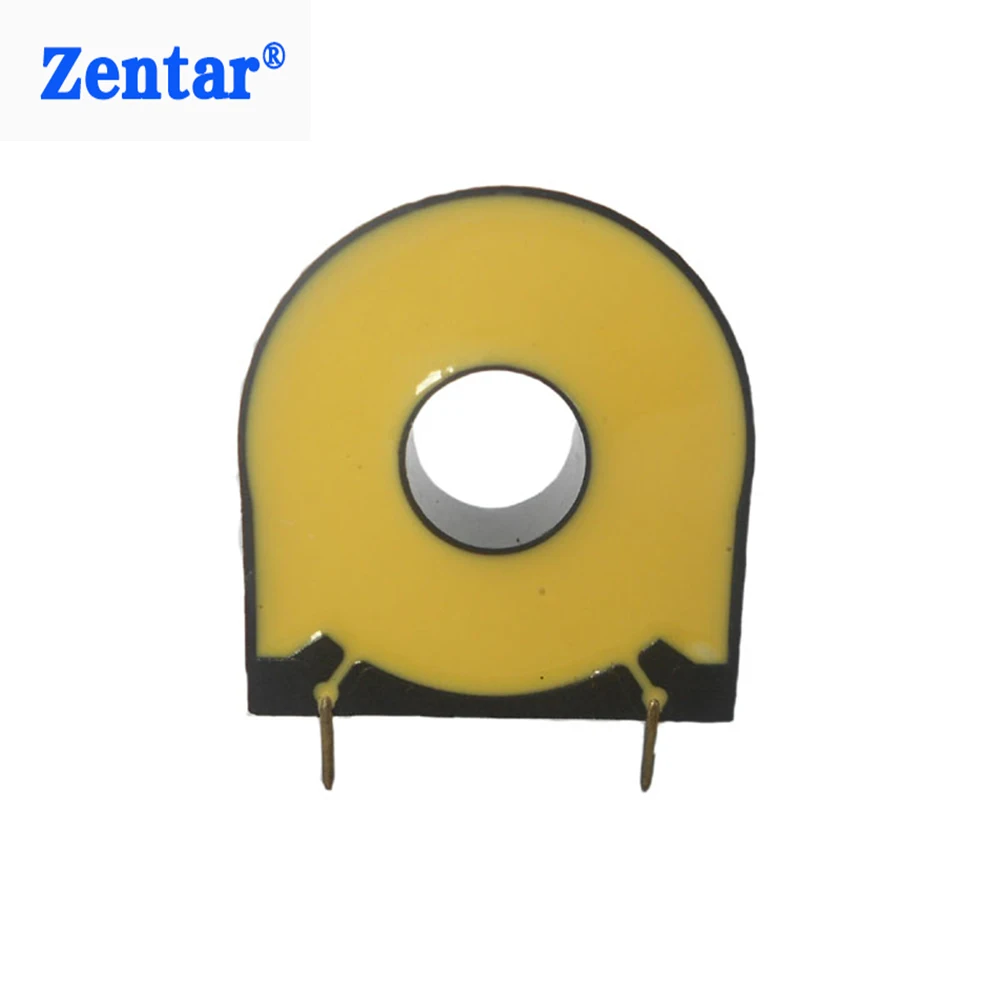

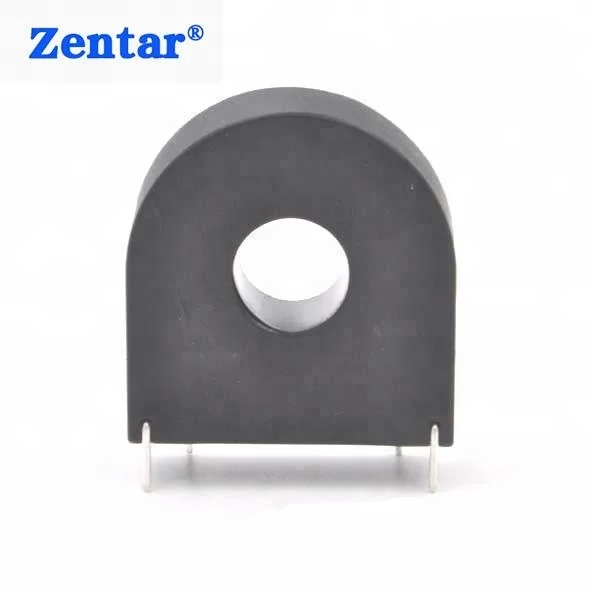

Precision Current Transformer

• High precision,wide linearity range for output current;


• Small size and elegant looking; Mount directly to PCB;


• A variety of configuration and output characteristics;


• Precision current transformers are mainly used in electrical monitoring devices, such as electric energy meters,power transmitters, precision power meters and overcurrent protection for motors and other electrical equipment.



•  Frequency Range : 50Hz~10KHz


• Dielectric Strength : 2500Vrms/1 seconds between Sec./ Test


• Insulation Resistance: DC500V/1000MQ min


• Operating Temperature: -35~80℃ 0~80%RH


• Storage Temperature: -40~85℃ 0~80%RH
