Building Materials 610mm Metal Rib Lath
US $6.00-$10.00
6mm 8mm 10mm Concrete Reinforcing Steel Rebar Mesh Ribbed Bar Welded Corrugated Concrete Wire Mesh Panel
- Category: >>>
- Supplier: Hebei Fulangsi Metal Wire Mesh Product Co. Ltd.
Share on (1601040718747):
Product Overview
Description

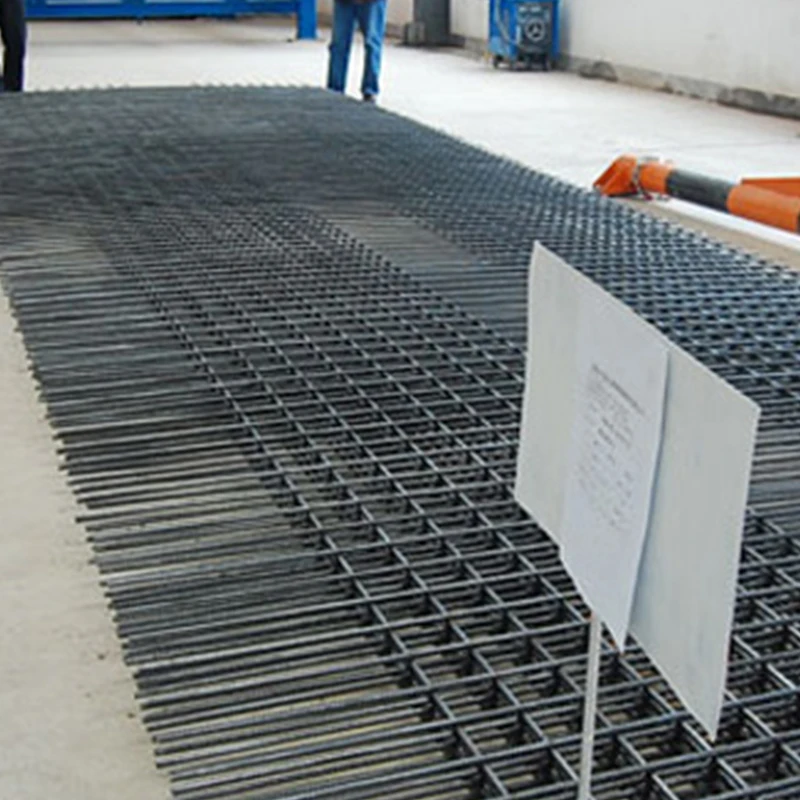

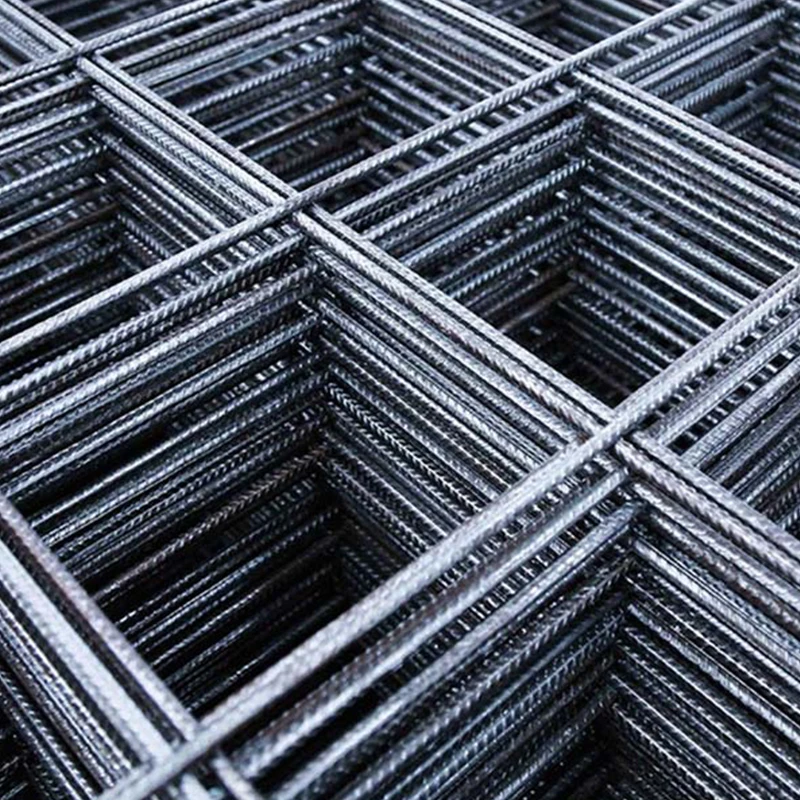

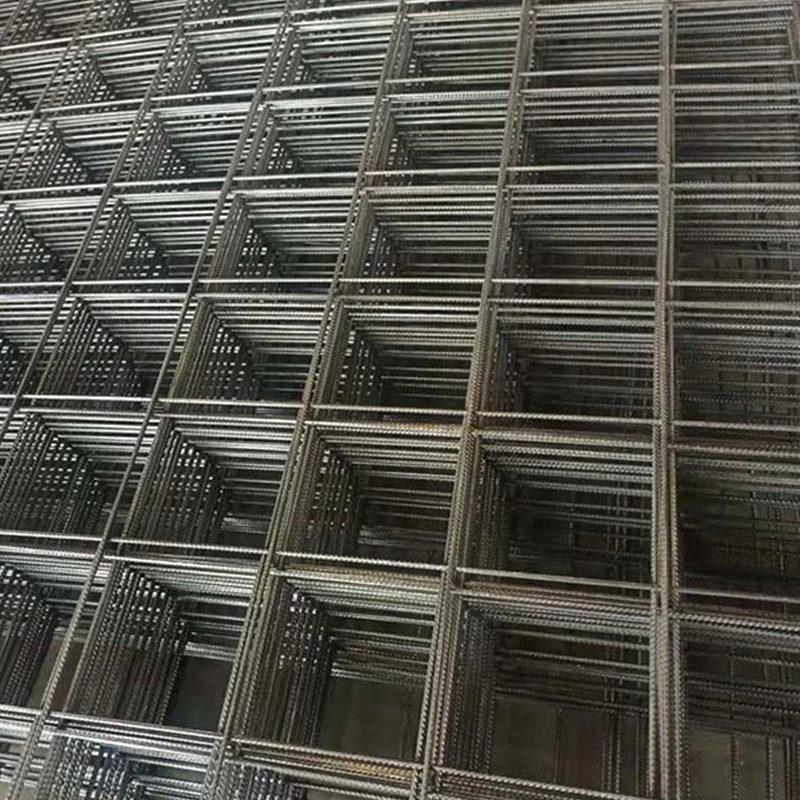

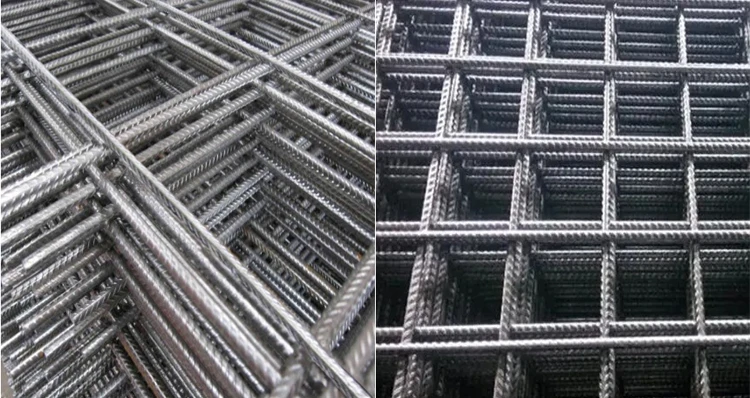

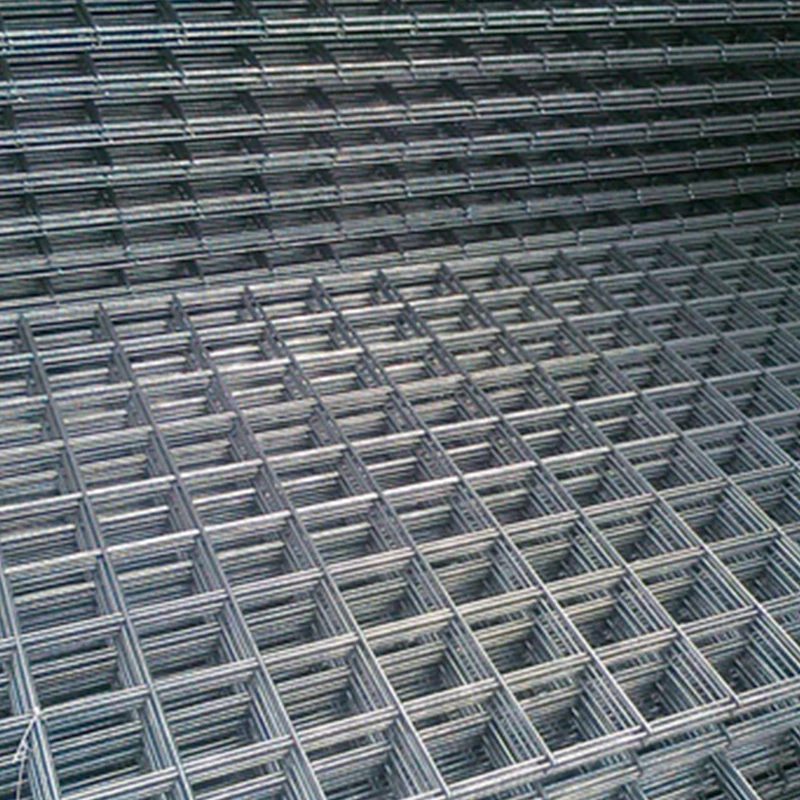

Rebar welded steel wire mesh
Rebar welded steel wire mesh is also called construction reinforced concrete mesh, concrete steel mesh, steel mesh,Concrete reinforcing mesh ,wire steel bar mesh and steel concrete mesh. Reinforcement welded steel mesh is where the longitudinal steel bars and transverse steel bars are rearranged at certain intervals, at right angles to each other, and all intersections are welded together.
It was made by deformed bar after drawn, which is accorded to Australian/New Zealand Standard AS-NZS 4671-2001. The material is 250N, 300E, 500L, 500N and 500E, the mesh spaces is 200mm, there is two sides overhang which is 100mm.
Mesh Type and reference number | Longitudinal bars | Cross-bars | Mass for 6 x2.4 m sheets | Cross-sectional area/m width | ||||||||||||
No. x dia., mm | Pitch@mm | No. x dia., mm | Pitch@mm | Unit area kg/sqm | Sheet, kg | Long'l bars sqmm/m | Cross bars sqmm/m | |||||||||
Squre, with edge side-lapping bars | ||||||||||||||||
SL102 | 10 x 9.5 + 4 x 6.75 | 200100 | 30 x 9.5 | 200 | 5.6 | 80 | 354 | 354 | ||||||||
SL92 | 10 X 8.6 + 4 X 6.0 | 200100 | 30 x 8.6 | 200 | 4.6 | 66 | 290 | 290 | ||||||||
SL82 | 10 x 7.6 + 4 x 6.0 | 200100 | 30 x 7.6 | 200 | 3.6 | 52 | 227 | 227 | ||||||||
SL72 | 10 x 6.75 + 4 x 5.0 | 200100 | 30 x 6.75 | 200 | 2.8 | 41 | 179 | 179 | ||||||||
SL62 | 10 x 6.0 + 4 x 5.0 | 200100 | 30 x 6.0 | 200 | 2.2 | 33 | 141 | 141 | ||||||||
Squre, without edge side - lapping bars | ||||||||||||||||
SL81 | 25 X 7.6 | 100 | 60 x 7.6 | 100 | 7.1 | 105 | 454 | 454 | ||||||||
Concrete reinforcing mesh is made of carbon steel or stainless steel, including rectangular steel mesh, square steel mesh and trench mesh. Concrete steel mesh has high strength and solid structure, which can greatly improve the bonding with concrete and minimize concrete cracking. It is widely used for the reinforcement of building foundations, pavements and bridge decks. In addition, steel brackets and tie lines are also important and necessary for fixing the steel mesh in concrete structures.
Concrete reinforcing mesh advantages:
It is longitudinal steel bars and transverse steel bars, arranged at a certain distance, at right angles to each other, and all intersections are welded together.
Advantages: It significantly improves the quality of the steel bar project, significantly increases the construction speed, enhances the crack resistance of reinforced concrete, and has good comprehensive economic benefits.
Advantages: It significantly improves the quality of the steel bar project, significantly increases the construction speed, enhances the crack resistance of reinforced concrete, and has good comprehensive economic benefits.
Packing & Delivery
Our products packing and shipment:
Steel pallet for reinforcing mesh size
2.4m *6m
Loading container for reinforcing mesh sheet:
2.4m *6m
Company Profile
Hebei Fu lang si Metal Wire Mesh Product Co.,LTD is located in Matun Industrial Zone nearby Anping Wire Mesh Town and is specialized in manufacturing Expanded Metal Lath, Rib Lath, Brick Lath and Decorative Wire Mesh .
With an Rich experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, USA, Australia, Singapore, India and UK, German, Turkey. Our products enjoy a good reputation among our customers.
For strengthen our soft power, ISO Quality System passed in 2014.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
With an Rich experienced and professional team, we have exported our products to many countries and regions all over the world, especially Southeast Asia, USA, Australia, Singapore, India and UK, German, Turkey. Our products enjoy a good reputation among our customers.
For strengthen our soft power, ISO Quality System passed in 2014.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Certifications
FAQ
1、What is the material of your products ?
The materials used in our rib lath products include: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plateand other metal plate.
2、 How much about your annual production capacity?
More than 2000 Tons
3、What makes your products different from other company's?
Fu lang si provide free design service, warranty service, with strictly quality control and very competitive price.
4、Can you make custom Expanded Rib Lath if I have a design in mind?
Of course, most of our exported rib lath products are customized according to customers' needs.
The materials used in our rib lath products include: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum and magnesium alloy plateand other metal plate.
2、 How much about your annual production capacity?
More than 2000 Tons
3、What makes your products different from other company's?
Fu lang si provide free design service, warranty service, with strictly quality control and very competitive price.
4、Can you make custom Expanded Rib Lath if I have a design in mind?
Of course, most of our exported rib lath products are customized according to customers' needs.
>>>Please send an inquiry to Contact us
5、Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
5、Can I get a pcs of your products sample?
Yes, free samples will be provided anytime.
