USR W610 Industrial RS232 RS485 Serial To WiFi Ethernet Converter Modbus RTU to TCP Gateway WiFi to Ethernet

Product Overview

Description

USR-W610
RS232/485 to Wi-Fi/Ethernet Converter

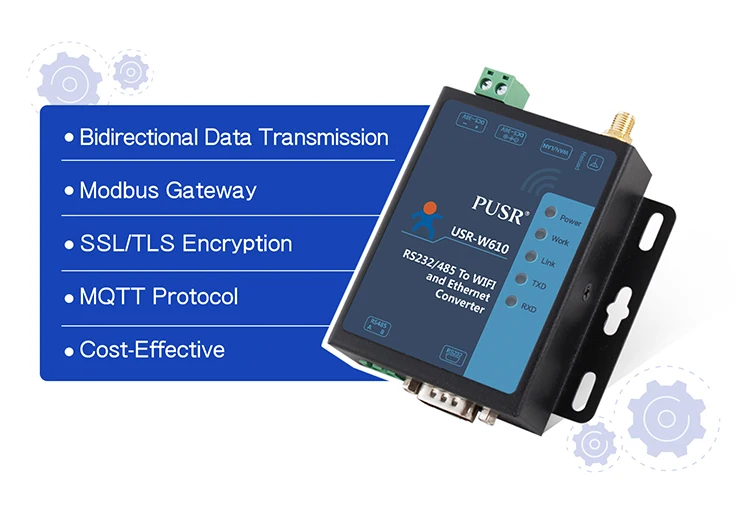

USR-W610 is a device that can realize data communication between serial port and Ethernet/Wi-Fi. Through this device, the communication between the on-site serial device and the remote SCADA system can be realized. It has a 232 serial port and a 485 serial port, but the two serial ports cannot be used simultaneously. It integrates a wealth of network protocols like MQTT, TCP, UDP etc. and supports a variety of networking methods, suitable for various scenarios.



Ordering Guide

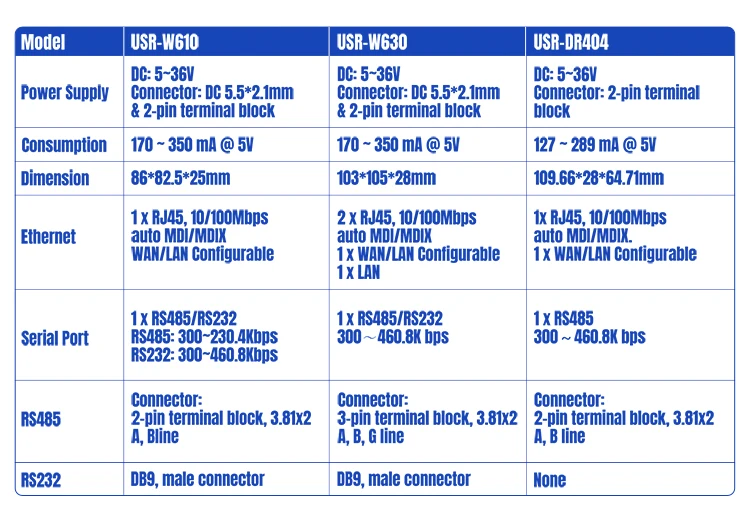

For serial to Wi-Fi/Ethernet convertor, PUSR offers 3 models to meet the needs of customers in different scenarios, and the main differences are shown in the table on the left.



Multiple Networking Options
The USR-W610 provides a wealth of networking methods to meet customer networking needs.

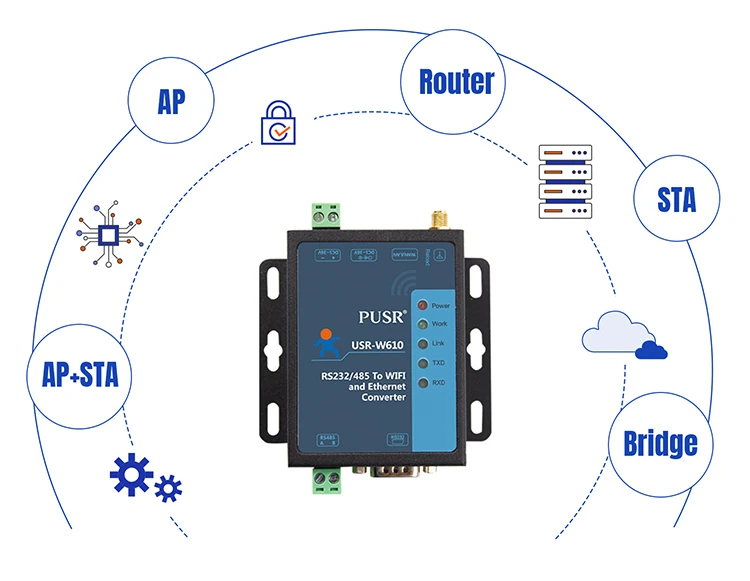

• AP mode: Allow network devices to access USR-W610 via Wi-Fi or Ethernet.
• STA mode: USR-W610 as a network device accesses other networks via Wi-Fi.
• AP+STA mode: Work in AP and STA mode simultaneously.
• Bridge mode: The device connected to the Ethernet port of W610 is equivalent to directly connecting to the upper-level network, and the W610 is equivalent to being transparent.
• Router mode: The device connected to the Ethernet port of W610 will be assigned an IP by the W610.

Transparent Transmission Mode

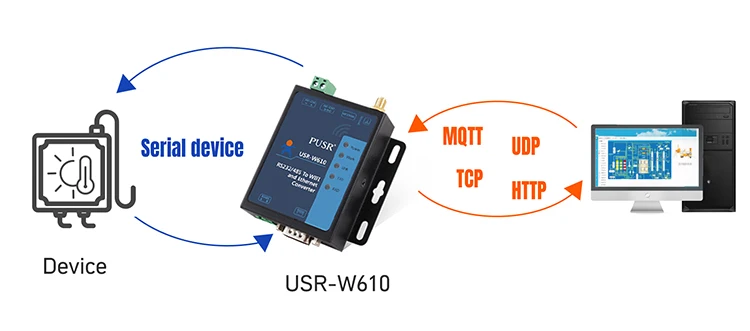

Data is transmitted transparently between serial port and Wi-Fi / Ethernet via TCP/UDP/HTTP Protocol, enabling data transfer between serial port device and network device.

Transparent Transmission Mode
Data is transmitted transparently between serial port andWi-Fi/Ethernet via MQTT/TCP/UDP/HTTP Protocol, enabling data transfer between serial port device and remote SCADA system.

Serial Command Mode

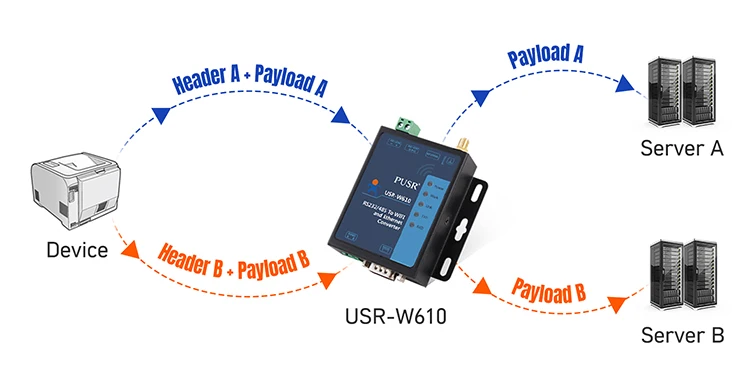

In this mode, USR-W610 needs work as UDP Client or TCP Client, it allows users to send serial data to different servers. Data, server IP and port information should be included in the data packet sent by the serial device

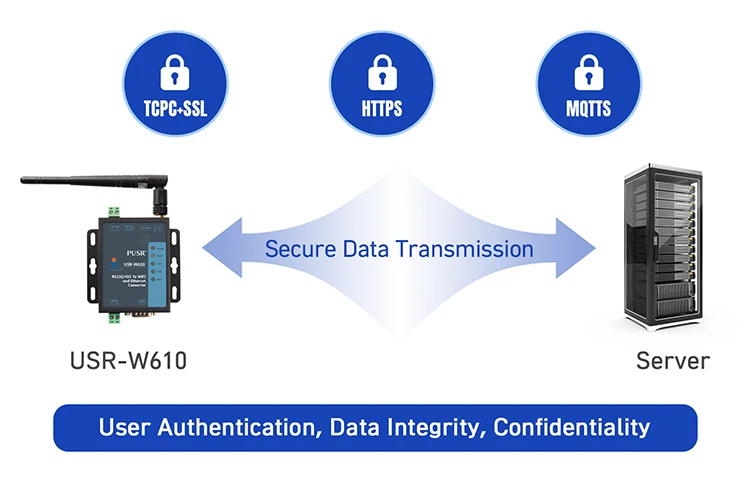

Addtional Features

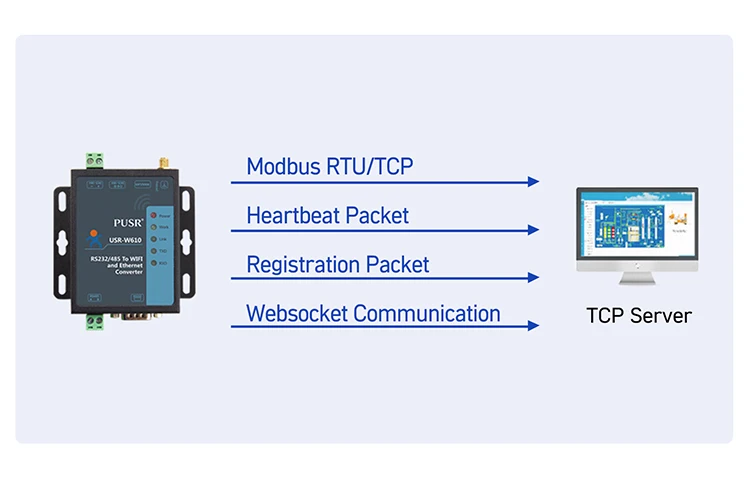

• Modbus Gateway: Modbus RTU/TCP protocol conversion and multi-host Modbus polling
• Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client using this feature.
• Registration Packet Funciton: The server can identify different

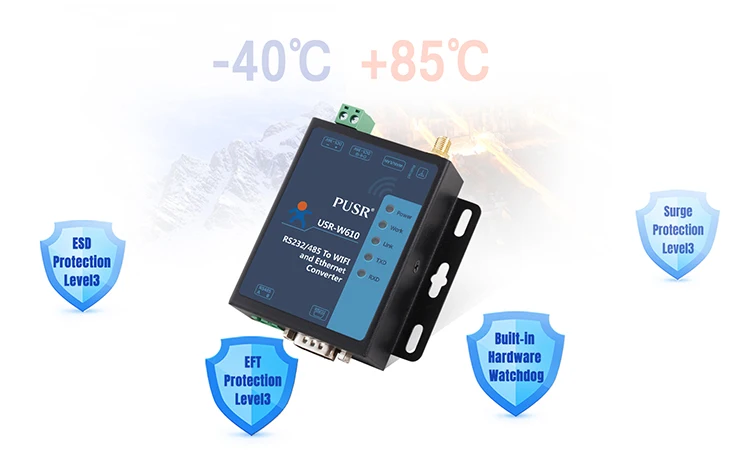

Industrial-Grade Design, High Reliability

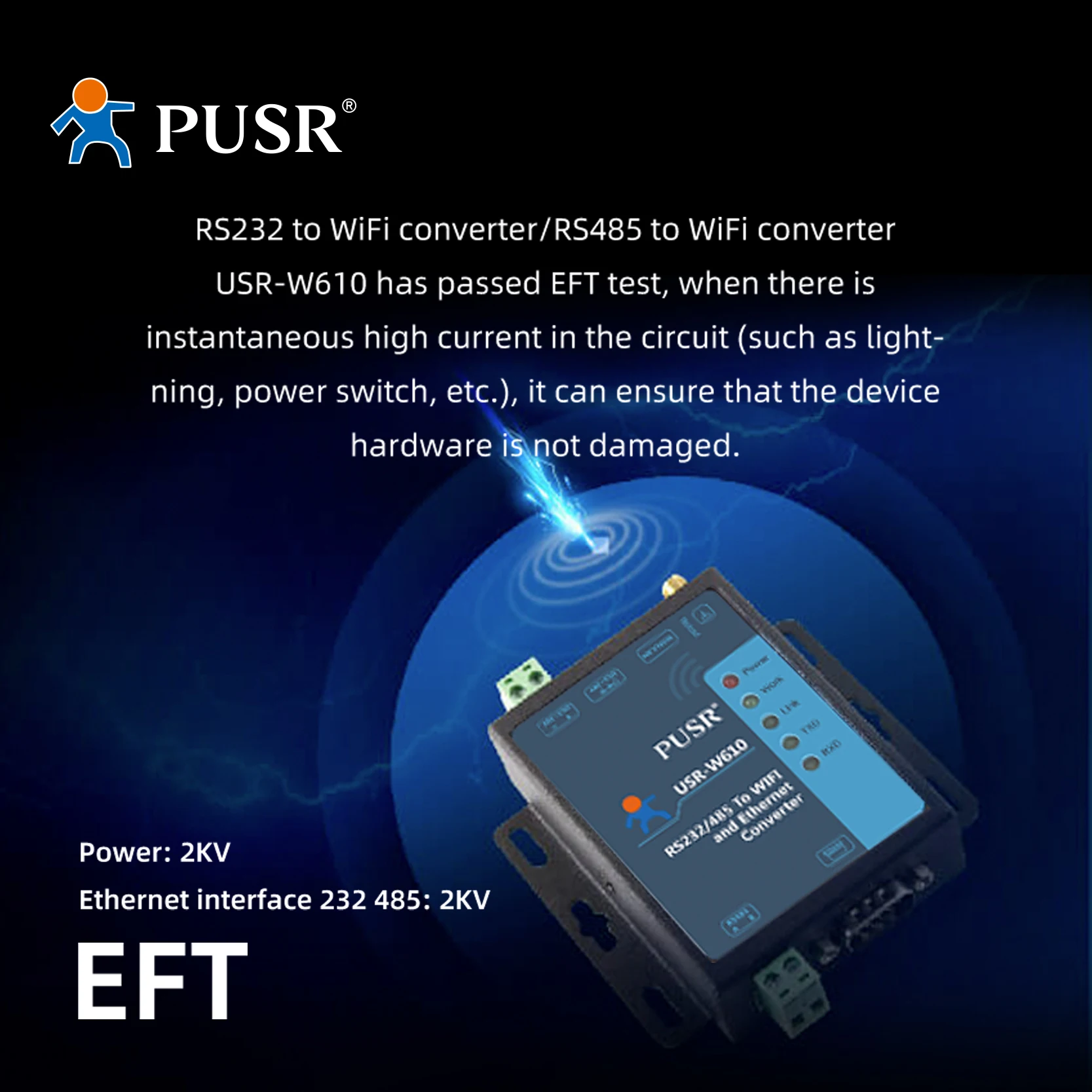

• EFT Protection: Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.

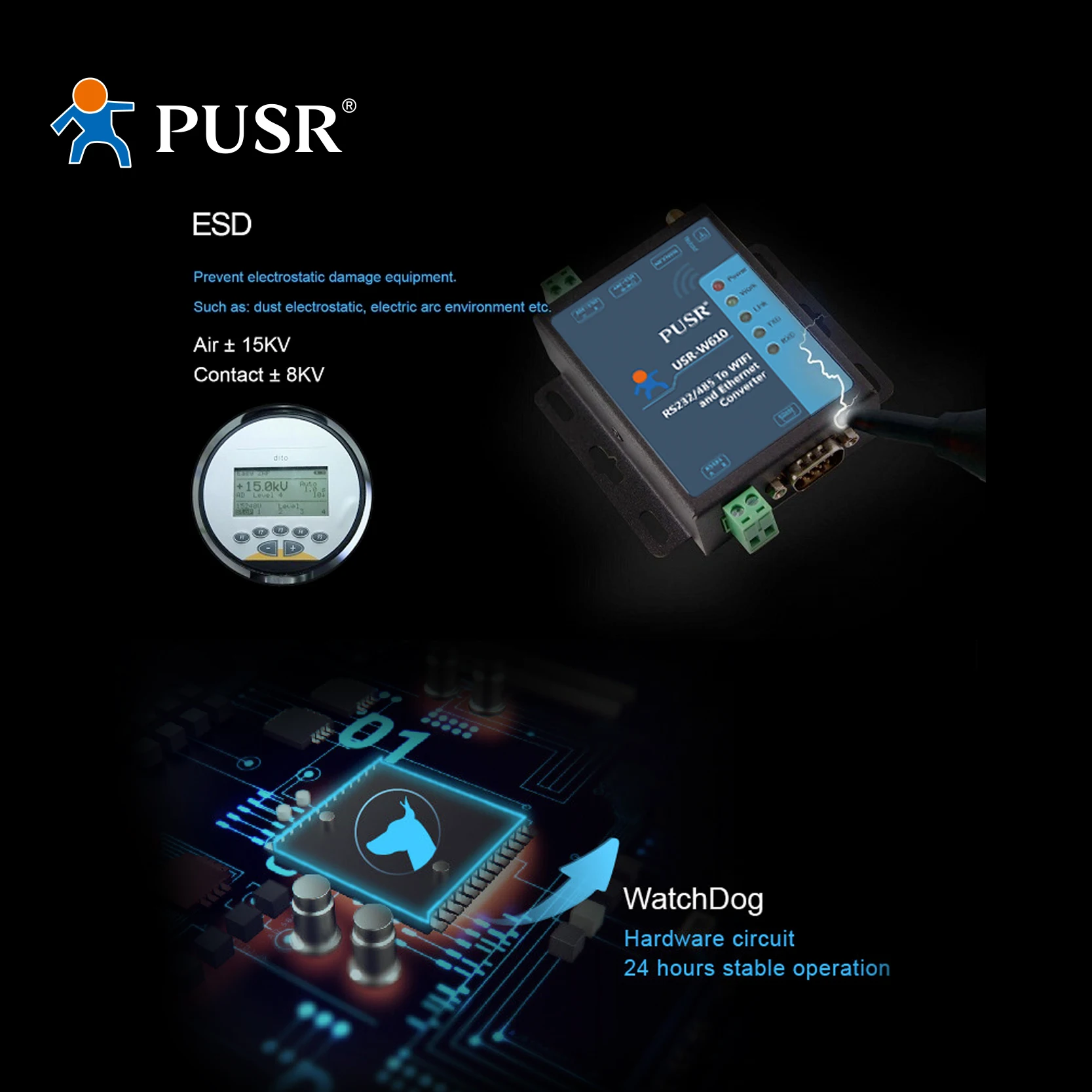

• ESD Protection: Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.
• Watchdog: Hardware & software dual watchdog to ensure stable operation without downtime.
• Wide Operation Temperature: -40℃~ 85℃

Product Details
• Dimension: 82.5*86*25 mm

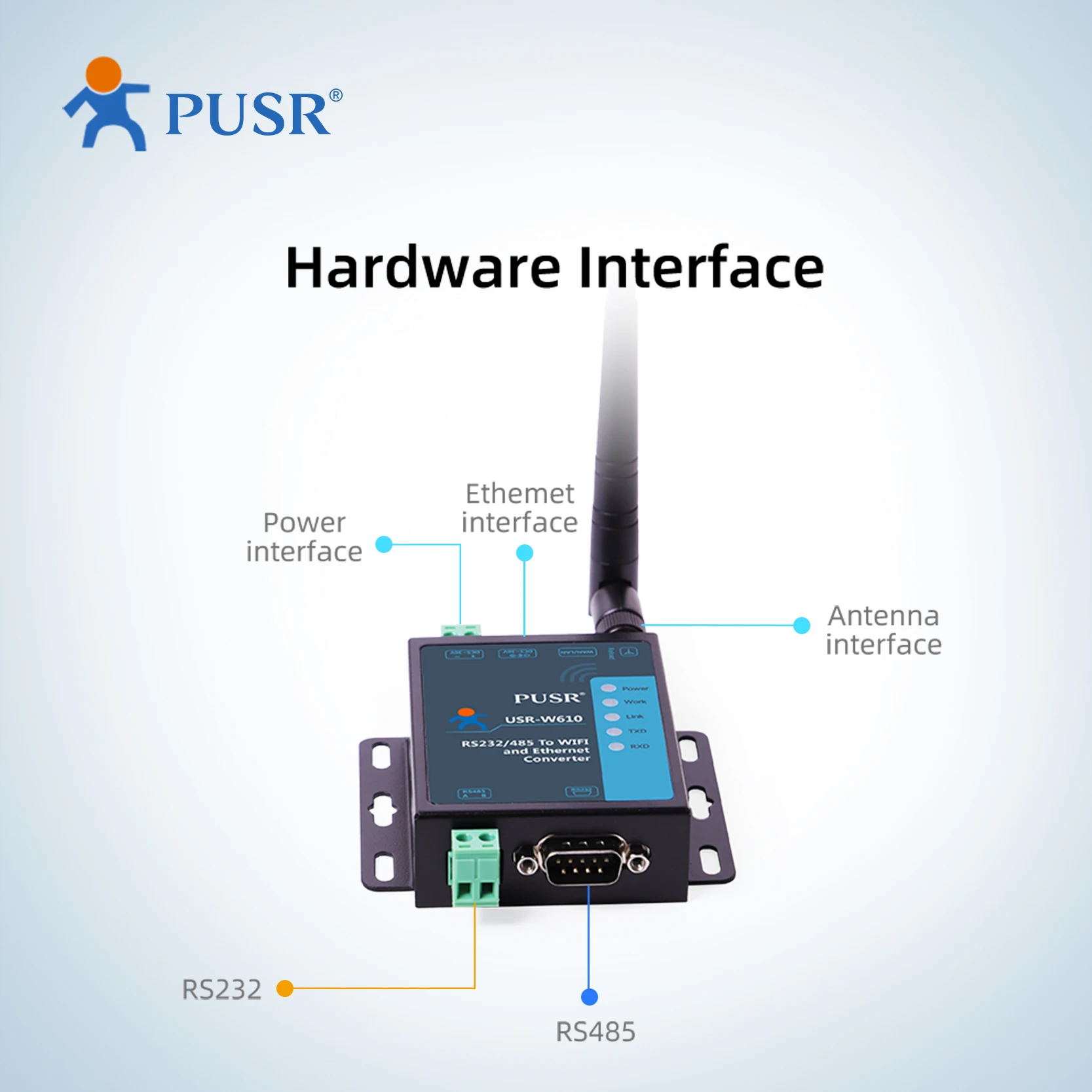

• Serial port: 1*RS232, 1*RS485. Baud rate range: 300~460.8K bps. The two serial port can't work simultaneously.
• Ethernet port: 10/100M MDI/MDIX, auto switch between cross and direct connection, 1.5KV electromagnetic isolation.
• Power Supply: 5~36V input, DC socket and terminal block
• Installation: Wall mounting
• Reload button: In the case of forgetting the parameters, long press to restore the factory settings.
• Antenna Connector: 1*SMA-Female

Packaging List

• 1*USR-W610
• 1*Power Supply (5V/1A )
• 1*Female to Female Serial Cable

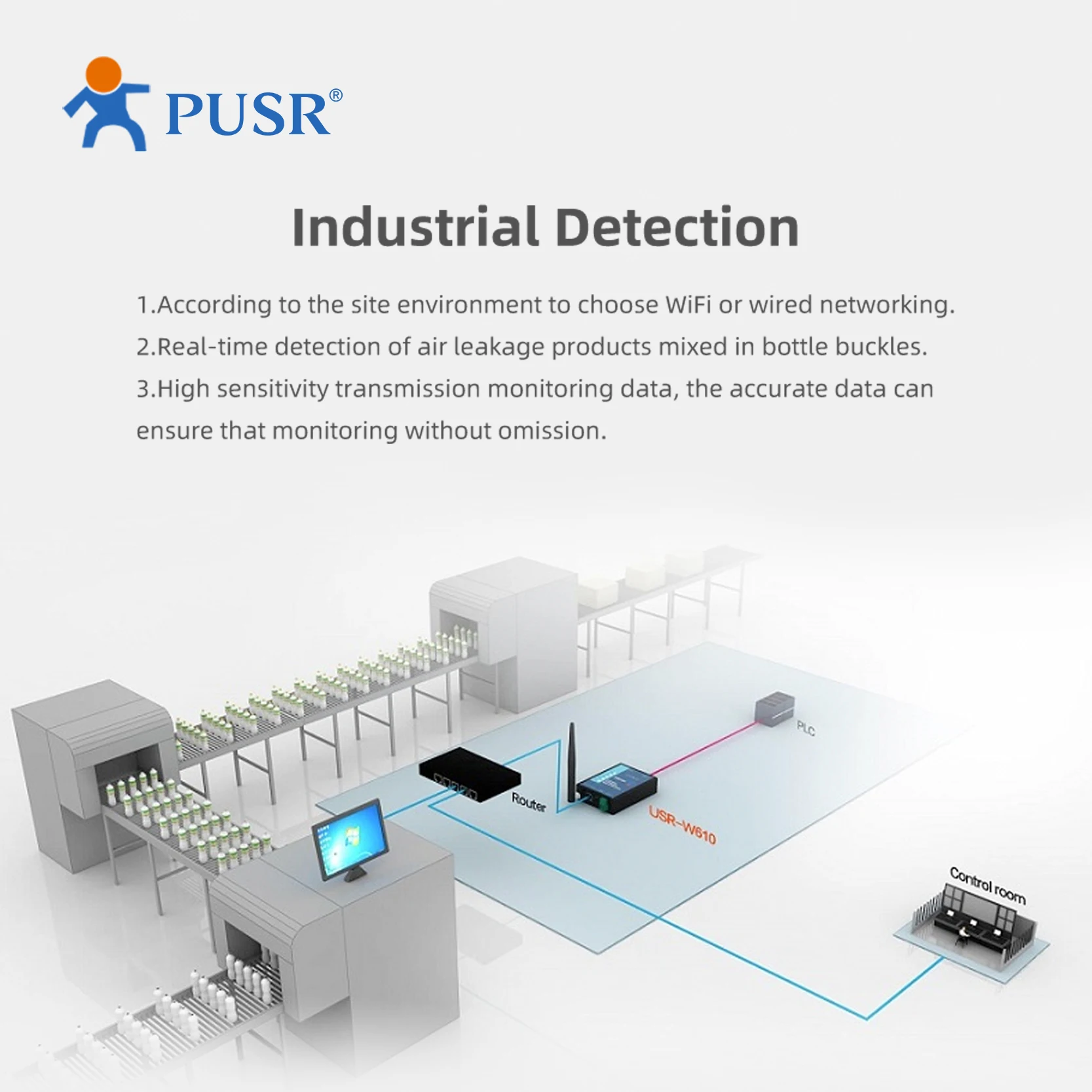

Smart Agriculture

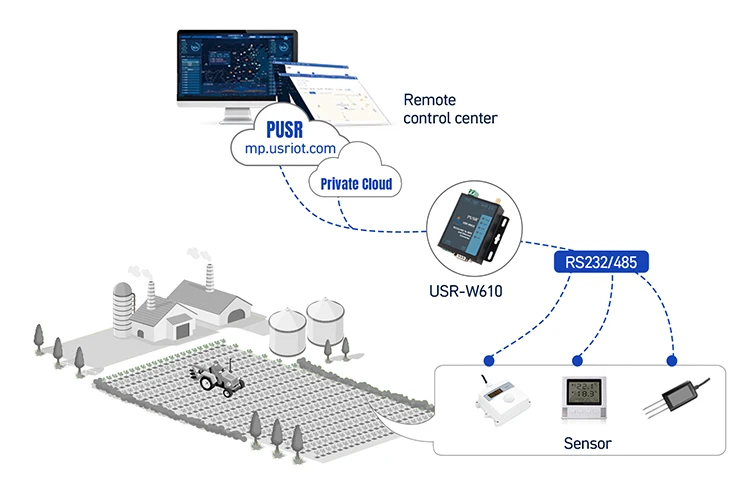

The USR-W610 combined with soil sensors can quickly and effectively acquire multiple sets of important data such as farmland soil temperature, humidity, pH, etc., which is convenient for users to adjust the management method in time, improve management efficiency, and create modern smart agriculture.

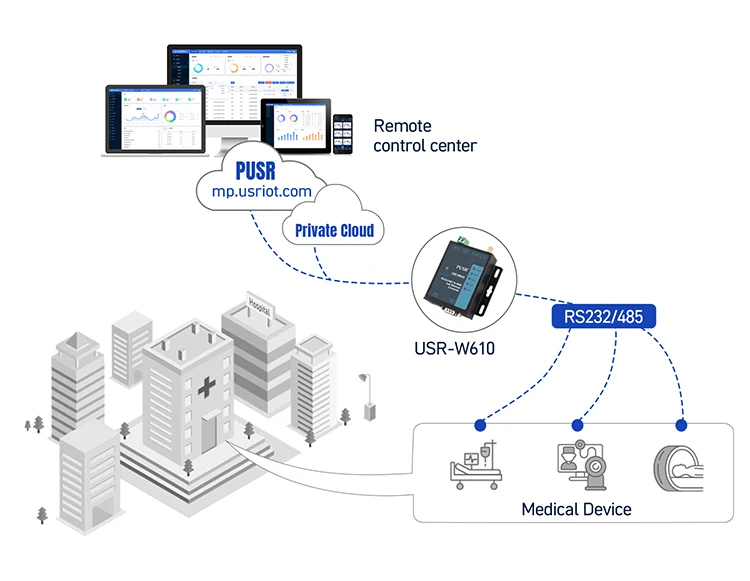

Medical Device Data Transmission Solution
The medical equipment transmits the entered data to the cloud server in real time through Wi-Fi network of W610.
Users can quickly complete the collection, storage and analysis of important data.
