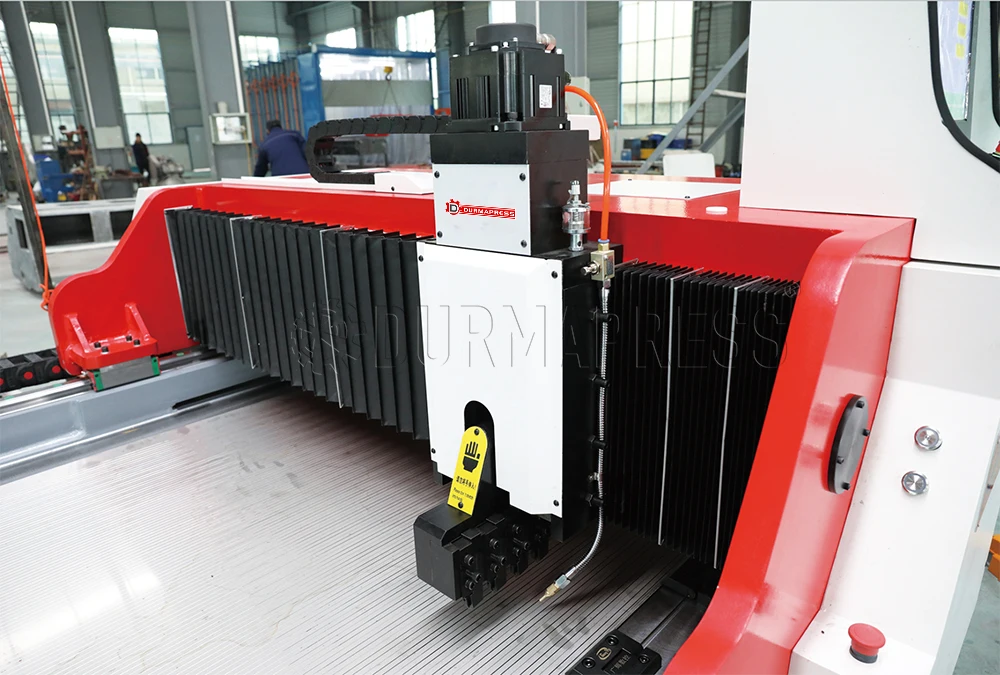

Chinese Supplier CNC Horizontal Gantry V Grooving Machine with Rigid Frame Design
- Category: >>>
- Supplier: Anhui Durmapress Cnc Machine Tool Manufacturing Co. Ltd.
Share on (1601040739221):
Product Overview
Description

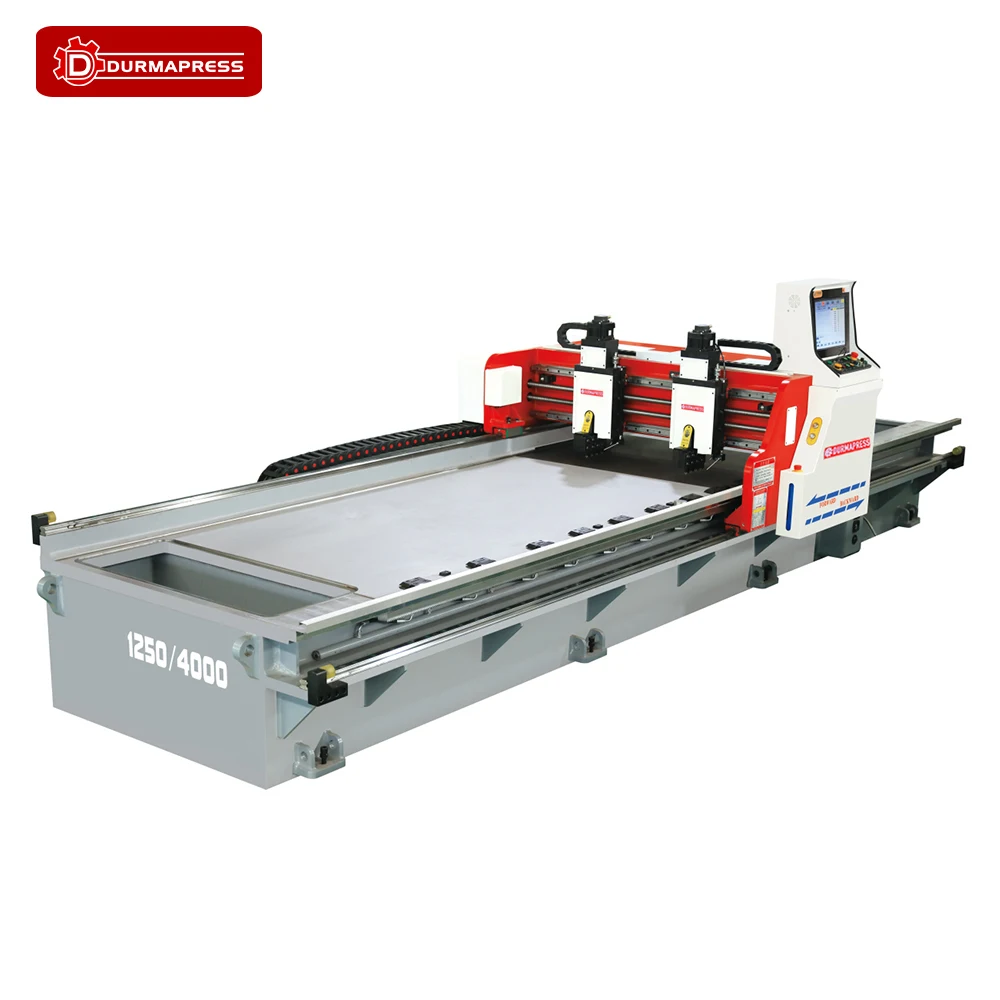

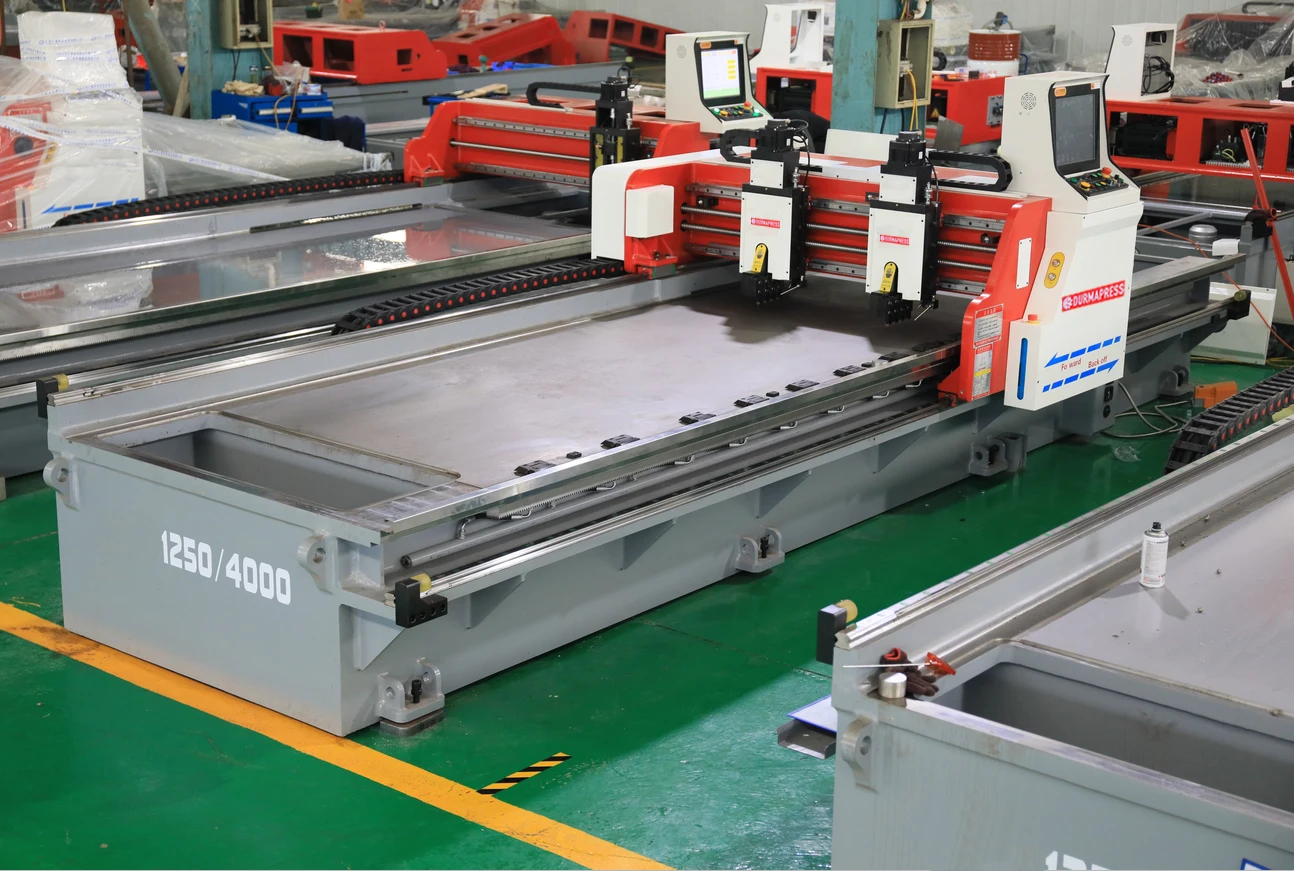

DURMAPRESS ® Horizontal CNC V Grooving Machine

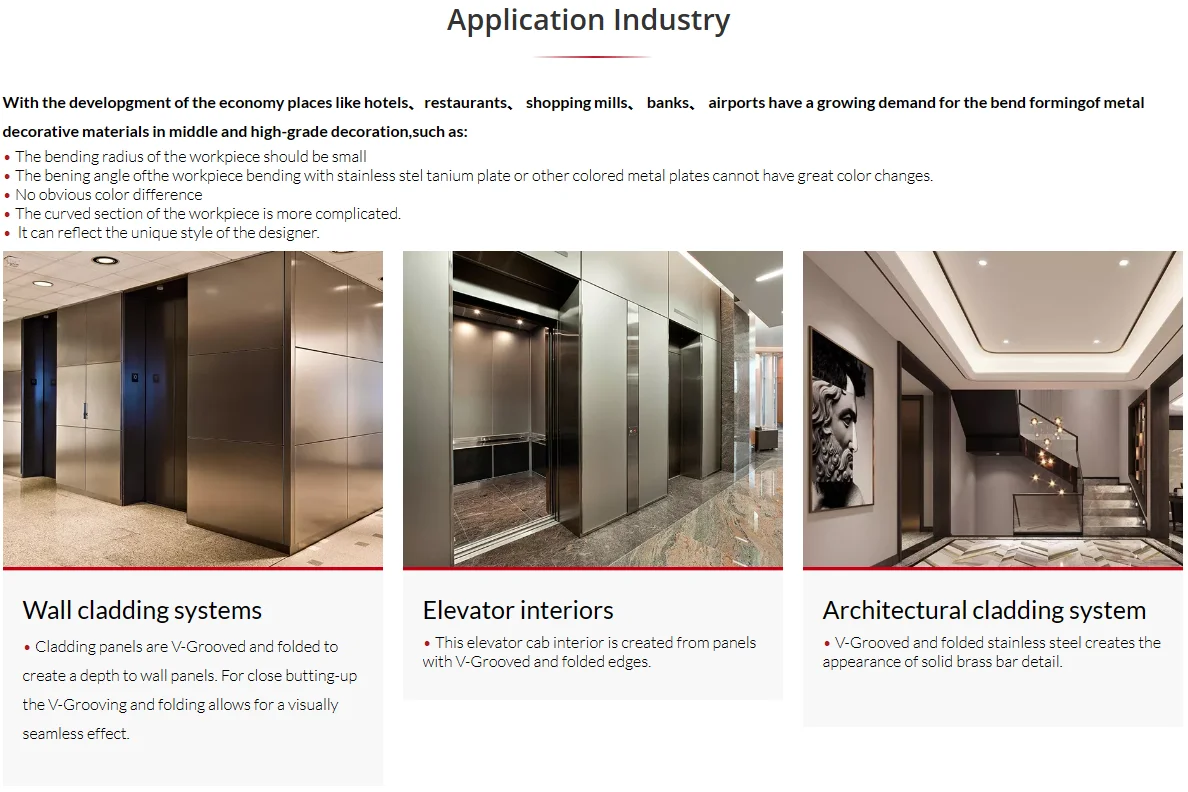

The DURMAPRESS® Horizontal V Groover machine is suitable for slotting large sheet metal. After longitudinally planning the slot the plate can not be clamped horizontally because of deformation. so,it can't be able to horizontal gouging.
The Horizontal V Groover machine's worktable is welded by a common iron plate.Stainless steel sheets are harder than they are. Long-term use can make the table potholes and make the table bumpy.That's the reason for the spots on the processed products.
The Horizontal V Groover machine's worktable is welded by a common iron plate.Stainless steel sheets are harder than they are. Long-term use can make the table potholes and make the table bumpy.That's the reason for the spots on the processed products.
Product details
The DURMAPRESS® V Groover cutting machine is composed of 3+1 axis CNC servo control hydraulic clamping system, electrical control system, and main steel frame.

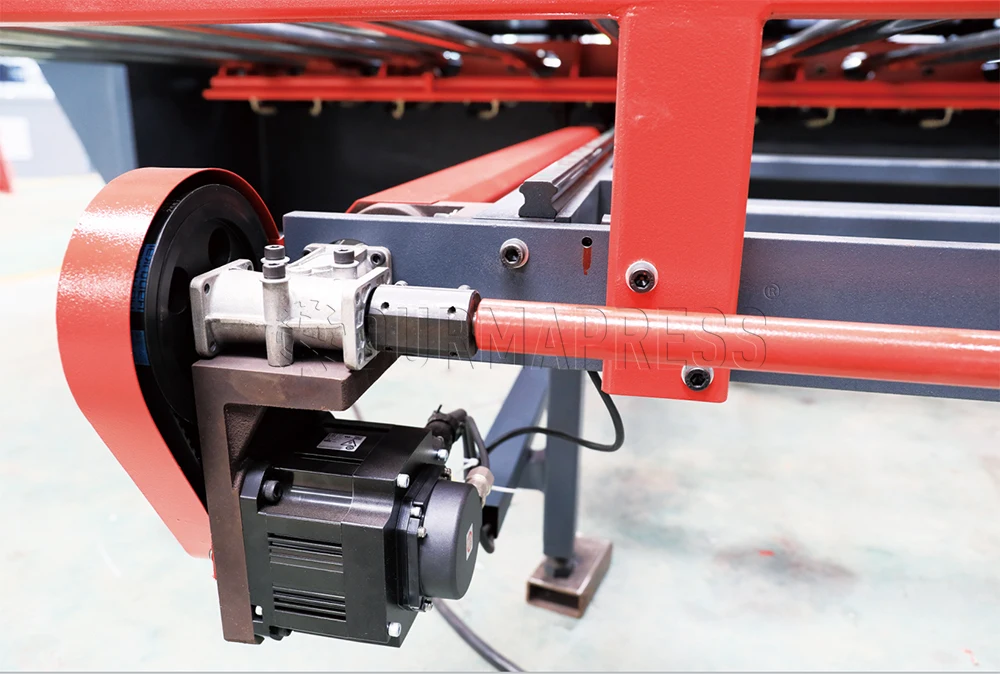

1. CNC servo drive system
The CNC V grooving machine is 4 axes control, the X-axis, Y1 axis, Y2 axis and Z-axis, with high positioning accuracy. All motors are controlled by servo motors.
* X-axis system
The X-axis system is composed of E21320 servo motor, timing belt, timing wheel, ball screw, linear guide rail, back gauge rack, clamping tools, etc parts. The motor drives the ball screw and back gauge rack to make a rectilinear motion on the guide rail, and provide the accurate positioning power for the back gauge mechanism.
* Y-axis system
The Y1, Y2 axis system of this equipment is composed of 1KW AC servo motor, timing belt timing wheel, ball screw, mobile clamp, and other parts. Its function is that the motor moves linearly on the linear guide by driving the ball screw with the power to achieve accurate positioning of the V-groove.
* Z-axis system
The Z-axis system is composed of C20604 servo motor, timing belt, timing wheel ball screw cutter holder and so on. Its function is to drive the ball screw and cutter seat makes rectilinear motion through timing belt and timing wheel and provides precise positioning power for the tool holder.
The CNC V grooving machine is 4 axes control, the X-axis, Y1 axis, Y2 axis and Z-axis, with high positioning accuracy. All motors are controlled by servo motors.
* X-axis system
The X-axis system is composed of E21320 servo motor, timing belt, timing wheel, ball screw, linear guide rail, back gauge rack, clamping tools, etc parts. The motor drives the ball screw and back gauge rack to make a rectilinear motion on the guide rail, and provide the accurate positioning power for the back gauge mechanism.
* Y-axis system
The Y1, Y2 axis system of this equipment is composed of 1KW AC servo motor, timing belt timing wheel, ball screw, mobile clamp, and other parts. Its function is that the motor moves linearly on the linear guide by driving the ball screw with the power to achieve accurate positioning of the V-groove.
* Z-axis system
The Z-axis system is composed of C20604 servo motor, timing belt, timing wheel ball screw cutter holder and so on. Its function is to drive the ball screw and cutter seat makes rectilinear motion through timing belt and timing wheel and provides precise positioning power for the tool holder.

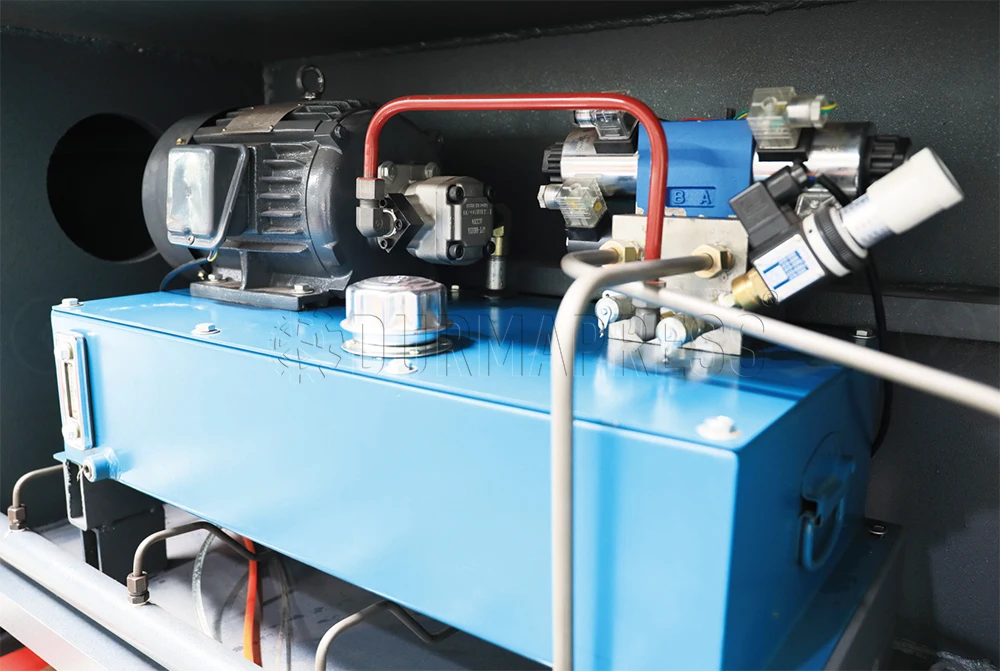

2.Hydraulic system
The hydraulic system is divided into two group, and the pneumatic system if art of the back gauge. Its function is to provide clamping force and tightly holding plate before grooving
3.Electrical control system
The electrical control system is composed of PLC actuator touch screen, an electric control element, an electrical cabinet etc. The electrical board is installed on the inside of the machine for easy maintenance and strong protection. Through the control of the system, all work of this equipment can be realized.
4. Main steel frame
DURMAPRESS® CNC V Grooving machine is compact in structure, reliable in performance, easy operation, no deformation forever. It is wholly welded by steel to eliminate internal stress by vibration aging so that our machine is better in strength, rigidity, and stability than the same products at home and abroad.
The hydraulic system is divided into two group, and the pneumatic system if art of the back gauge. Its function is to provide clamping force and tightly holding plate before grooving
3.Electrical control system
The electrical control system is composed of PLC actuator touch screen, an electric control element, an electrical cabinet etc. The electrical board is installed on the inside of the machine for easy maintenance and strong protection. Through the control of the system, all work of this equipment can be realized.
4. Main steel frame
DURMAPRESS® CNC V Grooving machine is compact in structure, reliable in performance, easy operation, no deformation forever. It is wholly welded by steel to eliminate internal stress by vibration aging so that our machine is better in strength, rigidity, and stability than the same products at home and abroad.
Details Images
The machine body is welded with all steel, after annealing and heat treatment, the internal stress is removed, and it has extremely high strength.

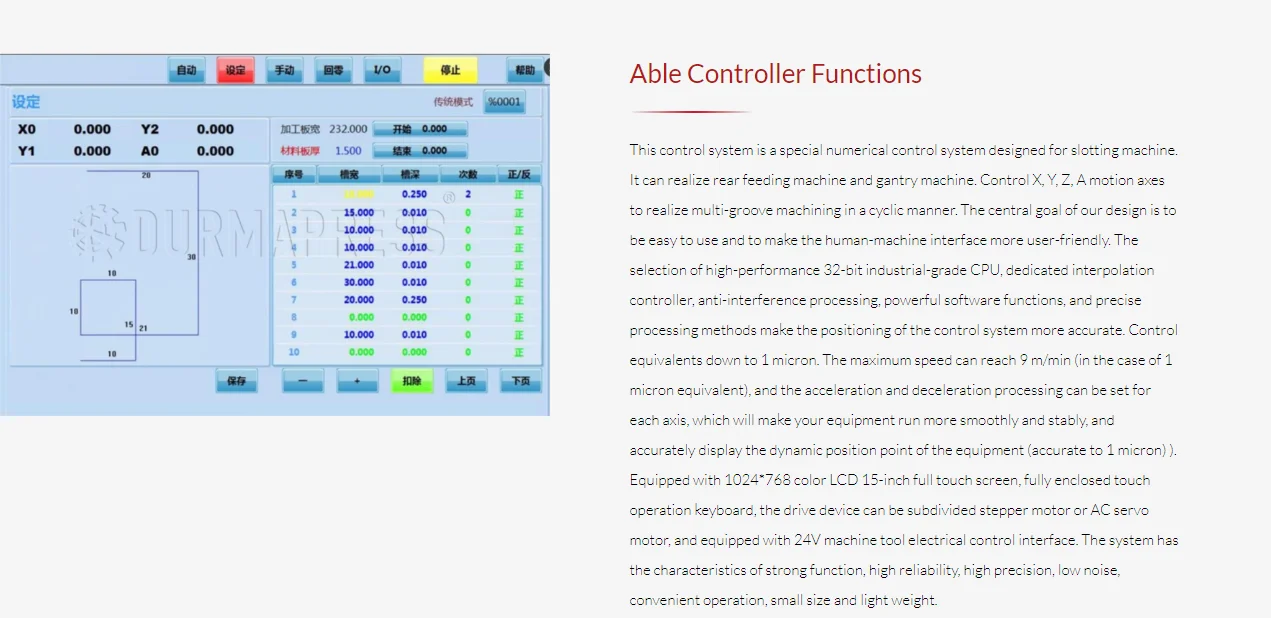

Abel's CNC system
Using Abel's CNC system, the technology is mature and the products are reliable.

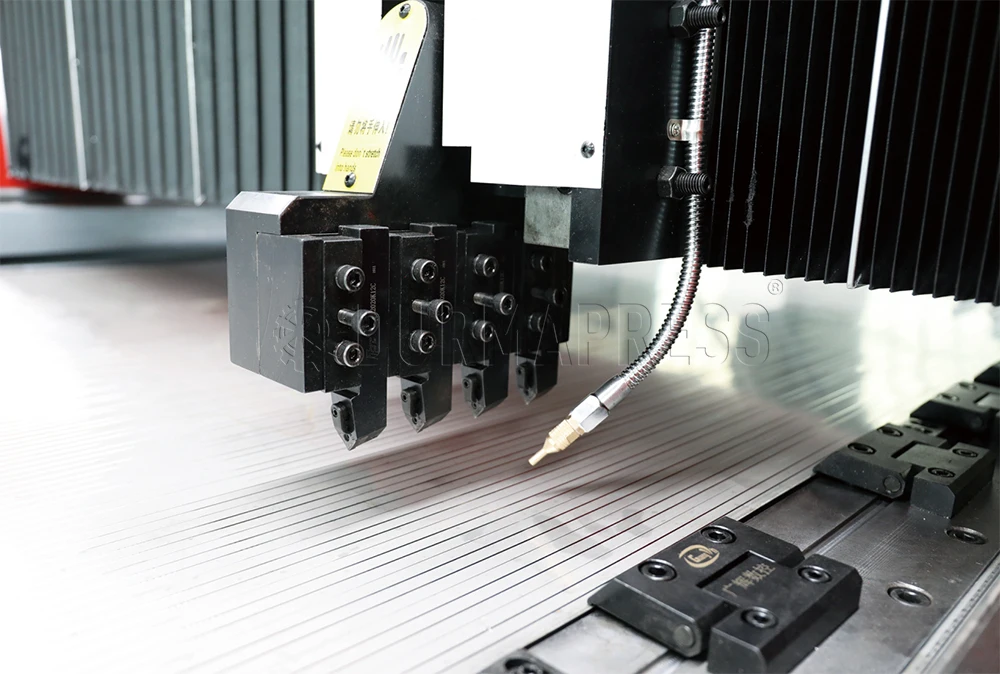

* Four blades improve through work.
* The quality and number of blades directly affect the machining efficiency and the speed of tool wear.
* Blades break smoothly, sturdy and durable,The blade has a R angle.Long use time.
* Blades break smoothly, sturdy and durable,The blade has a R angle.Long use time.

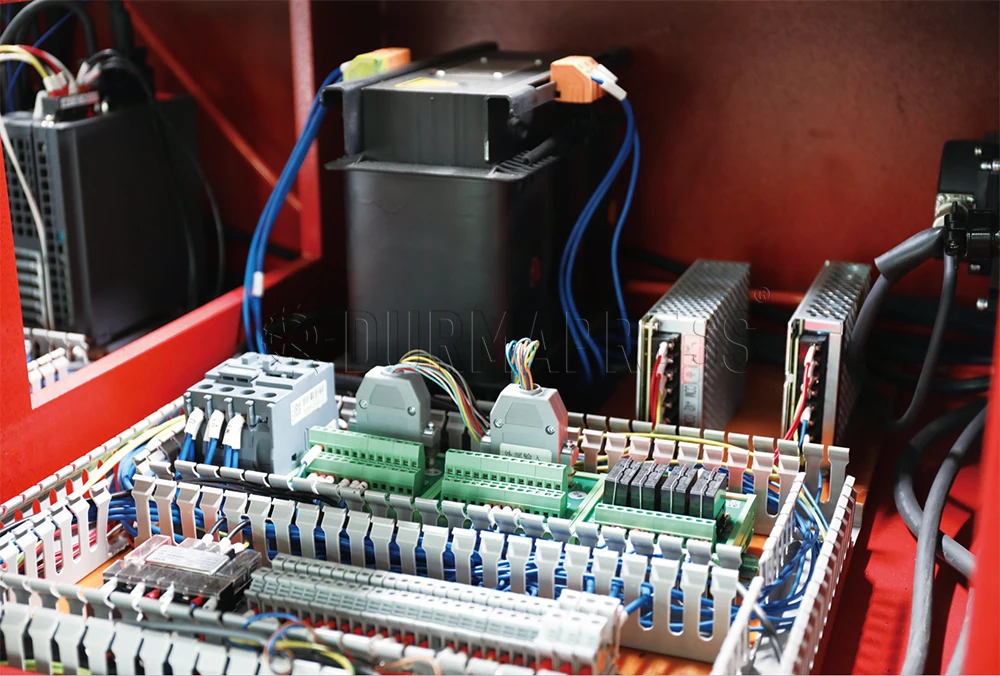

The electrical appliances all adopt the original products of French Schneider, one of the world's three largest electrical appliances manufacturers, to ensure the service life and stability of the circuit.

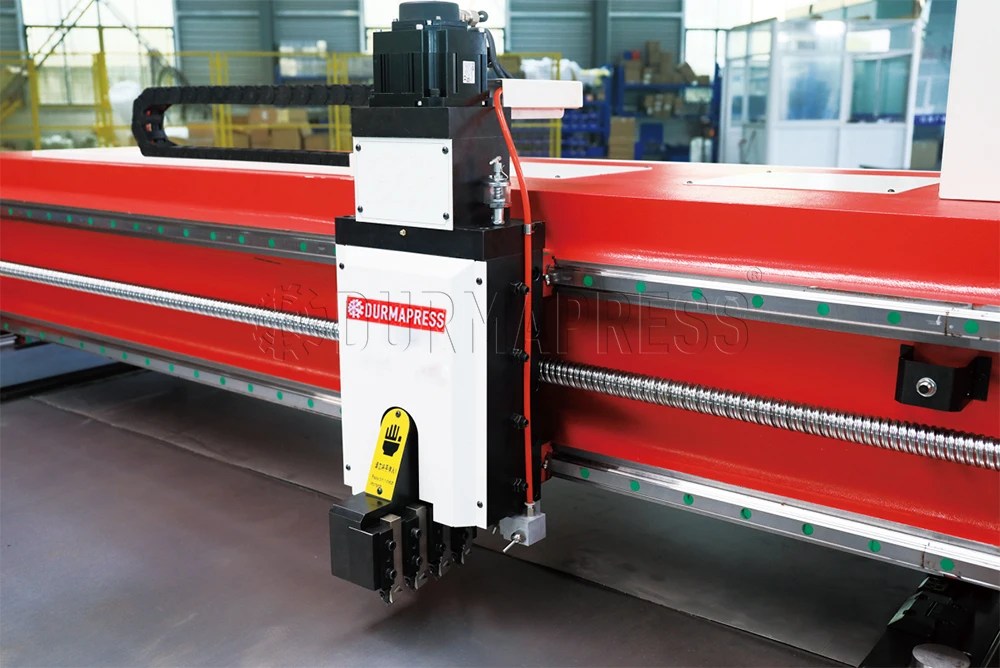

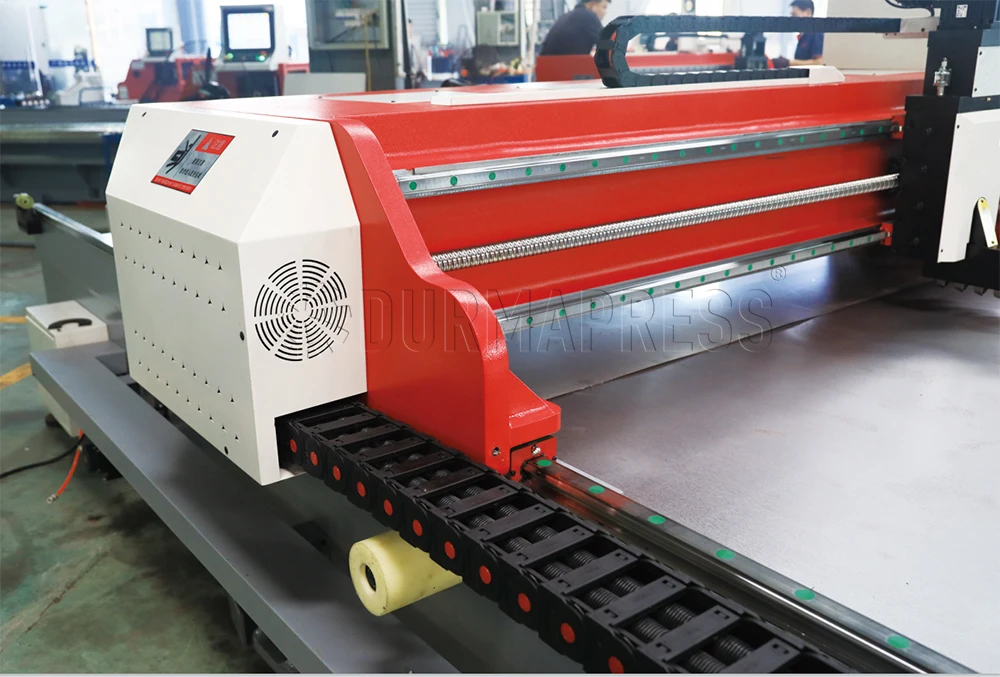

Knife Rest& Workbench
* The tool rest moving device adopts SFSR static ball screw and QR ball screw, with high precision.
* Surface wear can automatically repair the surface, improve the accuracy of the machine.
* Surface wear can automatically repair the surface, improve the accuracy of the machine.

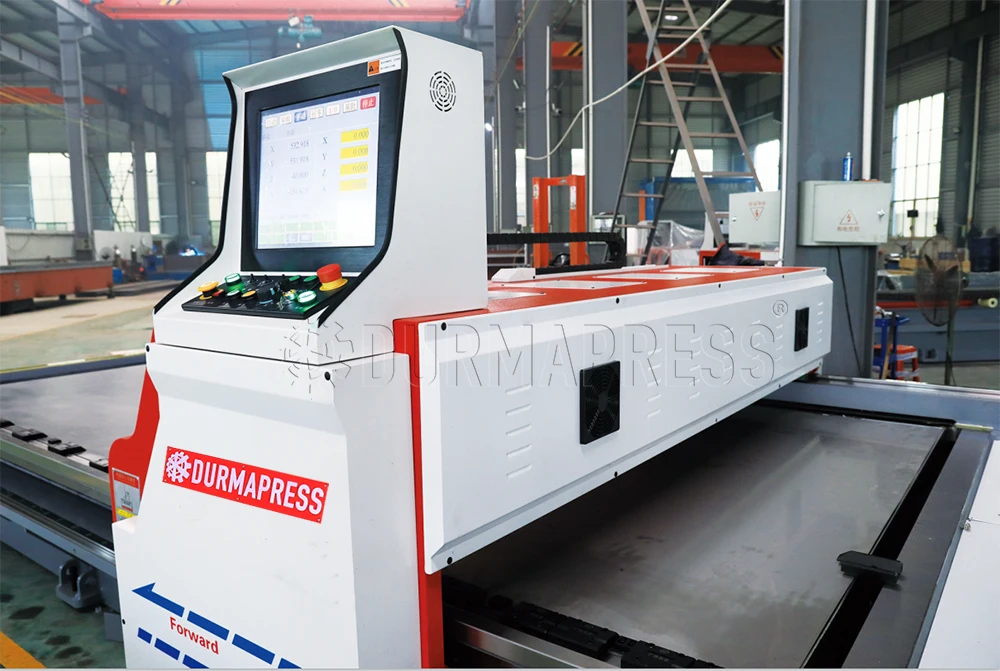

* 15-inch CNC touch control display
* Acceleration and deceleration
* Acceleration and deceleration
* Response time: 0.5US
* With a fallback function
* With a fallback function
* Avoid crashing
* PLC interrupt function: scan time is fixed to 10ms
* PLC interrupt function: scan time is fixed to 10ms
Sealing Ring :NOK Japan
Tube connector:EMB-Germany
Tube connector:EMB-Germany

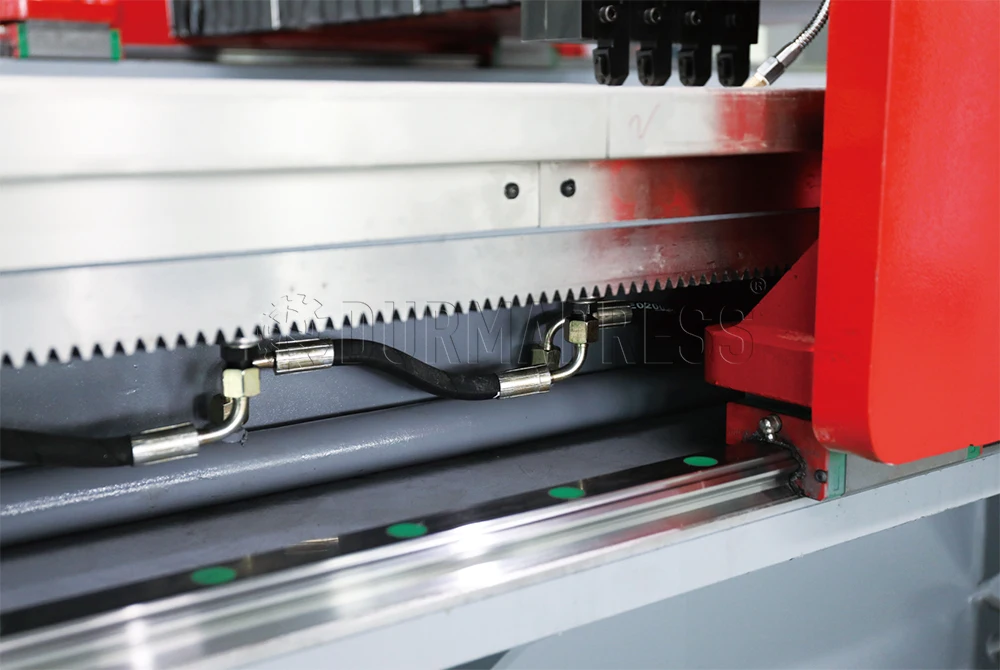

Taiwan HIWIN Linear Guide
The linear guide way of Taiwan ShangYin is used to improve the accuracy of the machine tool.
Taiwan HIWIN linear guides can provide error compensation during height installation, thus making the equipment more accurate.
Taiwan HIWIN linear guides can provide error compensation during height installation, thus making the equipment more accurate.
More Details
Model | DAS-1250*3000 | DAS-1500*4000 |
Material | Q345 | Q345 |
Length (mm) | 3000 | 4000 |
Width (mm) | 1250 | 1500 |
Planed sheet thickness(mm) | 0.3-4 | 0.3-6 |
Control Type | 4 Axis （X, Y1, Y2, Z) | 4 Axis （X, Y1, Y2, Z) |
CNC Display | 17 inch LCD touch screen | 17 inch LCD touch screen |
Y Precision (mm) | ±0.01 | ±0.01 |
Product packaging
Why Choose Us
Company Profile
Customers Feedback
FAQ
1. What are your main products?
Our company have been a professional manufacturer of hydraulic press brake machines for over 20 years in China. Our main products are CNC Press Brake, shearing machine, fiber laser cutting machine, plate rolling machine, combined punching and shearing machine, grooving machine and other high-end CNC Sheet metal processing equipment.
2. What are your advantages?
First, our equipment is stable in structure, more than ten years of use. The structure is not easily defrome. Second,
the main configuration of the equipment all adopt European imported brands.It not only ensure the stability of use, but also easy to maintenance. If the machine is artificially damaged, the replacements are available all around the world. Meanwhile, we are the factory outlet, more advantages in terms of price, eliminating the middleman.
the main configuration of the equipment all adopt European imported brands.It not only ensure the stability of use, but also easy to maintenance. If the machine is artificially damaged, the replacements are available all around the world. Meanwhile, we are the factory outlet, more advantages in terms of price, eliminating the middleman.
3.How about your after-sales service?
Our after-sales service is divided into two kinds, online service and On-site commissioning and installation service. After the transaction, we will build a customer's exclusive after-sales group, technical and engineers will solve the technical problems encountered by customers at any time in the group, and provide video teaching step by step. We also provide on-site commissioning and installation services, customers only need to pay for air tickets, food, accommodation, no matter where you are, we will provide you with the best after-sales service.
4. How long is the warranty period?
Machine bed warranty 5 years no deformation, motor, system and other major components warranty for one year, broken free replacement, including freight.
