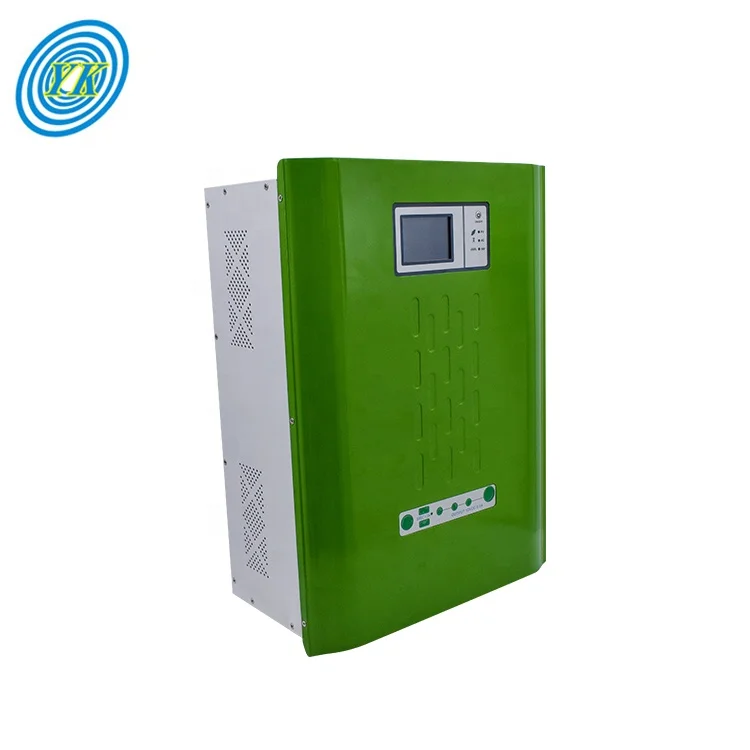

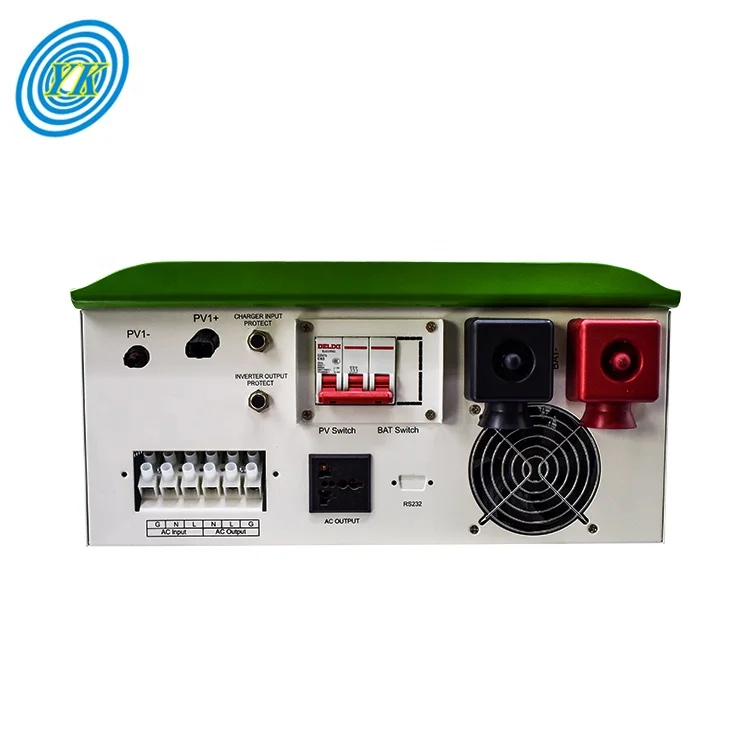

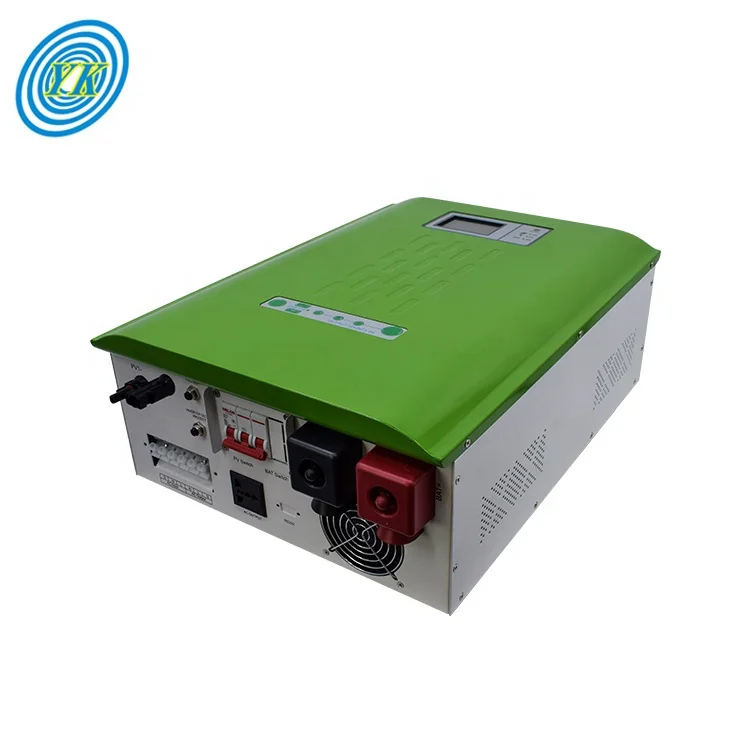

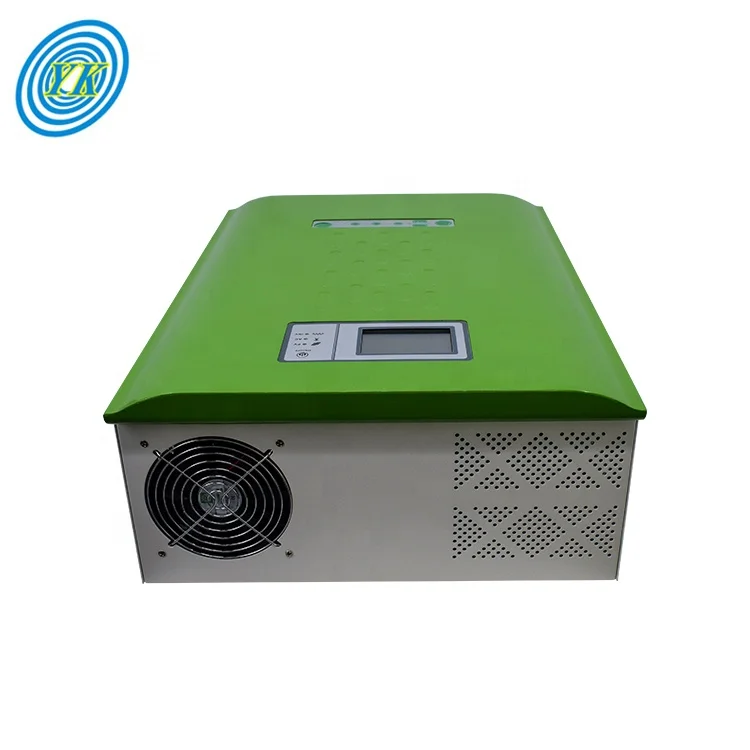

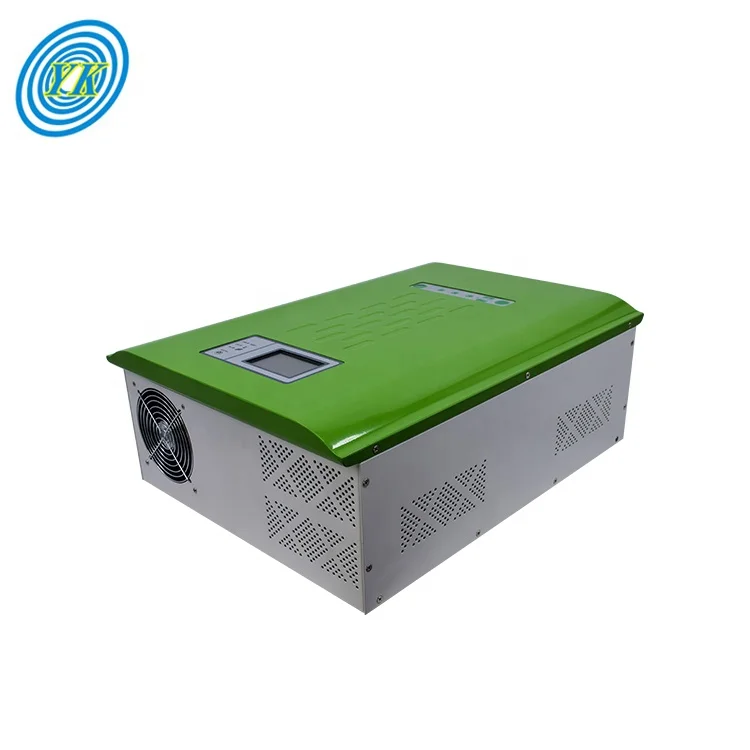

48v 50a 4000 watt hybrid inverter mppt with solar charge controller
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1601040783579):
Product Overview
Description
Product Features
Advantages:
1.Touch screen display
2.Various protection functions
3.Automatic switch working modes
4.Ring transformer based with low consumption
5.Low frequency, pure sine wave output, hybrid off grid.
6.Options: Built in SPD , WIFI module remote control and monitoring
7.Faster installation and commissioning with a simple user interface
8.LVD , HVD , charging voltage and turn off voltage settable
9.Built-in MPPT solar charger
1.Touch screen display
2.Various protection functions
3.Automatic switch working modes
4.Ring transformer based with low consumption
5.Low frequency, pure sine wave output, hybrid off grid.
6.Options: Built in SPD , WIFI module remote control and monitoring
7.Faster installation and commissioning with a simple user interface
8.LVD , HVD , charging voltage and turn off voltage settable
9.Built-in MPPT solar charger
Product Parameters
Model | YK-IM1000 | YK-IM1500 | YK-IM2000 | YK-IM3000 | YK-IM4000 | YK-IM5000 | YK-IM6000 | |||||||
Charging Current | Max 30A | |||||||||||||
Switching Time | < 10ms | |||||||||||||
Overload | 110~120%/30s;>160%/3s | |||||||||||||
Protection | Battery overvoltage and low voltage protection, overload protection short circuit protection, over temperature protection | |||||||||||||
Operating Temperature | 0~40℃ | |||||||||||||
Controller MPPT | ||||||||||||||
Rated Current | 30A | 50A | 100A | |||||||||||
DC Voltage | 24V | 48V | 24V | 48V | 48V | |||||||||
Max PV power | 750W | 1500W | 1500W | 3000W | 6000W | |||||||||
Max Voltage | 150V | |||||||||||||
