Drip Online Lateral Pipe Extrusion Line/Drip Online Lateral Pipe Manufacturing Line
- Category: >>>
- Supplier: Yuyao Guotai Rubber & Plastic Machinery Co. Ltd.
Share on (1601040791019):
Product Overview
Description
PVC/PE/LDPE/HDPE pipe machine
plastic pipe making machine:
Pipe manufacturing Machine GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
1)PVC pipe machine used to produce upvc /cpvc water pipe
2)High technology and long year experience
PVC pipe machine
designed for producing PVC pipe
It mainly includes
1)single screw extruder,
2)pipe extrusion die,
3)vacuum calibrating water tank,
4)spray cooling water tank,
5)hauling unit,
6)cutting unit
7)stack unit.
model | PE,PP ,PVC 63 | PE,PP,PVC110 | ||||
pipe range(mm) | 20-63 | 63-110 | ||||
capacity(kg/h) | 100 | 150-200 | ||||
center height(mm) | 1000 | 1000 | ||||
single screw extruder | extruder model | SJ65 | SJ90 | |||
screw diameter(mm) | 65 | 90 | ||||
L/D | 28:1 | 33:1 | ||||
Screw rotation speed(rmp) | 80 | 100 | ||||
motor power(kw) | 22 | 55 | ||||
heating power(kw) | 16 | 36 | ||||
coolin blower power(kw) | 0.75 | 0.75 | ||||

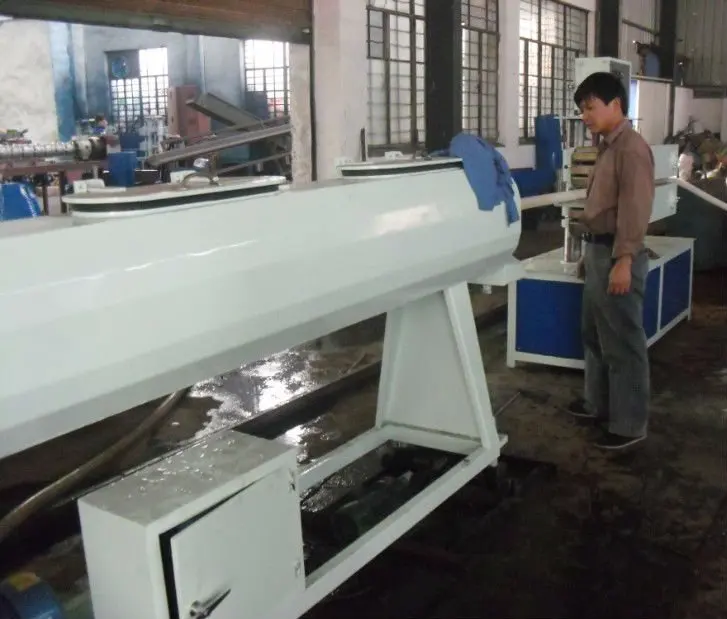

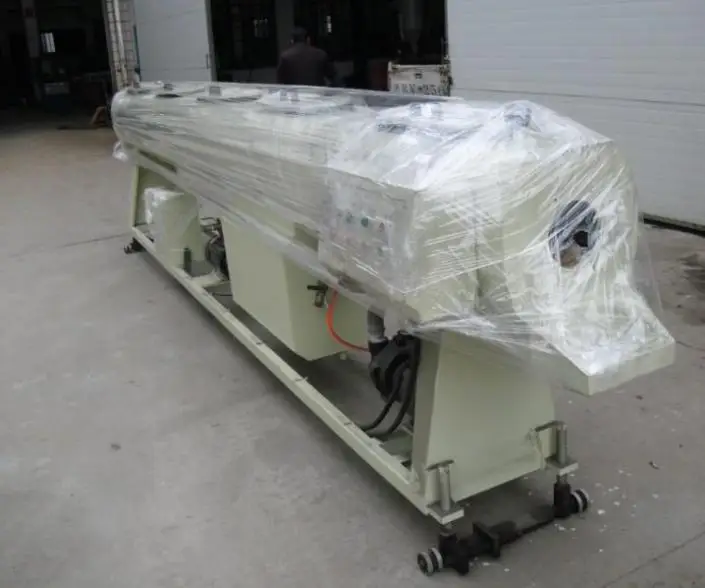

vacuum calibration tank | length of calibration case(mm) | 6000 | 6000*2 | |||
vacuum degree(mpa) | 0-0.1 | 0-0.1 | ||||
absorbing gas speed(m3/h) | 60 | 60*2 | ||||
water pump power(kw) | 4 | 4 | ||||
longitudinal moving motor power(kw) | 1.1 | 1.1 | ||||
Spray cooling tank | length of spraying tank(mm) | 4000-6000 | 6000-8000 | |||
water pump power(kw) | 4 | 5.5*2 | ||||

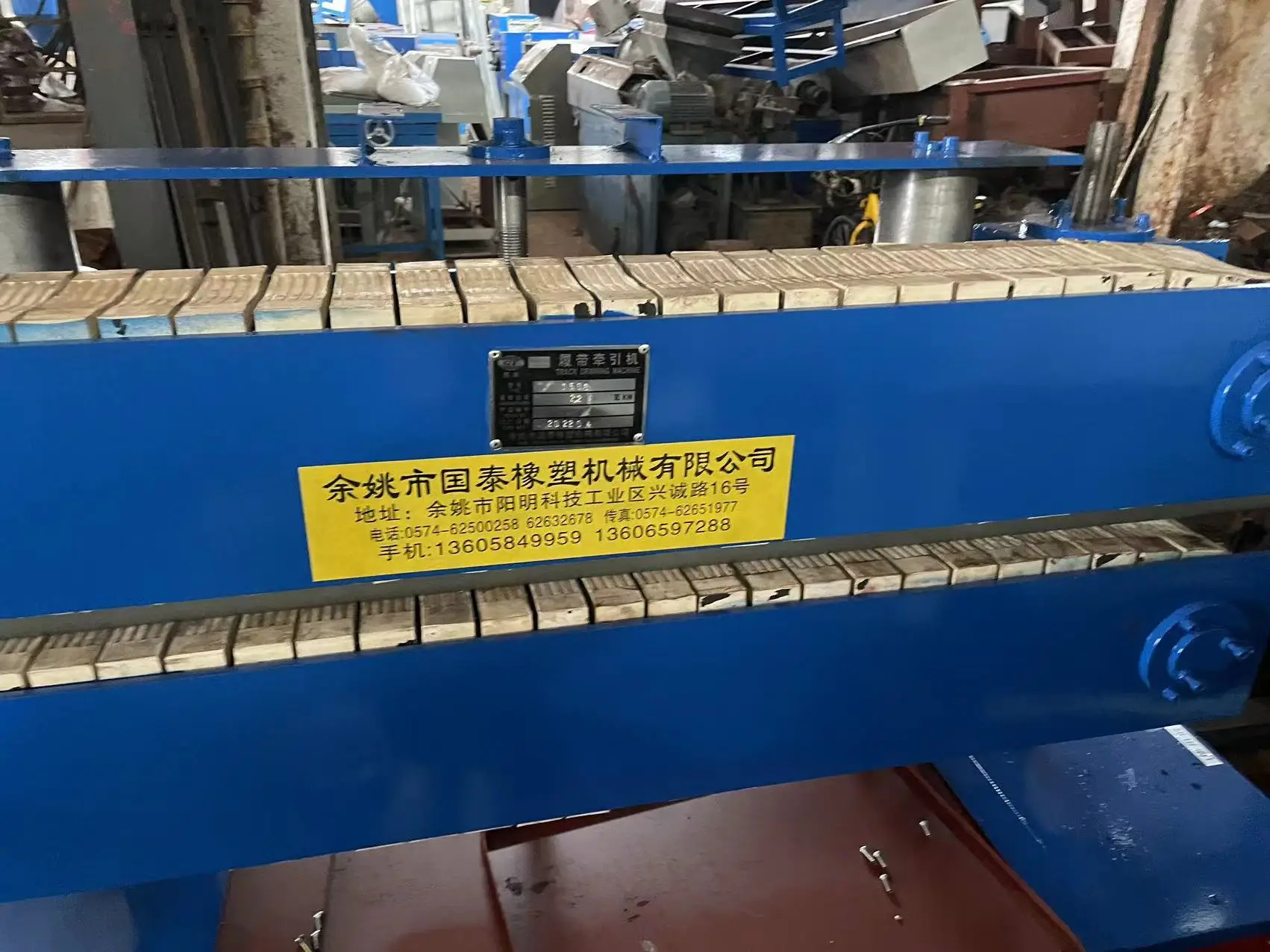

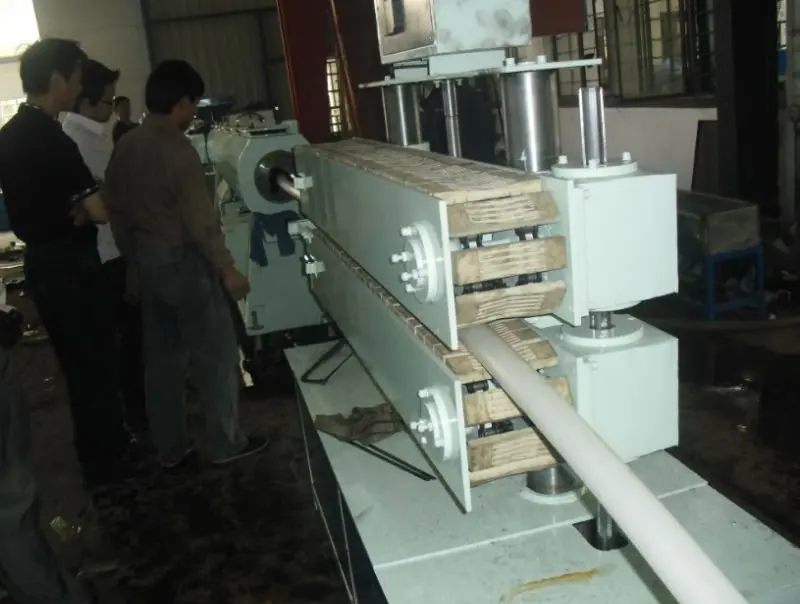

haul off machine | driving power(kw) | 1.5 | 2.2 | |||
max pull(N) | 7000 | 8000 | ||||
effctive haul off length(mm) | 1200 | 1500 | ||||

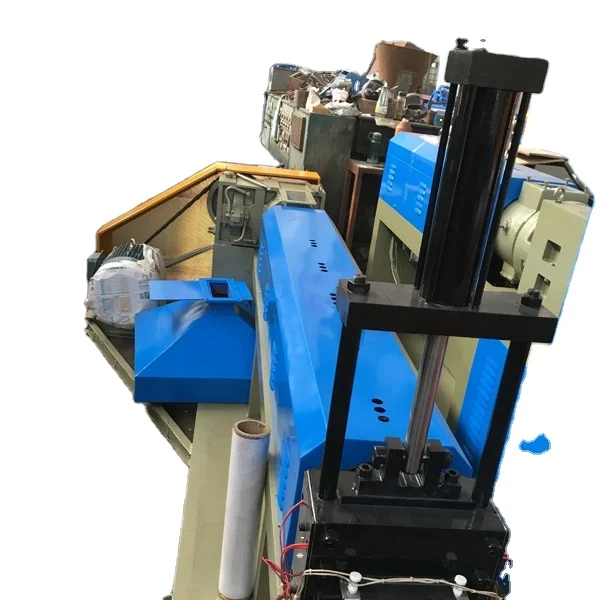

Pneumatic blade type cutter | blade diameter(mm) | 300 | 350 | |||
driving power(kw) | 1.1 | 1.1 | ||||
working air pressure(mpa) | 0.7-0.7 | 0.7-0.7 | ||||
stacker | length(mm) | 6000 | 6000 | |||
|
|
|
| |||
