xxnx circular vibration screen grading vibrating sieve chemical powder separator vibrating sifter vibro classifier machine
- Category: >>>
- Supplier: Xinxiang Weiliang Sieving Machinery Co. Ltd.
Share on (1601040793065):
Product Overview
Description
Product Description

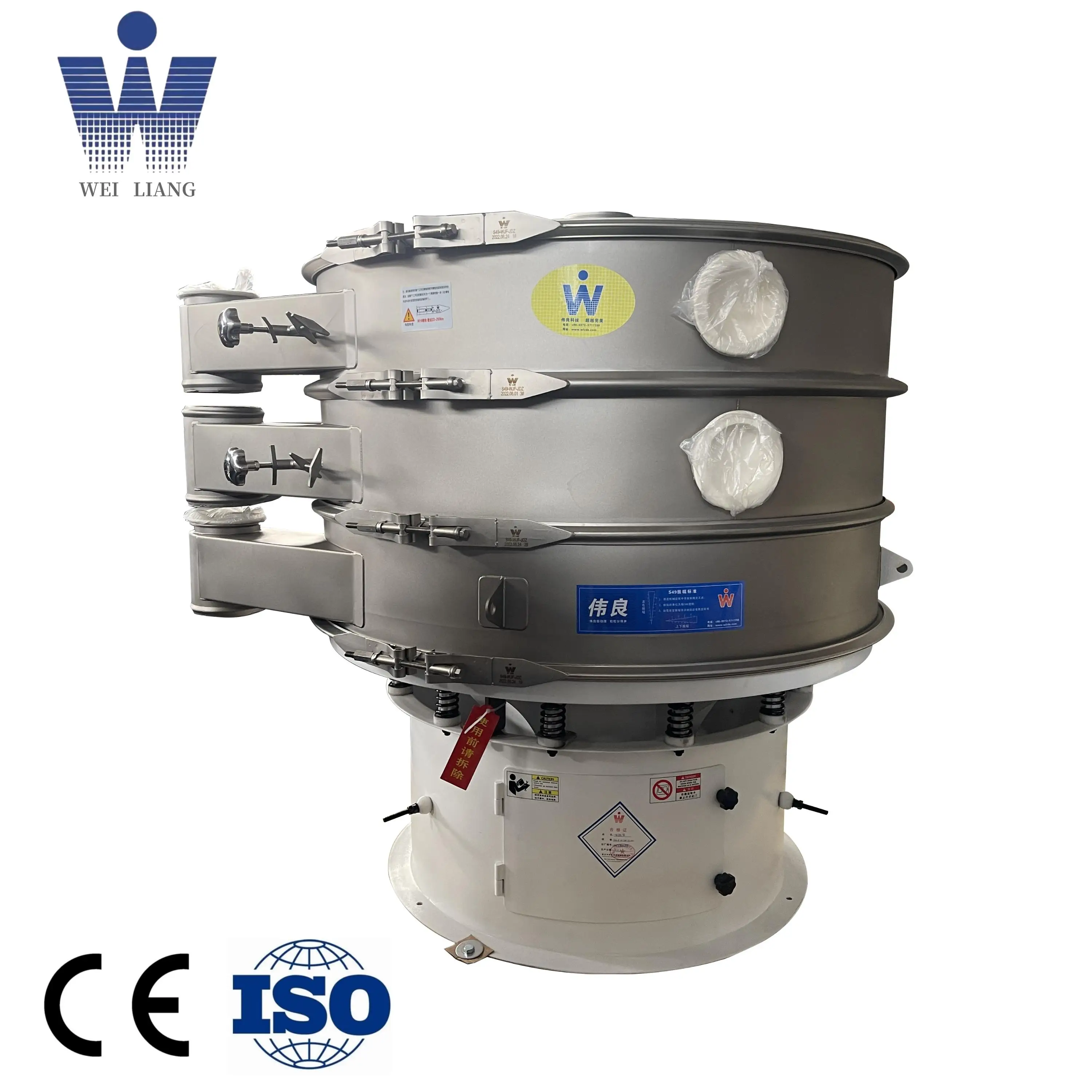

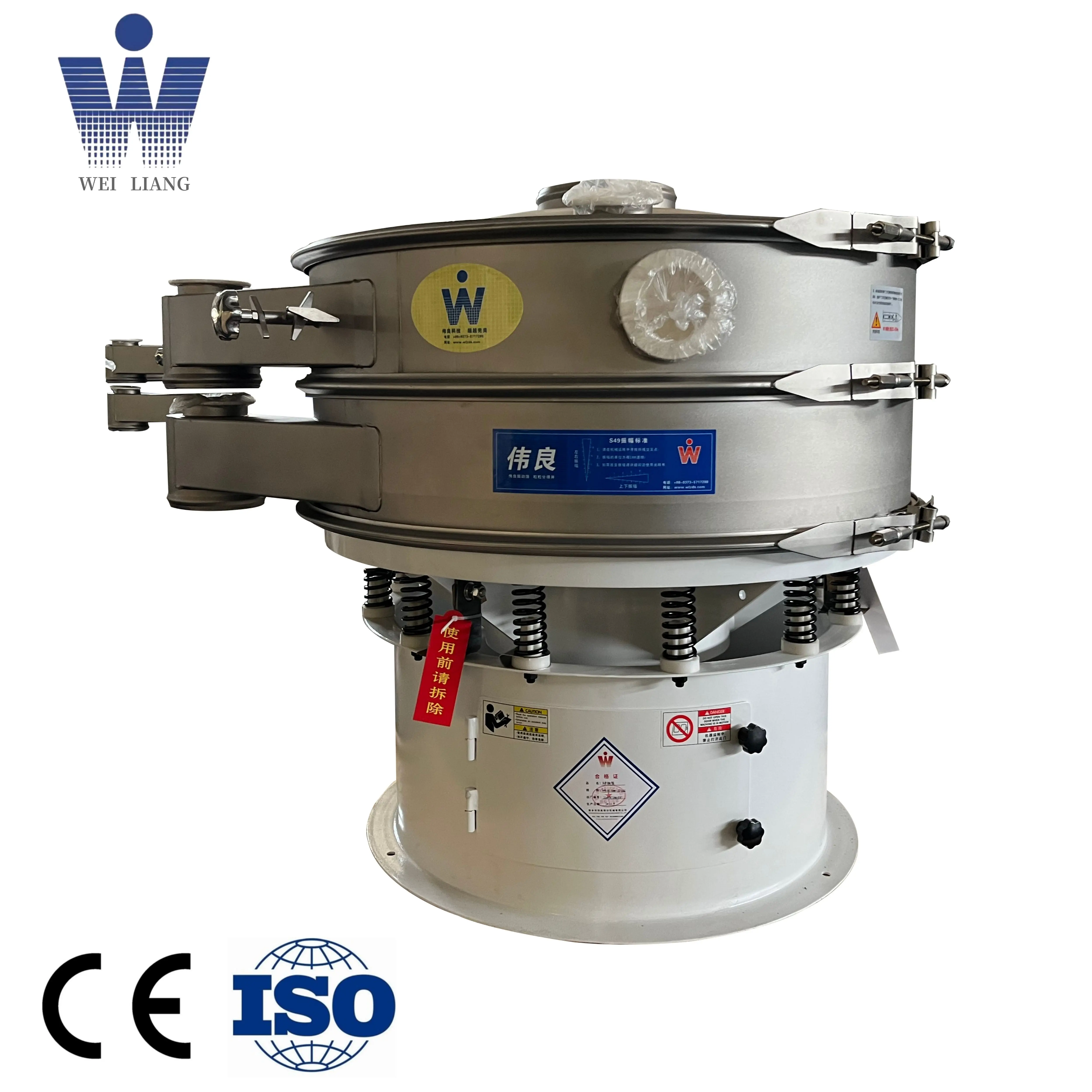

WEILIANG S49 Vibrating Screen
The Weiliang S49 vibrating screen is suitable for economical processing and wet screening of almost all bulk materials in the fine, medium and coarse grain range, which widely used in the pharmaceutical, food, fine chemical, mining and recycling industries. The machine is driven by a vibrating motor, which produces horizontal and circular wobbling motion, so that the material moves spirally from the center to the outer peripheral.
Solid-liquid separation
To recover usable solids or clarified liquids.
Classification
To separate into comparable size.
Up to six fractions simultaneously.
Impurity removal/ scalping
To remove a small percentage of undesirable oversized particles in a high-throughput process.
Details Images
Disc Intelligent Adjustment Device
No-tools intelligence adjustment device for quick adjusting the excitation force: top force wheel for the horizontal excitation force and bottom force wheel for vertical excitation force.
Cleaning Methods
Technical Parameters
Model | S49-800 | S49-1000 | S49-1200 | S49-1500 | |||
Diameter(mm) | Ø730 | Ø900 | Ø1100 | Ø1400 | |||
Mesh area(sq.m) | 0.4 | 0.6 | 0.9 | 1.5 | |||
Power(kw) | 0.75 | 0.75 | 2.2 | 2.2 | |||
Layer(s) | 1-4 | ||||||
Mesh | 2-500 mesh | ||||||
Applications
* Pharmaceuticals (Chinese medicine powder, western medicine powder, etc.)
* Food (sugar, salt, rice flour, milk powder, soy milk, soy sauce, juice, etc.)
* Chemical (resin, paint, cosmetics, paint, etc.)
* Recycling (waste oil, waste water, activated carbon, additives, etc.)
* Metals & Metallurgy (aluminum powder, lead powder, copper powder, alloy powder, electromagnetic materials, refractory materials, etc.)
* Food (sugar, salt, rice flour, milk powder, soy milk, soy sauce, juice, etc.)
* Chemical (resin, paint, cosmetics, paint, etc.)
* Recycling (waste oil, waste water, activated carbon, additives, etc.)
* Metals & Metallurgy (aluminum powder, lead powder, copper powder, alloy powder, electromagnetic materials, refractory materials, etc.)
Packing & Delivery
Inner packaging: Stretch film for machine
Outer packaging: Standard export wooden box
Company Profile
Weiliang Sieving Machinery Co., Ltd founded in 2006, is a leading manufacturer of vibrating separation equipment, specialized in fine screening, with two branches. Our leading products include vibrating screen, ultrasonic vibrating screen,
tumbler screen, gyratory screen, centrifugal screen, linear vibrating screen, dryer machine, white water filter and so on, widely used in food, medicine, chemical, metallurgy, lithium, mining, sand and gravel industries, exported to more than 50 countries and regions.
tumbler screen, gyratory screen, centrifugal screen, linear vibrating screen, dryer machine, white water filter and so on, widely used in food, medicine, chemical, metallurgy, lithium, mining, sand and gravel industries, exported to more than 50 countries and regions.
WEILIANG is first company to produce tumbler screen and gyratory sifter in china. We always adhere to the strategy of scientific and technological development, and have more than 80 invention patents.

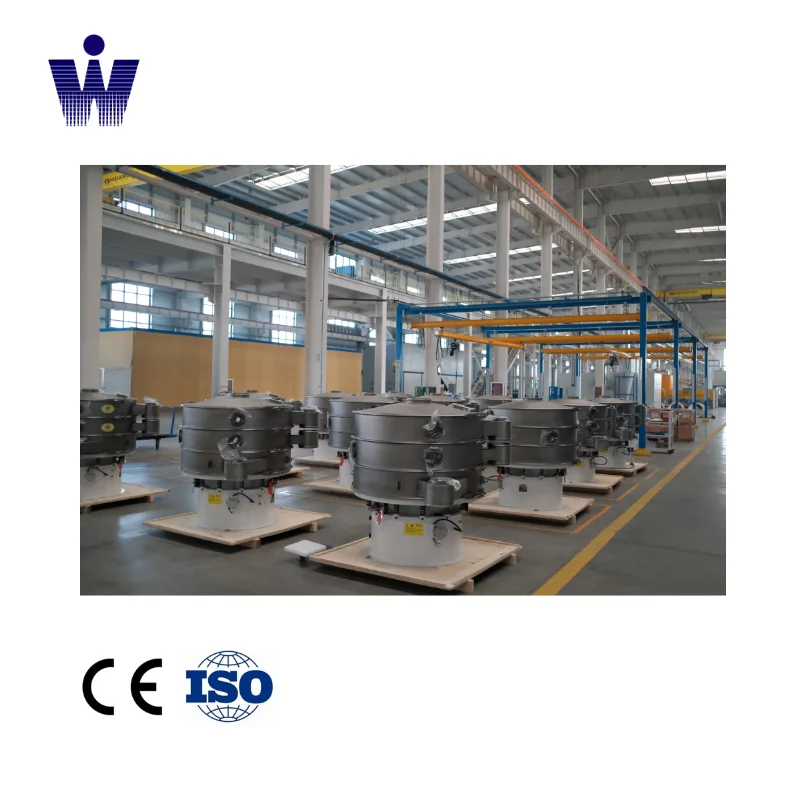

Over 40,000 square metes of intelligent, digital, green and highly automated manufacturing super plant was successfully put into production in 2023. We have invested heavily in systems such as hydraulic forming, laser cutting, centre positioning, automatic welding and machining centre. We have constructed an assembly line for circular screening systems and an automatic installation line for gyratory screens.
Over 40,000 square metes of intelligent, digital, green and highly automated manufacturing super plant was successfully put into production in 2023. We have invested heavily in systems such as hydraulic forming, laser cutting, centre positioning, automatic welding and machining centre. We have constructed an assembly line for circular screening systems and an automatic installation line for gyratory screens.
Hot Selling Products
FYBS Gyratory Screen
YBS Tumbler Screen
WLQ Centrifugal Screen
S49AQ
Direct Discharge vibrating screen
SZF Linear Vibrating Screen
S49AC
Ultrasonic Vibrating Screen
FAQ
1. What is the after-sales service of your factory?
Our machines are guaranteed for 12 months, excluding screens. During the warranty period, we will replace damaged parts for our clients. And we will continue to provide customers with operation guidance. We are available to offer help all the time.
2. What is the delivery time from the factory?
2. What is the delivery time from the factory?
The lead time for general products is 15-30 days, but bulk products and customized products require longer production time, generally 30-60 days. (Excluding shipping time)
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
4. Payment Terms?
We usually accept T/T, L/C;
We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery.
