Shining osb production line machine osb production line making machine
- Category: >>>
- Supplier: Linyi Shining International Trading Co. Ltd.
Share on (1601040834039):
Product Overview
Description
Original manufacturer of plywood making machines for more than 29 years
1.29 years experieced plywood machine manufacturer with strong quality control system and team.
2.one year warranty period.
3.The spare parts easy damaged parts and wearable parts will be shipped with machines
4.Free spare parts and service will be provide in the warranty period.
5.OEM,ODM And Customization is accepted.
1) Almost all kinds of plywood machines are available here.
2) online technical and engineers support.
3) Promise to offer you the super quality products with best price and service.
4) Factory direct selling price.
Product Paramenters

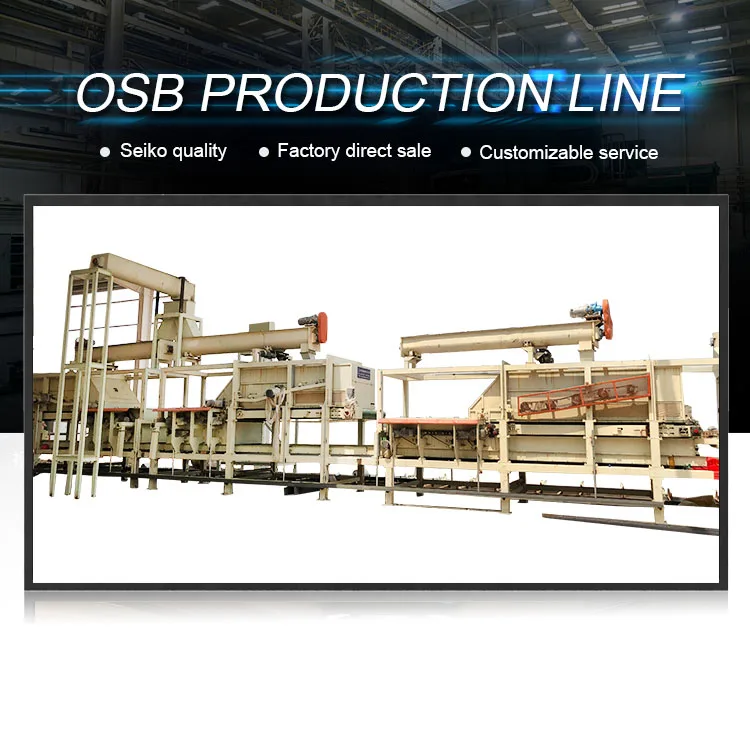

OSB Poduction Line | ||
Raw material: | Logs, branches, twigs, industrial wood reidue | |
Board size: | 3*6 feet, 4*8 feet, 6*9 feet, etc | |
Annual capacity: | 10000cbm, 30000cbm, 50000cbm, 100000cbm | |
Total power: | According to the capacity | |
Control: | PLC | |
Chipper | ||
The imported raw materials size: | 230*500mm | |
Fly number: | 2pcs | |
Knife stick speed: | 590rpm | |
Max diameter of the raw material: | 230mm | |
Wood size: | 30mm | |
The dimension: | 1800*1900*1210mm | |
Dryer | ||
Cylinder dia.: | 2600mm | |
Cylinder length: | 12000mm | |
Cylinder speed: | 3-9r/min | |
Heating tube dia.: | Φ51mm | |
Motor power: | 15kw | |
Overall dimensions: | 15000*2700*2200mm | |
Weight: | 11000kgs | |

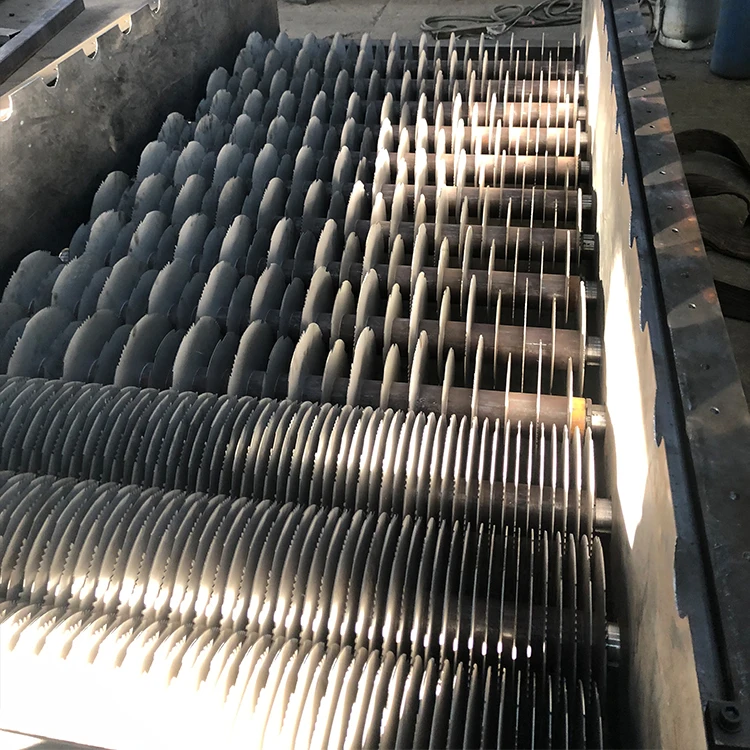

Rectangular Screen | ||
The layer number of screening: | 3 layers | |
Mesh size(upper): | 65*65mm | |
Mesh size(middle): | φ4mm | |
Screening area: | 8m² | |
Production capacity(wood): | 100-130m³/h | |
The motor power: | 7.5kw | |
Dimension: | 5250*2670*1880mm | |
Glue Blender | ||
Motor power: | 18kw, 22kw | |
Dimensions: | 2600*1000*800mm 2600*1000*850mm | |
Material of inner tank: | stainless steel | |
Forming Machine | ||
Capacity: | 50000m³/year | |
Working width: | 1830-1900mm | |
Working thickness: | 13-130mm | |
Dimension: | 6000*1650*2400mm | |
Main motor power: | 16.5kw | |

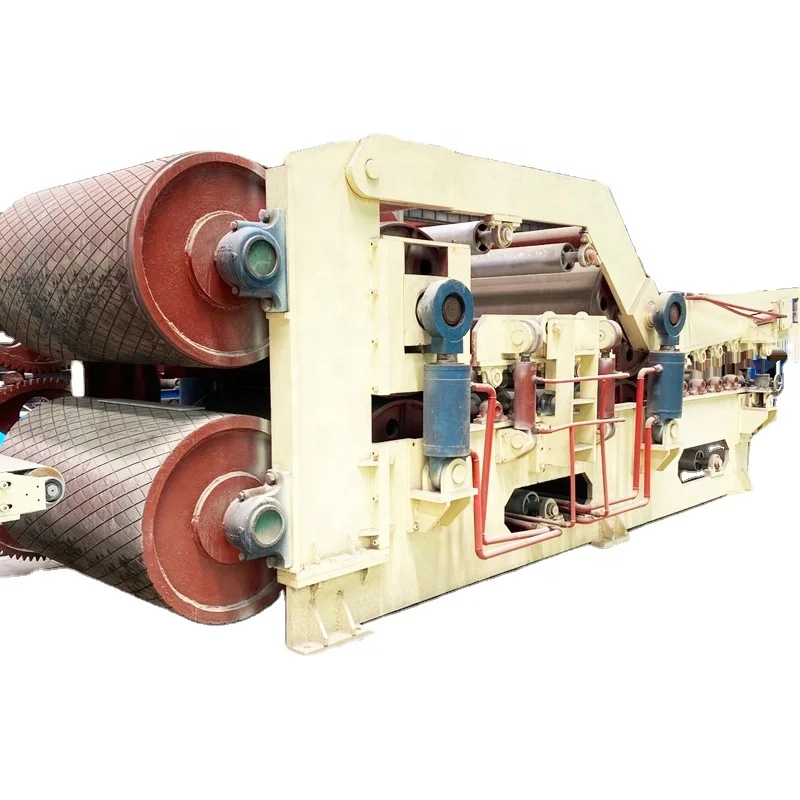

Multi-roller Pre-press | ||
Pressure roller diameter: | 900mm*2 | |
Drive roller diameter: | 640mm*2 | |
Tension bridle roller diameter: | 500mm*1 | |
Preloading roller diameter: | 196mm*8 | |
Pressure belt thickness: | 6mm | |
Pressure belt width: | 1900mm | |
Pressure belt speed: | 3-12m/min | |
The largest entry opening: | 250mm | |
The pressure of pressure roller: | 2200N/cm | |
Dimension: | 4300*4000*2000mm | |
Weight: | 14000kg | |
Hot Press | ||
Layer: | 25layers | |
Number of hot press plate: | 26pcs | |
Stroke: | 2000mm | |
Compression resistance: | 25Mpa | |
Main frame: | 40mm Q235 | |
Overall dimension: | 3600mm*1370mm*6720mm | |
Weight: | about 86tons | |

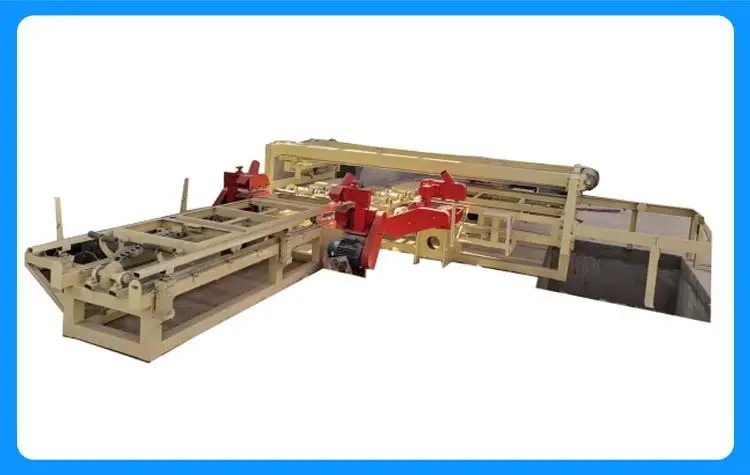

Edge Trim Saw for Finished Board | ||
Saw edge size: | 1830*2750mm | |
Max. sawing plate thickness: | 90mm | |
Operating speed: | 30-90m/min | |
Dia of saw blade: | Φ250mm or Φ305mm | |
Saw blade number: | 4pcs | |
Saw rotate speed: | 7500r/min | |
Dimension: | 7700*3300*1500mm | |
Sanding Section | ||
Operation width: | 1300mm | |
Min. operation length: | ≥500mm | |
Material thickness: | 5-100mm | |
Sand-belt size: | 3000*1350mm | |
Machine size: | 3450*3080*3150mm | |
Weight: | 3600kg | |
Company information
Exhibition
Certifications
Why Choose Us
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Q: Can you accept OEM?
A: Yes, we can produce the machine according to customers' requirements.
2. Q: What about your products' quality?
A: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
3. Q:How about delivery?
A: When the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
4. Q: Why does the price often change?
A: The price depends on the latest prices of the raw materials.
5. Q: How about your the price often change?
A: We have 24 hours online service and also have professional staff to slove your doubts.
2. Q: What about your products' quality?
A: We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.
3. Q:How about delivery?
A: When the product is ready, it can be delivered to you after your full payment. We'll provide technical guidance.
4. Q: Why does the price often change?
A: The price depends on the latest prices of the raw materials.
5. Q: How about your the price often change?
A: We have 24 hours online service and also have professional staff to slove your doubts.
