30mm led pixel light point source module 12v 24v linear pixel led point lights
- Category: >>>
- Supplier: Shenzhen Fengju Technology Co. Ltd.Shenzhen Ltd.
Share on (1601040877172):
Product Overview
Description
Product Description

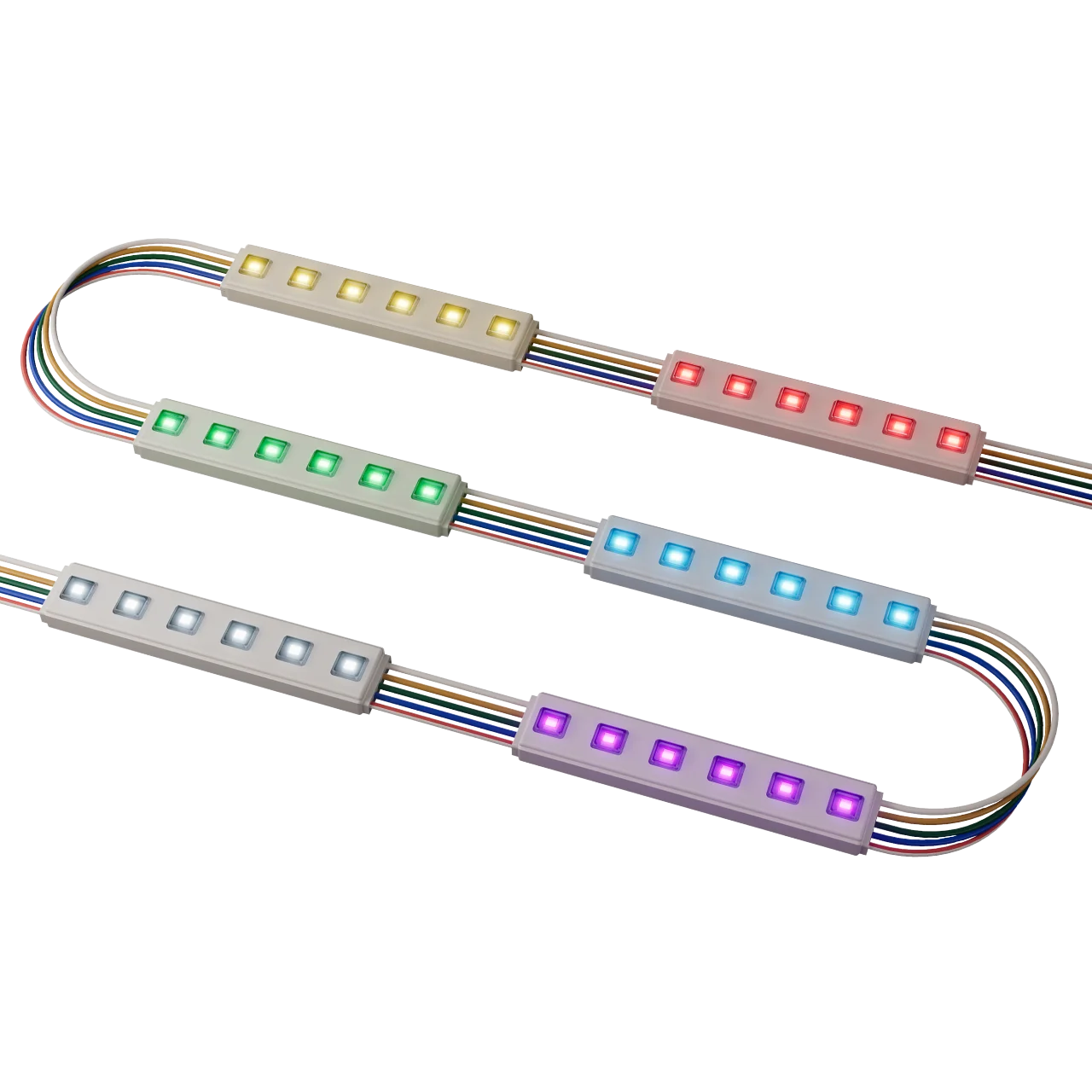

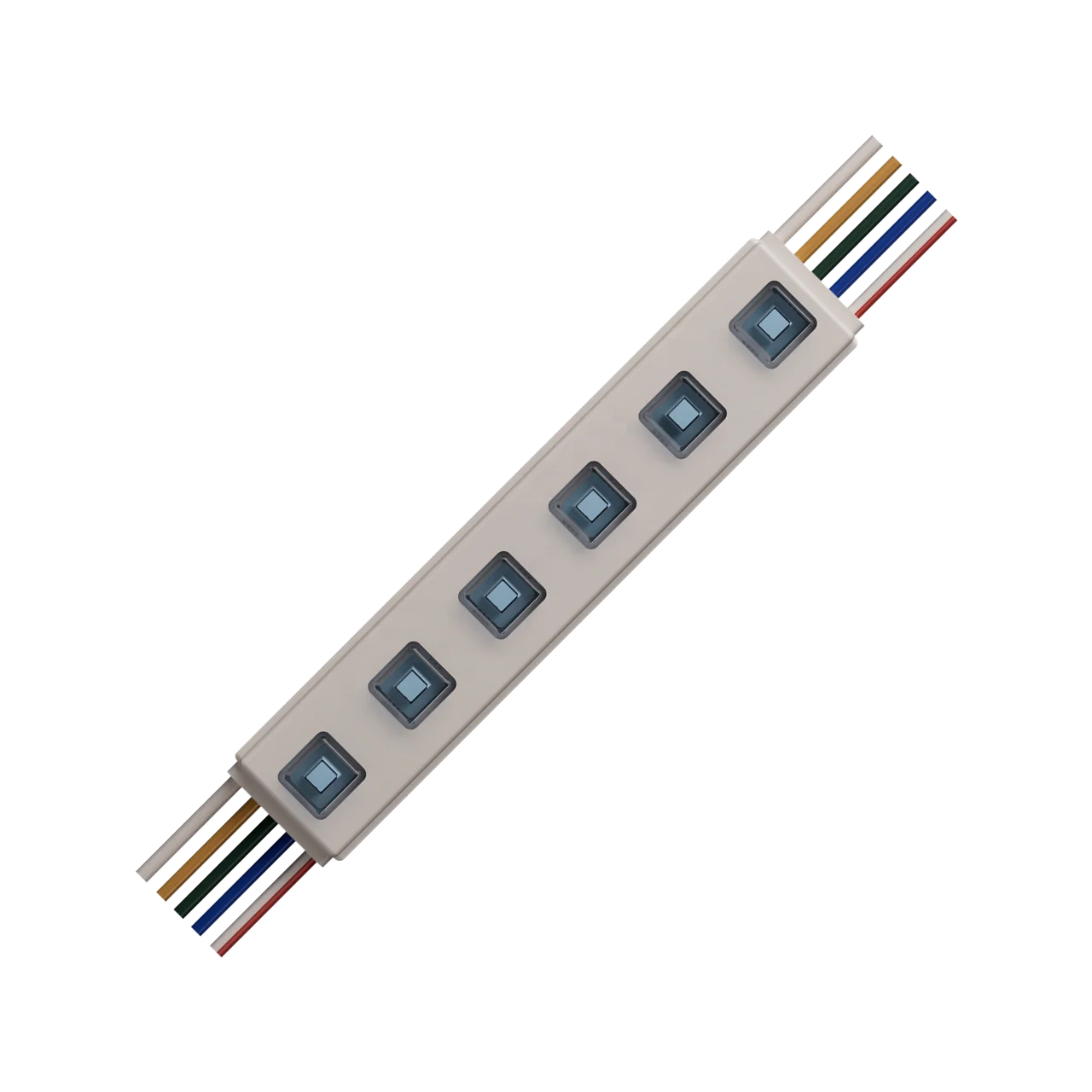

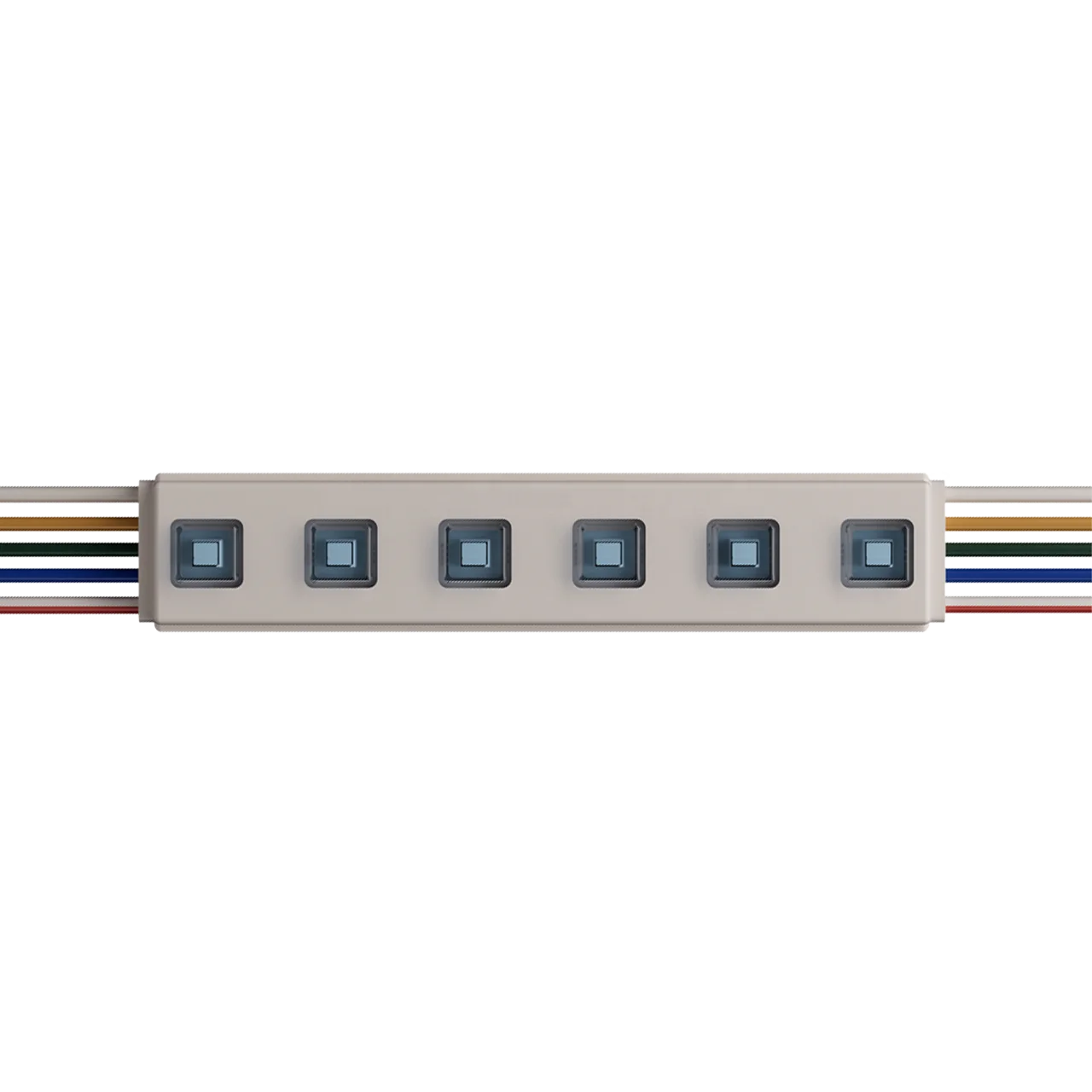

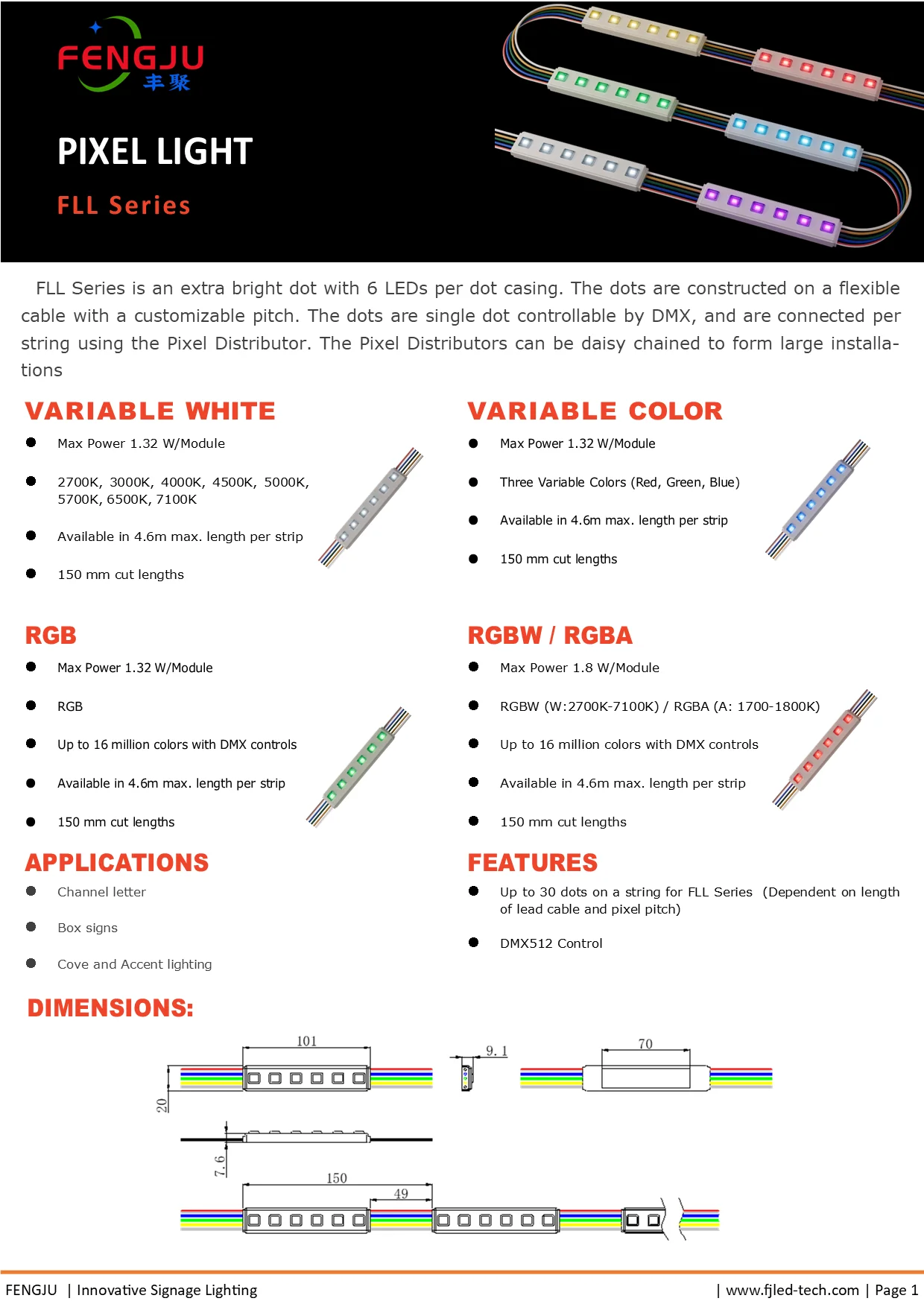

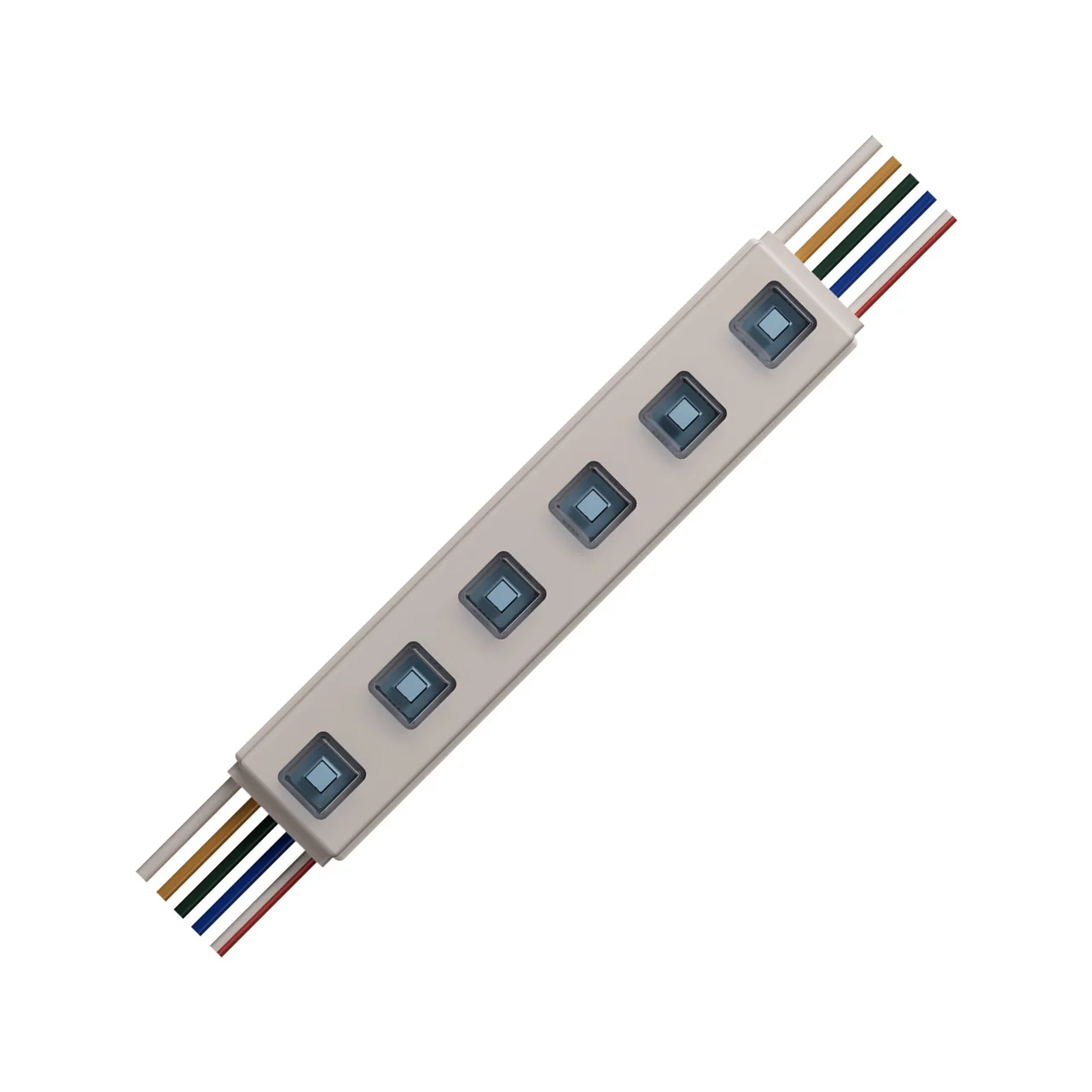

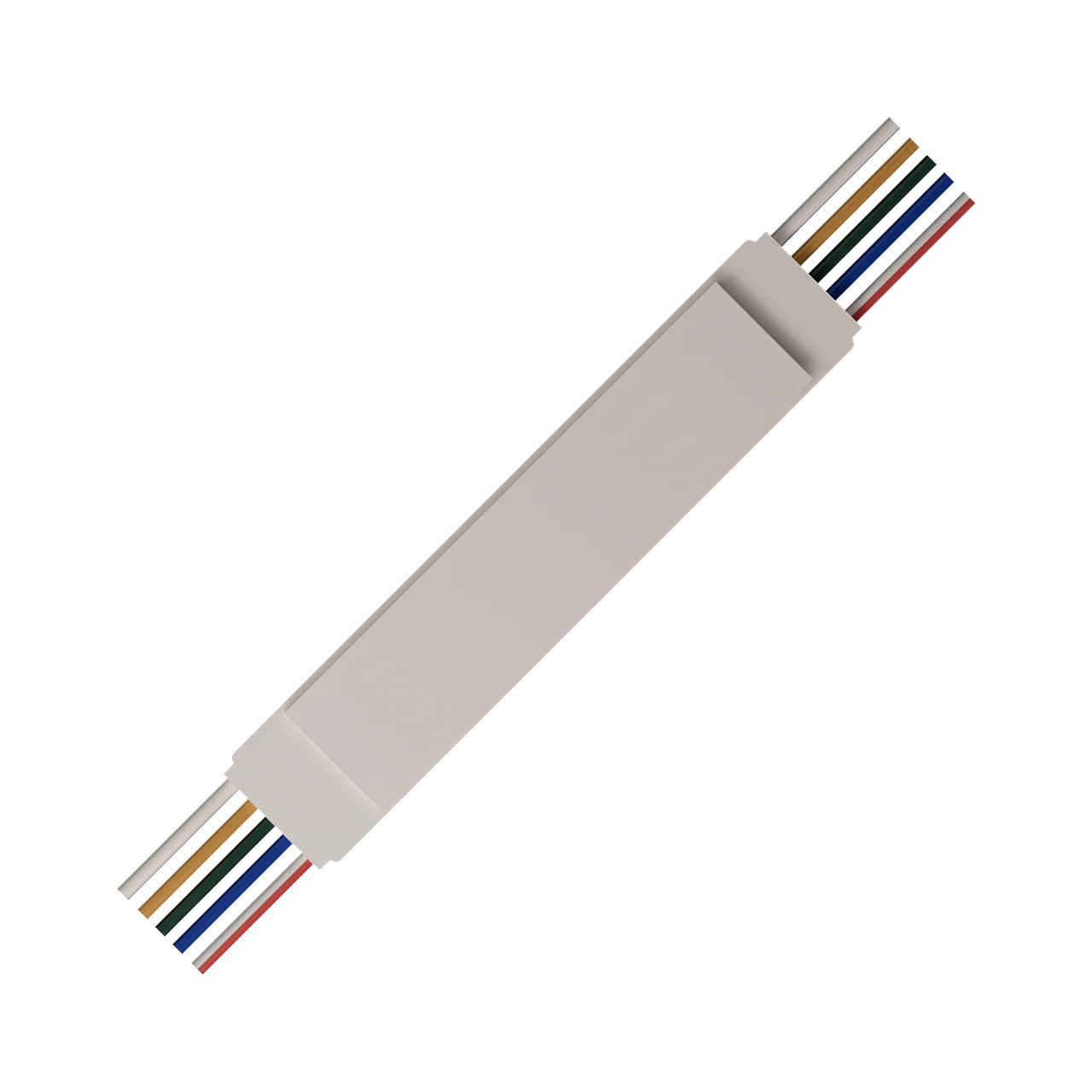

FLL RGBW modules are premium color changing signage modules engineered for constant current so there is no lumen drop across the full length of any string. The FRL RGBW module features four chips in each LED – red, green, blue and white for added brightness. Use DMX controls to tune RGBW modules to any color. Insulation Displacement Connection is adopted to reduce the voltage drop of long-distance supply. FRL Series modules are rated IP66 and come with a 2-year warranty.
Product Paramenters
PRODUCT RATINGS | ||||||
Luminous Efficacy | 47.19 lm/W (Full on) | Input Current | 69mA (Full on) | |||
25.6 lm/W (Red) | 25 mA (Red) | |||||
48.9 lm/W (Green) | 25 mA (Green) | |||||
11.4 lm/W (Blue) | 25 mA (Blue) | |||||
52.5lm/W (White) | 25 mA (White) | |||||

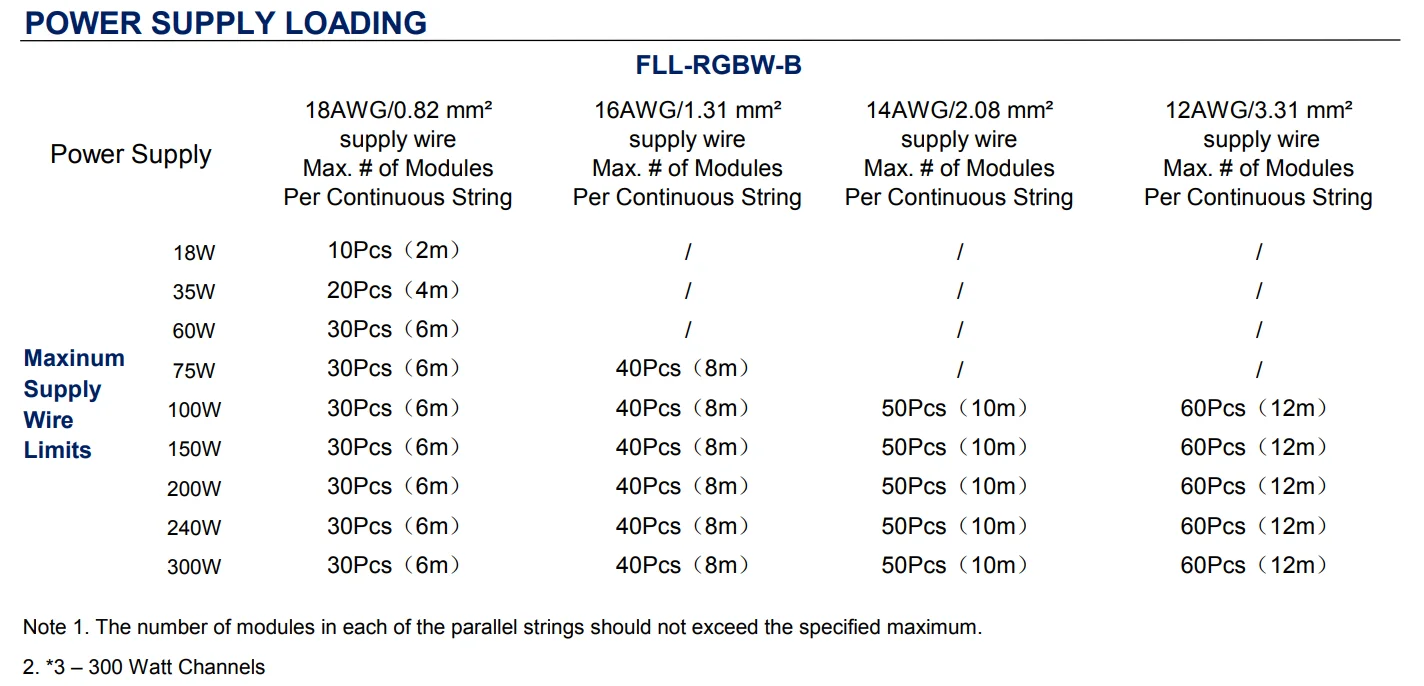

Wattage per Module | 1.65 W/module (Full on) | Power Supply Loading | 55 modules per 100W | |||
0.60 W/module (Red) | Ingress Protection | IP66 | ||||
0.60 W/module (Green) | Operating Temperature | -40° — +60° C | ||||
0.60 W/module (Blue) | L70 Lifetime @ 60° C | 50,000 Hours | ||||
0.60 W/module (White) | Warranty | 2 Year Limited Warranty | ||||
Input Voltage | 24 VDC | Number of Pixel | 30 pixels / Strip (1 Pixel per module) | |||
Control | DMX512 | Addressing Options | Auto-Addressing | |||
Product Family

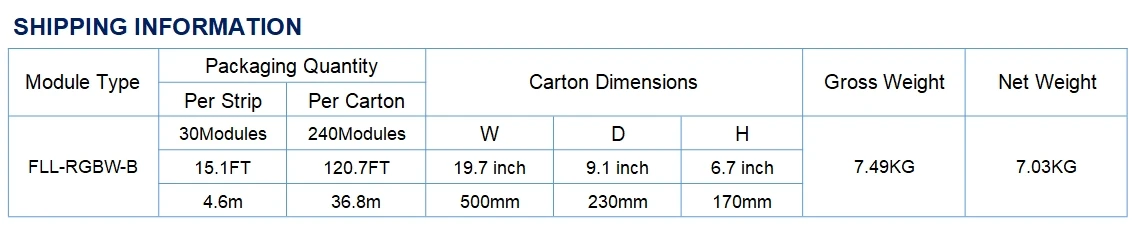

Packing & Delivery
Recommend Products

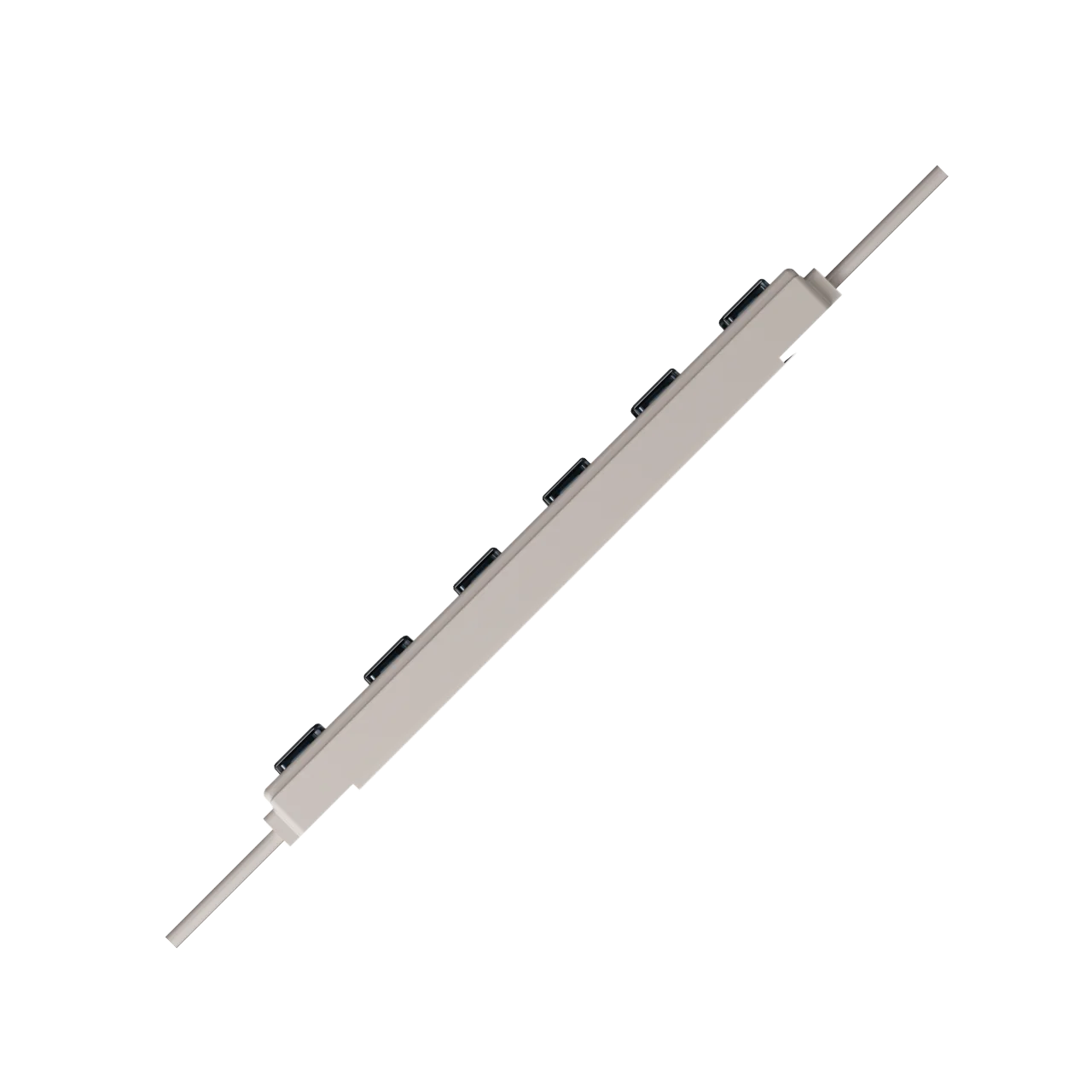

FRL-RGBW(2700K-7100K)

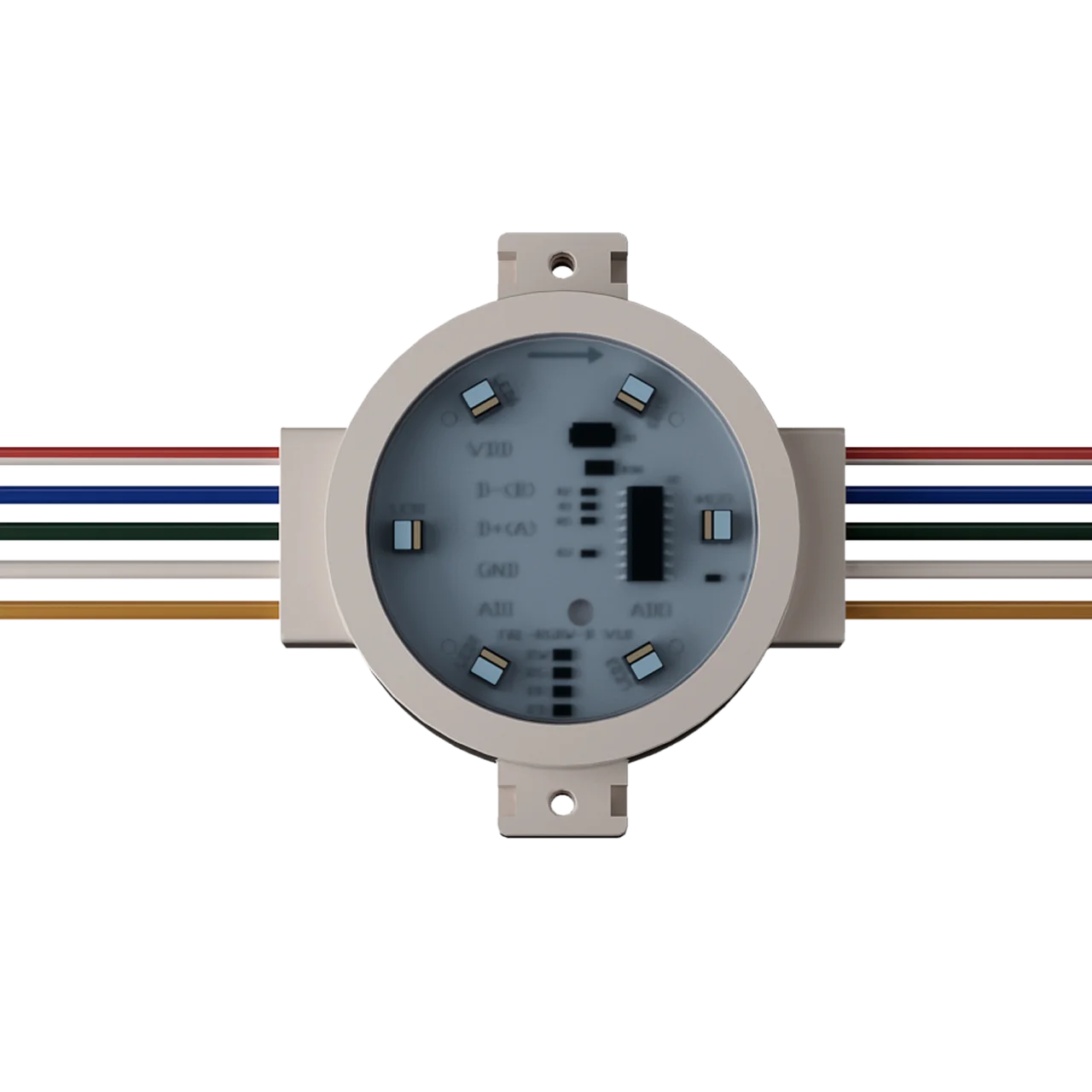

FRM-RGBW(2700K-7100K)

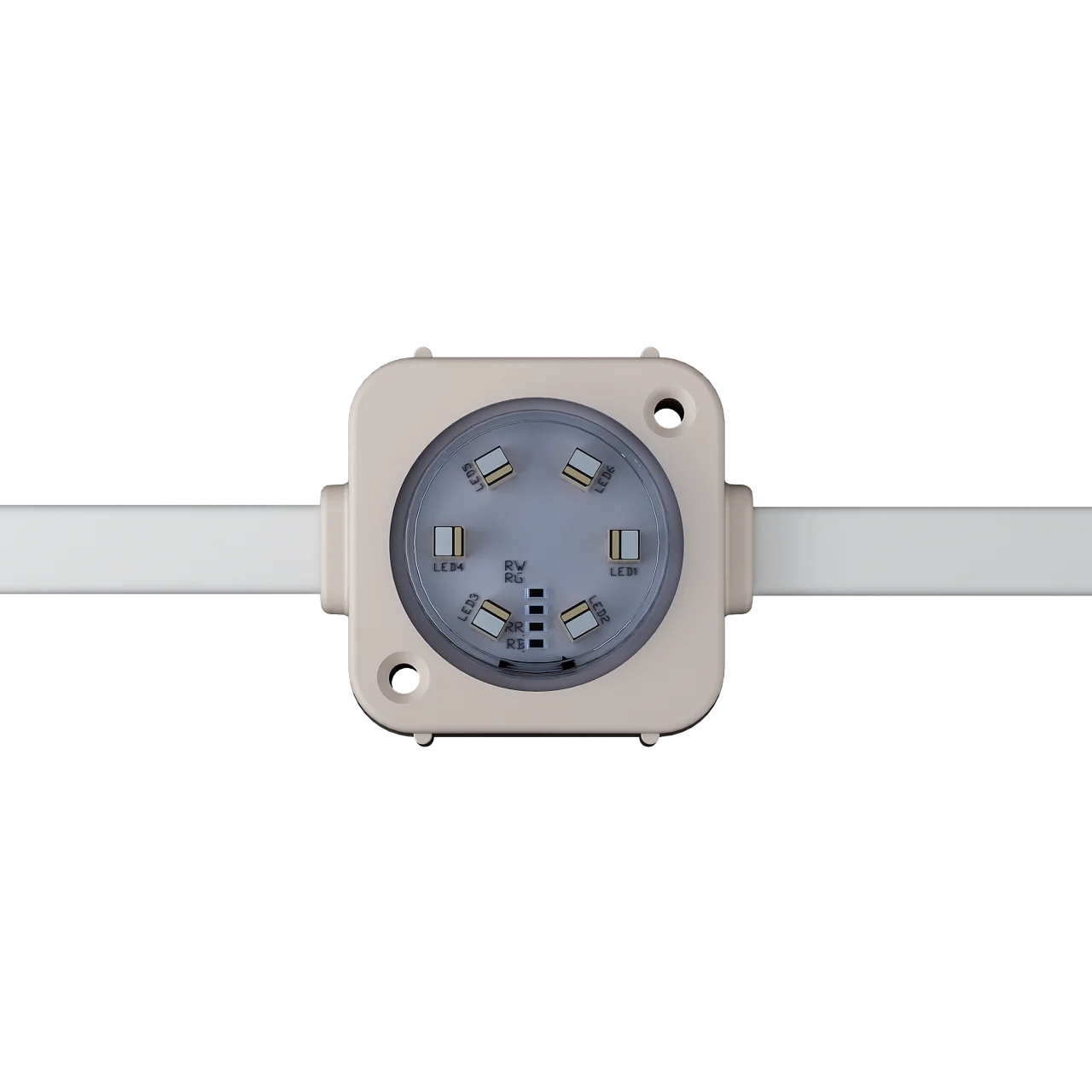

FRVS-RGBW(2700K-7100K)
Company Profile
Fengju Technology, founded in China since 2012,is a full service, design and manufacturing company specializing in architectural LED lighting, DMX control system solutions especially in Facade Lighting, Signage Boxes for the buildings, fuel station, landscape etc.

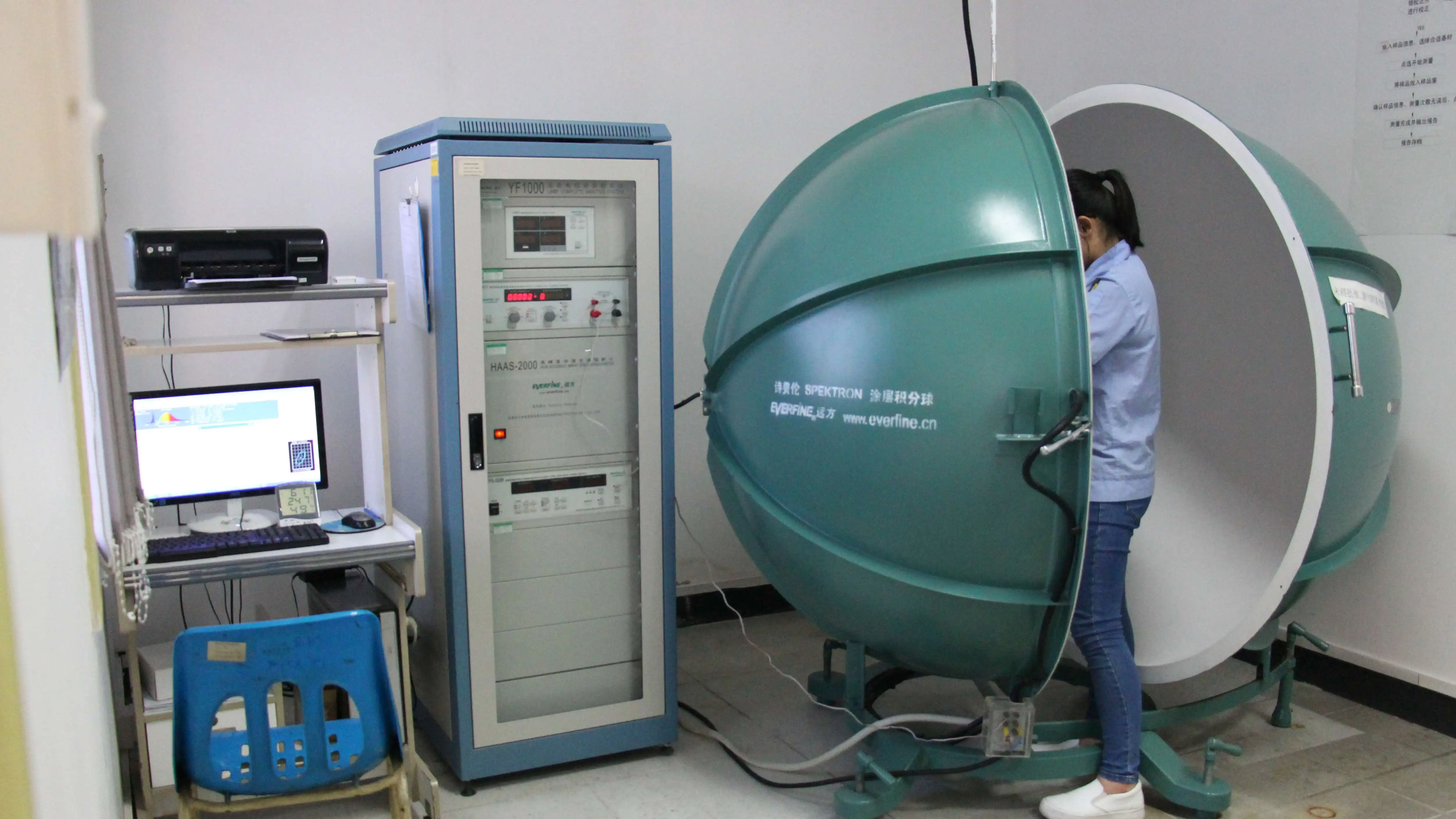

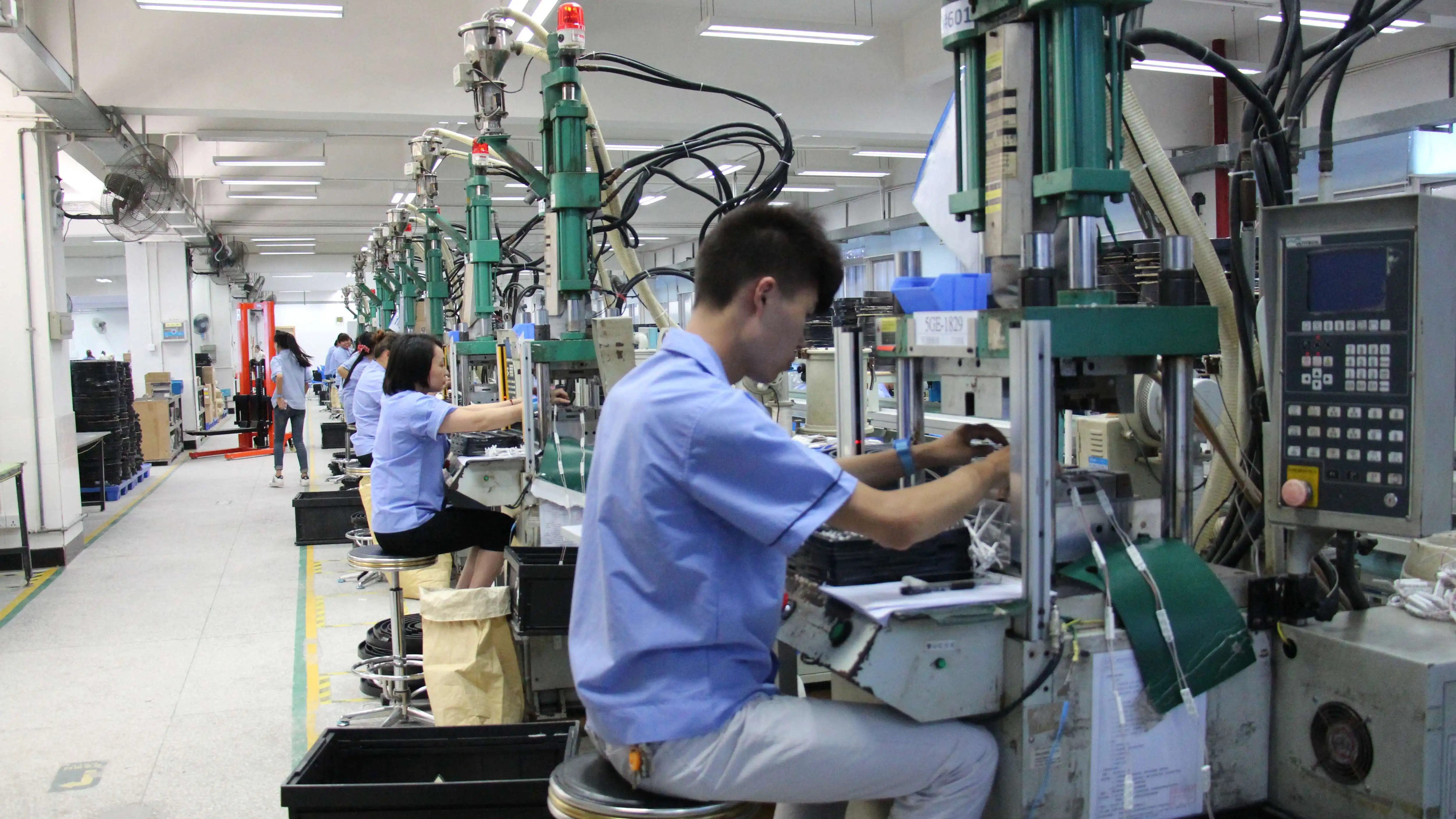

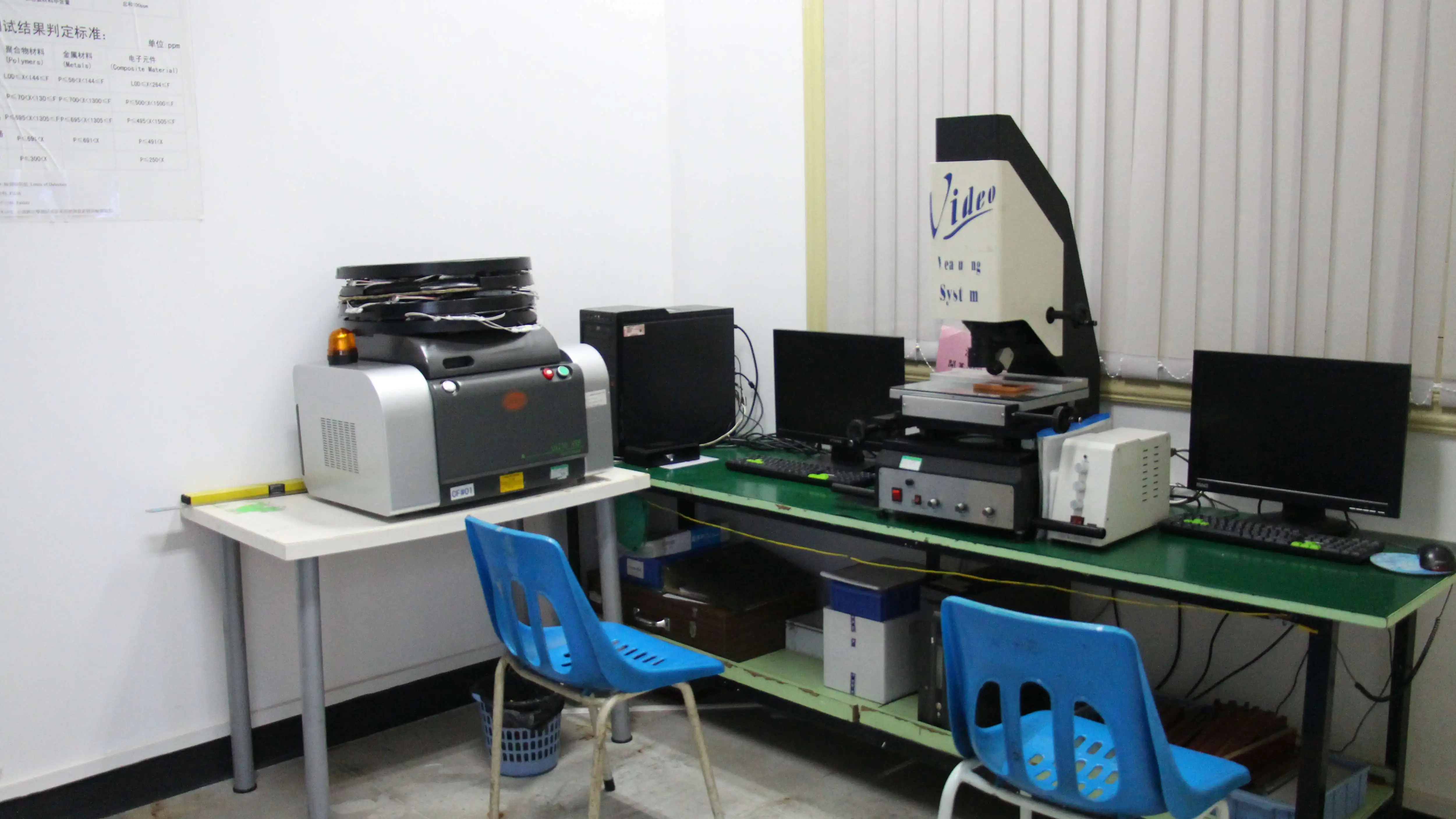

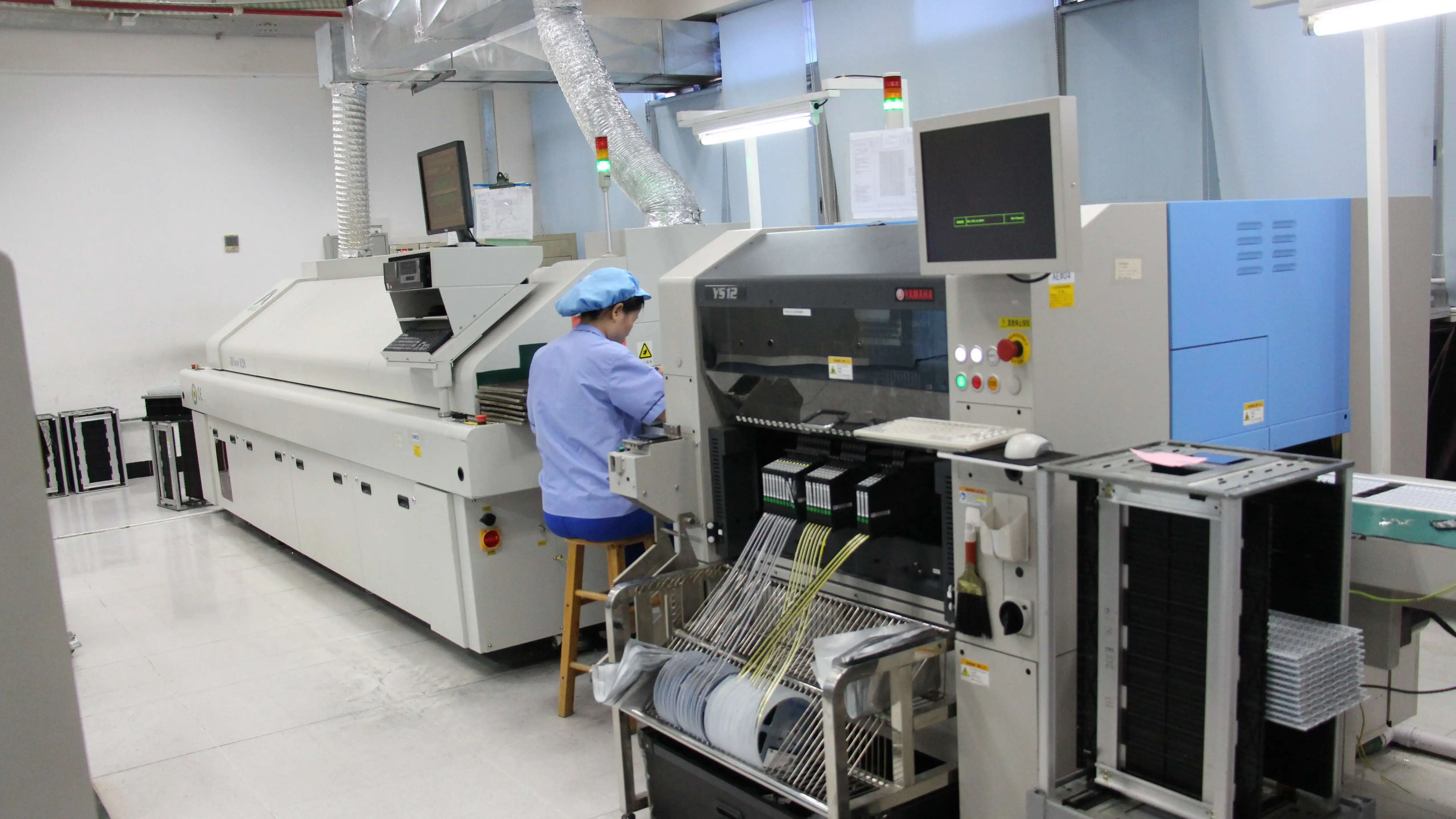

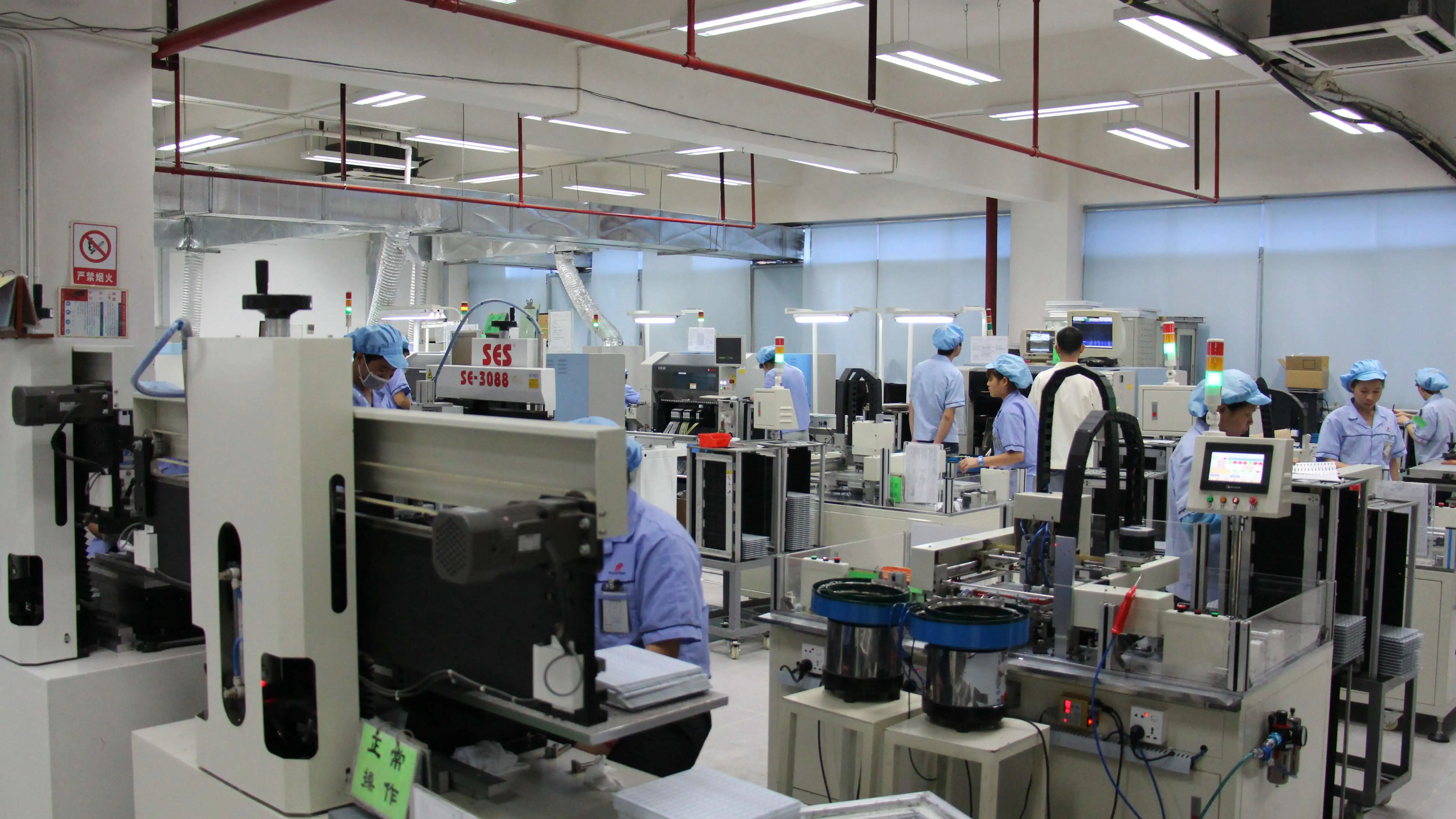

Using the professional technology and processes, Fengju is able to provide clients a turnkey solution that meets the requirement in the most cost effective manner. Our production factories are highly efficient, well equipped with the most reliable and professional machineries/equipments, such as computer controlled wave-soldering machine, integrating sphere, vibration tester, lab. Sphere and waterproof tester. In addition, by using brand name & reliable components and competitive. Furthermore, we have obtained 3C, CE & UL certification for all of our products.
Fengju Technology is committed to provide the excellence services to all of our customers.
FAQ
Q: What is your MOQ?
A: The standard models are 30pcs pieces. For the customized models are 30 pieces for each model.
Q: How can I get the discount?
A: The discount is following the quantity of LED module in your order. Samples or small quantity need higher price. There are many
steps to produce the LED module in our workshop. Rolling the orders to get a bigger discount
Q: What about the delivery time?
A: It is 10 days for the sample order. And there are 15-25 days for the mass production.
Q: About the Shipping and freight?
A: We ship the goods by DHL, FedEx, UPS, or others. If the GW and Dimension is large, we will arrange to ship by sea or air
freight.
Q: How do you control the quality?
A: Our factory has more than 10 year experiences in LED module manufacture. Each LED module is tested 2 times in the processing.
Q: What is your payment term?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance/deposit, the balance cost before the shipping.
Q: How about your warranty?
A: Two year guarantee for the LED module Lighting.
Q: How can I get the discount?
A: The discount is following the quantity of LED module in your order. Samples or small quantity need higher price. There are many
steps to produce the LED module in our workshop. Rolling the orders to get a bigger discount
Q: What about the delivery time?
A: It is 10 days for the sample order. And there are 15-25 days for the mass production.
Q: About the Shipping and freight?
A: We ship the goods by DHL, FedEx, UPS, or others. If the GW and Dimension is large, we will arrange to ship by sea or air
freight.
Q: How do you control the quality?
A: Our factory has more than 10 year experiences in LED module manufacture. Each LED module is tested 2 times in the processing.
Q: What is your payment term?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance/deposit, the balance cost before the shipping.
Q: How about your warranty?
A: Two year guarantee for the LED module Lighting.
